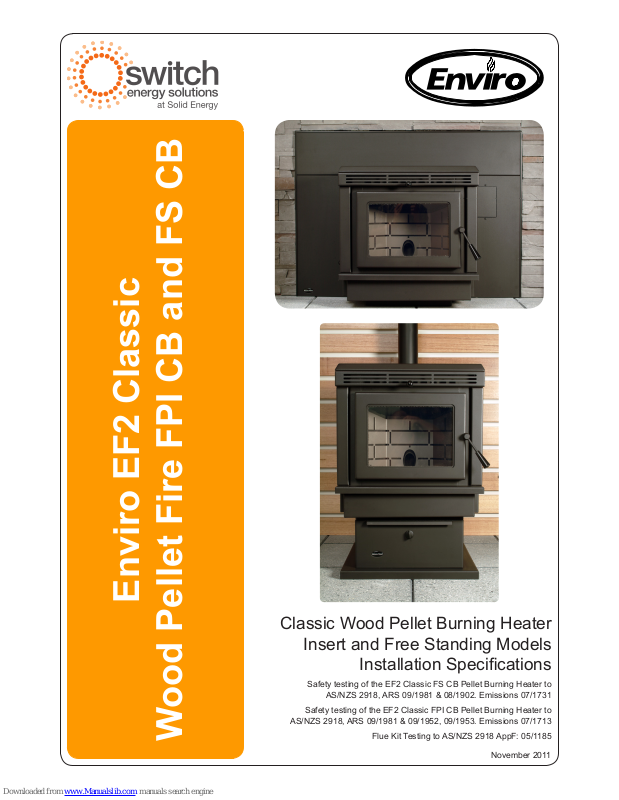

November 2011
Enviro EF2 Classic
Wood Pellet Fire FPI CB and FS CB
Classic Wood Pellet Burning Heater
Insert and Free Standing Models
Installation Specications
Safety testing of the EF2 Classic FS CB Pellet Burning Heater to
AS/NZS 2918, ARS 09/1981 & 08/1902. Emissions 07/1731
Safety testing of the EF2 Classic FPI CB Pellet Burning Heater to
AS/NZS 2918, ARS 09/1981 & 09/1952, 09/1953. Emissions 07/1713
Flue Kit Testing to AS/NZS 2918 AppF: 05/1185
2
November 2011
Installation
Dimensions – Classic Freestanding
Dimensions - Classic Insert & Built-In Heater
597 mm
525 mm
556 mm
767 mm
FPI (612 mm)
333 mm
559 mm
FPI
579 mm
3
November 2011
Installation Clearances & Specications
Minimum clearances shown are in millimetres. All Enviro res are tested to AS/NZS2918:2001.
Specications were correct at time of printing but may alter and those detailed below should be used as
a guide only. Refer to the Installation and Operation Manual supplied with every Enviro Pellet Fire or if
in doubt, consult your Switch Retailer. Refer to Safety Test 09/1981 for all clearances to combustibles.
Clearances to Combustibles
Internal Flue (Freestanding)
Built-In Fire and Flue
Internal Flue
External Flue (Freestanding)
B
C
A
E
D
Clearances to Combustibles
Classic Pellet Fire
(built-in & freestanding)
Freestanding
Clearances
Built-In Heater
Clearances
G
F
B
F
G
E
B
J
H
A
E
J
J
F
B
I
F
E
Location
Dimension
(mm)
A 100
B 150
C* 50
D ~210
E N/A
F 75
G* 50
H 100
I* 50
J* 25
Location
Dimension
(mm)
K 100
L 920
M
#
1020
N 150
O
#
150
P* 50
NOTE: Built-In re clearances don’t apply in a non-combustible cavity. However, remember you will need access for servicing. The above clearance to
combustibles on the ue are only applicable within the re envelope. Clearance outside this e.g.at a ceiling / wall thimble reverts to 25mm as per ARS ue test
05/1185. Correct as at November 2011.
#
Fire hearth width indicative only. Critical measurement is “O”, extending in front of the re. Hearth width only needs to
be same as re width.
* from shielded ue
Note: AS/NZS 2918
requires a minimum
of 100mm clearance
for any side requiring
access.
Note: These are
minimum clearances to
combustibles. Actual
installation distances
may be greater.
WALL WALL WALL WALL WALL WALL WALL
K
L
WALL WALL WALL WALL WALL WALL WALL WALL
N
M
P
O
4
November 2011
Location of the Pellet Fire
Installation of the Enviro Classic Wood Pellet Burning Heater should be undertaken by an
experienced installer. Please read the Classic Owners/Technical Manual thoroughly before
commencing installation as failure to follow the instruction could cause damage to the pellet
re or property.
Positioning the re:
Generally the Classic should be installed in a centrally located position within the home. When
deciding where to position the appliance in your room you need to consider the following:
• Location of a power source
• The Classic has a convection fan which blows air through tubes in the direction that the
re faces, for optimum performance this location should be in a large room centrally
located.
• The Classic must be installed on a non-combustible surface. This surface must protrude
150mm from the front of the closed pellet re door.
• The Classic has been Safety Tested to AS/NZS 2918 using the Davins manufactured
ue. Test Report ARS 05/1185. Installation is not exclusive to these nominated kits,
though alternative ue should only be considered following consultation with your local
council.
• Please consult page 3 for the required clearances to combustible material also ensure
the position of structural elements near the proposed ue.
• Because of the positive pressure in the ue, sealing of all 75mm stainless joints is
mandatory – use high temperature sealant. Both inner and outer ue joints must be
riveted.
• Seismic Restraint: Please see page 9 for requirements.
• Warranty: To validate warranty following installation a copy of the completed Warranty
Registration Form/Producer’s Statement must be forwarded to: Switch - Fax (03) 341
8057.
5
November 2011
Internal Standard Flue Kit (50)
Internal Standard Flue Kit
Each 50 Internal Standard Flue Kit contains:-
ytitnauQnoitpircseDoN traP
1 Galvanised outer liner
ø100mm x 900mm long 1
4
3
2
1
1
1
1
1
1
2
2 Stainless steel inner liner
ø75mm x 900mm long
4a Black p/coat outer liner
ø100mm x 900mm long
5 Inner/outer ue liner spacer
6c Ceiling thimble ø107mm hole
7c Ceiling decor plate
ø107mm hole – white
8 Rain cap 75mm
9 Rain Cap 100mm
10b Elbow 45° – ø75mm stainless
– black (painted)
12H T-adaptor/cleanout – ø75mm
– black (painted)
23 Support angle 950mm long
– 50mm x 50mm sides
This ue kit may be used in new and replacement
applications in rooms with stud height of 2.4m. The
overall height of the ue is 3.6m. The visible u e is
nished in black and the ceiling plate is white. T he
support angles for securing the liner to the ceilin g are
not shown. Kit is supplied in a carton.
Heat-resistant
oor protector
Seismic restraint
(to be tted)
50mm minimum clearance if lined ue
600mm from
roof
penetration
~
210 mm
150mm
Note: The Davin 50 Internal Standard Flue
Kit complies with AS/NZS 2918:2001 as per
Applied Research Test Report 05/1185, dated
15 September 2005.
All res must be installed by a qualied
installer as per the manufacturer’s
instructions and AS/NZS2918:2001.
50
This ue kit may be used in new and replacement
applications in rooms with stud height of 2.4m.
The overall height of the ue is 3.6m. The visible
ue is nished in black and the ceiling plate is
white. The support angles for securing the liner to
the ceiling are not shown. Kit is supplied in carton.
6
November 2011
External Standard Flue Kit (51)
Each 51 External Standard Flue Kit contains:-
ytitnauQnoitpircseDoN traP
1 Galvanised outer liner
ø100mm x 900mm long
2 Stainless steel inner liner
ø75mm x 900mm long
5 Inner/outer ue liner spacer
6w Wall thimble – 2 pieces
ø102mm holes
6s Sot thimble ø107mm hole
7w Wall decor plate
ø102mm hole – white
8 Rain cap 75mm
9 Rain Cap 100mm
26 Lined T-adaptor
This ue kit may be used in new and replacement
applications with the ue penetrating the wall behind
the re, running vertically up an outside wall and
penetrating the sot. The overall height of the f lue is
3.6m. All visible ue has a galvanised nish, and can be
powdercoated on request. Kit is supplied in a carton.
Note: The Davin 51 External Standard Flue
Kit complies with AS/NZS 2918:2001 as per
Applied Research Test Report 05/1185, dated
15 September 2005.
All res must be installed by a qualied
installer as per the manufacturer’s
instructions and AS/NZS2918:2001.
Heat-resistant
oor protector
Seismic restraint
(to be tted)
600mm from
roof penetration
100mm
(minimum)
150mm
(minimum)
External Standard Flue Kit51
4
4
2
1
1
1
1
1
1
This ue kit may be used in new and replacement
applications with the ue penetrating the wall
behind the re, running vertically up an outside
wall and penetrating the soft. The overall
height of the ue is 3.6m. All visible ue has a
galvanised nish, and can be powdercoated on
request. Kit is supplied in a carton.
7
November 2011
Insert Flue Kit (52)
Each 52 Insert Flue Kit contains:-
ytitnauQnoitpircseDoN traP
2 Stainless steel inner liner
ø75mm x 900mm long 5
8 Rain cap 75mm 1
12 T-adaptor/cleanout – ø75mm 1
16 Clamp – exible ue to
stainless ue pipe 1
19 Flexible ue pipe – stainless
steel ø75mm x 1m 1
21 Bracket 75mm securing
ue pipe to wall 1
839 Casing cover – standard
ø75mm - ø300mm 1
34 Chimney cover – may be required
as an optional extra
This ue kit may be used in replacement applications
in masonry chimneys. The overall height of the ue is
4.5m. Kit is supplied in two cartons.
Note: The Davin 52 Insert Flue Kit
complies with AS/NZS 2918:2001 as per
Applied Research Test Report 05/1185,
dated 15 September 2005.
All res must be installed by a qualied
installer as per the manufacturer’s
instructions and AS/NZS2918:2001.
Heat-resistant
oor protector
Seismic restraint chain. To be tted one on each
side of the re at the mid point. The chain should
have a breaking strength of at least 350kg or
minimum 3.5mm nominal diameter. Chains
should be anchored to the oor (not framing or
masonry), and should be as short as possible,
only allowing access to unbolt the chains from the
re to allow the re to be pulled forward for servicing.
Chimney cover
– optional extra
150mm
(minimum)
Insert Flue Kit52
8
November 2011
Built In Heater (non-chimney) Flue Kit (54)
Each 54 Built-in-Heater Flue Kit
(non-Chimney installation) contains:-
ytitnauQnoitpircseDoN traP
Galvanised outer liner
ø100mm x 900mm long
Stainless steel inner liner
ø75mm x 900mm long
Inner/outer ue liner spacer
Ceiling thimble ø107mm hole
Rain cap 75mm
Rain cap 100mm
Elbow 45° – ø75mm stainless
– black (painted)
T-adaptor/cleanout – ø75mm
This ue kit may be used in new or existing timber
chimneys. The overall height of the ue is 3.6m.
Kit is supplied in a carton.
Note: The Davin 54 Built-in-Heater Flue Kit
(non-Chimney) complies with AS/NZS
2918:2001 as per Applied Research Test
Report 05/1185, dated 15 September 2005.
All res must be installed by a qualied
installer as per the manufacturer’s
instructions and AS/NZS2918:2001.
600mm from
roof
penetration
Built-in-Heater Flue Kit
(non-Chimney installation)
54
4
4
2
1
1
1
1
1
1
2
5
6c
8
9
10b
12
50mm minimum clearance if lined ue
150mm
(minimum)
Heat-resistant
oor protector
Seismic restraint
(to be tted)
9
November 2011
Flashing Options:
Decktite - For all Steel Roof Proles
Please circle the ashing option to be used. When considering an alternative method please consult
your local council.
Seismic Restraint
Concrete Floor
Installation scenarios for the Classic FS and Built In Models require the use of hold-down anchors (one
on each side)
Fixing to Concrete Floor:
Minimum M8 expansion anchors (M10 recommended) or min M8 epoxy- set anchors.
Approved Anchors: Expansion Anchors-Ramset Dynabolt and Trubolt, Hilti HAS.
Epoxy-set Anchors – Ramset Epcon, Ramset Chemset and Hilti HVU.
Installation of the Insert Model (non-combusitble cavity) requires the use of a seismic restraint chains to
be tted one on each of the re at the mid-point. The chain should have a breaking strength of at least
350kg or minimum 3.5mm nominal diameter. Chains should be anchored to the oor (not framing or
masonry), and should be as short as possible, only allowing access to unbolt the chains from the re to
allow the re to be pulled forward for servicing.
Timber Floor
Minimum 14g x 60mm screws (6.3mm diameter) or M10 X 90mm coach-screws. These shall be xed
a minimum of 40mm into the centre-line of the existing oor joists. If screws cannot be installed directly
into an existing oor joist, solid blocking between joists (min size 90x45) shall be provided.
