SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
PAPER.
DV50DX
B Y : S H E R W O O D I N D U S T R I E S L T D
OWNER’S MANUAL
WHAT TO DO IF YOU SMELL GAS
• Open windows/extinguish any open ame.
• Do not try to light any appliance.
• Do not touch any electrical switch or use
any phone in your building.
• Immediately call your gas supplier from
a neighbour’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the re department.
This appliance may be installed
in an after market permanently
located, manufactured (mobile)
home, where not prohibited by
local codes.
This appliance is only for use
with the type of gas indicated
on the rating plate. This
appliance is not convertible for
use with other gases, unless a
certied kit is used.
WARNING
If the information in this manual is not followed exactly, a re or explosion
may result causing property damage, personal injury or loss of life.
Installation and service must be performed by a qualied installer, service
agency or the gas supplier.
Massachusetts installations (Warning): This product must be installed by a licensed plumber or
gas tter when installed within the Commonwealth of Massachusetts. Other Massachusetts code
requirements: Flexible connector must not be longer than 36in, shut off valve must be a “T” handle
gas cock; only direct vent sealed combustion products are approved for bedrooms/bathrooms;
replace dampers must be removed or welded in the open position prior to the installation of a
replace insert or gas log.
FOR YOUR SAFETY
Do not store or use gasoline or other ammable vapours and
liquids in the vicinity of this or any other appliance.
50-741
Safety Precautions
FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” HEATER,
PLEASE CAREFULLY READ THE FOLLOWING INFORMATION:
• All ENVIRO gas-red appliances must be installed
in accordance with their instructions. Carefully read all
the instructions in this manual rst. Consult the building
authority having jurisdiction to determine the need for
a permit prior to commencing the installation.
• NOTE: Failure to follow these instructions could
cause a malfunction of the replace, which could
result in death, serious bodily injury, and/or property
damage.
• Failure to follow these instructions may also void
your re insurance and/or warranty.
GENERAL
• Installation and repair should be done by a
qualied service person. The appliance should be
inspected before the rst use and, at least, annually
by a qualied service person. More frequent
cleaning may be required due to excessive lint from
carpeting, bedding material, etc. It is imperative the
control compartments, burners and circulating air
passageways of the appliance be kept clean.
• Due to high temperatures, the appliance should
be located out of high trafc areas and away from
furniture and draperies.
Children and adults should be alerted to the
hazards of high surface temperatures and
should stay away to avoid burn or clothing
ignition.
• Young children should be carefully supervised
when in the same room as the appliance.
• Clothing or other ammable materials should not
be placed on or near the appliance.
• To prevent injury, do not allow anyone who is
unfamiliar with the stove to operate it.
• To prevent injury, if the pilot or pilot and
burners have gone out on their own, open the
glass door and wait 5 minutes to air out before
attempting to re-light the stove.
• Always keep the area around these appliances
clear of combustible material, gasoline and other
ammable liquids and vapours.
• These appliances should not be used as a drying
rack for clothing or for hanging Christmas stockings/
decorations.
• Due to the paint curing on the stove, a faint odor
and slight smoking will likely be noticed when the
stove is rst used. Open a window until the smoking
stops.
Always connect this gas stove to a vent system and
vent to the outside of the building envelope. Never
vent to another room or inside the building. Make sure
the specied vent pipe is used, properly sized and of
adequate height to provide sufcient draft. Inspect
the venting system annually for blockage and signs of
deterioration.
WARNING: Failure to position the parts in accordance
with the diagrams in this booklet, or failure to use only
parts specically approved with this appliance, may
result in property damage or personal injury.
WARNING: Do not operate with the glass front
removed, cracked or broken. Replacement of the
glass should be done by a licensed or qualied service
person.
• Never use solid fuels such as wood, paper,
cardboard, coal, or any ammable liquids, etc., in this
appliance.
FOR YOUR SAFETY
• Installation and service must be performed by a
qualied installer, service agency or gas supplier.
• This installation must conform to local codes or, in
the absence of local codes, to the current CAN/CGAB149 installation code (Canada) or National Fuel Gas
Code ANSI Z223.1.2 (USA)
2
• Do not use this heater if any part has been under
water. Immediately call a qualied service technician
to inspect the heater and to replace any part of the
control or gas control systems that have been under
water.
• Do not abuse the glass by striking it or slamming
the door shut.
Table of Contents
Safety Precautions.....................................................................................................2
Table of Contents......................................................................................................3
Codes And Approvals.................................................................................................4
Specications............................................................................................................5
Dimensions....................................................................................................5
Rating Label Location......................................................................................5
Operating Instructions...............................................................................................6
Pilot Lighting Instructions................................................................................6
Pilot Light......................................................................................................7
Venturi Adjustment.........................................................................................7
Burner Lighting..............................................................................................8
Remote Controls.............................................................................................8
Air Diverter Control.........................................................................................8
Blower Speed.................................................................................................8
Maintenance And Service...........................................................................................9
Routine Maintenance......................................................................................9
Cleaning The Glass.........................................................................................9
Cleaning The Firebox......................................................................................9
Replacing Glass..............................................................................................9
Cleaning Decorative Surfaces.........................................................................10
Glass Door Removal......................................................................................10
Fuel Conversion............................................................................................11
Initial Installation.....................................................................................................12
Introduction.................................................................................................12
Placement....................................................................................................12
Corner Installation........................................................................................13
Raised Fireplaces and Hearths.......................................................................13
Fireplace Surround........................................................................................14
Mantle Clearances........................................................................................15
Vent Parts and Terminal Clearances...............................................................15
Vent Termination Restrictions........................................................................16
Venting........................................................................................................17
Vent Congurations and Restrictor Settings....................................................18
Horizontal Termination..................................................................................19
Vertical Termination......................................................................................20
Ducting........................................................................................................23
Electrical Requirements.................................................................................24
Gas Line Connection and Testing...................................................................25
Secondary Installation..............................................................................................26
Ceramic Brick Liner Removal.........................................................................26
Log Set and Ember Installation......................................................................26
Log Set Assembly.........................................................................................27
Burner and Fan Removal...............................................................................30
Troubleshooting.......................................................................................................31
Parts List - Components...........................................................................................32
Parts Diagram.........................................................................................................33
Parts List- Options...................................................................................................34
Warranty.................................................................................................................35
Installation Data Sheet.............................................................................................36
3
Codes And Approvals
DIRECT VENT ONLY: This type is identied by the prex DV. This appliance draws all of its air for
combustion from outside the dwelling, through a specially designed vent pipe system.
This appliance has been tested and approved for installations from 0 feet to 4500 feet (1372 m) above
sea level.
In the USA: The appliance may be installed at higher altitudes. Please refer to your American Gas
Association guidelines which state: the sea level rated input of Gas Designed Appliances installed at
elevations above 2000 (610 m) feet is to be reduced 4% for each 1000 feet (305 m) above sea level.
Refer also to local authorities or codes which have jurisdiction in your area regarding the de-rate
guidelines.
In Canada: When the appliance is installed at elevations above 4500 feet (1372 m), the certied high
altitude rating shall be reduced at the rate of 4% for each additional 1000 feet (305 m).
• This appliance has been tested by INTERTEK (Warnock Hersey) and found to comply with the
established VENTED GAS FIREPLACE HEATER standards in CANADA and the USA as follows:
VENTED GAS FIREPLACE HEATER (DV50DX; NG/LPG)
TESTED TO: ANSI Z21.88a-2003/CSA 2.33a-2003 VENTED GAS FIREPLACE HEATERS
CAN/CGA 2.17-M91 GAS FIRED APPLIANCES FOR HIGH ALTITUDES
CSA P.4.1-02 TESTING METHOD FOR MEASURING ANNUAL FIREPLACE EFFICIENCY
This ENVIRO DV50DX Fireplace:
• Has been certied for use with either natural or propane gases. (See rating label.)
• Is not for use with solid fuels.
• Is approved for bedroom or bed sitting room. (IN CANADA: must be installed with a listed wall
thermostat. IN USA: see current ANSI Z223.1 for installation instructions.)
• Must be installed in accordance with local codes. If none exist, use current
installation code CAN/CGA B149 in Canada or ANSI Z223.1/NFPA 54 in the
USA.
• Must be properly connected to an approved venting system and not connected
to a chimney ue serving a separate solid-fuel burning appliance.
IMPORTANT NOTICE (Regarding rst re up): When the unit is turned
on for the rst time, it should be turned onto high without the fan on for
the rst 4 hours. This will cure the paint, logs, gasket material and other
products used in the manufacturing process. It is advisable to open a
window or door, as the unit will start to smoke and can irritate some people.
After the unit has gone through the rst burn, turn the unit off including the
pilot, let the unit get cold then remove the glass door and clean it with a
good gas replace glass cleaner, available at your local ENVIRO dealer.
4
Main vent
diameter 6
1
/2"
The center of the ducting
hook-ups are 10
3
/16"
from the center of the
main vent.
Gas/electrical
inlets are the
same on both
sides.
20
3
/
8
"
(5
1
8
m
m
)
7
5
/
1
6
"
(
18
6mm)
4
4
5
/
8
"
(1
13
4
m
m)
3
9
5
/
8
"
(10
06m
m
)
6
1
/
8
"
(
15
5m
m)
8
1
/
8
"
(20
6
m
m)
27
3
/
4
"
(7
0
4
mm
)
1
"
(2
5mm
)
2"
(51mm)
17/16"
(37mm)
333/16"
(843mm)
4815/16"
(1243mm)
21/4"
(57mm)
101/16"
(256mm)
21/4"
(57mm)
Specifications
INSTALLATION OPTIONS:
• Parallel to a wall or placed in a corner • With a oor hearth or raised up the wall
• Ducting to other rooms • Vertical or horizontal venting
WARNING:
Operation of this heater when not connected to a properly installed and maintained venting system can
result in carbon monoxide (CO) poisoning and possible death.
DIMENSIONS:
RATING LABEL LOCATION:
The rating label is located under the control panel and is attached to a rectangular metal sheet that is
chained to the replace.
Figure 1. Dimensions of the Firebox.
5
CAUTION:
Hot while operating. Do not touch. Severe burns may result. Keep children,
clothing, furniture, gasoline or other flammable vapors away.
CAUTION: Do not operate this fireplace with the glass removed, cracked or broken. Replacement of the panel(s) should
be done by a licensed or qualified person! This appliance needs fresh air for safe operation and must be installed with
provisions for combustion and ventilation air. See installation and operating instructions manual. Keep burner and control
compartment clean.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage, or
loss of life. Refer to owner's information manual provided with this appliance. For assistance or additional information
consult a qualified installer, service agency or the gas supplier.
Keep burner and control compartment clean. See installation and operating instructions accompanying appliance.
FOR YOUR SAFETY READ BEFORE
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
A) This appliance is equipped with a pilot, which must be lit by
hand by following these instructions exactly.
B) BEFORE LIGHTING smell all around the appliance area for
gas and next to the floor because some gas is heavier than
air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance. Do not touch any electrical
switch: do not use any phone in your building. Immediately call
your gas supplier from a neighbors' phone. Follow the gas
suppliers instructions. If you cannot reach your gas supplier, call
the fire department.
C) Use only your hand to push in or turn the gas control knob;
NEVER use tools. If the knob will not push in or turn by hand,
do not try to repair it. Call a qualified service technician.
Force or attempted repair may result in a fire or explosion.
D) Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above on this label.
2. Turn off all electrical power to this appliance.
3. Turn off the gas control knob clockwise to the off position.
4. Open door. Wait five (5) minutes to clear out any gas. Close
door. If you smell gas STOP! Follow “B” in the above safety
information. If you do not smell gas go to the next step.
5. Find pilot-located to the right behind the side log. Turn the gas
control knob counter-clockwise to “PILOT”. Push the
gas control in fully and hold, Keep knob depressed
for about 30 seconds after pilot is lit. Release knob.
If pilot goes out, repeat steps 4 through 5.
WARNING: this gas valve has a lockout device, which will
not allow the pilot burner to be relit until the thermocouple
has cooled. If the knob does not pop up when released,
stop and immediately call your service technician or gas
supplier.
If the pilot does not stay lit after several tries, turn the gas
control knob to “OFF” and call your service technician or
gas supplier.
6. Turn the gas control knob counter clockwise to the
“ON” position. Flip the burner switch to “ON” THEN TURN
THE “HI/LOW” knob to the desired setting.
7. Turn on the electrical power to the unit.
TO TURN OFF GAS TO APPLIANCE
1. Flip burner switch to “OFF”
2. Turn the gas control knob clockwise to the “OFF”
position
3. Turn off all electrical power to the appliance if service is to
be performed.
Operating Instructions
For Your Safety, Read Safety Precautions And Lighting Instructions Before Operating.
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY A FIRE OR EXPLOSION
MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OF LOSS OF LIFE.
PILOT LIGHTING INSTRUCTIONS:
6
Figure 2. Lighting instruction label.
Operating Instructions
PILOT LIGHT:
1. Turn off the gas to the replace. If not recently done, remove the glass and let the unit air out
for at least ve (5) minutes to clear out any gas. Turn on gas to the heater. Leak test all joints
with soapy water. NEVER USE AN OPEN FLAME FOR LEAK TESTING.
2. Start the pilot by pressing the gas control knob and turning it to PILOT.
While holding the gas control knob in, press the piezo ignitor several
times until the pilot light starts. Hold the gas control knob in for thirty
(30) seconds. Check that the pilot has fully engulfed the thermocouple
assembly (see Figure 3).
3. Start the main burner by turning the gas control knob to ON and then turn
the rocker switch to ON. Check that all burner ports have ame.
4. Leak test all gas joints again.
Figure 3. Pilot ame.
VENTURI ADJUSTMENT:
The venturi adjustment lever is centered above the control panel.
The venturi allows the amount of air coming into the replace to be adjusted in order to accommodate
different climates and venting arrangements. Start the pilot and then the burner. Make sure the pilot
ame is burning normally and none of the burner ports are plugged. Let the replace burn for roughly
fteen (15) minutes and then examine the ames.
The ideal ame will be blue at the base and
light orange above (see Figure 42). The ames
should be of medium height. If the ames look
like this, no venturi adjustment is needed. If
the ames are fairly short and mostly blue, the
replace is getting too much air. Therefore, the
air shutter should be closed (push in) slightly
until the correct ames are achieved. Flames
that are very orange, with tall dark stringy tips
are not getting enough air. Open (pull out) the
venturi until the ames clean up. If the venturi is
opened, then closed all the way, and the correct
ames cannot be attained, turn off the gas and
contact the dealer.
Figure 4. Venturi Adjustment Lever
Warning: Incorrect venturi adjustment may lead to improper combustion, which is a safety hazard.
Contact the dealer if there is any concern about the venturi adjustment.
NEVER USE AN OPEN FLAME FOR LEAK TESTING
7
Operating Instructions
R
o
o
m
D
u
c
t
A
i
r
D
i
v
e
r
t
e
r
BURNER LIGHTING:
A) Make sure the pilot is lit.
B) Turn gas control knob COUNTER CLOCKWISE to ON.
C) Flip the burner switch to ON.
D) Turn HI/LO knob to the desired ame height.
E) Turn on all electrical power to the unit.
NOTE: Check that all burner holes are lit.
TO TURN GAS FIREPLACE OFF
Flip switch to OFF to turn off burners only.
If the replace is to be turned off for the season, or for
servicing, turn the gas shut off valve to OFF. DO NOT
Figure 5. Control Panel
FORCE IT. If the unit is going to be serviced, turn off the electrical power to the unit as well.
NOTE: When the unit is turned on for the rst time, it should be turned onto high, with the fan OFF, for
the rst four (4) hours. This will cure the paint, logs, gasket material, and other products used in the
manufacturing process. It is advised that a door or window be opened as the unit will start to smoke,
which can irritate some people. After the unit has gone through the rst burn, turn the unit OFF, including
the pilot, and let the unit get completely cold. Then remove the glass and clean it with a good gas
replace glass cleaner, available at your local Enviro dealer. See MAINTENANCE AND SERVICE - CLEANING THE
GLASS and MAINTENANCE AND SERVICE - GLASS DOOR REMOVAL.
REMOTE CONTROLS:
This replace can use an optional remote control or an optional cordless wall thermostat. If either of
these are to be used to control the replace for the majority of the time, leave the ON/OFF switch (on the
control panel) in the remote/thermostat position. Consult the instructions included with the remote/wall
thermostat for operation guidelines.
AIR DIVERTER CONTROL:
When the blower is on, the amount of air ow into the room can be adjusted
with the air diverter. When the lever is to the far left the room receives the
air, when the lever is to the far right the air goes out the duct and when
the lever in the middle the air goes to both the duct and the room. Lever is
found above the right end of the control panel, see Figure 6.
Figure 6. Air Diverter
BLOWER SPEED:
The blower will come on only when the replace is up to temperature (approximately
20 minutes). The speed of the fan can be changed by turning the fan control knob.
To turn the blower off, turn the knob COUNTER CLOCKWISE until it “clicks” off
(Figure 7).
It is advisable not to operate the blower below 1/3 speed as it puts a strain on the
windings of the blower and running the blower at lower speeds could also cause
premature fan failure.
8
Figure 7. Fan
Control
Maintenance And Service
ROUTINE MAINTENANCE:
At least once a year, run through the following procedures to ensure the system is clean and working
properly. Check the burner to see if all the ports are clear and clean. Check the pilot to make sure it is not
blocked by anything. The pilot ame should be blue with little or no yellow on the tips.
Warning: Clearances must be sufcient to allow access for maintenance and service
Warning: Failure to position the parts in accordance with this manual, or failure to use only parts
specically approved with this appliance may result in property damage or personal injury.
The venting system must be periodically examined; it is recommended the examination is done by a
qualied agency.
CLEANING THE GLASS:
When the replace has cooled, remove the face of the replace along with the glass. See MAINTENANCE
AND SERVICE - GLASS DOOR REMOVAL. Check the gasket material on the back of the glass, making sure that
it is attached and intact.
During a cold start up, condensation will sometimes form on the glass. This is a normal condition with all
replaces. However, this condensation can allow dust and lint to cling to the glass surface. Initial paint
curing of the appliance can leave a slight lm behind the glass, a temporary problem. The glass will need
cleaning about two weeks after installation. Use a mild glass cleaner and a soft cloth; abrasive
cleaners will damage the glass and plated surfaces. Depending on the amount of use, the glass
should require cleaning no more than two or three times a season. Do not clean the glass when it is
hot.
CLEANING THE FIREBOX:
Remove the logs carefully, as they are very fragile. Gently remove all the embers and rock wool and place
on a paper towel. Vacuum the bottom of the rebox thoroughly. Carefully clean any dust off the logs and
remove any lint from the burner and pilot. At this time, inspect the burner pan for cracking or severe
warping. If a problem is suspected, contact the dealer. Check the logs for deterioration or large amounts
of soot; a small amount on the bottom side of the logs is normal. Replace the logs and embers as in the
LOG SET AND EMBER INSTALLATION section. If new/more embers and rock wool are required, contact your
nearest ENVIRO dealer.
REPLACING GLASS:
The glass in the replace is a high temperature ceramic. If the glass is damaged in any way, a factory
replacement is required (see PARTS LIST - COMPONENTS). Wear gloves when handling damaged glass door
assembly to prevent personal injury. When the glass door assembly is being transported, it must be
wrapped in newsprint and tape and/or a strong plastic bag. Do not operate with the glass front removed,
cracked or broken. Removal and replacement of the glass from the door must be done by a licensed or
qualied service person. The glass must be purchased from an ENVIRO dealer. No substitute
materials are allowed.
9
Maintenance And Service
glass
CLEANING DECORATIVE SURFACES:
Painted and porcelain faces should be wiped with a damp cloth periodically. If a plated face has been
purchased, it should be unpacked/unwrapped carefully to avoid getting anything on the surface of the
nish, including cleaners, polish and nger prints. It is important to note that ngerprints and other
marks can leave a permanent stain on plated nishes. To avoid this, give the face a quick wipe with
denatured alcohol on a soft cloth BEFORE lighting the replace. Never clean the face when it is
hot. Do not use other cleaners as they may leave a residue, which can become permanently etched into
the surface.
If your ngers come into contact with the antique copper nish, the oils left as ngerprints on the copper
can cause discoloration, which will eventually turn green in that area. You can clean the patina or discolored
areas of the antique copper nish with “OO” 3M green sanding pads. These can be purchased from most
hardware stores. On the areas with discoloration, use the sanding pads to sand in the same direction as
the brushed nish, then blend the nish by feathering in the surrounding area. This renishing procedure
has been approved by the manufacturer and will not harm the nish. Please note: ANTIQUE COPPER IS
THE ONLY FINISH THAT CAN BE SANDED, DO NOT SAND PEWTER, GOLD OR NICKEL FINISHES.
GLASS DOOR REMOVAL:
In order to install the log set, and for regular
cleaning, the glass door will need to be
removed. With the face off, there are two
(2) handles on either side of the glass. They
rotate 90° until parallel with the oor (see
Figure 8). The top of the glass will move
away from the rebox and then the glass
door can be lifted off the resting points.
To replace the glass door, simply reverse the
above procedure.
Warning: Do not touch or attempt to
remove the glass if the replace is not
completely cold.
WARNING: Never operate the replace
with the glass removed.
Figure 8. Glass Removal Handle
10
Maintenance And Service
TO BE INSTALLED BY A QUALIFIED SERVICE AGENCY ONLY
FUEL CONVERSION:
Warning: This conversion kit shall be installed by a qualied service agency in accordance with the
manufacturer’s instructions and all applicable codes and requirements of the authority having
jurisdiction. If the information in these instructions is not followed exactly, a re, explosion or
production of carbon monoxide may result causing property damage, personal injury or loss
of life. The qualied service agency is responsible for the proper installation of this kit. The
installation is not proper or complete until the operation of the converted appliance is checked
as specied in the manufacturer’s instructions supplied with the kit.
Please read and follow these instructions. Also, please read the instruction guidelines provided by S.I.T.
on how to remove and install the HI/LO regulator.
Step 1. Carefully inspect all parts supplied with this conversion kit.
Step 2. Shut the gas supply off at the shut-off valve. (CAUTION: The gas
supply shall be shut off prior to disconnecting the electrical power,
before proceeding with the conversion.)
Step 3. Remove the glass as shown in the Secondary Installation section.
Step 4. Change the regulator on the front of the gas valve (follow the
instructions provided by S.I.T.).
Step 5. To change the pilot, simply pull the pilot hood straight up to access
the pilot injector. Using a 5/32 inch Allen key, remove the pilot
injector.
Step 6. Install the new pilot injector supplied with this conversion kit. Simply screw the new injector
inside the pilot hood and reinstall the hood by placing the hood on the assembly, line up the
key way, and snap into place.
Step 7. Remove the main burner orice with a inch deep socket.
Step 8. Install the new orice supplied. Be sure to put a bead of pipe-thread sealant or approved
Teon tape on the orice before installing into the burner assembly.
Step 9. Reinstall the burner tray, log set, embers, and glass. When re-installing the burner, ensure that
the burner to pilot hood relationship is as shown on Figure 9.
Step 10. Open the shut-off valve at the gas line to the unit.
Step 11. Use a small brush to apply a warm soapy water solution to all gas connections (use a half
dish soap and half warm water). If a gas leak is present, bubbling will occur. Gas leaks can
be repaired by using an approved pipe thread sealant or approved Teon tape. NEVER USE A
NAKED FLAME WHEN TESTING FOR LEAKS.
Step 12. Re-light the replace to ensure proper operation and proper ame appearance.
Step 13. MAKE SURE that the sticker provided by S.I.T. is installed, to signify that the valve has been
converted to a different fuel type. Also, make sure that the rating plate has a conversion label
to show this unit has been converted to a different fuel type.
Figure 9. Ignitor assembly
beside the burner.
A VISUAL CHECK OF THE REGULATOR KNOB IS NECESSARY TO DETERMINE WHETHER OR NOT THE
REGULATOR IS THE CORRECT PART. A 50% TURN DOWN REGULATOR WILL HAVE ONLY ONE CORNER
ON THE KNOB
Conversion Kit should contain the following:
(1) 50% turn down HI/LO regulator with three (3) T-20 Torx screws
(1) Pilot injecto (1) Main Orice (NG #30 DMS; LP #47 DMS)
Conversion instructions Pilot Orice (NG 3.26 mm; LP 1.99 mm)
Labels to show conversion
11
Gas Inlet
Electrical Line
49"
(1245mm)
21/8"
(54mm)
73/8"
(187mm)
4
5"
(
1
14
3mm)
21
5
/
8
"
(549
mm)
Initial Installation
QUALIFIED INSTALLERS ONLY
INTRODUCTION:
This section of the owner’s manual is for the use of qualied technicians only. Fireplace placement,
hearths, facings, mantles, and venting terminations will be covered, as well as the gas and electric
systems. There are several installation safety guidelines that must be adhered to. Please carefully read
the safety precautions at the front of this manual.
Warning: Clearances must be sufcient to allow access for maintenance and service.
PLACEMENT:
The location for the replace can be along a wall, raised or at oor level, or in a corner. There are specic
framing measurements for each situation. The basic opening should have the dimensions shown below
in Figure 10.
The replace must have a strong and
level surface to be placed on. The surface
should be made of wood or a noncombustible material, not carpet.
The 21 inches (549 mm) dimension
takes into account the 1 inch (25 mm)
standoff on the back of the rebox. The
framing boards may touch the standoffs,
but no insulating material can be
placed between the frame and the
standoffs.

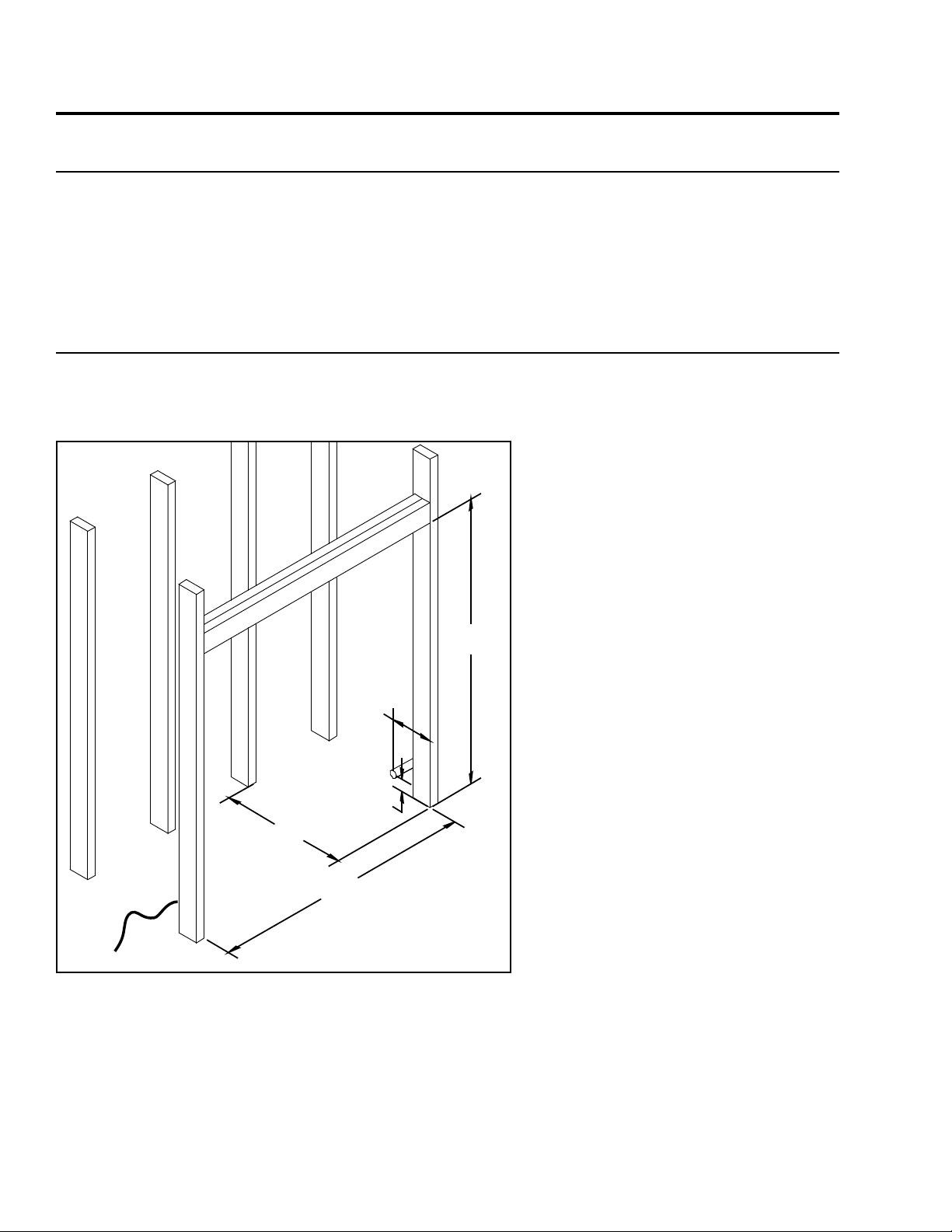

Figure 10. Dimensions for Framing the Firebox.
The gas line, 3/8” NPT, should be brought
to the right side of the replace. If this
set up is inconvenient, the electrical wire
and the gas line conguration can be
reversed.
The location should be chosen so the
replace will be at least 36 inches (914
mm) from drapes, doors and other
combustibles. The replace opening
should also be at least 7 inches (178
mm) from the nearest perpendicular wall
(sidewall to the edge of the opening).
Firebox framing:
Depth - 21” (549 mm)
Width - 45” (1143 mm)
Height - 49” (1245 mm)
Gas/Electrical Inlet:
Distance back - 7” (187 mm)
Distance up - 2” (54 mm)
12
507/8"
(1292mm)
723/8"
(1838mm)
45"
(1143mm)
131/2"
(343mm)
36"
(914mm)
11/4"
(32mm)
153/8"
(391mm)
213/4"
(552mm)
211/2"
(546mm)
Initial Installation
QUALIFIED INSTALLERS ONLY
CORNER INSTALLATION:
The dimensions for installing a replace in the corner of a room are given below in Figure 11.
Figure 11. Dimensions for a corner installation.
RAISED FIREPLACES AND HEARTHS:
There are a few options with raised replaces: raised with no hearth, raised with a raised hearth, or raised
with a oor level hearth. If the replace is 4 inches (101 mm) or more above the oor, a hearth is not
required. This measurement should be taken from the top of the ooring, i.e. the top of the carpet. The
replace cannot be placed within 37 inches (940 mm) of the ceiling. When installing a raised replace, it
is imperative that the support stand is strong enough to hold the weight of the replace and venting.
Figure 12. Raised Fireplace with no Hearth
Figure 13. Raised Fireplace with Floor Level Hearth
13
Protector pad,
cement board and
finishing material.
501/8”
(1273mm)
345/8”
(879mm)
Min 16”
(406mm)
461/2”
(1181mm)
33/8”
(86mm)
Min 393/4”
(1010mm)
33/8”
(86mm)
Cement Board
(3 wall pieces provided)
Cement Board
(not provided)
Protector Pad; Steel
(provided )
To ceiling
Do not tile higher
than bottom ledge
or in past the top
and side flanges.
Drywall
M
i
n
i
m
u
m
7
1
”
(
1
8
0
3
m
m
)
7”
(178mm)
Initial Installation
QUALIFIED INSTALLERS ONLY
If the unit is raised 4” (102mm) or less it is mandatory to have a hearth installed with a protector pad
(sheet metal) placed directly on the oor or hearth framing, with the cement board (see specs below) on
top of it. Tile, or another non-combustible material forms the top layer of the hearth. A decorative trim
may be added to the edge of the hearth. The trim can be
combustible as long as the hearth extends at least 16”
(406 mm) in front of the replace and 1” (25 mm) on
either side of the replace opening (see Figure 15). To
install the face, it is necessary for the bottom ange of the
replace opening to overlap or be ush with the tile. If the
total thickness of the protector pad, cement board, and
nished tile is more than 1” (38 mm) the replace must
be raised to accommodate additional thickness.
Figure 14. Raised Fireplace with Raised Hearth
FIREPLACE SURROUND:
NOTE: Any paint that is applied to the mantel or facing above the unit should be “heat resistance” or it
may discolour.
CEMENT BOARD: The cement board can
be fastened to the front of the unit with selfdrilling metal screws. It is safe to screw to the
outer border of the replace. Cement board for
the hearth can be purchased at a local building
material store. The board must have a k-value
of 7.69 Btu/(ft² × h × °F) [13 W/m × K] and a
R-value of 0.13 ft² × h × °F/Btu [0.023 m² ×
K/W] or better.
TILED FINISH: Because of the amount of
heat exuded by the replace, drywall cannot
come directly up to the replace. Figure
15 shows the minimum dimensions for the
cement board. Tile or other non-combustible
materials cover the cement board, but do not
overlap into the replace opening. The total
depth of the cement board and the nishing
materials should be a minimum of 1” (25 mm)
to maximum of 1” (35 mm). The replace
front will be installed over top of the nishing
material.
SMOOTH FINISH: The replace will have to
be recessed by ” (12 mm) and two (2) layers
of cement board must be used if the area
around the replace will be nished ush with the rest of the wall.
ROCK OR BRICK FINISH: If the face of the replace is to be recessed, the face option chosen will
determine the size and shape of the surrounding material (i.e. brickwork). Since the dimensions provided
on the face option instruction sheet are only approximations, it is recommended that the steel template
of the chosen face is used. See PARTS LIST - OPTIONS for the face template part number.
14
Figure 15. Floor Level Hearth Requirements With
Dimensions Around Opening.
3" (89mm)
8" (203mm) mantle
Combustibles
Cement Board
DV50DX
125/16”
(313mm)
15 ”
(394mm)
24 ”
(622mm)
27 ”
(699mm)
Initial Installation
QUALIFIED INSTALLERS ONLY
MANTLE CLEARANCES:
It is not necessary to install a mantle, but if
one is desired it is important to follow the
guidelines shown in Figure 16.
Top of unit to horizontal framing:
12 5/16” (313 mm)
Top of ange to top of cement board:
15 ” (394 mm)
Top of ange to bottom of 3” mantle:
24 ” (622 mm)
Top of ange to bottom of 8” mantle:
27 ” (699 mm)
Figure 16. Combustible Mantle Clearances.
VENT PARTS AND TERMINAL CLEARANCES:
Table 1: Vent part numbers.
Simpson Duravent (SD), Selkirk (SEL), and Security Chimneys (SC), must state if galvanized or black wanted, PART NUMBERS:
SD SEL SC Description SD SEL SC Description
908 4DT-6 SV4L6 6” pipe length 911 11” to 14 5/8” pipe, adjustable
907 4DT-9 9” pipe length 4DT-AJ 4” to 10” pipe , adjustable
906 4DT-12 SV4L12 12” pipe length SV4LA12 1” to 12” pipe , adjustable
904 4DT-24 SV4L24 24” pipe length 943 4DT-AF6 Flashing, 0/12 to 6/12 roof pitch
903 4DT-36 SV4L36 36” pipe length 943S 4DT-AF12 Flashing, 7/12 to 12/12 roof pitch
902 4DT-48 SV4L48 48” pipe length SV4FA Flashing, 1/12 to 7/12 roof pitch
945 4DT-EL45 SV4EBR45 45° elbow, black SV4FB Flashing, 8/12 to 12/12 roof pitch
990 4DT-EL90 SV4EBR90 90° elbow, black 943F SV4F Flat ashing
950 4DT-VS SV4VS Vinyl siding standoff/sheild 980 4DT-VC SV4CGV Vertical termination
942 4DT-WT SV4RSN Wall thimble 991 4DT-HVC High wind vertical termination
953 4DT-SC SV4FC Storm collar 984 4DT-HC SV4CHC Horizontal square termination
963 4DT-FS SV4BF Fire stop 985 4DT-HHC High wind horizontal termination
988 4DT-WS/B SV4BM Wall strap/support/band 978 4DT-VKC SV0FAK Vertical termination kit
970 4DT-HKA SV0SHK Horizontal termination kit (SD: Basic
The Sherwood Home Collection of replaces have been tested and certied for use with SIMPSON DURAVENT
TYPE GS PIPE FOR GAS STOVES. SECURITY CHIMNEY’S “SECURE VENT DIRECT VENT SYSTEM” and SELKIRK
“METALBESTOS MDV VENT SYSTEM” kits are available for horizontal venting. When using Simpson Duravent, it is
recommended that, before installation, a bead of RTV High Temperature Silicone should be applied to each outer
vent joint, and Mil-Pac to each inner joint. When planning an installation, it will be necessary to select the proper
length of vent pipe for the particular requirements.
Kit, SEL: Kit A, SC: Standard Kit)
971 4DT-HKB SV0SHK2 Horizontal termination kit
(SD: Kit A, SEL: Kit B, SC: Kit)
15
Initial Installation
A
A
D
E
L
B
C
F
B
B
B
J
M
K
G
H
I
Openable
Fixed
Closed
Openable
Fixed
Closed
Termination Cap
Air Supply Inlet
Gas Meter
G
G
Restriction Zone
(Termination not allowed)
N
O
QUALIFIED INSTALLERS ONLY
VENT TERMINATION RESTRICTIONS:
Figure 17. Vent Termination Restrictions, refer to Table 2.
Table 2: Vent termination clearances, refer to Figure 17.
Letter Canadian Installation
A 12 in (30 cm) Clearance above grade, verandah, porch, deck, or balcony.
B 12 in (30 cm) 9 in (23 cm) Clearance from window or door that may be opened.
C 12 in (30 cm)* Clearance from permanently closed window (to prevent
D 24 in (60 cm)* Vertical clearance to ventilated soft located above the
E 18 in (45 cm)* Clearance to unventilated soft.
F 12 in (30 cm)* Clearance to outside corner.
G 12 in (30 cm)* Clearance to inside corner.
H 3 ft (91 cm) within a height of
15 ft (4.5 m) above the meter/
regulator assembly
I 3 ft (91 cm) 3 ft (91 cm)* Radial clearance around service regulator vent outlet.
J 12 in (30 cm) 9 in (23 cm) Clearance to non-mechanical air supply inlet to building, or
K 6 ft (1.83 m) 3 ft (91 cm) above if within 10
L 7 ft (2.13 m
M 12 in / 30 cm
N 12 in (30 cm)* Clearance horizontally to any surface (such as an exterior
O 12 in (30 cm) Clearance above roof line for vertical terminations.
1
In accordance with the current CSA B149, Natural Gas and Propane Installation Code.
2
In accordance with the current ANSI Z223.1 NFPA 54, National Fuel Gas Code.
* These numbers are only estimates. Clearance in accordance with installation codes and the requirements of the gas supplier.
t
A vent shall not terminate directly above a side walk or paved driveway that is located between two single family dwellings and it serves both dwellings.
+
Permitted only if verandah, porch, deck, or balcony is fully open on a minimum of two sides beneath the oor.
NOTE: Venting terminals shall not be recessed into walls or siding.
16
1
)t
+
US Installation
3 ft (91 cm) within a height of
15 ft (4.5 m) above the meter/
regulator assembly*
ft (3 m) horizontally
7 ft (2.13 m)
12 in / 30 cm*
2
*t
+
Description
condensation).
terminal, within a horizontal distance of 2 ft (60 cm) from
center line of terminal.
Clearance to each side of center line extended above
meter/regulator assembly.
the combustion air inlet to any other appliance.
Clearance to mechanical air supply inlet.
Clearance above paved sidewalk or paved driveway located
on public property.
Clearance under verandah, porch, deck, or balcony.
wall) for vertical terminations.
Initial Installation
2" (51mm)
5" (127mm)
125/16"
(313mm)
4515/16"
(1167mm)
Framing
Joists/Studs
10”
10”
QUALIFIED INSTALLERS ONLY
VENTING:
This replace has been tested and certied for use with SIMPSON DURAVENT DIRECT VENT TYPE “GS”
PIPE FOR GAS STOVES, SECURITY CHIMNEY’S SECURE VENT DIRECT VENT SYSTEM kits, and MDV
SELKIRK METALBESTOS.
A 1” (25 mm) clearance to combustibles must be maintained
around any vertical vent pipe. Around a horizontal vent
pipe, the clearance to combustibles should be 2” (51 mm)
above and 1” (38 mm) on the sides and bottom. When
combustible materials are directly above a 90° elbow, 5” (127
mm) of clearance are necessary. See Figure 18
A 10” (254 mm) x 10” (254 mm) frame (see Figure 19) will
assure the proper support and spacing for the vent pipe as it
passes through the wall. Installations in Canada require that
a wall thimble be used for passing through walls and ceilings.
All sealing and vapour barriers must comply with local building
codes.
When planning an installation, it is necessary to select the
proper length of vent pipe for the particular requirements. The
conguration of the venting pipes depends on the locations
of walls, ceilings and studs. However, the pipes cannot be
of arbitrary length and arrangement. Because the length of
the vertical and horizontal sections dramatically affects the
burning efciency of the replace, certain guidelines have
been set in INITIAL INSTALLATION - VENT CONFIGURATIONS AND
RESTRICTOR SETTINGS.
Venting terminals can not be recessed into
a wall or siding.
WARNING: This gas appliance must
not be connected to a chimney ue
serving a separate solid-burning
appliances.
Figure 18. Vent Pipe Clearances.
Figure 19. Vent Framing Through Wall/Ceiling
17
Note: 0,0 represents
a 90° bend directly
off the top of the unit.
5
4
3
2
1
0' (0m)
0' (0m)
5' (1.52m)
10' (3.05m)
4' (1.22m)
15' (4.57m)
10' (3.06m)
20' (6.11m)
30' (9.17m)
Vent Restrict or Configuration
40' (12.19m)
Vent Restrictor Positions
5 4 3 2 1
Vent Restrictor Handle
Initial Installation
QUALIFIED INSTALLERS ONLY
VENT CONFIGURATIONS AND RESTRICTOR SETTINGS:
Figures 20 shows the range of venting options, it shows possible vent congurations if the unit is top
vented, for vertical and horizontal terminations, any layout that remains within the shaded area is
acceptable. Having the fewest number of elbows is ideal, as they tend to disrupt air movement. Using
45˚ elbows is preferable to using 90˚ elbows. Also, a shorter vent system will perform better than a
longer one.
The vent restrictor controls the amount of air
moving through the vent pipe. Longer vertical
vent lengths necessitate greater restriction;
position 1 is open and position 5 is maximum
restriction. Figure 20 shows the vent restrictor
settings required, relative to the length of vent
pipe. The vent restrictor is located on the right
side of the replace, above the glass. Figure
21 shows the vent restrictor handle and the
holes that indicate the different levels. To avoid
injury, it is best to make this adjustment when
the replace is cool or use welder’s gloves or
oven mitts.
Note: 0,0 in Figure 20 represents a 90˚ bend
directly off the outlet of the unit, 46” (1169 mm)
from oor. This is for all horizontal instances
except when using Selkirk and having less
than a 4 feet (1.22 m) rise and 8 feet (2.44 m)
horizontal offset. In this case, a 1 foot rise must
be added below the 90˚ bend.
Figure 20. Possible Vent Congurations
18
Figure 21. Possible Vent Restrictor Positions
Wall framing
Horizontal wall
termination
Wall thimble
fire stop
Exhaust
flex pipe
Combustion air
outer pipe
Elbow
Initial Installation
QUALIFIED INSTALLERS ONLY
HORIZONTAL TERMINATION:
NOTES:
1. Horizontal pipes must not be level. For every 12 inches (305 mm) of horizontal travel
(away from the stove), there should be at least inch (6.4 mm) of vertical travel. Never
allow the vent to run downward, as this could cause high temperatures or even present
the possibility of a re.
2. The exterior of the horizontal
vent termination must not be
blocked or obstructed.
3. If the vent termination is not
being attached to wood, the
four wood screws provided
should be replaced with
material appropriate fasteners.
4. For buildings with vinyl siding,
a vinyl standoff should be
installed between the vent cap
and the exterior wall. Attach
the vinyl siding standoff to
the horizontal termination.
Note that the termination
bolts onto the at portion of
the standoff, providing an air
space between the wall and
the vent termination. The air
gap prevents excessive heat
from possibly melting the vinyl
siding.
5. Horizontal pipes must be
supported every 3 feet (914
Figure 22. Horizontal Vent Termination
mm). Plumber’s all round strap will sufce.
6. When running horizontal pipe, clearances to combustibles must be maintained 1 inches (38 mm)
sides, 1 inches (38 mm) bottom, and 2 inches (51 mm) top.
Step 1. Set the replace in the desired location. Check to determine if wall studs will be in the way when
the venting system is attached. If this is the case, the location of the replace may have to be
adjusted or the venting may have to be offset.
Step 2. Direct vent pipe sections are designed with special twist-lock connections. Dry t the desired
combination of pipe and elbows to the appliance adaptor.
Step 3. With the pipe in the correct position and attached to the replace, mark the wall for a 10 inches
(25.4 cm) x 10 inches (25.4 cm) square hole (see Figure 19). The center of the hole should
match the center line of the horizontal pipe. Cut and frame the hole in the exterior wall where
the vent will be terminated. If the wall being penetrated is made of a non-combustible material
(i.e. masonry or concrete) a 7 inches (17.8 cm) hole is acceptable.
19
Initial Installation
Vertical
Termination
Storm Collar
Flashing
Roofing nails
Elbow Strap
QUALIFIED INSTALLERS ONLY
NOTE: For Simpson Duravent only, place a bead of Mil-Pac or Rutland No 78 Stove and Gasket Cement
on the outer edge of the inner exhaust pipe (non-ared end). Push the pipe sections together, then twist
about turn, making sure the two sections are fully locked. Wrap all seams with foil ducting tape.
Step 4. With the hole now framed, the wall thimble installed, and the pipe extending into the wall,
proceed to the outside. Attach the termination to the pipe using RTV and Mil-Pac or Rutland No
78 Stove and Gasket Cement to seal joints. The vent pipe must extend into the vent cap at least
1 inches (3.2 cm). Secure the connection between the vent cap and the pipe by attaching the
two (2) sheet metal straps, which extend from the vent cap assembly to the outer wall of the
vent pipe. Bend any remaining portion of the strap back towards the vent cap. Security Secure
Vent uses a twist lock cap.
Step 5. Position the horizontal vent termination in the center of the 10 inches (25.4 cm) square hole
and attach to the exterior wall with the four screws provided. The arrow on the vent termination
should be pointing up. Run a bead of non-hardening mastic around the edges of the vent
cap, to make a seal with the wall. Ensure the proper clearances to combustibles have been
maintained.
VERTICAL TERMINATION:
Step 1. Check the instructions for required clearances (air spaces) to combustibles when passing
through ceilings, walls, roofs, enclosures, attic rafters, or other nearby combustible surfaces.
Do not pack air spaces with insulation.
Step 2. Set the gas appliance in the desired location. Drop a plumb bob down from the ceiling to
the position of the appliance ue exit, and mark the location where the vent will penetrate
the ceiling. Drill a small hole at this point. Next, drop a plumb bob from the roof to the hole
previously drilled in the ceiling, mark the spot where the vent will penetrate the roof. Determine
if ceiling joists, roof rafters, or other framing will obstruct the venting system. You may wish to
relocate the appliance, or to offset, to avoid cutting load bearing members.
Step 3. To install the Round
Support Box/Wall Thimble
in a at ceiling, cut a 10
inch (25.4 cm) square hole
in the ceiling, centered in
the hole drilled in Step 2.
Frame the hole as shown
in Figure 19.
Step 4. Assemble the desired
lengths of black pipe
and elbows necessary to
reach from the appliance
adapter up through the
Round Support Box.
Insure that all pipe and
elbow connections are
in their fully twist-locked
position.
Figure 23. Vertical Vent Termination
20
Initial Installation
H
Dimension ‘H’ obtained
from table below.
QUALIFIED INSTALLERS ONLY
STEP 5. Cut hole in the roof centered on the small hole placed in the roof from Step 2. The hole should
be of sufcient size to meet minimum requirements for Clearance to Combustibles, as specied.
Continue to assemble lengths of pipe and elbows necessary to reach from the ceiling support
box up through the roof line. Galvanized pipe and elbows may be utilized in the attic, as well
as above the roof line. The galvanized nish is desirable above the roof line, due to the higher
corrosion resistance.
STEP 6. Once the pipe sections have been joined, and run up through the hole in the roof, slip an elbow
strap over the exposed sections, bend the support straps outwards, and push the elbow strap
down to the roof level, as shown in Figure 23. Tighten the clamp around the pipe section. Use
a level to make sure the pipe is truly vertical. With roong nails, secure the support straps to
the roof. Seal the nails holes heads with non-hardening mastic. Trim the excess length of the
support straps that extend out beyond the edge of the ashing.
STEP 7. Slip the ashing over the pipe section protruding through the roof. Secure the base of the
ashing to the roof with roong nails. Use a non-hardening sealant between the uphill edge
of the ashing and the roof. Insure the roong material overlaps the top edge of the ashing.
Verify that you have at least the minimum clearance to combustibles at the roof line.
STEP 8. Continue to add pipe sections until the height of the vent cap meets the minimum code
requirements. Refer to Figure 24 and Table 3. Note that for steep roof pitches, the vent height
must be increased. In high wind conditions, nearby trees, adjoining roof lines, steep pitched
roofs, and other similar factors can result in poor draft, or down drafting. In these cases,
increasing the vent height may solve the problem.
STEP 9. Slip the storm collar over the pipe, and push it down to the top of the roof ashing as shown
in Figure 23. Use the non-hardening sealant around the joint between the pipe and the storm
collar.
STEP 10. Twist-lock the vent cap.
Figure 24: Height of Vertical Termination;
Reference Table 3.
Table 3: Minimum ‘H’ for Figure 24
Roof Pitch Minimum Height (H)
Feet Meters
Flat to 7/8 1 0.3
Over 7/12 to 8/12 1.5 0.46
Over 8/12 to 9/12 2 0.61
Over 9/12 to 10/12 2.5 0.76
Over 10/12 to 11/12 3.25 0.99
Over 11/12 to 12/12 4 1.22
Over 12/12 to 14/12 5 1.52
Over 14/12 to 16/12 6 1.83
Over 16/12 to 18/12 7 2.13
Over 18/12 to 20/12 7.5 2.29
Over 20/12 to 21/12 8 2.44
21
plumber’s tape
connected to
wall strap
Wall strap
45° elbows (x2)
Nails
Ceiling firestop
Ceiling
Second floor
Use clearances to as
defined by appliance and
vent pipe manufacturers.
Initial Installation
QUALIFIED INSTALLERS ONLY
NOTES:
(1) If an offset is necessary in the attic to avoid
obstructions, it is important to support the vent
pipe every 3 feet (914 mm), to avoid excessive
stress on the elbows, and possible separation. Wall
straps are available for this purpose (see Figure
25).
(2) When ever possible, use 45° degree elbows instead
of 90° degree elbows. The 45° degree elbow offers
less restriction to the ow of ue gases and intake
air.
(3) For multi story installations; a ceiling restop is
required at the second oor, and any subsequent
oors (see Figure 26). The opening should be
framed to 10” (254 mm) x 10” (254 mm) inside
dimensions, in the same manner as shown in
Figure 19.
Figure 25: Use of Wall Straps.
(4) Any occupied areas above the rst oor,
including closets and storage spaces,
which the vertical vent passes through,
must be enclosed. The enclosure may be
framed and sheet-rocked with standard
building materials. However consult
the appliance manufactures installation
instructions for the minimum allowable
clearance between the outside of the vent
pipe, and the combustible surfaces of
the enclosure. Do not ll any required air
spaces with insulation.
Figure 26: Multi-Story Vent Pipe Installation.
22
Initial Installation
QUALIFIED INSTALLERS ONLY
DUCTING:
The option of ducting allows heat from the replace to be transferred to a different area. The maximum
total length for the ducting is 20 feet (6.1 m). There are four (4) duct outlets that can be used (see Figure
27), however, the blower puts out 200 cfm no matter how many ducts are used. Therefore, the more
ducts there are, the less air goes through each one. A short, straight duct maximizes its heating ability
as air in the ducts is restricted by the length and number of bends in the pipe.
For the rst 24 inches (610 mm) of
ducting, inch (13 mm) of clearance
is required. After 24 inches (610 mm),
the duct can be run with 0 inch (0 mm)
clearance, though inch (13 mm) is
preferred. To avoid heat loss, insulate
the duct whenever it passes through an
unheated area (i.e. crawl space). Insulating
the ducts elsewhere helps the efciency of
the ducting system.
Standard galvanized ducting and heat
registers are to be used. Simply remove
the desired cover plate from the outside of
the rebox and attach a 6 inches (152 mm)
starter ring. Make sure to foil-tape all seams
to prevent leaking. Ensure all ducting meets
local building codes.
Figure 28. Ducting Options; ducted from
upper oor to lower oor & from lower oor
to upper oor.
Figure 27. Heat Dumping Options.
Figure 29. More Ducting Options; ducted to outside & to
another room on an interior wall.
23
Initial Installation
Fan Control
Black Black
Black
Short
Black
Long Black
White
White
Green/Yellow
Electrical
Power Cord
Green
120°F (49°C)
Temperature Sensor
Fan
C
O
O
L
/
H
E
A
T
P
R
O
G
R
A
M
D
O
W
N
U
P
7
0
°
F
7
0
°
F
O
N
O
F
F
Optional
Remote
Control
ON/OFF/Remote
Thermostat Switch
Purple
Thermocouple
Blue
Thermopile
Grey
Inlet
Pressure
Tap
Gas Control
Valve
Manifold
Pressure Tap
Pilot Adjustment
Screw
Optional
Wall Switch
Optional
Thermostat
QUALIFIED INSTALLERS ONLY
ELECTRICAL REQUIREMENTS:
The replace must be electrically connected and grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1 CANADIAN ELECTRICAL CODE Part 1, SAFETY
STANDARDS FOR ELECTRICAL INSTALLATIONS, OR THE NATIONAL ELECTRICAL CODE ANSI / NFPA 70
in the US.
WARNING: The electrical grounding instructions must be followed. This appliance is equipped with a
three-prong (grounding) plug for your protection against shock hazard, and should be plugged directly
into a properly grounded three-prong outlet. DO NOT cut or remove the grounding prong from this
plug.
CAUTION: Label all wires prior to disconnection
when servicing controls. Wiring errors can
cause improper and dangerous operation. Verify
proper operation after servicing.
Table 4. Recommended Thermostat
Wire Size.
Figure 30. Wiring Diagram For Fan Control.
24
Figure 31. Wiring Diagram For Gas Valve.
Wire Size Max. Length
14 gauge 100 ft (30.48 m)
16 gauge 60 ft (18.29 m)
18 gauge 40 ft (12.00 m)
20 gauge 25 ft (7.62 m)
22 gauge 18 ft (5.49 m)
Initial Installation
O
L
I
T
P
TP TH TP TH
IN OUT
H
I
L
O
N
O
F
O
F
L
I
P
T
O
GAS LINE CONNECTION AND TESTING:
WARNING: Only persons licensed to work with gas piping may make the necessary gas connections to
this appliance.
GAS LINE CONNECTION
• This stove is equipped with a certied exible pipe located on the right side of the unit terminating in
a ” male NPT tting. Consult your local authorities codes or the CAN/CGA B 149 (1 or 2) installation
code in Canada, or in the USA gas installations follow either local codes or the current edition of the
National Fuel Gas Code ANSI Z223.1.
• The efciency rating of this appliance is a product thermal efciency rating determined under
continuous operating conditions and was determined independently of any installed system.
The appliance and its shutoff valves must be
disconnected from the gas supply piping system
during any pressure testing where the pressure
exceeds PSIG (3.45 KPa) or damage will occur
to the valve.
The appliance must be isolated from the gas supply
piping system by closing its individual manual
shutoff valve during any pressure testing of the gas
supply piping system at test pressures equal to or
less than psig (3.45 KPa).
Always check for gas leaks with a soap
and water solution after completing the
required pressure test.
TO TEST VALVE PRESSURES
The pressure taps are located on the left side of the valve
• Turn set screw 1 turn counter clockwise to loosen,
• Place 5/16” (8 mm) I.D. hose over pressure tap system.
• Check pressures using a manometer.
• When nished, release pressure, remove hose & tighten set screw.
Table 5: Pressure and BTU Information.
Natural Gas Propane
Orice #30 DMS #47 DMS
Manifold Pressure 3.8” W.C. (0.95 KPa) 11.0” W.C. (2.74 KPa)
Min. Manifold Pressure 1.1” W.C. (0.27 KPa) 2.7” W.C. (0.67 KPa)
Max Supply Pressure 7.0” W.C. (1.74 KPa) 13.0” W.C. (3.28 KPa)
Min. Supply Pressure 5.0” W.C. (1.25 KPa) 12.0” W.C. (2.98 KPa)
Max BTU/hr Input 50,000 BTU/hr (14.65 KW) 46,650 BTU/hr (13.67 KW)
Min. BTU/hr Input 27,000 BTU/hr (7.91 KW) 23,750 BTU/hr (6.96 KW)
NEVER USE AN OPEN FLAME FOR LEAK TESTING.
Figure 32: Fully Labeled Gas Valve.
25
Pins
Ledges
Secondary Installation
Right Side Brick Liner
Leftt Side
Brick Liner
Top Brick Liner
Back Brick Liner
Air Deflector Ledge
Baffle Lip
Baffle Tab
For clarity unit is not shown.
CERAMIC BRICK LINER REMOVAL:
WARNING: DO NOT INSTALL LINER IF UNIT IS HOT.
1. Remove glass door (see MAINTENANCE AND SERVICE - GLASS DOOR REMOVAL)
2. Carefully remove the log set if it was installed.
3. Remove both side brick liners by sliding them out the front. Be careful not to scrape the liners on the
bafe tabs at the top.
4. Hold the back of the top liner up while lifting the back liner off the air deector ledge then out. Slide
the top liner out from the lip on the bafe then remove it from the unit.
5. If the bafe needs to be removed use a T-20
screwdriver to loosen off but not remove the
two (2) screws at the back of the bafe and
remove the two (2) screws at the front of the
bafe. Slide the bafe up over the back screws
then out.
To install the liners follow steps 1 to 5 in reverse.
Important installation notes:
Ensuring the side brick liners are behind the bafe
tabs and are ush against the rebox walls.
When sliding the bafe into place making sure
to hook the back into place on the two loosened
screws.
To install the log set follow the instruction in LOG
SET AND EMBER INSTALLATION.
Figure 33: Cast Iron Brick Liner Installation.
LOG SET AND EMBER INSTALLATION:
The placement of the logs is not arbitrary. If they are positioned incorrectly, the ames can be “pinched”
and will not burn correctly. The burner (Figure 34) and a few of the logs come with locator pins, notches,
and ledges which make alignment easier. The andirons and grate must be installed for the logs to be
placed properly. Using the pictures provided, carefully set the logs in place (see Figures 35 through 41).
NOTE: The logs are fragile and should be handled gently.
Maintenance: Once a year the logs should be removed and checked for deterioration or large amounts
of soot. A small amount on the bottom side of the
logs is normal. Remove and replace the logs in the
same manner described in this section.
If new/more embers and rock wool is required,
contact your nearest ENVIRO dealer.
Never operate the replace with the glass
door removed.
26
Figure 34: This is how the re box looks with only
the andirons and grate in place. This points out the
three ledges at the back and three locator pins on
the burner.
Figure 34. Placement of ledges and pegs in empty
rebox.
Secondary Installation
Far Left Log
Far Right Log
Front Right Log
Pins
Ledges
Bottom Log
Notch
Back Left Log
Pin & Ledge
LOG SET ASSEMBLY:
Figure 35. First Stage Log Set Installation
Figure 35: The rst log to be placed
is the front right log. The back
end has a hole that sits on the right
burner pin (see Figure 34) and the
front has a notch that helps it rest on
the center of the grate against one of
the vertical bars. Second to be placed
is the bottom log. The bottom log
rests on the center and right ledge in
the rebox (see Figure 34) and the
large end must be at against the
right brick liner.
Figure 36. Second Stage Log Set Installation
Figure 36: The back left log rests
on the left ledge in the rebox (see
Figure 34) and the left ledge on the
bottom log (see Figure 35). The large
end must be at against the left brick
liner.
Figure 37: The top of the far left
log has a hole that rests on the pin
and ledge of the back left log (see
Figure 36). The bottom of the far left
log rests against the base of the left
andiron. The top of the far right
log has a hole that rests on the right
pin and ledge of the bottom log (see
Figure 35) and the bottom of the far
right log rests against the base of the
right andiron.
Figure 37. Third Stage Log Set Installation
27
Secondary Installation
Front, Right of
Center, Log
Ledge
Front, Left of
Center, Log
Back Right Log
Front Left Log
Two Small
Log Twigs
Notch
Figure 38. Fourth Stage Log Set Installation
Figure 38: Back end of the front,
right of center, log has a hole
that rests over the center burner pin
(see Figure 34) and the front rest on
the ledge of the front right log (see
Figure 35).
Figure 39: The back right log sits
on the center ledge and pin of the
bottom log (see Figure 35) and leans
against the back left log. The back
end of the front, left of center,
log has a hole that rests on the left
burner pin (see Figure 34) and the
front end rests on the ledge on the
front, right of center, log (see Figure
38).
28
Figure 39. Fifth Stage Log Set Installation
Figure 40: The front left log has
a notch at it’s wide end. This notch
rests on the horizontal bar of the
grate in the left gap. The back of the
log rests freely on the burner where it
will cover the least amount of burner
holes. The two small log twigs are
just placed under the grate, one in
the left gap and the other in the right
gap.
Figure 40. Final Log Set Arrangement
Secondary Installation
Figure 41: Once the logs are in place the embers can be placed onto and around the burner to create
a realistic look. Bags of ceramic ber embers and rock wool are provided. The ceramic ber comes in
chunks that are about 2” (51 mm) long. Place them irregularly around the burner. When there is a
sparse but even layer of embers, spread the rock wool in the same manner. DO NOT pack this ember
material as this could create an
unsafe condition. The pieces
should be lightly placed so they
don’t completely block any of
the small burner ports. DO NOT
allow any of the embers to rest
against the pilot assembly.
Caution: Use only the type of
ember material supplied with this
replace. Due to the irregular
size of the ember material, there
may be more than required. Use
of other foreign materials on the
burners may create dangerous
conditions.
Figure 41. Complete log set-up with embers.
Figure 42. DV50DX complete log set-up with embers burning.
Figure 42: The DV50DX
burning with a good ame.
NOTE: While the glass is still
removed, it is recommended
that the gas line be purged
by lighting the pilot.
When lighting the replace
for the rst time since the
log set and embers have
been installed/replaced,
watch for ignition at ALL
the burner ports. If a long
delay is noticed, turn the
appliance off and wait for it
to cool down. Then remove
the glass and rearrange the
ember material, making
sure none of the burner
ports are blocked.
29
Secondary Installation
Control Panel
Andirons and Grate
Burner
Air Deflector
Valve Tray
Fan
BURNER AND FAN REMOVAL:
1. Remove brick liners, see steps 1 to 4 in SECONDARY INSTALLATION - CERAMIC BRICK LINER REMOVAL.
2. The control panel is held in place with a T-20 screw on each end of the panel. Remove the two (2)
screws and the control panel.
3. Undo the six (6) screws holding the burner down, the andirons and grate can be removed from the
burner or left on. Pull the burner to the left approximately 1” (25 mm), this is done in order to slide
the venturi out of the venturi box. Remove the burner from the rebox.
4. Four (4) screws along the top of the air deector hold it in place, remove the screws and the
deector.
5. Remove the ten (10) screws around the perimeter that hold the valve tray in place and remove the
valve tray.
6. On either side of the fan there is a screw fastening the fan mount to the rebox, remove the screws
to remove the fan.
Re-install everything by following steps 1 to 6 in reverse order.
30
Figure 43: Removal of DV50DX Burner and Fan.
Troubleshooting
Problem Possible Cause Solution
Spark will not light the
pilot after repeatedly
pressing the spark ignitor
Pilot will not remain lit Problem with thermocouple
Burners will not remain
lit
Flame lifting Leak in vent pipe • Check for leaks in vent connections.
Glass fogs up Normal Condition: after the appliance warms up the glass will clear.
Blue Flames Normal during start up: ames will yellow as the replace heats up.
Flames are burning
“dirty” or sooting
Remote control doesn’t
work
Defective piezo ignitor • Check connections to ignitor.
• If ignitor connections are good but no spark, replace
ignitor.
Broken spark electrode • Check for broken ceramic insulation, replace
electrode if broken.
Misaligned spark electrode • If spark is not arcing from electrode to pilot, adjust
by loosening the screws on the pilot base. Adjust and
tighten.
• Check for proper connection of the thermocouple to
circuit
Air in gas line (pilot dies
while knob is depressed)
Problem with thermopile
circuit
Improper vent conguration • Check vent conguration with manual.
Terminal may be
recirculating ue gases
**Due to additives in gas, glass may get hazy during operation** Clean as needed.
Flame impingement • Check log positioning.
Problem with the remote • One or more of the batteries are dead. See remote
Problem with replace • The on/off switch is turned to OFF.
the rear of the valve; if loose fully tighten.
• Check pilot for full ame impingement around
thermocouple. If ame is too small, check gas
pressure, adjust pilot rate screw, check pilot head for
damage.
• Check thermocouple voltage at valve. It must be
greater than 5mV. If low, replace thermocouple.
• Bleed line.
• Check gas line pressure.
• Contact dealer.
• Check gas line pressure .
• Check for ame impingement in thermopile. If low,
see “Pilot will not remain lit”.
• Check thermopile for minimum of 300mV when
burner is switched on.
• Check wiring to thermostat for breaks.
• Check to see if terminal is on correctly.
• May need to install high wind termination cap.
• Contact dealer.
• Increase primary air by opening the venturi shutter
and/or by opening the vent restrictor.
See also “Burners will not stay lit”.
control instructions.
• The gas control valve is turned to PILOT or OFF.
• The pilot has gone out.
31
Parts List - Components
Reference
Number
1 120°F (49°C) Ceramic Fan Temperature Sensor EC-001
2 S.I.T. Nova Valve NG (50% turn down) EC-006
2 S.I.T. Nova Valve LP (50% turn down) EC-007
3 Thermocouple EC-009
3 Spark Electrode with Ignitor Cable EC-011
3 Thermopile EC-012
3 Pilot Orice NG Threaded EC-019
3 Pilot Orice LP Threaded EC-020
3 Pilot Gasket EC-021
4 S.I.T. Piezo Ignitor EC-023
5 Burner Switch EC-025
6 Fan Controller - 115V EC-039
7 Blank Orice #73 50-343
8 Convection Blower - 115V 50-514
9 Door Latch Mechanism (requires 2 sets) 50-632
10 Door Handle Set (requires 2 sets) 50-635
11 Dual bulb door gasket - 10 feet (3.05 m) 50-634
11 Door, Glass & Gasket 50-718
12 Pan Burner 50-719
13 Control Panel 50-726
14 Burner Tray Complete 50-727
15 Ceramic Brick Liner 50-728
16 Grate 50-729
17 Andiron 50-730
18 Three Flame Pilot Hood 50-925
Description Part
Domestic Power Cord - 115V EC-042
S.I.T. Pilot ” Tube with End Ferrules 30-043
Termination Cap 50-018
Embers (need to order 2 sets) 50-491
Log Set With Embers 50-731
DV42DX Owner’s Manual 50-741
Convertion Kit from LPG to NG 50-742
Convertion Kit from NG to LPG 50-1034
Large Ember Nuggets Only 50-832
Number
32
Parts Diagram
DV50DX - Components
November 2004
33
Parts List- Options
Options Part Number
The Lodge - Painted Charcoal Face With Plated Brushed Nickel Louvres & Knobs 50-702
The Chalet Painted Flat Arched Face - Metallic Charcoal 50-703
The Chalet Plated Flat Arched Face - Gold 50-704
The Chalet Plated Flat Arched Face - Brushed Nickel 50-705
The Chalet Plated Flat Arched Face -Antique Copper 50-706
The Cottage Bow Face Painted Charcoal - (No Trim) 50-707
The Cottage Trim Kit - Charcoal (Inset Piece, Carriage Bolts, Top & Bottom Trim) 50-708
The Cottage Trim Kit - Antique Copper (Inset Piece, Carriage Bolts, Top & Bottom Trim) 50-709
The Cottage Trim Kit - Pewter (Inset Piece, Carriage Bolts, Top & Bottom Trim) 50-710
The Cottage Trim Kit - Gold (Inset Piece, Carriage Bolts, Top & Bottom Trim) 50-711
The Cape Cod Arch With Opening Doors & Fire Screen Painted 50-712
On/Off Remote Control Kit 50-559
Programmable Wall Mounted Remote Control 50-583
The Lodge Steel Template 50-725
The Chalet Steel Template 50-722
The Cottage Steel Template 50-723
The Cape Cod Steel Template 50-724
34
Warranty
Sherwood Industries Ltd. offers a Limited Lifetime Warranty on this gas product. This Limited Lifetime
Warranty covers the appliance for a period of seven years from the date of installation. This warranty
applies only to the original owner in the original location.
Covered under the lifetime warranty are the chassis and the heat exchanger. These steel components
are covered against manufacturer’s defects for seven years and the labour for the rst year. The following
exclusions apply: over-ring due to incorrect setup or tampering, damage caused by incorrect installation,
usage or abuse. The unit must be properly installed by a qualied technician or installer, and must meet
all local and national gas and building code requirements.
Under the Limited Lifetime Warranty, the following components are also covered: log set, burners and
glass. The following exclusions apply:
Plated Finish: Damage caused by scratching, marring, chemicals, ngerprints, abrasive cleaners or
discoloration with age. Items with Antique Copper that have had a green discoloration of the nish.
If discoloration occurs, please follow the cleaning instructions as outlined in the “Maintenance And
Service” section.
Glass: Damage caused by the use of harsh or abrasive cleaners, striking the glass, surface
contaminants
Log Set: Damage caused by incorrect handling or misuse
Burners: Damage caused by improper or continuous operation under incorrect conditions
Sherwood Industries Ltd. offers a two-year warranty on all the electrical components and gas components,
against manufacturing defects. Paint is also covered against aking. This offer includes parts and labour
for one year, and parts only thereafter.
Your dealer shall make all claims under this warranty in writing. When ling a warranty
claim please complete the following information on an ofcial warranty claim form:
TO THE DEALER:
Name, address and telephone number of purchaser and date of purchase, date of installation, name of
installer and dealer, nature of complaint, defects or malfunction, description and part number of any parts
replaced.
TO THE DISTRIBUTOR:
Sign and verify that work and information are correct.
This warranty covers defects in materials and workmanship only if the product has been installed according
to the manual’s instructions. If the product is damaged or broken as a result of misuse or mishandling,
the warranty does not apply. The warranty does not cover removal and reinstallation costs.
Sherwood Industries Ltd. reserves the right to repair or replace the defective product. The shipping costs
are to be paid by the consumer. All warranties by the manufacturer are set forth and no claim shall be
made against the manufacturer on any oral warranty or representation.
Sherwood Industries Ltd. and its’ employees or representatives will not assume any damages, either
directly or indirectly, caused by improper usage, operation installation, servicing or maintenance of this
appliance.
Sherwood Industries Ltd. reserves the right to make changes without notice. Please complete and mail
the warranty registration card and have the installer ll in the installation data sheet in the back of the
manual for warranty and future reference.
35
Installation Data Sheet
The following information must be recorded by the installer for warranty purposes and future reference.
NAME OF OWNER:
_________________________________________
ADDRESS:
_________________________________________
_________________________________________
_________________________________________
PHONE:___________________________________
MODEL:___________________________________
SERIAL NUMBER:___________________________
DATE OF PURCHASE: _____________ (dd/mm/yyyy)
NAME OF DEALER:
_________________________________________
ADDRESS:
_________________________________________
_________________________________________
_________________________________________
PHONE:___________________________________
NAME OF INSTALLER:
_________________________________________
DATE OF INSTALLATION:___________(dd/mm/yyyy)
� NATURAL GAS (NAT) � PROPANE(LPG)
INLET GAS PRESSURE:_________in wc
MAIN BURNER ORIFICE:__________# DMS
PILOT ORIFICE #_________OR________in diam.
INSTALLER’S SIGNATURE:
_________________________________________
MANUFACTURED BY:
SHERWOOD INDUSTRIES LTD.
6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3
www.envirore.biz
November 26, 2004
ADDRESS:
_________________________________________
_________________________________________
_________________________________________
PHONE:___________________________________
C-10767
36
Loading...
