Enviro 1200 Insert, 1700 Insert, Cabello 1200-C Insert, Cabello 1700-C Insert Owner's Manual
Page 1
WARRANTY REGISTRATION
SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED
PAPER.
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cabello
Models: 1200-C & 1700-C Insert
OWNERS MANUAL
enviro.com/warranty
INSTALLER:
Leave this manual with the wood stove.
CONSUMER:
Retain this manual for future reference.
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD
BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT
IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
Tested &
Listed By
OMNI-Test Laboratories, Inc,
Version Française: www.enviro.com/fr.html
T L
O-
C
Report # 268-S-06b-2
US
Portland
Oregon USA
This heater meets the U. S. Environmental Protection Agencies emission limits
for wood heaters sold after July 1st, 1990. Under specic conditions this heater
has been shown to deliver heat at rates ranging from 11,479 to 34,196 BTU per
hour for the 1200 and from 9,425 to 31,780 BTU per hour for the 1700.
Contact your local building or re ofcials,
or the authority having jurisdiction about
restrictions and installation inspection
requirements in your area.
50-2627
Page 2
Table of Contents
Safety Precautions..........................................................................................3
Operating Instructions.....................................................................................4
Building Your Fire.................................................................................5
How It Works......................................................................................9
Specications................................................................................................10
Air Control.........................................................................................10
General Specications........................................................................10
Clearances To Combustibles - 1200-C Insert.........................................11
Clearances To Combustibles - 1700-C Insert.........................................12
Dimensions - 1200-C Insert.................................................................13
Dimensions - 1700-C Insert.................................................................14
Installation...................................................................................................15
Removal From Pallet..........................................................................15
Modications For Installation with 191/16” (484mm) High Lintel...........15
Masonry Fireplace Installation.............................................................16
Surround Panel Sealed Installation for USA Only..................................18
Installation Using A Block-Off Plate For USA Only..................................19
Model 1200-C Brick Placement & Tube Locations.................................21
Model 1700-C Brick Placement & Tube Locations..................................22
C-Cast Ceramic Bafe Installation........................................................23
Fan Wiring Diagrams..........................................................................24
Disassembly..................................................................................................25
Removal of Cast Top............................................................................25
Removal of Cast Door..........................................................................25
Removal of Cast Side Panels.................................................................26
Removal of Cast Bottom......................................................................26
Removal of Cast Side Bracket...............................................................27
Removal of Fan Assembly....................................................................27
Door Latch Adjustment.......................................................................28

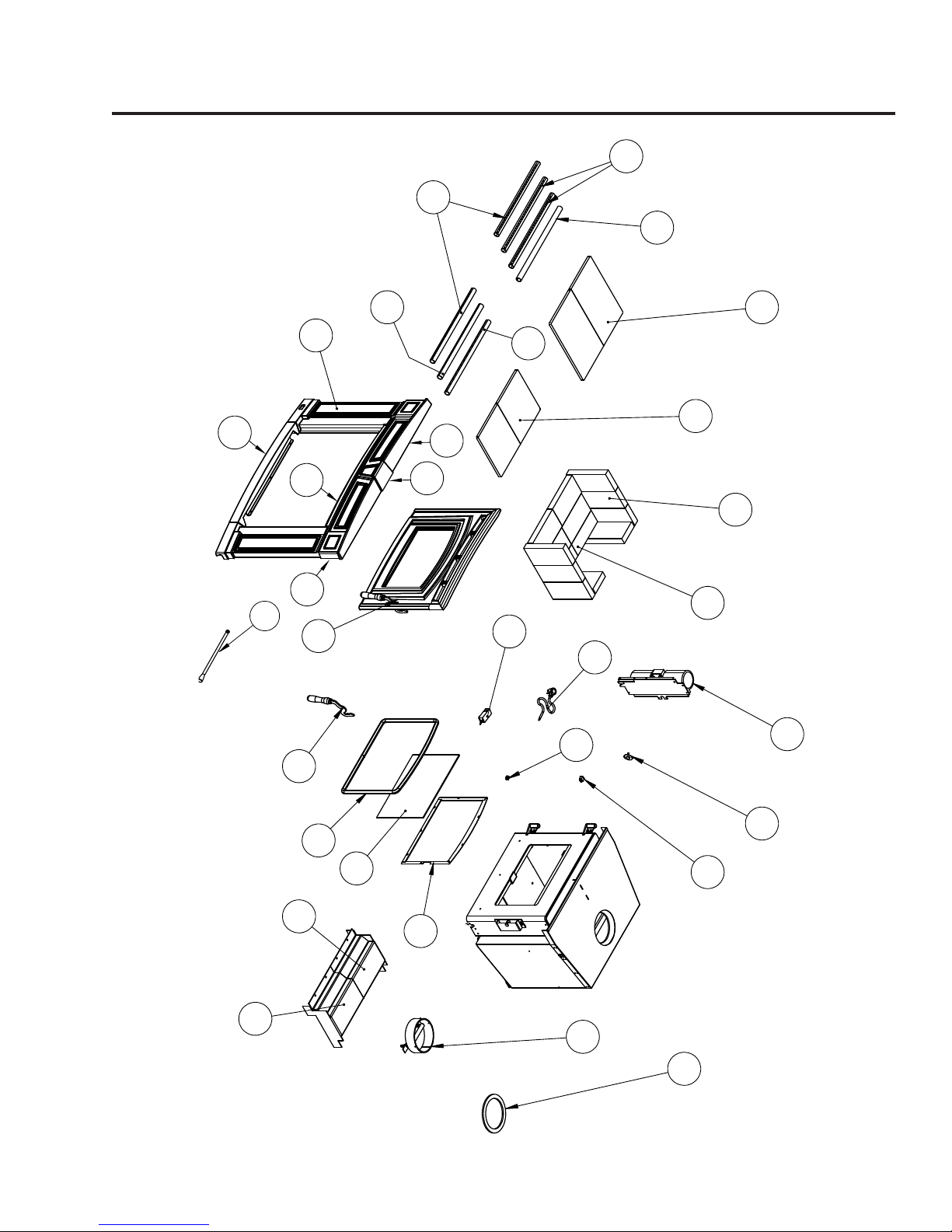

Parts Diagram................................................................................................29
Parts List......................................................................................................30
Rating Label..................................................................................................31
Electrical shock Label....................................................................................32
Warranty......................................................................................................33
Installation Data Sheet...................................................... ............................34
Thank you for purchasing your Enviro Fireplace.
2
Page 3
Safety Precautions
FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” WOOD STOVE,
PLEASE CAREFULLY READ THE FOLLOWING INFORMATION:
● Please read this entire manual before you install and use your new wood stove. Failure to
follow instructions may result in property damage, bodily injury or even death. Be aware
that local Codes and Regulations may override some items in this manual. Check with your
local inspector.
● If this appliance is not properly installed, operated and maintained, a serious house re could result.
Makeshift compromises during installation are prohibited and could also result in a serious house re.
● HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING, AND FURNITURE AWAY. CONTACT MAY
CAUSE SKIN BURNS.
● Operate only with the door tightly closed and burn wood directly on the stove hearth. Do not operate
if the door glass is broken or a gasket is missing or damaged. Do not alter the combustion air control
valves. Dangerous over-ring could occur which could ignite creosote in the chimney or cause a house
re.
● There needs to be an opening of at least 12 square inches (77.4 cm2) to allow fresh air into the room.
● Do not burn coal or charcoal as there is danger of carbon monoxide being produced. DO NOT USE
CHEMICAL FLUIDS TO START OR RE-FRESH THE FIRE. DO NOT BURN GARBAGE OR FLAMMABLE
FLUIDS SUCH AS GASOLINE, GREASE, NAPHTHA OR ENGINE OIL. Never let the stove become hot
enough to get any part red or glowing red.
● Never store gasoline or other ammable liquids near the stove.
● Burning wet, unseasoned wood could cause excessive creosote accumulation in the ue pipe. When
ignited, it could cause a chimney re that could result in a serious house re.
● Do not use grates, irons or any other methods to support or raise the re up off the hearth of the
appliance.
● This appliance is tested to ULC-S628-93 Standard for Fireplace Inserts, & UL 1482 Standard for Safety
for Solid-Fuel Type Room Heaters.
● Both the 1200-C & 1700-C Fireplace Inserts are approved for installation into a zero-clearance replace
in the USA. In Canada refer to local building or re ofcials for restrictions and installation inspection
● A chimney connector shall not pass through an attic, roof space, oor, ceiling, closet or similar concealed
space.
● Where passage through a wall, or partition of combustible construction is desired, the installation shall
conform to CAN/CSA-B365.
● In the event of component failure, only manufacturer specied replacement parts may be used.
● DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.
● DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
● DO NOT INSTALL IN A MOBILE HOME.
3
Page 4
Operating Instructions
FIRST START
When rst installed, the chimney, rebricks and steel are cold and it usually takes several hours on a fairly
high burn for them to become hot and dry enough for the stove to function properly. We recommend
during the unit’s rst burn that a door or window are opened to vent the smoke and fumes created from
the unit’s paint curing. The paint will smell a little for the rst burn or two as it cures.
DISPOSAL OF ASHES:
If you let the ashes accumulate two or three inches at the bottom of the rebox they tend to burn
themselves up. Wait until the replace has completely cooled before removing ashes. Ashes should be
placed in a metal container with a tight tting lid. The closed container of ashes should be placed on a
noncombustible oor or on the ground, well away from all combustible materials, pending nal disposal.
If the ashes are disposed of by burial in soil or otherwise locally disposed, they should be retained in the
closed container until all cinders have thoroughly cooled. Other waste shall not be placed in this container.
FAN OPERATION:
All models have been approved for operation with the manufacturer supplied fan. On medium or high
burns, using a fan will increase the heat transfer slightly. Route the electrical cord along the oor in front
of the surround panel. There are cutouts in the castings to tuck the cord under.
1. Plug the fan power cord into a standard three (3) prong grounded electrical receptacle.
2. The fan has three modes of operation manual, off, and auto. Fan modes are controlled by a three
position switch located on the lower left side of the unit. See wiring diagram for clarication.
3. The fan is controlled by a rotary dial located at the lower left side of the unit. The dial rotation is as
follows: OFF>HIGH>LOW
4. If the dial is in any position other than off and is switched to auto mode, the fan will automatically
turn on once the stove has reached operating temperature (roughly 25 minutes from a cold start).
When the unit cools down, the fan temperature sensor will shut the fan off automatically if in auto
mode. The fan can also be turned off manually at any time by rotating the dial to the off position or
by setting the switch to the off position. Manual mode will turn on the fan instantly if the dial is not
in the off position.
REPLACING THE GLASS:
Never strike or slam the door, hit the glass or let burning wood rest against it as this may
cause the glass to crack and cause possible injury. If the glass cracks when the re is burning,
do not open the door until the re is out and do not operate the stove again until the glass has been
replaced. If the glass is damaged in any way, a factory replacement is required (see “Parts List”). To
replace the glass, remove the steel retaining clips and all loose glass. Replace only with Neoceram 5 mm
glass 16.61” (422 mm) x 10.63” (270 mm) and wrap the edges with 0.125” (3.2 mm) x 0.5” (13 mm)
self-adhesive berglass gasket.
Wear gloves when handling damaged glass door assembly to prevent personal injury. When the glass
door assembly is being transported, it must be wrapped in newsprint and tape and/or a strong plastic bag.
The glass must be purchased from an ENVIRO dealer. No substitute materials are allowed.
FIRE EXTINGUISHER AND SMOKE DETECTION:
All homes with a solid fuel burning stove should have at least one re extinguisher in a central location
known to all in the household and a smoke detection device in the room containing the stove. If it sounds
the alarm, correct the cause but do not deactivate. You may choose to relocate the smoke detection
device within the room; DO NOT REMOVE THE SMOKE DETECTOR FROM THE ROOM.
4
Page 5
Operating Instructions
CREOSOTE - ITS FORMATION AND NEED FOR REMOVAL:
When wood is burned slowly, it may produce tar and other organic vapors, which combine with expelled
moisture to form creosote. The creosote vapors condense in the relatively cool chimney of a slow-burning
re. As a result, creosote residue accumulates on the ue lining. When ignited this creosote makes an
extremely hot re. The chimney connector and chimney should be inspected biweekly during the heating
season to determine if a creosote buildup has occurred. If creosote has accumulated (3mm or more) it
should be removed to reduce the risk of a chimney re.
MAINTENANCE:
At the end of each heating season clean the chimney and the smoke pipe. If soot has accumulated above
the top bafe bricks, remove, clean, and then replace them. If a secondary air tube is badly corroded,
replace it. Replace worn door gaskets and broken bricks as needed.
FAILURE TO INSPECT AND CLEAN YOUR CHIMNEY SYSTEM REGULARLY CAN RESULT IN A
CHIMNEY FIRE, WHICH COULD DAMAGE THE CHIMNEY OR CAUSE A HOUSE FIRE.
CHIMNEY OR RUN AWAY FIRE:
1. Call local re department (or dial 911)
2. Close the draft fully
3. Examine the ue pipes, chimney, attic, and roof of the house, to see if any part has become hot
enough to catch re. If necessary, spray with re extinguisher or water from the garden hose.
4. Do not operate the stove again until you are certain the chimney and its lining have not been damaged.
Building Your Fire:
Proper operation of your stove will help to ensure safe, efcient heating. Please take a few moments to
review these simple operating procedures.
IMPORTANT: Please be aware when loading your stove that the air tubes in the rear are lower.
1. Fuel Selection:
This stove is designed to burn natural wood only. Higher efciencies and lower emissions generally result
when burning air-dried seasoned hardwoods, as compared to softwoods or too green or freshly cut
hardwoods. DO NOT BURN the following: treated wood, coal, garbage, solvents, colored papers or trash.
Burning these may result in the release of toxic fumes and may poison or render the secondary air tubes
ineffective. Burning coal, cardboard or loose paper can produce soot, or large akes of char or y ash that
can coat the combustor, causing smoke spillage into the room, and rendering the combustor ineffective.
2. Building/Maintaining a Fire:
a) Open the primary air slide by pulling it all the way to the right.
b) Place a base of crumpled uncolored newspaper in the bottom of the stove. Lay pieces of kindling on
top of the newspaper and light it.
CAUTION: “Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter uid,
or similar liquids to start or “freshen up” a re in this heater. Keep all such liquids well
away from heater while it is in use.
c) As the kindling begins to burn, add several larger pieces of wood until the re is burning well. At this
point, regular size logs may be added.
NOTE: Until the re is burning well, leave the air controls fully open.
5
Page 6
Operating Instructions
d) Regulate the heat output of the stove by adjusting the air controls to allow a larger re and vice versa.
A short period of experimentation with the control settings will allow you to regulate the heat output
to keep your home comfortable.
Do not use a grate or elevate the re. Build wood re on the stove rebox hearth oor.
3. Refueling the Stove:
Use supplied re gloves when feeding the re for burn protection. . Keep a small steel shovel and poker
nearby for moving a log or lifting a fallen ember and for keeping the hearth clean.
a) Before attempting to add fuel to the stove, OPEN the damper control fully by pulling it all the way out.
This allows the chimney to carry away any additional smoke, which keeps it from spilling in to the room.
b) DO NOT OVERLOAD THE STOVE. Normally, three or four logs will provide heat for several hours.
Remember secondary air tube are lower in the back.
c) DO NOT OVERFIRE. If any part of the heater or chimney starts to glow red, you are overring.
Overring could ignite creosote in the chimney and cause a house re.
d) CAUTION: DO NOT PLACE FUEL OR COMBUSTIBLE MATERIAL WITHIN SPACE HEATER INSTALLATION
CLEARANCES OR WITHIN THE SPACE REQUIRED FOR CHARGING AND ASH REMOVAL. LOGS SHOULD BE
KEPT IN A BIN OR CONTAINER TO REDUCE THE RISK OF LOGS ROLLING INTO THE UNIT’S CLEARANCES.
e) KEEP THE ASH LIP CLEAR OF EMBERS AND ASH. If the door is closed with debris in the way,
the door gasket seal could be compromised.
4. For Maximum Efciency:
When the stove is hot, load it fully to the top of the door opening and burn at medium low settings. When
the fuel is mostly consumed, leaving a bed of red coals, repeat the process. Maximum heat for minimum
fuel occurs when the stove top temperature is between 250°F (120°C) and 550°F (290°C). The most
likely causes of dirty glass are: not enough fuel to get the stove thoroughly hot, burning green or wet
wood, closing the draft until there is insufcient air for complete combustion, or a weak chimney draw.
Indeed, the cleanliness of the glass is a good indicator of the stove operating efciently.
Helpful Hints Worth Repeating
1. Helpful advice on the correct way to start your re.
a) You will need small pieces of dry wood, called kindling, and paper. Use only newspaper or paper
that has not been coated or had other materials glued or applied to it. Never use coated (typically
advertising yers) or coloured paper.
b) Always open the door of the wood stove slowly to prevent suction and drawing smoke into the
room.
c) Crumple several pieces of paper and place them in the center of the rebox, directly on top of the
rebricks in the wood stove. Never use a grate to elevate the re.
d) Place small pieces of dry wood (kindling) over the paper in a “teepee” manner. This allows for good
air circulation, which is critical for good combustion.
e) Light the crumpled paper in 2 or 3 locations. Note: It is important to heat the air in the stovepipe for
draft to start.
6
Page 7
Operating Instructions
f) Fully open the air controls of the wood stove and close the door until it is slightly open, allowing for
much needed air to be introduced into the rebox. Never leave the door fully open, as sparks from
the kindling may y out of the stove, causing damage or injury. As the re begins to burn the kindling,
some additional kindling may be needed to sustain the re. DO NOT add more paper after the re has
started.
g) Once the kindling has started to burn, add some smaller pieces of seasoned, dry rewood. Note:
Adding large pieces at the early stages will only serve to smother the re. Continue adding small pieces
of seasoned dry rewood, keeping the door slightly open until each piece starts to ignite. Remember
to always open the door slowly between placing wood into the re.
h) Once the wood has started to ignite and the smoke has reduced, close the wood stove door fully. The
reduction of smoke is a good indication that the draft in the chimney has started to heat up and good
combustion is now possible. Larger pieces of seasoned, dry rewood can now be added when there
is sufcient space in the rebox. Adjust the air control setting to desired setting. Note: The lower the
air control setting, the longer the burn time of your rewood.
2. What type of wood is best to use as rewood?
Both hardwood and softwood burn well in this stove. Both woods contain about 8,000 BTU/lb (18,570
KJ/Kg), but hardwood is generally more dense, will weigh more per cord, and burns a little slower and
longer. Cutting rewood so that it will t horizontally, front to back, makes it easier loading and less likely
for the fuel to roll on the glass. Except for a cold start, there is no need to crisis-cross the logs. Ideal
length for the logs used in the 1200-C would be about 16“ (381 mm) but it can burn pieces up to 18”
long. Ideal length for the logs used in the 1700-C would be about 18“ (381 mm) but it can burn pieces
up to 20” long logs. Burn only dry, seasoned wood. It produces more heat and less soot or creosote.
Freshly cut wood has about 50% moisture. A 10 pound (4.5 Kg) log contains 5 pounds (2.3 Kg) of water.
To season rewood, split and stack it so that air can get to all parts of the wood. Burn beach wood only
if its salt content has been washed away in a season of rain and then the wood dried. To prevent smoke
spillage when refueling, fully open the damper and open the door slowly.
3. What does dry, seasoned wood mean?
Wood that has been dried for a period of one year in a well-ventilated and sheltered area would be
considered dry, seasoned wood. Wood from slow-growing trees is generally considered better than wood
from fast-growing trees. To season rewood, split and stack it so that air can get to all parts of the
wood.
4. Will following the above-listed steps for starting a re mean perfect results every time?
The quick answer is ‘most of the time’. There are many variables that may affect your success when
starting a re. Most of those variables and how to deal with them will be learned through experience.
Your ability to start a good re will signicantly increase with time and patience. Some of the reasons for
poor stove performance will be covered in the next section of these instructions.
5. Why can’t I get the re lit?
Damp or wet wood and poor drafts are the main reasons for poor results in starting a re. Always use
dry, seasoned wood for your re. Even wood dried for two years will be difcult to ignite if it has become
wet.
7
Page 8
Operating Instructions
6. Is it normal for soot to cover the glass at the beginning of a re?
Your stove has been built with an air-wash system that will help keep the glass clear when the rebox
has reached a good operating temperature and has a good draft. Normally, a hot stove will keep the glass
clean, but if you must clean the glass, use a soft cloth with no abrasive and clean only when the unit is
cold. Cold rebox temperature and poor draft cause sooting of the glass. Once the rebox temperature
and the draft increase, the soot will burn off.
7. What is draft?
Draft is the ability of the chimney to exhaust or draw smoke produced during the normal combustion
process. Too much draft may cause excessive temperatures in the appliance and may damage the
appliance. Inadequate draft may cause backpufng or “plugging” of the chimney. There is a certain
amount of draft that is required to allow for your stove to function at its’ highest efciency. A water
column gauge can be used to reference this amount.
8. What can cause a poor draft?
The most common factors for poor draft are:
a) Air supply
b) Environmental conditions
c) Cold chimney temperature
d) Poor chimney installation and maintenance
e) Atmospheric pressure
a) Air supply – Inside the home, normal household appliances such as clothes dryers and forced-air
furnaces compete for air, resulting in air starvation to the re. This creates a condition in the house
known as negative pressure. When a house experiences negative pressure, the combustion gases
can be drawn from the chimney and into the house. This condition is commonly referred to as down-
drafting. Increased amounts of insulation, vinyl windows, extra caulking in various places and door
seals can all keep heat in but may also make a home too airtight. An easy way to stop negative
pressure in a home is to crack a window in the room containing the stove.
b) Environmental Conditions - High trees, low-lying house location such as in a valley, tall buildings or
structures surrounding your house and windy conditions can cause poor draft or down-drafting.
c) Cold Chimney Temperature - Avoid cold chimney temperatures by burning a hot re for the rst fteen
to forty minutes, being careful not to over-re the stove. If any part of the chimney or parts of the
stove start to glow, you are over-ring the stove. Where possible, install a temperature gauge on the
chimney so temperature drops can be seen.
d) Chimney Installation and Maintenance - Avoid using too many elbows or long horizontal runs. If a
chimney run is too short this can cause difcult start-up, dirty glass, back smoking when door is open,
and even reduced heat output. Too tall a chimney may prompt excessive draft, which can result in
very short burn times and excessive heat output. If in doubt, contact a chimney expert and/or chimney
manufacturer for help. To prevent creosote build up clean the chimney, rain cap, and spark arrestor
regularly.
Note: These instructions are intended as an aid and do not supercede any local, provincial or state
requirements. Check with ofcials or authorities having jurisdiction in your area.
8
Page 9
Operating Instructions
Operating Instructions
How it Works
Convection Heat
Primary air; window
air wash (cooler air to
keep the glass clean).
Twin pilot injection ports.
:
Exhaust Smoke
Radiant Heat
Pilot air through
Intake air.
Slider plate; used
for air flow control.
Intake air.
1
/2" Ceramic baffle;
reflects heat down
to burn the particles
in the smoke.
Secondary air tubes;
creates a second burn
on the particles in the
smoke for a more efficient
& cleaner burn.
Convection Heat
Primary air; window
air wash (cooler air to
keep the glass clean).
Radiant Heat
Pilot air through
Twin pilot injection ports.
Figure 1: 1200-C Air Flow Path.
Slider plate; used
for air flow control.
Exhaust Smoke
Intake air.
Intake air.
1
/2" Ceramic baffle;
reflects heat down
to burn the particles
in the smoke.
Secondary air tubes;
creates a second burn
on the particles in the
smoke for a more efficient
& cleaner burn.
Figure 2: 1700-C Air Flow Path.
9
Page 10
Specications
air control:
The primary air is controlled by the rod located on the
right side of the unit. To increase your air, pull the rod
out and to decrease, push the rod in. All the units have
a secondary air that ows through the tubes at the top
of the rebox, just below the bafes.
Pull this control all the way out when rst starting the
stove. Once the re has been established you may
adjust this control to set the burn rate of the re. For
optimal efciency, use a low to medium setting. If this
damper is closed at rst start-up, the re will burn very
slowly and could soot the appliance.
When shutting down the stove, fully open the air control. This allows the chimney temperatures to remain
as high as possible for as long as possible. Cold chimney temperatures create creosote.
general SpeciFicationS:
Table 1: 1200-C & 1700-C General Information.
Model 1200 Insert 1700 Insert
Figure 3: Air Control Rod.
Minimum Install Width x Depth
Install Height of body 19.063 in (486 mm) or 19.563 in (497 mm)
Interior Fire box size
(depth x width x height)
Firebox Capacity 1.85 ft
Approximate heating area 2200 ft
E.P.A. output rating
Duration on low burn 6 -10 hours 8 - 12 hours
Weight with packaging 335 lb (151.95 Kg) 390 lb (176.90 Kg)
E.P.A. Emissions
Cast Surround
(409 mm x 464 mm x 283 mm)
31⅝ in x 18¼ in
(805 mm x 464 mm)
16.10 in x 18.25 in x 11.15 in
3
(0.053 m3) 2.50 ft
2
(205 m2) 3000 ft
11479 - 34196 BTU/hour
(3361 - 10013 Watt)
3.3 grams/hour
(0.116 oz/hour)
(525 mm x 464 mm x 304 mm)
31⅝ in x 22¾ in
(805 mm x 578 mm)
20.65 in x 18.25 in x 11.95 in
3
(0.071m3)
2
(280 m2)
9425 - 31780 BTU/hour
(2760 - 9306 Watt)
4.48 grams/hour
(0.158 oz/hour)
Standard (width x height) 41.125 in x 28.600 in (1045 mm x 727 mm)
Rating Label Location Right Side of Unit; behind surround
10
Page 11
Specications
clearanceS to comBuStiBleS - 1200-c inSert:
Table 2: 1200-C Insert Clearance to Combustibles.
A Minimum clearance to an unshielded side wall 14 in (254 mm)
B Minimum clearance to an unshielded 8” (203
mm) mantel
C Minimum top facing (protruding ¾” [19 mm])
clearance
D Minimum side facing (protruding ¾” [19 mm])
clearance
E † From front of door opening to edge of oor
protection
F † From side/back of unit to edge of oor
protection
† FLOOR PROTECTION:
If unit is raised 0 - 2 in (0 - 51 mm); 1 in (25 mm) non-combustible material with R value = 0.59 or equivalent.
If unit is raised 2 - 8 in (51 - 203 mm); 0.5 in (13 mm) non-combustible material with R value = 0.59 or equivalent.
If unit is raised greater than 8 in (203 mm) or more; any non-combustible material can be used.
Table 3: Reduction in (B) Minimum Clearance from 1200-C to 8” (203 mm) Mantel.
Type of protection Modied Clearance
A minimum of .013 in (0.33 mm) sheet metal spaced out 1 in (25 mm) by
non-combustible spacers.
Ceramic tiles, or equivalent non-combustible material on non-combustible
supports and spaced out 1 in (25 mm) by non-combustible spacers.
Ceramic tiles, or equivalent non-combustible material on non-combustible
supports with a minimum of .013 in (0.33 mm) sheet metal spaced out 1 in
(25 mm) by non-combustible spacers.
NOTES:
(1) Mantel protection must have at least 3 in (75 mm) edge clearance on all sides, except as provided in Note 4.
(2) If an adhesive is used to support non-combustible material, it shall not lose adhesive qualities at temperatures
likely to be encountered and shall not contribute a signicant combustible load.
(3) Heat shield mounting hardware attached to combustible materials must be placed at the lateral extremities of
the shield.
(4) Minimum clearance to unprotected walls and ceilings must be maintained.
(5) Clearances may only be reduced with shielding acceptable to the local authority.
21 in (533 mm)
17.5 in (445 mm)
1 in (25 mm)
USA 16 in (406 mm)
CND 18 in (450 mm)
USA 6 in (152 mm)
CND 8 in (203 mm)
B
A
Adjacent wall
F
10.50 in (267 mm)
14.00 in (356 mm)
10.50 in (267 mm)
C
D
E
Table 4: 1200-C Insert Minimum Fireplace Install Size.
Minimum Depth 18¼ in (464 mm) 18¾ in (476 mm)
Minimum Width at back of replace
Minimum Width at front of replace
**Minimum Height
** If the masonry lintel height is only 19¼ in (489 mm) to 19¾ in (502 mm) refer to instaLLation - Modifications for
instaLLation with 19¼” (489 MM) high LinteL - insert
Masonry Zero Clearance
22⅝ in (575 mm)
31⅝ in (805 mm)
19¼ in (489 mm) or
19¾ in (502 mm)
23 in (584 mm)
32 in (813 mm)
20 in (508 mm)
11
Page 12
Specications
clearanceS to comBuStiBleS - 1700-c inSert:
Table 5: 1700-C Insert Clearance to Combustibles.
A Minimum clearance to an unshielded side
wall
B Minimum clearance to an unshielded 8”
(203 mm) mantel
C Minimum top facing (protruding ¾”
[19 mm]) clearance
D Minimum side facing (protruding ¾”
[19 mm]) clearance
E † From front of door opening to edge of
oor protection
F † From side/back of unit to edge of oor
protection
† FLOOR PROTECTION:
If unit is raised 0 - 2 in (0 - 51 mm); 1 in(25 mm) non-combustible material with R value = 0.59 or equivalent.
If unit is raised 2 - 8 in (51 - 203 mm); 0.5 in (13 mm) non-combustible material with R value = 0.59 or equivalent.
If unit is raised greater than 8 in (203 mm) or more; any non-combustible material can be used.
Table 6: Reduction in (B) Minimum Clearance from 1700-C to 8” (203 mm) Mantel.
Type of protection Modied
A minimum of .013 in (0.33 mm) sheet metal spaced out 1 in (25 mm) by non-
combustible spacers.
Ceramic tiles, or eqivalent non-combustible material on non-combustible
supports and spaced out 1 in (25 mm) by non-combustible spacers.
Ceramic tiles, or eqivalent non-combustible material on non-combustible
supports with a minimum of .013 in (0.33 mm) sheet metal spaced out 1 in (25
mm) by non-combustible spacers.
14 in (254 mm)
24 in (610 mm)
19.5 in (495 mm)
1 in (25 mm)
USA 16 in (406 mm)
CND 18 in (450 mm)
USA 6 in (152 mm)
CND 8 in (203 mm)
B
A
Adjacent wall
F
Clearance
12.00 in (305 mm)
16.13 in (410 mm)
12.00 in (305 mm)
C
D
E
NOTES:
(1) Mantel protection must have at least 3 in (75 mm) edge clearance on all sides, except as provided in Note 4.
(2) If an adhesive is used to support non-combustible material, it shall not lose adhesive qualities at temperatures
likely to be encountered and shall not contribute a signicant combustible load.
(3) Heat shield mounting hardware attached to combustible materials must be placed at the lateral extremities of
the shield.
(4) Minimum clearance to unprotected walls and ceilings must be maintained.
(5) Clearances can be reduced with shielding acceptable to the local authority.
Table 7: 1700-C Insert Install Fireplace Size.
Minimum Depth 22¾ in (578 mm) 23¼ in (591 mm)
Minimum Width at back of replace 22⅝ in (575 mm) 23 in (584 mm)
Minimum Width at front of replace 31⅝ in (805 mm) 32 in (813 mm)
**Minimum Height
** If the masonry lintel height is only 19¼ in (489 mm) to 19¾ in (502 mm) refer to instaLLation - Modifications for
instaLLation with 19¼” (489 MM) high LinteL - insert
12
Masonry Zero Clearance
19¼ in (489 mm) or
19¾ in (502 mm)
20 in (508 mm)
Page 13
dimenSionS - 1200-c inSert:
28
5
8
"
(727 mm)
41
1
8
"
(1045 mm)
31
5
8
"
(805 mm)
21
5
16
"
(541 mm)
21 9/16"
(548 mm)
18" (457 mm)
20
8
"
(529 mm)
(497mm)
19 1/16"
(484 mm)
or
19 9/16"
5"
(127 mm)
7
Specications
Figure 4: 1200-C Insert Dimensions.
13
Page 14
dimenSionS - 1700-c inSert:
28
5
8
"
(727 mm)
41
1
8
"
(1045 mm)
31
5
8
"
(804 mm)
21
5
16
"
(541 mm)
26
1
16
"
(662 mm)
22
1
2
"
(571 mm)
20
7
8
"
(529 mm)
(497mm)
19 1/16"
(484 mm)
or
19 9/16"
5"
(127 mm)
Specications
Figure 5: 1700-C Insert Dimensions.
14
Page 15
Installation
Failure to follow these instructions carefully could cause personal injury or property damage.
removal From pallet
• remove the bricks form the unit before
starting.
• Remove the two lag bolts (shown in
Figure 6) that secure the unit to the
pallet from inside the rebox.
Note: Before the bricks are
re-installed, supplied rivets
(Figure 7) must be placed
in the holes which the lag
bolts were removed from.
This is done to seal the unit
and make unit burn more
Figure 7:
Rivet.
efciently.
Figure 6: Bolts to remove.
modiFicationS For inStallation with 19
1
/16” (484mm) high lintel:
The Cabello has a factory height of 199/16” (497mm) and
it can be reduced to 191/16” (484mm) by modifying the
cabinet top installation.
1. Remove the thirteen T-20 screws holding the cabinet
top in place (refer to Figure 8).
2. Remove the cabinet top and ip it onto its top.
3. Remove the Air Deector (shown in Figure 9) by
removing the two (2) T-20 screws.
4. Re-install the cabinet top onto the unit. The screw
holes along the top of the unit should now line up
with the top set of holes on the cabinet back.
Air Deflector
Insert Cabinet Top
Figure 8: Removing Cabinet Top from Unit.
Figure 9: Removing Air Deector on Cabinet Top.
15
Page 16
Installation
Floor
Protection
Combustible Floor
Masonry Fireplace
8"
(203 mm)
Rain Cap
Steel Plate or Flashing
Flexible or Rigid 6"
Stainless Steel Liner
Mantel
Top Facing
Damper Removed
or Fastened Open
Sheet Metal Screws
Fastening Collar to
Stainless Steel Liner
Surround Panel
USA 16” (406 mm)
CND 18” (450 mm)
maSonrY Fireplace inStallation:
Unless you are experienced, we recommend installation by your dealer or a
professional installer.
Install only in a masonry replace with a good-condition chimney at least 15 ft (4.6 m) high, both of
which have been constructed in accordance with the building code. Refer to Tables 4 and 7 for minimum
masonry replace dimensions. Be sure the replace and chimney are clean and sound without any cracks
or loose mortar. Do not remove any bricks or mortar from the replace.
If there is a combustible oor in front of the
masonry replace, the replace insert must
be 8” (203 mm) above the combustible oor,
and oor protection must be provided 18”
(457 mm) in front of the replace insert
and 8” (203 mm) to each side of the unit.
Refer also to sPecifications - cLearances to
coMbustibLes - 1200-c insert and sPecifications
- cLearances to coMbustibLes - 1700-c insert.
1. Remove any replace damper or fasten in
a permanent open position.
Figure 10: Insert Installation into existing replace with
hearth.
2. (IN CANADA) The stove is vented with
a 6” stainless steel liner that goes directly to
the top of the chimney and is covered with
a rain cap. The chimney top is sealed with
a ashing or steel plate that supports the
weight of the chimney liner. The installation
must conform to the liner’s manufacturer’s
instructions.
This replace must be installed with a
continuous liner of 6” diameter (CANADA
ONLY) extending from the replace insert to
the top of the chimney. The chimney liner
must conform to the Class 3 requirements
of CAN/ULC-S635 Standard for Lining
Systems for Existing Masonry or FactoryBuilt Chimneys and Vents, or CAN/ULC-S640
Standard for Lining Systems for New Masonry
Chimneys.
(IN U.S.A.)The appliance when installed,
must follow local building codes, in the
absence of local building codes, with the
current NFPA 211 Standard for Chimneys,
Fireplaces, Vents, and Solid Fuel-Burning
Appliances.
16
Page 17
Installation
Firebox Top
Cut-away
Vent pipe
Removable
Flue Collar
Collar Puller
Gasket
Flue Collar Clamp
Washer
Nut
USA 16” (406 mm)
CND 18” (450 mm)
Floor Protection
Masonry Fireplace
Figure 11: Insert Installation into existing replace
without hearth.
Combustible Floor
8”
(203mm)
The ue collar is removable for installations into
replaces with low openings.
A) Remove the rear two (2) secondary air tube
and C-Cast Ceramic Bafes, if installed (see
c-cast ceraMic baffLe instaLLation). Remove the
secondary air tubes by placing a screwdriver
(any style except at head) into one of the air
holes and tapping it with a hammer/mallet to
the left.
B) Unscrew the two (2) nuts on top of the
inside of the rebox, using a 9/16” wrench or
socket (see Figure 13). The Flue Collar Clamps
will slide off the bolts.
C) Pull the removable ue collar off the top of
the unit.
D) Attach the ue collar to the venting pipe
using sheet metal screws.
E) Push the unit into place while trying to
keep the collar attached to venting close to the
opening on the top of the unit.
USA 16” (406 mm)
CND 18” (450 mm)
Masonry Fireplace
Non-Combustible Board (K 0.84)
Figure 12: Insert Installation into existing oor level
F) Place the Collar Puller, over the two bolts of the Flue Collar
and pull it into place (see Figure 14). Ensure that the bolts
are to the left and right of the hole. If they are not, the
front secondary air tube will need to be removed in order
1” (25mm)
masonry replace.
Combustible Floor
to install or remove the C-Cast Ceramic Bafes.
G) Slide the Flue Collar Clamps and washers over the bolts,
and screw the nuts back onto the bolts.
H) Re-install C-Cast Ceramic Bafes and the rear two (2)
secondary air tube (see c-cast ceraMic baffLe instaLLation).
Figure 13: Attaching removable ue
collar.
17
Page 18
Installation
Leveling Legs
Figure 14: Removable ue collar in place.
Figure 15: Leveling legs.
3. There are four (4) leveling legs (shown in Figure 15), two (2) on each side, one at the back and one
at the front of the unit. Adjust the legs using a ⅜” wrench to ensure the unit is stable.
4. Screw or nail the provided metal plate with the wording “THIS FIREPLACE HAS BEEN ALTERED TO
ACCOMMODATE A FIREPLACE INSERT AND SHOULD BE INSPECTED BY A QUALIFIED PERSON PRIOR
TO THE RE-USE AS A CONVENTIONAL FIREPLACE.” To the inside of the replace.
Surround panel Sealed inStallation For uSa onlY:
Note: Though this is an allowable installation, we do not recommend it because of the possibility of poor
draft, and therefore poor stove performance.
Before starting this type of installation refer
to instaLLation - Masonry firePLace instaLLation
- insert for additional information. For
clearances refer to sPecifications - cLearances to
coMbustibLes - 1200-c insert and sPecifications
- cLearances to coMbustibLes - 1700-c insert.
1. Before the face plate is installed onto
the unit, glue a 6” (150mm) wide R20
berglass insulation strip around the
perimeter of the back of the panels using
RTV silicon or stove gasket cement.
When the face plate is installed onto
the unit the insulation must overlaps the
replace opening to form a seal between
the masonry replace and the unit’s face
plate. Let the silicon or cement dry.
NOTE: To use this type of installation we
recommend your chimney have a minimum
cross-sectional area of 28 and a maximum of
144 square inch. If it is not within this range
your chimney may not have sufficient draw
for the fireplace to operate correctly. The
required cross-section may vary depending
on climate and if the chimney is inside (better)
or outside.
Damper Removed
or Fastened Open
Mantel
Insulation Around the
Back of the Face Plate
Surround Panel
2. To make the installation of the surround
panel onto the unit easy have the unit 6”
(150mm) out from the replace,
3. Push the insert into the replace, allowing
the insulation to form a seal between the
panels and the replace. Tuck any exposed
insulation behind the face plate.
18
USA 16” (406 mm)
CND 18” (450 mm)
Masonry Fireplace
Figure 16: Installation with Surround Sealed.
Page 19
Installation
A
B
C
inStallation uSing a Block-oFF plate For uSa onlY:
If this unit is to be installed into a masonry replace or a zeroclearance replace with a direct connection you must install a
non-combustible seal-off device such as a block-off plate or
damper adapter. By installing a block-off plate you seal the
chimney, ensuring that no smoke enters the home and sealing
the chimney to encourage draft. To construct a block-off plate
follow the below steps.
Before starting this type of installation refer to instaLLation -
Masonry firePLace instaLLation - insert for additional information.
For clearances refer to sPecifications - cLearances to coMbustibLes
- 1200-c insert and sPecifications - cLearances to coMbustibLes 1700-c insert. See Figure 19 and 20 for examples of a masonry
replace and a zero-clearance replace with a direct connection.
1. Determine where the block-off plate will be installed; above
the top of the rebox (it must be high enough to easily
install the connection pipe) but below the damper area.
Look for a location that is level and in an area where the
plate can be mounted easily.
The measurement that will be needed are as followed (refer
to Figure 17 and 18):
A - The width at the front of the rebox at the height where
the block-off plate will be installed.
B - The width at the back of the rebox at the height where
the block-off plate will be installed.
Figure 17: 3D of Dimensions needed from
the Fireplace.
C - Then depth of the block-off needed (the distance between A and B).
D - The distance of the center of the ue to the front of the replace opening. Refer to Step 3.
NOTE: In general masonry replaces have square reboxes while zero-clearance (metal) replaces
have domed rebox tops. Therefore zero-clearance block-off plates may be more difcult to install.
Insulation may be used around the edges to simplify sealing
the plate.
B
2. Create a cardboard template of the dimensions with 2” (51
cm) wide anges on each side. These anges will be used to
mount the block-off plate to the inside of the rebox. Bend
the anges downwards on the template and place it inside
the replace. Continue on if the template ts correctly in
C
its planned location. If the template does not t, make a
new template with the required corrections until it does t
correctly.
D
3. With the template in place, mark the location for the center
of the ue pipe when the unit is in place. If installing a
1200-C the distance will be approximately 8¼” or 9 15/16”
back from the replace opening. If installing a 1700-C the
distance will be approximately 12¾” or 14 7/16” back from
A
Front of fireplace opening.
Figure 18: Layout of the Block-Off Plate.
19
Page 20
Installation
the replace opening. Remove the template and
cut a 6¼” diameter hole centered on this mark.
4. Using the template make the block-off plate of 24
gauge or thicker steel. Drill two (2) holes in each
ange for mounting the plate.
5. Mount the block-off plate using masonry screws in
a masonry replace and sheet metal screws on a
zero-clearance replace (screws need only be long
enough to penetrate the rst layer of metal).
6. Insulate the block-off plate using high -
Damper must
be removed
Zero-clearance
(metal) firebox
Stainless steel chimney
connector must extend
12" (305mm) past the
block-off plate.
Mantel
Block-off plate or
damper adaptor.
Surround Panel
temperature berglass insulation and furnace
cement.
7. After installing the unit into place and the pipe
through the block-off plate, use high - temperature
USA 16” (406 mm)
CND 18” (450 mm)
berglass insulation and furnace cement to seal
any gaps between the pipe and block-off plate
(allow the cement to dry for at least 24 hours
before burning).
Figure 19: Insert Install into a
Zero-Clearance Fireplace.
Zero Clearance Notes:
The replace must not be altered, except for the
exceptions below. The permanent metal warning
label provided must be attached to the back of
the replace, stating that the replace may have
been altered to accommodate the insert, and
Damper removed
or fastened open
Mantel
The stainless steel
chimney connector
must extend 12"
(305mm) past the
block-off plate.
Block-off plate or
damper adaptor.
Surround Panel
must be returned to original condition for use as a
conventional replace. The following modication of
factory built replaces are permissible: removal of
damper, removal of smoke shelf or bafe, removal
of ember catches, removal of re grate, removal of
viewing screen/curtain, and removal of doors. The
factory built chimney must be listed per UL 127
(US), and meet type HT requirements of UL 103
(US). Factory built replace chimneys tested to UL
127-1998, may be at the replace manufacturer’s
option, tested to the same criteria as UL 103 HT
requirements. If the chimney is not listed as meeting
HT requirements, or if the factory built replace was
tested prior to 1998, a full height listed chimney
liner must be installed from the appliance ue collar
Masonry Fireplace
USA 16” (406 mm)
CND 18” (450 mm)
to the chimney top. The liner must meet type HT
requirements (2100°F) per UL 1777 (US). The liner
Fig. 20: Masonry Fireplace
Direct Connection Insert
must be securely attached to the insert ue collar
and the chimney top. To prevent room air passage
to the chimney cavity of the replace, seal either the damper area around the chimney liner with
high temperature sealant or the replace front with berglass batting.
20
Page 21
Installation
model 1200-c Brick placement & tuBe locationS:
COMPLETE THE STOVE AND CHIMNEY INSTALLATION BEFORE INSTALLING BRICKS.
1. Place the three (3) full size bricks along each side of the rebox and one (1) full size brick on either
side of the back of the rebox.
2. To place the oor bricks, lay the two (2) partial bricks along the back of the oor. Then lay four (4) full
size bricks in the front. The spaces between the bricks will soon ll with ashes.
Tube E
Tube D
Tube A
k
c
i
r
B
l
a
i
t
r
a
P
F
Figure 21: Brick Placement for 1200-C shown with Secondary Air Channel and Tubes.
e
z
i
S
l
l
k
u
c
i
r
B
F
e
z
i
S
l
l
u
c
i
r
B
When replacing bricks, use only pumice type re bricks.
TOTAL BRICKS:
12 - Full size bricks 9” long x 4.5” wide x 1.25” thick
(22.9 cm long x 11.4 cm wide x 3.2 cm thick)
2 - Partial bricks 9” long x 3” wide x 1.25” thick
(22.9 cm long x 7.6 cm wide 3.2 cm thick)
k
Removing Air Tube: If a secondary air tube needs to be removed, place a screwdriver (any style except
at head) into one of the air holes and tap it with a hammer/mallet to the left until the right end of the
tube is freed. To install a secondary air tube reverse the above instructions.
IMPORTANT: All secondary air tubes must be in place for proper operation.
21
Page 22
Installation
model 1700-c Brick placement & tuBe locationS:
COMPLETE THE STOVE AND SMOKE PIPE INSTALLATION BEFORE PLACING THESE BRICKS.
1. Place the four (4) full size bricks along each side of the rebox and one (1) full size brick on either
side of the back of the rebox.
2. To place the oor bricks, lay the two (2) partial bricks along the back of the oor. Then lay six (6) full
size bricks in the front. The spaces between the bricks will soon ll with ashes.
Tube C
Tube B
Tube A
k
c
i
r
B
l
a
i
t
r
a
P
z
i
S
l
l
u
F
u
F
Figure 22: Brick Placement for 1700-C shown with Secondary Air Channel
and Tubes.
k
c
i
r
B
e
k
c
i
r
B
e
z
i
S
l
l
ze
i
S
l
l
u
F
k
c
i
r
B
When replacing bricks, use only pumice type re bricks.
TOTAL BRICKS:
16 - Full size bricks 9” long x 4.5” wide x 1.25” thick
(22.9 cm long x 11.4 cm wide x 3.2 cm thick)
2 - Partial bricks 9” long x 3” wide x 1.25” thick
(22.9 cm long x 7.6 cm wide 3.2 cm thick)
Removing Air Tube: If a secondary air tube needs to be removed, place a screwdriver (any style
except at head) into one of the air holes and tap it with a hammer/mallet to the left until the right end
of the tube is freed. To install a secondary air tube reverse the above instructions.
IMPORTANT: All secondary air tubes must be in place for proper operation.
22
Page 23
Installation
c-caSt ceramic BaFFle inStallation:
1. Slide the right C-Cast Ceramic Bafe in over the secondary air tubes at the top of the rebox. The tab
must be on the top and pointing towards the center and the smooth side is to face down.
2. Hook the outside edge of the bafe over the top of the secondary air chamber. This will make room
for the installation of the left C-Cast Ceramic Bafe.
3. Slide the left C-Cast Ceramic Bafe in over the secondary air tubes. The tab must be on the bottom
and pointing towards the center and the smooth side is to be face down.
4. Pull the bafes together in the middle so the right tab rests on top of the left tab. Ensure the bafes
are ush with the back and both sides of the rebox.
Note: If the bolts on the ue collar are not to the left and right of the hole, the front secondary air tube
will need to be removed in order to install or remove the C-Cast Ceramic Bafes. To remove the front
secondary air tube place a screwdriver (any style except at head) into one of the air holes and tapping
it with a hammer/mallet to the left.
Right Ceramic Baffle
Left Ceramic Baffle
Figure 23: Installation of C-Cast Ceramic Bafe.
23
Page 24
Installation
CABELLO FAN WIRING DIAGRAM
Fan wiring diagram:
This appliance, when installed, must be electrically connected and grounded in accordance with local
codes or in the absence of local codes, with the current CSA C22.1 CANADIAN ELECTRICAL CODE. Part
1, SAFETY STANDARDS FOR ELECTRICAL INSTALLATIONS, or THE NATIONAL ELECTRICAL CODE ANSI
/ NFPA 70 in the USA.
CAUTION Label all wires prior to disconnection when servicing controls. Wiring errors
can cause improper and dangerous operation. Verify proper operation after servicing.
DO NOT oil the fan bearings.
DO NOT cut or remove the grounding prong from the plug.
DO NOT route the power cord beneath the heater.
WARNING: This appliance is equipped with a three-prong (grounding) plug for your protection against
shock hazard and should be plugged into a properly grounded three-prong receptacle.
WIRE C (Black)
Rocker Switch
AUTO
OFF
MANUAL
Fan
WIRE B (Black)
Fan Temp Sensor
WIRE A (Gray)
White
Ground
Power Supply
Figure 24: Fireplace Insert Fan Wiring Diagram.
Black
Black
Black
Black
Fan
Controller
24
Page 25
Disassembly
CAUTION: ENSURE POWER CORD IS UNPLUGGED AND UNIT
IS COLD BEFORE ATTEMPTING ANY DISASSEMBLY.
removal oF caSt top
Figure 25: Removal of Cast Top Parts
1. Remove the three piece cast top from the unit by lifting up and forward. (For re-assembly,
ensure that slots in the brackets are fully seated on the bolts)
2. Remove cast piece about door, lift straight up.
removal oF caSt door
1. Fully open the door.
2. With the help of another
person, lift the door straight
up off the hinge pins.
Figure 26: Removal of Door
25
Page 26
Disassembly
removal oF the caSt Side panelS:
1. Lift cast sides straight up, then forward to
remove. If sides are not moving, loosen (but do
not remove) the three 1/4-20 screws on the side
casting using a 3/8” wrench.
2. The Fan Controller assembly is mounted to
Left Side Cast. For proper dis-assembly Wires
connecting Fan Controller to fan need to be
disconnected, or fan controller assembly can be
removed from the Left Side Cast be removing
two T-20 screws (see next page).
Figure 27: Cast Side Panel Screws
removal oF lower Front caSting
1. Lift Cast Bottom straight up
and out to remove. Notice key
slot attachments.
Figure 28: Cast Bottom Removal
26
Page 27
removal oF caSt Side Bracket
Right Side
Left Side
1. Use a 3/8” socket to remove the
four screws holding the cast side
mounting bracket to the rebox.
2. Lift the bracket up and out to
remove it.
Disassembly
Figure 29: Lower Front Casting Removal
removal oF Fan aSSemBlY
1. Once all castings and mounting brackets have been removed
you are able to access the fan.
2. Unplug the wires coming from the fan. A light wiggle will help
loosen the connectors.
3. Use a 3/8” socket to remove the two 1/4” bolts. The entire
fan assembly can now be removed.
Figure 30: Fan Removal
Figure 31: Fan controller removal
27
Page 28
Disassembly
door latch adjuStment:
Over time as the door gasket fully compresses to the face of the rebox, it may be necessary
to adjust the door latch position to maintain a tight seal. Signs that the door latch may need
adjusting are if the door handle feels overly loose when closed, or if you notice wood is being
burnt faster than normal.
1. Follow the disassembly steps from Figures 25-28 (Right side only).
2. Use a 3/8” socket to loosen the two 1/4” bolts and slide the latch slightly back. Retighten
the bolts and latch the handle. The handle should provide a bit of resistance and close
rmly.
28
Figure 32: Latch Adjustment
Page 29
Parts Diagram
8
10
9
32
35
23
29
26
30
25
12
18
11
17
27
28
14
13
3
4
24
5
6
15
16
7
1
2
22
19
20
29
Page 30
Parts List
Parts List Cabello 1200/1700
Reference # Description Part #
1
2
3
4
5 HEYCO STRAIN RELIEF EC-044
6
7
8
9
10
11
12
13
14
15
16
17
120 CERAMIC FAN TEMP SENSOR (ALL MODELS)
FPI BURNER SWITCH
WOOD INSERT FAN CONTROLLER (75V) 115V
DOMESTIC POWER CORD (115V)
WOODSTOVE DOOR GASKET (7FT)
EFW GLASS WITH TAPE
1200 & 1700 FRONT SECONDARY AIR TUBE A
1700 REAR SECONDARY AIR TUBE C
1700 MID SECONDARY AIR TUBE B
1200 REAR SECONDARY AIR TUBE E
1200 MID SECONDARY AIR TUBE D
PUMICE BRICKS 3 X 9
PUMICE BRICKS 4.5 X 9
1200/1700 LEFT SHIELD ASSEMBLY
1200/1700 RIGHT SHIELD ASSEMBLY
1200 CERAMIC BAFFLE - L/R SET
EC-001
EC-026
EC-039
EC-042
EF-168
10-000
50-1099
50-1100
50-1101
50-1102
50-1103
50-1104
50-1105
50-1144
50-1145
50-1146
18
19
20
21 FPI ANGLED FLUE COLLAR 50-1565
22
23
24
25
26
27
28
29
30
31
32
33
34
1700 CERAMIC BAFFLE - L/R SET
1200/1700 FPI INSERT FLUE COLLAR ASSEMBLY
WOOD CERAMIC FLUE GASKET
WOOD DOOR GLASS RETAINER KIT (WITH SCREWS)
BOSTON DOOR HANDLE COMPLETE 50-2393
CABELLO FPI REPLACEMENT FAN ASSEMBLY
CABELLO DOOR ASSEMBLY (NO HANDLE)
CABELLO CAST TOP RIGHT-PD
CABELLO CAST TOP LEFT-PD
CABELLO CAST KEYSTONE-PD
CABELLO CAST TOP-PD
CABELLO CAST SIDE LEFT-PD
CABELLO CAST SIDE RIGHT-PD
CABELLO CAST BOTTOM-PD
CABELLO CAST SURROUND COMPLETE-PD
1200/1700 CABELLO O/S FILLER PANEL (36" x 46")
50-1147
50-1148
50-1413
50-1122
50-2669
50-2670
50-2671
50-2672
50-2673
50-2674
50-2675
50-2676
50-2677
50-2678
50-2613
35
30
CABELLO DAMPER ROD C/W KNOB AND NUT
CABELLO OWNER'S MANUAL 50-2627
50-2770
Page 31
MADE IN CANADA /
heater.
CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE
creosote buildup may occur rapidly. The provided insulation materials are required for operation.
Keep furnishing and other combustibles well away from heater. Replace glass only with 5 mm thick
ceramic glass. Optional component for FS: fan, electrical rating 115V, 60 Hz 1 Amp (Part #
EFW-261). Combustion air openings are not to be obstructed.
Danger: Risk of electrical shock. Disconnect power before servicing unit. Route cord away from
CAUTION:
SKIN BURN. READ NAMEPLATE AND INSTRUCTIONS.
FABRIQUE AU CANADA
DO NOT TOUCH. KEEP CHILDREN,
J F M A M J J A S O N D 2012 2013 2014 2015 2016
MANUFACTURED BY /
DATE OF MANUFACTURE /
FABRIQUE PAR
HOT WHILE IN OPERATION.
Rating Label
OPERATE ONLY WITH DOORS CLOSED. Only open door to feed fire. For use with solid wood
fuels only. Do not use any other type of fuel. Do not use grate or elevate-fire build wood fire directly
on hearth. Do not overfire. Do not obstruct beneath the heater. If heater or chimney connector
glows, you are overfiring. Inspect and clean chimney frequently-under certain conditions of use,
F † From side of unit to edge of floor protection /
Du côté de l'unité au bord de la protection de plancher USA 6” (152 mm) / CND 8” (200 mm)
E † From door opening of unit to edge of floor protection /
De ouverture de la porte de l'unité à bord de la protection de plancher USA 16” (406mm) / CND 18” (450mm)
A To unshielded side wall / aux mur non protegé 14” (356 mm) 14” (356 mm)
B To an unshielded 8” (203 mm) mantle / aux manteau 8“ non protegé 21” (533 mm) 24” (610 mm)
C To top facing (protruding ¾” [19 mm]) clearance / aux revêtement supérieur 17½” (445 mm) 19½” (495 mm)
D To side facing (protruding ¾” [19 mm]) clearance / aux revêtement a côté 1” (25 mm) 1” (25 mm)
Model / Modèle 1200 FPI 1700 FPI
18” (455 mm). Do not connect this unit to a chimney flue servicing another appliance.
Models 1200 and 1700 inserts may be installed as an insert in a masonry fireplace. / On peut encastrer le modèles 1200 et 1700 dans un foyer de maçonnerie.
connector through a combustible wall or ceiling. Minimum clearances from horizontal connector and ceiling
Certifié pour installation au Canada et aux Etats-Unis.
Certified for use in Canada & USA /
Model / Modèle: Cabello 1200 FPI Cabello 1700 FPI
Report/Rapport no.
268-S-06c-2
Tested to ULC-S627-00, ULC-S628-93 (FPI only), & UL-1482-10.
US Environmental Protection Agency, certified to comply July 1, 1990, particulate emission standards.
Install and use only in accordance with the manufacturers installation and operating instructions. Contact
local building or fire officials about restrictions and installation inspection in your area. Use 6” (150 mm)
diameter minimum 24 MSG black or 25 MSG blued steel connector listed factory-built chimney suitable for
use with solid fuels or masonry chimney. See local building code and manufacturer’s instructions for
precautions required for passing a chimney through a combustible wall or ceiling. Do not pass chimney
Tested &
Listed By
LISTED SOLID FUEL SPACE HEATER / IDENTIFIE COMME UN FOYER A COMBUSTIBLE SOLIDE
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE
l'opération.Tenez loin les meubles et d'autres produits combustibles. Ne remplacez le verre qu'avec du verre céramique, 5mm
: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD ROAD, SAANICHTON, BC CANADA
épais. Équipement en option pour un FS: ventilateur caractéristiques assignées 115V, 60 Hz, 1 Amp (pièce
# EFW-261) tenez le câble électrique loin du poêle. Danger: Le risque de choc électrique. Débrancher le
dispositif avant d'entretenir. Ouvertures d'air de combustion ne doivent pas être obstrués.
TRÈS CHAUD QUAND ALLUMÉ.
NE TOUCHEZ PAS. TENIR LOIS
LES ENFANTS, LES VÊTEMENTS ET LES MEUBLES. LE CONTACT
PEUT CAUSER DES BRÛLURES. LISEZ ATTENTIVEMENT
L’ÉTIQUETTE ET LES INSTRUCTIONS.
MISE EN GARDE:
DATE DE FABRICATION:
F
A
B
C
D
E
† FLOOR PROTECTION / PROTÉGER LE PLANCHER:
If unit is raised / Si l'appareil est soulevé:
0” - 2” (0mm - 51mm); 1” (25mm) non-combustible material with k value = 0.84 or equivalent /
2” - 8” (51mm - 203mm); ½” (13mm) non-combustible material with k value = 0.84 or equivalent /
Greater than/Plus grand que 8” (203 mm) any non-combustible material /
1” (25mm) le matériel incombustible avec la valeur de k = 0.84 ou équivalent.
n'importe quel type de matériel incombustible.
½” (13mm) le matériel incombustible avec la valeur de k = 0,84 ou équivalent.
Adjacent wall / Mur adjacent
L’OPERATION DU POELE DOIT SE FAIRE AVEC LA PORTE FERME. N'ouvrir la porte que pour alimenter le feu. N'utilisez que
des combustibles solides. Ne pas utiliser un autre type de carburant. N'employez pas de grille de foyer ou ne surélevez pas le feu.
Mettez le bois à brûler directement sur l'âtre. Pour éviter la surchauffeur, ne mettez pas trop de bois. N'obstruez pas les ouvertures
d'air comburant. Si le poêle ou le connecteur commencent à luire, vous surchauffez le poêle. Inspectez et nettoyez la cheminée
souvent. Dans certaines conditions, le créosoté peut s'accumuler rapidement. Les matériaux d'isolation fournis sont requis pour
Testé selon ULC-S627-00, ULC-S628-93 (FPI seulement), & UL-1482-10.
États-Unis Environnemental Protection Agence, a certifié pour conformer au Juillet 1, 1990, les normes de particules d'émission.
Ce dispositif doit entre installé et opéré conformément aux instructions d'installation et d'opération du manufacturier contactez le
service local de l'inspection des bâtiments ou l'officier pompier concernant les restrictions et l'inspection d'installation dans votre
localité. Utiliser des connecteurs répertoriés 24 MSG noir ou 25 MSG en acier bronzée de 6" (150 mm) minimum, et une
cheminée de fabrication industrielle, appropriée pour utilisation avec des combustibles solides ou avec une cheminée de
maçonnerie. Vérifiez les précautions a prendre exigées parle code local et les instructions du manufacturier concernant les
conditions pour passer la cheminée a travers un mur ou un plafond combustible. Net pas installer le connecteur de la cheminée
a travers un mur ou un plafond combustible. Espaces libres minimum d'un connecteur horizontal et plafond sont 18" (455 mm)
ne pas connecter ce dispositif a un conduit de cheminée qui sert déjà un autre dispositif.
Serial No. / No. De Serié:
C-13878
Figure 33: Rating Label Sample
31
Page 32
Electrical Shock Label
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE
LISTED SOLID FUEL SPACE HEATER / IDENTIFIE COMME UN FOYER A COMBUSTIBLE SOLIDE
C-13894
WARNING!
Electrical Grounding Instruction
This appliance is equipped with a
three-prong (grounding) plug for
your protection against shock hazard
and should be plugged directly into a
properly grounded three-prong
receptacle. DO NOT cut or remove
the ground prong from this plug.
DANGER!
Risk of Electrical Shock.
Disconnect Power Before Servicing Unit.
AVERTISSEMENT!
Instruction mise à la terre électrique
Cet appareil est équipé d'un à trois
broches (terre) pour votre protection
contre les risques de choc électrique
et doit être branché directement dans
une prise à trois broches prise. NE PAS
couper ou enlever la broche de terre
de cette che.
ATTENTION!
Risque de choc électrique.
Débranchez l'alimentation avant l'Unité des
services.
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE
LISTED SOLID FUEL SPACE HEATER / IDENTIFIE COMME UN FOYER A COMBUSTIBLE SOLIDE
WARNING!
Electrical Grounding Instruction
This appliance is equipped with a
three-prong (grounding) plug for
your protection against shock hazard
and should be plugged directly into a
properly grounded three-prong
receptacle. DO NOT cut or remove
the ground prong from this plug.
DANGER!
Risk of Electrical Shock.
Disconnect Power Before Servicing Unit.
electrical Shock laBel located on/near electrical cord:
Figure 34 Electrical Shock Label Location
32
Page 33
Warranty for Enviro Wood Products
Sher wood Industries Ltd. (“Sherwood”) hereby warrants, subject to the terms and
conditions herein set forth, this product against defects in material and workmanship
during the specified warranty period starting from the date of original purchase at retail.
In the event of a defect of material or workmanship during the specified warranty period,
Sherwood reserves the right to make repairs or to assess the replacement of a defective
product at Sherwood’s factor y. The shipping costs are to be paid by the consumer.
All warranties by Sherwood are set forth herein and no claim shall be made against
Sherwood on any oral warranty or representation.
Conditions
A completed warranty registration must be submitted to Sherwood within 90 days
of original purchase via the online warranty registration page or via the mail-in
warranty registration card provided. Have the installer fill in the installation data
sheet in the back of the manual for warranty and future reference.
This warranty applies only to the original owner in the original location from date of
install.
The unit must have been properly installed by a qualified technician or installer, and
must meet all local and national building code requirements.
The warranty does not cover removal and re-installation costs.
Sherwood Industries Ltd. reserves the right to make changes without notice.
Sherwood Industries Ltd. and its employees or representatives will not assume
any damages, either directly or indirectly caused by improper usage, operation,
installation, servicing or maintenance of this appliance.
A proof of original purchase must be provided by you or the dealer including serial
number.
Exclusions
An expanded list of exclusions is available at www.enviro.com/help/warranty.html
This warranty does not cover:
Damage as a result of improper usage or abuse.
Damage caused from over-firing due to incorrect setup or tampering.
Damage caused by incorrect installation.
To the Dealer
Provide name, address and telephone number of purchaser and date of purchase.
Provide date of purchase. Name of installer and dealer. Serial number of the
appliance. Nature of complaint, defects or malfunction, description and part # of any
parts replaced.
Pictures or return of damaged or defective product may be required.
To the Distributor
Sign and verify that work and information are correct.
Sherwood Industries Ltd.
6782 Oldfield Road, Victoria, BC . Canada V8M 2A3
Online warranty registration: www.enviro.com/warranty/
Category One Year Two Year Limited Lifetime (7yr)
1
Parts
(unit seria l numbe r requi red)
Firebox
(excluding bricks)
Ceramic Baffle
Secondary Air Tubes
Surround Panels
Pedestals / Legs
Ceramic Glass
Door Assembly
Slider Control
Shield Assembly
Electrical Components
Convection Fan
Exterior Surface Finishing
Gasket
Labour
1
Whereas warranty has expired, replacement parts will be warrantied for 90 days from part purchase date. Labour not included.
Unit serial number required.
2
Warranty does not cover damage caused from burning artificial /firestarter log varieties.
3
Excludes damage caused by loading wood, cleaning or service.
4
Glass is covered for thermal breakage. Photos of box, inside of door, and unit serial # must be supplied for breakage due to shipping.
5
Exterior Surface finishing covers Plating, Enamel or Paint and excludes colour changes, chipping, and fingerprints.
Travel costs not included.
No warranty on replacement firebricks
2
3
(excluding finish)
(excluding finish)
4
(excluding gasket)
5
Jan 2013
33
Page 34
Installation Data Sheet
The following information must be recorded by the installer for warranty purposes and future reference.
NAME OF OWNER:
_________________________________________
ADDRESS:
_________________________________________
_________________________________________
_________________________________________
PHONE:___________________________________
MODEL:___________________________________
SERIAL NUMBER:___________________________
DATE OF PURCHASE: ______________(dd/mm/yyyy)
NAME OF DEALER:
_________________________________________
ADDRESS:
_________________________________________
_________________________________________
_________________________________________
PHONE:___________________________________
NAME OF INSTALLER:
_________________________________________
DATE OF INSTALLATION:___________(dd/mm/yyyy)
INSTALLER’S SIGNATURE:
_________________________________________
MANUFACTURED BY:
SHERWOOD INDUSTRIES LTD.
6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3
www.enviro.com
April 25, 2013
ADDRESS:
_________________________________________
_________________________________________
_________________________________________
PHONE:___________________________________
C-13851
34
Loading...
