EST9120/EST16120 User Guide
USER GUIDE
EST9120/EST16120

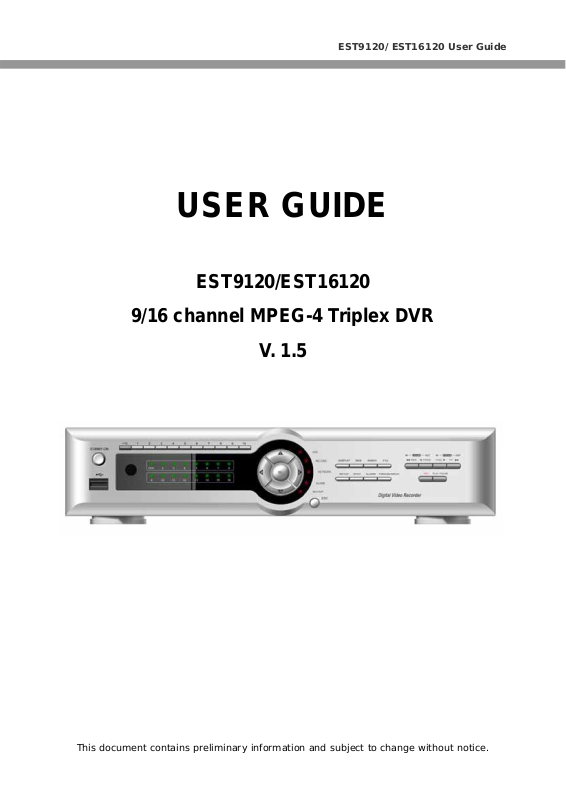

9/16 channel MPEG-4 Triplex DVR
V. 1.5
This document contains preliminary information and subject to change without notice.
Page 2
SAFETY PRECAUTIONS

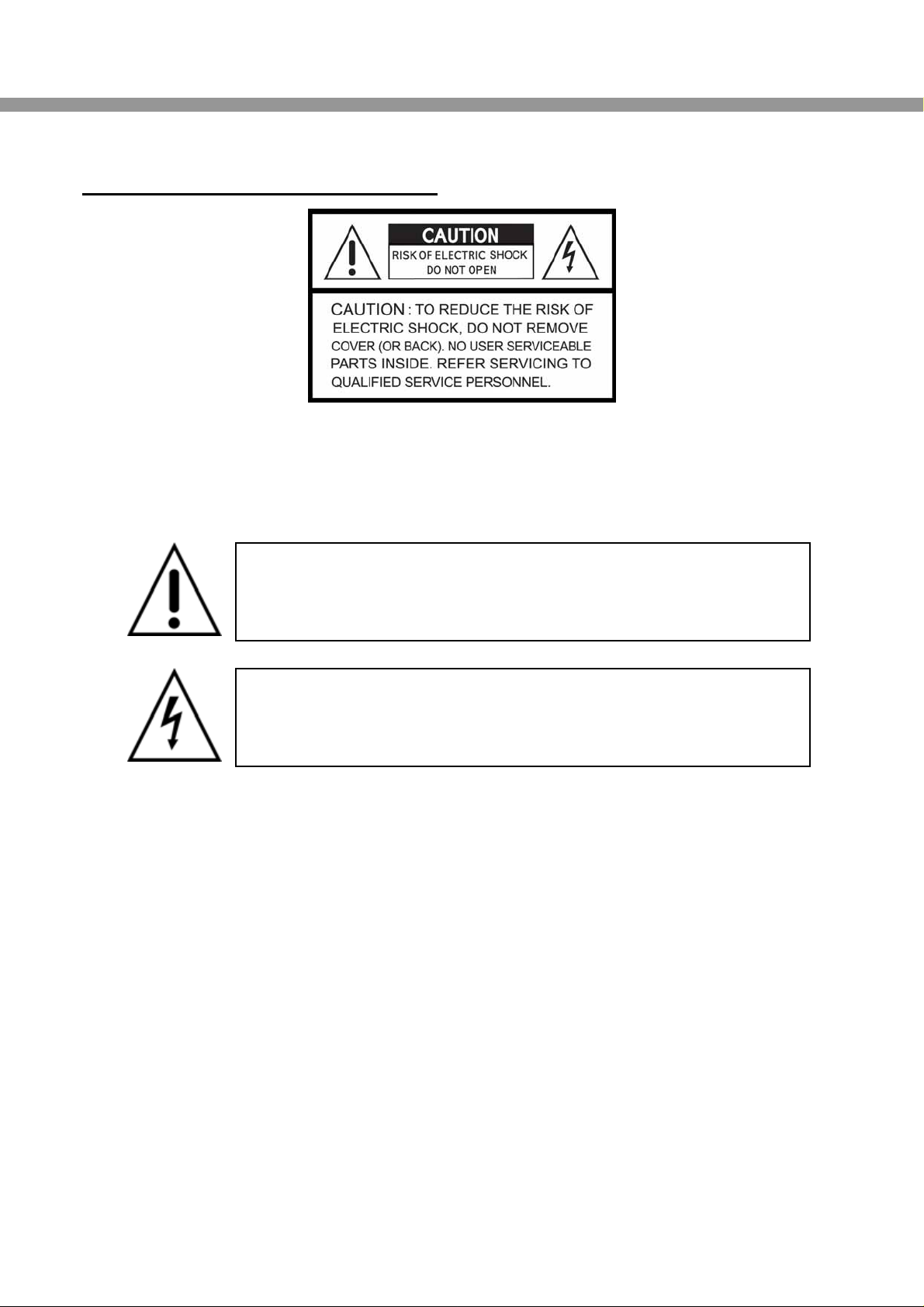

EXPLANATION OF SYMBOLS
EST9120/EST16120 User Guide
This symbol is intended to alert the user to the presence of
important operation and maintenance (servicing) instructions in
the literature accompanying the appliance.
This symbol is intended to alert the user to the presence of
unprotected “dangerous voltage” within the product ’s enclosure
that may be strong enough to cause a risk of electric shock
CAUTION
THIS PRODUCT HAS MULTIPLE-RATED VOLTAGES (110V AND 220V).
SEE INSTALLATION INSTRUCTIONS BEFORE CONNECTING TO THE POWER SUPPLY.
THIS PRODUCT USES A LITHIUM BATTERY.
RISK OF EXPLOSION IF THE BATTERY ON THE MAIN BOARD IS REPLACED BY AN
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS.
THIS EQUIPMENT AND ALL COMMUNICATION WIRINGS ARE INTENDED FOR
INDOOR USE.
TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, DO NOT EXPOSE THE UNIT TO
RAIN OR MOISTURE.
2
Page 3
User Guide
WARNING
THE PRODUCT SHOULD BE INSTALLED BY A TRAINED PROFESSIONAL. THE DVR
SHOULD BE POWERED OFF WHEN CONNECTING CAMERA, AUDIO, OR SENSOR
CABLES.
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY DAMAGES CAUSED BY
IMPROPER USE OF THE PRODUCT OR FAILURE TO FOLLOW INSTRUCTIONS FOR THE
PRODUCT.
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY PROBLEMS CAUSED BY OR
RESULTING FROM THE USER PHYSICALLY OPENING THE DVR FOR EXAMINATION OR
ATTEMPTING TO FIX THE UNIT. THE MANUFACTURER MAY NOT BE HELD LIABLE
FOR ANY ISSUES WITH THE UNIT IF THE WARRANTY SEAL IS REMOVED.
3
Page 4
EST9120/EST16120 User Guide
THE LIST OF CONFIGURATION

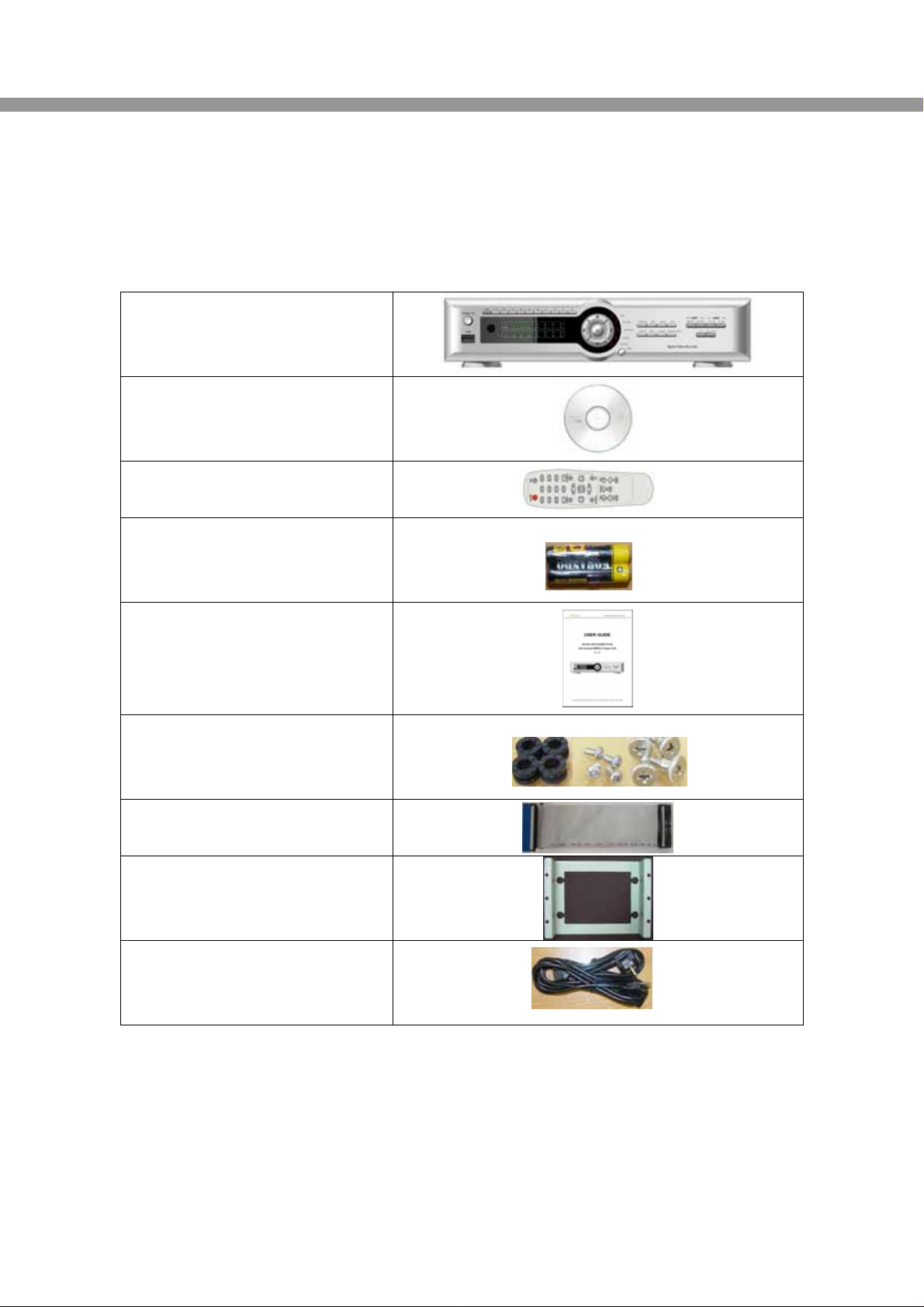

DVR SET
CLIENT SOFTWA RE CD
REMOTE CONTROLLER
BATTERY
MANUAL
(SERVER & REMOTE CLIENT S/W)
RUBBER RINGS &
SCREWS (4x4x4EA)
IDE HDD CABLE(2EA)
HDD BRACKETS(4EA)
POWER CABLE 110V & 220V
4
Page 5
User Guide

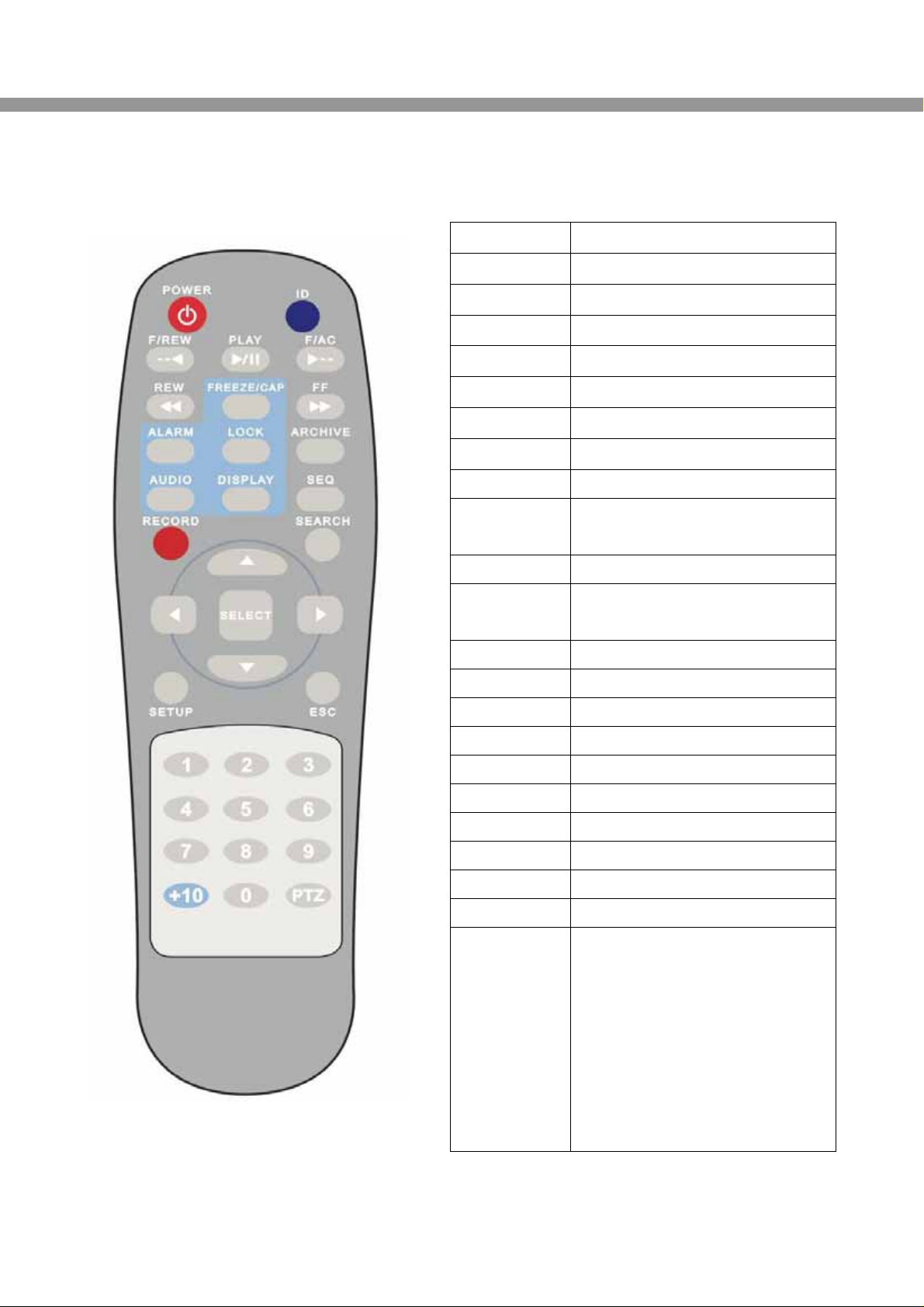

THE OPERATION OF REMOTE CONTROLLER
POWER Power On/Off
ID (DVRs) Input DVR ID (ID : i.e. 00 or 01)
F/REW Jump 60 seconds backward
PLAY Play/Pause
F/ADV Jump 60 seconds forward
REW Rewind (X1, X2, X4, X8)
FREEZE/CAP Freeze/Capture for St ill Image
FF Fast Forward (X1, X2, X4, X8)
ALARM Disable alarm operation
LOCK/ SETUP Key lock of all of the functions
/Setup menu screen
ARCHIVE Display of archive list
AUDIO Disable, Mute or Highlighted
channel only
DISPLAY Change division (1->4->9->16)
SEQ Sequence of Full or Quad view
RECORD Manual recording
SEARCH Search men u screen
DIRECTION Direction or number 1 to 4
SELECT Enter and Save button
SETUP Setup or Menu button
ESC Esc
PTZ PTZ menu screen
NUMBER Channel 1 to 9
+10 Channel 10 and channel 11 to16
10CH->press +10 and number 0
11CH->press +10 and number 1
12CH->press +10 and number 2
13CH->press +10 and number 3
14CH->press +10 and number 4
15CH->press +10 and number 5
16CH->press +10 and number 6
5
Page 6
EST9120/EST16120 User Guide

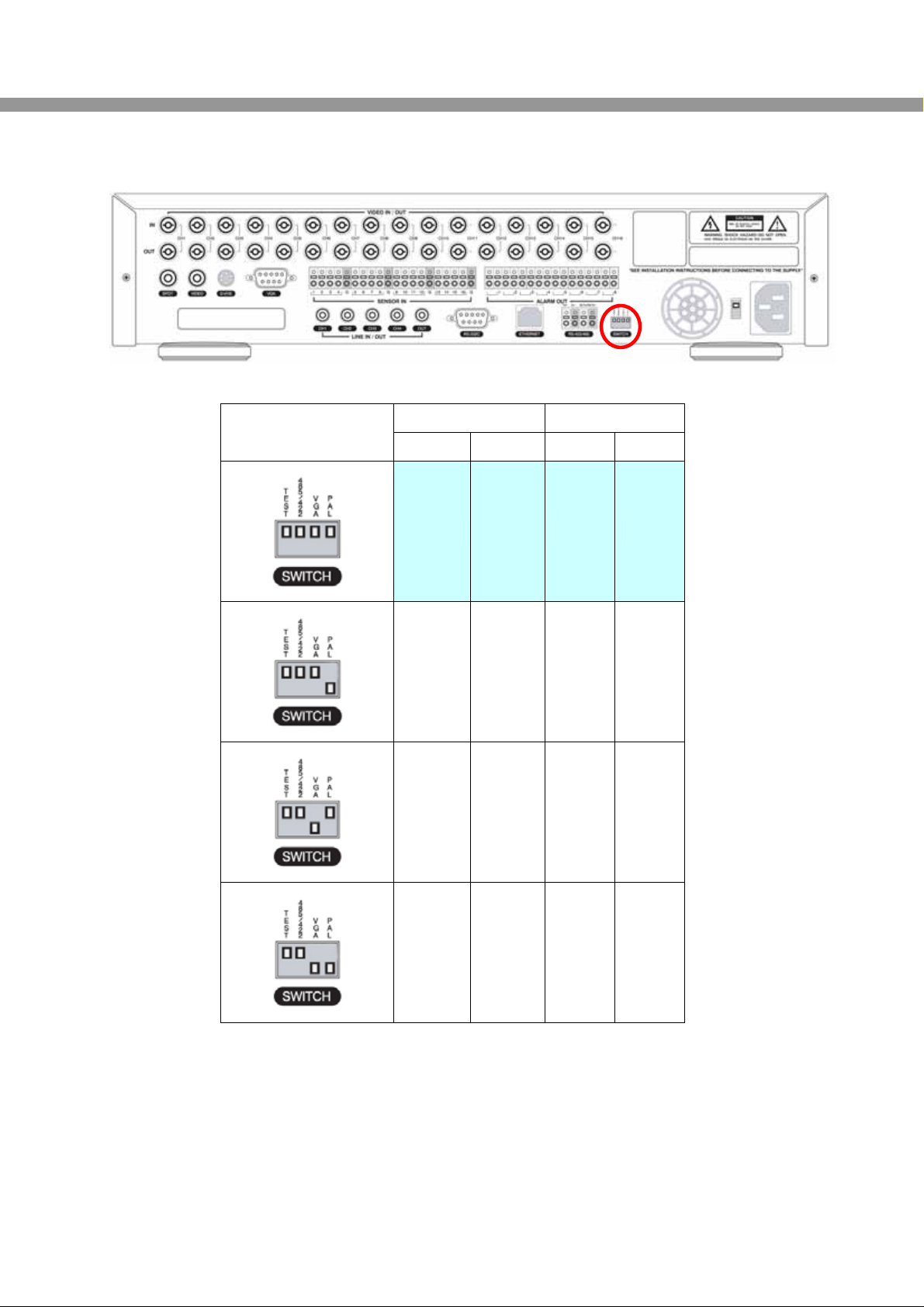

VIDEO SIGNAL SELECT / SETTING
SETTING
Video mode Video output
NTSC PAL BNC VGA
O X O X
X O O X
O X X O
X O X O
NOTICE
Do not change the setting when the power is on.
When the position of the switch is changed, the DVR should be rebooted to apply the
new setting.
6
Page 7
User Guide
g
HDD INSTALLATION

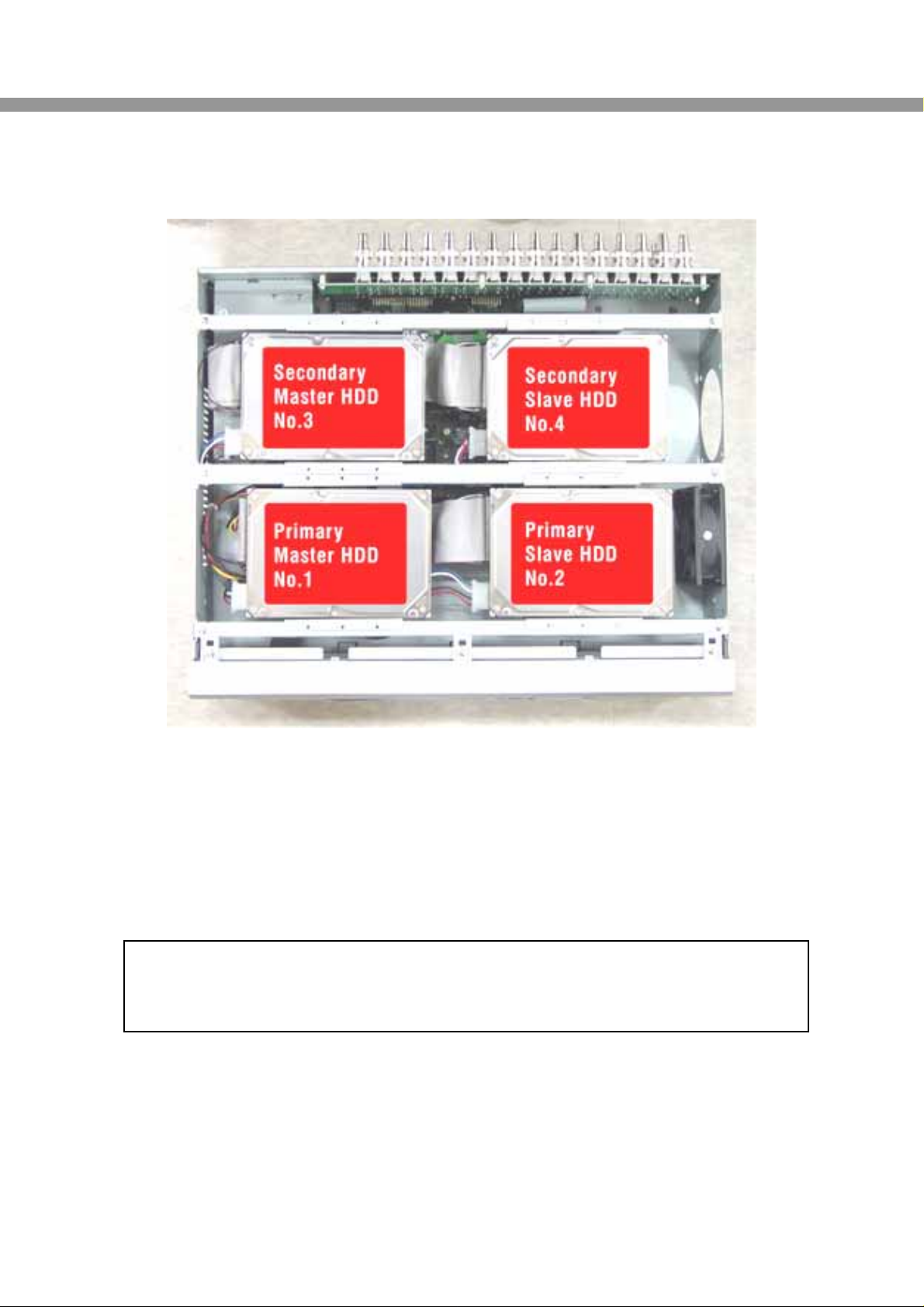

HDD installation order
1. Primary Master HDD
2. Primary Slave HDD
3. Secondary Master HDD
4. Secondary Slave HDD
NOTICE
The brands and models of all HDD should be the same. If the brands and models of each HDD
are different with others, the DVR could not reco
nize HDD.
7
Page 8
EST9120/EST16120 User Guide
Compatible HDD models
BRAND CAPACITY RPM BUFFER INTERFACE
HITACHI
MAXTER
WESTERN DIGITAL
SEAGATE
80GB 7200RPM 2M E-IDE
160GB 7200RPM 8M E-IDE
250GB 7200RPM 8M E-IDE
80GB 7200RPM 2M E-IDE
160GB 7200RPM 8M E-IDE
250GB 7200RPM 8M E-IDE
80GB 7200RPM 2M E-IDE SAMSUNG
160GB 7200RPM 2M E-IDE
80GB 7200RPM 2M E-IDE
160GB 7200RPM 8M E-IDE
250GB 7200RPM 8M E-IDE
40GB 7200RPM 2M E-IDE
80GB 7200RPM 2M E-IDE
160GB 7200RPM 2M E-IDE
250GB 7200RPM 2M E-IDE
8
Page 9
User Guide
SPECIFICATIONS
ITEM Description
Video
Audio
Alarm
Channel,
Input Level
Input
Output
Signal Format NTSC/PAL
Video Loss Check Yes
Main Monitor
Output
Output Level Composite 1.0Vp-p +_0.2, 75 Ohm
Signal Format NTSC/PAL & VGA
Etc Output 9/16CH Loop-back , 1CH SPOT
Input & Output 4 CH Line input & 1 CH Line output
Audio Codec G.711
Sensor Input 9/16 (NC/NO Selectable)
Alarm Output 8
By Alarm, Motion, HDD Error, Temperature, FAN & POWER
Alarm Output
Failure, Video Loss, And ABCD (A Blind Camera Detection)
Compression MPEG-4
9/16CH, Composite 1.0Vp-p, 75 Ohm
1 CH BNC, 1 CH S-VIDEO, 1CH VGA
Multi-operation TRIPLEX (Playback/Record/Network)
MAX. 120fps @ 352x240
NTSC
Frame
Rate
Recording
PAL
Recording quality grade 5 grades
Recording Mode Continuous / Schedule / Motion/ Sensor/ Manual
Motion Detection Motion detection setup by Grid
Pre & Post Recording Yes
Display
Frame Rate ( /Sec) NTSC: 30fps/channel, 60 field PAL: 25f ps/channel, 50 field
Playback Multi-Decoding 1, 4, 9, 16 & PIP
MAX.60fps @ 704x240
MAX. 30fps @ 704x480
MAX. 100fps @ 352x288
MAX. 50fps @ 704x288
MAX. 25fps @ 704x576
9
Page 10
EST9120/EST16120 User Guide
Storage
User I/F
Playback
Speed
Internal
HDD
Backup
Fast Forward /
Reverse
Search Mode Time, Event, Channels
Interface Type EIDE/ATA133
Max Capacity
of 1 HDD
Max HDD
Number
NaFS: Own developed & Designed for never broken
File system
USB 2.0
memory stick
& CDRW
Network Moving picture & Still Image
Menu Display GUI
Input Method Front Keypad, Remote controller
× 2, 4, 8, 16, 32, Max
250GB
4
by any power failure
Still Image & AVI
Serial port
Network
Network
Client S/W
Additional
Functions
Power Power Source 100~127V/200~240V, 50-60Hz
Console & External Modem 1 RS-232C (9pin D-SUB connector)
Camera control 1 RS-485/422 (4 Terminal Block)
Dynamic IP support Yes
Network Interface 10/100 base-T Ethernet (RJ-45)
Functions Live, Search, Backup, PTZF Camera Control
Central Monitoring System Yes
DLS (Day Light Saving) Yes
Multi-Language Yes
S/W Upgrade USB memory stick
10
Page 11
User Guide
TABLE OF CONTENTS
1. Features...................................................................................................................................13
2. Name, Function and Connection..............................................................................................14
2-1. Front Panel ....................................................................................................................14
2-2. Rear Panel.....................................................................................................................16
3-1. Setup – Main Screen .....................................................................................................18
3-2. Setup – Live Mode.........................................................................................................20
3-3. Setup – Recording Mode...............................................................................................21
3-3-1. Motion Zones.....................................................................................................22
3-3-2. Recording Schedule..........................................................................................23
3-4. Setup – Device Mode ....................................................................................................24
3-4-1. ALARM-OUT.......................................................................................................25
3-4-4. PTZF control ......................................................................................................26
3-5. Setup – System Mode ...................................................................................................27
3-6. Setup – Security Mode ..................................................................................................30
3-7. Setup – Network Mode ..................................................................................................31
3-7-1. Ports ...................................................................................................................32
3-7-2. Network types....................................................................................................33
3-8. Setup - Storage Mode....................................................................................................35
3-9. Saving Setup .................................................................................................................35
4. Live & Search...........................................................................................................................36
4-1. Live Window ..................................................................................................................36
4-2. SEARCH Window........................................................................................................37
4-3. Play mode......................................................................................................................39
5. Archiving Video into USB Memory Device ...............................................................................40
5-1. Capturing images or video.............................................................................................40
5-2. Transferring still images or video into USB....................................................................41
6. Network....................................................................................................................................44
6-1. Overview........................................................................................................................44
6-2. Minimum PC requirements ............................................................................................45
6-3. Installing the program....................................................................................................45
6-4. Live viewer.....................................................................................................................45
6-4-1. Main user interface..............................................................................................46
6-4-2. Main control panel...............................................................................................46
11
Page 12
EST9120/EST16120 User Guide
6-5. Search and Playback Viewer.........................................................................................49
6-5-1. Main user interface..............................................................................................49
6-5-2. Main control panel...............................................................................................49
6-6. System configuration .....................................................................................................51
6-6-1. General................................................................................................................51
6-6-2. Site ......................................................................................................................53
6-6-3. Event ...................................................................................................................53
6-6-4. Record.................................................................................................................54
7-6-5. Disk......................................................................................................................54
7 Using DDNS..............................................................................................................................55
7-1. DDNS Registration Procedure.......................................................................................55
7-2. DVR SETUP ..................................................................................................................56
7-3. Using Client Program.....................................................................................................57
12
Page 13
User Guide
1. Features
●
9/16 channels real-time live display and 16channels simultaneous playback.
● MPEG-4 - Unbeatable recording picture quality and compression ratio has been tuned for
years. It best fits for minimizing recording space and networking speed.
● TRIPLEX - Simultaneous Recording, Playback, and Networking
● NaFS (File System developed) - Designed & developed for preventing loss and broke of
recording data by any power failure.
● DSP solution -To be updated up to 240/200fps recording speed.
● Reliability - Real Time Operating System and simplified hardware as well as watchdog timer
ensure the reliability.
● Individual channel recording and playback with different frame rate.
● High-quality live and playback resolution.
● Multi-site management - Supported by CMS application.
● Network features - Remote Live, Playback, PTZF Control, and Backup.
● Network via LAN, DHCP, ADSL (Dynamic and Static IP address).
● 4 channels audio recording.
● Various recording mode selectable – By Alarm, Motion, HDD Error, Temperature, FAN and
Power Failure, Video Loss, A Blind Camera Detection.
● User-friendly setup menu with graphic user interface.
● Easy to schedule a complicated weekly recording plan.
● The OSD icons on screen provide various helpful and well-explained information.
● Motion detection – Gri d 3 0 x24 moti o n zone per camera i s p r o vided.
● USB ports for JPEG, MPEG data backup and software upgrade using USB flash memory
stick.
● Still image capture and review as JPEG format.
● Internal Pan/Tilt/Zoom/Focus controller.
● Easy operating with the buttons on the front and the remote controller.
● User verification by password certification.
● Video loss detection.
● Backup - Still-images or AVI data into USB flash memory stick and Network.
● Variety of Hard Drive Sizes - up to internally 1TB (250GB HDD X 4) for long-term recording.
● Multi-Languages -User can easily select language from Setup menu.
● Various Video Output - VGA(800x600 24 Bit Color), S-VHS, SPOT
13
Page 14
EST9120/EST16120 User Guide
2. Name, Function and Connection
2-1. Front Panel

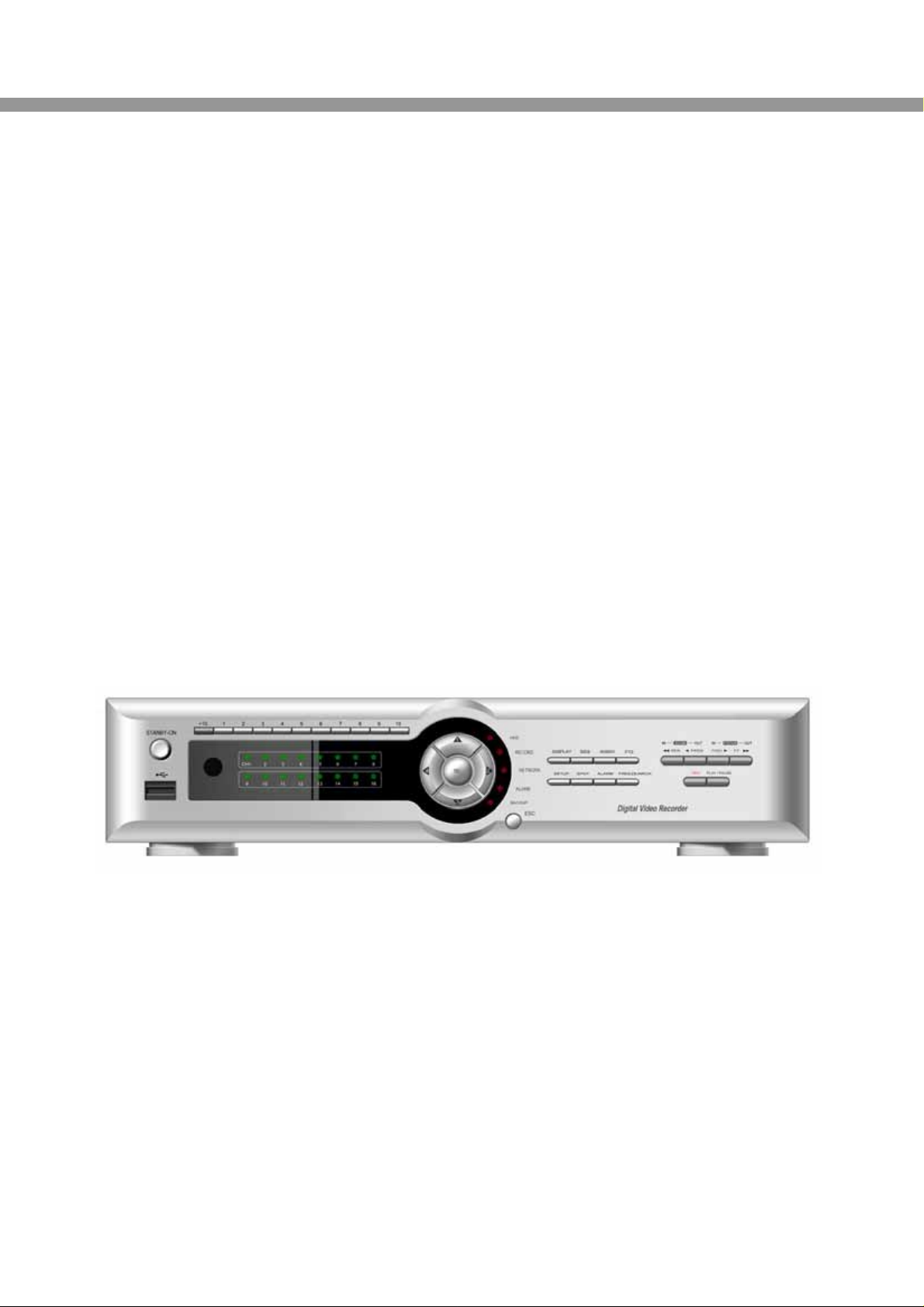

The following information will help you operate the front panel controls.

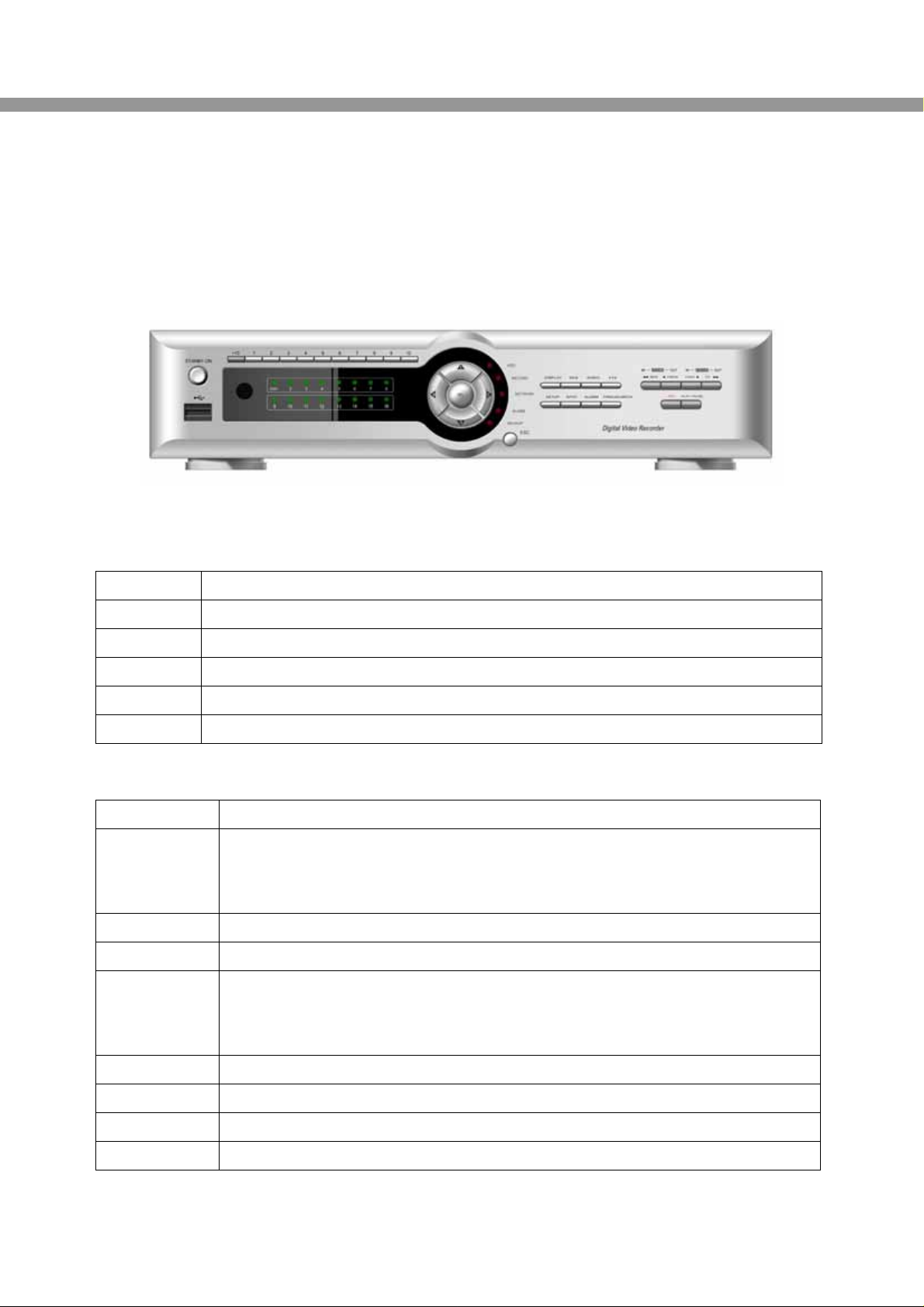

Figure 2.1.1. Front panel
Table2.1.1. Indication lamps
Name Description
HDD
REC
ALARM
NETWORK
BACKUP
Table 2.1.2. Front panel buttons
Name Description
POWER
DISPLAY
SEQ
LED light is on when the system is accessing hard disk.
LED light is on when the system is recording video data.
LED light is on when alarm sensor(s) is/are triggered or motion is detected.
LED light is on when client is connected to the system through the network.
LED light is on when USB storage device is stored images or video.
Power ON/ OFF. If a password has set for power off in the SECURITY setup
menu, the system will ask you the password when you press the STAND BYON button.
Press to select full, quad, 9 or 16 split screen in live display mode.
Press to start auto sequencing of the screen in full or quad display mode.
AUDIO
PTZ
SETUP
ALARM
ARCHIVE
14
Press to select audio mode. SINGLE, MIX, MUTE
MUTE- All of 4 channels. SINGLE- Highlighted channel only.
MIX- All of 4 channels.
Press to control PTZ operation
Press to launch SETUP menu.
Press to disable alarm operation.
Press to see the ARCHIVE LIST in live display mode.
Page 15
User Guide
FREEZE/
CAPTURE
REW/
LOG
F/REW
F/ADV
FF
SEARCH
PLAY/PAUSE
REC

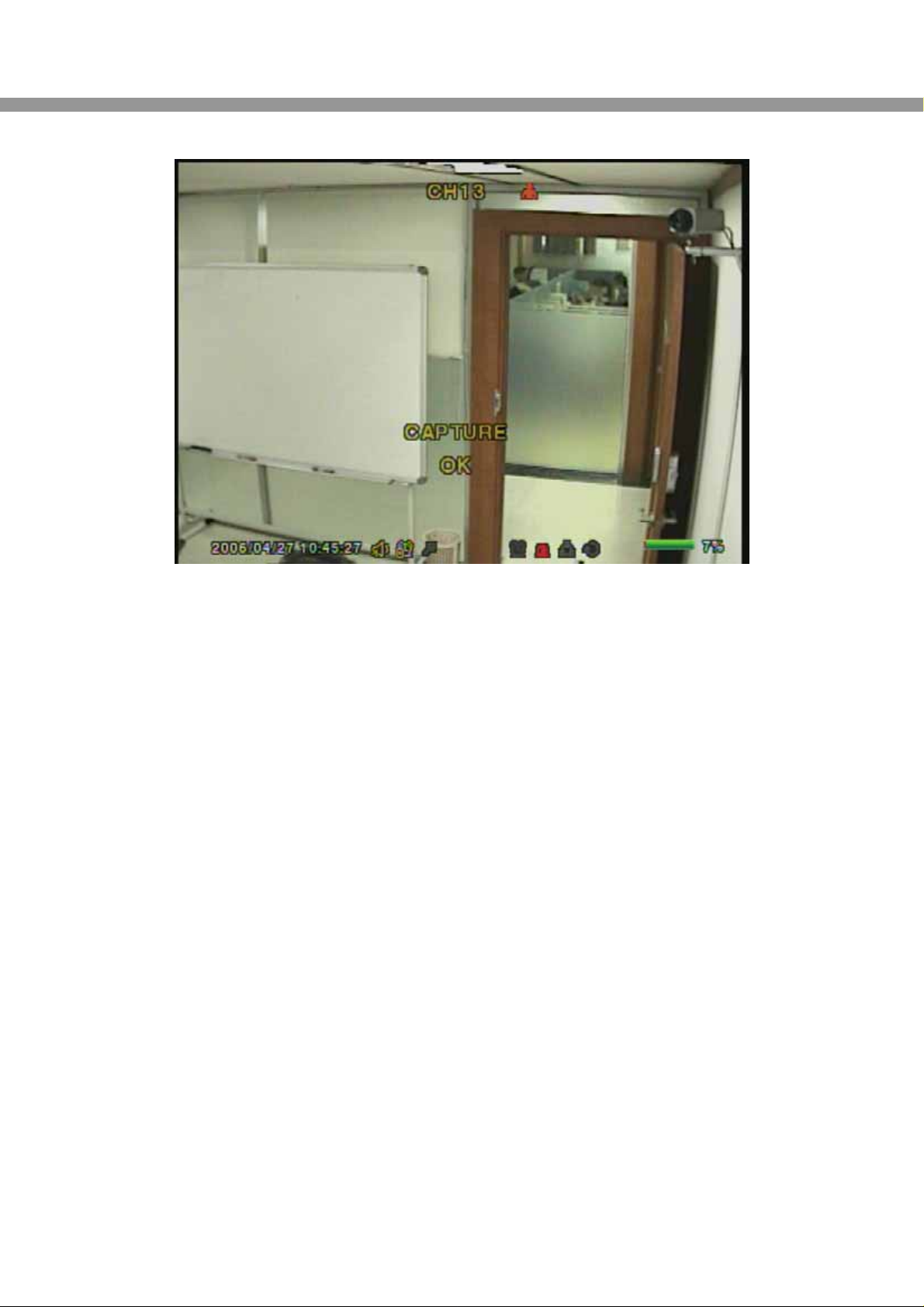

Press to freeze and capture video in jpeg format in live or playback mode.
Press to rewind the footage at 1x, 2x, 4x, 8x, 16x, and 32x speed in playback
mode or to see the LOG LIST in live display mode.
Jump/Step backward. In playback mode, the playback position moves 60
seconds backward.
Jump/Step forward. In playback mode, the playback position moves 60
seconds forward.
Press to fast forward the footage at 1x, 2x, 4x, 8x, 16x, and 32x speed in
playback mode.
Press to go to SEARCH menu in live display mode or to play and pause the
footage in playback mode.
Press to start or stop manual recording.
Press to move up the menu items in setup mode. It is also used as the
number 1 when entering password.
Press to move right in the menu or to change the values in setup mode. It is
ESC
USB Port
also used as the number 2 when entering password.
Press to move down the menu items in setup mode. It is also used as the
number 3 when entering password.
Press to move left in the menu or to change the values in setup mode. It is
also used as the number 4 when entering password.
Press to select desired menu item or to store the setup value in the setup
menu.
Press for temporal storage of the changed value or to return to the previous
menu screen.
There is a USB Port located on the left side of the front panel. This USB port
is used to archive footage into a USB storage device.
15
Page 16
2-2. Rear Panel
EST9120/EST16120 User Guide

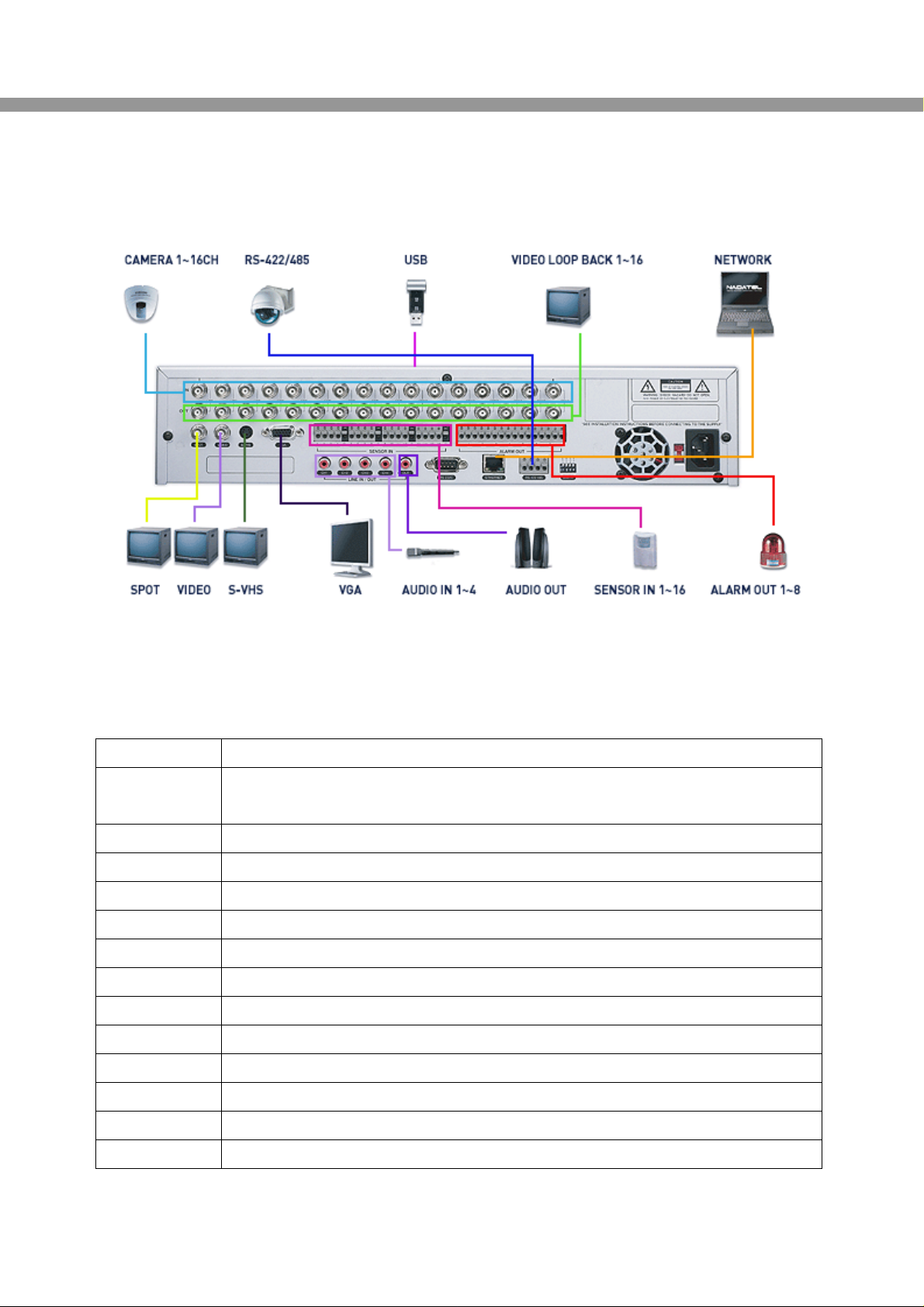

Figure 2.2.1. Rear Panel
Table 2.2.1. Rear panel connections
Connection Description
VIDEO IN
9/16 connectors for video input.
Connect camera output to Video-in (NTSC/PAL)
VIDEO OUT
SPOT
VIDEO
S-VHS
VGA
AUDIO IN
AUDIO OUT
RS-232
9/16 connectors for video output.(loop back)
Composite video output for spot monitoring.
Composite video output in NTSC or PAL format
S-VHS output
Connector for VGA monitor
4 connectors for audio input.
1 connector for audio output.
For engineering use only.
LAN
RS-485/422
SENSOR IN
ALARM OUT
RJ45 connector for LAN connection.
For camera control use.
Connector for sensor device connection.
8 connectors for alarm device connection.
16
Page 17
User Guide
Provides simple On/Off switching by using relay. 0.5A/125V, 1A/30V
POWER
Connect AC115/230V power cable.
SWITCHES
TEST
422/485
VGA
PAL
For future use
Select 422 or 485
Set to ON when VGA monitor is used.
Set to ON when video is PAL
CAUTION: Once the position of the switch is changed, 9-16CH should be rebooted to apply the
new setting value.
17
Page 18
EST9120/EST16120 User Guide
3. Getting Started – Setting Up the DVR
The following sections detail the initial setup of the DVR
3-1. Setup – Main Screen

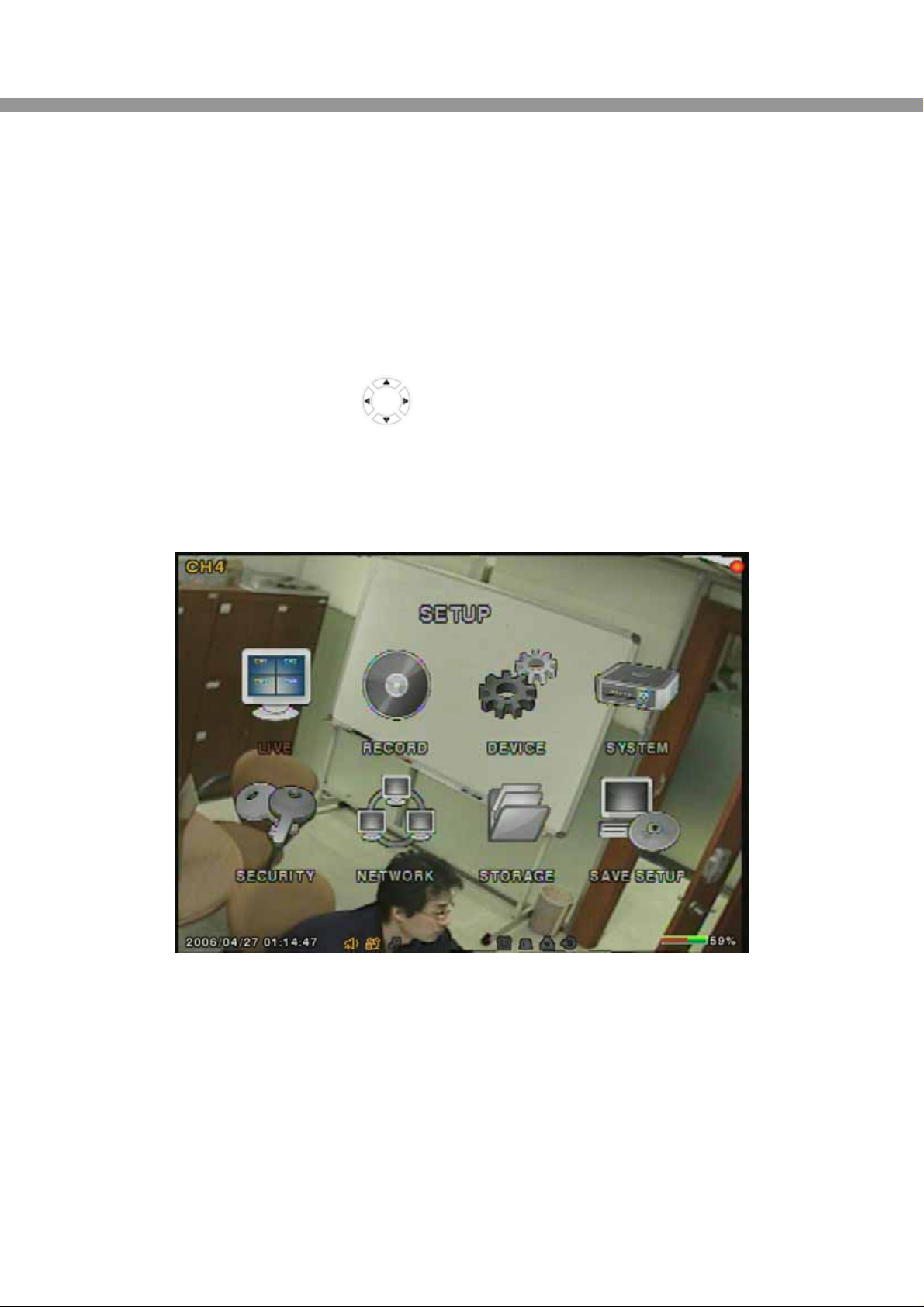

When you press the SETUP button, the DVR will ask for a password. The default password is
1111 , which ca n be ent er ed by pr essing the up b ut to n 4 times and then pressing the SEL button.
We recommend you protect the system by assigning a new password immediately. The
procedure for assigning a password is found in section 3.6. After a password has been assigned,
enter the password by using the
press the SEL button for the password validation. Once the password is entered, you will see the
screen as shown in Figure 3.1.1. Navigate through the menu items and press the SEL button to
enter the sub-category menu.
direction keys (representing 1, 2, 3, & 4), and then
Figure 3.1.1. Setup menu screen
18
Page 19
User Guide
LIVE OSD
SEQUENCE
SEQ-DWEL TIME
OSD CONTRAST
CHANNEL DISPLAY, BRIGHTNESS, CONTRAST, HUE, SATURATION
RECORD RESOLUTION
CHANNEL FRAME RATE, QUALITY, RECORDING, MOTION ZONE,
MOTION SENSIVITY, SENSOR TYPE, PRE RECORD,
POST EVENT RECORD, AUDIO, SCHEDULE
DEVICE ALARM-OUT
PTZ
SPOT CHANNEL
SPOT EVENT DWELL TIME
KEY TONE
REMOTE CONTROL ID
SYSTEM DVR ID
DESCRIPTION
LOAD FA CTORY DEFAULT
LOAD DEFAULT
DATE FORMAT
SET DATE & TIME
LANGUAGE
DAY LIGHT SAVING
SECURITY ADMIN PASSWORD
USER PASSWORD
NETWORK PASSWORD
NETWORK PORT
CLIENT ACCESS
BANDWIDTH SAVING
NETWORK TYPE
DDNS
STORAGE OVERWRITE
FORMAT
DISK INFO
Table 3.1.1. Setup menu configuration
19
Page 20
EST9120/EST16120 User Guide
3-2. Setup – Live Mode
Set the values for live display. Navigate through the menu items by pressing the UP or DOWN
button. The value of the menu item may be changed by pressing the LEFT or RIGHT button.

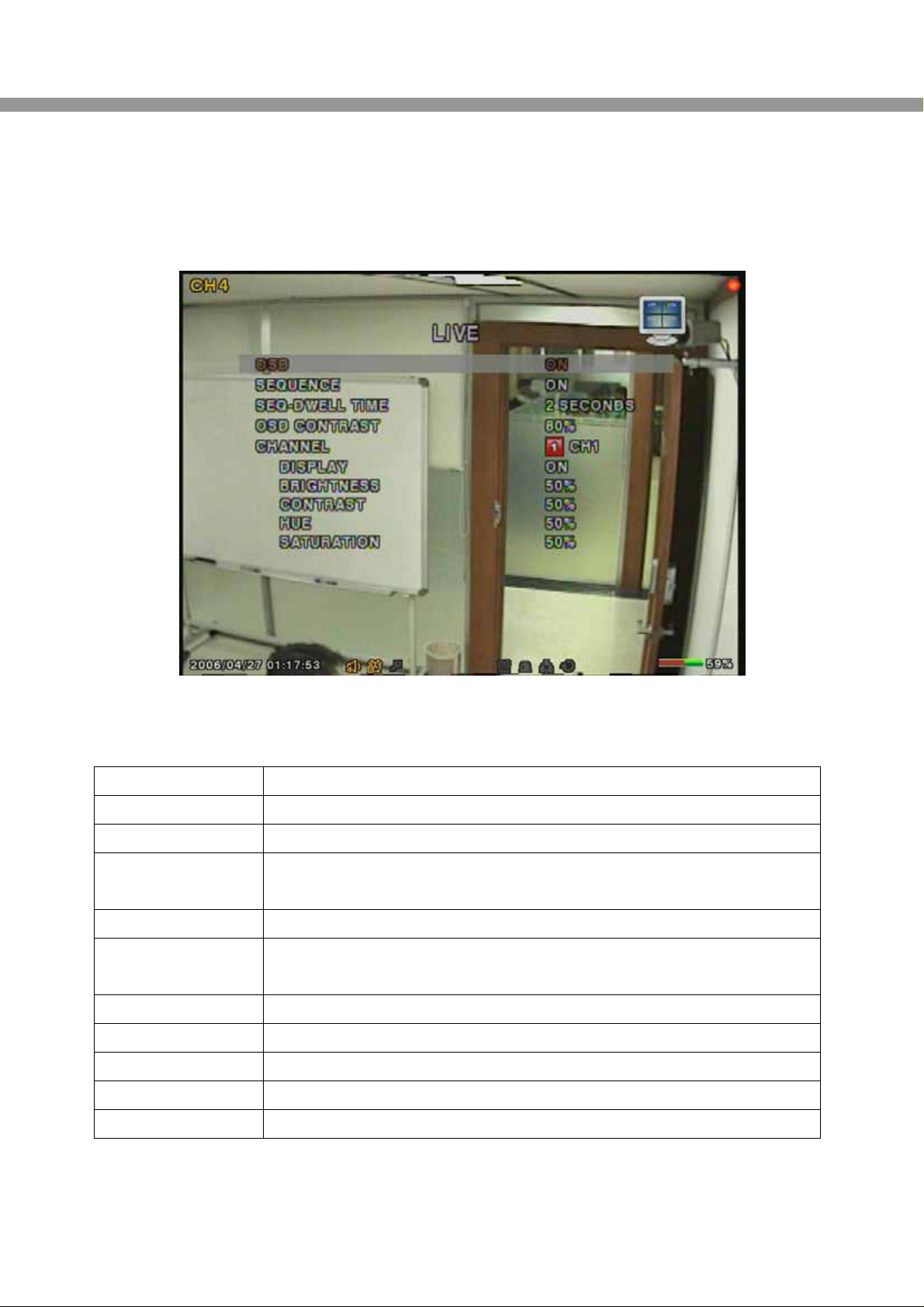

Figure 3.2.1. Live mode setup screen
Table 3.2.1. Menu items in LIVE mode setup
Item Description
OSD
SEQUENCE
SEQ-DWELL TIME
OSD CONTRAST
CHANNEL
DISPLAY
BRIGHTNESS
CONTRAST
HUE
Enable/disable on-screen-display.
Enable/disable SEQ button
Set the dwell time for each, 4 or 9 channel display in sequential display
mode.
Set the visibility level of the On Screen Display (OSD)
Select the channel for applying the following settings.
Press SELECT to change channel name.
Enable/disable display of the video channel in live display mode
Change the brightness value for the specified channel
Change the contrast value for the specified channel
Change the hue value for the specified channel
SATURATION
20
Change the saturation value for the specified channel
Page 21
User Guide
3-3. Setup – Recording Mode
Set the values for recording video. Navigate through menu items by pressing the UP or DOWN
button. User can change the value of the menu item by pressing the LEFT or RIGHT button.

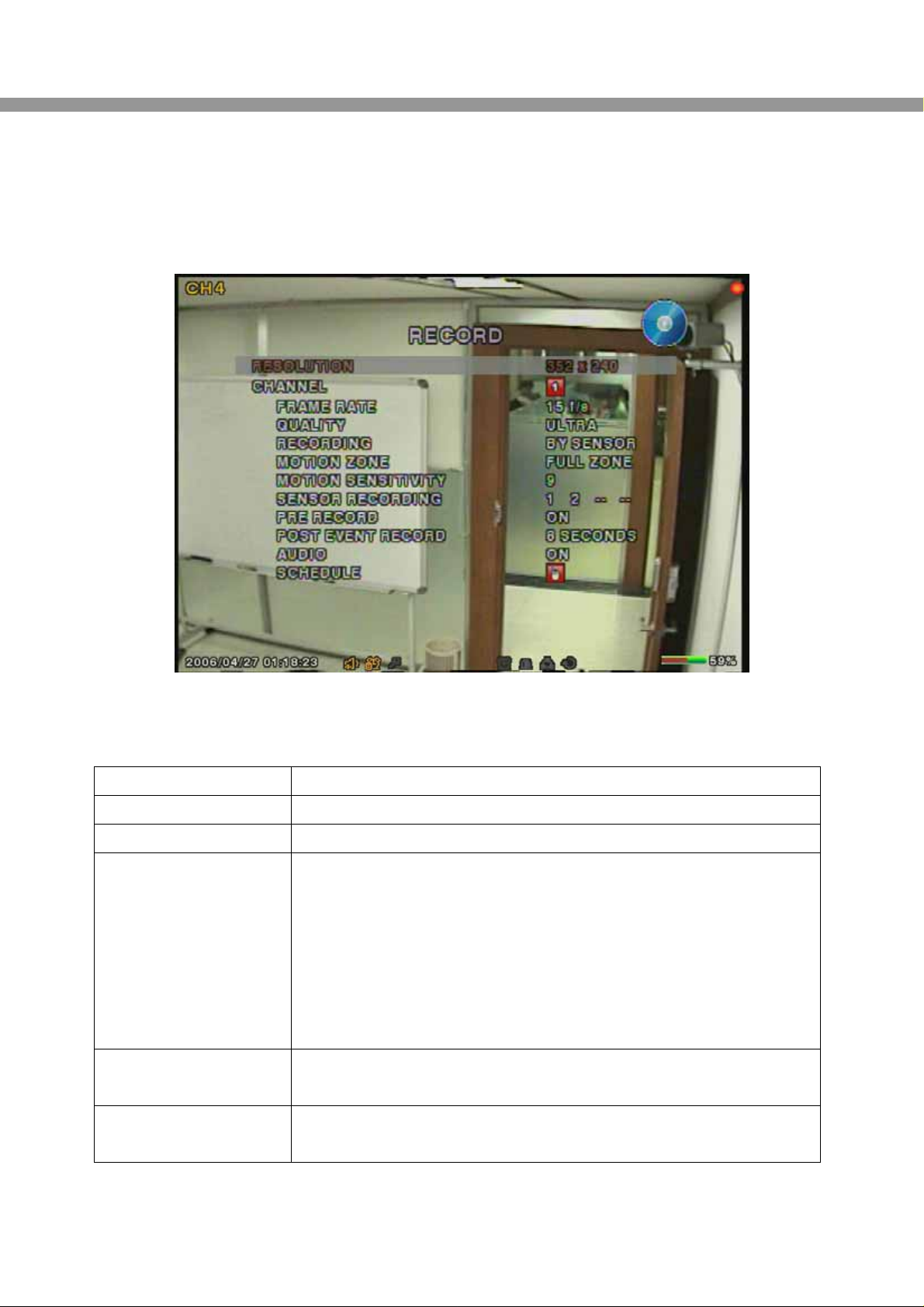

Figure 3.3.1. Recording mode setup screen
Table 3.3.1. Menu items in Recording mode setup
Menu item Description
RESOLUTION
CHANNEL
FRAME RATE
Set the resolution to 704x480 or 352x240(NTSC).
Select a channel for applying the following settings.
Set the frame rate for the specified channel. The sum of the frame
rate values from each channel cannot exceed maximum frame
rates for a particular recording resolution.
Typical values of the maximum frame rate for NTSC video are
120/100fps for 352*240(NTSC)/352*288(PAL),
60/50fps for 704*240(NTSC)/704*288(PAL), and
30/25 fps for 720*480(NTSC)/720*576(PAL).
QUALITY
Select a recording quality for the specified channel from Network,
Standard, High, Super. or Ultra
RECORDING
Set a recording mode for each channel. Select one of Continuous,
By Motion, By Sensor, By Schedule or Disable.
21
Page 22
EST9120/EST16120 User Guide
MOTION ZONE
MOTION SENSITIVITY
Select Full Zone or Partial Zone for motion sensing.
Set the motion sensitivity for the specified channel.
Control the motion sensitivity from 1 to 9.
SENSOR
RECORDING
PRE RECORD
Enable setting up to 4 sensors of 9 sensors for the specified
channel.
Enable/disable pre-event recording. Pre-event recording time is 5
second and only intra-frames are recorded for pre-event recording.
POST EVENT
RECORD
AUDIO
SCHEDULE
Set the post event recording time duration for the specified channel
from 1 to 30 seconds.
Enable/disable audio for from 1 to 4 channel.
Set the recording schedule.
NOTICE
AUDIO is linked as bellows,
1CH AUDIO = 1CH VIDEO / 2CH AUDIO = 2CH VIDEO
3CH AUDIO = 3CH VIDEO / 4CH AUDIO = 4CH VIDEO
3-3-1. Motion Zones
By selecting Partial Zone in the Motion Zone menu, user can set-up the motion sensing zones in
the screen. Move around each rectangular zone using 4 direction key buttons and press SEL
button to include the rectangular region as part of the motion sensing zone. The rectangular
blocks included as part of the motion zone are indicated by changing the color of the blocks.

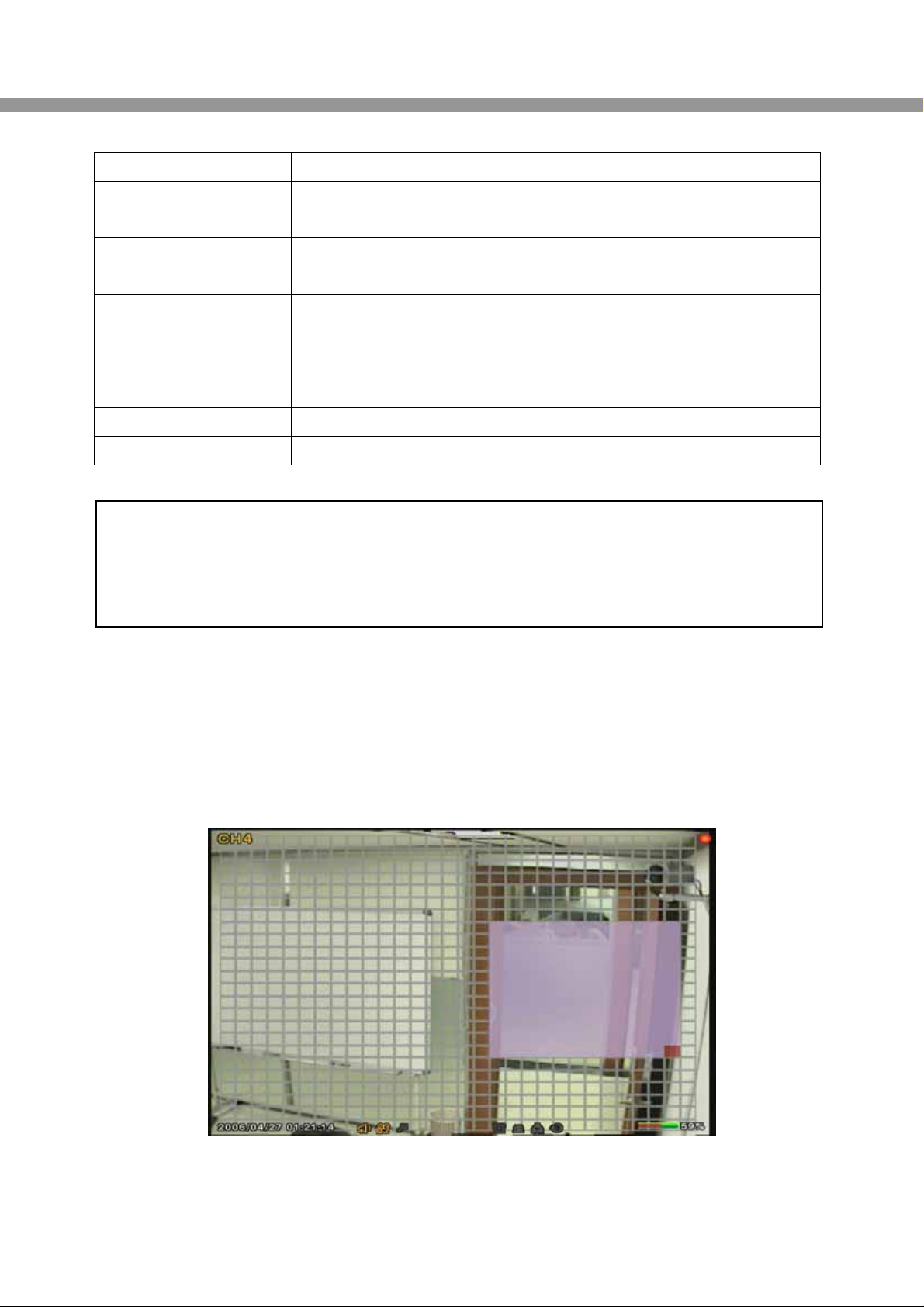

Figure 3.3.2. Motion Zone selection screen
22
Page 23
User Guide
3-3-2. Recording Schedule
Select SCHEDULE in the RECORD menu to set up the recording schedule. Button functions
applied in the recording schedule are summarized in the following table. Navigate through the
items to highlight by using the 4 direction key buttons and set up the recording schedule by using
the buttons summarized in the following table.
[ALL] : When ALL is highlighted, selected recording mode by pressing SEL button is applied to
entire time zone and channels.
[SUN to SAT] : When a particular channel is highlighted, selected recording mode by pressing
SEL button is applied to entire time zone for the specified channel.
[ | ] : When one of vertical bars “ | “ is highlighted, selected recording mode by pressing SEL
button is applied to all day of the week for the selected time zone. (Each vertical bar “ |
“ corresponds with one hour.)
[SUN to SAT] and [ | ] Cross : When a particular intersection point is highlighted, selected
recording mode by pressing SEL button is applied to that channel and time zone.
Table 3.3.2. Button functions in schedule Recording mode
Button Function
REW
F/REW
PLAY/PAUSE
FF
Use to set Continuous recording mode.
Use to Disable recording setting.
Use to enable Motion detection triggered recording.
Use to enable Sensor triggered recording

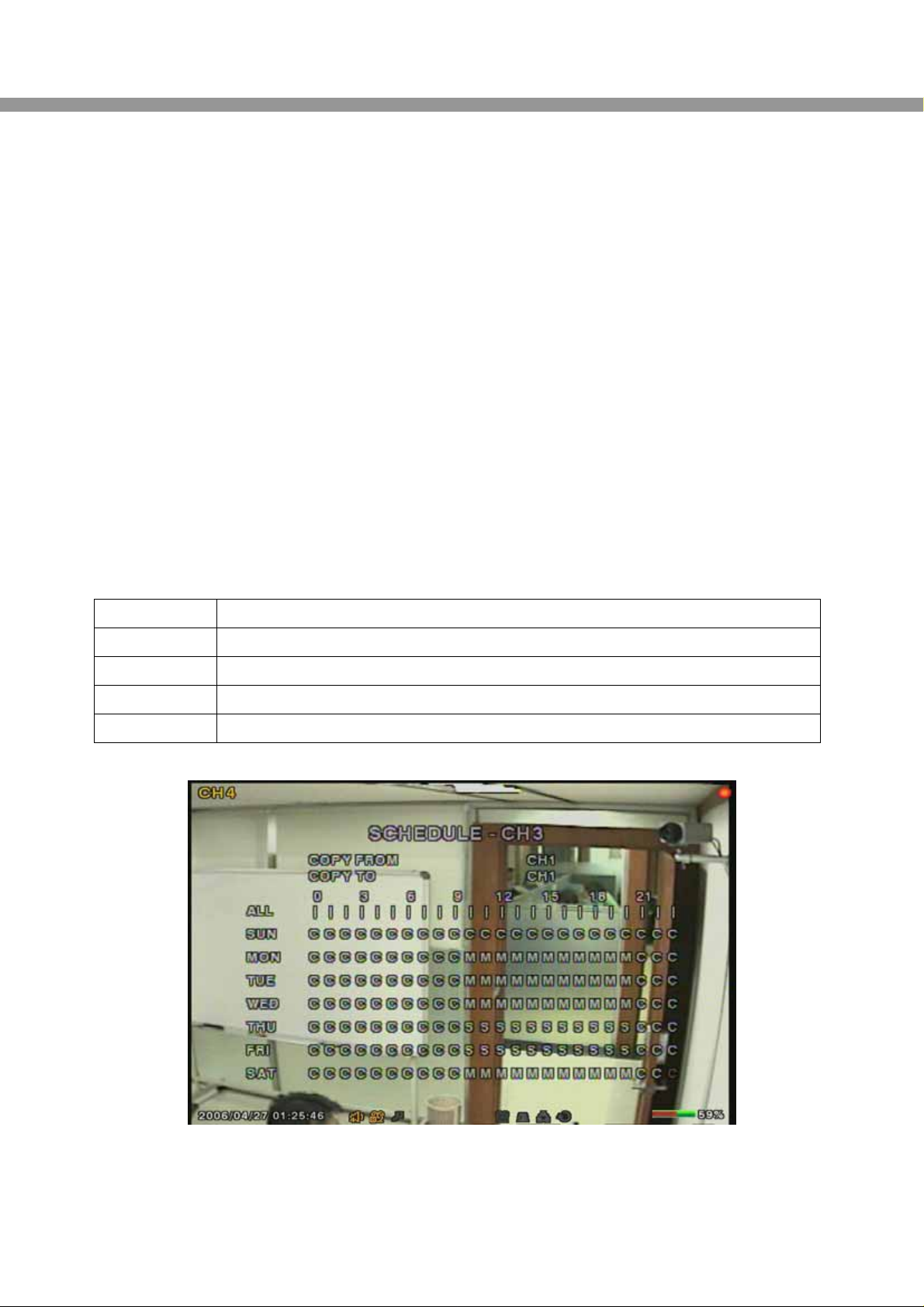

Figure 3.3.3. Schedule recording setup screen
23
Page 24
EST9120/EST16120 User Guide
3-4. Setup – Device Mode

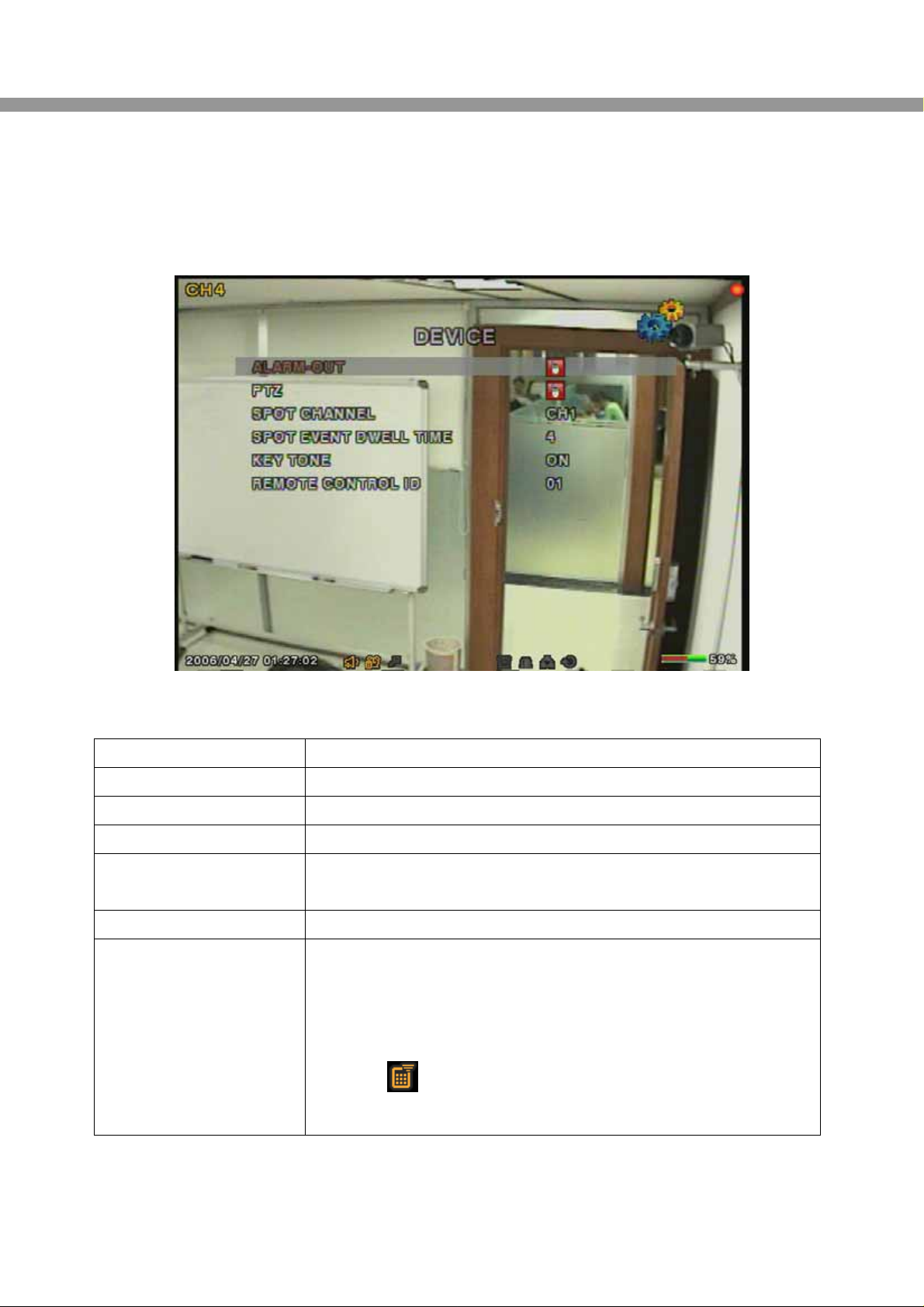

Set the values for device setting. Navigate through menu items by pressing the UP or DOWN
button. User can change the value of the menu item by pressing the LEFT or RIGHT button.
Figure 3.4.1. Device mode setup screen
Table 3.4.1. Menu items in Device Setup screen
Item Description
ALARM-OUT
PTZ
SPOT CHANNEL
SPOT EVENT DWELL
TIME
KEY TONE
REMOTE CONTROL ID
Set the sensor, motion, and video loss for each alarm.
Set the camera speed, number, type and ID
Select channel for spot monitoring.
Set the time of display the channel that the event is activated.
Enable/disable key tone.
Select a ID of remote controller.
1. Select ID.
2. Press the same number as ID set in DVR on a remote
controller.
3. Then
icon will be displayed on Live screen of DVR
that respond to the remote controller.
24
Page 25

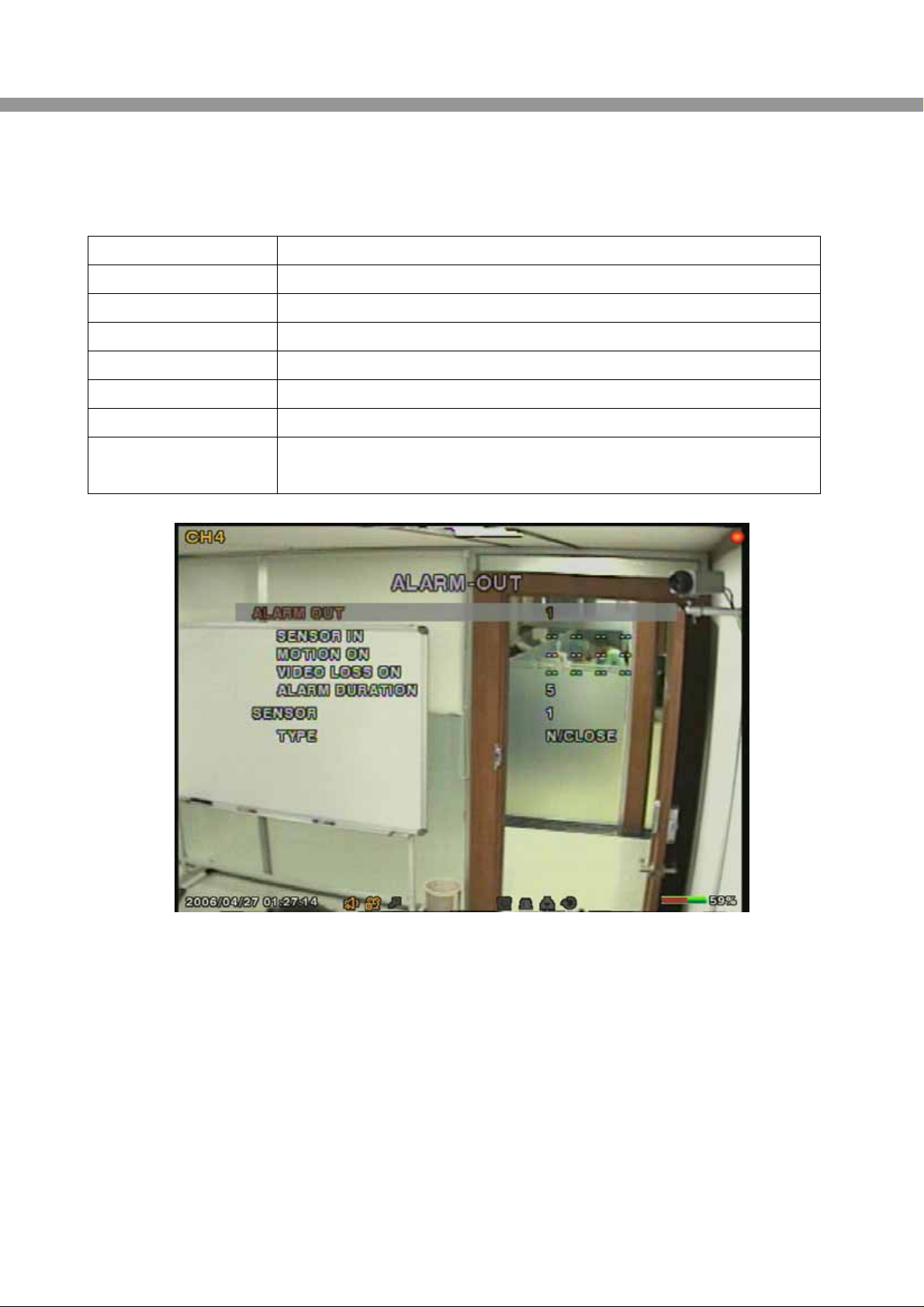

3-4-1. ALARM-OUT
Table 3.4.2. Menu item in ALARM-OUT Setup screen
Item Description
User Guide
ALARM OUT
SENSOR IN
MOTION ON
VIDEO LOSS ON
ALARM DURATION
SENSOR
TYPE
Select alarm from 1 to 8.
Enable setting up to 4 sensors of 16 sensors.
Enable setting up to 4 cameras of 16 cameras.
Enable setting up to 4 cameras of 16 cameras.
Set the dwell time of alarm from1 to 60seconds.
Select sensor from 1 to 16.
Set the type of sensor for the specified channel from none, N/O
(normal open), and N/C (normal closed).
Figure 3.4.2. Alarm-out setup screen
25
Page 26
EST9120/EST16120 User Guide
3-4-3. PTZ Setup
To control the PTZ functions of the camera, connect the controller to the RS-485 port.
For speed dome cameras that supports RS-485, connect them directly to the RS485 port. But if the camera is controlled with RS-232C, it is needed to use Signal
Converter (RS-485 to RS-232C)
In the PTZ Control setting in the setup menu, user can select or set the protocol type of the
camera which is the same as the one that is installed on the site. If the camera has a specific
camera ID, select the camera ID by using Left or Right button.

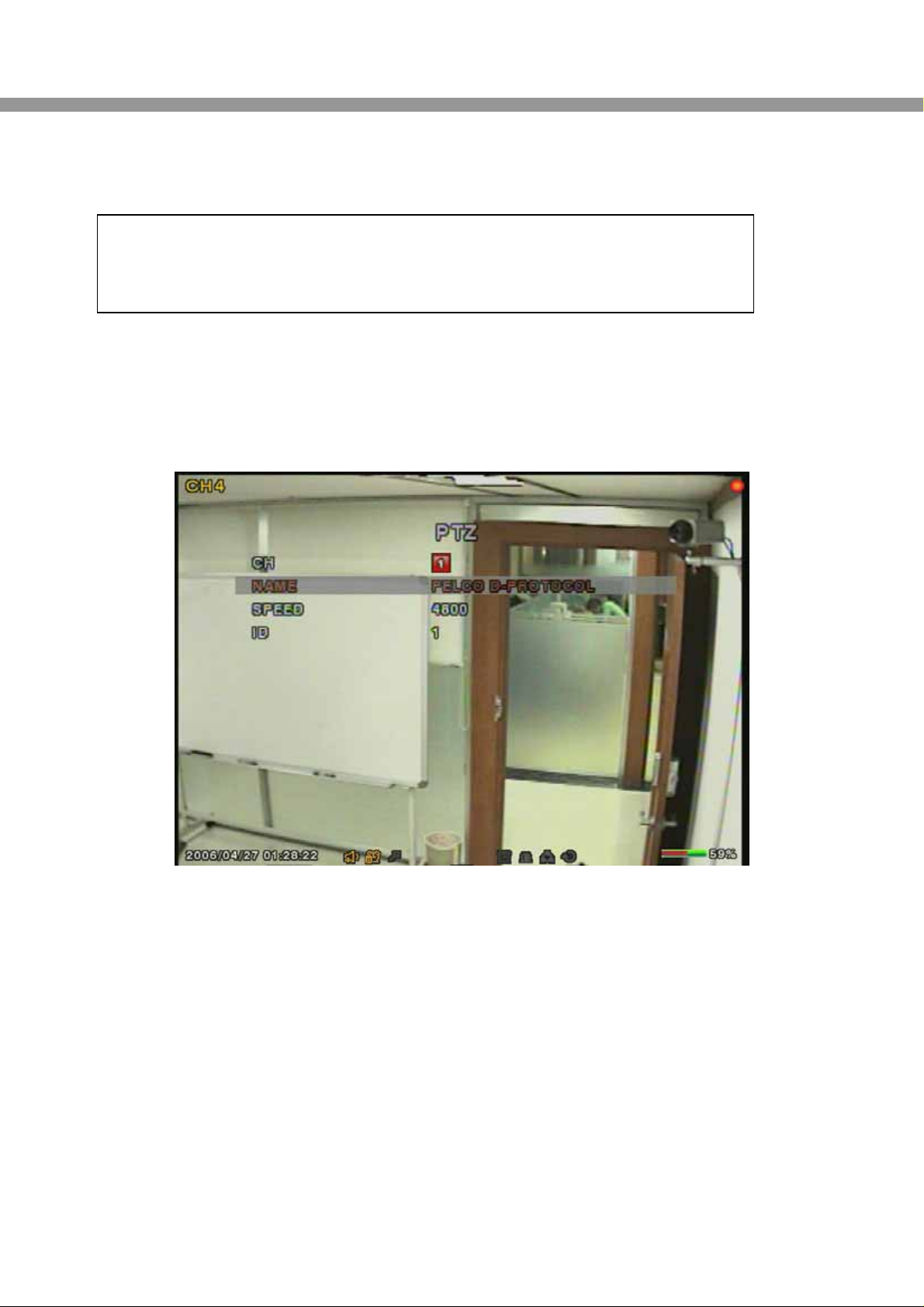

Figure 3.4.3. PTZ setup screen
3-4-4. PTZF control
To operate the PTZF functions, connect the controller to the RS-485 port on the rear panel. The
PTZ function button is found on the front panel. Once you press the PTZ button, the screen will
appear as in figure 3.4.5. Highlight the item to select and control the cameras by using the UP
and DOWN or LEFT and RIGHT buttons. Please refer to the table 3.4.4. for description.
26
Page 27
Figure 3.4.5. PTZF control screen
Table 3.4.4. Button functions in PTZF control
Item Description
User Guide
PAN / TILT
Use the UP or DOWN button for TILT and LEFT or RIGHT button for PAN
of the selected camera.
ZOOM / FOCUS
Use the UP or DOWN button for ZOOM in or out and LEFT or RIGHT
button for FOCUS near or far of the selected camera.
INITIALIZE
Initialize the PTZ settings of the selected camera.
3-5. Setup – System Mode
In this menu, system parameters can be input. Navigate through the menu items by pressing the
UP or DOWN button. User can change the value of the menu items by pressing the LEFT or
RIGHT button and UP or DOWN button.

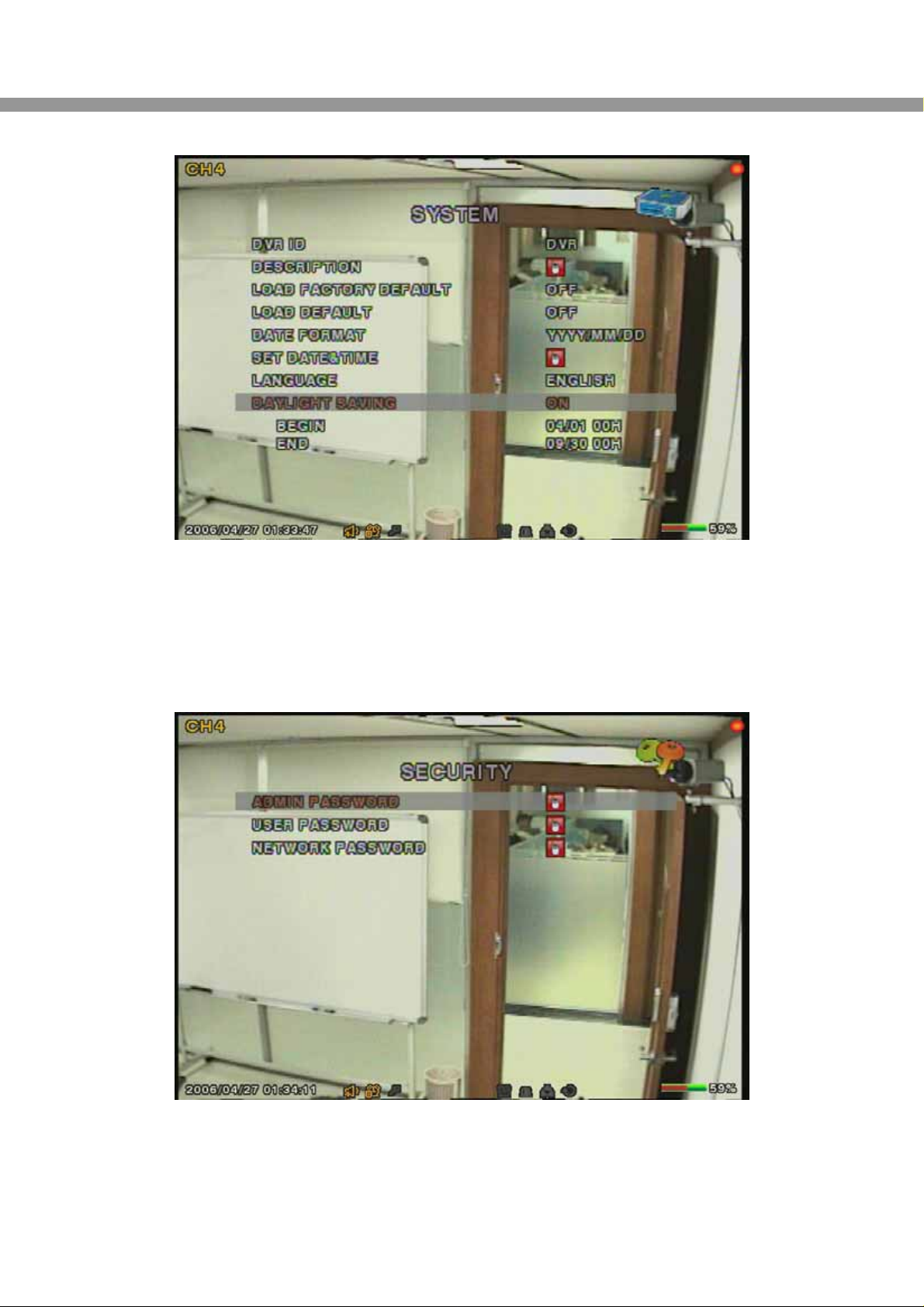

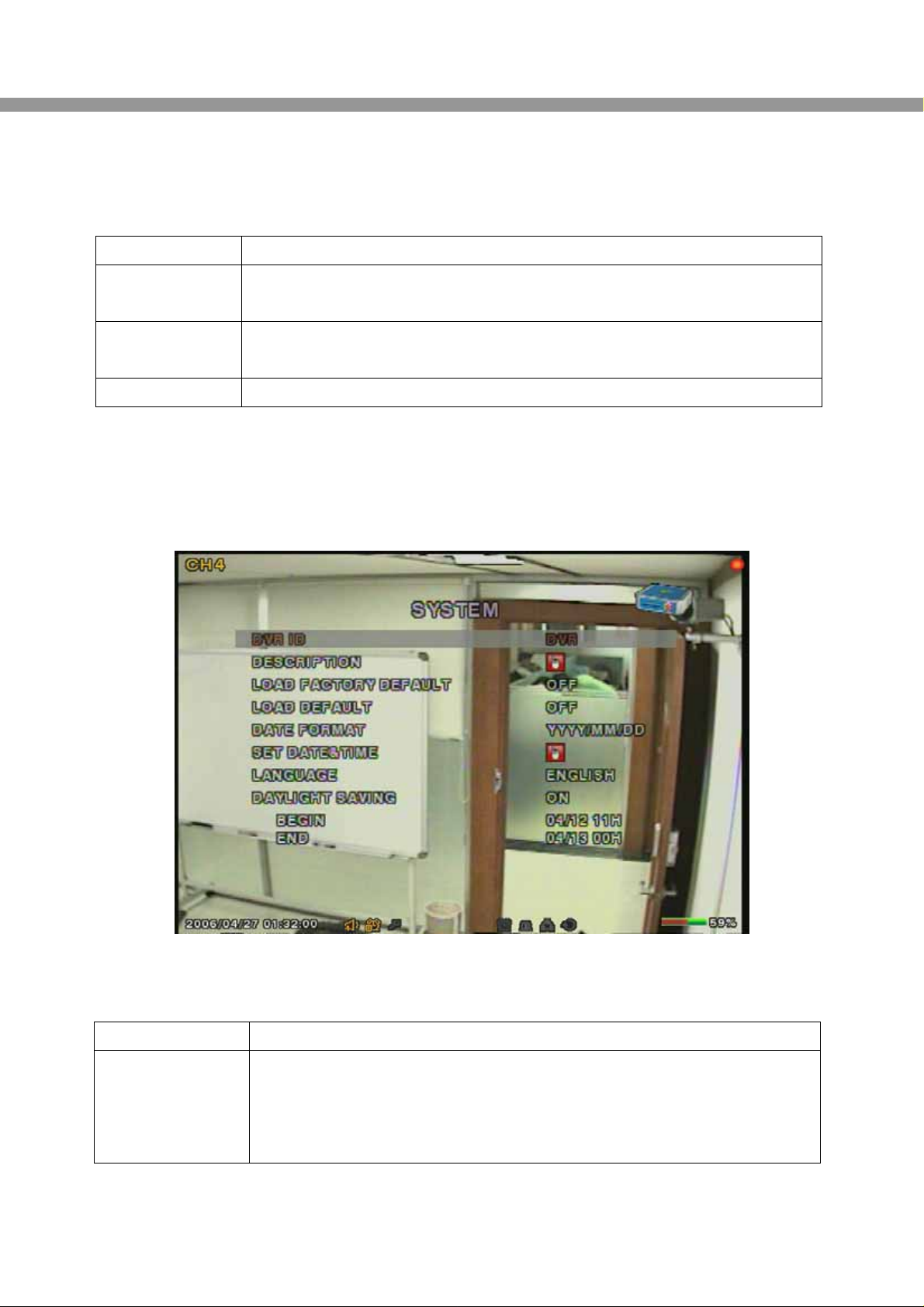

Figure 3.5.1. System setup screen
Table 3.5.1. Menu items in System Setup screen
Item Description
DVR ID
The name of the system. Press the SEL button and move through the
position for each alphanumeric character by pressing the LEFT or RIGHT
button. UP or DOWN button is used to change the character for each
location. 8 characters are available.
27
Page 28
EST9120/EST16120 User Guide
DESCRIPTION
LOAD DEFAULT
DATE FORMAT
SET DATE&TIME
USB UPGRADE
LANGUAGE
DLS
System information.
Select OFF or ON. Select ON to load defaults.
Select the preferred date and time display
Set the current date and time. After setting is done, press the SEL button
and select CONFIRM. Then the system is automatically rebooted to
apply the settings.
Select this item to upgrade firmware by using USB memory stick.
Refer to the direction from the section 6.UPGRADING FIRMWARE.
User can select a language.
User can set to ON or OFF for DLS(Daylight Saving) by using LEFT or
RIGHT button. After selecting ON, move the cursor to
BEGIN(MM/DD/HH)field and press the SELECT button to set the start
time of DLS. And move to END(MM/DD/HH)field to set the stop time of
DLS by using UP or DOWN button.
CAUTION: -DLS can’t start from 23:00
-DLS can’t be applied, if the date of BEGIN and END is same.
Figure 3.5.2. DVR ID setup screen
28
Page 29
User Guide

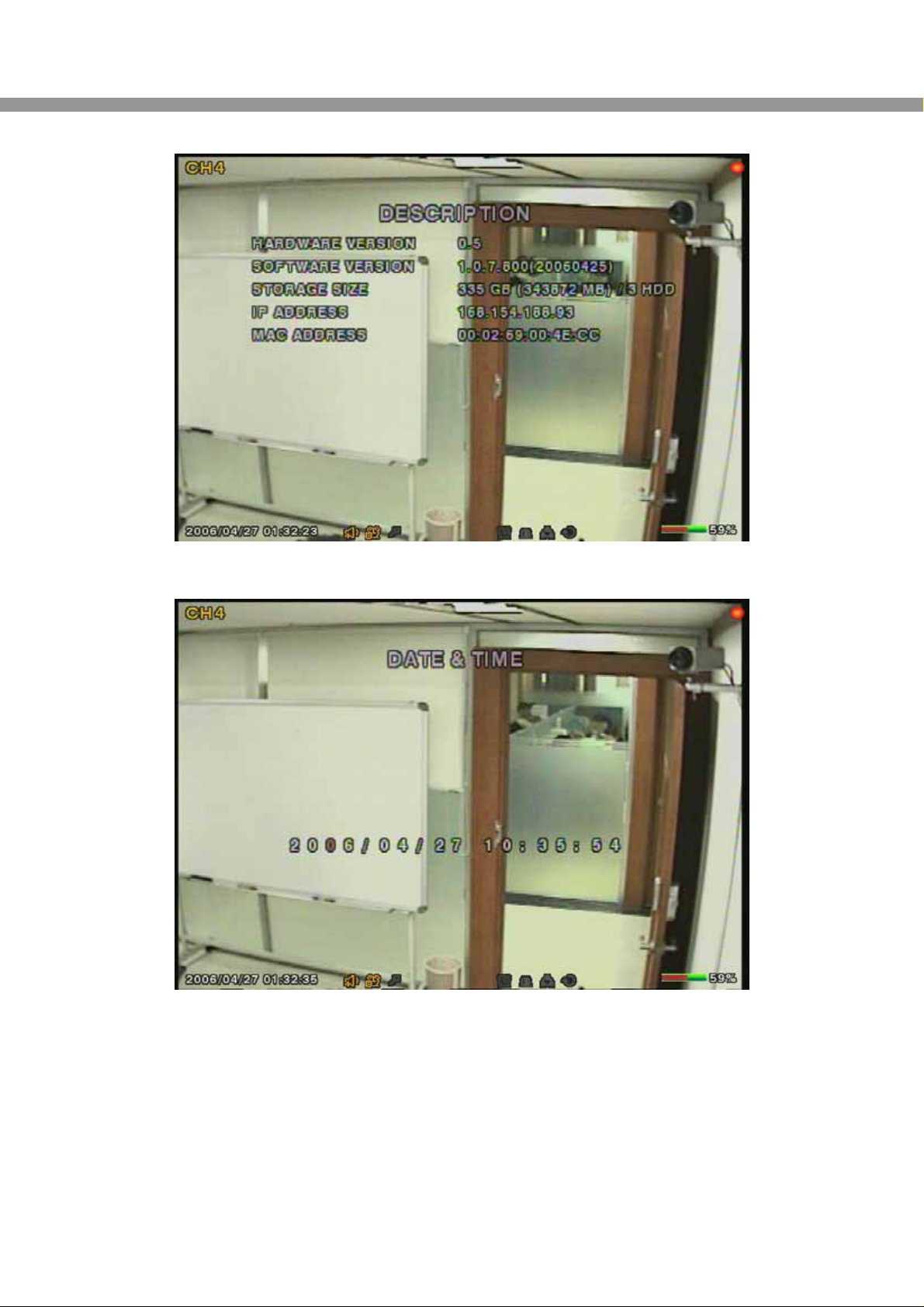

Figure 3.5.3. DVR information display screen
Figure 3.5.4. Date & Time setup screen
29
Page 30
EST9120/EST16120 User Guide
Figure 3.5.5. Daylight Saving setup screen
3-6. Setup – Security Mode
In this menu, password and security parameters can be input. Navigate through the menu items
by pressing the UP or DOWN button. User can change the value of the menu items by pressing
the LEFT or RIGHT button.
Figure 3.6.1. Security setup screen
30
Page 31
Table 3.6.1. Menu Items in Security Setup Screen
Item Description
User Guide
ADMIN PASSWORD
USER PASSWORD
NETWORK PASSWORD
PASSWORD CHECKING
SETUP
Set a password for administrator. Once this menu is selected, the
system will ask you current password and new password. Follow
the procedure provided by the system. The password numbers
can be input by using direction keys. The default password is
1111.
Set a password for user. Once this menu is selected, the system
will ask you current password and new password. Follow the
procedure provided by the system. The password numbers can
be input by using direction keys. The default password is 1111.
Set a password for network client. Once this menu is selected,
the system will ask you current password and new password.
Follow the procedure provided by the system. The password
numbers can be input by using direction keys. The default
password is 1111.
Select one of ADMIN, USER or OFF.
POWER
RECORD
SEARCH
KEY LOCK
Select one of ADMIN, USER or OFF.
Select one of ADMIN, USER or OFF.
Select one of ADMIN, USER or OFF.
Select one of ADMIN, USER or OFF.
3-7. Setup – Network Mode
Network parameters can be input in this screen. These parameters are used for remote clients
who are connected to the DVR over the network.
Table 3.7.1. Menu items in Network Setup screen
Item Description
PORT
CLIENT ACCESS
BANDWIDTH SAVING
RTSP port number
Enable/Disable network client access
Enable/Disable only-key frame transmission. This feature is useful
when network bandwidth is not enough for live video streaming.
NETWORK TYPE
DDNS
Select a type of network connection (LAN, DHCP, or ADSL)
Set to ON or OFF for DDNS
31
Page 32
EST9120/EST16120 User Guide
DDNS NAME
The DDNS sever name is www.esthub.co.kr
Registration>>
Check the MAC address of DVR from SETUP-> SYSTEM->
DESCRIPTION.
Please contact a distributor or an installer to register your DVR on
DDNS Server. Register your own domain name on DDNS Server.
After your own domain name and MAC address of DVR are
registered on DDNS server, user can access to network with own
domain name.
3-7-1. Ports
When connecting 1 or more DVRs to a network through an IP sharing device, each device must
have a unique RTSP port number for access to each unit from outside the LAN. Also, the IP
sharing device must be configured for port forwarding, so that each port, when accessed on the
IP sharing device, will forward to the appropriate DVR. This port number is listed next to the Port
menu option in the NETWORK menu. If the user plans to only access the units from within the
same local area network, the RTSP port does not have to be changed.
Network access beyond Router
In order to access beyond Router (Firewall), user must open 3 TCP ports for Command level,
Live channels, and Storage channels. If these all ports are not open properly, user can not
access DVR beyond a router.
If DVR sets port number with 5445 as bellow, user has to open 3 TCP ports (5445, 5446, &
5447).
32
Page 33
User Guide

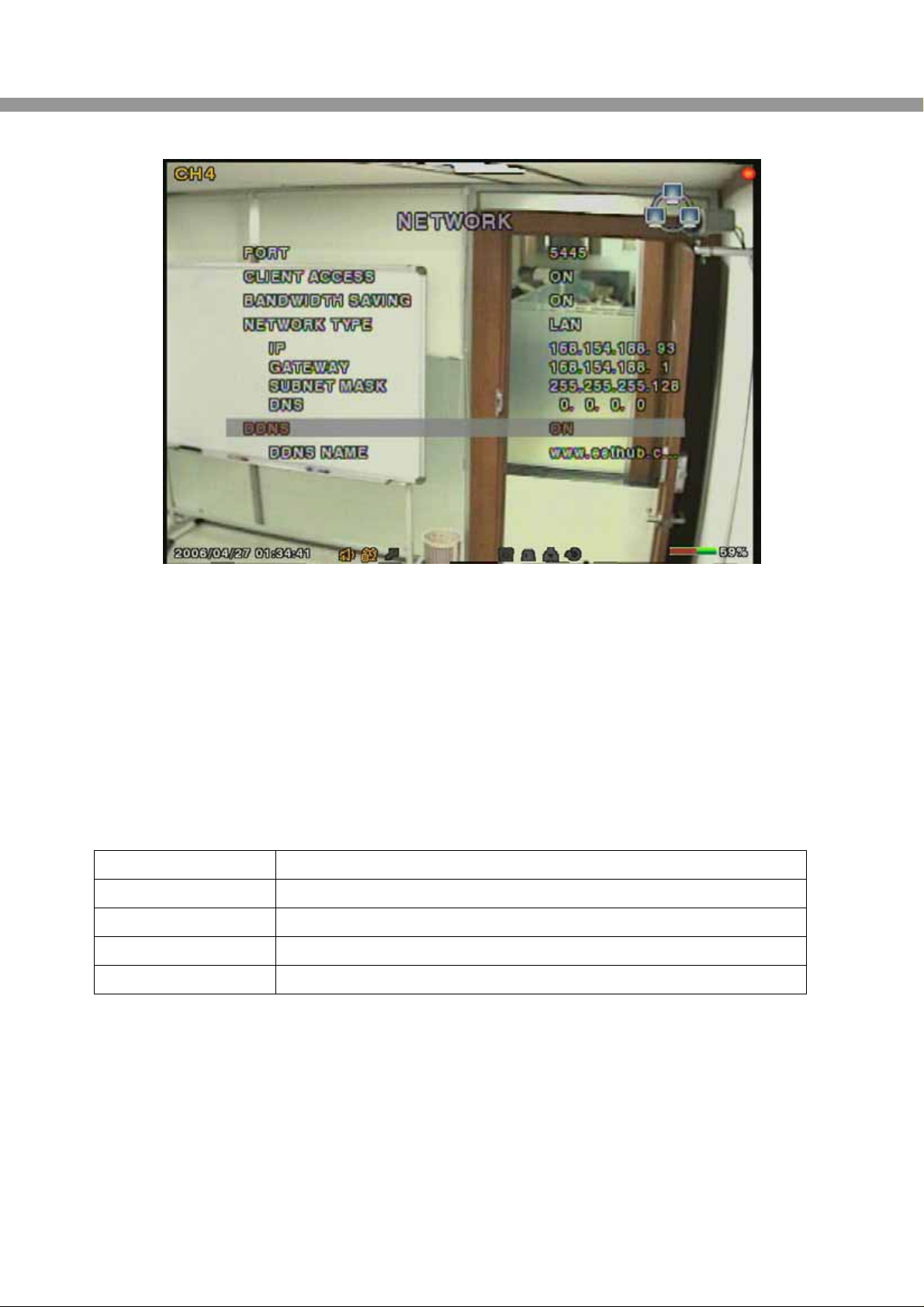

Figure 3.7.1. Network setup screen
3-7-2. Network types
There are three network types. Each type requires different settings.
LAN
To use the LAN option when connecting the DVR to a network, the following information is
required. If you do not have this information, see your network administrator.
Table 3.7.2. LAN
Item Description
IP
GATEWAY
SUBNET MASK
DNS
The fixed IP address of the DVR
The IP address of the gateway
The subnet mask for the LAN
Set the DNS IP.
DHCP
Select DHCP to use the DHCP option when connecting the DVR to a network. An IP address is
automatically assigned by the DHCP server, which assigns IP address and other parameters to
new devices automatically. To see the DVR’s IP address, select DESCRIPTION from the
SYSTEM menu.
33
Page 34
EST9120/EST16120 User Guide
If the network connection does not allow additional IP addresses, than an IP sharing device will
be needed. In this case, forwarding may be needed to allow for a network connection. For more
information on port forwarding, see the documentation for your IP sharing device or your network
administrator.
ADSL
To use the ADSL option when connecting the DVR to a network, the following information is
required. If you do not have this information, see your network administrator.
Table 3.7.3. ADSL
Item Description
ID
PASSWORD
The user ID for ADSL connection
The password for ADSL connection
User’s ADSL connection must have an RJ45 output to connect to the DVR.
When sharing the connection with other devices, an IP sharing device should be used. In this
case, select LAN as the NETWORK type. User will also need to configure the IP sharing device
for port forwarding to allow for a network connection. For more information on port forwarding,
see the documentation for your IP sharing device, or contact your network administrator.
34
Page 35
User Guide
3-8. Setup - Storage Mode
User can set recording mode in the hard disk drive or initiate format of the hard disk driver.

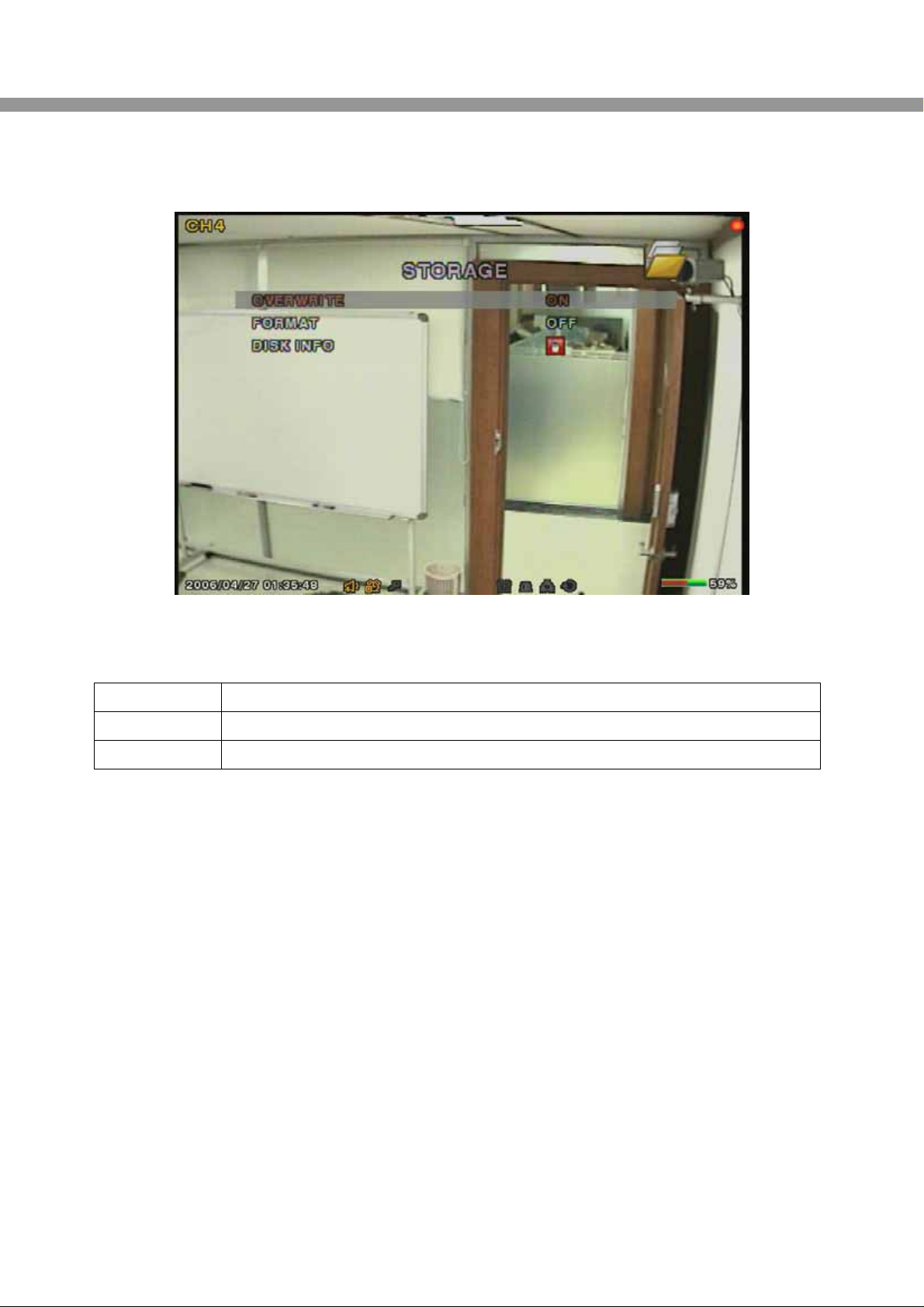

Figure 3.8.1. Storage setup screen
Table 3.8.1. storage setup
Item Description
OVERWRITE
FORMAT
Overwrite existing material when hard disk drive is full.
Format hard disk drive.
3-9. Saving Setup
To preserve the changed setup values, select the SAVE SETUP menu and select CONFIRM.
35
Page 36
EST9120/EST16120 User Guide
4. Live & Search
4-1. Live Window
In the Live window, video inputs from the cameras are displayed on the configuration of the live
setup. Various indicators showing the status of the DVR are shown as OSD symbols. Refer to
Table 4.1.1 for the meanings of the indicators.

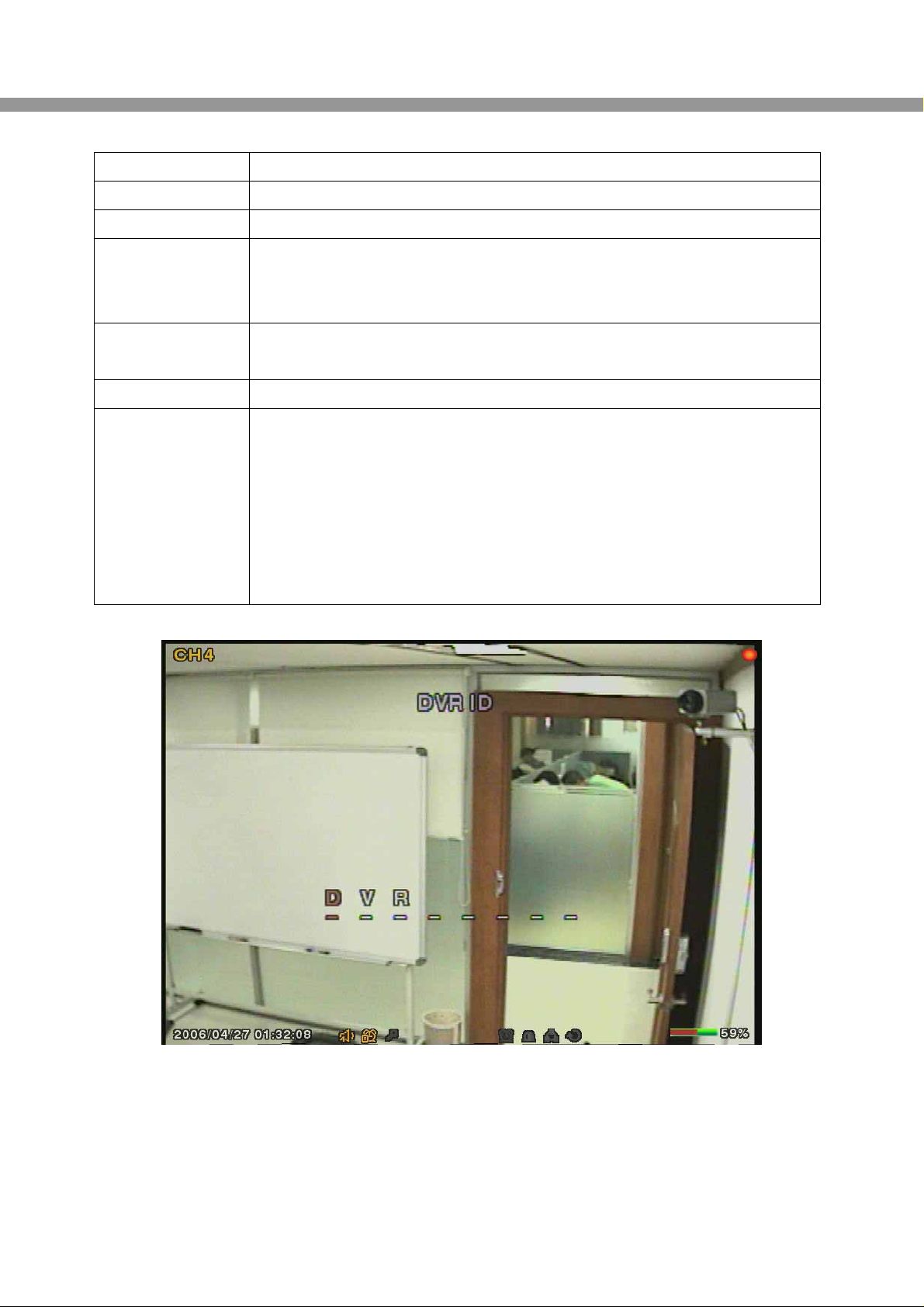

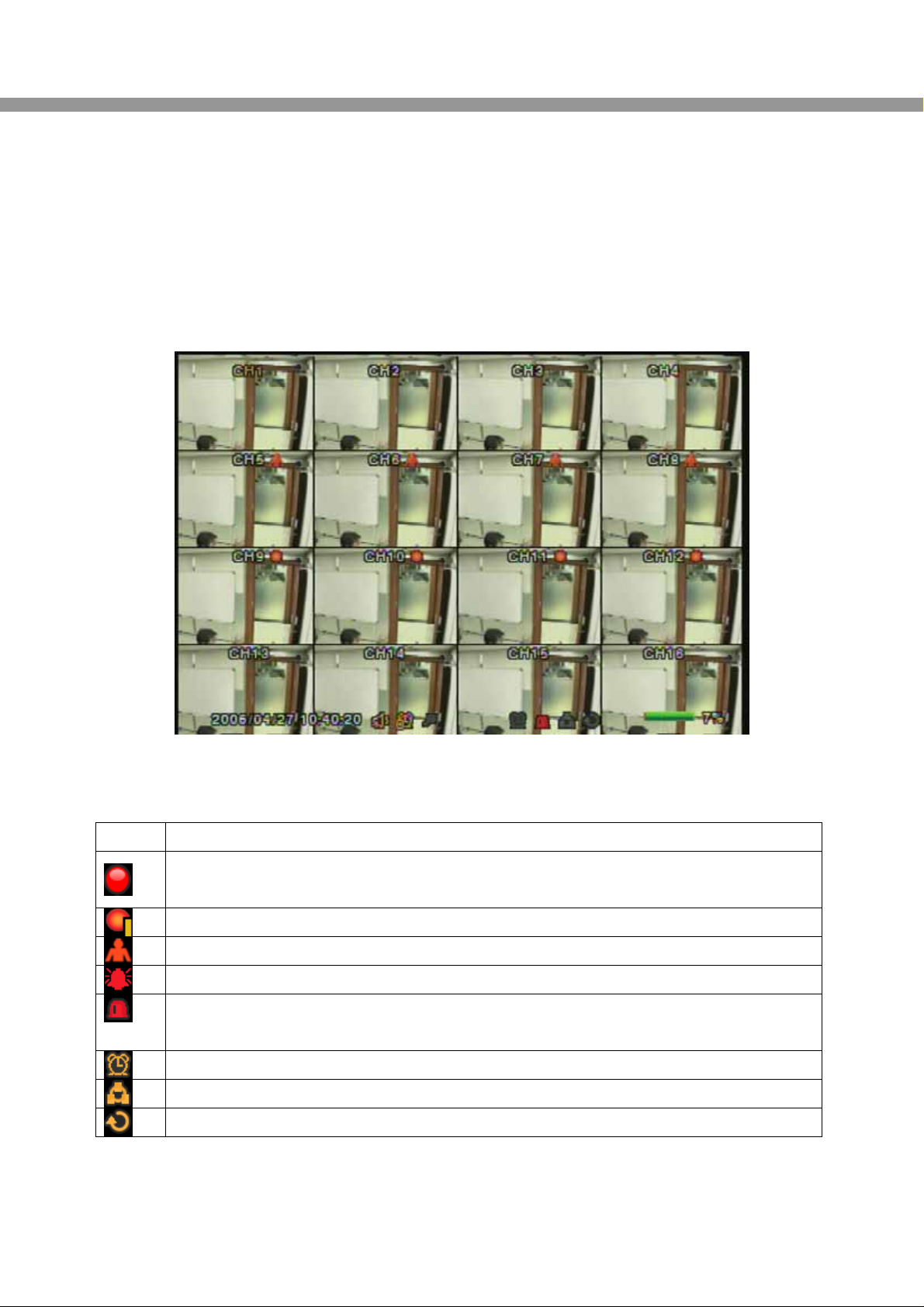

Figure 4.1.1. Live window
Table 4.1.1. Indicator ICONS in Live window
Icon Description
Continuous recording in progress
Manual recording in progress
Motion recording in progress
Sensor recording in progress
Alarm indicator. When there is an alarm (sensor alarm or motion alarm) in the video
channel, this icon will be highlighted in bright red.
Indicates that alarm output is activated.
Indicates that a network client is connected to the DVR.
Indicates that sequencing mode is enabled.
Table 4.1.2. Button functions in Live window
36
Page 37
User Guide
Button Description
SETUP
SEQ
PLAY/PAUSE
SEL
ESC
REC
Launch the SETUP menu.
Enable/disable the automatic sequential display in full or quad mode.
The channel display in quad mode is followed the settings in the setup
menu.
Launch the SEARCH window.
Use to select channel 1to 4 in full screen mode or to change the quad
display in quad display mode by using the LEFT or RIGHT button. And use
to select and highlight a channel to display in full display mode in 9 split
display mode.
The channel display in quad display mode is followed the setting in the
setup menu.
Switch between full screen and current display mode.
No action
Select for manual recording for all channels.
4-2. SEARCH Window
Press PLAY/PAUSE button in live mode to enter SEARCH window. The screen will appear as in
figure 4.2.1. The SEARCH window is used to find the stored video. Within the SEARCH menu, 3
categories of search filters can be applied: DATE, CHANNEL, and TYPE. Use the SEL button to
move down the categories and use the UP button to move up the categories. The ESC button
will return user to the live screen.
37
Page 38
EST9120/EST16120 User Guide

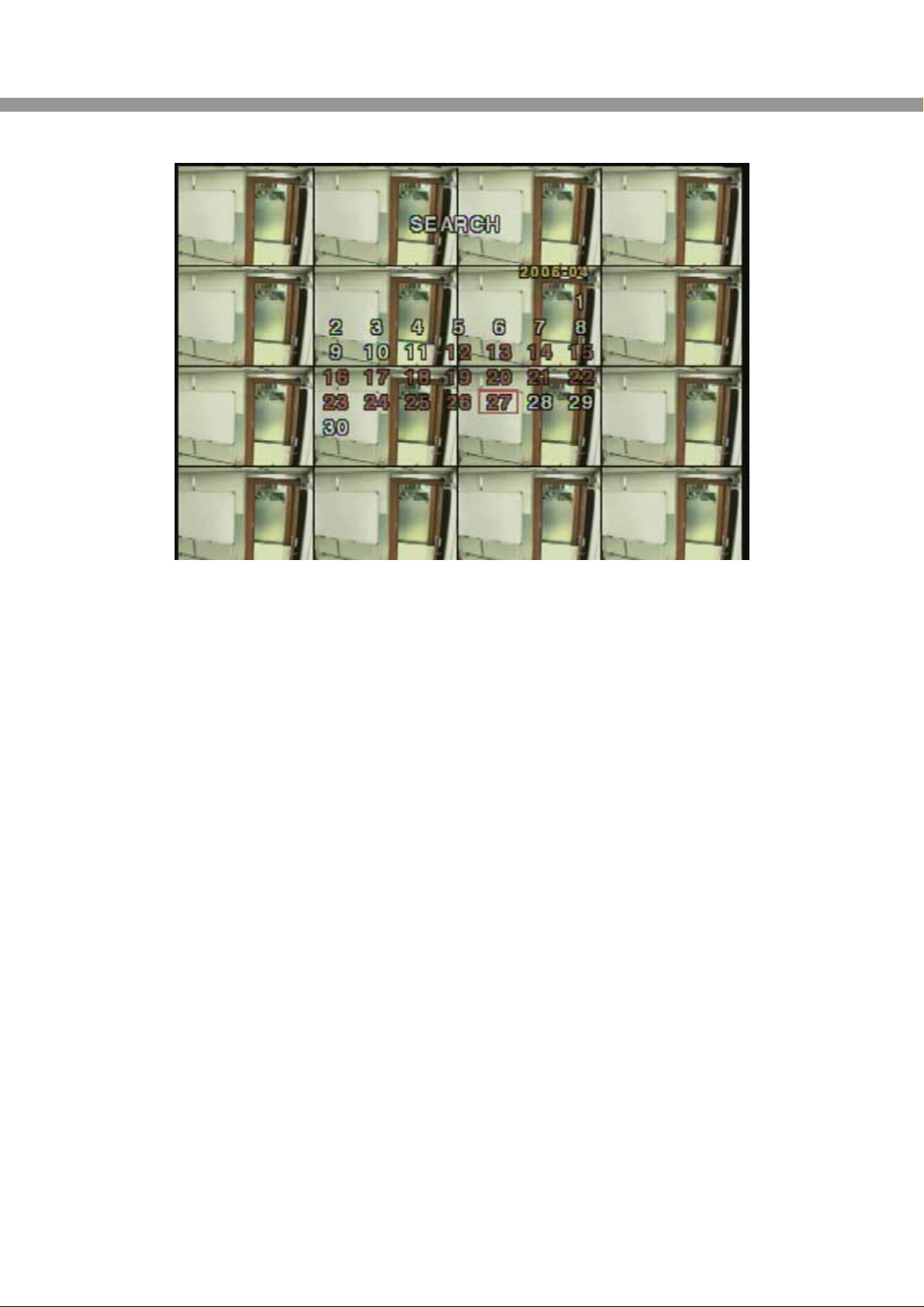

Figure 4.2.1. Search mode screen
Searching for an event:
1. Select a date of the video to begin searching, Use the LEFT or RIGHT button and UP or
DOWN button to navigate through the date.
2. Once you have selected the date, press the SEL button to move to the CHANNEL selector.
3. Use the LEFT or RIGHT button to change the channel selection from ALL to any of the nine
available channels.
4. Once you have selected the channel, press the SEL button to move to the TYPE selector.
5. Use the LEFT or RIGHT button to change the type of recording to ALL, MOTION, SENSOR,
MANUAL, or CONTINUOUS.
6. Once you have selected the type of recording to search for, press the SEL button to see the
list of recorded video.
7. To launch archiving function in playback mode, press the ARCH button.
8. Use the UP or DOWN button to scroll through the onscreen listings.
9. Use the LEFT or RIGHT button to display the event lists that happened previous or after the
current list.
10. Once the desired event has been selected, press the SEL or PLAY/PAUSE butt on to play the
selected video.
38
Page 39
User Guide

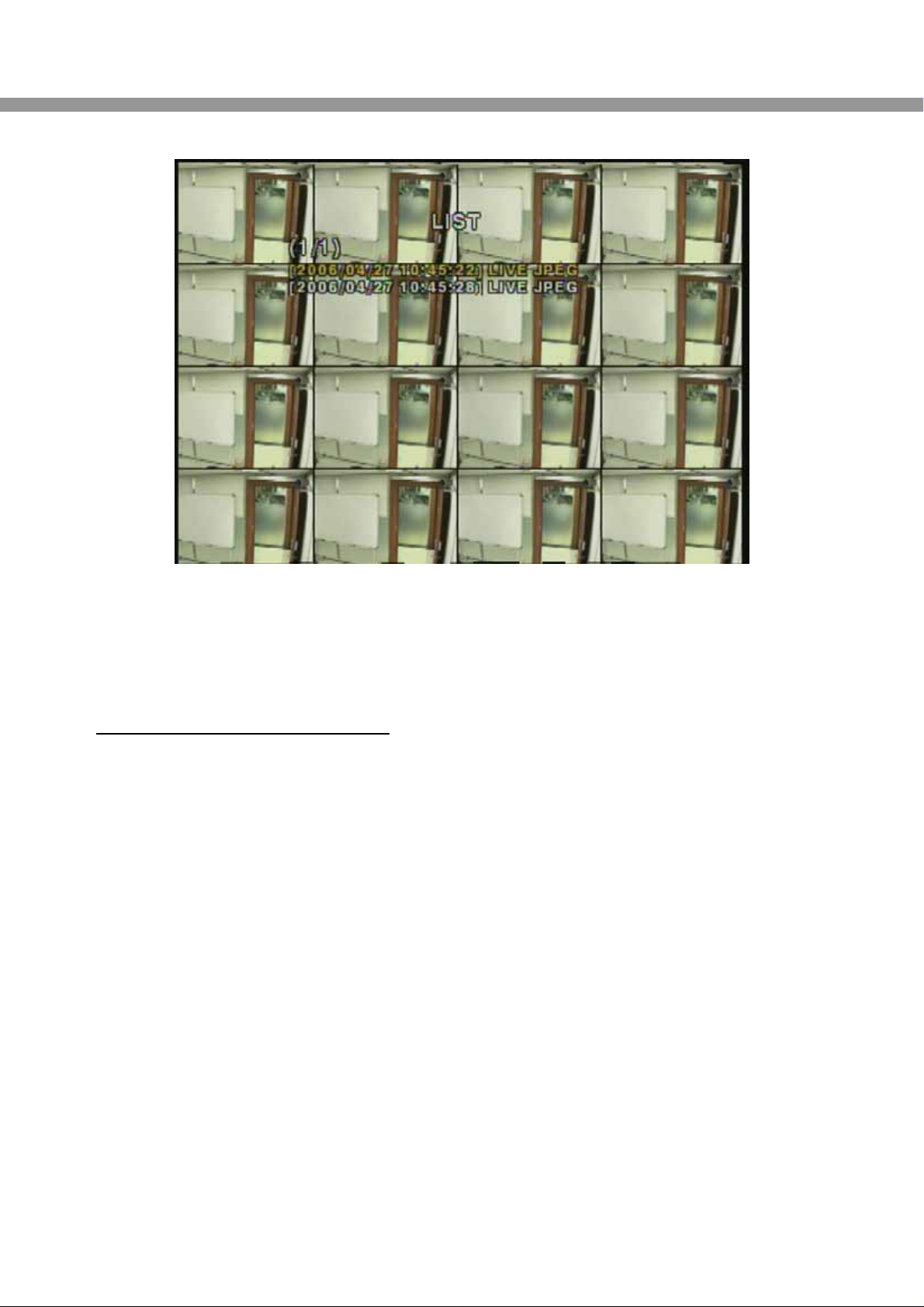

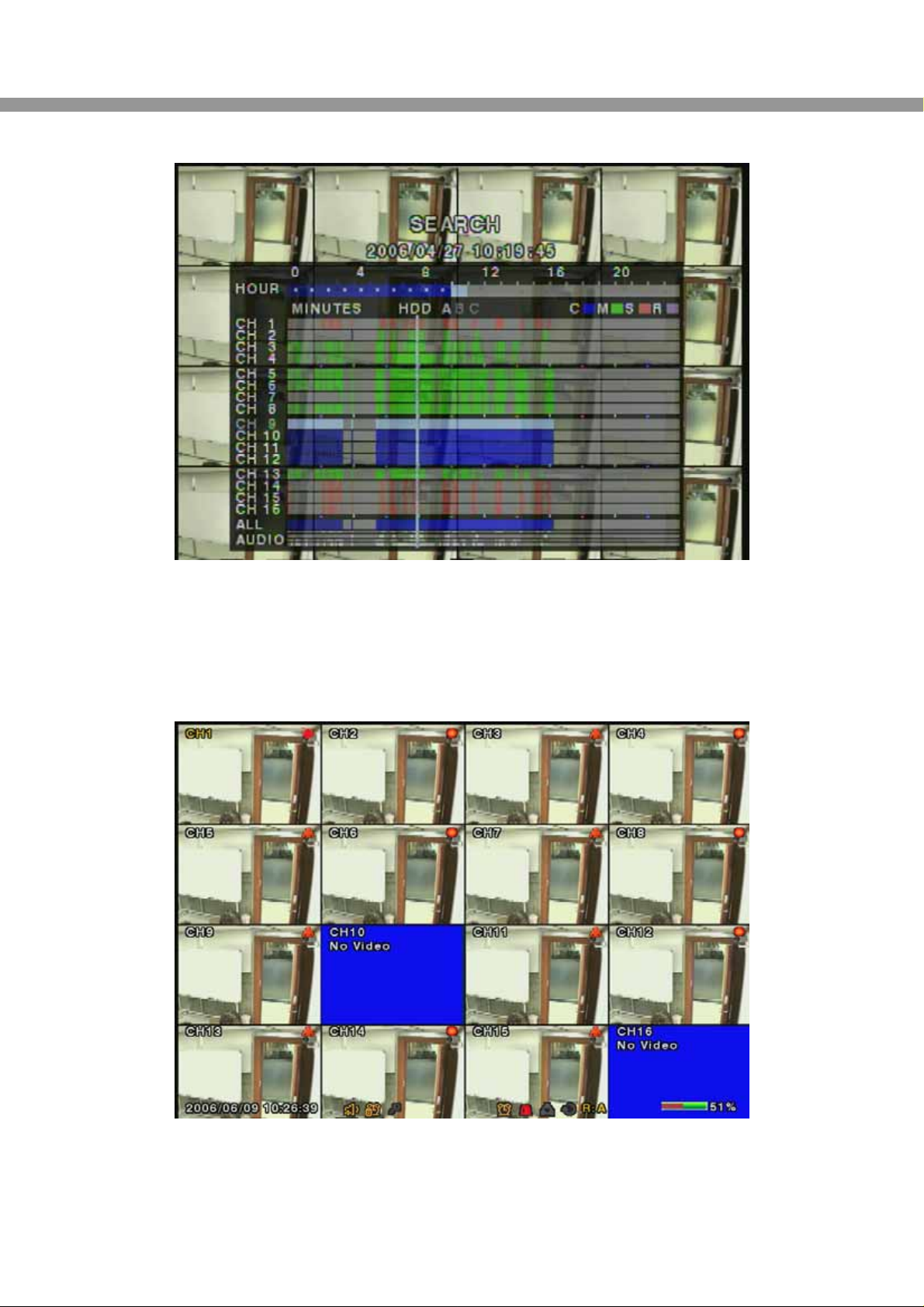

Figure 4.2.2 Search list
4-3. Play mode
During the playback of a recorded event, the mode changes from SEARCH to PLAY. While in
PLAY mode, you may return to SEARCH LIST by pressing the ESC button.
Figure 4.3.1. Play mode screen
39
Page 40
Table 4.3.1. Button functions in Play mode
Button Description
EST9120/EST16120 User Guide
ESC
REW
F/REW
PLAY/PAUSE
F/ADV
FF
Return to the previous menu screen or exit from the setup menu
Press to rewind the footage at 1x, 2x, 4x, 8x, 16x, and 32x speeds.
Reverse playback speed is shown as -1x(normal), -2x (2 times
normal), -4x (4 times normal), -8x (8 times normal), -16x (16 times
normal), and -32x (32 times normal) at the bottom right of the screen.
Jump/Step backward. The playback position moves 60 seconds
backward.
Press to play or pause recorded video.
Jump/Step forward. Playback position moves 60 seconds forward.
Press to fast forward the footage at 1x, 2x, 4x, 8x, 16x, and 32x
speeds. Playback speed is indicated as +1x, +2x, +4x, +8x, +16x, and
+32x for normal, twice, 4 times, 8 times, 16 times, and 32 times of the
regular speed at the bottom right of the screen.
Use to select channel 1to 4 in full screen mode or to change the quad
display by using the LEFT or RIGHT button.
The channel display in quad display mode is followed the setting in the
setup menu.
SEL
FREEZE/CAPTURE
Switch between full screen and current display mode.
Press to launch archiving function.
5. Archiving Video into USB Memory Device
To archive a still image or video to a USB storage device, user must first capture a still image or
video to a hard disk drive.
5-1. Capturing images or video
Still image can be captured and stored into the hard disk drive in live mode or while playing back
recorded video. In live mode, press FREEZE/CAPTURE button twice to capture and store the
still image. Once you press the FREEZE/CAPTURE button twice, the screen shown in Figure
5.1.1 will be displayed.
40
Page 41
User Guide
Figure 5.1.1. Archive mode screen
The still image will be stored into the hard disk drive and can be transferred to the USB storage
device later.
In playback mode, press the FREEZE/CAPTURE button to launch the archiving function. The
system will ask whether to store still image or video. If the user selects still image, it will store
captured image into the hard disk drive. If the user selects video, it will store video into the hard
disk drive. When a USB storage device is plugged in and archiving to the USB is requed, the
system will convert the corresponding portion of the video into an AVI file and store it on the USB
storage device.
5-2. Transferring still images or video into USB
To begin transferring stored image or video to a USB storage device, connect a USB storage
device. In live mode, press the FF button. This will bring up the ARCHIVE screen which will allow
you to specify a date to search for stored images or videos.
41
Page 42
EST9120/EST16120 User Guide
Figure 5.2.1. Archive menu screen
Press the SEL button to retrieve a list of archived image or video.
Select one of the files in the archived list by using the UP or DOWN button, and then press the
FREEZE/CAPTURE button to transfer to the USB storage device. When there is enough space
for archiving, the system will start transferring the file. In the case of video, the system will
change the video and audio into AVI format while transferring the video file into the USB storage
device.
42
Page 43
User Guide
Figure 5.2.2. List of archived files
DivX player which supports DivX codec is required for proper playback of the AVI format. DivX
player may be downloaded from:
http://www.divx.com/divx/download/
43
Page 44
EST9120/EST16120 User Guide
6. Network
The DVR provides a live remote monitoring feature. Remote monitoring requires installation of a
software client program on your PC. A LAN connection using the RJ45 connector on the rear
panel is mandatory for remote connection. For detailed features of the client program, please
refer to the client program user guide.
For local operation purposes, the frame rate is limited to 1 frame/sec when there is no recording
operation in the DVR. When recording is under progress, video frame rate for the live monitoring
will follow the recording frame rate.

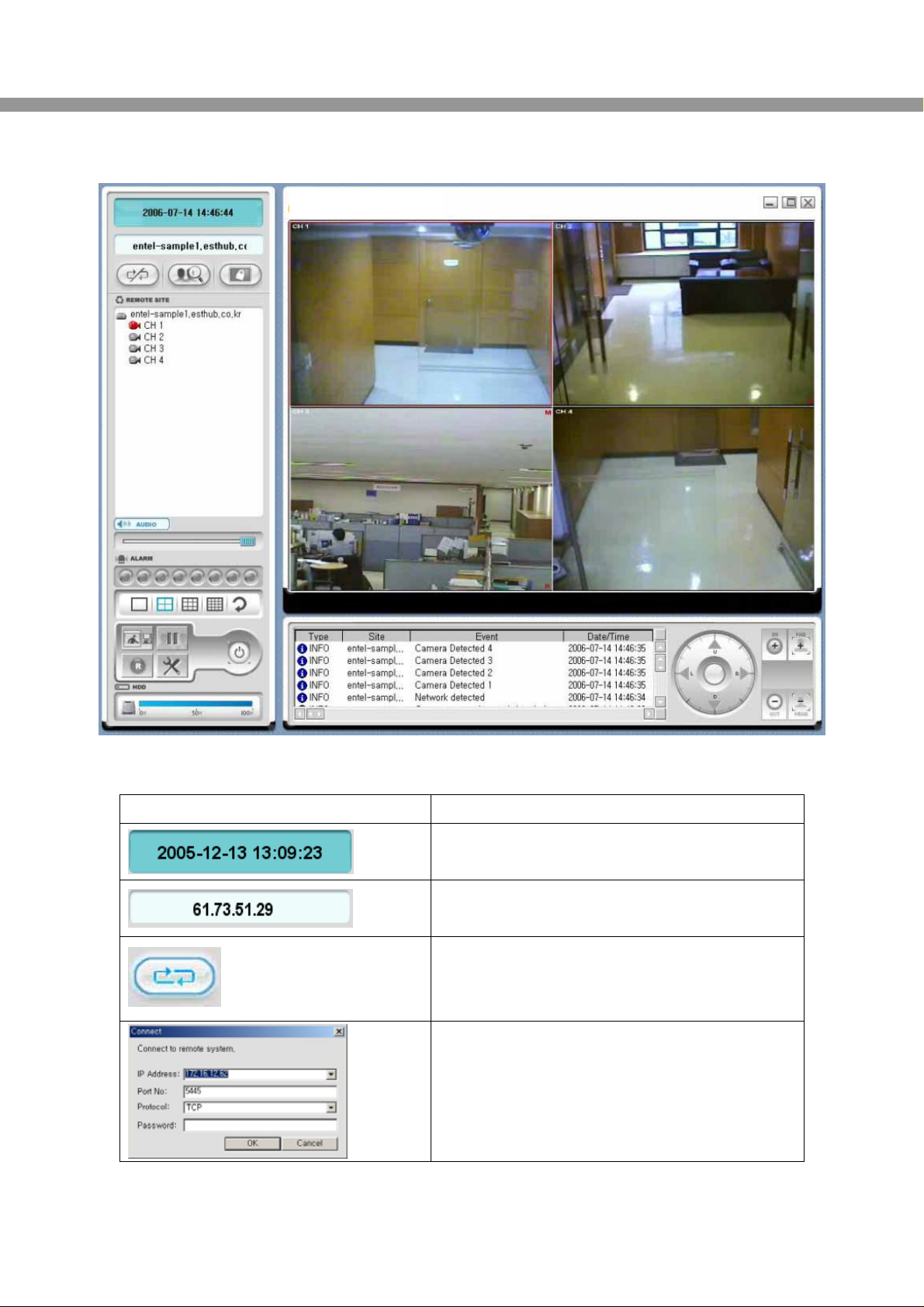

Figure 7.1. Main user interface
6-1. Overview
The remote software supports remote live viewing, search, playback and system configuration
By installing the Stand-Alone DVR remote software on a Window PC you can monitor real-time
and recorded images via optional Ethernet network. This includes the ability to monitor video,
playback recorded video and change operating parameters.
44
Page 45
User Guide
6-2. Minimum PC requirements
Minimum Recommended
Intel Pentium Ⅲ Intel Pentium Ⅳ CPU
500Mhz 2Ghz
Memory 128MB 256MB
VGA 16MB 64MB
Resolution 1024x768 1024x768
Disk space 10MB 10MB
Windows 2000 Windows 2000 OS
Professional, XP Professional, XP
Network 10/100Base T 10/100Base T
Others Direct X 8.1 or Higher Direct X 8.1 or Higher
Before installing the program, check the PC specifications. The STAND-ALONE DVR remote
software may not perform correctly if the PC does not meet the minimum requirements.
6-3. Installing the program

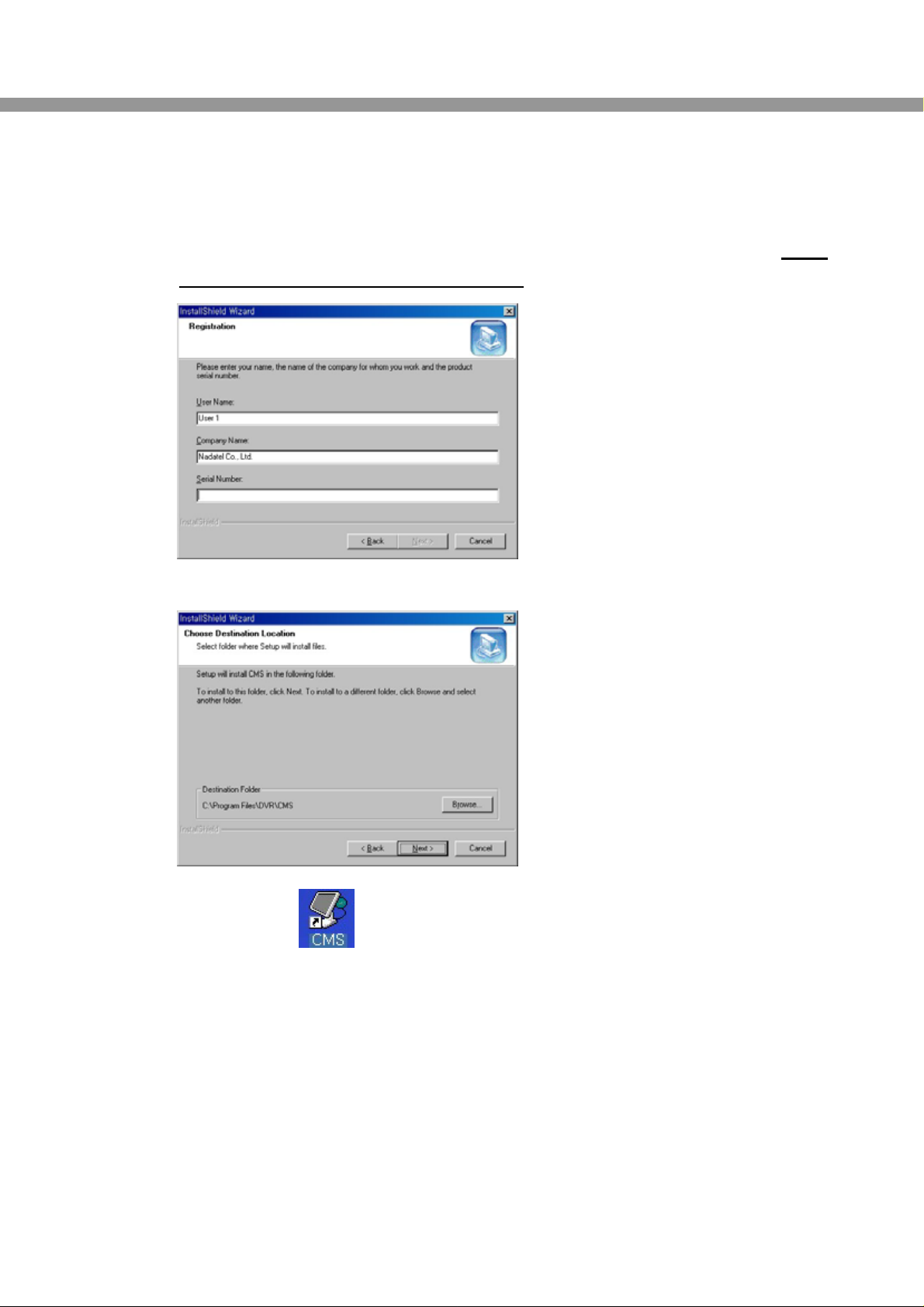

1. Insert the provided CD into the CD-ROM drive of your PC.
2. Run
3. Follow the onscreen directions.
4. Double click the
to start the installation process.
icon to start the program

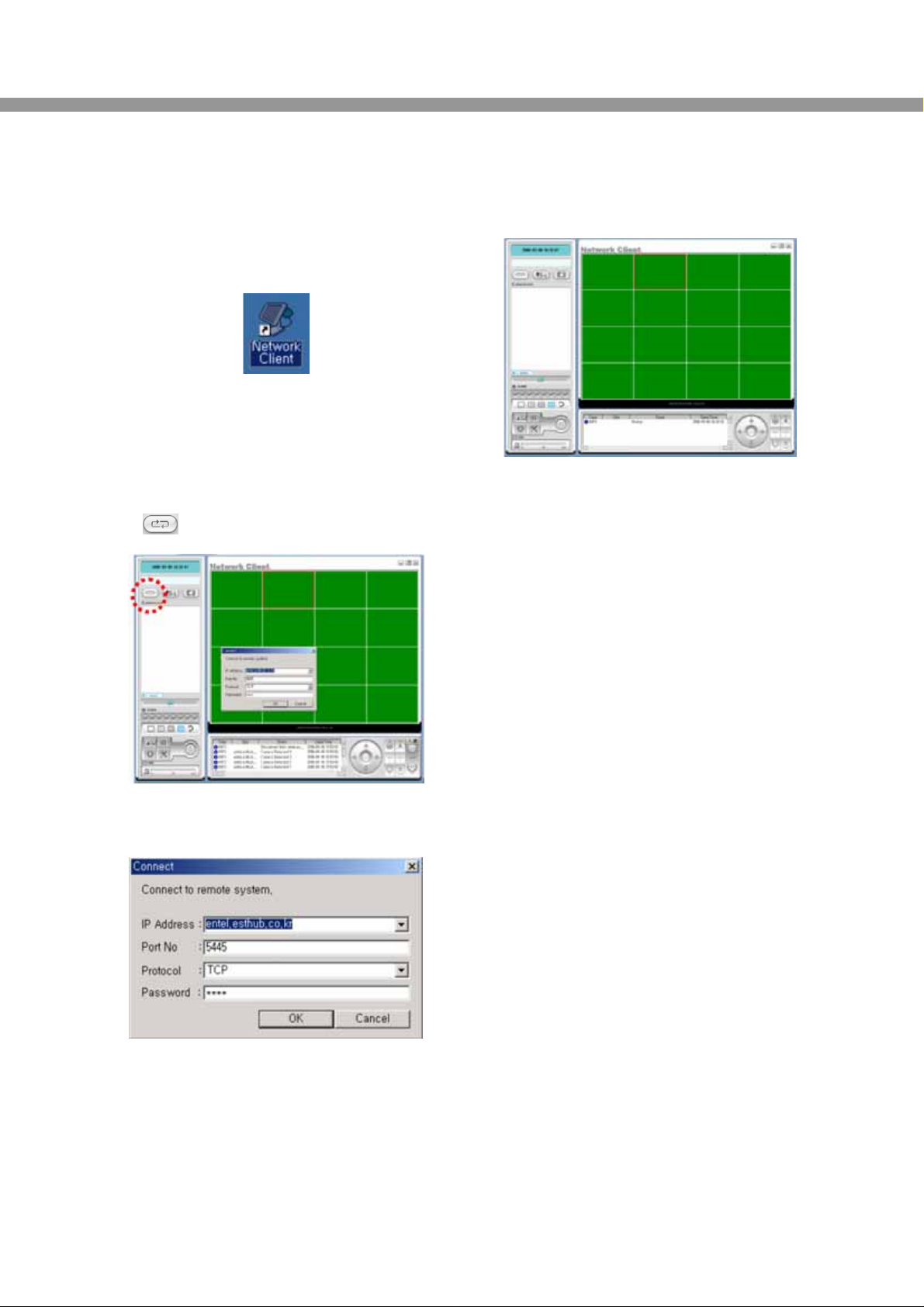

6-4. Live viewer
When installation is complete, double click the icon on your desktop to start the program.
45
Page 46

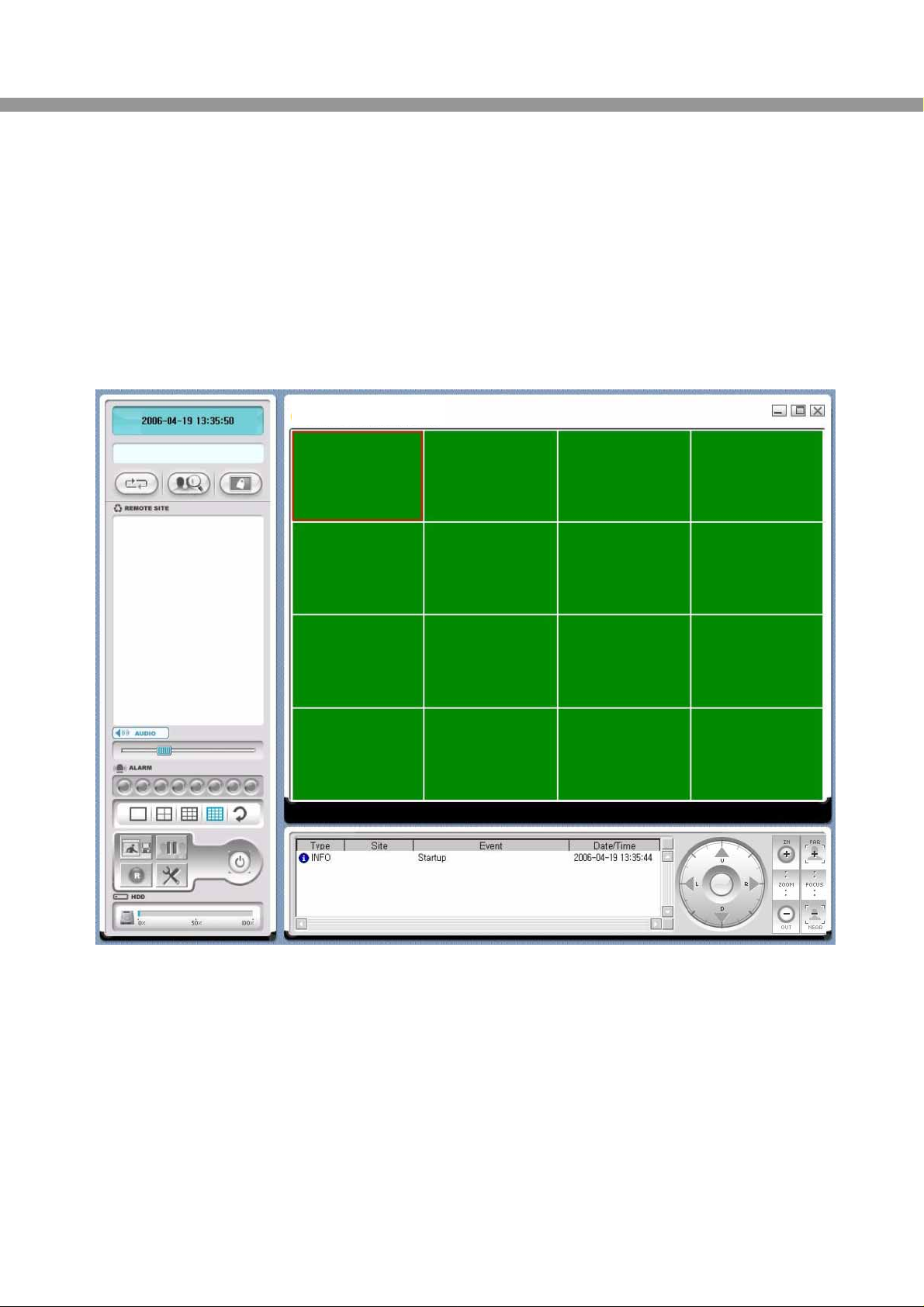

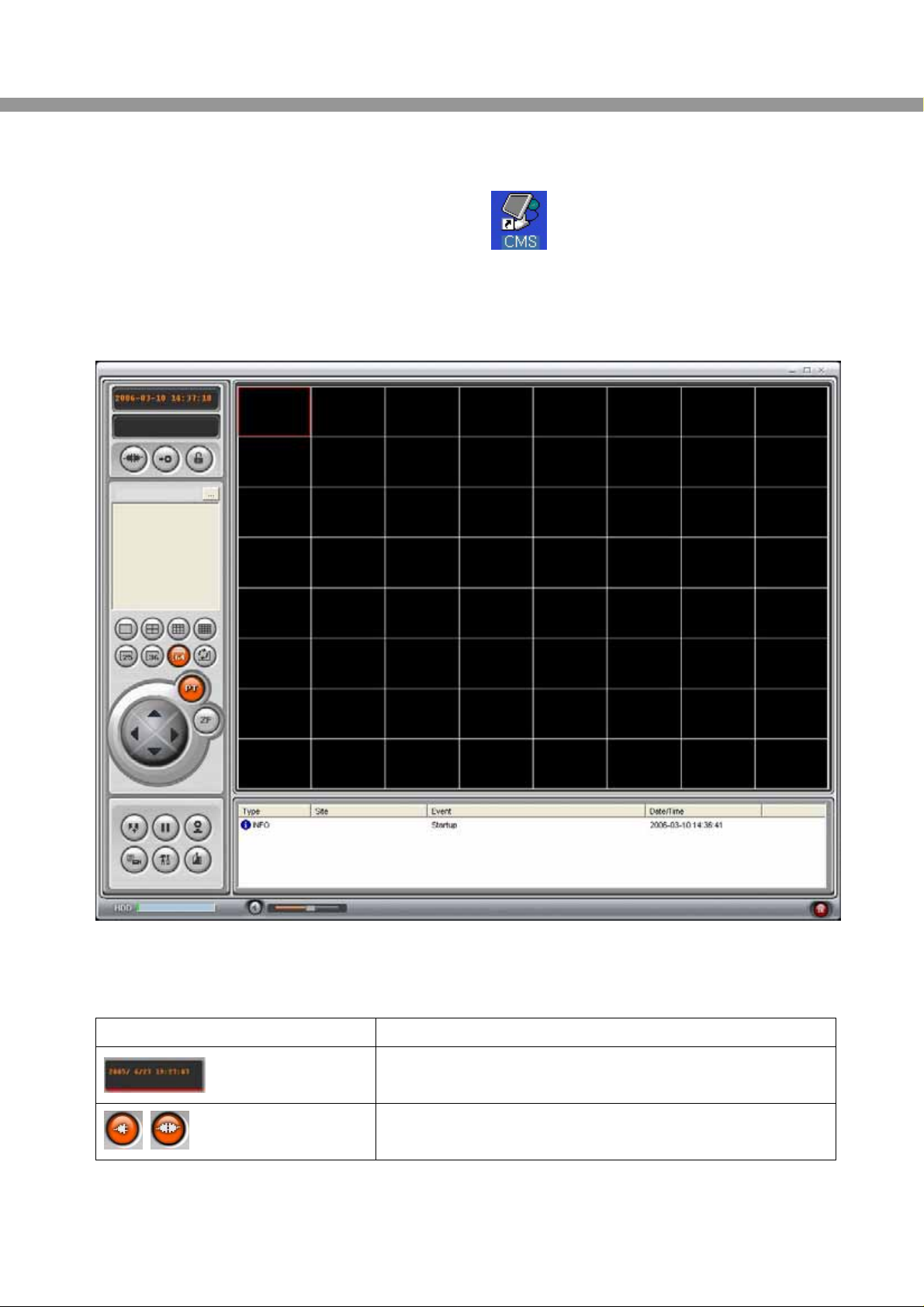

6-4-1. Main user interface
EST9120/EST16120 User Guide
6-4-2. Main control panel

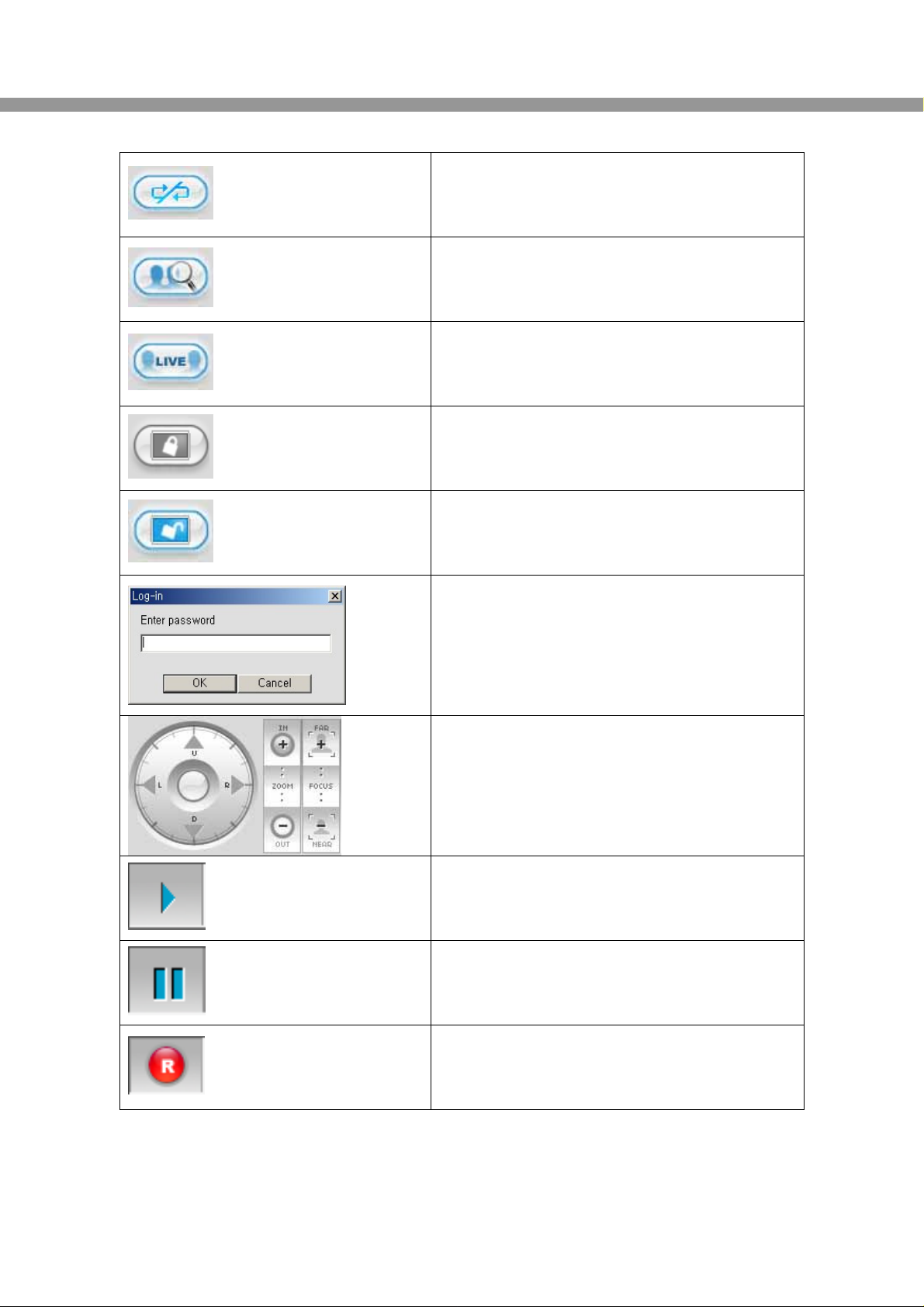

Button Description
Display of current time.
Display of current connected IP address
Click this icon to connect to the DVR
CONNECT
Once you click the connection icon, this pop up
window appears. Enter the IP address (or Subdomain name) and a port number. And select
the protocol type and enter password.
46
Page 47
User Guide
Click this icon to disconnect to the DVR
DISCONNECT
Click this icon to search for recorded videos.
SEARCH
Click this icon to see a live video.
LIVE
Click this icon to lock all operations of client
software
LOCK
Click this icon to unlock all operations of client
UNLOCK
PLAY
software.
Once you click the lock or unlock icon, this pop
up window appears. You need to remember
the pass word and enter the pass word when
you try to operate the client software.

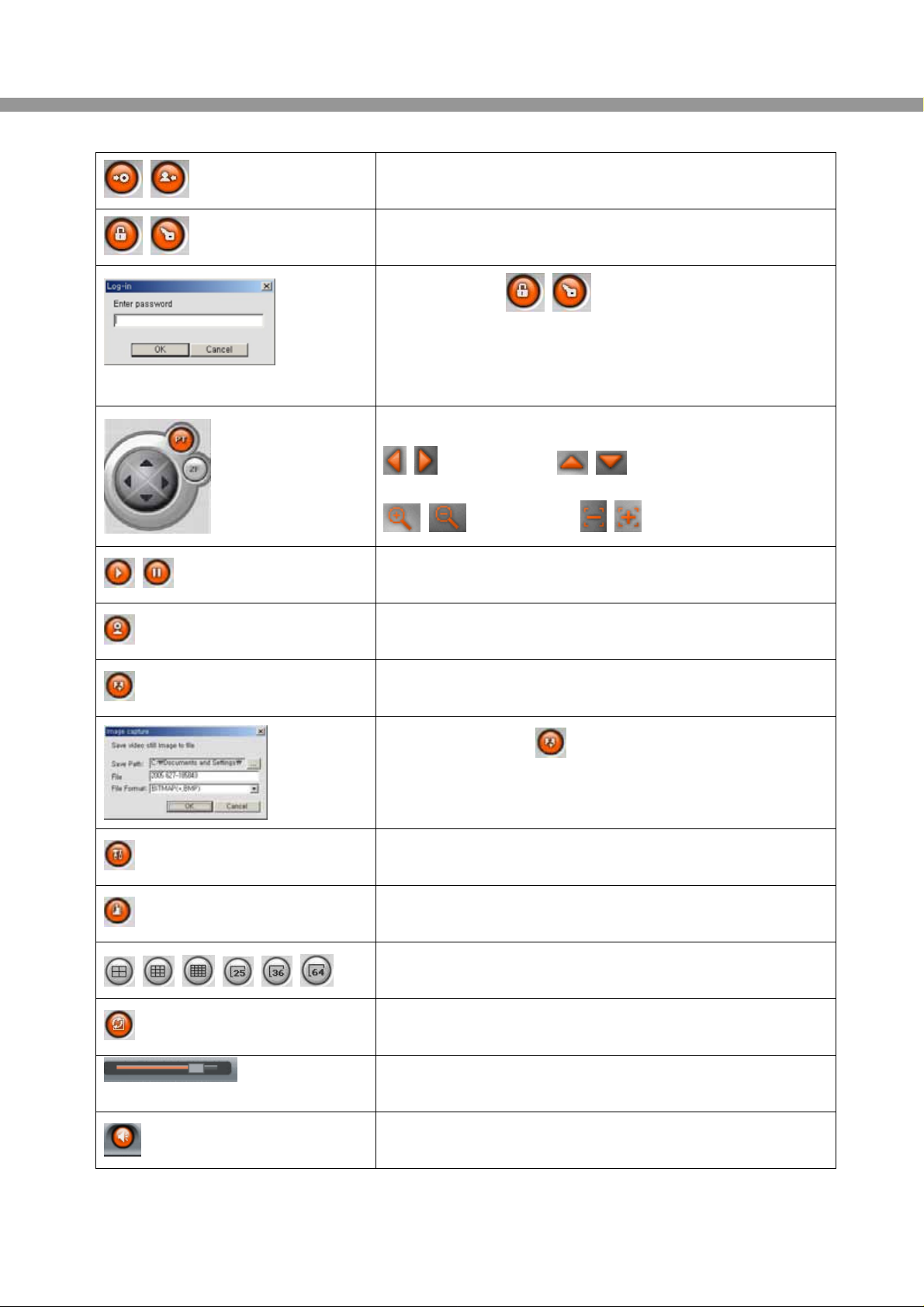

User can control PAN/TILT & ZOON FOCUS of
remote camera.
Click this icon to play live video.
Click this icon to pause live video.
PAUSE
Enable or disable recording of live video to
local disk which has set in setup menu
RECORD
47

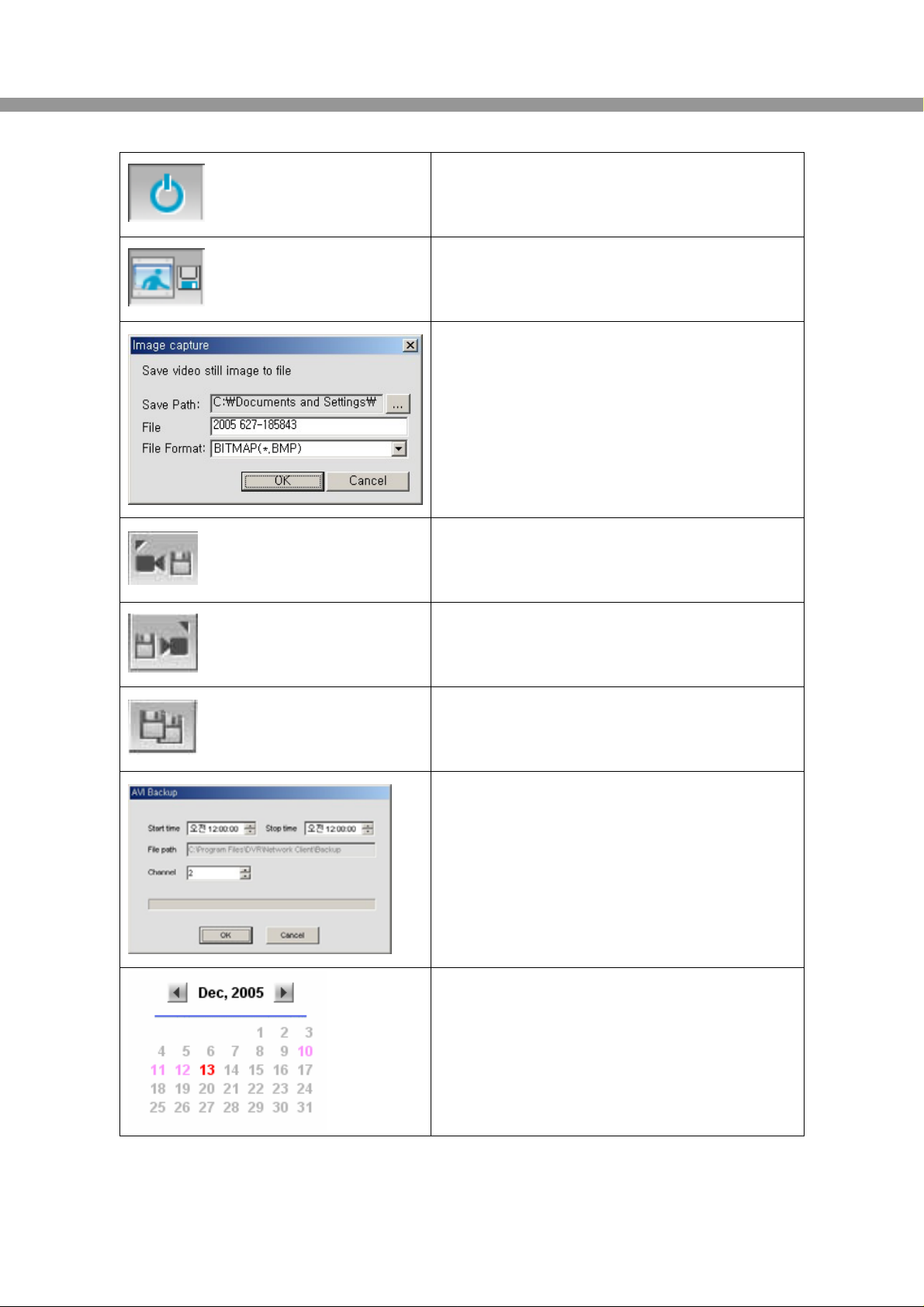

Page 48

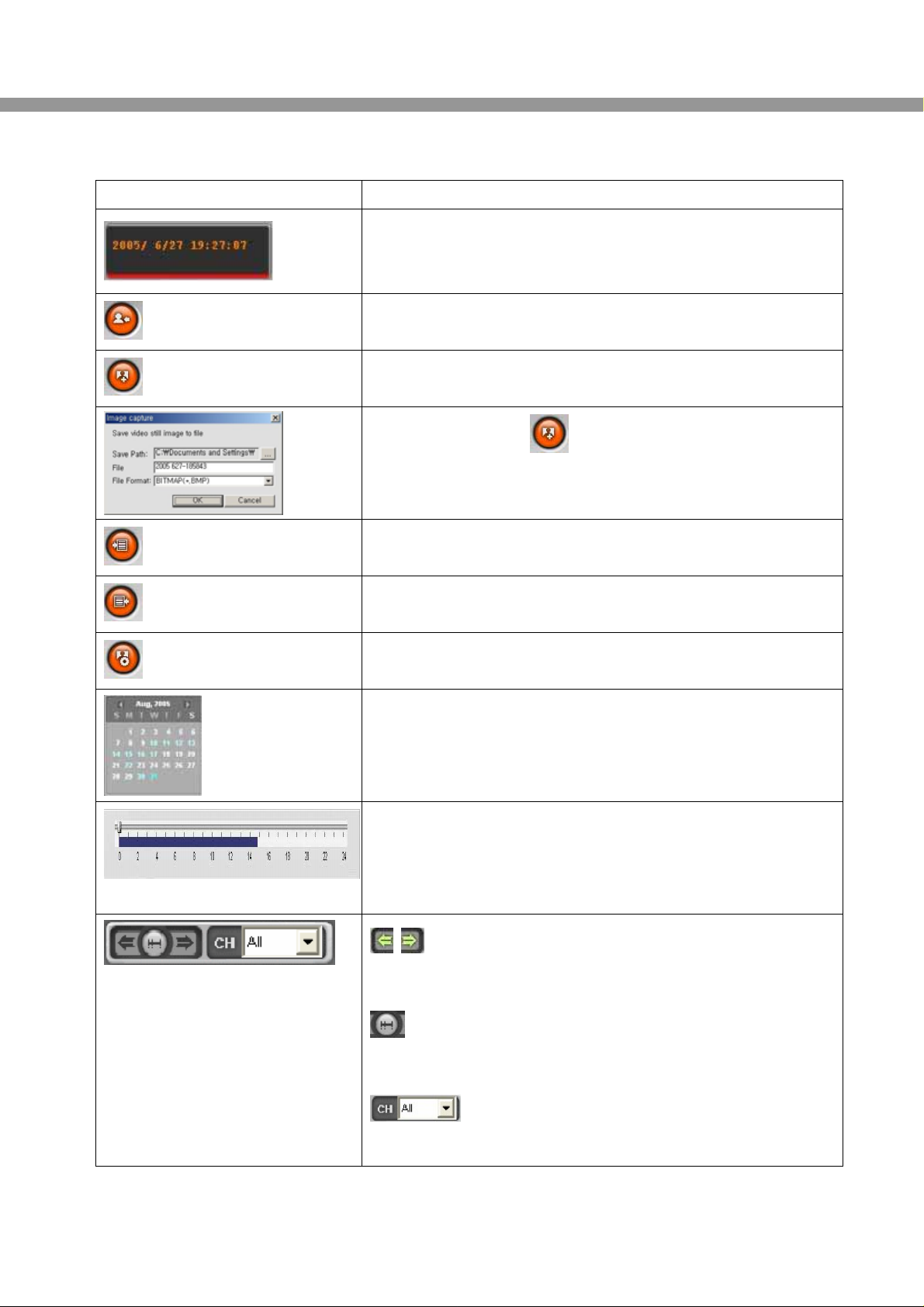

CAPTURE
SETUP
EST9120/EST16120 User Guide

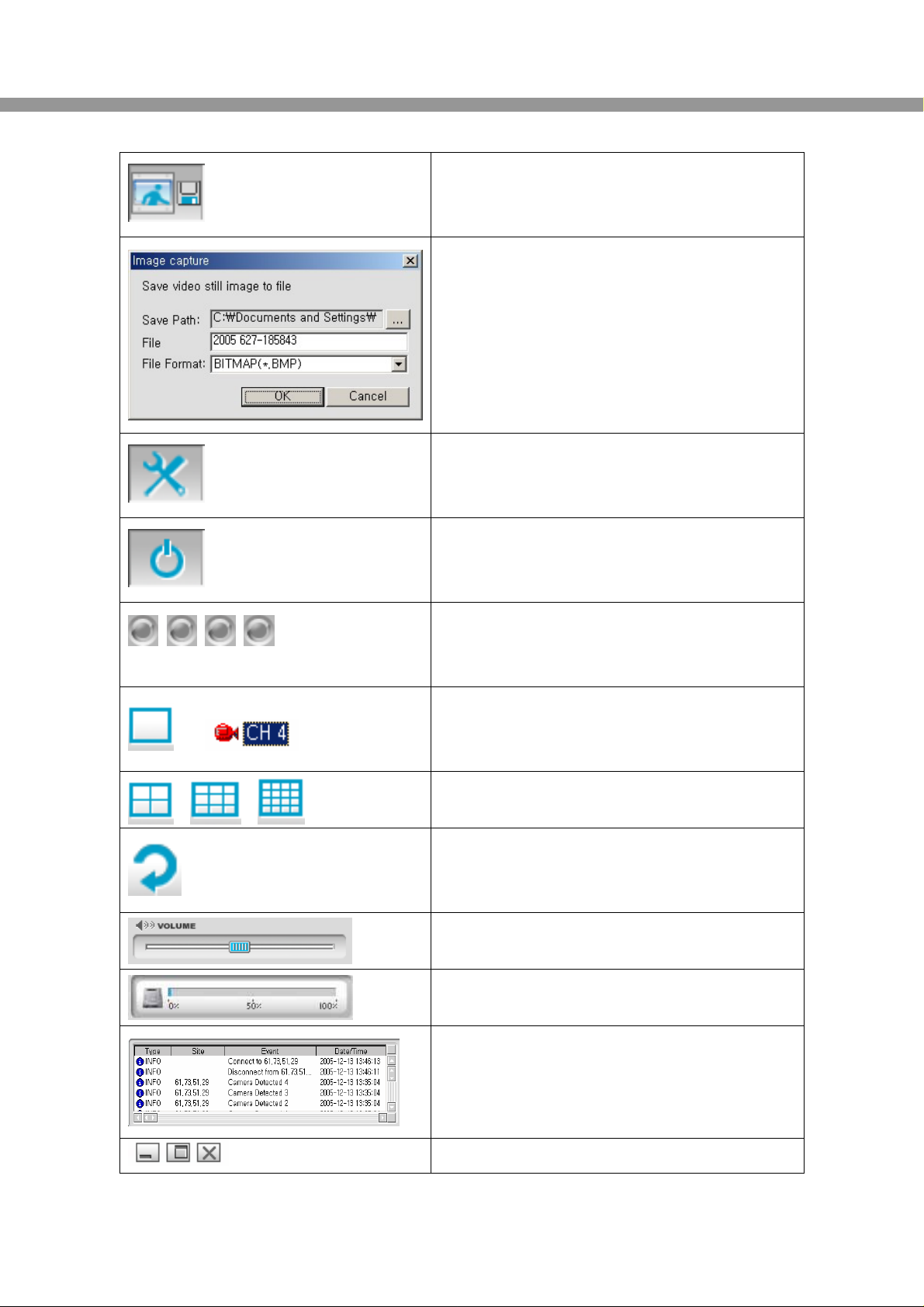

Click this icon to capture a still image
Once you click the capture icon, this pop up
window appears. A still image is captured in
bmp file format.
Click this icon to setup configuration of client
software.
TERMINATE S/W
+
ROTATE CH
Click this icon to terminate client software.
Alarm indicators for each channels.
Alarm relay can be controlled with this button
(1 time)
Full screen
Click 1ch division mode and camera channel in
a row
Division screen
4 Division/ 9 Division/ 16 Division
Click this icon for Sequential display of each
channel in full screen mode.
Use the volume control bar to set the audio
level.
HDD storage Indicator of DVR
It shows information of client connection.
Maximize /Minimize /Exit of the client viewer
48
Page 49
User Guide

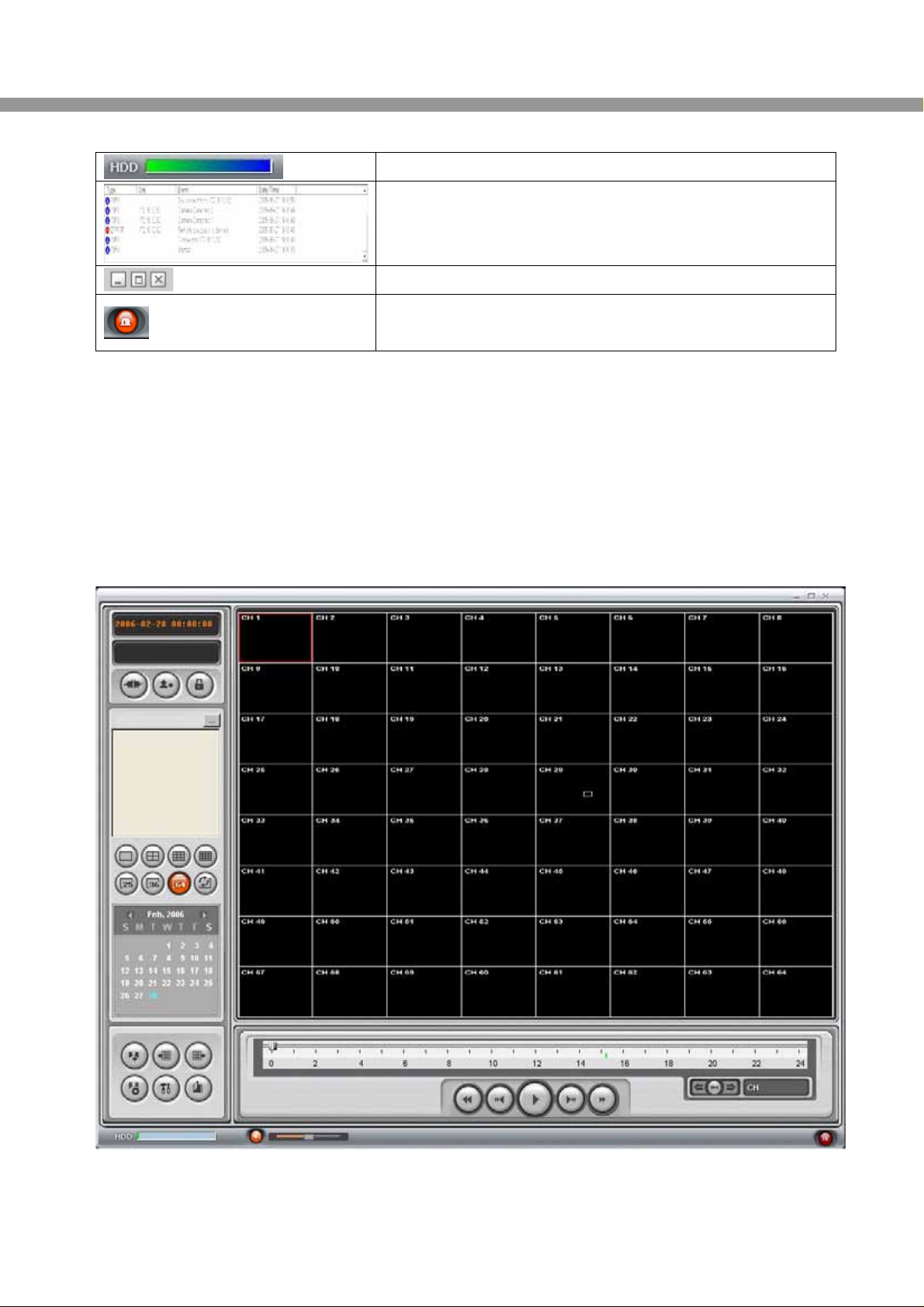

6-5. Search and Playback Viewer

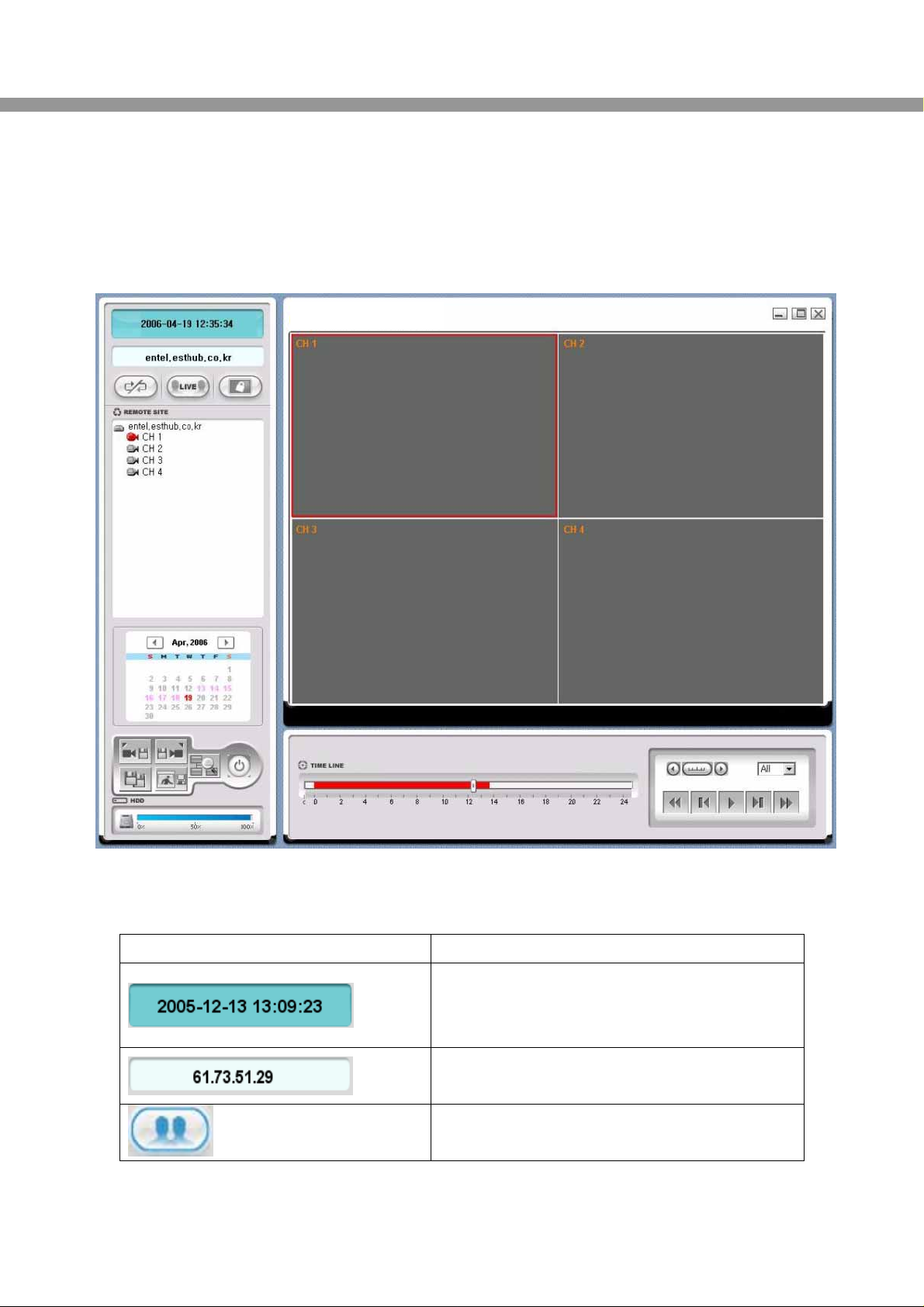

6-5-1. Main user interface
You can access to search window by clicking the search icon on the upper left of main user
interface.
6-5-2. Main control panel
Button Description
It shows the recording time of the selected
data by adjusting of scale in the middle of the
LIVE
49
bottom of the main user interface.
Display of current connected IP address
Click this icon to see live videos.
Page 50
EXIT
CAPTURE
EST9120/EST16120 User Guide
Click this icon to exit from the operations of
client software
Click this icon to capture a still image of
recorded video.
Once you click the capture icon, this pop up
window appears. A still image is captured in
bmp file format.
MARK IN
MARK OUT
BACKUP
Click this icon to set the beginning time for
backup of the recorded video in AVI format
Click this icon to set the ending time for
backup of the recorded video in AVI format
Click this icon to backup the recorded video in
AVI format.
Once you click the backup icon, this pop up
window appears.
It shows the recorded date in blue bold and
selected date in black.
50
Page 51
User Guide

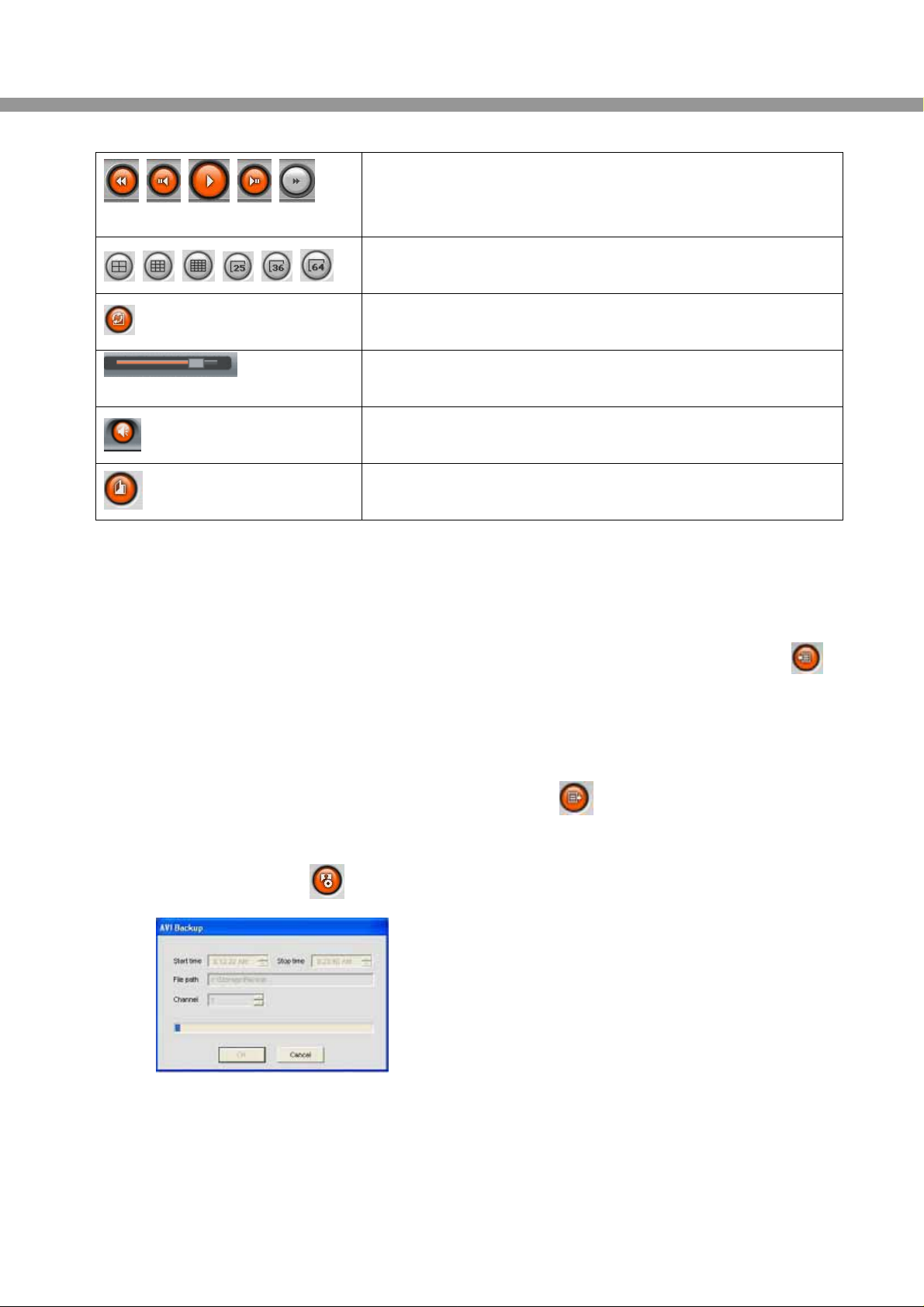

It shows the recorded data in green bar. You
can adjust the time line scale and click the play
icon to display the recorded video

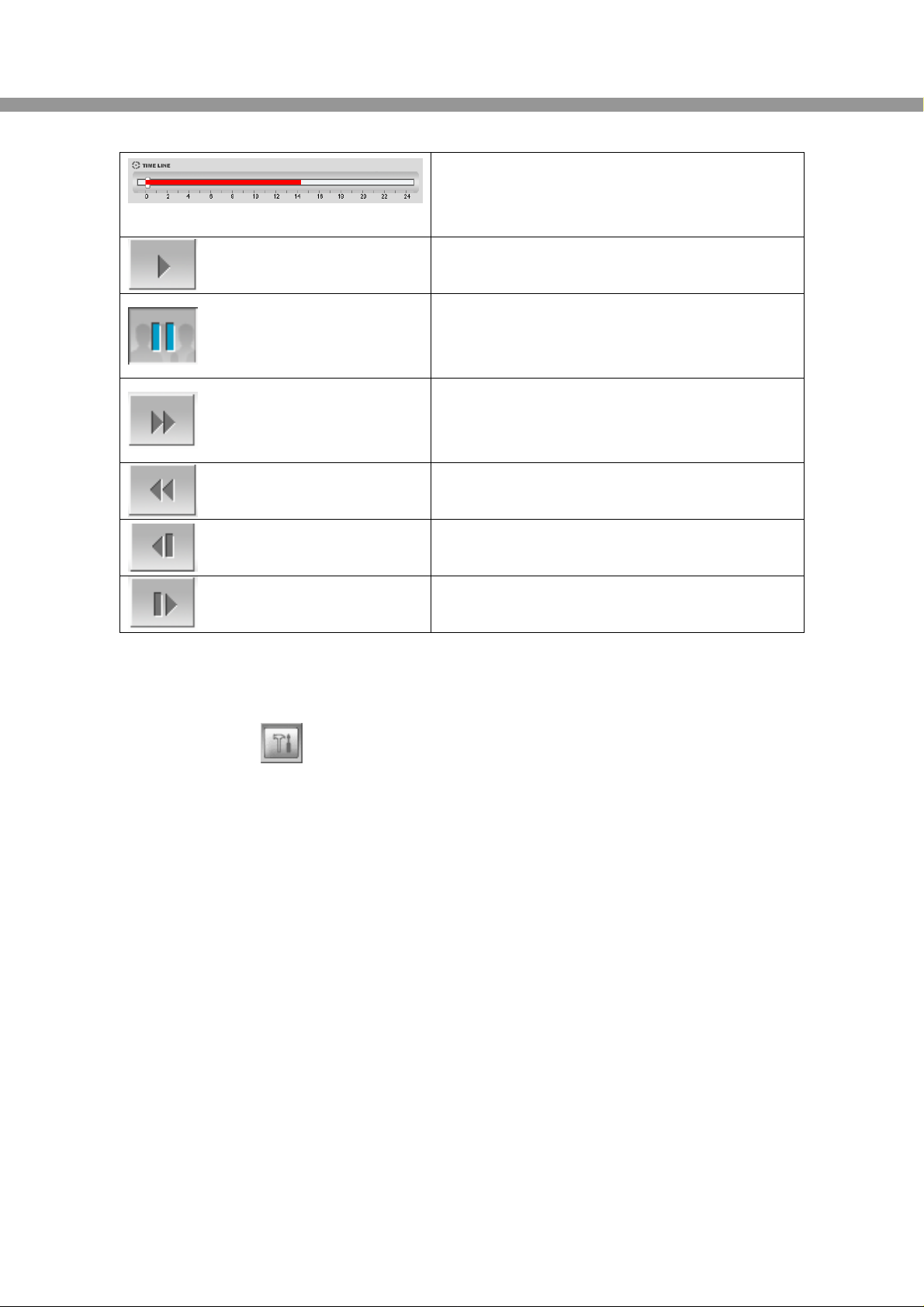

Click this icon to play the recorded video
Click to pause/stop the displaying video
Click to fast forward the displaying
Click to rewind the displaying
Click to backward by 1frame
Click to forward by 1frame
6-6. System configuration
Click the setup icon to setup the configuration of DVR.

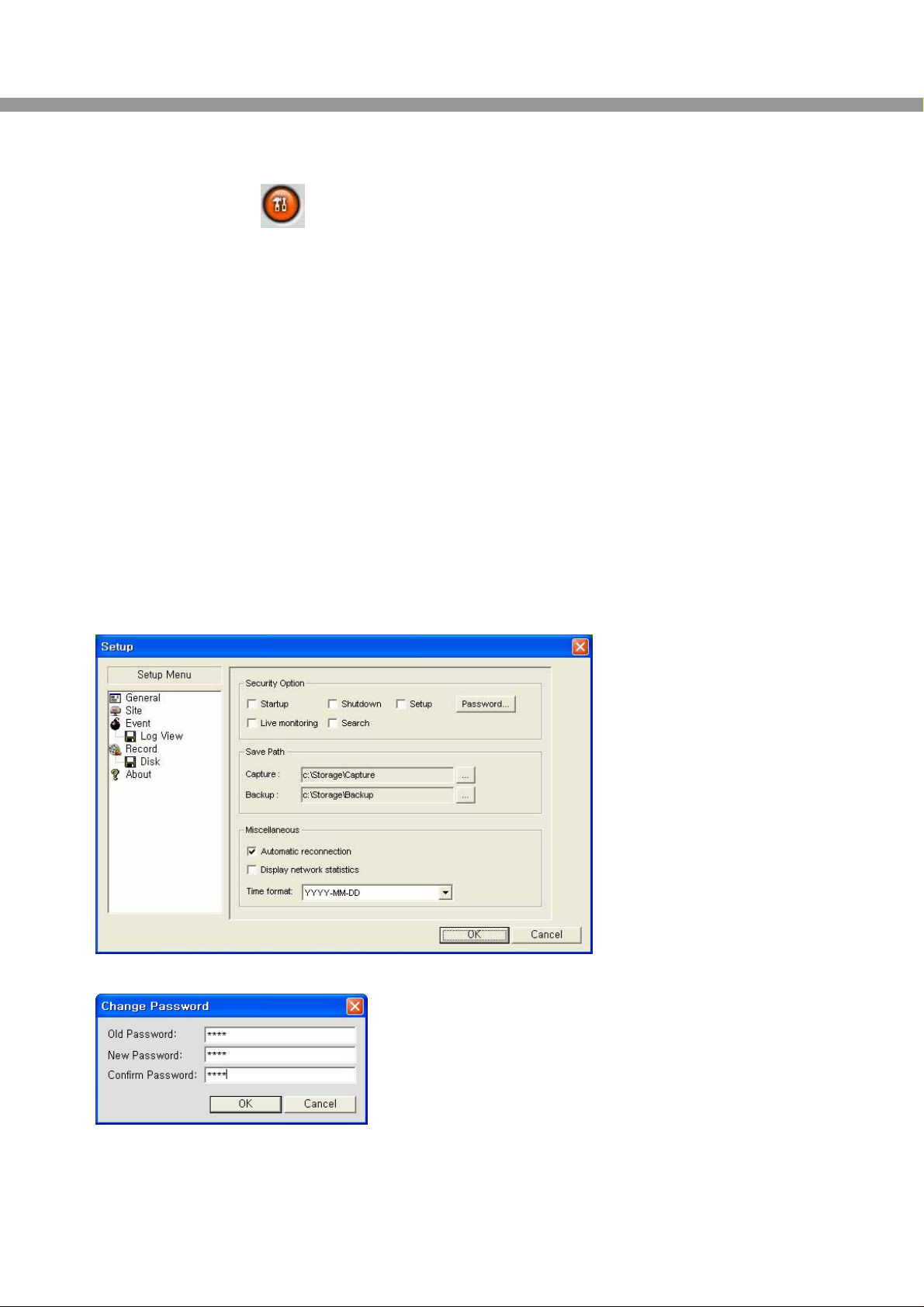

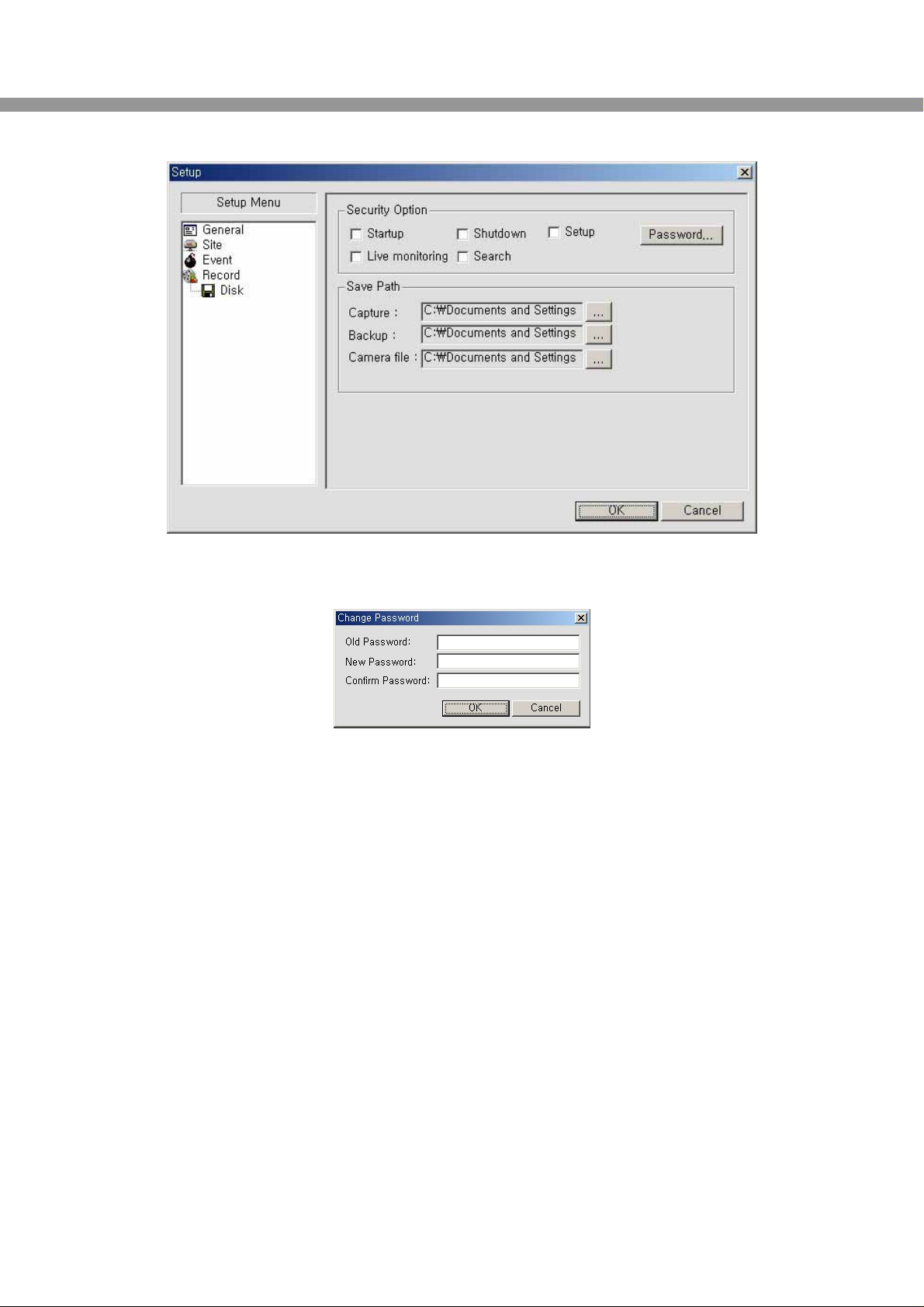

6-6-1. General
Once you click the setup icon, this pop up window appears. Select security options and set a
password. Then when you access to the functions you have set, you need to enter the password
which has set in setup menu.
You can set the save path for capturing, backup and camera files.
51
Page 52
EST9120/EST16120 User Guide
Set a password for security options.
52
Page 53
User Guide

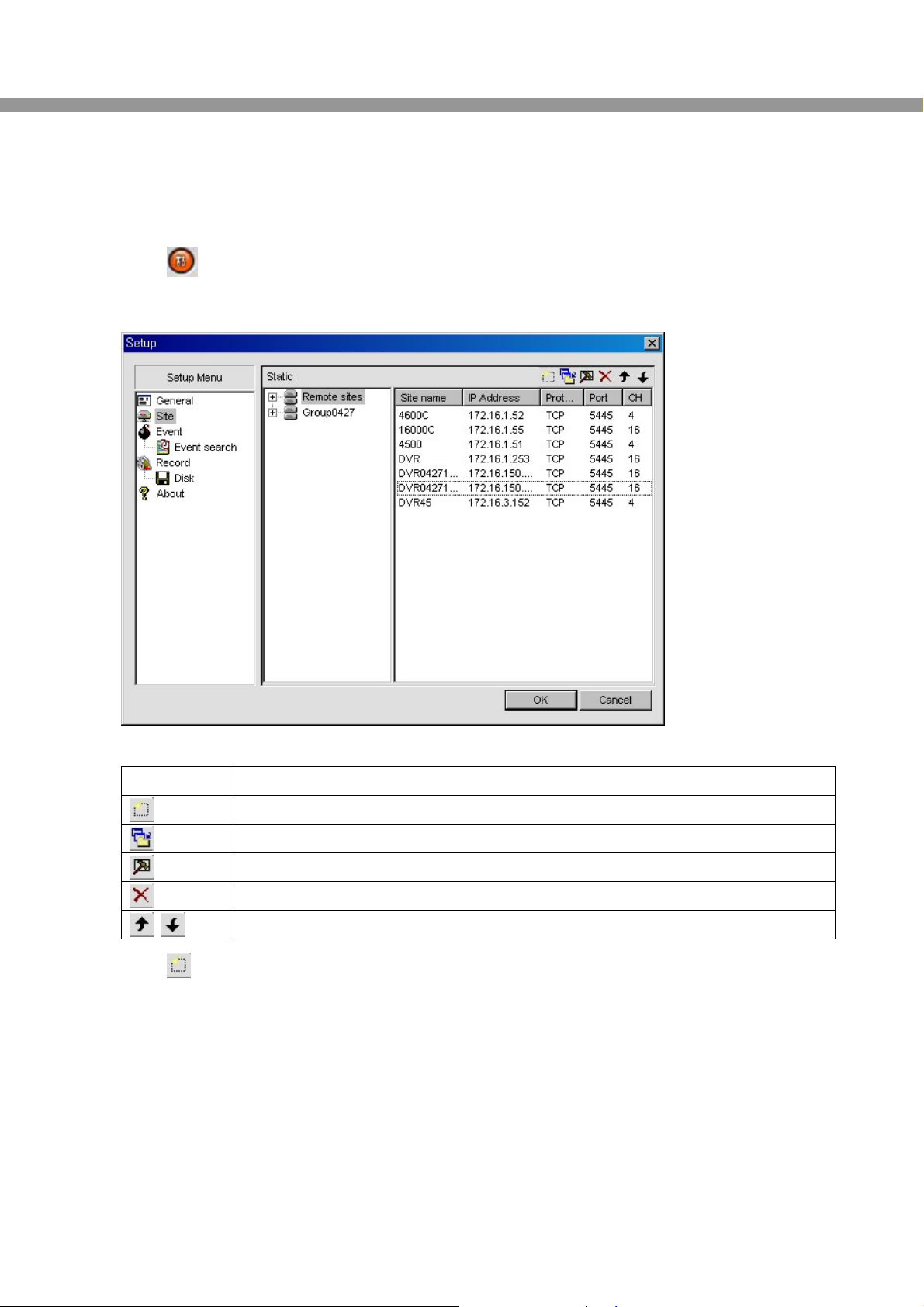

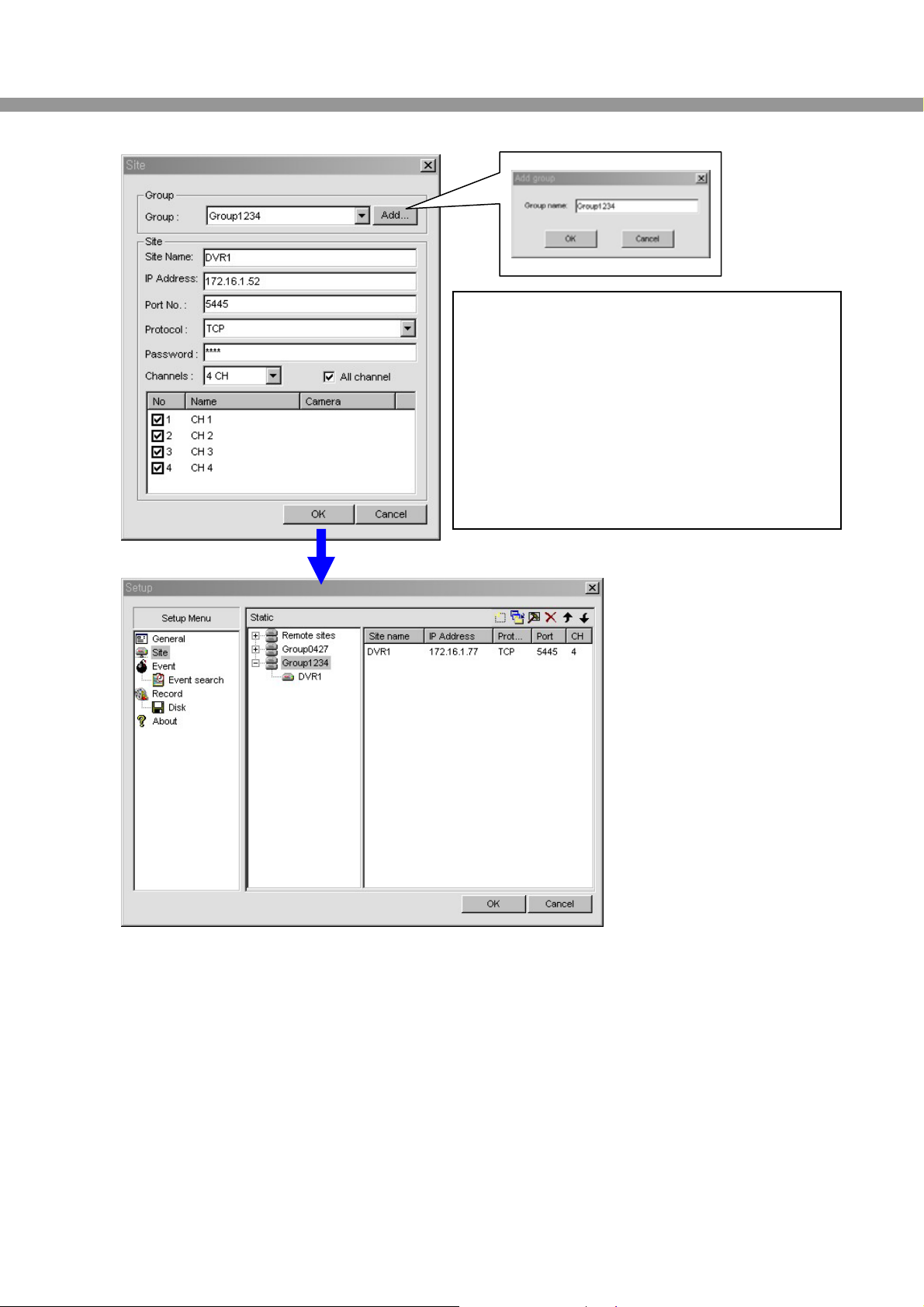

6-6-2. Site

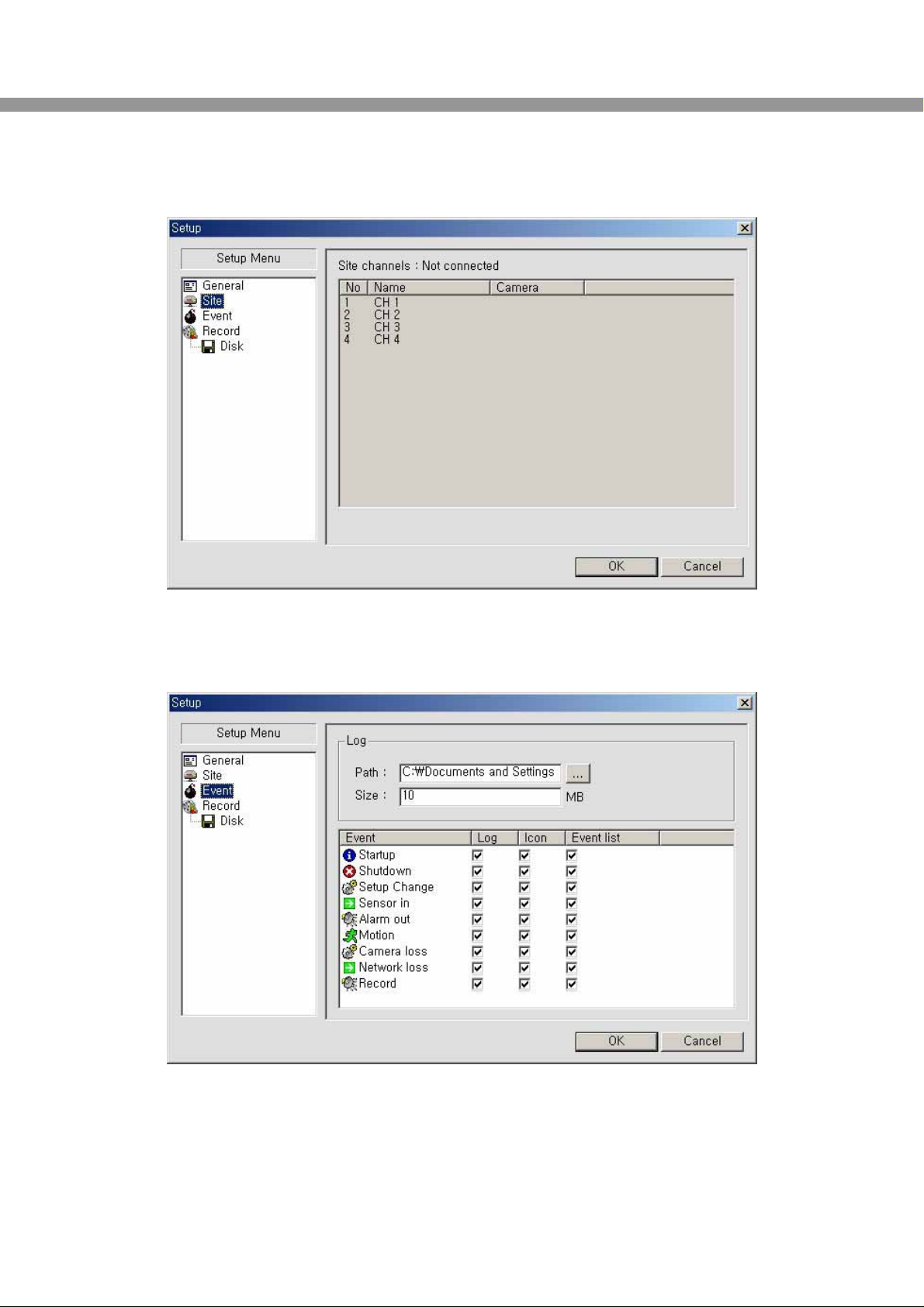

It shows the channel information connected to DVR and you can change the channel title

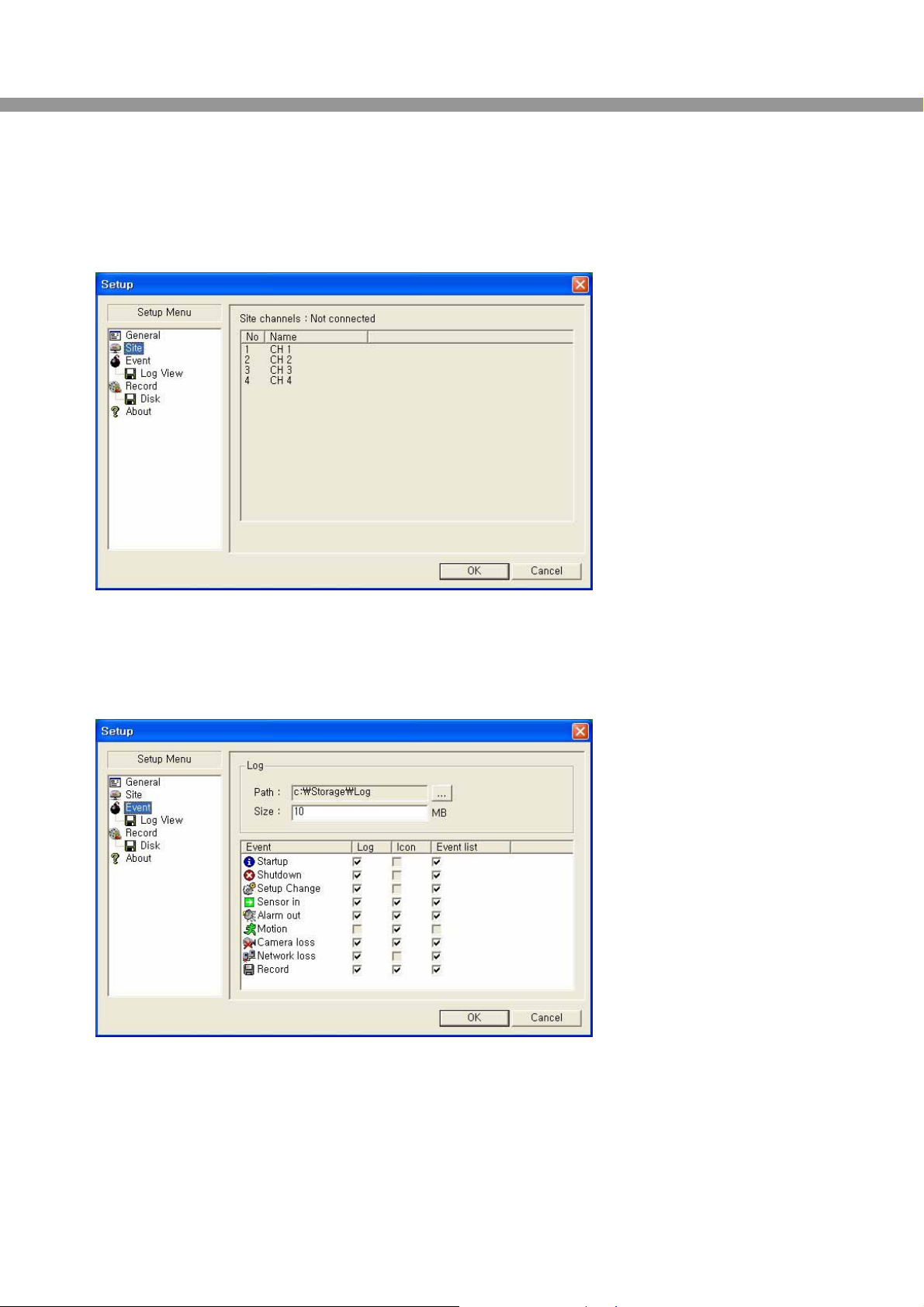

6-6-3. Event
You can set event items, the capacity of local disk and save path for log.
53
Page 54
EST9120/EST16120 User Guide

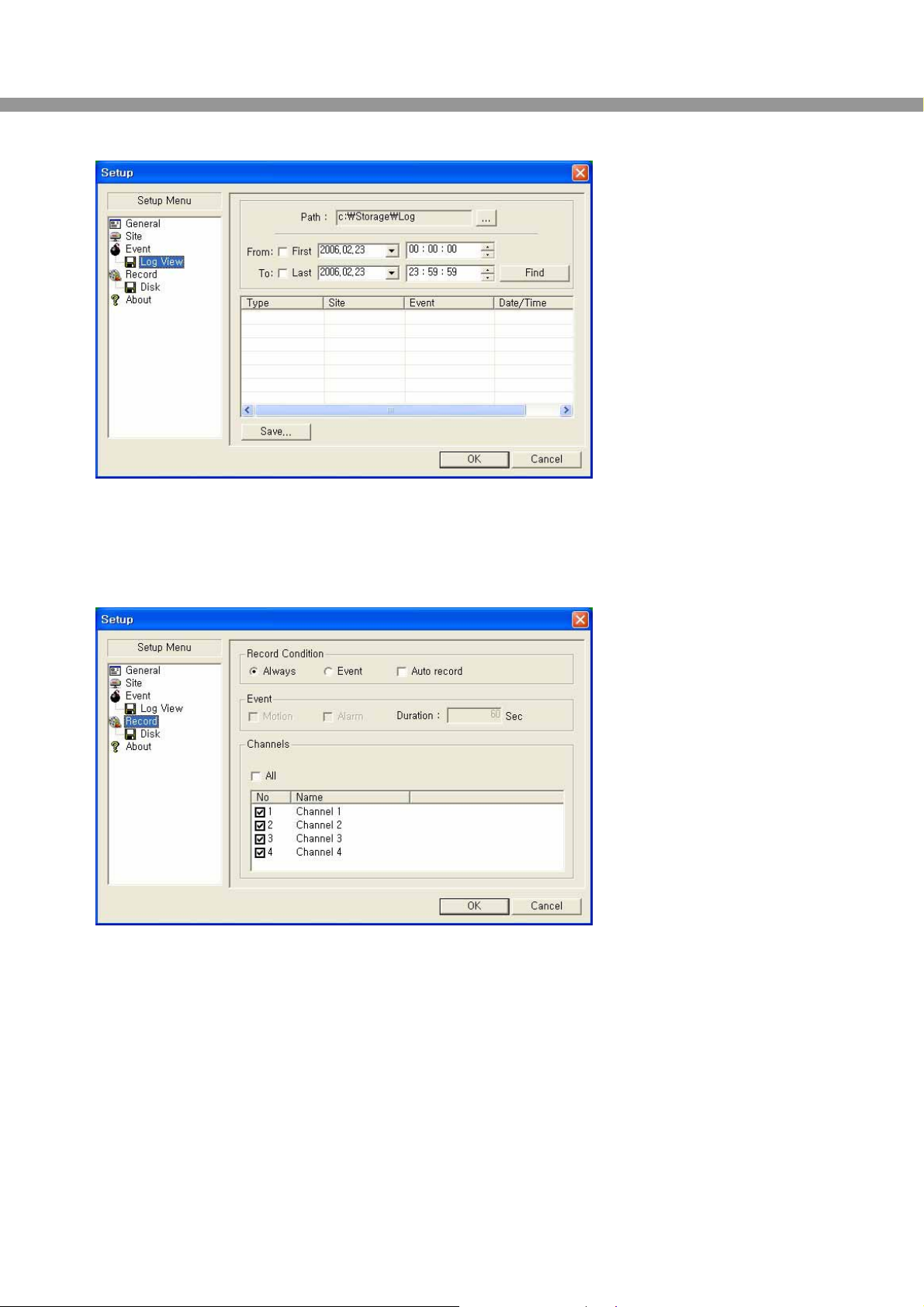

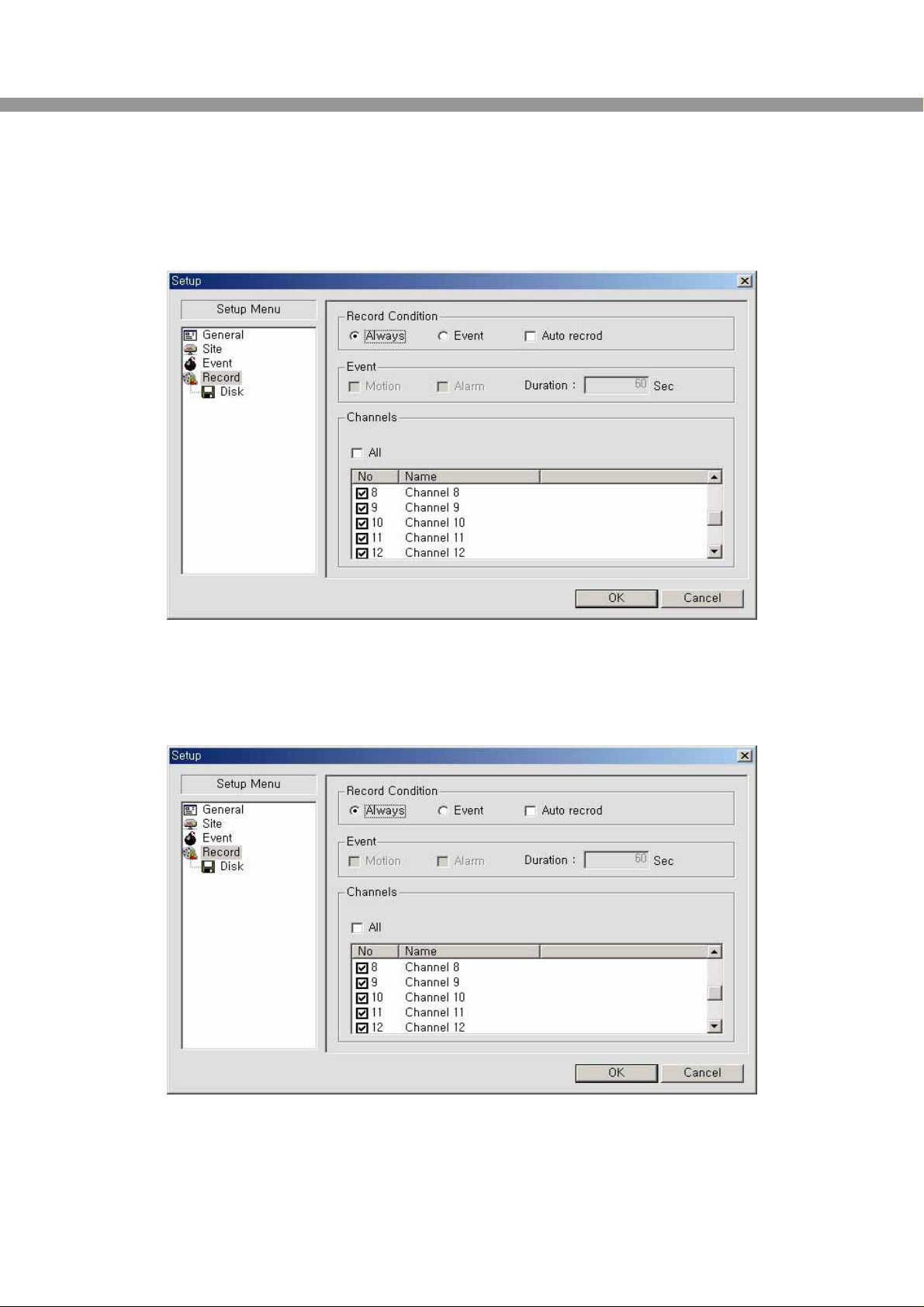

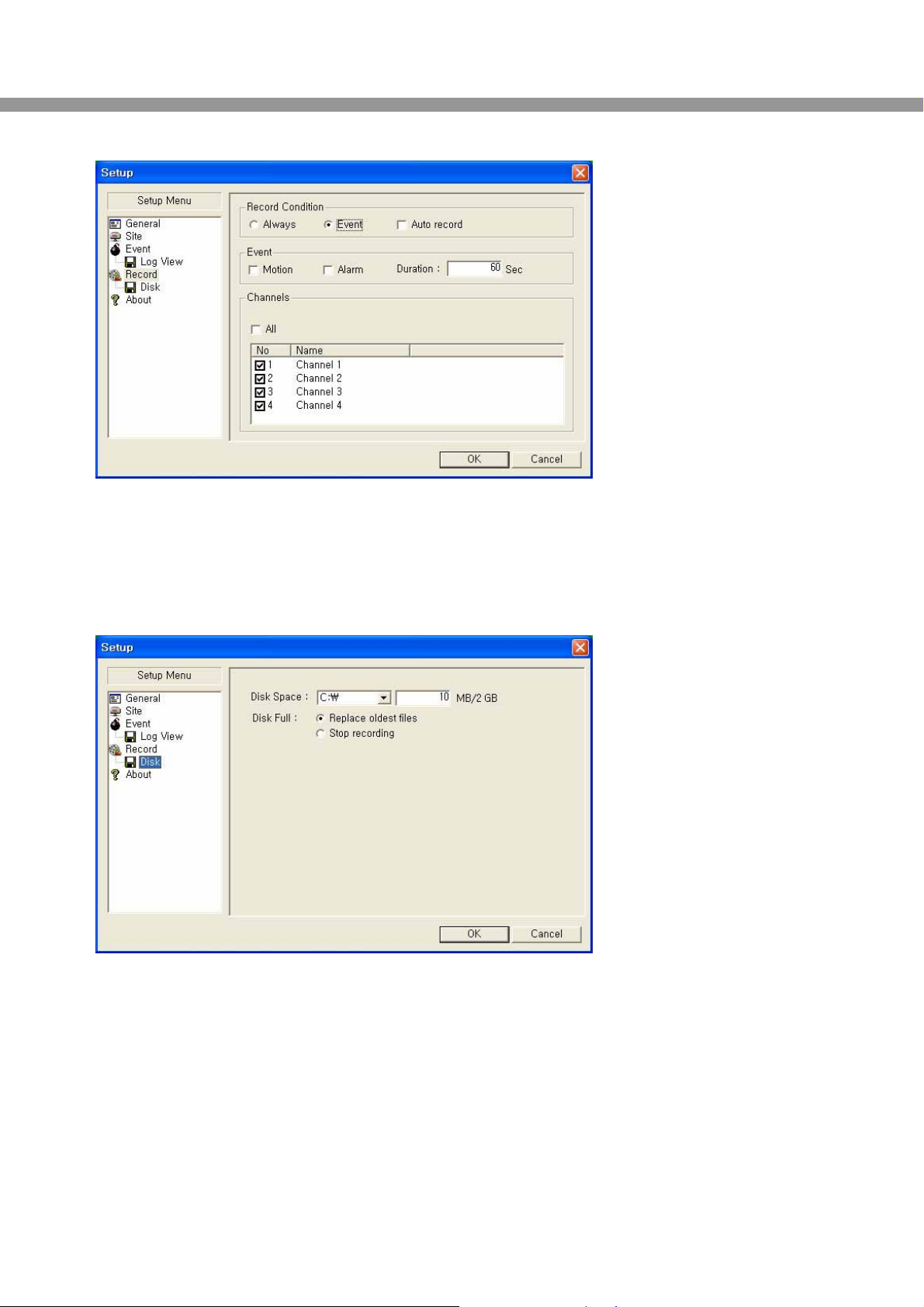

6-6-4. Record
You can set the recording conditions for always, event and auto recording. And you also can set
each or all channels for recording.
When you set the recording condition to event, you can set event for motion or alarm with
duration. And you also can set each or all channels for event recording.
7-6-5. Disk
You can set the local disk and the capacity of it for recording. You can select the recording way
to overwrite or stop recording when the local disk is full.
54
Page 55
7 Using DDNS
7-1. DDNS Registration Procedure
User Guide

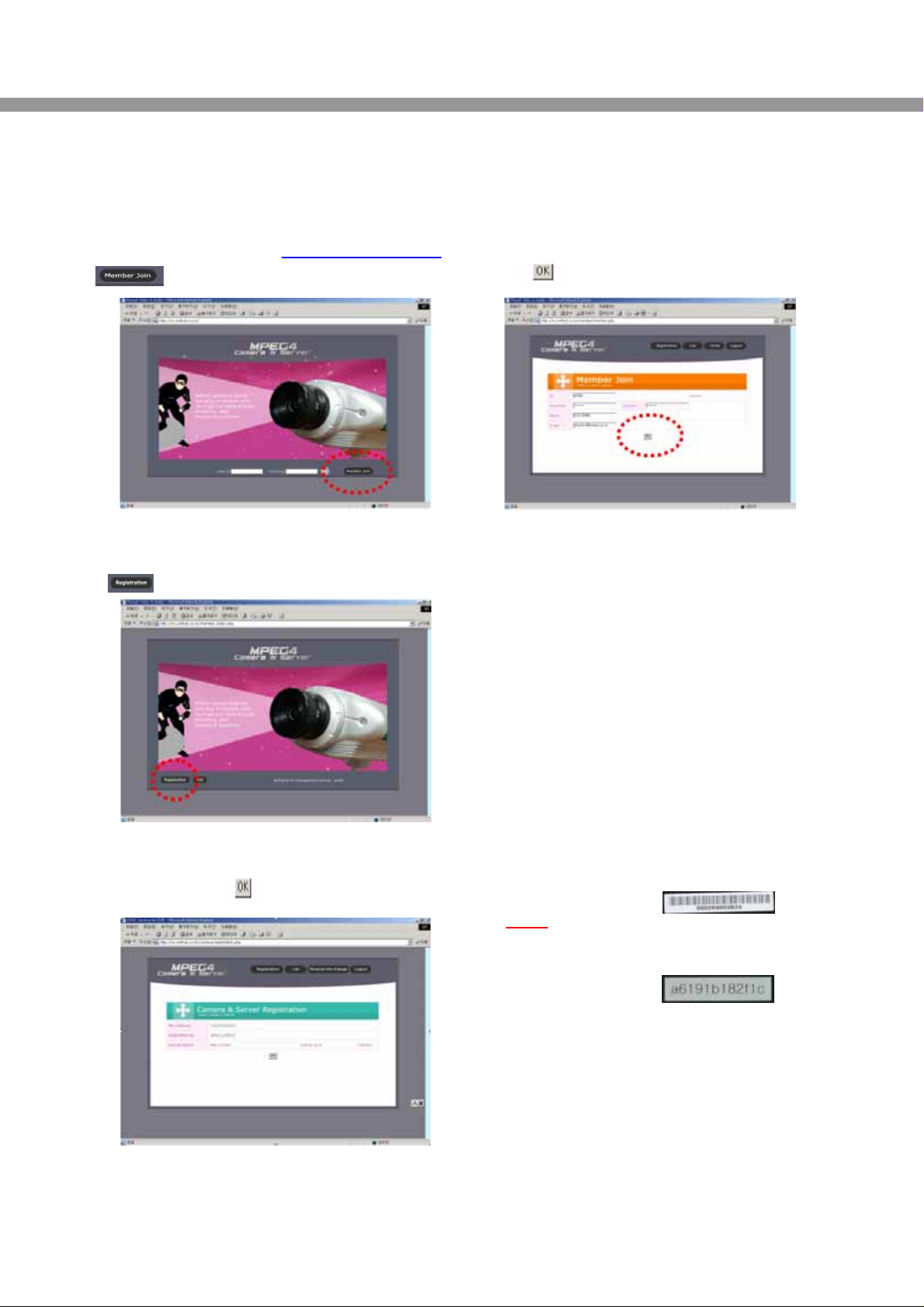

[Step 1]
Enter the DDNS Web site (http://www.esthub.co.kr
[Click]
[Step 3]
. Start registration Procedure.
. [Click]
[Step 2]
. Input ID, Password, Name, E-Mail
)
. [Click]
[Step 4]
. Input MAC Address, Reg istration No. ,
Domain Name. [click]
55
.MAC Address : Label means the Mac Address of
DVR
e.g) 000269003B24
.Registration No. : Each MAC Address has its
ownRegistration number.
.Domain Name : Input same user ID THEN User
Domain name is composed like ID.esthub.co.kr
e.g) In case, User ID is entel, then Domain name
would be entel.esthub.co.kr
Page 56
EST9120/EST16120 User Guide

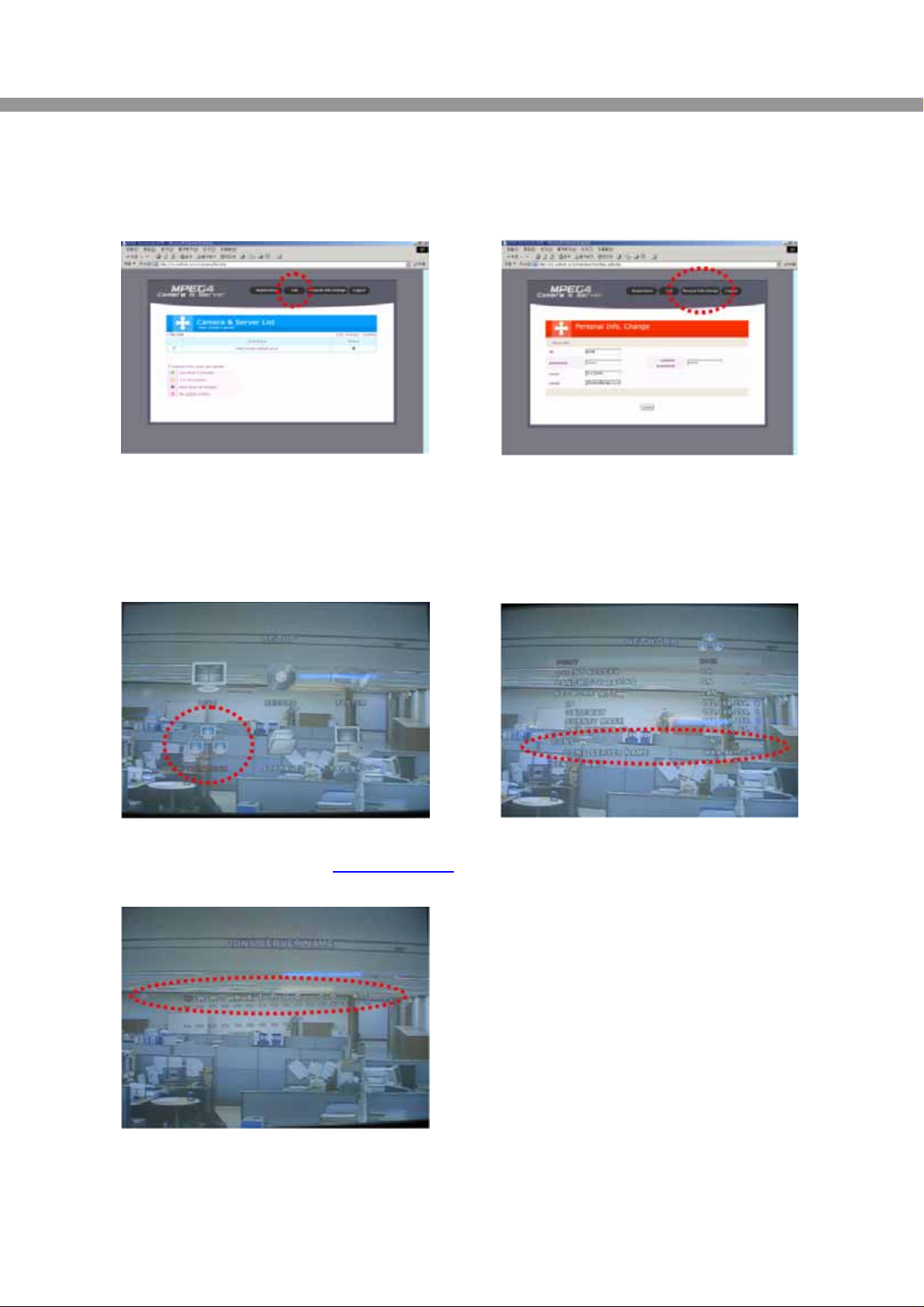

[Step 5]
. Able to confirm the present status of domain
name(entel.esthub.co.kr) in Server List.
7-2. DVR SETUP
[Step 1]
. Go to SETUP, and Select Network to choose
DDNS enable.
[Step 6]
. When need to change the information of User,
Select Personal Info. Change button.
[Step 2]
. Change the value on DDNS to ON.
[Step 3]
. Configure the DDNS address to www.esthub.co.kr
and save DVR then it will be reboot automatically.
56
Page 57
7-3. Using Client Program
User Guide
[Step 1]
. Execute the Program.
. xxxxx.exe in desktop [Click]
[Step 3]
. Program will be executed.
. [Click]
[Step 2]
. Program will be executed.
[Step 4]
. Insert registered values like below.
57
. IP Address : Domain Name(entel.esthub.co.kr) or
Static IP.
. Port No : 5445(Default Value)
. Protocol : TCP(Default Value)
. Password : xxxx(Network Password)
Page 58
EST9120/EST16120 User Guide

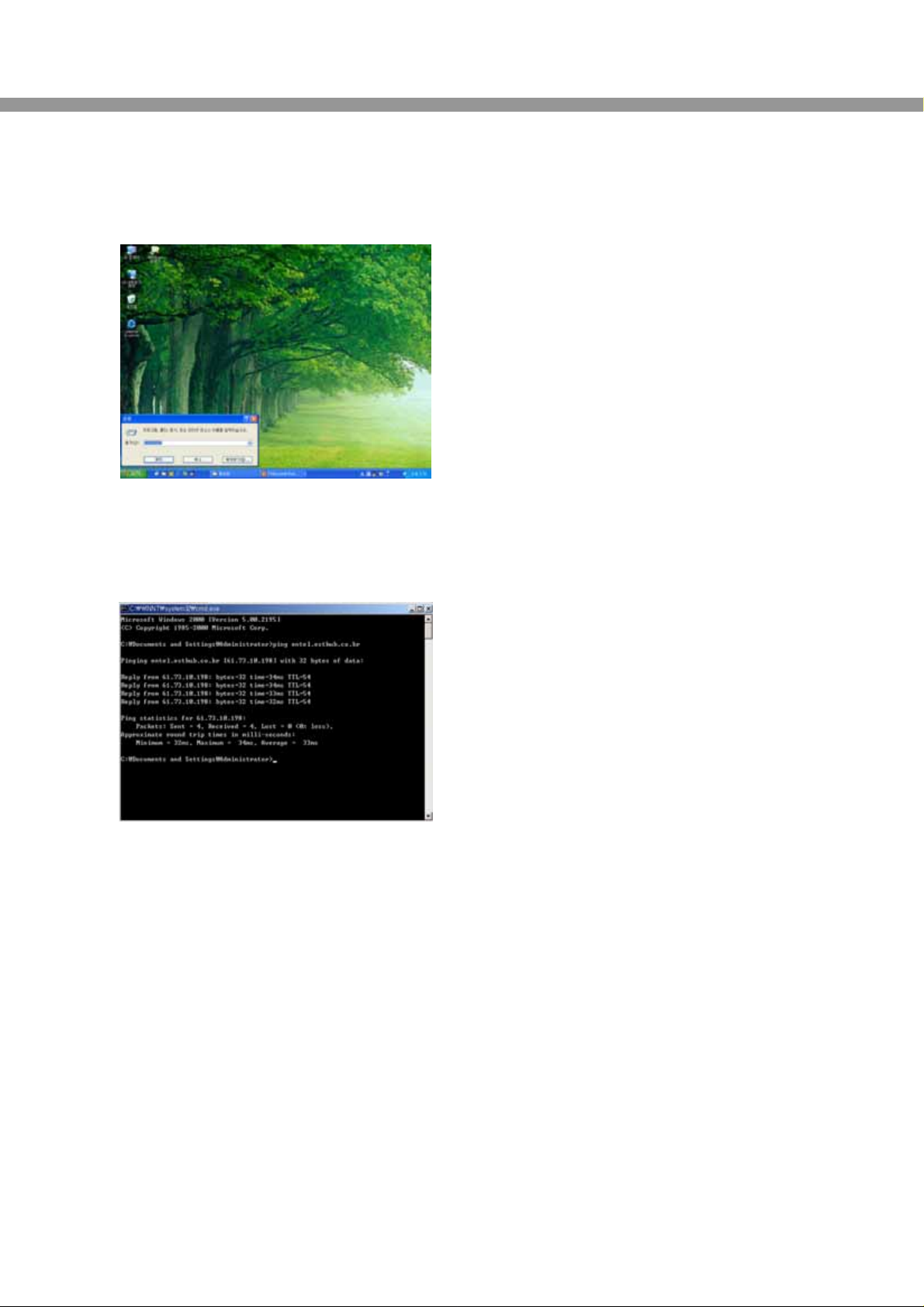

[Step 5]
. In Desttop of Windows.
Start -> Run -> CMD [Enter]
[Step 6]
. In order to check the status is normal, Use Ping
Test
.
Ping entel.esthub.co.kr [Enter]
This picture shows 61.73.18.198 is bound to
entel.esthub.co.kr in DDNS.
58
Page 59
User Guide
USER GUIDE
CMS
(Central Monitoring Software)
Version: 1.0
59
Page 60
EST9120/EST16120 User Guide
TABLE OF CONTENTS
1. CMS – Central Monitoring Software.............................................................................................61
1-1. Overview............................................................................................................................61
1-2. Minimum PC requirements ................................................................................................61
1-3. Installing the program........................................................................................................62
1-4. Live Monitoring ..................................................................................................................63
1-4-1. Main user interface..................................................................................................63
1-4-2. Control buttons........................................................................................................63
1-5. Search and Playback.........................................................................................................65
1-5-1. Main user interface..................................................................................................65
1-5-2. Main control panel...................................................................................................66
1-5-3. Back up....................................................................................................................67
1-6. System configuration .........................................................................................................68
1-6-1. General....................................................................................................................68
1-6-2. Site ..........................................................................................................................69
1-6-3. Event .......................................................................................................................69
1-6-4. Record.....................................................................................................................70
1-6-5. Disk..........................................................................................................................71
1-6-6. About .......................................................................................................................71
1-7. DVR Sites registration and Access....................................................................................72
1-7-1. DVR Sites registration.............................................................................................72
1-7-2. Access.....................................................................................................................74
60
Page 61
User Guide
1. CMS – Central Monitoring Software
1-1. Overview
CMS supports remote live viewing, remote search, backup, camera control and other functions,
linking multiple DVRs.
1-2. Minimum PC requirements
CPU
Memory 256MB
VGA 64MB
Resolution 1024x768
Disk space 10MB
OS Windows 2000, Professional, XP
Network 10/100Base T
Others Direct X 8.1 or Higher
Before installing the program, check the PC specifications. The DVR remote software may not
perform correctly if the PC does not meet the minimum requirements.
Intel Pentium Ⅳ
2Ghz
61
Page 62
1-3. Installing the program
1. Insert the provided CD into the CD-ROM drive of your PC.
2. Run CMS(XXXXXX).exe to start the installation process.
3. Follow the onscreen directions. Enter User Name, Company Name and Serial
Number that is provided from the supplier.
EST9120/EST16120 User Guide
4. Select the target folder that the program is installed.
5. Double click the
icon to start the program.
62
Page 63
User Guide
1-4. Live Monitoring
When installation is completed, double click the icon on your desktop to start the
program.
1-4-1. Main user interface
1-4-2. Control buttons
Button Description
Displays the current date and time.
Click this icon to connect / disconnect the DVRs
Connect/Disconnect
63
Page 64
Search/Live
Lock/Unlock
EST9120/EST16120 User Guide
Click this icon to search for recorded videos / to see al live
video.
Click this icon to lock/unlock all operations of CMS.
Play/Pause
RECORD
CAPTURE
Once you click
Lock/Unlock icon, this pop up
window appears. You need to remember the pass word
and enter the password when you try to operate the client
software.
User can control PAN/TILT & ZOON/FOCUS.
PAN left /right TILT up/down
ZOOM in/out FOCUS in/out
Click this icon to play/pause live video.
Enable or disable recording of live video to local disk
which has set in setup menu
Click this icon to capture a still image
Once you click the
capture icon, this pop up window
appears. The still image is captured in either jpeg or bmp
file format.
Click this icon to setup configuration of CMS.
SETUP
Click this icon to exit from the operations of CMS.
EXIT
To select the numbers of display channels
Click this icon for Sequential display of each channel in full
SEQUENCE
screen mode.
Use the volume control bar to set the audio level.
You can select the audio on or off by clicking the audio
icon
64
Page 65
User Guide
HDD storage Indicator of DVR.
It shows the status of network connections.
Max/Min/Exit of the client viewer
The alarm output indicator lights up for 5 seconds if alarm
output is activated on the DVR.
1-5. Search and Playback
1-5-1. Main user interface
You can access to search window by clicking the search icon on the upper left of main user
interface.
65
Page 66
1-5-2. Main control panel
Button Description
Displays the recording time of the selected data by adjusting
of scale in the middle of the bottom of the main user
interface.
Click this icon to see live videos.
LIVE
Click this icon to capture a still image of recorded video.
CAPTURE
EST9120/EST16120 User Guide
MARK IN
MARK OUT
BACKUP
Once you click the
capture icon, this pop up window
appears. The still image is captured in either jpeg or bmp file
format.
Click this icon to set the beginning time for backup of the
recorded video in AVI format
Click this icon to set the ending time for backup of the
recorded video in AVI format
Click this icon to backup the recorded video in AVI format.
The calendar shows dates with recorded video in a light blue
and the selected date in dark blue.
The timeline shows recorded data in dark blue on the bar.
You can adjust the time line scale and move it to the time you
wish to playback. Then click the play icon to display the
recorded video.
: To move a time bar at a hour interval on a time line
scale.
: To change a time line scale from 24 hours to 60
minutes.
channel on a time line scale.
66
: To display the recorded data of selected
Page 67
User Guide
Click to rewind at 2x and 4x speeds, to reverse at 1frame, to
play, to advance 1 frame, and to fast forward at 2x and 4x
speeds in playback mode.
To select the numbers of display channels
Click this icon for Sequential display of each channel in full
SEQUENCE
screen mode.
Use the volume control bar to set the audio level.
You can select the audio on or off by clicking the audio icon
Click this icon to exit from the operations of client software
EXIT
1-5-3. Back up
You can backup the recorded videos in AVI format on search.
1. First you have to set the beginning time by using the scale. Please click MARK IN
when the scale of the Green timeline is located on the target time as the beginning time
of backup.
2. Set the ending time on the blue timeline by dragging the scale on the target time as the
ending time of backup and clicking MARK OUT
. Then, color of the timeline
between the beginning time and ending time will be changed into dark Green.
3. Next, click BACKUP
and the pop up window appears as below.
You can also set the beginning time and ending time on this pop up window.
,
After selecting a channel for backup, click the OK button. The backup will begin.
67
Page 68
EST9120/EST16120 User Guide
1-6. System configuration
Click the setup icon to setup the configuration of DVR.
1-6-1. General
Once you click the setup icon, this pop up window appears. Select security options and set a
password.
Then when you access any of the selected functions, you need to enter the password.
You can also set the save path for capturing and backup.
Security Option: Set a password for security options.
Save Path: Specify the location to record the receiving video for Backup and still image for
Capture.
Automatic reconnection: If a user selects this function, client S/W will automatically try to
connect the finally connected IP address, after the network is disconnected.
Display network statistics: If a user selects this function, client S/W will display network
status, Bit rate and Frame rate.
Time Format: Change the way the Client software displays the time.
Set a password for security options.
Initial PW setting: Do not enter any PW on ‘Old Password’. Enter the same PW on ‘New
68
Page 69
User Guide
Password’ and ‘Confirm Password’, then press ‘OK’ button.
From 2
nd
PW setting: User needs to enter PW on ‘Old Password’ to change PW.
1-6-2. Site
This option shows the channel information of the DVR and allows you to change the channel title.
1-6-3. Event
You can set event items, the amount of local disk space you want to allow, and the save path for
the log.
z LOG – Select to save event log into ‘log file’.
z ICON – Select to display event on live video.
z EVENT LIST – Select to show event on ‘Event List” window of live mode.
You can search and check the recorded log data.
69
Page 70
EST9120/EST16120 User Guide
1-6-4. Record
You can set the recording conditions for Always, Event, or Auto recording. You can also select
individual channels or all channels to record.
When you set the recording condition to event, you can set event for motion or alarm with
duration. And you also can set each or all channels to record.
70
Page 71
User Guide
1-6-5. Disk
You can select the local disk to use and the amount of disk space you want to allow the program
to use for recording. You can also select the option to overwrite data or stop recording when the
maximum amount of disk space is full.
1-6-6. About
“About” provides network client version information.
71
Page 72
1-7. DVR Sites registration and Access
1-7-1. DVR Sites registration
EST9120/EST16120 User Guide
1. Press
2. Press SITE menu from the window and then the following registration menu.
button.
BUTTONS DESCRIPTION
3. Press Button to create new site or add new group.
Create New Site: You can create new DVR site, make new group.
Add Site to Group: You can add existing site to existing group.
Modify: You can modify information of a site.
Delete: You can delete a site.
Move Item Up/Down
72
Page 73
User Guide
Group: To select Group or to add new group.
Site Name: Enter a site name.
IP Address: Input IP address name or Domain
name (Ex. xxxx.standalone4ch.com)
Port No.: Input port number of DVR.
Protocol: Select network protocol from TCP or
UDP.
Password: Input password of DVR.
73
Page 74

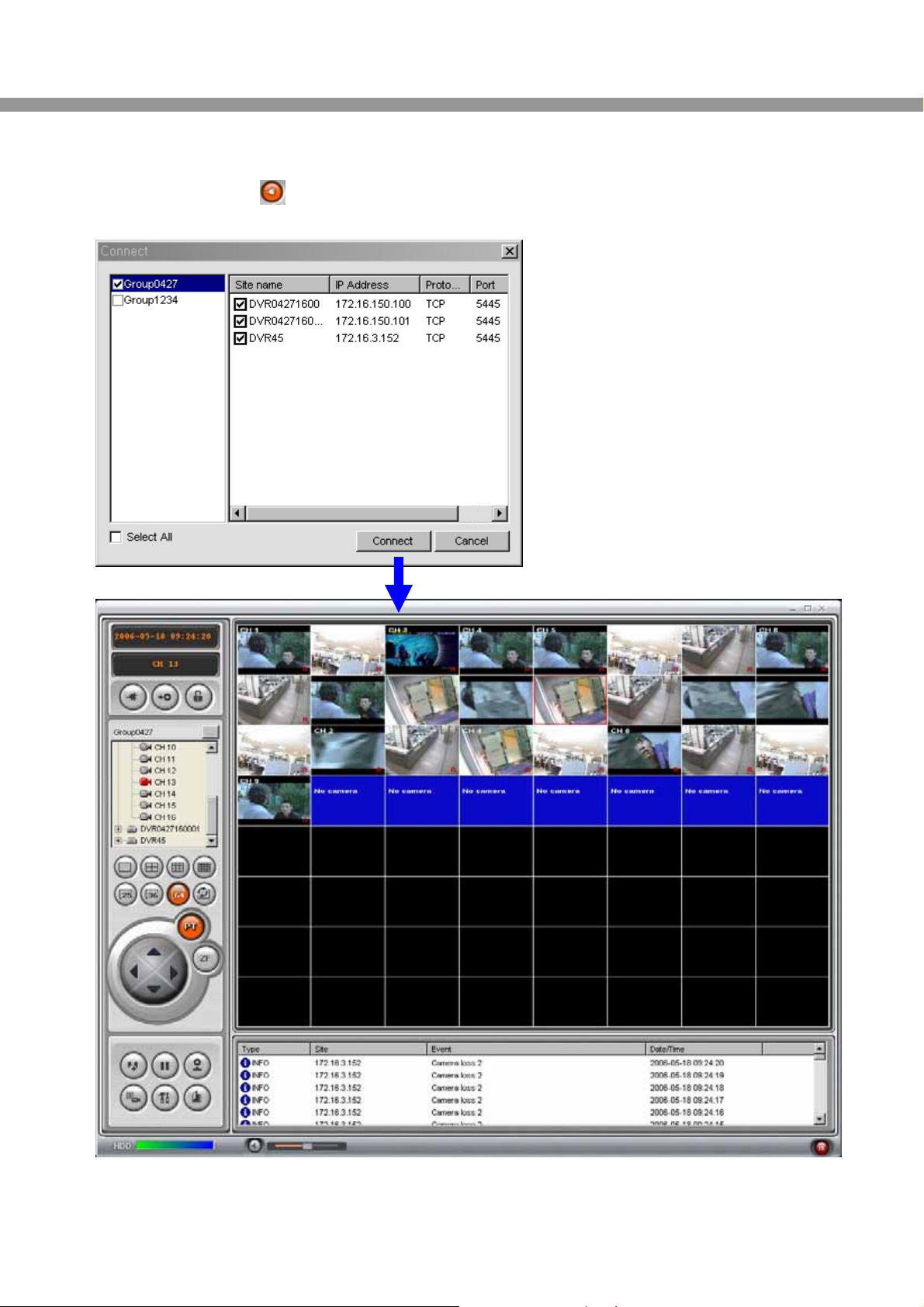

1-7-2. Access
EST9120/EST16120 User Guide
1. Press the connect
button to access sites.
2. Select groups or sites and press Connect button.
74
Loading...
