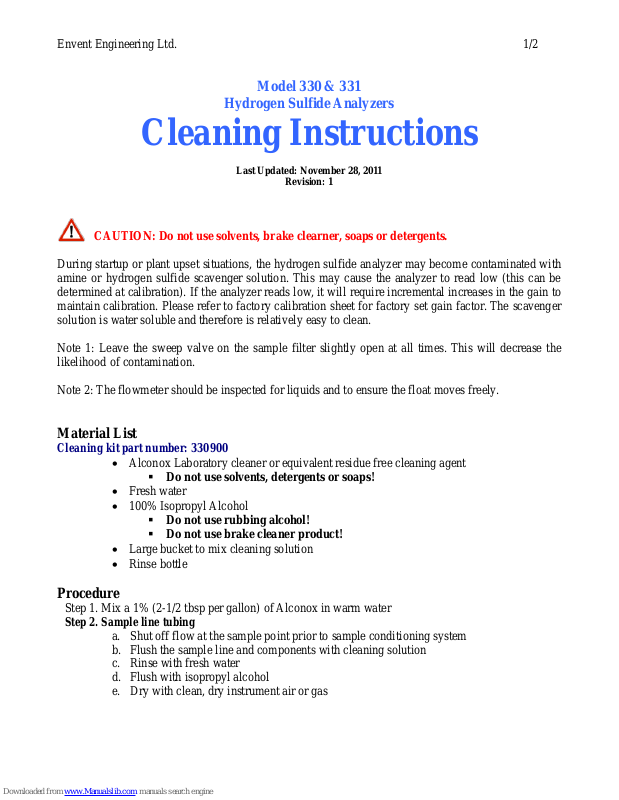

Envent Engineering Ltd. 1/2
Model 330 & 331
Hydrogen Sulfide Analyzers
Cleaning Instructions
Last Updated: November 28, 2011
Revision: 1
CAUTION: Do not use solvents, brake clearner, soaps or detergents.
During startup or plant upset situations, the hydrogen sulfide analyzer may become contaminated with
amine or hydrogen sulfide scavenger solution. This may cause the analyzer to read low (this can be
determined at calibration). If the analyzer reads low, it will require incremental increases in the gain to
maintain calibration. Please refer to factory calibration sheet for factory set gain factor. The scavenger
solution is water soluble and therefore is relatively easy to clean.
Note 1: Leave the sweep valve on the sample filter slightly open at all times. This will decrease the
likelihood of contamination.
Note 2: The flowmeter should be inspected for liquids and to ensure the float moves freely.
Material List
Cleaning kit part number: 330900
Alconox Laboratory cleaner or equivalent residue free cleaning agent
Do not use solvents, detergents or soaps!
Fresh water
100% Isopropyl Alcohol
Do not use rubbing alcohol!
Do not use brake cleaner product!
Large bucket to mix cleaning solution
Rinse bottle
Procedure
Step 1. Mix a 1% (2-1/2 tbsp per gallon) of Alconox in warm water
Step 2. Sample line tubing
a. Shut off flow at the sample point prior to sample conditioning system
b. Flush the sample line and components with cleaning solution
c. Rinse with fresh water
d. Flush with isopropyl alcohol
e. Dry with clean, dry instrument air or gas
Page 2
Envent Engineering Ltd. 2/2
Step 3. Sample conditioning system
CAUTION: Disassembly of the pressure regulator and solenoids in the field is not advised.
Consult the factory if the regulator or solenoid appears contaminated.
a. Remove filter elements from filter housings and discard
b. Remove all sample conditioning system components and soak in cleaning solution
c. Ensure valves are fully open when cleaning
d. Flush sample components with fresh water
e. Rinse with isopropyl alcohol
f. Blow dry with clean compressed air or fuel gas
g. If the any clear (Tygon) tubing appears discolored, replace the tubing
h. Tubing on humidifier should be replaced if it appears contaminated
Step 4. Re-assemble Stainless Steel Tubing to analyzer according to analyzer drawing (refer to back
of manual)
Step 5. Once sample conditioning system has been re-assembled, apply calibration gas to the analyzer,
refer to section E.2.
Step 6. Adjust gain to indicate value from calibration certificate
Step 7. Gains for streams should be ± 2.00 from factory cal sheet or last calibration.
If the reading is not with in range, then the analyzer sample conditioning system may
need further cleaning. Please consult factory.
