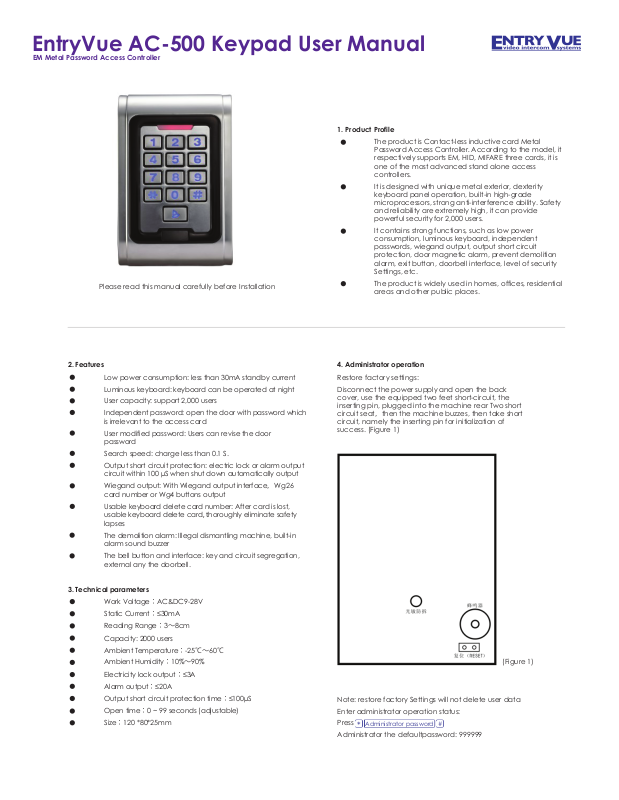

EntryVue AC-500 Keypad User Manual
#
EM Metal Password Access Controller
1. Product Profile
The product is Contact-less inductive card Metal
Password Access Controller.According to the model, it
respectively supports EM, HID, MIFARE three cards, it is
one of the most advanced stand alone access
controllers.
It is designed with unique metal exterior, dexterity
keyboard panel operation, built-in high-grade
microprocessors, strong anti-interference ability. Safety
and reliability are extremely high, it can provide
powerful security for 2,000 users.
It contains strong functions, such as low power
consumption, luminous keyboard, independent
Please read this manual carefully before Installation
passwords, wiegand output, output short circuit
protection, door magnetic alarm, prevent demolition
alarm, exit button, doorbell interface, level of security
Settings, etc.
The product is widely used in homes, offices, residential
areas and other public places.
2. Features
Low power consumption: less than 30mA standby current
Luminous keyboard: keyboard can be operated at night
User capacity: support 2,000 users
Independent password: open the door with password which
is irrelevant to the access card
User modified password: Users can revise the door
password
Search speed: charge less than 0.1 S.
Output short circuit protection: electric lock or alarm output
circuit within 100 µS when shut down automatically output
Wiegand output: With Wiegand output interface，Wg26
card number or Wg4 buttons output
Usable keyboard delete card number: After card is lost,
usable keyboard delete card,thoroughly eliminate safety
lapses
The demolition alarm: Illegal dismantling machine, built-in
alarm sound buzzer
The bell button and interface: key and circuit segregation,
external any the doorbell.
3. Technical parameters
Work Voltage：AC&DC9-28V
Static Current：≤30mA
Reading Range：3〜8cm
Capacity: 2000 users
Ambient Temperature：-25℃〜60℃
Ambient Humidity：10%〜90%
Electricity lock output：≤3A
Alarm output：≤20A
Output short circuit protection time：≤100µS
Open time：0 ~ 99 seconds (adjustable)
Size：120 *80*25mm
4. Administrator operation
Restore factory settings:
Disconnect the power supply and open the back
cover, use the equipped two feet short-circuit, the
inserting pin, plugged into the machine rear Two short
circuit seat，then the machine buzzes, then take short
circuit, namely the inserting pin for initialization of
success. (Figure 1)
(Figure 1)
Note: restore factory Settings will not delete user data
Enter administrator operation status:
Press
Administrator password
Administrator the defaultpassword: 999999
EntryVue AC-500 Keypad User Manual
#
0
Old password
#
1
#
1
1
#
#
2
2
#
1
#
1
#
#
#
New password
#
#
#
2
#
#
New password
#
User password
#
User password
#
#
3
0
#
#
#
3
2
3
4
#
1
#
0
6
#
1
6
#
0
7
7
#
1
5
EM Metal Password Access Controller
4.1 Modify administrator password:
Press
The new password # Repeat he new password #
Note: the administration password is between 6 - 8 numbers.
please be careful when entering.
4.2 Add user:
4.2.1 Add multiple cards:
Press
Reading card Reading card
, ...,
4.2.2 Add designated card Number:
Eight card number # Eight card number #
Press
, ...,
Automatically adding, the user ID automatically
generated by this machine, the range is 1 - 2000,
and search from small to large.
4.2.3 Add designated ID Number swipe card:
ID number # ID number #Reading card
Reading card
, ...
, Press
4.2.4 Add designated ID number and card number:
ID number # ID number #Eight card number #
Eight card number #
, ...
, Press
Note: input ID digits of 1-4 digits, The range is 1 - 2000,
numbers such as 1,01,001,0001 ID number all expressed 1.
Adding card user will automatically generate a default
password "1234", but this password can not open the door,
the password is only for a user to change to a new password.
4.2.5 Add designated ID number and password:
Press ...
ID No # password # ID No # password #
Note: applicable to number card users, password and
card are unrelated, input a four digit code, but not "1234"
4.3 Delete user
4.3.1 Delete swipe card
Press
Reading card Reading card
...
4.3.2 Delete Designated card Number：
Eight card number # Eight card number #
Press
4.3.3 Delete Designated ID Number：
Press
ID No # ID No #
...
, ...,
4.3.4 Delete all：
20000
Press
4.4 Door opening method setting：
4.4.1 Card open：
Press
4.4.2 Card + Password open：
Press
4.4.3 Card or Password open：（Factory default）
Press
4.5 Unlock time setting：
Press
0~99
Note: The lock time range "0 to 99 seconds ",
the factory default is 5 seconds
4.6 Alarm time setting:
Press
0~3
Note: The alarm time ranges from 0 - 3 minutes,
the factory default is 1 minute
4.7 Magnetic Alarm Function setting：
4.7.1 Shielding of the function (factory default)：
Press
4.7.2 Open the function：
Press
Open the function, two possibilities:
4.7.2.1 If the door is not closed properly for 1 minute,
the built-in buzzer alarm will sound off.
4.7.2.2 If the doors are unlock for 20 seconds after the
doors are opened, or if the doors are forced to
open, the built-in buzzer alarm will soud off.
4.8 Security mode setting
4.8.1 Normal mode (factory default)
Press
4.8.2 Lock mode：
Press
The system will lock and alarm after a ten minute
continuous brush of an invalid keycard. The system will
also alarm after a continuous entry of a wrong password.
5. User operations
5.1 Card modify password:
Press
Reading card
Repeat the new password
5.2 User ID number modify password
Press
ID No Old password
Repeat the new password
Note: applicable to a card or card-less users, if the
user password is "1234", must use card to modify
5.3 Card open：
Reading card
, doors open
5.4 Password open：
Press , doors open
5.5 Card + Password open：
Reading card
, doors open
6. Remove alarm operation
6.1 External alarm and built-in buzzer alarm at the same time
Swipe or press
Valid card Administrator password #
(stop alarm)
6.2 Close door alarm tips
Close the door, or swipe card , or input
Administrator password #
7. Acousto-optic instructions
Operation
state
Standby
Red Light
Slow
flashing
Green Light
Buttons
Success
Off
Failure
Into
programming
Set condition
Exit
programming
Unlock
Alarm
On
On
Slow flash
Off
Fast flashing
Valid card
, Can stop alarm
Buzzer
Off
On
DiDiDi
Off
On
Off
On
Off
Alarm sound
Di-
Di-
Di-
Di-
Note
Di
Indicator is
orange
EntryVue AC-500 Keypad User Manual
EM Metal Password Access Controller
8. Installation method, lead wire description and Cabling diagram
8.1 Installation method
8.1.1
When installing on the wall, take notice of the apreture
size of drill to fit the connecting holes, or installed two
exisiting junction boxs plus connection.(Figure 2)
(Figure 2)
8.1.2
Put the lead wire from bottom shell of the outlet
hole, connect the cables needed. Unused
lines are wrapped with insulating tape to prevent
short circuit.
8.1.3
When complete, Install the front cover to the back
cover, tighten the screws, stabilize the front
cover and back cover.
8.3 Cabling diagram
8.3.1
Ordinary power supply Cabling diagram (Figure 3)
8.2 Lead wire description
Line
sequence
Marks Color Function description
1
BELL_A Pink Doorbell button one end
2
BELL_B
3
D0 Green WG output line D0
4
D1 White WG output line D1
ALARM Grey
5
6
OPEN
7
D_IN
8
AC&DC
9
AC&DC
10
NO
11
COM
12
NC
13
GND
Pale
The doorbell button to the
blue
other end
Alarm negative (alarm positive
connected +12V)
Exit button one end (Exit button
Yellow
the other end connected GND)
Magnetic switch one end
Brown
(magnetic switch another end
connected GND)
Power supply 9-28V input
Red
(DC input+)
Power supply 9-28V input
Black
(DC input-)
Relay normally-on end
Blue
(Connected positive electric lock+)
Purple
Relay Public end, Connected GND
Relay Public end, (Connected
Orange
negative electric lock +)
Shielding
Ac input for machines minus
layer
(Figure 3)
EntryVue AC-500 Keypad User Manual
EM Metal Password Access Controller
Access Control Power Supply Cabling diagram (Figure 4)
8.3.2
9. Packing list
Name
Metal Password
access controller
User manual GAR-3008
Tapping screws
Stopper
Star screwdriver
Star screws
LED
Model/
specification
GAR-3008 1
Φ 4mm×28 mm
Φ 6mm×30 mm
Φ 20mm×60mm
Φ 3mm×6mm
1N4007
Quantity Note
1
Used for
4
installation fixed
Used for
4
installation fixed
1
Secial
Used between
the front
1
cover and
back cover
for a fixed
1
(Figure 4)
Notices
If there is any problem, please return the product to the
factory for maintenance.
Before installing the product on the wall, please check the wiring
or line tube carefully to prevent accidents, such as broken wiring
caused by drilling. Please use saftey goggles when drilling or when
fixing the line clip.
Specifications will likely be different after product upgrades,
no prior notice will be made.
