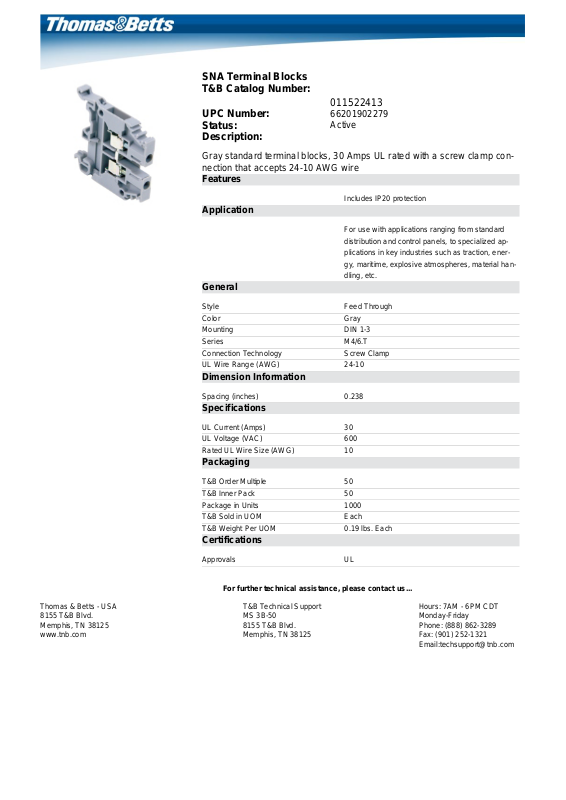

Entrelec 011522413 Data Sheet

SNA Terminal Blocks
T&B Catalog Number:

011522413

UPC Number:
Status:

66201902279
Active

Description:

Gray standard terminal blocks, 30 Amps UL rated with a screw clamp con­nection that accepts 24-10 AWG wire

Features

Includes IP20 protection

Application

For use with applications ranging from standard
distribution and control panels, to specialized ap­plications in key industries such as traction, ener­gy, maritime, explosive atmospheres, material han­dling, etc.

General

Style Feed Through
Color Gray
Mounting DIN 1-3
Series M4/6.T
Connection Technology Screw Clamp
UL Wire Range (AWG) 24-10

Dimension Information

Spacing (inches) 0.238

Specifications

UL Current (Amps) 30
UL Voltage (VAC) 600
Rated UL Wire Size (AWG) 10

Packaging

T&B Order Multiple 50
T&B Inner Pack 50
Package in Units 1000
T&B Sold in UOM Each
T&B Weight Per UOM 0.19 lbs. Each

Certifications

Approvals UL
