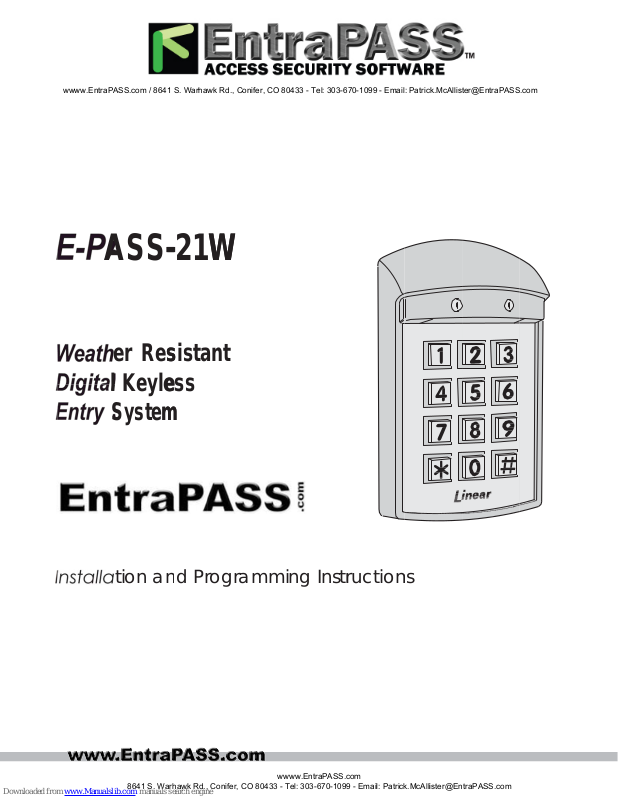

EntraPass E-PASS-21W Installation & Programming Instructions

n

g

n

n

wwww.EntraPASS.com / 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: [phone] - Email: [e-mail]

ASS-

er Res

l Keyle

System

-21W

sistant

ess

m

W

tion a

8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: [phone] - Email: [e-mail]

d Pro

rammi

wwww.EntraPASS.com

g Instruction

s

wwww.EntraPASS.com / 8641 S. Warhawk

Rd., Conifer, CO 80433 - Tel:

303-670-1099 -

Email:

[e-mail]

CONTENTS

COM PO N E NT LOCAT IONS .................................................................................................... 1

WIRING DIAGRA M ................................................................................................. 1

INSTALLATION ........................................................................................................ 2

Opening the Keypad ............................................................................................ 2

Install the Electrical Bo x and Mou ntin g Plate .................................................... 2

Final Keypad Installation ...................................................................................... 2

Keypad Wiring ............................................................................................... 3

Solid State Outp uts ................................................................................................ 3

FACTORY DEFAULTS .......................................................................................................... 4

BASIC PROGRAMMIN G ......................................................................................... 4

PROGRAMMING OPTI ONS .................................................................................... 5

RESETTING KEY PAD .......................................................................................................... 6

Master Reset ................................................................................................... 6

Resetting the Mas ter C ode ................................................................................... 6

AK-2 1W OPERATION .................................................................................................... 6

SPECIFICATIONS ......................................................................................................... 6

LINEAR LIMITED WARRANTY ................................................................................ 6

IMPORTA NT !!! ............................................................................................... 6

FCC NOTICE ................................................................................................................... 6

INTRODUCTION

Linear’s AK-21W is a digital keyless entry system designed for access control
applications. The keypad is housed in a rugged, die-cast metal enclosure and is
designed to be mounted in a single-gang electrical box. The die-cast keys have
bright, easy-to-read yellow graphics.

Up to 480 entry codes, from 1 to 6 digits in length, can be programmed.They can
activate either, or both, of the relay outputs. The “anti-passback” feature prevents
using the same code again before the programmed time elapses.

All system indicators and lights are long-lasting, solid-state LEDs. T wo indicators
showthe status of the entry system.The left indicator lights red to indicate power,
then turns green when a ccess is grante d. The right indicator lights yellow when
the keypad is in “lockout” condition (from too many incorrect code entries). The
keypad ’s courtesy light dimly illuminates the keys at all times. The courtesy light
brightly illum inates the ke ys for two mi nutes after any key is press ed. An internal
sounder beeps when each key is pressed. An internal jumper sets the sounder
volume high or low .

The SENSE input can be used two ways. If programmed for “door sense” the
input is wired to a normally closed switch on the door to detect when the door is
open or closed. Forced entry or door ajar situations can then be detected. Using
door sense, the “Auto-r elock” featu re will prevent “tailgating” by turni ng off the
Main Relay output immediately when the door is closed after access has been
granted. If the SENSE input is programmed for “inhibit”, the input can be wired
to a “service” switch or automatic timer that will disable the Main Relay when
required.

The REQUEST -TO-EXIT input can be wired to a pushbutton to provide
codeless activation of Main Relay, Auxiliary Relay, Output #3, or Output #4
(programmable).

The ALARM SHUNT output activates when access is granted. This output can
be wired to shunt alarmcontacts on the access door/gate to prevent triggering of
an alarm w hen authorized access occurs.

The AK-21W is powered fr om a 1 2 - 2 4 Volt A C or D C source. Power can be
obtained from the acc ess devic e or a separate power sup ply. The EEPROM
memory reta ins a ll ent ry codes a nd programming, even wit hout power. An
internal jumper is provided to reset the master code.The Main Relay has a 5 Amp
capaci ty. The Auxiliary Rel ay h as a 1 Amp capacit y. Two soli d s tat e outputs,
capable of switchi n g 100 mA t o common, are programmable to signa l forced
entry, door ajar, lockout, alarmcircuit shunting, request-to-exit, and k eypad active
conditions.

FEATURES

✓

WEATHER RESISTANT DESIGN

✓

KEYPAD PROGRAMMABLE

✓

480 ENTRY CODE CAPACITY

✓

1-6 DIGIT ENTR Y CODE LENGTH

✓

4 INDEPENDENT OUTPUTS (TIMED/TOGGLED)

✓

4 INDEPENDENT TIMERS

✓

TWO FORM “C” (N.O. & N.C) RE LA Y CO NT ACT S

✓

EACH ENTRY CODE CAN ACTIVATE EITHER OR BOTH RELAYS

✓

TWO SOLID STATE OUTPUTS

✓

TWO STATUS INDICA TORS (2-COLOR RED/GREEN & YELLOW)

✓

WHITE SOLID-STATE LED COURTESY LAM P

✓

PIEZO SOUNDER (TWO SELECTABLE VOLUME LEVELS)

✓

TIMED ANTI-PASSBACK

✓

AUTO-RELOCK

✓

KEYPAD LOCKOUT

✓

TACTILE KEY FEEL

✓

DOOR SENSE INPUT

✓

INHIBIT INPUT

✓

REQUEST-TO-EXIT INPUT

✓

KEYPAD CAN BE POWERED FROM 12-24 VOLTS AC OR DC

For outdoor installation

No programmer required

Ideal for small & medi um traffic instal la tions

Flexible code length for different applications

Each output’s action is programmable

Each output’s activation time is programmable

Main Relay 5-Amp @ 28 VDC cap acit y,
Auxiliary Relay 1-Amp @ 28 V DC capacity

Specific entry codes can grant access to different doors

Auxiliary outputs can indicate access status on external devices

Displays access, lockout, and programming information

Programmable off/on/timed

Programmable for beeps during key presses and output activations

Disables entry code for a programmed time after use

Releases the main relay as soon as the door shuts

Locks the keypad after too many incorrect entries

Assures complete key presses

For sensing door position to control auto-relock and door-ajar features

For temporarily disabling access with a timer or switch

For codeless activation with a pushbutton

Power can be supplied f rom a tra nsfor mer, bat ter y, or power s upply

8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: [phone] - Email: [e-mail]

wwww.EntraPASS.com

wwww.EntraPASS.com / 8641 S. Warhawk Rd.,

Conifer, CO 80433 - Tel:

303-670-1099 -

Email:

[e-mail]

COMPONENT LOCATIONS

RED/GREEN
POWER/ACCESS
INDICATOR

BEZEL

FACEPLATE

KEYPAD

YELLOW
"LO C K OU T "
INDICATOR

TERM INAL
BLOCK #2

MASTER CODE
RESET JUMPER
(JP2)

(TB2)

SOLID STATE
WHITE LED
DOWN LIGHT

TERM INAL
BLOCK #1
(TB1)

MOUNTING
PLATE

BEEPER
LEVEL
JUMPER (JP1)

WIRING DIAGRAM

POWER
SUPPLY

ELECTRIC

DOOR

STRIKE

TO ALARM

SYSTEM

REQU IRED WIRI NG

OPTIONAL WIRING

OTHER WIRING

ALARM

CONTACT

8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: [phone] - Email: [e-mail]

NOTES:

1.

ALARM SHUNT SET FOR AUXILIARY RELAY

2.

TERMINAL BLOCK #2, TERMINAL 8 SET FOR DOOR SENSE

Figure 1. Component Locations

TYPICAL DOOR INSTALLATION WIRING

TERMINAL

BLOCK 2

1
2
3 - N. O .
4 - CO M
5 - N.C.
6 - N. O .
7 - CO M

8 - N.C.

- AC OR D C

- AC OR D C

AK-21W TERMI NALS

12-24 VO LT

AC OR DC

POWER

MAIN R ELA Y

5 AMPS @

28 VDC MA X.

AUXILIARY

RELAY 1 AMP

@28 VD C M A X.

Figure 2. Wiring Diagram

wwww.EntraPASS.com

REQUEST-TO-EXIT - 6

SENSE - 8

COM- 7

EARTH GROUND - 5
OUTPUT #3 COM - 4

OUTPUT #3 - 3
OUTPUT #4 - 2

OUTPUT #4 COM - 1

TERMINAL

BLOCK 1

N.C. DOOR

SWITCH

REQUEST

TO EXIT

AUXILIARY

OUTPUTS

100 mA MAX .
TO COMMO N

CAUTION

IF THE UNIT IS AC POWERED,

MAKE SURE THE SECONDARY OF THE
SYSTEM TRANSFORMER IS ISOLATED

FROM EARTH GROUND

BUTTON

GROUND

STAKE

1

INSTALLATION

Before installing the keypad, the unit must be partially disassembled
to access the mounting plate.

Opening the Keypad

The keypad asse mbly is secured with two tamper-resistant screw s.
Refer to Figure 3 for disassembly details.

❑

Use the special allen wrench (supplied) to remove the two
tamper-resistant screws.

❑

Separate the mounting plate from the keypad assembly.

1

REMOVE THE
TWO SCREWS

2

SEPARATE THE
MOUNTING PLATE AND PLASTIC
ENCLOSURE FROM THE KEYPAD

MOUNTING

PLATE

Final Keypad Installation

After wiring the keypad (see next page), complete the installation
by securing the keypad to the mounting plate.

❑

If a lower beeper sound level is required, before installing
the keypad, remove Jumper JP1 (place the jumper block on
one pin to save the jumper).

❑

Hook the keypad assembly onto the mounting plate tab (see
Figure 5).

❑

Use the special allen wrench (supplied) to install the two
tamper-resistant screws.

❑

Fit the bottom tab on the faceplate into the slot on the
keypad then snap the top of the faceplate in.

1

HOOK THE KEYPAD ASSEMBLY
ONTO THE MOUNTING PLATE

2 INSTALL THE

TWO SCREWS

Figure 3. Opening the Keypad

Install the Electrical Box

and Mounting Plate

The keypad is designed to fit into a single-gang electrical box. The
box must be deep enough to accomodate the protective plastic
enclosure. Select a location near the controlled door and choose
a convenient height for the keypad. Be sure there is good wiring
accessibility for the unit’s power and the output to the door strike
or access device.

❑

Install the electrical box in the wall.

❑

Place gasket on protective plastic enclosure and insert into
electrical box.

❑

Screw the mounting plate onto the electrical box (see
Figure 4).

1

INSTALL A SINGLE-GANG

ELECTRICAL BOX AT THE
PROPER LOCATION
FOR THE KEYPAD

MAKE SURE THE
TAB IS UP

PLACE GASKET ON

2

PROTECTIVE PLASTIC
ENCLOSURE AND
INSERT INTO
ELECTRICAL BOX

(NOTE DIRECTIONAL

ARROWON PLASTIC)

4

3

FIT THE BOTTOMTAB OF
THE FACEPLATE INTO THE
SLOT ON THE KEYPAD

SNAP THE TOP
OF THE KEYPAD
INTO PLACE

Figure 5. Connecting the Keypad to the Mounting Plate

Faceplate Removal

Refer to Figure 6 for details on removing the faceplate if keypad
service is required.

1

PRY UP ON THE

FACEPLATE HERE

2

REMOVE THE

FACEPLATE

3

ATTACH THE MOUNTI NG
PLATE TO THE
ELECTRICAL BOX

MOUNTING
PLATE

Figure 4. Installing the Mounting Plate

2

8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: [phone] - Email: [e-mail]

Figure 6. Removing the Faceplate

wwww.EntraPASS.com

Keypad Wiring

See Figure 7 for an example of a basic door installation. The
keypad is mounted adjacent to the door. An electric door strike
is mounted in the door jamb to release the door lock. A magnetic
switch is mounted on the top of the door jamb for detecting when
the door is open.

Use the following steps to wire the keypad. Refer to the wiring
diagram shown in Figure 8 to assist in the wiring.

☞ NOTE: Up to 500 feet of 18 AWG wire can be run for power,

use larger wire for longer runs. Use 22 AWG or larger
(depending on the load) for other connections.

OUTPUT

❑

Install a low voltage electric door strike for unlocking the
door.

❑

Route two wires between the door strike and the keypad
box. Connect one of the door strike wires to the keypad’s
MAIN RELAY N.O. terminal (TB2 #3). Connect the other
door strike wire to the keypad’s AC/DC + terminal (TB2 #1).
Conne ct a wire between the keypad’s AC/DC - terminal
(TB2 #2) and the MAIN RELAY COM terminal (TB2 #4).

POW ER

❑

Choose a location for the power supply or transformer.

❑

Route two wires between the power supply and the keypad
box. Connect the power supply’s output terminals to the
keypad’s AC/DC input terminals (TB2 #1 & #2). Observe
wiring polarity if using DC.

◆

CAUTION: If the unit is AC powered, make sure the
secondary of the system transformer is isolated from
earth ground.

DOOR

SENSE

SWITCH

2 WIRES

FOR DOOR

STRIKE

ELECTRIC

DOOR

STRIKE

12-24

AC OR DC

POWER

SUPPLY

ELECTRIC

DOOR

STRIKE

VOLT

2 WIRES
FOR DOOR
SENSE
SWITCH

AK-21W
KEYPAD

2 WIRES
FROM
POWER
SUPPLY

1 W IR E
TO EARTH
GROUND

Figure 7. Basic Door Installation

TERMINAL

BLOCK 2

1

- AC O R D C

2

- AC O R D C
3 - N.O.
4 - CO M
5 - N.C.
6
7
8

MAIN

RELAY

5 AMPS MAX.

EARTH GROUND

❑

To avoid damage to the unit from static discharges, connect
the EARTH GROUND terminal (TB1 #5) to a good earth
grounding point. Suggested wiring size is 18 AWG for earth
ground.

SENSE INPUT

☞ NOTE: SENSE terminal (TB1 #8) can be programmed for

either a door sense or inhibit input. Both features cannot be
used at the same time.

❑

To use the door sense feature to detect forced entry or door
ajar conditions, install a normally closed door switch on the

door and route two wires from the switch to the keypad box.
Connect the door switch to the keypad’s SENSE terminal
(TB1 #8) and COM terminal (TB1 #7).

❑

If an inhibit switch or timer is going to be used for
temporarily disabling the keypad, route two wires from
the switch or timer to the keypad box. Connect the inhibit
switch/timer normally open terminals to th e keypad’s SENSE
(TB1 #8) and COM (TB1 #7) terminals.

REQUEST -TO-EXIT INPUT (wiring shown on Page 1, Figure 2)

❑

If a request-to-exit pushbutton is going to be used, route two
wires from the keypad box to a normally open pushbutton
mounted on the secure side of the door. Connect the wires

to the pushbutton and to the keypad’s EXIT (TB1 #6) and
COM (TB1 #7) terminals.

Solid State Outputs

The two solid state outputs (Output #3 & Output #4) can be
programmed to activate during various conditions. These outputs
can be used to activate indicators or sounders. See Figure 9 for
wiring examples using the solid state outputs.

8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: [phone] - Email: [e-mail]

TERMINAL

BLOCK 2

(TB2)

EXAMPLE #1

EXAMPLE #2

OU TPU T #4 COM

OU TP UT #3 C OM

wwww.EntraPASS.com

TERMINAL

BLOCK 1

SENSE - 8

COM - 7

6

4
3
2
1

AK-21WREAR VIEW

EARTH GROUND - 5

TERMINAL

BLOCK 1

(TB1)

Figure 8. Basic Door Installation Wiring

OU TPU T #3 LIG HTS AN LED
OUTPUT #4 LIGHTS AN LED AND SOUNDS A BEEPER

DC

1

POWER

TERMINAL
BLOCK #2

TERMINAL
BLOCK #1

3

3
2

1
4



1K @12 vol ts
2K @24 vol ts

LED LED

END-OF-LINE
RESISTOR

N.O.

ZONE

ALARMPANEL

COMMON

SOURCE

OUTPUT #3
OU TPU T #4 2

OUTPUT #3 LIGHTS A LAMP POWERED FROMAN EXTERNAL SOURCE

OUTPUT #4 TRIGGERS A NORMALL Y OPEN ALARMPANEL ZONE

OUTPUT #3
OU TPU T #4

Figure 9. Using Solid State Outputs

N.C. DOOR

SENSE
SWITCH

GROUND

STAKE

ELECTRONI
C BEEPER

EACH

OUTPUT

100 mA

MAXIMUM

LOWVOLTAGE
LAMP

POWER

SOURCE

3

FACTO RY D EFA ULTS

MASTER PROGRAMMING CODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123456

ENTRY CODE LENGTH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 DIGITS

REQUEST-TO-EXIT OUTPUT RELAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .MAIN RELAY

ALARM SHUNT OUTPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DISABLED

FORCED ENTRY OUTPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OUTPUT #3

DOOR AJAR OUTPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OUTPUT #4

MAIN RELAY ON TIME. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 SECONDS

AUXILIARY RELAY ON TIME. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 SECONDS

SOLID STA TE OUTPUT #3 ON TIME. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 SECONDS

SOLID STA TE OUTPUT #4 ON TIME. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 SECONDS

DOWNLIGHT ON TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 MINUTES

DOOR SENSE/INHIBIT INPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DOOR SENSE

KEYP AD LOCKOUT OUTP UT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DISABLED

KEYPAD ACTIVE OUTPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DISABLED

BEEPER SOUNDS WHEN KEY PRESSED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . YES

BEEPER SOUNDS DURING R EL AY #1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . NO

BEEPER SOUNDS DURING R EL AY #2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . NO

BEEPER SOUNDS DURING OUTPUT #3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . NO

BEEPER SOUNDS DURING OUTPUT #4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . NO

KEYPA D LOCKOUT COUNT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 TRIES BEFORE LOCKOUT

ANTI-PAS SBACK TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . NO ANTI-PASSBACK

AUTO-RELOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ON

BASIC PROGRAMMING

When the AK-21W is in Programming Mode, both indicators will
turn off until programming begins. After a programming option
number is entered the yellow indicator will blink. This shows that the
AK-21W is ready to accept the new programming data. After the
new data entry is complete, the yellow indicator will flash while
the data is being stored. The green indicator will light if the data
is accepted. The red indicator will light if any programming data
is entered incorrectly, and the command will have to be fully
re-entered.

Entering Programming Mode

The 6- di git Master Programming Code (defau lt = 123456) i s use d t o ent er
Programming Mode.

Press:

Master Code = the current 6-digit Master Programming Code

#9#

Master Code

Adding a New Entry Code

Press: 01 # Code # Code # Action #

Code =The new entry code: 1-999999, depending on code length

Actio n = Relay output entry cod e will activat e as foll ows:

1 = Relay #1, timed open
2 = Relay #2, timed open

3 = Both Relays, timed open
10 = Relay #1, toggled
20 = Relay #2, toggled
30 = Both Relays, toggled
12 = Relay #1 toggled; Relay #2, timed open
21 = Relay #1 timed open; Relay #2 toggled

The yellow LED will flash quickly while the AK-21W searches its
memory for available space and duplicate entries. The green LED
will light when the new code is stored.

If the new entry code chosen is already being used for another
entry code, the red LED will light. A new unique code needs to be
entered.

☞ NOTE: Leading zeros (zeros before the code number, i.e. 0001) do not

need to be entered when programming a new entry code.The AK-21Wwill
internally add any zeros to fill all digits determined by the entry code length
setting. Leading zeros will have to be entered by the user when entering their
code to gain access.

Erasing a Single Entry Code

Press: 02#Code #Code #

Code =The entry code to delete.

The yellow indicator will flash quickly while the AK-21W searches
its memory for the code to erase. The green indicator will light
when the code is erased.

Erasing All Entry Codes

Exiting Programming Mode

Press: * * #

The red indicator will light after exiting Programming Mode.

☞NOTE: The AK-21Wwill automatically exit Programming Mode after two

m inu tes of ina ctivi ty .

Re-entering a Command After a Mistake

If t he red indicat or lights, signaling an incorrect entry, or an incorrect key is
pressed during programming, to clear the keypad and re-enter the command:

Press: * 9#

Setting Entry Code Length Default: 4 digits

Press:

Length = 1 - 6 for entry c ode len gth

☞NOTE: If the Entry Code Length is going to be changed from the factory

default of four digits, make this change first, before programming any
entry codes .

03

#Length #

8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: [phone] - Email: [e-mail]



★ WARNIN G: PERFORMING THIS COMMAND WILL

REMOVE ALL ENTRY CODES FROM THE MEMORY.

Press:

☞NOTE: Th e gree n ind icato r will light wh ile the m em ory is bein g era sed .Th is

may take up to 15 seconds.

Changing the 6-Digit Master Programming Code

Press:

Master Code =The new 6-digit Master Programming Code

wwww.EntraPASS.com

97#000 000 #000000#

98#

Master Code #Master Code

New master code:



#



PROGRAMMING OPTIONS

There are several AK-21W programming options. For most
installations, the factory set default options are sufficient. The
keypad must be in Programming Mode to make these changes.

Select Door Sense or Inhibit Input Default: Door Sense

The input on Terminal Block TB1, Terminal #8 can be programm ed for DOOR
SENSE or INHIBIT.

Press: 10#Input #

Input = 0 for Door Sense, = 1 for Inhibit

When programmed for DOOR SENSE, if an open condition on the input occurs
before access is granted (with an entry code or with the request-to-enter input) a
FORCED ENTRYoutput will occur. If anopen conditionremains 60seconds after
a relay activation for access, a DOOR AJAR output will occur.

When programmed fo r INHIBIT, a closed condition on th e input will prevent
Relay #1 fromactivating when access is requested with an entry code.This mode
is typically used with an external timer to disable the access device at certain
times.

Select Forced Entry Output Default: Output #3

Sets which output activates if the DOOR SENSE input opens before access is
granted. This output is not timed.

Press:

11#

Output

Output = Output to Activate (0-4)

1 = Main Relay 2 = Auxiliary Relay 3 = Output #3 4 = Output #4 0 = No Output

Select Door Ajar Output Default: Output #4

Sets which output activates if the DOOR SENSE input stays open 60 seconds
after access is granted. This output is not timed.

Press:

Output = Output to Activate (0-4)

1 = Main Relay , 2 = Au xiliary Rela y , 3 = Ou tput #3 , 4 = Outp ut #4 , 0 = No Output

12#

Output

#



#



Select Request-to-Exit Output Default: Main Relay

Sets which output activat e s when the Request-to-Exit i npu t i s grounded. This
output may be timed or toggled.

Press:

Output = Output to Activate (0-4)

1 = Main Relay , 2 = Au xiliary Rela y , 3 = Ou tput #3 , 4 = Outp ut #4 , 0 = No Output

Main Relay On-time Default: 2 Seconds

Sets the length of time the Main Relay activates when triggered.

Auxiliary Relay On-time Default: 2 Seconds

Sets the length of time Auxiliary Relay activates when triggered.

Press: 21

Seconds

Press:

Solid-state Output #3 On-time Default: 2 Seconds

Sets the length of time Output #3 activates when triggered.

Seconds

Press:

Seconds = Output time in seconds (0-60), 99 =Toggle Mode

16#

Output

#

Seconds

= Output time in seconds (0-60)

22

#Seconds #

= Output time in seconds (0-60)

23

#Seconds #

#



#

Select Keypad Lockout Output Default: No Output

Sets whi ch out put activ at es when t he keypad is “l ocked o u t” af t e r t oo many
incorrect entry code attempts. The lockout time is 60 seconds.

Press:

Output = Output to Activate (0-4)

1 = Main Relay , 2 = Au xiliary Rela y , 3 = Ou tput #3 , 4 = Outp ut #4 , 0 = No Output

Select Keypad Active Output Default: No Output

Sets which output activates when any keys are pressed. This output is timed. If
toggle mode is selected for the output, the timer value defaults to 2 seconds.

Press:

Output = Output to Activate (0-4)

1 = Main Relay , 2 = Au xiliary Rela y , 3 = Ou tput #3 , 4 = Outp ut #4 , 0 = No Output

Select Alarm Shunt Output Default: No Output

Sets which output activates during the time access is granted. (Use this output
to shunt alarm contacts attached to the access door.) This output may be timed
or toggled.

Press:

Output = Output to Activate (0-4)

1 = Main Relay , 2 = Au xiliary Rela y , 3 = Ou tput #3 , 4 = Outp ut #4 , 0 = No Output

13#

14#

15#

Output

Output

Output

#



#



#



Solid-state Output #4 On-time Default: 2 Seconds

Sets the length of time Output #4 activates when triggered.

Press:

Seconds = Output time in seconds (0-60), 99 =Toggle Mode

Set Downlight On-Time Default: 2 Minutes

Sets the time duration that the downlight remains on after a key press.

0 = A lw ay s of f, 1 = 1 mi nu te , 2 = 2 mi nu te s, 3 = 3 mi nu te s,

Beep Sounds on Keystrokes Default: Yes

Selects whether or not the keypad beeps as each key is pressed.

Beep Sounds During Main Relay Default: No

Selects whether or not the keypad beeps during Main Relay activation.

Press: 2 5 # Duration #

24

#Seconds #

4 = 4 m in ut es , 99 = A lw ay s on

Press:

40

#Sound #

Sound = 1 forY es, = 0 for No

Press: 41#

Sound = 1 forY es, = 0 for No

Sound

#



8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: [phone] - Email: [e-mail]

wwww.EntraPASS.com

5

Beep Sou

O

e

c

e

s

w

d

a

a

n

d

t

n

a

A

A

e

L

VCO

E

p

H

o

)

d

o

d

r

o

e

a

r

u

c

s

I

o

o

n

ot

e

c

s

l

t

o

o

t

t

e

h

c

W

e

s

e

r

c

a

t

e

t

m

W V

o

y

e

m

y

m

a

t

-

o

5

R

d

rr

a

e

h

s

o

m

t

i

d

s

p

a

n

r

a

i

s

p

e

n

c

et

o

e

x

g

0

e

n

w

d

d

a

8

Vte

u

m

6

n

a

bls.

weir

s

e

c

c

o

a

h

e

-

4

n

t

e

q

a

a

g

o

m

T

e

e

m

i

w

o

u

a

o

euy

n

t

o

L

p

rn.

a

e

r

r

R

p

a

g

n

e

c

a

m

h

Selects whe

Beep Sou

Selects whe

Beep Sou

Selects whe

Keypad L

Sets the nu
“locks out”.

Anti-pass

Sets the len

RESETT

TING KEYPAD

Master Re

UTION: Perform

◆

CAU
the e
prog
ALL

STEP 1 D
STEP 2 P
STEP 3 A

STEP 4 R

Resetting

STEP 1 O
STEP 2 L

STEP 3 W

STEP 4 R

nds During A

Auxiliary Relay

ether or not the key

Pre

ess:

Sou

nds During O

Output #3

ether or not the key

Pre

ess:

Sou

nds During O

Output #4

ether or not the key

Pre

ess:

Sou

Lockout Coun

umber of incorrec

ct entry code attem

Pres

Attempts

sback Time

gth of time an ent

= Nu

Pres

Minutes

eset

entire memory

grammable op

ENTRY CODE

Disconnect pow
Press and hold
Apply power to
down until the r

d
Release the key

emain lit until t

r

ndicator will go

in

g the Master C

Open the AK-2
Locate jumper J
master code.

m
With power app
The keypad will

T
has been reset

h
Replace jumpe

THE MASTER PR

T

=Time

ptions to the fa

o out.

Code

ROGRAMMING CO

ypad beeps during

42

#

Sou

und

= 1 forY es, = 0

ypad beeps during

43

#

Sou

und

= 1 forY es, = 0

ypad beeps during

44

#

Sou

und

= 1 forY es, = 0

nt

s:

50#

Attem

umber of attempts b

try code will not fun

ss: 51#

Minu

in Minutes (1-4), 0

D

ming a master

y of the AK-21

ES WILL BE E

ERASED.

wer from the ke

down the * an
the keypad, co

red indicator sta

ys. The red and

he process is c

1W case.
JP2. This jump

plied to the key

l begin to beep
.
r JP2.

y

g Auxiliary Relay a

und

#

0 for No

g Ou tput #3 activa

und

#

0 for No

g Ou tput #4 activa

und

#

0 for No

Defa

mpts allowed befo

mpts

#



before lockout (2-7

D

Default: No An

nct ion afte r it is us

utes

#

0 = No Anti-passba

r reset will clea

1W and return

actory default

eypad.

nd # keys.
ontinue holding

arts flashing.
d yellow indicat
complete, then

er is used to re

pad, remove ju

p, signaling that

ODE IS NOW1234

Default: No

activation.

Default: No

ation.

Default: No

ation.

ault: 3 Tries

fore the keypad

7)

ti-passback

sed.

ack

ar

all
values.

the keys

tors will

the yellow

eset the

umper JP2.

t the code

456.

AK-21W

Keypad us

SPECIFIC

LINEAR L

This Linear pr
twenty-four (24
warranty exten
Linear’s normal
Consumers sh
warranty, if any.

consequential
this product o
profit, or cost

implied warran ti
W arranty Expir

of all othe r wa

All products ret
(RPA#). Conta
important detail

FCC NOT

Changes or m
manufacturer c

This equipment
device, pursua
reasonable pr
equipment gen
and used in a
communication
particular insta
television recep
is encouraged t

❑

Users
entry

❑

Up to

❑

All dig
code i
“0 0 4

❑

If the
keypa

❑

After
green
progr

❑

If the
keypa
indica
remai

❑

After
the an

MECHANIC

Dim

ELECTRICA

ENVIRONM

Tem

• Reorient

• Increase

• Connect
which th

• Consult t

PERATION

rs request ac
of the AK-21

ode.

ight seconds

its of the entry

0042, the us

2”.

rong key is p
. The correct

correct code
and the progr
mmed time.

umber of inco

lockout coun

ing that the k

for one minu

valid code ha

ti-passback ti

TIONS

L

ensions: 3.00”

oltage: 12-24 V

Current: 30 mA t

utputs: Main R

For

Auxiliar

For

Solid st

Shor

NTAL

erature: -22°F t

umidity: 5%to 9

IMITED WA

duct is warrante
months. The Wa

s only t o wholes
distribution chann

uld inquire from t

Th ere are no o bl i

arising

damage

other indirect da

remov al, installa

es for merchantabil
tion Date as labele

ranties express or

rned for warranty
t Linear Technical

.

CE

difications not ex
uld void the user’s

has been tested a
t to Part 15 of th

tection against ha

rates, uses and c

cordance with t he

However, there i

lation. If this equi

ion, which can be d

try to correct the i

r relocate the re

the separation b

he equipment int
receiver is conn

dealer or an e

ess by enterin

have up to 4

are allowed b

code must be

r must enter

essed, pressi

ode can then

is entered, the

mmed relay

rrect codes en

, the yellow in

ypad is locked

e.
s been entere

e expires.

x 5.00” H x 3.00”

lts AC or DC

pical, 150 mA m

lay:

“C” 5 A mp s @2

Relay:

“C” 1 Am p @28

outputs (Outp

to-common 100

149°F (-30°C to

%non-condensi

RANTY

against defects i

anty Expiration D

le customers who

Linear does not

selling dealer

gation

ut of or in conne

ages with r esp e

ion, or reinst allat i

ty and implied warr

on the product. T

implied.

ervice require a R
Services a t 1-800

ressly described i

uthority to operate
d found to comply

e FCC R ules. Th

rmful interference

n radiate radio fre

instructions, may c

no guarant ee th

ment does cause

termined by turnin

terference by one

or liabiliti

eiving antenna.

tween the equip

an outlet on a ci
cted.
perienced radio/

their code.

seconds to k

tween each k
entered. Exa

g the * key w

be re-entered.

red indicator

ill activate for t
tered exceeds

icator will ligh

out. The lock

, it will be un

D

ximum

Volts maximum

olts maximum

ts #3 & #4):

A @24 VD C m

5°C)

n material and w
te is labeled o n th

direct from Li

arrant this produc

as to the nature

on the part of

tion with use or

t to loss of pr op e

All implied wa rr

nties for fitness, ar

is Linear LLCWar

turn Product Autho

21-1587 fo r a n

th is manual o r a
he equipment.

with the limits for
se limi ts a re desi
in a residential i

uency energy and,

use harmful int e rf

t interference will

harmful interferen

the equipment off

more of the foll owi

ent and re ceiver.
rcuit different fro

V technician for

in their

ystroke.
ple: If the

ll reset the

ill turn

he

the
t,
ut will

sable until

ximum

rkmanship for
product. This

ear or through

to consumers.

f the dealer’s

inear LLC for
erformance of
ty, revenue, or

nties, including

valid only until

an ty is in lieu

ization Numbe r

PA# and other

proved by the
Class B digital

ned to provide
stallation. This
if no t installed

rence to radio

not occur in a

e to radio or

nd on, the user

ng measures:

that to

elp.

8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: [phone] - Email: [e-mail]

wwww.EntraPASS.com
