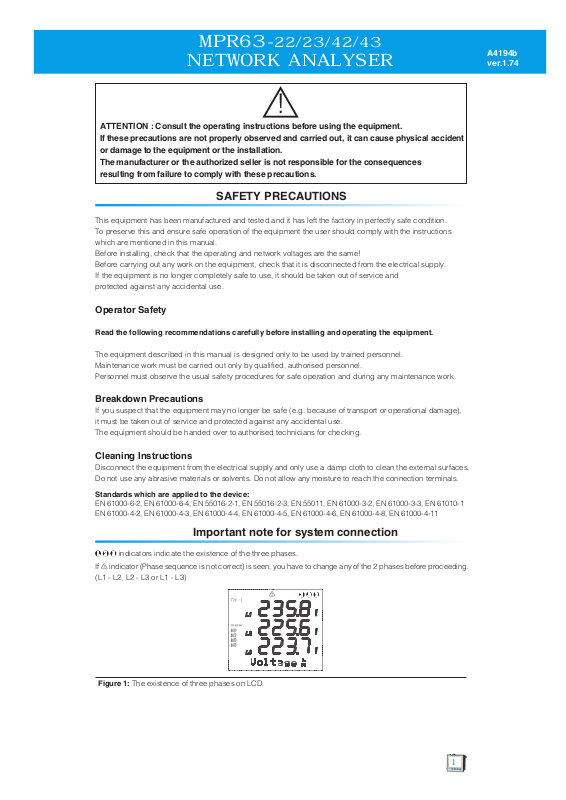

ENTES MPR-63 User guide

Important note for system connection

indicators indicate the existence of the three phases.

If

indicator (Phase sequence is not correct) is seen, you have to change any of the 2 phases before proceeding.

(L1 - L2, L2 - L3 or L1 - L3)

ATTENTION : Consult the operating instructions before using the equipment. If these precautions are not properly observed and carried out, it can cause physical accident or damage to the equipment or the installation. The manufacturer or the authorized seller is not responsible for the consequences

resulting from failure to comply with these precautions.

SAFETY PRECAUTIONS

This equipment has been manufactured and tested and it has left the factory in perfectly safe condition. To preserve this and ensure safe operation of the equipment the user should comply with the instructions which are mentioned in this manual. Before installing, check that the operating and network voltages are the same! Before carrying out any work on the equipment, check that it is disconnected from the electrical supply. If the equipment is no longer completely safe to use, it should be taken out of service and protected against any accidental use.

Operator Safety

Read the following recommendations carefully before installing and operating the equipment.

The equipment described in this manual is designed only to be used by trained personnel. Maintenance work must be carried out only by qualified, authorised personnel. Personnel must observe the usual safety procedures for safe operation and during any maintenance work.

Breakdown Precautions

If you suspect that the equipment may no longer be safe (e.g. because of transport or operational damage), it must be taken out of service and protected against any accidental use. The equipment should be handed over to authorised technicians for checking.

Cleaning Instructions

Disconnect the equipment from the electrical supply and only use a damp cloth to clean the external surfaces. Do not use any abrasive materials or solvents. Do not allow any moisture to reach the connection terminals.

Figure 1: The existence of three phases on LCD.

1

MPR63-22/23/42/43

NETWORK ANALYSER

ver.1.74

A4194b

Standards which are applied to the device:

EN 61000-6-2, EN 61000-6-4, EN 55016-2-1, EN 55016-2-3, EN 55011, EN 61000-3-2, EN 61000-3-3, EN 61010-1 EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11

SUMMARY

SAFETY PRECAUTIONS

..........................................................................................................................

1

IMPORTANT NOTE FOR SYSTEM CONNECTION.........................................................................

1

1. DESCRIPTION..........................................................................................................................................

3

1.1 Introduction...........................................................................................................................................3

1.2 The front panel.......................................................................................................................................4

1.3 Front panel properties...........................................................................................................................5

1.4 The rear panel.......................................................................................................................................6

2. INSTALLATION........................................................................................................................................

7

2.1 Mechanical assembly..........................................................................................................................7

2.2 Operating conditions............................................................................................................................7

2.3 Electrical connection.............................................................................................................................8

2.4 PC Connection.....................................................................................................................................9

3. MODBUS RTU PROTOCOL................................................................................................................

10

3.1 Modbus functions................................................................................................................................10

3.2 Features of connection cable..............................................................................................................11

3.3 I/O Relay Status Register.........................................................................................................................11

3.4 Learning of device informations(2BH).................................................................................................11

3.5 Reading and writing to data logs from device (14H)...........................................................................11

3.6 File record information table...............................................................................................................11

3.7 Energy log table..................................................................................................................................12

3.8 Error codes.........................................................................................................................................12

3.9 MPR-SW (Interface Program).............................................................................................................12

3.10 Harmonic values for voltage values.....................................................................................................13

3.11 Harmonic values for current values.....................................................................................................13

3.12 Data register map (16 bit)..........................................................................................................................14

3.13 Data register map (32 bit).........................................................................................................................15

3.14 Setup register map (16 bit) (MPR63-

22) .........................................................................................................16

3.15 Setup register map (16 bit) (MPR63

-23) .........................................................................................................17

3.16 Setup register map (16 bit) (MPR63

-42) .........................................................................................................18

3.17 Setup register map (16 bit) (MPR63

-43) .........................................................................................................19

4. GENERAL MENU.....................................................................................................................................

20

4.1 Setup..................................................................................................................................................20

4.2 Network...............................................................................................................................................20

4.3 Setting the date and time....................................................................................................................21

4.4 PC Communication Settings (RS-485).................................................................................................21

4.5 Datalog.................................................................................................................................................22

4.6 Output Relays and Digital Outputs (Relay 1 and Relay 2)...............................................................................23

4.7 Pulse Outputs (Pulse A and Pulse R) (MPR63

-23/43) ........................................................................26

4.8 Digital Inputs (3. Input-1 / 4. Input-2) (MPR63

-22/42) ........................................................................28

4.9 Display.................................................................................................................................................29

4.10 Instantaneous Values..........................................................................................................................29

4.11 Energy.................................................................................................................................................32

4.12 Harmonic.............................................................................................................................................33

4.13 Demand..............................................................................................................................................35

4.14 Observing the time and date...............................................................................................................38

4.15 Info.......................................................................................................................................................39

4.16 Manufacturer-Product Information.........................................................................................................40

4.17 Password.............................................................................................................................................40

4.18 Parameter Table..................................................................................................................................41

4.19 Formulas..............................................................................................................................................41

4.20 Current Analog Output (0/4-20mA) (MPR63

-42/43) .....................................................................................42

4.21 Voltage Analog Output (0/2-10V) (MPR63

-22/23) .....................................................................................43

4.22 Factory Settings......................................................................................................................................44

4.23 Technical Data.....................................................................................................................................45

2

1. DESCRIPTION

Figure 2: General view of the device.

3

1.1 INTRODUCTION

Device is a network analyser in 96x96 mm dimension with a non-flammable enclosure. It is designed for measuring all electrical parameters, including seperately measured “current” and “voltage” harmonic values (up to 31th harmonic) of an electric network with MODBUS-RTU Protocol on RS-485 communication port in order to communicate with the computer. Thanks to MPR-SW Software, the collected data are monitored in personal computer and saved in to its memory. Device also has some other important features such as real time clock, 1 MB internal memory, password for setup, alarm contact output, displaying minimum, maximum and demand values.

1.2 THE FRONT PANEL

4

Figure 3: Display and buttons.

Four buttons provide access to programming and measurement screens. The display is LCD and has a white backlight.

BUTTON

FUNCTION

KEY FUNCTIONS

Exit from a menu any time (THD I and THD V can also be displayed)

Go to next menu or increase related value

Go to the previous menu or decrease related value

Enter to a menu or confirm the data entry

1 ......... Menu (ENTER) button.

2 ......... Down button.

3 ......... Up button.

4 ......... ESC button. Exits from a menu or settings at any time.

(THD I, THD V can also be displayed)

5 ......... Menu / Energy line : Shows the present menu. / It also shows the energy values.

6 .......... Shows whether the value in the Energy Menu is Export, Import, Inductive or capacitive.

7 .......... Active output is indicated.

8 .......... Harmonic bars: The total harmonics of the 3 phases are displayed in bar graphs.

The columns represent L1, L2 and L3 phases. Each step indicate 10% increase /

decrease V is for the voltages harmonics and I is for the currents harmonics.

9 .......... Indicates if the measure is phase to phase or phase to neutral.

10.......... The Cosϕ or PF (Power Factor) value of the related phase.

11 .......... Indicates if the measurement is capacitive or inductive.

12 .......... Min. and Max. symbols for the demand menu.

13 .......... Indicates that the harmonics are displayed on the screen.

14 .......... Total symbol. Shows the total value of the related measurement.

15 .......... Phase sequence failure

16 ......... Demand symbol. Shows the demand value of the related parameter.

17 ......... PC Communication indicator.

18 ......... Phase indication symbols.

19 ......... Shows the following measurement values with units.

(V, kV, MV, A, kA, MA, W, kW, MW, VA, kVA, MVA, VAr, kVAr, MVAr %)

20 ......... 3.6’’ LCD Display.

21 ......... Backlight.

22 ......... Shows the unit of energy values. (kWh, kVArh, MWh, MVArh)

7

6

9

10

8

17

19

20

21

22

5

4

3

2

1

11

12

13

14

18

1615

1.3 DISPLAY

5

1.Relay-1

17 18 19 20

2.Relay-2

3.Pulse-A

21 22 23 24

4.Pulse-R

26

25

11 12 13

GND14A15B16TR

3.Input-1

21 22 23 24

4.Input-2

27 28

L1 L2 L3

1 (k)

2 (l)

3 (k)

4 (l)

5 (k)

6 (l)

6

1.4 THE REAR PANEL

Figure 4: The terminals on the rear panel.

Current monitoring terminals

7

L1

8

L2

9

L3

10

N

Voltage monitoring terminals

Digital output / Alarm

Energy pulse outputs (

Only for

MPR63-23/43)

Auxiliary supply terminals

Digital inputs (

Only for

MPR63-22/42)

Analog output 2

Analog output 1 / RS-485 output (Only for MPR63

-22/23/42/43)

MPR63-23/43

MPR63-22/42

RS485

L1 L2 L3

1

2

3

4

5

6

1.Relay-1

17 18 19 20

21 22 23 24

26

25

2.Relay-2

!

CAT III

11 12 13

GND14A15B16TR

27 28

Analog Out-2 Analog Out-1

Network Analyser

7

L1

8

L29L3

10

N

∆Un: 85-265 V AC/DC; 50/60Hz; <6 VA

Iin: 0.005-5.5A (IL1,IL2,IL3)

Vin: 1-300 VAC (L-N) ; 2-500 VAC (L-L)

~

U

n

3.Input-1 4.Input-2

RS485

L1 L2 L3

1

2

3

4

5

6

1.Relay-1

3.Pulse-A

17 18 19 20

21 22 23 24

26

25

4.Pulse-R

2.Relay-2

!

CAT III

11 12 13

GND14A15B16TR

27 28

Analog Out-2 Analog Out-1

Network Analyser

7

L1

8

L29L3

10

N

∆Un: 85-265 V AC/DC; 50/60Hz; <6 VA

Iin: 0.005-5.5A (IL1,IL2,IL3)

Vin: 1-300 VAC (L-N) ; 2-500 VAC (L-L)

~

U

n

2. INSTALLATION

Figure 5: Dimension and the panel cut-out.

7

2.1 MECHANICAL ASSEMBLY

The following drawings are the overall dimensions for the device and the panel cut-out.

70mm

Wall

50mm

79.3mm

90mm

Type PR 19

91mm

2.2 OPERATING CONDITIONS

CLIMATIC ENVIRONMENT

The device should be protected from water / dense moisture and be installed in a covered enclosure when used in a dusty environment.Ambient operating temperature is between -5

o

C and +50 oC

ELECTRICAL ENVIRONMENT

Although the device is protected against electrical current fluctuations, it is advisable to avoid the immediate proximity of equipment generating heavy drains (high power contactors, sets of busbars, etc.) The quality of communication obtained from the computer bus depends to a large extent on observing these precautions.

Panel Cut-Out

96mm

Figure 8: ARON connection (3 phase without neutral connection)

8

2.3 ELECTRICAL CONNECTION

Figure 6: 3 phase with neutral connection

Figure 7: 3 phase without neutral connection

Wire thickness for voltage terminals must be 2.5 mm2 and 4.0 mm2for current terminals. For energy pulse outputs, the required wire thickness is 1.5 mm

2

.

The fuse must be Type FF with 1A current limit.

L1 L2 L3

1

2

3

4

5

6

17 18 19 20 26

25

7

L18L29L310N

L1

L2

L3

N

k

l

K L

k

l

K L

k

l

K L

only for

MPR63-22 MPR63-42

only for

MPR63-23 MPR63-43

21 22 23 24

3. Input 1

Max:30VDC

Input 1 Input 2

+

_

4. Input 2

RS-485

11 12 13

GND14A15B16TR

Analog

Out-1

21 22 23 24

Max:30VDC

+

_

21 22 23 24

3. Pulse A 4. Pulse R

Max:30VDC

Pulse A

Pulse R

+

_

27 28

Analog

Out-2

RS-485

1112 13

GND14A15B16TR

Analog

Out-1

2728

Analog

Out-2

L1

L2

L3

L1 L2 L3

1

2

3

4

5

6

17 18 19 20 26

25

7

L18L29L310N

k

l

K L

k

l

K L

21 22 23 24

Max:30VDC

+

_

RS-485

1112 13

GND14A15B16TR

Analog

Out-1

2728

Analog

Out-2

1. Relay 1 2. Relay 2

3. Input 1

Ýnput 1 Ýnput 2

4. Input 2

External

Supply

Voltage Measurement Inputs

Current Measurement Inputs

1. Relay 1 2. Relay 2

3. Input 1

Ýnput 1 Ýnput 2

4. Input 2

External

Supply

Voltage Measurement Inputs

Current Measurement Inputs

L1 L2 L3

1

2

3

4

5

6

17 18 19 20 26

25

7

L18L29L310N

L1

L2

L3

k

l

K L

k

l

K L

k

l

K L

1. Relay 1 2. Relay 2

21 22 23 24

3. Input 1

Max:30VDC

+

_

4. Input 2

RS-485

1112 13

GND14A15B16TR

Analog

Out-1

2728

Analog

Out-2

External

Supply

Voltage Measurement Inputs

Current Measurement Inputs

Ýnput 1 Ýnput 2

3 phase without neutral connection

1 A

L1 N

3 Phase with neutral connection

1 A

L1 N

3 Phase without neutral Aron connection

1 A

L1 N

2.4 PC CONNECTION

9

Figure 10:

By using repeaters, 247 devices can be connected to the same line.

GNDTR B A

GND

B A

PC

..

.

MPR63-xx-1MPR63-xx-2MPR63-xx-31

MAX. 1200 mt.

RS-485/RS-232 or RS-485/USB

CONVERTER

GND

MPR63-xx-247.

GND

B A

PC

...

MPR63-xx-1.MPR63-xx-2.MPR63-xx-20.REPEATER

MAX. 1200 mt. MAX. 1200 mt.

TR

B

A

...

Figure 9:

31 devices can be connected to the same line.

RS 485/232 Converter is necessary for communicating with computer.

After 20 pieces of MPR63-41, a repeater is adviced for amplifiying the data signal.

RS-485/RS-232 or RS-485/USB

CONVERTER

Single register writing command (06) is used to set the transformer ratios or clear any of min., max. or demand values. Current transformer ratio can be entered between 1 and 5000 and voltage transformer ratio can be entered between 1 and 4000. Only “0” (zero) value can be entered to the demand values.

For setting the CT ratio as 100;

01 Device address 06 Function 01 MSB address 00 LSB address 00 Data MSB 64 Data LSB 89 CRC MSB DD CRC LSB

Multiple register writing command (10H) is used to change more than one register value. For setting the CT ratio as 100 and voltage transformer ratio as 2;

RESPONSE

01 Device address 01 Device address 10 Function 10 Function 01 MSB address 01 Register address (high) 00 LSB address 00 Register address (low) 00 Register number MSB 00 Number of registers (high) 02 Register number LSB 02 Number of registers (low) 04 Byte number 40 CRC (high) 00 Data MSB 34 CRC (low) 64 Data LSB 00 Data MSB C8 Data LSB BE CRC MSB 76 CRC LSB

Register Readýng (03H) function is used to read measured parameters and transformer ratios. If a register is tried to read except for values, device sends error message. . Example : This message must be sent to the device for reading the phase-neutral voltage of Phase 1;

01 Device address 03 Function 00 MSB address 00 LSB address 00 Register numbers MSB 01 Register numbers LSB 84 CRC MSB 0A CRC LSB

03H REGISTER READING

06H SINGLE REGISTER WRITING

10H MULTIPLE REGISTER WRITING

3.1 Modbus Functions:

14H

2BH

3. MODBUS RTU PROTOCOL

MODBUS RTU PROTOCOL

Standard message format of MODBUS RTU is as below :

Starting and finishing of T times, which are as much as 3.5 characters time, are time periods of data lines which must be constant for evaluating by devices at the line if the message starts or finishes.

Address area, which is between 1 and 247, shows the serial address of device at the line. Data area contains the data which is sent to device from slave to master or from master to slave. CRC is a determination methode of error which is used at the MODBUS RTU Protocol and it has 2 bytes

T

ADDRESS

8 BITS

FUNCTION

8 BITS

DATA

N x 8 BITS

CRCH CRCL T

Parameters are transmitted as 16 bit hexadecimal. For example: 230,6 V voltage value of the device is received as 2306 (0902H) and real value is obtained by multiplying to its multiplier (x0,1) and VT ratio 1,907A current value is received as 1907 (0773H) and it is multiplyed by 0,001 and CT ratio

-0,78 P.F. value is received as FCF4H. (16 bit signed integer) Energy values are sent as 2 words in 16 bit register table. Energy value = (High x 10.000) + Low Example : Low High 06237819 kWh = 1E8BH 026FH

10

LOG DATA RECORD READING

DEVICE INFORMATION READING

3.2 Features of connection cable:

- Screened

- 24 AWG or more thickness

- DC resistance : =<100 ohm/km

- Characteristic impedance : 100 ohm for 100kHz

- Capacitor between two conductors : =< 60 pF/m

- Capacitor between one conductor and earth : =< 120 pF/m

3.6 File Record Information Table

It shows the number of records, open file and total number of recordings of the files which have data logs.

3.5 Reading and writing to data logs from device (14H)

Modbus RTU 14H function is used to transmit measured parameters to the computer, when the device is not connected with computer.

01 14 07 06 00 00 00 02 00 01 99 24 Answer

01 Device address 14 Function 07 Byte number 06 Referance type 00 File number MSB 00 File number LSB 00 Record number MSB 02 Record number LSB 00 Record length MSB 01 Record length LSB 99 CRC MSB 24 CRC LSB

0-15

0-999

1

} }

}

3.4 Learning of device informations (2BH)

Following data packet is sent to device to learn the device code,program version,manufacturer name and manufacturer web site :

01 2B 0E 01 00 70 77

11

3.3 I/O Relay Status Register.

I/O Relay Status register is used to observe the status of device outputs

When Relay 1 is switched on, 0 (zero) bit of I/O Relay Status Register is read as 1 and when Relay 1 is not switched on it is read as 0. When Relay 2 is switched on, 1st bit of I/O Relay Status Register is read as 1 and when Relay 2 is not switched on it is read as 0. If Relay Functions (Setup register:011AH/012DH) is set to “1” then Relay 1/2 functions as “Digital Output 1/2”.

01 Device address 14 Function 46 Data length 20 Record length 06 Referance type 00 Record number MSB 02 Record number LSB 02 Record date Day 10 Record date Month 05 Record date Year 19 Record date Hour 07 Record date Minute 23 Record date Second 08 Data 01 MSB BC Data 01 LSB 08 Data 02 MSB 95 Data 02 LSB

00 Data 28 MSB 00 Data 28 LSB 71 CRC MSB B0 CRC LSB

...

ADDRESS

DESCRIPTION DIMENSION

0401H 0402H

0410H 0411H

0400H

word

Record numbers at File 1

Record numbers at energy file Total record numbers

File which is recorded now. (0-15) Record numbers at File 0

...

Warning : Data logs must be deleted individually for each file.

For deleting the data logs at the File 0, below request must be sent.

Request : 01 06 04 01 00 00 D9 3A

Response : 01 06 04 01 00 00 D9 3A

}

record numbers

word word

Index Hi

Month Lo

Log format

Index Lo Day Hi

Year Hi

Hour Lo Minute Hi Second Lo Data 01 Hi Data 01 Lo Data 02 Hi Data 02 Lo

...

Data 28 Hi Data 28 Lo

Type

Word

Range

0..999

Word

1..31

1..12

00.99

00..23

00..59

0..65535

* Please refer to page 12 for energy log table.

For switch ON Relay 1

Example : 01 06 00 4C 00 01 CRC

For switch ON Relay 2

Example : 01 06 00 4C 00 02 CRC

For switch ON both relays

Example : 01 06 00 4C 00 03 CRC

For switch OFF both relays

Example : 01 06 00 4C 00 00 CRC

(Only for MPR63-22/42)

0

Relay1

123

Relay2

456

789101112

131415

00000000000000

0

Relay1

123

Relay2

456

789101112

131415

000000000000

Input1Input2

(Only for MPR63-23/43)

12

3.7 Energy Log

3.9 MPR-SW; Interface Program

MPR-SW is a recording and analysis prog ram which is designed to use with all Entes pr oducts which has RS-485 outputs. MPR-SW Program records each parameter of the connected Entes products with programmable time intervals, draws graphics, billing f or the ene rgy con sumption between adjustab le dates, with 2 way communication. Maximum 247 devices can communicate with one software.

Device takes 64 samples in each period. For 50 Hz, it takes 3200 samples in one second and for 60 Hz, it takes 3840 samples in one second.

3.8 ERROR CODES

If an inappropriate message is sent to device in MODBUS-RTU protocol, device sends an error message. Error codes are mentioned below :

01 Invalid Function

This message is received when a function is used which is not supported by device.

Example : Request 01 07 04 01 00 00 CRC Response 01

Device address

87 80 h + 07h

01 Error code 82 CRC (high) 30 CRC (low)

03 Invalid Data :

This message is received when data is not found in required value intervals which is wanted to write.

02 Invalid Register

This message is received when an address is wanted to reach which is not found in register table of device.

}

constant

invalid function code

}

Example : Request 01 06 50 00 00 CRC Response 01

Device address

86 80 h + 06h

02 Error code C3 CRC (high) A1 CRC (low)

}

constant

function code

Example : Request 01 03 00 00 00 FF CRC Response 01

Device address

83 80 h + 03h

03 Error code 01 CRC (high) 31 CRC (low)

}

constant

function code

}

Index Energy Log Format Dimension Multiplier Range Unit

1 Index Word 0..999 -

Day(Hi) 1..31 Month(Lo) 1..12 Year(Hi) 00..99 Hour (Lo) 00..23 Minute(Hi) 00..59 Second (Lo) 00..59 Import Active Energy(Lo)

Export Active Energy (Lo)

Inductive Reactive Energy(Lo)

Capacitive Reactive Energy(Lo)

9

Voltage High LN1 Word Data x VT x 0.1 0...Vmax V

10

Voltage High LN2 Word 0...Vmax V

11

Voltage High LN3 Word 0...Vmax V

12

Current High L1 Word Data x CT x 0.001 0...Imax A

13

Current High L2 Word 0...Imax A

14

Current High L3 Word 0...Imax A

Total Curent High Total Curent Low

16

Total Current Demand Word 0...Imax A

17

Total Active Power Demand Signed Word Data x VT x CT 0..±Ptmax W

18

Total Reactive Power Demand Signed Word 0..±Qtmax

19

Total Appearnt Power Demand Word 0..Stmax

VA

20

Frequency Word Data x 0.01

45.00..65.00

Hz

21

Total Power Factor Signed Word Data x 0.001 -1.000..1.000

22

Current Transformer Ratio Word Data 1..5000

A

15

Word

0...Imax

Word

99999999

8

7

99999999

kVArh/ MVArh

99999999

6

Word

5

Word

99999999

kWh/ MWh

2

Word

3

Word

4

Word

Data x 10000

Data x VT x 0.1 Data x VT x 0.1

Data x CT x 0.001 Data x CT x 0.001

Data x CT x 0.001

Data x VT x CT Data x VT x CT

23

24

25

26

27

d

y

m

h m s

-

Data

Word

0...Imax

Data x CT x 0.001

Word

VAr

A

Word

28

Voltage Transformer Ratio

Word

Data x 0.1

1..4000.0

-

Data x 10000

Data

Data x 10000

Data

Data x 10000

Data

Import Active Energy(Hi)

Export Active Energy(Hi)

Inductive Reactive Energy(Hi)

Capacitive Reactive Energy(Hi)

29

30

31

32

Current Demand L1 Word Data x CT x 0.001 0...Imax A Current Demand L2 Word 0...Imax A Current Demand L3 Word 0...Imax A

Data x CT x 0.001 Data x CT x 0.001

Word

Data

CRC 16

-

Energy Pack CRC

kWh/ MWh

kVArh/ MVArh

13

3.10 Harmonic Values for Voltages at the L1, L2 and L3 Phases

3.11 Harmonic Values for Currents at the L1, L2 and L3 Phases

ADDRESS D E S C R I P T I O N

DIMENSION (16 bit)

UNITMULTIPLIER

0201H 0202H 0203H

021FH 0220H 0221H 0222H 0223H

023FH

0200H

% %

Data x 0,1

Word

VL1 2nd Harmonic V

L1

3rd Harmonic

V

L1

31th Harmonic

.............

...

VL2 2nd Harmonic V

L2

3rd Harmonic

VL2 31th Harmonic

.............

...

%

VL3 2nd Harmonic

V

L3

3rd Harmonic

V

L3

31th Harmonic

.............

...

%

0240H 0241H 0242H 0243H

025FH

.............

Word

Word Word

Word

Word Word

Word

Data x 0,1

Data x 0,1 Data x 0,1

Data x 0,1

Data x 0,1 Data x 0,1

Data x 0,1

ADDRESS DESCRIPTION UNITMULTIPLIER

0301H 0302H 0303H

031FH 0320H 0321H 0322H 0323H

033FH

0300H

% %

IL1 2nd Harmonic I

L1

3rd Harmonic

I

L1

31th Harmonic

.............

...

IL2 2nd Harmonic I

L2

3rd Harmonic

I

L2

31th Harmonic

.............

...

%

IL3 2nd Harmonic

I

L3

3rd Harmonic

I

L3

31th Harmonic

.............

...

%

0340H 0341H 0342H 0343H

035FH

.............

Data x 0,1 Data x 0,1

Data x 0,1

Data x 0,1 Data x 0,1

Data x 0,1

Data x 0,1 Data x 0,1

Data x 0,1

Word Word

Word

Word Word

Word

DIMENSION (16 bit)

3.12 Data Register Map (16 bit)

14

ADDRESS DESCRIPTION UNIT

0002H 0003H 0004H 0005H 0006H 0007H 0008H 0009H 000AH 000BH 000CH 000DH 000EH 000FH 0010H 0011H 0012H 0013H 0014H 0015H 0016H 0017H 0018H 0019H 001AH 001BH 001CH

0000H 0001H

003CH 003DH 003EH 003FH 0040H 0041H 0042H 0043H 0044H 0045H 0046H 0047H 0048H 0049H 004AH 004BH

004CH

004DH 004EH

003AH 003BH

001FH 0020H 0021H 0022H 0023H 0024H 0025H 0026H 0027H 0028H 0029H 002AH 002BH 002CH 002DH 002EH 002FH 0030H 0031H 0032H 0033H 0034H 0035H 0036H 0037H 0038H 0039H

001DH 001EH

V A A A A W W W VAr VAr VAr VA VA VA

V V V V V

W

V V

VA

% % % % % % % % V V V V V V A A A A A A A A A A A A W

VAr VA

VAr

Hz

Voltage LN3 Current LN1 Current LN2 Current LN3 Total Current Active Power L1 Active Power L2 Active Power L3 Reactive Power L1 Reactive Power L2 Reactive Power L3 Apparent Power L1 Apparent Power L2

Apparent Power L3

Power Factor L1 Power Factor L2 Power Factor L3 Cos L1 Cos L2 Cos L3 Voltage L12 Voltage L23 Voltage L31 Voltage LN Voltage LL Frequency

Total Active Power

Voltage LN1 Voltage LN2

*Import Active Energy Lo

*Demand Total Reactive Power *Demand Total Apparent Power

*Import Active Energy Hi *Export Active Energy Lo

*Export Active Energy Hi *Inductive Reactive Energy Lo *Inductive Reactive Energy Hi *Capacitive Reactive Energy Lo

*Capacitive Reactive Energy Hi

THD V1 THD V2 THD V3 THD V3P THD I1 THD I2 THD I3 THD I3P *Voltage High LN1 *Voltage High LN2 *Voltage High LN3 *Voltage Low LN1 *Voltage Low LN2 *Voltage Low LN3 *Demand Current High L1 *Demand Current High L2 *Demand Current High L3 *Demand Current Low L1 *Demand Current Low L2 *Demand Current Low L3 *Demand Current L1 *Demand Current L2 *Demand Current L3 *Demand Total Current High *Demand Total Current Low *Demand Total Current *Demand Total Active Power

Total Reactive Power Total Apparent Power

-

MULTIPLIER

DIMENSION (16 bit)

RANGE

Word

Word Word Word

Signed Int Signed Int

Signed Int Signed Int Signed Int Signed Int

Signed Int

Signed Int Signed Int

Signed Int Signed Int Signed Int

Signed Int

Signed Int Word Word

Word Word Word Word Word Word

Word Word Word Word Word

Word Word Word

Word

Word Word

Word Word Word Word

Word Signed Int

Signed Int Word

Data x VT x 0.1 Data x VT x 0.1 Data x VT x 0.1 Data x CT x 0.001 Data x CT x 0.001 Data x CT x 0.001 Data x CT x 0.001

Data x VT x CT

Data x VT x CT Data x VT x CT

Data x VT x CT Data x VT x CT Data x VT x CT

Data x VT x CT

Data x 0.001 Data x 0.001 Data x 0.001

Data x 0.001 Data x 0.001 Data x 0.001 Data x VT x 0.1

Data x VT x 0.1 Data x VT x 0.1 Data x VT x 0.1 Data x VT x 0.1 Data x 0.01

Data x VT x CT

Data x VT x CT Data x VT x CT Data x 0.1 Data x 0.1 Data x 0.1 Data x 0.1

Data x 0.1 Data x 0.1

Data x VT x 0.1 Data x VT x 0.1 Data x VT x 0.1 Data x VT x 0.1 Data x VT x 0.1 Data x VT x 0.1

Data x CT x 0.001 Data x CT x 0.001 Data x CT x 0.001 Data x CT x 0.001

Data x VT x CT

Data x VT x CT Data x VT x CT (Data + Data x 10000) (Data + Data x 10000) (Data + Data x 10000)

(Data + Data x 10000)

0 .. Vmax 0 .. Vmax 0 .. Vmax 0 .. Imax 0 .. Imax 0 .. Imax 0 .. Imax

0 .. ±Pmax

0 .. ±Pmax 0 .. ±Pmax

0 .. ±Qmax 0 .. ±Qmax

0 .. ±Qmax 0 .. Smax 0 .. Smax 0 .. Smax

-1.000 .. 1.000

-1.000 .. 1.000 0 .. Vmax

0 .. Vmax 0 .. Vmax 0 .. Vmax 0 .. Vmax

45.00 .. 65.00

0 .. ±Pt max

0 .. ±Qt max 0 .. St max 0 .. 900 0 .. 900 0 .. 900 0 .. 900

0 .. 900 0 .. 900 0 .. 900

0 .. 900

0 .. Vmax 0 .. Vmax 0 .. Vmax 0 .. Vmax 0 .. Vmax 0 .. Vmax

0 .. Imax 0 .. Imax 0 .. Imax 0 .. Imax

99999999

-

Minute

Second Day

Month

Year Current Transformer Ratio

Voltage Transformer Ratio

Total Power Factor

Hour

A

h m s day month year

Neutral Current

-

Signed Int

Binary

Word

Data Data Data Data

Data Data Data Data x 0.1 Data & 0x0003

Data x 0.001

Data x CT x 0.001

0 .. 23 0 .. 59

0 .. 31 0 .. 12 00 .. 99 1 .. 5000

1.0 .. 4000.0 b0:Relay1,b1:Relay2

-1.000 .. 1.000

0..IN max.

0 .. 59

Word

Word : 16bit Unsigned (0..65,535) Signed Int : 16bit Signed (-32,768 .. 32,767)

0 .. +Pt max

0 .. +Qt max 0 .. St max

* Writable registers (Only “0” (zero) value can be written)

Word

IO Relay and Control Status (only MPR63-22/42)

b0:Relay1,b1:Relay2 b2:Input1, b3:Input2

Data & 0x000F

VA

W

VAr

Signed Int

Word

Data x VT x CT

0 .. +Pt max

0 .. +Qt max

0 .. St max

VA

W

VAr

Signed Int

Signed Int Word

Data x VT x CT

Data x VT x CT Data x VT x CT

0 .. +Pt max

0 .. +Qt max 0 .. St max

*Demand Total Reactive Power High

*Demand Total Apparent Power High

*Demand Total Active Power High

*Demand Total Reactive Power Low *Demand Total Apparent Power Low

*Demand Total Active Power Low

004FH

0050H

0051H

0052H

0053H

0054H

IO Relay Status (only MPR63-23/43)

kWh/MWh

kVArh/MVArh

3.13 Data Register Map (32 bit)

(Following values are multiplied by Voltage and Current Transformer Ratios)

15

Long : 32bit Unsigned (Hi:Lo) 0..4294967295 Signed Long : 32bit Signed (Hi:Lo) -2,147,483,648 .. 2,147,483,647

* Writable registers (Only “0” (zero) value can be written)

ADDRE SS DESCRIPTION

UNITMULTIPLIER

4002H

4004H

4006H 4008H 400AH 400CH 400EH

4010H

4012H

4014H

4016H

4018H 401AH

401CH

4000H

4040H

4042H

4044H

4046H

4048H 404AH

4050H

4052H

4054H

4020H 4022H

4024H

4026H

4028H 402AH

401EH

Voltage LN3 Current LN1 Current LN2 Current LN3 Total Current Active Power L1 Active Power L2 Active Power L3 Reactive Power L1 Reactive Power L2 Reactive Power L3 Apparent Power L1 Apparent Power L2

Apparent Power L3

Power Factor L1 Power Factor L2 Power Factor L3 Cos L1 Cos L2 Cos L3

Voltage L12 Voltage L23 Voltage L31 Voltage LN Voltage LL

Frequency Total Active Power

Voltage LN1 Voltage LN2

*Import Active Energy

*Demand Total Reactive Power *Demand Total Apparent Power

*Export Active Energy *Inductive Reactive Energy *Capacitive Reactive Energy

THD V1 THD V2 THD V3 THD V3P THD I1 THD I2 THD I3 THD I3P *Voltage High LN1 *Voltage High LN2 *Voltage High LN3

*Voltage Low LN1 *Voltage Low LN2 *Voltage Low LN3 *Demand Current High L1 *Demand Current High L2

*Demand Current High L3

*Demand Current Low L1 *Demand Current Low L2 *Demand Current Low L3 *Demand Current L1 *Demand Current L2 *Demand Current L3

*Demand Total Current High

*Demand Total Current Low *Demand Total Current *Demand Total Active Power

Total Reactive Power Total Apparent Power

403CH 403EH

403AH

402EH

4030H

4032H

4034H 4036H

4038H

402CH

404CH

404EH

4058H

405AH

405CH 405EH

4056H

4060H

4062H

4064H

4066H

4068H

406AH 406CH

406EH

4070H

4072H

4074H

4076H

4078H 407AH 407CH 407EH

4080H

4082H

4084H

4086H

4088H

408AH

408CH 408EH

4090H

4092H

4094H

DIMENSION (32 bit)

Long

Signed Long

Long Long

Long

Signed Long

Long

Signed Long

Long

Signed Long

Signed Long Long Long Long

Long

Long Long Long

Long

Data x 0.01 Data x 0.01

Data x 0.01

Data x 0.001 Data x 0.001

Data x 0.001

Data x 0.01

Data x 0.001

Data x 0.01

Data x 0.1 Data x 0.1

Data x 0.1

Data x 0.01

Data x 0.001

Data x 0.01

Data x 0.01 Data

Data

RANGE

Data x 0.01

Data x 0.01 Data x 0.01

Minute

Second

Day Month

Year

Current Transformer Ratio

Voltage Transformer Ratio

Total Power Factor

Hour

Neutral Current

Data

Data x 0.1

Data & 0x0003

Data x 0.001

Binary

Signed Long

Long

V A A A A W W W VAr VAr VAr VA VA VA

V V V V V

W

V V

VA

% % % % % % % % V V V V V V A A A A A A A A A A A A W

VAr VA

VAr

Hz

A

h m s

day

month

year

-

0 .. Vmax x VT

0 .. ±Pmax x VT x CT

-1.000 .. 1.000

0 .. Vmax x VT

45.00 .. 65.00

0 .. 900

0 .. 23

0 .. 59

0 .. 31

0 .. 12

00 .. 99

1 .. 5000

1.0 .. 4000.0

b0:Relay1,b1:Relay2

-1.000 .. 1.000

0..IN max.

0 .. 59

99999999

0 .. Vmax x VT 0 .. Vmax x VT

0 .. Imax x CT

0 .. ±Pmax x VT x CT

0 .. ±Qmax x VT x CT

0 .. Smax x VT x CT

0 .. Vmax x VT

0 .. ±Pt max x VT x CT

0 .. ±Qt max x VT x CT

0 .. St max x VT x CT

0 .. 900

0 .. Vmax x VT

0 .. Imax x CT

0 .. +Pt max x VT x CT

0 .. +Qt max x VT x CT

0 .. St max x VT x CT

99999999

Long

Signed Long

Data & 0x000F

b0:Relay1,b1:Relay2 b2:Input1, b3:Input2

IO Relay and Control Status (only MPR63-

22/42)

IO Relay Status (only MPR63-23/43)

Long

Data x 0.01

VA

W

VAr

0 .. +Pt max x VT x CT

0 .. +Qt max x VT x CT

0 .. St max x VT x CT

Signed Long

Long

Data x 0.01

VA

W VAr

0 .. +Pt max x VT x CT

0 .. +Qt max x VT x CT

0 .. St max x VT x CT

Signed Long

4096H

4098H

409AH

409CH

409EH

40A0H

*Demand Total Reactive Power High

*Demand Total Apparent Power High

*Demand Total Active Power High

*Demand Total Reactive Power Low *Demand Total Apparent Power Low

*Demand Total Active Power Low

kW h/MWh kW h/MWh kV Ar h/M VAr h kV Ar h/M VAr h

16

3.16 Setup Register Map (16 bit) (for MPR63-22)

0102H 0103H

0104H 0105H 0106H 0107H 0108H 0109H 010AH 010BH 010CH 010DH 010EH 010FH 0110H 0111H 0112H 0113H 0114H 0115H 0116H 0117H 0118H 0119H 011AH 011BH 011CH

0100H 0101H

015AH 015BH

015CH 015DH 015EH 015FH 0160H

0157H 0158H

011FH 0120H

0121H 0122H 0123H 0124H 0125H 0126H 0127H 0128H 0129H 012AH 012BH 012CH 012DH 012EH 012FH 0130H 0131H 0132H 0133H 0134H

014FH

0156H

011DH 011EH

Data x 0.1

Net Type Reserved

Reserved Reserved Reserved Reserved

Relay1 Parameter1 Relay1 Hi1

Relay1 Lo1 Relay1 Delay1

Relay1 Hysteresis1

Reserved Relay1 Parameter2

Relay1 Hi2 Relay1 Lo2 Relay1 Delay2

Relay1 Hysteresis2

Reserved Relay1 Parameter3

Relay1 Hi3 Relay1 Lo3 Relay1 Delay3 Relay1 Hysteresis3

Reserved Relay1 Function Relay2 Parameter1

Relay2 Hi1

Current Transformer Ratio Voltage Transformer Ratio

Hour

Demand Time

Minute Second Reserved

Day

Month Year

Reserved

Relay2 Hysteresis1 Reserved

Relay2 Parameter2 Relay2 Hi2 Relay2 Lo2 Relay2 Delay2

Relay2 Hysteresis2

Reserved Relay2 Parameter3

Relay2 Hi3 Relay2 Lo3 Relay2 Delay3 Relay2 Hysteresis3 Reserved Relay2 Function

Log Period Log Event Log Energy Period

Log Par 1

Relay2 Lo1 Relay2 Delay1

Log Par 28

sec.

0135H

Log Par 2

ADDRESS DESCRIPTION

DIMENSION (16bit)

UNIT

MULTIPLIER

...

0159H

Total Energy / Seperately

0161H 0162H

0163H 0164H

Serial Number (1,2) Serial Number (3,4) Serial Number (5,6)

Serial Number (7,8)

Word (

Hi/Lo)

...

sec.

ASC II ASC II ASC II ASC II

Word

Word Word

Word

Word Word

Word

Word Word

Word

Word Word

Word

Data

0:3P4W 1:3P3W 2:ARON

Data Data

Data Data Data Data

Data Data Data

Data

Data Data Data Data

0:Alarm / 1:Digital Output Data

Data Data Data

Data

Data Data Data Data

Data Data 0:Alarm/ 1:Digital Output Data

Data Data Data

0:Total/1:Separately

Data Data

Data Data Data

Data Data Data Data Data

Data Data Data Data

Char.1 / Char.2

0:Off / 1:On

...

h m s

day

month

year

Word (

Hi/Lo)

Word (

Hi/Lo)

Word (

Hi/Lo)

Char.3 / Char.4 Char.5 / Char.6 Char.7 / Char.8

0165H

Input 1 Function

0166H

Input 2 Function

Word

0:Real Time / 1:Lacth 0:Real Time / 1:Lacth

minute

0167H

Word

0168H

Word

Data

0169H

Word

Data

016AH

Word

Data

016BH

Energy Counter Unit

Word

0:Kilo / 1:Mega

016CH

2. Analog Output Type

1. Analog Output Type

0: 2-10V / 1: 0-10V

2. Analog Output Parameter

2. Analog Output Low

2. Analog Output High

1. Analog Output Parameters

1. Analog Output Low

1. Analog Output High

17

3.17 Setup Register Map (16 bit) (for MPR63-23)

0102H 0103H 0104H 0105H 0106H 0107H 0108H 0109H 010AH 010BH 010CH 010DH 010EH 010FH 0110H 0111H 0112H 0113H 0114H 0115H 0116H 0117H 0118H 0119H 011AH 011BH 011CH

0100H 0101H

015AH 015BH 015CH 015DH 015EH 015FH 0160H

0157H 0158H

011FH 0120H 0121H 0122H 0123H 0124H 0125H 0126H 0127H 0128H 0129H 012AH 012BH 012CH 012DH 012EH 012FH 0130H 0131H 0132H 0133H 0134H

014FH

0156H

011DH 011EH

Data x 0.1

Net Type Reserved

Relay1 Parameter1 Relay1 Hi1

Relay1 Lo1 Relay1 Delay1

Relay1 Hysteresis1 Reserved Relay1 Parameter2

Relay1 Hi2 Relay1 Lo2 Relay1 Delay2

Relay1 Hysteresis2 Reserved Relay1 Parameter3

Relay1 Hi3 Relay1 Lo3 Relay1 Delay3 Relay1 Hysteresis3

Reserved Relay1 Function Relay2 Parameter1

Relay2 Hi1

Current Transformer Ratio Voltage Transformer Ratio

Hour

Demand Time

Minute Second Reserved

Day

Month Year

Reserved

Relay2 Hysteresis1 Reserved

Relay2 Parameter2 Relay2 Hi2 Relay2 Lo2 Relay2 Delay2

Relay2 Hysteresis2

Reserved Relay2 Parameter3 Relay2 Hi3 Relay2 Lo3 Relay2 Delay3 Relay2 Hysteresis3 Reserved Relay2 Function

Log Period Log Event Log Energy Period

Log Par 1

Relay2 Lo1 Relay2 Delay1

Log Par 28

sec.

0135H

Log Par 2

ADDRESS DESCRIPTION

DIMENSION (16bit)

UNIT

MULTIPLIER

...

0159H

Total Energy / Seperately

0161H 0162H

0163H 0164H

Serial Number (1,2) Serial Number (3,4) Serial Number (5,6)

Serial Number (7,8)

Word (

Hi/Lo)

...

sec.

ASC II ASC II ASC II ASC II

Word

Word Word

Word

Word Word

Word

Word Word

Word

Word Word

Word

Data

0:3P4W 1:3P3W 2:ARON

Data Data

Data Data Data Data

Data Data Data

Data

Data Data Data Data

0:Alarm / 1:Digital Output Data

Data Data Data

Data

Data Data Data Data

Data Data 0:Alarm/ 1:Digital Output Data

Data Data Data

0:Total/1:Separately

Data Data

Data Data Data

Data Data Data Data Data

Data Data Data Data

Char.1 / Char.2

0:Off / 1:On

...

h m s

day

month

year

Word (

Hi/Lo)

Word (

Hi/Lo)

Word (

Hi/Lo)

Char.3 / Char.4 Char.5 / Char.6 Char.7 / Char.8

0165H

Reserved

0166H

Reserved

Word

Data Data

minute

0167H

Word

0168H

Word

0169H

Word

Data

016AH

Word

Data

016BH

Word

Data

016CH

Energy Counter Unit

Word

0:Kilo / 1:Mega

3.Pulse-A Prm.

3.Pulse-A Duration

4.Pulse-R Prm.

4.Pulse-R Duration

kWh ms kVArh ms

2. Analog Output Type

1. Analog Output Type

0: 2-10V / 1: 0-10V

2. Analog Output Parameter

2. Analog Output Low

2. Analog Output High

1. Analog Output Parameters

1. Analog Output Low

1. Analog Output High

18

3.18 Setup Register Map (16 bit) (for MPR63-42)

0102H 0103H

0104H 0105H 0106H 0107H 0108H 0109H 010AH 010BH 010CH 010DH 010EH 010FH 0110H 0111H 0112H 0113H 0114H 0115H 0116H 0117H 0118H 0119H 011AH 011BH 011CH

0100H 0101H

015AH 015BH 015CH 015DH 015EH 015FH

0160H

0157H 0158H

011FH 0120H 0121H 0122H 0123H

0124H 0125H 0126H 0127H 0128H 0129H 012AH 012BH 012CH 012DH 012EH 012FH 0130H 0131H 0132H 0133H 0134H

014FH

0156H

011DH 011EH

Data x 0.1

Net Type Reserved

Reserved Reserved Reserved Reserved

Relay1 Parameter1 Relay1 Hi1

Relay1 Lo1 Relay1 Delay1

Relay1 Hysteresis1 Reserved Relay1 Parameter2

Relay1 Hi2 Relay1 Lo2 Relay1 Delay2

Relay1 Hysteresis2 Reserved Relay1 Parameter3

Relay1 Hi3 Relay1 Lo3 Relay1 Delay3 Relay1 Hysteresis3

Reserved Relay1 Function Relay2 Parameter1

Relay2 Hi1

Current Transformer Ratio Voltage Transformer Ratio

Hour

Demand Time

Minute Second Reserved

Day

Month Year

Reserved

Relay2 Hysteresis1 Reserved

Relay2 Parameter2 Relay2 Hi2 Relay2 Lo2 Relay2 Delay2

Relay2 Hysteresis2

Reserved Relay2 Parameter3

Relay2 Hi3 Relay2 Lo3 Relay2 Delay3 Relay2 Hysteresis3 Reserved Relay2 Function

Log Period Log Event Log Energy Period

Log Par 1

Relay2 Lo1 Relay2 Delay1

Log Par 28

sec.

0135H

Log Par 2

ADDRESS DESCRIPTION

DIMENSION (16bit)

UNIT

MULTIPLIER

...

0159H

Total Energy / Seperately

0161H 0162H

0163H 0164H

Serial Number (1,2) Serial Number (3,4) Serial Number (5,6)

Serial Number (7,8)

Word (

Hi/Lo)

...

sec.

ASC II ASC II ASC II ASC II

Word

Word Word

Word

Word Word

Word

Word Word

Word

Word Word

Word

Data

0:3P4W 1:3P3W 2:ARON

Data Data

Data Data Data Data

Data Data Data

Data

Data Data Data Data

0:Alarm / 1:Digital Output Data

Data Data Data

Data

Data Data Data Data

Data Data 0:Alarm/ 1:Digital Output Data

Data Data Data

0:Total/1:Separately

Data Data

Data Data Data

Data Data Data Data Data

Data Data Data Data

Char.1 / Char.2

0:Off / 1:On

...

h m s

day

month

year

Word (

Hi/Lo)

Word (

Hi/Lo)

Word (

Hi/Lo)

Char.3 / Char.4 Char.5 / Char.6 Char.7 / Char.8

0165H

Input 1 Function

0166H

Input 2 Function

Word

0:Real Time / 1:Lacth 0:Real Time / 1:Lacth

minute

0167H

Word

0168H

Word

0169H

Word

Data

016AH

Word

Data

016BH

Word

Data

016CH

Energy Counter Unit

Word

0:Kilo / 1:Mega

2. Analog Output Type

1. Analog Output Type

0: 4-20mA / 1: 0-20mA

2. Analog Output Parameter

2. Analog Output Low

2. Analog Output High

1. Analog Output Parameters

1. Analog Output Low

1. Analog Output High

19

3.19 Setup Register Map (16 bit) (for MPR63-43)

0102H 0103H 0104H 0105H 0106H 0107H 0108H 0109H 010AH 010BH 010CH 010DH 010EH 010FH 0110H 0111H 0112H 0113H 0114H 0115H 0116H 0117H 0118H 0119H 011AH 011BH 011CH

0100H 0101H

015AH 015BH 015CH 015DH 015EH 015FH 0160H

0157H 0158H

011FH 0120H 0121H 0122H 0123H 0124H 0125H 0126H 0127H 0128H 0129H 012AH 012BH 012CH 012DH 012EH 012FH 0130H 0131H 0132H 0133H 0134H

014FH

0156H

011DH 011EH

Data x 0.1

Net Type Reserved

Relay1 Parameter1 Relay1 Hi1

Relay1 Lo1 Relay1 Delay1

Relay1 Hysteresis1 Reserved Relay1 Parameter2

Relay1 Hi2 Relay1 Lo2 Relay1 Delay2

Relay1 Hysteresis2 Reserved Relay1 Parameter3

Relay1 Hi3 Relay1 Lo3 Relay1 Delay3 Relay1 Hysteresis3

Reserved Relay1 Function Relay2 Parameter1

Relay2 Hi1

Current Transformer Ratio Voltage Transformer Ratio

Hour

Demand Time

Minute Second Reserved

Day

Month Year

Reserved

Relay2 Hysteresis1 Reserved

Relay2 Parameter2 Relay2 Hi2 Relay2 Lo2 Relay2 Delay2

Relay2 Hysteresis2

Reserved Relay2 Parameter3 Relay2 Hi3 Relay2 Lo3 Relay2 Delay3 Relay2 Hysteresis3 Reserved Relay2 Function

1. Analog Output Parameter

1. Analog Output Low

1. Analog Output High

Log Period Log Event Log Energy Period

Log Par 1

Relay2 Lo1 Relay2 Delay1

Log Par 28

sec.

0135H

Log Par 2

ADDRESS DESCRIPTION

DIMENSION (16bit)

UNIT

MULTIPLIER

...

0159H

Total Energy / Seperately

0161H 0162H

0163H 0164H

Serial Number (1,2) Serial Number (3,4) Serial Number (5,6)

Serial Number (7,8)

Word (

Hi/Lo)

...

sec.

ASC II ASC II ASC II ASC II

Word

Word Word

Word

Word Word

Word

Word Word

Word

Word Word

Word

Data

0:3P4W 1:3P3W 2:ARON

Data Data

Data Data Data Data

Data Data Data

Data

Data Data Data Data

0:Alarm / 1:Digital Output Data

Data Data Data

Data

Data Data Data Data

Data Data 0:Alarm/ 1:Digital Output Data

Data Data Data

0:Total/1:Separately

Data Data

Data Data Data

Data Data Data Data Data

Data Data Data Data

Char.1 / Char.2

0:Off / 1:On

...

h m s

day

month

year

Word (

Hi/Lo)

Word (

Hi/Lo)

Word (

Hi/Lo)

Char.3 / Char.4 Char.5 / Char.6

Char.7 / Char.8

0165H

Reserved

0166H

Reserved

Word

Data

minute

0167H

1. Analog Output Type

Word

0: 4-20mA / 1: 0-20mA

0168H

2. Analog Output Type

Word

0: 4-20mA / 1: 0-20mA

0169H

2. Analog Output Parameters

Word

Data

016AH

2. Analog Output Low

Word

Data

016BH

2. Analog Output High

Word

Data

016CH

Energy Counter Unit

Word

0:Kilo / 1:Mega

3.Pulse-A Prm.

3.Pulse-A Duration

4.Pulse-R Prm.

4.Pulse-R Duration

kWh ms kVArh ms

Net (Network Type)

The network type is set in this menu.

3P4W :

3 Phase + Neutral (Star connection)

3P3W :

3 Phase without Neutral (Delta connection)

ARON :

ARON connection.

NOT : In 3P3W connections, as the neutral point is not connected, V

LN voltages could be monitored

different on unbalanced voltages.

4.1 SETUP

In order for correct measurements and applications, make necesarry configurations in the SETUP menu. Sub-menus under the SETUP menu and settings are explained in detail below.

4.2 Network

In this menu, current transformer primary value, voltage transformer ratio and system connection type of device are set. It has 5 sub-menus.

“CT:…..”, “VT:……”, “Net:……”, “Eng:........”, “E.Unit:.......”

CT (Current Transformer Ratio)

The current transformer

ratio

is set between 1...5000.

20

Figure 11:

Setting the current transformer ratio

Figure 12:

Setting the voltage transformer ratio

Eng

If “Tot” menu is selected, device measures the reactive powers of the phases. If the total reactive power of the phases is inductive, it is recorded to the inductive area; If capacitive, it is recorded to the reactive area. If “Sprt” menu is selected, device measures the reactive powers of three phases for each phase seperately. If it is in the inductive area, it is recorded to the inductive reactive area. If it is in the capacitive area, it is recorded to

the capacitive reactive area.

Measurement for each phase seperately can be done for 3P4W (3 Phase with Neutral) systems.

Figure 14:

Setting the energy calculation type

Figure 13:

Setting the type of system connection

VT (Voltage Transformer Ratio)

The voltage transformer ratio can be adjusted between 1.0...4000.0 Please be careful that this value must be the voltage transformer ratio but not the value of the primary or secondary voltage.

4. GENERAL MENU

It is used for determine the units of energy counters.Counters can be chosen Mega or Kilo.

for example :

If energy counter value is 12345678901 kWh

when

“k”

is chosen, 45678901 kWh will be displayed or

when

“M”

is chosen, 12345678 MWh will be displayed.

E.Unit: (Energy Unit)

21

It is essential to set the correct date and the time to obtain the right dates on the datalog menu

Date

(DD/MM/YYYY)

4.3 Date and Time

Figure 15:

Setting the date

Time(Hour / Minute / Seconds)

Figure 16:

Setting the time

4.4 RS-485 (PC Communication Settings)

All the measured parameters can be transferred to PC through the MPR-SW Software by MODBUS RTU Protocol. Device can be configured with PC through the MPR-SW Software.

It is necesarry to set the Baud Rate, Address and Parity values to the device correctly.

RS-485 has 3 sub-menus

‘‘Addr: ...’’ , ‘‘Bd: ...’’, ‘‘Prt: ...’’

Addr (Address Information)

Address Information can be set between 1 and 247.

Figure 17:

Setting the address information

Bd (Baud Rate Value)

Baud rate is set between 1200 bps and 38400 bps.

Figure 18:

Setting the baud rate value

Warning :

You may quit all settings any time by key. You must record any change in the settings by menu key.

22

IMPORTANT NOTE:

The “PARITY” should be selected as

None

in order to communicate with MPR-SW Software.

4.5 Datalog

Prt (Parity Settings)

Parity settings are set as none, even or odd.

Parameter Settings

Figure 20:

Setting the “Pr12” Parameter

Per (Period Menu)

Period is the time interval between 2 consecutive records and can be set between 5 - 32.000 seconds.

If period is set to “off”, then no parameters will be recorded.

Figure 19:

Setting the Parity Settings

Figure 21:

Setting the period time

Warning :

You may quit all settings any time by key. You must record any change in the settings by menu key.

Device records the choosen 28 parameters in its

1 MB memory

with date and time stamp. The choice of the parameters and recording details are set in Datalog menu. These records can be monitored on the PC and not affected by energy cut off.

The “Datalog” menu has 30 sub-menus.

“Pr1:...” “Pr2:...” ....... “Pr28:...” , “Per:..”. , “Event:...”

“Pr1: ...” “Pr2: ...” ........ “Pr28:...” (Parameter Menus)

28 parameters can be associated with these sub menus with one parameter per each menu which will be recorded to memory

The parameters that can be see in parameter tables (See page 43).

15.000 record lines can be stored in memory on the condition, where the total 28 parameters are called as one record line. At 15.001st record, the first 1000 records are cleared automatically. And then, last record will be read as 14001th.

Note:

Even if less than 28 parameters are entered in sub menus, devices memory allocation is still for 28 parameters for each record line. So assigning less parameters do not increase memory capacity.

23

Device has 2 relays (NO Normally open) for alarm outputs. Any 3 parameters can be associated with any of the two relays at the same time. For each parameter, under, over, hysterisis and time delay values can be programmed. If the measured value of the set parameter exceeds the programmed values during the delay time, output relay switches on.

4.6 1. Relay 1 and 2. Relay 2

Event

Figure 23:

Active relays are displayed on LCD.

Relay 2 is switched on

Relay 1 is switched on

When “event” is on, the associated parameter array is recorded in case any of the output relays are switched on / off, regardless of period. So, the parameter values can be examined at the time of relay switching on.

Warning :

You may quit all settings any time by key. You must record any change in the settings by menu key.

Figure 22:

Setting the event

1. Relay 1 / (2. Relay 2)

The list of the parameters which can be associated with relays are marked with * on parameter table on page 43. Relay 1 / (Relay 2) has 16 sub-menus.

Cfg:

Configiration

Pr :

Parameter

Hi :

High (over)

Lo :

Low (under)

Hs :

Hysterisis

Dly :

Time Delay

Menu of 1st Parameter

“Pr1:...”, “Hi1:...”, “Lo1:...”, “Hs1:...”, “Dly1:...”

Menu of 2nd Parameter

“Pr2:...”, “Hi2:...”, “Lo2:...”, “Hs2:...”, “Dly2:...”

Menu of 3rd Parameter

“Pr3:...”, “Hi3:...”, “Lo3:...”, “Hs3:...”, “Dly3:...”

By this parameter, relays can be configured as “Alarm Output” (Cfg: Alarm) or as “Remote Control” (Cfg: DOut).

Cfg (Configuration)

Figure 24:

Relay control type setting

24

Figure 25:

Setting of IL1 as the first parameter with 1.5 A < IL1 < 2.5 A having 20 mA hysterisis and

10 seconds delay time.

Pr1 (1st Parameter)

Example of programming parameter:

Here, the steps of setting of I

L1 as the first parameter (Pr1)

with 1.5 A < I

L1 < 2.5 A having 20 mA hysterisis and 10 seconds

delay time will be described.

See Figure 25

.

The following Pr2 and Pr3 follow the same procedure. It is advised to keep unused parameters in “Off” mode to prevent false alarms.

If any parameter will not be associated with Pr1, “Off” option must be selected.

25

Hi1 (High / over value for the 1st parameter)

When the measured value is over the Hi1 value, Relay 1 (or Relay 2) is switched on complying with Hs1 (Hysterisis 1) and Dly1 (Delay 1) values.

Lo1 (Low / under value for the 1st parameter)

When the measured value is under the Lo1 value, Relay 1 (or Relay 2) is switched on complying with Hs1 (Hysterisis 1) and Dly1 (Delay 1) values.

Figure 27:

Setting the low (under) value for the 1st parameter

Figure 26:

Setting the high (over) value for the 1st parameter

Hs1 (Hysteresis value for the 1st parameter)

This function is added to prevent system from unexpected oscillations during switch off. When the switch off values of the associated parameters are over (or under) of Lo1 (or Hi1) values as the hysterisis

value respectively, the Relay1 switches off.

Figure 28:

Setting the hysteresis value for the 1st parameter

Warning :

You may quit all settings any time by key. You must record any change in the settings by menu key.

26

Warning

Where more than one parameter is associated with the output relay, and when the output relay is triggered by more than one measure, switch-off will be realized by the last remaining measure.

A pulse has been generated from

3.Pulse A Output

Device has 2 Pulse Outputs. It is possible to see, which one of these outputs generate pulse, from the LCD at any time.

Each time the consumed energy increases by an increment of “Prm”, a pulse, as long as the “Dur” value entered (msec), is produced in the Pulse Outputs.

A pulse has been generated from

4.Pulse R Output

4.7 Pulse Outputs (3. Pulse A / 4. Pulse R) (MPR63-23/43)

Energy

t (msec)

Prm

3.Pulse A / 4.Pulse R

t (msec)

5-24V

max 30V

Dur

(Duration)

Figure 30:

Energy - Pulse output graphic

Dly1 (Delay time for the 1st parameter)

When the triggering signal is sent to the relay1, the relay1 will wait during the delay time before switching on. If the alarm signal is over during the delay time, the relay1 will not switch on.

Figure 29:

Setting the delay time for the 1st parameter.

Warning :

You may quit all settings any time by key. You must record any change in the settings by menu key.

OR

GATE

Dly

Time

Hys.

Output

Relay

Pr1

Pr2

Pr3

Hold Reg.

Digital Output Control

3. Pulse A (Import Active Energy Pulse Output) (only for MPR63-23/43)

4. Pulse R (Inductive Reactive Energy Pulse Output) (only for MPR63-

23/43)

A pulse is generated in 3. Pulse A relevant with the import active energy value or in 4. Pulse R relevant with the inductive reactive energy value. For example, a pulse for every increase of 10 kWh for 3. Pulse A or for every increase of 10 kVArh for 4. Pulse R.

3. Pulse A (4. Pulse R) has 2 sub-menus.

“Prm: ...” , “Dur: ...”

27

Prm (Import Active / Inductive Reactive Energy Value to Set for 1 Pulse)

A pulse is generated from 3. Pulse A and 4.Pulse R output for each increase of the Prm value by a desired amount (1 kWh - 50.0 MWh / 1 kVArh - 50 MVArh)

Dur (Pulse Width in Miliseconds)

The pulse width is adjusted between 100 - 2500 msec.

Figure 32:

Setting the pulse width.

Note :

Even though the sub-menus under the 3. Pulse A and 4. Pulse R have the same names,

these menus are independent of each other.

For Example:

It is possible to enter a specific parameter to the sub-menu “Prm” of 3. Pulse A and a different parameter to the sub-menu “Prm” of 4. Pulse R.

Figure 31:

Setting the parameter value

Warning :

You may quit all settings any time by key. You must record any change in the settings by menu key.

28

Warning :

You may quit all settings any time by key. You must record any change in the settings by menu key.

Figure 35:

Latch function type operation.

In order to reset input registers, which are set in latch function, “0” bit has to be written in I/0 status register.

In order to configure

Input-1

function, in

0165 H

register:

- “0” has to be entered for Real Time and

- “1” has to be entered for Latch.

Figure 34:

Real Time function operation

In order to configure

Input-2

function, in

0166 H

register:

- “0” has to be entered for Real Time and

- “1” has to be entered for Latch.

Input 1 and Input 2 register bits show inputs status.

0

Relay1

123

Relay2

456

789101112

131415

000000000000

Input1Input2

Addres: 004C H

Device has 2 digital inputs. User can monitor the applied voltage to the input on the LCD display.

Figure 33:

Setting the function value

3.Input-1 / 4.Input-2

Input: 5-24V DC

max. 30V DC

min. 50 msec.

Time

I/0 Status Register

1

Time

0

3.Input-1 / 4.Input-2 Bits

3.Input-1 / 4.Input-2

Input: 5-24V DC

max. 30V DC

min. 50 msec.

Time

I/0 Status Register

1

Time

0

Write “0” to I/O Status Register Bit

3.Input-1 / 4.Input-2 Bits

4.8 Digital Inputs (3. Input-1 / 4. Input-2)

(Only for MPR63-22/42)

29

In this menu, LCD display settings are configured. It has 3 sub-menus.

“Loop: ...” , “Cont: ...” , “BL: ...”

Loop (Loop duration)

In this menu, the duration of displaying instantaneous value is adjusted automatically. The Loop duration can be adjusted as “No” or between 1... 600 in terms of seconds.

For example;

when the loop duration is set as 10sec. in the Instantaneous Values menu, if any button is not pressed during 10 sec. the Instantaneous values are displayed in sequence for 10 seconds periods. By using this function all instantaneous values can be observed sequentially without pressing any buttons. This function can be cancelled by selecting “No” option in the Loop Menu.

Cont (Contrast - LCD Display Clarity Settings)

The value can be set between 1....6.

BL(Backlight

)

Measured values can easily be read on the LCD screen even in dark environments with feature of the backlight function.

On :

Backlight is On continuously.

Off :

Backlight is Off continuously.

Auto :

Backlight is switched on automatically when a button is pressed. It is switched off automatically at

the end of 30 seconds if any button is not pressed again.

Figure 37:

Setting the contrast clarity

Figure 38:

Setting the contrast clarity

This menu is the last menu that is reached by pressing ESC button while in any menu. Also it is the main menu of device. If you wait a while without pressing any buttons in any menu, the Instantaneous value menu automatically comes back. When device is energized for the first time, the device is in the Instantaneous values menu and shows the instantaneous values. The display is seen as below.

Figure 36:

Setting the loop duration

L1

L2

L3

Warning :

You may quit all settings any time by key. You must record any change in the settings by menu key.

4.9 Display

4.10 INSTANTANEOUS VALUES

By scrolling with (UP), (DOWN) buttons while in the Instantaneous Values Menu, the below parameters of the network are displayed.

At the bottom of the screen, the active sub-menu is displayed. Each bar on the left indicates the ratio between total harmonic amount of current or voltage for each phase as a percentage value. Each step is 10%. It is possible to switch between “THD V” and “THD I” by ESC button. Also, it is possible to see the numerical values of the THD values by going to the Instantaneous Values Menu.

THD V : Total Harmonic Distortion of Voltage THD I : Total Harmonic Distortion of Current

-

Voltage

Reactive (VAr)

Freq. Hz

Voltage

Apparent (VA)

Average

Currents

Σ

Powers

Average

P. Factor

Σ

P.F.

Σ

Current

Cos

ϕ

THD V %

In Neutral Current (A)

-

L L

L N

L L

Active (W)

THD I %

-

30

Measured phase-neutral voltage value

Measured phase-phase voltage value

Power factor measure of all phases

Current measure of each phase

Cosϕ measure of all phases

Active power measure of all phases

Apparent power measure of all phases

Reactive power measure of all phases

VL1, VL2, V

L3

V

L1-2

, V

L2-3

, V

L3-1

PFL1, PFL2, PF

L3

IL1, IL2, I

L3

Cos

ϕL1, Cos

ϕL2, Cos

ϕ

L3

PL1, PL2, P

L3

SL1, SL2, S

L3

QL1, QL2, Q

L3

Measured total active, total reactive and total apparent power values

The total harmonic values for voltages of each phase

The total harmonic values for currents of each phase

Total power factor values of all phases

ΣP,Σ

Q ,ΣS

*

When ARON connection is chose, “L2 - - -” symbol is seen at the , , ,

, , , , , , max.IL, min.IL,

IL menus.

*

The total current-voltage harmonic values are displayed in THD V% and THD I% menus as graphic bars on the left. Any time at the instantaneous values menu (except THD V% and THD I%), you can scroll between THD V and THD I with pressing ESC button. Harmonic menu can be used for watching the harmonic values detailed.

NOTES: *

If there is “-” symbol before the measured active power, it indicates the existence of active export power.

31

Frequency of the system.

(The frequency is measured from the L1 phase.)

The average value of the measured phase-phase voltages

The average value of the measured phase-neutral voltages

The total current value of all phases

Av. = (VL1 + VL2 + VL3) / 3

Av. = (V

L1-2

+ V

L2-3

+ V

L3-1

) / 3

32

The Energy Values:

In this menu, below energy values are displayed and cleared.

Export Active Energy

Import Active Energy

Inductive Reactive Energy Capacitive Reactive Energy values

These energy values can be cleared one by one or all at once.

Imp. (Import Active Energy)

Figure 39:

Import Active Energy value

Clearing the Import Active Energy value

Figure 40:

Clearing the Import Active Energy value

Exp. (Export Active Energy value)

Figure 41:

Export Active Energy value

Clearing the Export Active Energy value

Figure 42:

Clearing the Export Active Energy value

Ind. (Inductive Reactive Energy)

Figure 43:

Inductive Reactive Energy value

Watching the Values of the Other Parameters

Other parameters are grouped under the;

ENERGY, HARMONIC, DEMAND, TIME, DATE

menus.

4.11 ENERGY

33

Clearing the Inductive Reactive Energy value

Figure 44:

Clearing the Inductive Reactive Energy value

Cap. (Capacitive Reactive Energy)

Figure 45:

Capacitive Reactive Energy value.

Clearing the Capacitive Reactive Energy value

Figure 46:

Clearing the Capacitive Reactive Energy value

Clearing all energy values (Exp, Imp, Ind, Cap)

Figure 47:

Clearing all energy values

Observing the Harmonic Values:

In this menu, you can observe below parameters :

X 2

Warning :

You may quit all settings any time by key. You must record any change in the settings by menu key.

2nd.....31th..Harmonic Values (One by one for voltage)

2nd.....31th..Harmonic Values (One by one for current )

4.12 HARMONIC

34

Warning :

You may quit all settings any time by key. You must record any change in the settings by menu key.

Figure 50:

Harmonic values for currents.

Observing harmonics values for currents from 2nd to 31th harmonics

Figure 51:

Harmonic values for currents.

Figure 49:

Harmonic values of voltages.

THD I%: (Current Harmonics)

It is possible to see both, the total harmonic values for currents of each phase and up to 31th harmonic values of each phase separately.

THD V% (Voltage Harmonics)

The total harmonic values for voltages of each phase and the values of the harmonics between 2nd and 31th of each phase can be seen separately.

Observing Harmonic Values

Figure 48:

Harmonic values.

35

4.13 DEMAND

Observing Demand, min. and max. Values

Demand :

It shows the averages which arise on power and current during demand time.

min. value :

It shows the min. value different from zero that measured on voltages.

max. value :

It shows the max. value that measured on voltages.

*max.V

L-N

(max. voltage values between Phase-Neutral)

*min.V

L-N

(min. voltage values between Phase-Neutral)

*max. Demand IL

(Max. demand values of phase currents)

*min. Demand IL

(Min. demand values of phase currents)

*Demand IL

(Demand values of phase currents)

*max. Demand ΣI and min. Demand ΣI

(Total max. and min. demand values of phase current)

*DemandΣ IL

(Demand value of total phase current)

*DemandΣP, Demand ΣQ and Demand ΣS

(Demand values of total power values)

max. Demand ΣP, max. Demand ΣQ and max. Demand ΣS

(Max. demand values of total powers)

min. Demand ΣP, min. Demand ΣQ and min. Demand ΣS

(Min. demand values of total powers)

Minimum, maximum and demand values can be cleared one by one or all at once.

Clearing the max. VLN (Max. values of the phase-neutral voltages)

Figure 56:

Clearing the max. VLN

max. VLN (Max. values of the phase-neutral voltages)

Figure 55:

Max. VLN

Figure 54:

Demand values

36

Figure 57:

Min. VLN value

Clearing the min. VLN (Min. values of the phase-neutral voltages)

Figure 58:

Clearing the min. VLN value

max. Demand IL (Max demandvalues of phase currents)

Figure 59:

Max. demandIL value

Clearing the max. Demand IL (Max demand values of phase currents)

Figure 60:

Clearing the max. demand IL value

min. Demand IL (Min demand values of phase currents)

Figure 61:

Min. demand IL value

Clearing the min. Demand IL (Min demand values of phase currents)

Figure 62:

Clearing the min. demand IL value

Warning :

You may quit all settings any time by key. You must record any change in the settings by menu key.

37

DemandΣ Powers (Demand values of total powers)

Active (P), Reactive (Q) and Apparent (S) Powers

Figure 67:

DemandΣ Powers

Demand IL (Demand values of the currents)

Figure 63:

Demand IL

Clearing the Demand IL (Demand values of the currents)

Figure 64:

Clearing the demand IL

DemandΣl, Min. / Max. Demand Σl (Demand, Min and max demand values of total phase currents)

Figure 65:

DemandΣ l, Min. / Max. demand Σ l

Clearing Demand Σl, Min. / Max. Demand Σl (Demand, Min and max demand values of total phase currents)

Figure 66:

Clearing the demand Σ l, Min. / Max. demand Σ l

Clearing the Demand Σ Powers (Demand values of total powers)

Figure 68:

Clearing the demandΣ Powers

Warning :

You may quit all settings any time by key. You must record any change in the settings by menu key.

Time and Date, which are configured from the SETUP menu, are kept in the memory. Even if the power is switched off, the informations of time and date are saved into the memory.

Time and Date Menus

TIME (Menu for observing the time)

38

Clearing All Demand values and Min. / Max. Values at Once

4.14 TIME AND DATE

Figure 73:

Clearing all demand values and min. / max. values at once

Figure 74:

Time

Max. DemandΣ Powers (Max. demand values of total powers)

Figure 69:

Max. demand value of Σ Powers

Max. Demand Σ Powers (Clearing max. demand values of total powers)

Figure 70:

Clearing max. demand values ofΣ Powers

Min. DemandΣ Powers (Min. demand values of total powers)

Figure 71:

Max. demand value of Σ Powers

Min. Demand Σ Powers (Clearing min. demand values of total powers)

Figure 72:

Clearing max. demand values ofΣ Powers

Eng. Rec. (Energy recording)

Device records all energy values ( Export Active, Import Active, Inductive Reactive, Capacitive Reactive) in the permanent memory for energy values in every 15 minutes. 1000 record lines are allocated for energy values. When this area is filled, all energy recordings are cleared to enable further records.

39

Clearing all recorded parameters from Pr1 to Pr28 in Log. Rec. permanent memory

Note:

Allocated areas for parameter and energy values are independent from each others.

The permanent memory is not affected from power cuts.

Figure 76:

Clearing all recorded parameters

Figure 77:

Energy records

Above, 113 record lines are memorised and 11,3% of the memory is used.

INFO

The information about the memory of the device and the manufacturer are seen in this menu. Information menu has 3 sub-menus.

“Log.Rec.....”, “Eng. Rec.......”, “Producer-Production Information.....”

Above, 14760 record lines are memorised and 98,4% of the memory is used.

Date (Menu for observing the date)

Figure 75:

Date

4.15 INFO

Log. Rec.:

This menu gives us information about the quantity of record lines of the parameters from Pr1 to Pr28 at the top line and indicates the occupied memory.

Figure 76:

Info

User password is set and activated in this menu. In order to prevent the device’s SETUP, DEMAND and ENERGY menus from unauthorized access, it is necesarry to set up a 3 digit user password and then activate it.

Set Psw (Menu for setting up a user password)

40

4.17 PASSWORD

Figure 80:

Setting the password

Figure 81:

Changing the password

Chg Psw (Menu for changing the user password)

The new password is saved to the SETUP, DEMAND and ENERGY menus.

Figure 78:

Clearing all recorded parameters in the Eng. Rec. permanent memory

Clearing all recorded parameters from Pr1 to Pr28 in the Eng. Rec. permanent memory

Note :

If data records, which are saved in to the permanent memory for every 15 minutes in Eng.Rec.

Menu, are cleared, energy values are not affected from this event.

4.16 Producer - Production Information

Information about manufacturer, the version number of the device, company contact information and serial number (8 digit) are on this menu.

Figure 79:

Producer - Production Information

41

4.18 PARAMETER TABLE

4.19 FORMULAS

V

rms

=

ν

2

N

1

N

Σ

i=0

i

RMS Values for Voltages

RMS Values for Currents

Ι

rms

=

N

1

N

Σ

i=0

i

2

ι

P =

N

1

p

i

N

Σ

i=0

Total Active Power

Total Reactive Power

Q =

N

1

q

i

N

Σ

i=0

Apparent Power

Σ

S =ΣP2+Σ

Q

2

Total Power Factor

Σ

P.F =

Σ

P

Σ

S

Total Harmonic Distortion for Currents

Ι

THD

% =

31

Σ

i=2

i

2

Ι

x100

Ι

1

ΣΙ

THD

=

Ι

THD1

+

Ι

THD2

+

Ι

THD3

Total Harmonic Distortion for Voltages

V

1

V

THD

% =

31

Σ

i=2

i

2

V

x100

Σ

V

THD

= V

THD1

+

V

THD2

+

V

THD3

*V

L1, L2, L3

(Phase Volt age )

*V

L12, L23, L3 1

(Phase-Phas e V oltage)

*V

. (Average ) (Total Pha se Voltage Av erage)

*V

. ( Average) ( Tot al Phase-Phas e V oltages Av era ge) *Freq.Hz (Frequency) *I

L1, L2, L3

(Phase Curr ent s)

*

I (Total Phas e C urrents) *P

L1, L2, L3

(W) (Active Power )

*Q

L1, L2, L3

(VAr) (R eactive Power )

*S

L1, L2, L3

(VA) (Apparent Po wer)

*

P. (

W) (Total Active Power)

*

Q. (

VAr) (Total Reactive Power)

* S. (

VA) (Total Apparent Power)

*COS

ϕ

L1, L2, L3

(Displacement Power Factor)

*PF

L1, L2, L3

(Power Fact or)

P. F (Total Power Factor) Exp.(KWh) ( Export Active Energy) Imp.(KWh) ( Import Active Energy) Ind. (KVArh) (Inductive Reactive Energy) Cap.(KVArh) (Capacitive Reactive Energy)

*

H-V

L1, L2, L3

(Harmonic Values for Voltages)

*

THD %V 2.-31. (Total Harmonic Values for Voltages)

*

H-I

L1, L2, L3

(Harmonic Values for Currents)

*

THD %I 2.-31. (Total Harmonic Values for Currents)

*

Max.VLN (Maksimum Phase Voltage)

*

Min. VLN (Minimum Phase Voltage)

*

Max. Demand IL (Max. Demand of Phase Currents)

*

Min. Demand IL (Min. Demand of Phase Currents)

*

Max. Demand

I (Max. Demand of Total Phase Currents)

*

Min. Demand I (Min. Demand of TotalPhase Currents)

*

Demand IL (Demand of Phase Currents)

*

Demand IL (Demand of Total Phase Currents)

*

Demand W (Demand of Total Active Powers)

*

Demand

VAr (Demand of Total Re active Powers)

*

Demand VA (Demand of Total Apparent Powers) Hr. (Hour) Min. (Minute) Sec. (Second) Day (Day) Mo. (Month) Year (Year) CTR (Current Transformer Ratio) VTR (Voltage Transforemr Ratio) IOS (Relay Position)

*

In (Neutral Current) Max. Demand

W (Max. Demand of Total Active Powers) Max. Demand VAr (Max. Demand of Total Reactive Powers) Max. Demand

VA (Max. Demand of Total Apparent Powers) Min. Demand W (Min. Demand of Total Active Powers) Min. Demand VAr (Min. Demand of Total Reactive Powers) Min. Demand

VA (Min. Demand of Total Apparent Powers)

L L

L N

The parameters which can be assigned to the alarm outputs are shown in above table by the * sembol. All parameters in above table can be assigned to be recorded in “Data Log” menu.

42

In device,this feature gives the possiblity that observing the measured values by other devices with converting these values in to 0-20 mA or 4-20 mA current data. The below parameters can be set as analog output in device

.

MPR63-43

4.20 Current Analog Output (0/4-20mA)

(Only for MPR63-42/43)

The below parameters can be set as analog output :

L L

L N

V

L1, L2, L3

(V)

(Phase Voltage)

V

L12, L23, L31

(V)

(Phase-Phase Voltage)

V.

(Average) (Average of the total phase voltages)

V.

(Average) (Average of the total phase-phase voltages)

Frequency (Hz)

(Frequency)

I

L1, L2, L3

(A)

(Phase Currents)

THD %V

L1, L2, L3 (Total Harmonic Values for Voltages)

THD %I

L1, L2, L3 (Total Harmonic Values for Currents)

P

L1, L2, L3

(W)

(Active Power)

Q

L1, L2, L3

(VAr)

(Reactive Power)

S

L1, L2, L3

(VA)

(Apparent Power)

I. (A)

(Total Phase Currents)

P. (W)

(Total Active Power)

Q. (VAr)

(Total Reactive Power)

S. (VA)

(Total Apparent Power)

For example

Below settings should be fulfilled as like :

Type : 0-20 mA Prm (Parameter) : V

L1

Lo (Low value) : 0V Hi (High value) : 300 V

After above settings are completed; Analog current output’s value will be 0 mA when V

L1

value is 0 V,

Analog current output’s value will be 20 mA when V

L1

value is 300 V.

When V

L1

is 220 V analog voltage output value will be;

For example

Below settings should be fulfilled as like : Type

: 0-20 mA

Prm (Parameter) : P

L1

Lo (Low value)

: -650 W

Hi (High value)

: 350 W

After above settings are completed; Analog current output’s value will be 0 mA when P

L1

value is -650 W,

Analog current output’s value will be 20 mA when P

L1

value is 350 W

When P

L1

is -300 W analog voltage output value will be; (20-0)x[-300-(-650)]

[350-(-650)]

= 7 mA

I

out

=

I

out

=

(20-0)x(220-0)

(300-0)

=14,67mA

L1 L2 L3

1

2

3

4

5

6

17 18 19 20 26

25

7

L18L29L310N

L1

L2

L3

k

l

K L

k

l

K L

k

l

K L

1. Relay 1 2. Relay 2

21 22 23 24

3. Input 1

Max:30VDC

+

_

4. Input 2

RS-485

1112 13

GND14A15B16TR

Analog

Out-1

External

Supply

Voltage Measurement Inputs

Current Measurement Inputs

Ýnput 1 Ýnput 2

2728

Analog

Out-2

RS-485

11 12 13

GND14A15B16TR

Analog

Out

27 28

Analog

Out-2

3 phase without neutral connection

1 A

L1 N

In device,this feature gives the possiblity that observing the measured values by other devices with converting these values in to 0-10 V or 2-10 V voltage data. The below parameters can be set as analog output in device

.

43

4.21 Voltage Analog Output (0/2-10V)

(Only for MPR63-22/23)

The below parameters can be set as analog output :

L L

L N

V

L1, L2, L3

(V)

(Phase Voltage)

V

L12, L23, L31

(V)

(Phase-Phase Voltage)

V.

(Average) (Average of the total phase voltages)

V.

(Average) (Average of the total phase-phase voltages)

Frequency (Hz)

(Frequency)

I

L1, L2, L3

(A)

(Phase Currents)

THD %V

L1, L2, L3 (Total Harmonic Values for Voltages)

THD %I

L1, L2, L3 (Total Harmonic Values for Currents)

P

L1, L2, L3

(W)

(Active Power)

Q

L1, L2, L3

(VAr)

(Reactive Power)

S

L1, L2, L3

(VA)

(Apparent Power)

I. (A)

(Total Phase Currents)

P. (W)

(Total Active Power)

Q. (VAr)

(Total Reactive Power)

S. (VA)

(Total Apparent Power)

MPR63-23

For example

Below settings should be fulfilled as like :

Type : 2-10 V Prm (Parameter) : I

L1

Lo(Low value) : 100 mA Hi (High value) : 5 A

After above settings are completed; Analog voltage output’s value will be 2 V when I

L1

value is 100mA,

Analog voltage output’s value will be 10 V when I

L1

value is 5 A.

When I

L1

is 3.5 A analog voltage output value will be;

Iout=

(10-2)x(3.5-0)

(5-0.1)

+ 2 = 7.714 V

(10-0)x[400-(-250)]

[750-(-250)]

= 6,5 V

For example

Below settings should be fulfilled as like :

Type : 0-10 V Prm (Parameter) : ΣQ Lo(Low value) : -250 VAr Hi (High value) : 750 VAr

After above settings are completed; Analog voltage output’s value will be 0 V when ΣQ value is -250 VAr, Analog voltage output’s value will be 10 V when ΣQ value is 750 VAr. WhenΣQ is 400 VAr analog voltage output value will be;

Iout=

L1 L2 L3

1

2

3

4

5

6

17 18 19 20 26

25

7

L18L29L310N

L1

L2

L3

k

l

K L

k

l

K L

k

l

K L

1. Relay 1 2. Relay 2

21 22 23 24

3. Input 1

Max:30VDC

+

_

4. Input 2

RS-485

1112 13

GND14A15B16TR

Analog

Out-1

External

Supply

Voltage Measurement Inputs

Current Measurement Inputs

Ýnput 1 Ýnput 2

2728

Analog

Out-2

RS-485

11 12 13

GND14A15B16TR

Analog

Out

27 28

Analog

Out-2

3 phase without neutral connection

1 A

L1 N

44

4.22

FACTORY SETTINGS

2.Relay 2

Cfg : Digital Output Pr1,Pr2,Pr3 (Parameters) : Off Hi1,Hi2,Hi3 (High) : - - - - Lo1,Lo2,Lo3 (Low) : - - - - Hs1,Hs2,Hs3 (Hysterisis) : - - - - Dly1,Dly2,Dly3 (Delay) : - - - -

3. Pulse A

(only for MPR63-23/43)

Prm(Energy value to set for 1 pulse) : 1 kWh Dur ( Pulse width) : 250 msec.

4. Pulse R

(only for MPR63-23/43)

Prm(Energy value to set for 1 pulse) : 1 kVArh Dur (Pulse width) : 250 msec.

3. Input-1

(only for MPR63-22/42)

Fn : Real Time

4. Input-2

(only for MPR63-22/42)

Fn : Real Time

1 and 2 Current Analog Output

(only for MPR63-42/43)

Type : 0-20 mA Prm (Parameter) : None Lo (Low) : - Hi (High) : -

1 and 2 Voltage Analog Output

(only for MPR63-22/23)

Type : 0-10 V Prm (Parameter) : None Lo (Low) : - Hi (High) : -

Password

Set Psw (Setting up the password) : 000 (None)

Network

CT (Current transformer) : 10 VT ( Voltage transformer) : 1.0 Net (System Connection) : 3P4W Eng (Energy) : Tot. E.Unit (Energy Unit) : k

Display

Loop (Loop duration) : No Cont (Contrast) : 6 BL. (Backlight) : Auto

RS-485

Addr (Address) : 1 Bd (Baud rate value) : 9600 bps Prt (Parity) : None

Datalog

Per (Period) : 900 sec. Event : No Pr1(Parameter 1) : VL1 Pr2(Parameter 2) : VL2 Pr3(Parameter 3) : VL3 Pr4(Parameter 4) : IL1 Pr5(Parameter 5) : IL2 Pr6(Parameter 6) : IL3 Pr7(Parameter 7) :ΣI Pr8(Parameter 8) : P1 Pr9(Parameter 9) : P2 Pr10(Parameter 10) : P3 Pr11(Parameter 11) : Q1 Pr12(Parameter 12) : Q2 Pr13(Parameter 13) : Q3 Pr14(Parameter 14) : S1 Pr15(Parameter 15) : S2 Pr16(Parameter 16) : S3 Pr17(Parameter 17) : PF1 Pr18(Parameter 18) : PF2 Pr19(Parameter 19) : PF3 Pr20(Parameter 20) : Cos1 Pr21(Parameter 21) : Cos2 Pr22(Parameter 22) : Cos3 Pr23(Parameter 23) : V

12

Pr24(Parameter 24) : V

23

Pr25(Parameter 25) : V

31

Pr26(Parameter 26) : V Pr27(Parameter 27) : V Pr28 (Parameter 28) : Freq.

1.Relay1

Cfg : Digital Output Pr1,Pr2,Pr3 (Parameters) : Off Hi1,Hi2,Hi3 (High) : - - - - Lo1,Lo2,Lo3 (Low) : - - - - Hs1,Hs2,Hs3 (Hysterisis) : - - - - Dly1,Dly2,Dly3 (Delay) : - - - -

L N L L

45

4.23 TECHNICAL DATA

Operating Voltage (Un) : Please look behind the device. Frequency : 50 / 60 Hz Power Consumption : < 6 VA Burden : < 1 VA (Current burden) < 0,5 VA (Voltage burden) Measurement Input Voltage : 1,0 - 300,0 V AC (L-N)

: 2,0 - 500,0 V AC (L-L) Current : 0,005 - 5.5 A~ Measurement Ranges Voltage : 1,0 V - 400,0 kV Current : 0,005 ... 10.000 A Frequency : 45,0 - 65,0 Hz Power : 0 - 4000 M (W, VAr, VA) Energy : 0 - 99 999 999 kWh, kVArh or MWh, MVArh

Measurement Category : CAT III Accuracy Voltage, Current : 0.5%±2digit Active Power : 1%±2digit Reactive, Apparent Power : 2%±2digit

Voltage Transformer Ratio : 1,0...4000,0 Current Transformer Ratio : 1...5000 Connection Type : 3P-4W, 3P-3W, ARON Relay Outputs

(2 pcs)

: 2 NO, 5A, 1250 VA Demand Time : 15 min. Communication Interface : MODBUS RTU (RS-485) Baud Rate : 1.200 - 38.400 bps Address : 1 - 247 Parity : None, Even, Odd Parity Data Logging Parameters : Choosen 28 parameters with date and time Record Size : 15000 record lines Log Duration (time interval between 2 records) : No, 5 - 30.000 seconds Energy Record : 1000 record lines (1 record in every 15 minutes) Event : Yes, No Memory : 1 MB Internal Memory

Digital Inputs

(2 pcs) Functions : Real Time / Latch Input Pulse Width : Min. 50 ms Operation Voltage : 5...24 V DC, max. 30 V DC Energy Pulse Outputs (2 pcs) Switch Period : Min. 1 sec. Pulse Width : 100-2500 ms Operation Current : Max. 50 mA Operation Voltage : 5-24 V DC max. 30 V DC Analog Voltage Output : 0-10 V or 2-10 V Load Resistance :≥5 k

Ω

Response Perriod : 1 sec. Analog Current Output : 0-20 mA or 4-20 mA Load Resistance :≤500

Ω

Response Perriod : 1 sec.

Real Time Clock : hh : mm : ss ; dd / mm / yy Ambient Temperature : -5°C ; +50°C Display : 3,6” LCD with Backlight Dimensions : PR19

Equipment Protection Class : Double Insulation-Class II (

) Box Protection Class : IP 40 Terminal Block Protection Class : IP 00 Box Material : Non-flammable Installation : Flush mounting with rear terminals Wire Thickness for Voltage Connection : 2,5 mm

2

Wire Thickness for Current Connection : 4,0 mm

2

Wire Thickness for Pulse or Digital Input Connection : 1.5

mm

2

RS-485 Connection : Category 5 Cable (Shielded Twisted Pair) Weight : 0.75 kg Installation Category : Class II Type : PR 19 Package Dimensions : 350x290x240 mm Package Weight : 6 kg Pcs per Package : 8 pcs

only for MPR63

-22

MPR63-42

only for MPR63

-23

MPR63-43

only for MPR63

-22

MPR63-23

only for MPR63

-42

MPR63-43

ENTES MPR-63 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
