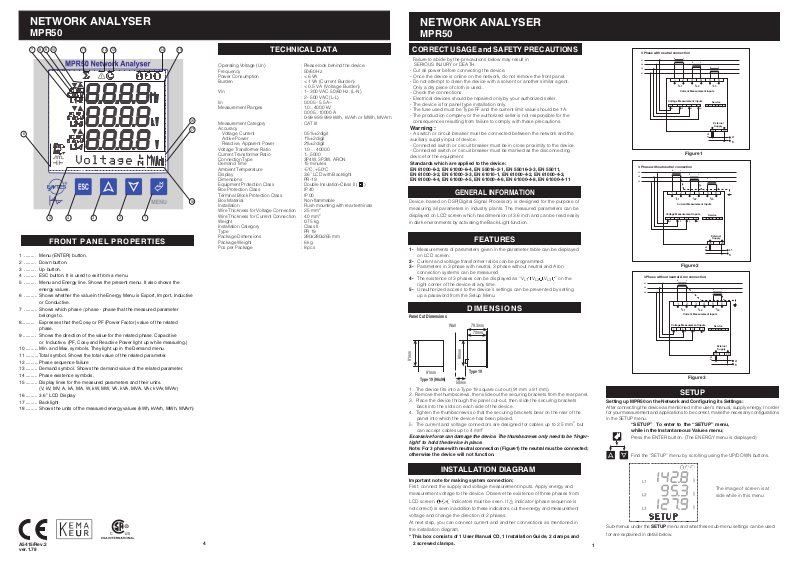

ENTES MPR-50 Specification
6
7
8
15
16
17
18
5
4
3
2
1
9
10
11
14
13
12
NETWORK ANALYSER
MPR50
1
Failure to abide by the precautions below may result in
SERIOUS INJURY or DEATH.
- Cut all power before connecting the device.
- Once the device is online on the network, do not remove the front panel.
- Do not attempt to clean the device with a solvent or another similar agent.
Only a dry piece of cloth is used..
- Check the connections.
- Electrical devices should be repaired only by your authorized seller.
- The device is for panel type installation only.
- The fuse used must be Type FF and the current limit value should be 1A.
- The production company or the authorized seller is not responsible for the
consequences resulting from failure to comply with these precautions.
Warning :
- A switch or circuit breaker must be connected between the network and the
auxiliary supply input of device.
- Connected switch or circuit breaker must be in close proximity to the device.
- Connected switch or circuit breaker must be marked as the disconnecting
device for the equipment.
NETWORK ANALYSER
MPR50
1 ......... Menu (ENTER) button.
2 ......... Down button.
3 ......... Up button.
4 ......... ESC button. It is used to exit from a menu.
5 ......... Menu and Energy line. Shows the present menu. It also shows the
energy values.
6 .......... Shows whether the value in the Energy Menu is Export, Import, Inductive
or Conductive.
7 .......... Shows which phase / phase - phase that the measured parameter
belongs to.
8.......... Expresses that the Cosj or PF (Power Factor) value of the related
phase.
9 .......... Shows the direction of the value for the related phase. Capacitive
or Inductive. (PF, Cosj and Reactive Power light up while measuring.)
10 ..........Min. and Max. symbols. They light up in the Demand menu.
11 ..........Total symbol. Shows the total value of the related parameter.
12 ..........Phase sequence failure
13 ......... Demand symbol. Shows the demand value of the related parameter.
14 ......... Phase existence symbols.
15 ......... Display lines for the measured parameters and their units.
(V, kV, MV, A, kA, MA, W, kW, MW, VA, kVA, MVA, VAr, kVAr, MVAr)
16 ......... 3.6 LCD Display
17 ......... Backlight
18 ......... Shows the units of the measured energy values (kWh, kVArh, MWh, MVArh)
4
Operating Voltage (Un) : Please look behind the device.
Frequency : 50/60 Hz
Power Consumption : < 6 VA
Burden : < 1 VA (Current Burden)
: < 0.5 VA (Voltage Burden)
Vin : 1 - 300 VAC 50/60 Hz. (L-N)
: 2 - 500 VAC (L-L)
Iin : 0.005 - 5.5 A~
Measurement Ranges : 1,0...400,0 kV
: 0.005...10000 A
: 0-99 999 999 kWh, kVArh or MWh, MVArh
Measurement Category : CAT III
Accuracy
Voltage, Current : 0.5%±2digit
Active Power : 1%±2digit
Reactive, Apparent Power : 2%±2digit
Voltage Transformer Ratio : 1.0 ... 4000.0
Current Transformer Ratio : 1...5000
Connection Type : 3P4W, 3P3W, ARON
Demand Time : 15 minutes
Ambient Temperature : -5°C; +50°C
Display : 3.6 LCD with Backlight
Dimensions : PR-19
Equipment Protection Class : Double Insulation-Class II (
)
Box Protection Class : IP 40
Terminal Block Protection Class : IP 00
Box Material : Non-flammable
Installation : Flush mounting with rear terminals
Wire Thickness for Voltage Connection : 2.5 mm
2
Wire Thickness for Current Connection : 4.0 mm
2
Weight : 0.75 kg
Installation Category : Class II
Type : PR 19
Package Dimensions : 280x280x265 mm
Package Weight : 6 kg
Pcs per Package : 8 pcs
A5415/Rev.2
ver.1.78
CORRECT USAGE and SAFETY PRECAUTIONS
Service
L1 L2 L3
1
2
3
4
5
6
26
25
1112 13 14 15 16
7
L18L29L310N
L1
L2
L3
N
External
Supply
Voltage Measurement Inputs
Current Measurement Inputs
k
l
K L
k
l
K L
k
l
K L
Figure 1
3 Phase with neutral connection
1 A
L1
N
L1 L2 L3
1
2
3
4
5
6
26
25
7
L1
8
L29L3
10
N
L1
L2
L3
External
Supply
Voltage Measurement Inputs
Current Measurement Inputs
k
l
K L
k
l
K L
k
l
K L
Figure 2
L1
L2
L3
L1 L2 L3
1
2
3
4
5
6
26
25
7
L18L29L310N
External
Supply
Voltage Measurement Inputs
Current Measurement Inputs
k
l
K L
k
l
K L
Figure 3
SETUP
Setting up MPR50 on the Network and Configuring its Settings:
After connecting the device as mentioned in the users manual, supply energy. In order
for your measurement and applications to be correct, make the necesarry configurations
in the SETUP menu.
SETUP To enter to the SETUP menu,
while in the Instantaneous Values menu;
Press the ENTER button. (The ENERGY menu is displayed)
Find the SETUP menu by scrolling using the UP/DOWN buttons.
The image of screen is at
side while in this menu
Sub-menus under the SETUP menu and what these sub-menu settings can be used
for are explained in detail below.
Standards which are applied to the device:
EN 61000-6-2, EN 61000-6-4, EN 55016-2-1, EN 55016-2-3, EN 55011,
EN 61000-3-2, EN 61000-3-3, EN 61010-1, EN 61000-4-2, EN 61000-4-3,
EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
INSTALLATION DIAGRAM
Important note for making system connection;
First, connect the supply and voltage measurement inputs. Apply energy and
measurement voltage to the device. Observe the existence of three phases from
LCD screen.
indicators must be seen. If indicator (phase sequence is
not correct) is seen in addition to these indicators, cut the energy and measurement
voltage and change the direction of 2 phases.
At next step, you can connect current and another connections as mentioned in
the installation diagram.
* This box consists of 1 User Manual CD, 1 Installation Guide, 2 clamps and
2 screwed clamps.
DIMENSIONS
Panel Cut Dimensions
1. The device fits into a Type 19 square cut out (91 mm x 91 mm).
2. Remove the thumbscrews, then slide out the securing brackets from the rear panel.
3. Place the device through the panel cut-out, then slide the securing brackets
back into the slots on each side of the device.
4. Tighten the thumbscrews so that the securing brackets bear on the rear of the
panel into which the device has been placed.
5. The current and voltage connectors are designed for cables up to 2.5 mm
2
, but
can accept cables up to 4 mm
2
Excessive force can damage the device. The thumbscrews only need to be fingertight to hold the device in place.
Note: For 3 phase with neutral connection (Figure1) the neutral must be connected;
otherwise the device will not function.
70mm
Wall
50mm
79.3mm
90mm
Type 19
91mm
9
1
mm
Type 19 (96x96)
1- Measurements of parameters given in the parameter table can be displayed
on LCD screen.
2- Current and voltage transformer ratios can be programmed.
3- Parameters in 3 phase with neutral, 3 phase without neutral and Aron
connection systems can be measured
4- The existence of 3 phases can be displayed as VL1 ,VL2 ,VL3 on the
right corner of the device at any time.
5- Unauthorized access to the devices settings can be prevented by setting
up a password from the Setup Menu.
FEATURES
GENERAL INFORMATION
Device, based on DSP(Digital Signal Processor), is designed for the purpose of
measuring all parameters in industry plants. The measured parameters can be
displayed on LCD screen which has dimension of 3.6 inch and can be read easily
in dark environments by activating the Back-Light function.
Service
1112 13 14 15 16
Service
1112 13 14 15 16
FRONT PANEL PROPERTIES
TECHNICAL DATA
3 Phase without neutral connection
1 A
L1
N
3 Phase without neutral Aron connection.
1 A
L1
N
NETWORK ANALYSER
MPR50
2
NETWORK
CT (Current transformer ratio) :
The current transformer ratio is set in this menu. It can be programmed
between 1...5000
Note: If Tot menu is selected, device measures the reactive powers of three
phases. If total phase value is inductive, it records values to the inductive area.
If total phase value is capacitive, it records values to the reactive area.
If Sprt menu is selected, device measures the reactive powers of three phases
for each phase seperately. If phase value is in the inductive area, it records values
to the inductive reactive area. If phase values is in the capacitive area, it records
values to the capacitive reactive area. Measurement for each phase seperately
can be done for 3P4W (3 Phase with Neutral) systems.
Eng: (Energy Calculation)
Eng
To enter the connetion type that is being used;
While in the Instanteous Values menu,
Press the ENTER button (the ENERGY menu is displayed.)
Find the SETUP menu by scrolling using the UP/DOWN buttons.
Press the ENTER button (The Network menu is displayed.)
Press the ENTER button (The CT menu is displayed.)
Find the Eng menu by scrolling using the UP/DOWN buttons.
Press the ENTER button.
Using the UP/DOWN buttons enter the Eng value (Sprt, Tot)
To record the Eng value, press the ENTER button.
NETWORK ANALYSER
MPR50
3
(LCD Display Settings)
In this menu, LCD display settings are configured. It has 3 sub-menus.
Loop: ... , Cont: ... , BL: ...
Loop:
In this menu, the duration of displaying instantaneous value is adjusted automatically,
while in the Instantaneous Values menu. The Loop duration can be adjusted between
1... 600 in terms of seconds.
For example;
The Loop duration is set 10sec. In the Instantaneous Values menu, if any button
is not pressed during 10 sec, the Instantaneous values are displayed in sequence
for 10 seconds periods.
By using this function all instantaneous values can be observed one after the other
without pressing any buttons.
This function can be cancelled by selecting No option in the Loop Menu.
By scrolling with (UP), (DOWN) buttons while in the Instantaneous Values
Menu, you can observe the below parameters of the network one after the other.
Observing the Measured Parameters
Observing the Instantaneous Values
In this menu, instantaneous values of parameters are displayed.
This menu is the last menu that is reached by pressing ESC button while in any
menu.
Instantaneous Values menu is the main menu of device. If you wait a while without
pressing any buttons in any menu, the Instantaneous value menu automatically
comes back.
When a device is energized for the first time, the device is in the Instantenous values
menu and shows the instantaneous values.
The display is seen as below.
Note:
When ARON connection is choosed, L2 - - - symbol is seen at the
,
, , , , , , max.IL,
min.IL, IL menus.
Observing The Energy Values:
In this menu, energy values are displayed and cleared.In this menu, energy values
can be observed which are listed below:
These energy values can be cleared one by one or all at once.
To enter the ENERGY menu,
while in the Instantaneous Values menu;
Press the ENTER button.(The ENERGY menu is displayed)
Export Active Energy
Import Active Energy
Inductive Reactive Energy Capacitive Reactive Energy values
The image of
screen is at side
while in this menu
Note : If there is a - symbol before the measured active power, it shows the
existence of active export power
-
-
-
Voltage
Active (W)
Freq. Hz
Voltage
Reactive (VAr)
Average
Currents
Apparent (VA)
Average
P.
Factor
SPowers
S
Current
Cosj
S P.F.
Neutral Current (In)
-
-
-
-
-
-
-
-
-
L
L
L
N
L
N
L
L
In this menu, a user password is set and activated.
In order to prevent the devices SETUP, DEMAND and ENERGY menus from
unauthorized access, it is necesarry to set up a 3 digit user password and then
activate it.
Password Menu : (Menu for setting up a user password)
INFO: In this menu, the information about the producer are obtained.
Producer-Production Information.....
It is used for determine the units of energy counters.
Counters can be chosen Mega or Kilo.
for example : If energy counter value is 12345678901 kWh
when k is chosen, 45678901 kWh will be displayed or
when M is chosen, 12345678 MWh will be displayed.
E.Unit: (Energy Unit)
In this menu, current transformer ratio, voltage transformer ratio and system connection
type of device are set.
It has 5 sub-menus.
CT:.., VT:, Net:, Eng:........, E.Unit:........
CT To set the CT ratio,
while in the Instantaneous Values menu;
Press the ENTER button. (ENERGY is displayed)
Find the SETUP menu by scrolling using the UP/DOWN buttons.
Press the ENTER button. (The Network menu is displayed)
Press the ENTER button. (CT is displayed)
Press the ENTER button
Enter the appropriate CT ratio (between 1.....5000) by scrolling
using the UP/DOWN buttons.
To record the new CT value, press ENTER button.
At the bottom of the screen, which sub-menu you are in and the instantanous values
belonging to this menu are displayed.
Note: When devices phase voltages exceed 330.0 V, phase-phase voltages exceed
530.0 V, phase currents exceed 5.500 A according to upper limits of measurement,
HIGH is displayed on display.
Chg Psw: (Menu for changing user password)
Press the ENTER button (The ENERGY menu is displayed.)
Find the SETUP Menu scrolling UP/DOWN buttons.
SETUP
menu is displayed.
Press the ENTER button (Psw: 000 is displayed.)
Enter the old 3 digit password using the UP/DOWN
and ENTER buttons (ie Psw:999).
Press the ENTER button (Network menu is displayed.)
Find the Chg Psw menu by scrolling using the
UP/DOWN buttons.
Press the ENTER button, previous password
(ie New: 999.) is displayed
Enter the new 3 digit password by using the UP/DOWN
and ENTER buttons. (Dont enter the new password as
000)
Press the ENTER button. The Chg Psw menu is displayed. (For cancel
the password enter as Chg Psw: 000). The new pasword is saved to
the SETUP, DEMAND and ENERGY menus.
You can press the ESC button to return to instantaneous values menu.
Set Psw: (Menu for setting up a user password)
Press the ENTER button (The ENERGY menu is displayed.)
Enter the new 3 digit password by using the UP/DOWN and ENTER
buttons. (Dont enter the new password as 000)
Find the SETUP Menu scrolling UP/DOWN buttons.
Press the ENTER button (The Network menu is displayed.)
Find the Set Psw menu by scrolling using the UP/DOWN buttons.
Press the ENTER button. New 000 is displayed.
Press the ENTER button. The Chg Psw menu is displayed. (For cancel
the password enter as Chg Psw: 000). The new pasword is saved to
the SETUP, DEMAND and ENERGY menus.
You can press the ESC button to return to instantaneous values menu.
VT (Voltage transformer ratio) :
The voltage transformer ratio can be programmed between 1,0...4000,0
Transformer ratio can set in 0,1 step.
Please pay attention that voltage transformer ratio is entered directly instead
of primary voltage value.
VT To set the VT voltage transformer ratio;
While in Instantaneous Values menu;
Net : (Type of system connection) :
The type of system connection is set in this menu.
Net To set the connection type;
while in the instantaneous values menu;
DEMAND To see the DEMAND Menu;
While in the Instantaneous Values Menu,
Press the ENTER button (The ENERGY menu will is displayed.)
Find the DEMAND menu by scrolling using the UP/DOWN buttons.
The image of
screen is at side
while in this menu
DEMAND To see the DEMAND Menu; While in the Instantaneous Values Menu,
Demand : It shows the averages which arise on power and current during demand
time (15 min.).
min. value : It shows the min. value different from zero that measured on voltages.
max. value: It shows the max. value that measured on voltages.
This is the menu in which it is possible to observe the below values;
max. VL-N (Max. voltages between Phase-Neutral)
min. VL-N (Min. voltages between Phase-Neutral)
max. Demand IL (Max. demand values of phase currents)
min. Demand IL (Min. demand values of phase currents)
Demand IL (Demand values of phase currents)
max. Demand SI and min. Demand SI (Total max. and min. demand values of phase current)
Demand SIL (Demand value of total phase currents)
Demand SP, Demand SQ and Demand SS (Demand values of total power values)
max. Demand SP, max. Demand SQ and max. Demand SS (Max. demand values
of total powers)
min. Demand SP, min. Demand SQ and min. Demand SS (Min. demand values
of total powers)
Observed minimum, maximum and demand values can be cleared one by one or
at once.
DEMAND
Note:
3P4W : 3 Phase + Neutral (Star connection)
3P3W : 3 Phase No Neutral(Delta connection)
ARON: ARON connection
Press the ENTER button.(The Network menu is displayed)
Press the ENTER button. (The ENERGY menu is displayed)
Find the SETUP menu by scrolling using the UP/DOWN
buttons.
Press the ENTER button.(The CT menu is displayed)
Find the Net menu by scrolling using the UP/DOWN buttons.
Press the ENTER button.
Enter the Net system connection type by scrolling using the
UP/DOWN buttons.(3P4W, ARON, 3P3W)
To record the Net system connection type, press the ENTER
button.
Press the ENTER button. (The ENERGY menu is displayed)
Press the ENTER button. (The Network menu is displayed)
Press the ENTER button. (CT is displayed)
Find the VT Menu by scrolling using the UP/DOWN
buttons.
Enter a VT value (between 1.0...4000.0) by scrolling using the
UP/DOWN buttons.
Find the SETUP menu by scrolling using the UP/DOWN buttons.
Press the ENTER button
To record the VT value, press the ENTER button.
DISPLAY
INSTANTANEOUS VALUES
ENERGY
INFO
PASSWORD
Loading...
