FN 100 User’s Guide
Notice
Enterasys Networks reserves the right to make changes in specifications and other information
contained in this document without prior notice. The reader should in all cases consult Enterasys
Networks to determine whether any such changes have been made.
The hardware, firmware, or software described in this manual is subject to change without notice.
IN NO EVENT SHALL ENTERASYS NETWORKS BE LIABLE FOR ANY INCIDENTAL, INDIRECT,
SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED
TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION
CONTAINED IN IT, EVEN IF ENTERASYS NETWORKS HAS BEEN ADVISED OF, KNOWN, OR
SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH DAMAGES.
Virus Disclaimer
Enterasys has tested its software with current virus checking technologies. However, because no antivirus system is 100% reliable, we strongly caution you to write protect and then verify that the
Licensed Software, prior to installing it, is virus-free with an anti-virus system in which you have
confidence.
Enterasys Networks makes no representations or warranties to the effe ct that the Lice nsed Software is
virus-free.
Copyright 2000 by Enterasys Networks. All rights reserved.
Printed in the United States of America.
Order Number: 9031897-03 April 2000
Enterasys Networks.
P.O. Box 5005
Rochester, NH 03866-5005
Enterasys, NetSight, and Matrix E7 are trademarks of Enterasys Networks.
Cabletron Systems, SPECTRUM, BRIM, DNI, FNB, INA, Integrated Network Architecture,
LANVIEW, LANVIEW Secure, Multi Media Access Center , MiniMMAC , and TRMM ar e registered
trademarks, and Bridge/Router Interface Mo dules, BRIM-A100, CRBRIM-W/E, CRXMIM,
CXRMIM, Desktop Network Interface, Distributed LAN Monitoring, Distributed Network Server,
DLM, DNSMIM, E1000, E2000, E3000, EFDMIM, EMM-E6, EMME, EPIM, EPIM-3PS, EPIM-A,
EPIM-C, EPIM-F1, EPIM-F2, EPIM-F3, EPIM-T, EPIM-T1, EPIM-X, ESXMIM, ETSMIM, ETWMIM,
FDCMIM-04, FDCMIM-08, FDMMIM, FDMMIM-04, Flexible Network Bus, FOMIM, FORMIM,
HubSTACK, IRBM, IRM, IRM-2, IRM-3, Media Interface Module, Micro M MAC, MIM, MMAC,
MMAC-3, MMAC-3FNB, MMAC-5, MMAC-5FNB, MMAC-8, MMAC-8FNB, MMAC-M8FNB,
MMAC-Plus, MRX, MRXI , MRXI-24, MultiChannel, NB20E, NB25E, NB30, NB35, NBR-220/420/620,
RMIM, SecureFast Packet Switching, SFPS, SPECTRUM Element Manager, SPECTRUM for Open
Systems, SPIM-A, SPIM-C, SPIM-F1, SPIM-F2, SPIM-T, SPIM-T1, TPMIM, TPMIM-22,
TPMIM-T1, TPRMIM, TPRMIM-36, TPT-T, TRBMIM , TRMM-2, TRMMIM, and TRXI are
trademarks of Cabletron Systems, Inc.
i
AppleTalk, Apple, Macintosh, and TokenTalk are registered trademarks; and Apple Remote Access
and EtherTalk are trademarks of Apple Computer, Inc.
SmartBoost is a trademark of American Power Conversion
ST is a registered trademark and C++ is a trademark of AT&T
Banyan and VINES are registered trademarks of Banyan Systems, Inc.
cisco, ciscoSystems, and AGS+ are register ed trad emarks; and cBus, cisco Router, CRM, IGS, and MGS
are trademarks of cisco Systems, Inc.
GatorBox is a registered trademark; and GatorMail, GatorMIM, GatorPrint, GatorShare, GatorStar,
GatorStar GX-M, and XGator are trademarks of Cayman Systems, Inc.
CompuServe is a registered trademark of CompuServe Incorporated
X Window System is a trademark of Consortium, Inc.
CTERM, DECnet, and ULTRIX are registered trademarks; and DEC, DEC C++, DECnet-DOS,
DECstation, VAX DOCUMENT, VMA, and VT are trademarks of Digital Equipment Corporation
Fore Systems, ForeRunner, and ForeRunner ASX-100 are trademarks of Fore Sys tems, Inc.
PC/TCP is a registered trademark of FTP Software, Inc.
HP OpenView is a registered trademark of Hewlett-Packard, Inc.
AIX, IBM, OS/2, NetView, and PS/2 are registered trademarks; and AT, Micro Channel, PC, PC-DOS,
PC/XT, Personal Computer AT, Operating System/2, Personal System/2, RISC System/6000, and
Workplace Shell are trademarks of International Business Machines Corporation
i960 microprocessor is a registered trademark; and Intel and Multichannel are trademarks of Intel
Corporation
Microsoft, MS-DOS, and Windows are registered trademarks of Microsoft Corporation
Chameleon, ChameleonNFS, Chameleon 32, IPX/link, and NEWT are trademarks of
NETMANAGE, Inc.
NetWare and Novell are registered trademarks; and Internetwork Packet Exchange (IPX), IPX, and
Network File System (NFS) are trademarks of Novell, Inc.
Motif and MS are r egist ered tr ademarks; and Open Softwar e Fou ndation, OS F, OSF/1, and OSF/Moti f
are trademarks of The Open Software Foundation, Inc.
Silicon Graphics and IRIS are registered trademarks; and Indigo and IRIX are trademarks of Silicon
Graphics, Inc.
NFS, PC-NFS, SPARC, Sun Microsystems, and Sun Workstation are registered trademarks; and
OpenWi ndows, SPARCstation, SPARCstation IPC, SPARCstation IPX, Sun, Sun-2, Sun-3, Sun-4,
Sun386i, SunNet, SunOS, SunSPARC, and SunView are trademarks of Sun Microsystems, Inc.
OPEN LOOK and UNIX are registered trademarks of Unix System Laboratories, Inc.
Ethernet, NS, Xerox Network Systems and XNS are trademarks of Xerox Corporation
ii
ANNEX, ANNEX-II, ANNEX-IIe, ANNEX-3, ANNEX-802.5, MICRO-ANNEX-XL, and MICROANNEX-ELS are trademarks of Xylogics, Inc.
MAXserver and Xyplex are trademarks of Xyplex, Inc.
Restricted Rights Notice
(Applicable to licenses to the United States Government only.)
1. Use, duplication, or disclosure by the Government is subject to restrictions as set forth in
subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS
252.227-7013.
Enterasys Networks, 35 Industrial Way, Rochester, New Hampshire 03867.
2. (a) This computer software is submitted with restricted rights. It may not be used, reproduced, or
disclosed by the Government except as provided in paragraph (b) of this Notice or as otherwise
expressly stated in the contract.
(b) This computer software may be:
(1) Used or copied for use in or with the computer or computers for which it was acquired,
including use at any Government installation to which such computer or computers may
be transferred;
(2) Used or copied for use in a backup computer if any computer for which it w as acquired
is inoperative;
(3) Reproduced for safekeeping (archives) or backup purposes;
(4) Modified, adapted, or combined with other computer software, provided that the
modified, combined, or adapted portions of the derivative software incorporating
restricted computer software are made subject to the same restricted rights;
(5) Disclosed to and reproduced for use by support service contractors in accordance with
subparagraphs (b) (1) through (4) of this clause, provided the Government makes such
disclosure or reproduction subject to these restricted rights; and
(6) Used or copied for use in or transferred to a replacement computer.
(c) Notwithstanding the foregoing, if this computer software is published copyrighted computer
software, it is licensed to the Government, without disclosure prohibitions, with the minimum
rights set forth in paragraph (b) of this clause.
(d) Any other rights or limitations regarding the use, duplication, or disclosure of this computer
software are to be expressly stated in, or incorporated in, the contract.
(e) This Notice shall be marked on any reproduction of this computer software, in whole or in part.
iii
iv
Chapter 1 Introduction
Using the FN100 User’s Guide ................................................................................... 1-1
Related Manuals............................................................................................................ 1-2
Software Conventions.................................................................................................. 1-2
Common FN100 Window Fields ......................................................................... 1-3
Using the Mouse....................................................................................................1-4
Using Window Buttons.........................................................................................1-5
Getting Help ......................................... ...... ...... ..... ........................................................1-6
Using On-line Help................................................................................................1-6
Getting Help from the Global Technical Assistance Center............................1-6
Chapter 2 The FN100 Chassis View
Viewing Chassis Information...................................................................................... 2-2
Front Panel Information........................................................................................2-2
Menu Structure....................................................................................................... 2-4
The FN100 Port Status Displays .......................................................................... 2-7
Selecting a Port Status View.......................................................................... 2-7
Port Status Color Codes............................... ...... ............................................ 2-9
The Chassis Manager Window............................................................................ 2-9
Viewing Hardware Types...................................................................................2-10
Viewing the Device Type............................................................................. 2-10
Viewing the Port Description......................................................................2-10
Managing the Hub.......................................................................................................2-11
Using Device Find Source Address....................................................................2-11
Viewing I/F Summary Information.................................................................. 2-13
Interface Performance Statistics/Bar Graphs...........................................2-14
Viewing Interface Detail..............................................................................2-16
Making Sense of Detail Statistics......................................................... 2-18
Viewing CSMACD Statistics.............................................................................. 2-19
Receive Errors ...............................................................................................2-19
Transmission Errors......................................................................................2-20
Collision Errors............................ .................................................................2-21
Enabling and Disabling Ports ............................................................................ 2-21
Contents
Chapter 3 FN100 Virtual Switching
Performing Virtual Switching.................................................... ................................. 3-1
Configuring Your Virtual Switch Settings.......................................................... 3-2
Defining a Default Switch.............................................................................3-3
v
Contents
Chapter 4 Using FN100 Trunking
The Port Trunking Window.........................................................................................4-2
Enabling and Disabling Trunking ....................................................................... 4-5
Chapter 5 Workg roup Configuration
Configuring a Workgroup............................................................................................ 5-2
Deleting a Workgroup...........................................................................................5-3
Index
vi
Introduction
How to use this guide; related guides; software conventions; getting help
Welcome to the FN100™ User’s Guide. We have designed this guide to serve as a
simple reference for using NetSight Element Manager for the FN100.
As a part of the Fast Network product line of switches, the FN100 provides a
foundation for high speed scalable Ethernet switching solutions. The FN100 is a
high performance, intelligent Fast Ethernet switch design ed to support full 10
Mbps or 100 Mbps connectivity on 8 or 16 ports over unshielded twisted-pair
(UTP) and/or multimode (MM) fiber. The FN100 consists of 8 or 16 10/100BaseTX or 10/100Base FX ports and, in the case of the TX models, 1 or 2 selectable
100Base-FX ports. The FN100 is IEEE 802.2, 802.3 and 802.1d compliant, includes
built-in SNMP management, and supports MIB II, PPP, and Enterprise MIB.
Chapter 1
Using the FN100 User’s Guide
Each chapter in this guide describes one major functionality or a collection of
several smaller functionalities of the FN100 device module. This guide contains
information about software functions which ar e a ccessed dir ectly from the device
icon.
Chapter 1, Introduction, provides a list of related documentation, describes
certain software conventions, and shows yo u ho w to c o nt a c t t h e Gl ob a l Technical
Assistance Center.
Chapter 2, The FN100 Chassis View, describes the visual display of the FN100-
switch and explains how to use the mouse within the Chassis View; the operation
of chassis-level management func tions — like enabling and disabling ports — is
also described here.
Chapter 3, FN100 V irtua l Switching, d escribes using the FN100 Virtual Switching
window to refine your network and control bandwidth usage by assigning the
FN100’s ports to any of four availa ble virtual switches.
1-1
Introduction

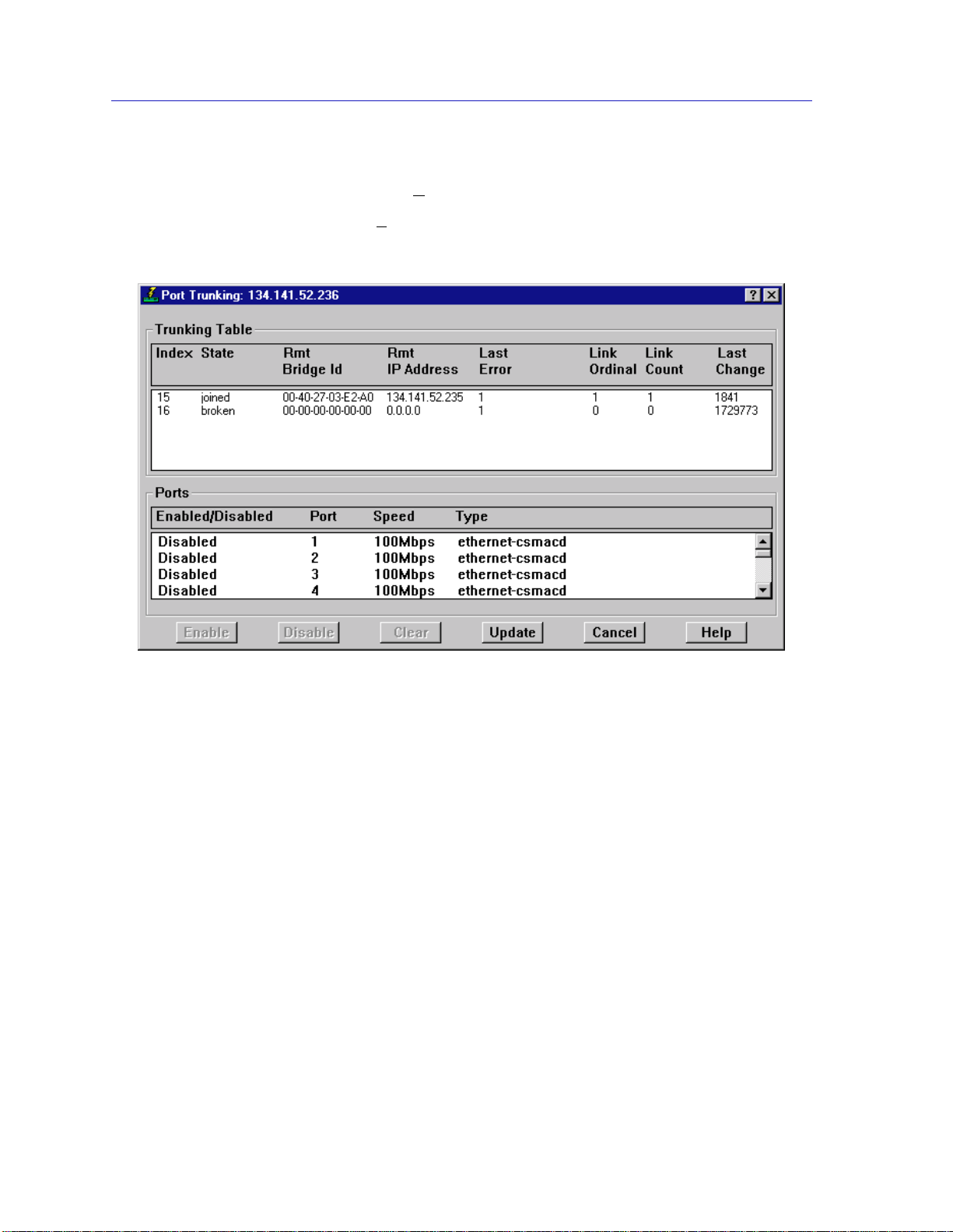

Chapter 4, Using FN100 Trunking, details using the FN100 Port Trunking
window to create trunk groups, allowing you to increase aggregate bandwidth
when two or more switches are connected.
Chapter 5, Workgroup Configuration, describes configuring work groups by
specifying a subset of device ports and the type(s) of packets (multicast, unicast,
or both) that are to be forwarded by those ports, thereby allowing you to restrict
multicast traffic from being propa gated thr ough every bridge port o n your device.
Related Manuals
The FN100 User’s Guide is only part of a complete document set designed to
provide comprehensive information about the features available to you through
NetSight Element Manager. Other guides which include important information
related to managing the FN100 include:
User’s Guide
Tools Guide
Remote Administration Tools User’s Guide
Remote Monitoring (RMON) User’s Guide
Alarm and Event Handling User’s Guide
For more information about the capabilities of th e FN100, consult the a ppr o priate
hardware documentation.
Software Conventions
NetSight Element Manager’s device user interface contains a number of elements
which are common to most windows and which operate the same regardless of
which window they appear in. A brief description of some of the most common
elements appears below; note that the information provided here is not repeated
in the descriptions of specific windows and/or functions.
1-2 Related Manuals
Common FN10 0 Window Fields
Similar descriptive information is displayed in boxes at the top of most devicespecific windows in NetSight Element Manager, as illustrated in Figure 1-1.
Introduction
Device
Name
IP Address
Figure 1-1. Sample Window Showing Informational Text Boxes
Location
MAC
Address
Device Name
Displays the user-defined name of the device. The device name can be changed
via the System Group window; see the Gener ic SNMP User’s Guide for details.
IP Address
Displays the device’s IP (Internet Protocol) Address; this will be the IP address
used to define the device icon. IP addresses are assigned via Local Management
for the FN100; they cannot be changed via NetSight Element Manager.
Location
Displays the user-defined location of the device. The location is entered through
the System Group window; see the Generic SNMP User’s Guide for details.
Software Conventions 1-3
Introduction
MAC Address
Displays the manufacturer-set MAC address associated with the IP Address used
to define the device icon when it was added to NetSight Element Manager . This
address is factory-set and cannot be altered.
Informational fields describing the boards and/or ports being modeled are also
displayed in most windows:
Port Number
Displays the number of the monitored port.
Uptime
Displays the amount of time, in a X days hh:mm:ss format, that the FN100 has
been running since the last start-up.
Using the Mouse
This document assumes you are using a Windows-compatible mouse with two
buttons; if you are using a three button mouse, you should ignore the operation of
the middle button when following procedures in this document. Procedures
within the NetSight Element Manager document set refer to these buttons as
follows:
Left Mouse Button
Right Mouse Button
Figure 1-2. Mouse Buttons
For many mouse operations, this document assumes that the left (primary) mouse
button is to be used, and references to activating a menu or button will not
include instructions about which mouse button to use.
However, in instances in which right (secondary ) m ouse button functionality is
available, instructions will explic itly refer to right mouse button usage. Also, in
situations where you may be switching between mouse buttons in the same area
or window, instru ctions may also explicitly refer to both left and right mouse
buttons.
1-4 Software Conventions
Introduction
Instructions to perform a mouse operation include the following terms:
• Pointing means to position the mouse cursor over an area without pressing
either mouse button.
• Clicking means to position the mouse pointer over the indicated target, then
press and release the appropriate mouse button. This is most commonly used
to select or activate objects, such as menus or b uttons.
• Double-clicking means to position the mouse pointer over the indicated
target, then press and release the mouse button two times in rapid succession.
This is commonly used to activate an object’s default operation, such as
opening a window from an icon. Note that there is a distinction made between
“click twice” and “double-click,” since “click twice” implies a slower motion.
• Pressing means to position the mouse pointer over the indicated target, then
press and hold the mouse button until the de scribed action is completed. It is
often a pre-cursor to Drag operations.
• Dragging means to move the mouse pointer across the screen while holding
the mouse button down. It is often used for drag-and-drop operations to copy
information from one window of the screen into another, and to highlight
editable text.
Using Window Buttons
The Cancel button that appears at the bottom of most windows allows you to exit
a window and terminate any unsaved changes you have made. You may also
have to use this button to close a window after you have made any necessary
changes and set them by clicking on an OK, Set, or Apply button.
An OK, Set, or Apply button appears in windows that have configurable values;
it allows you to confirm and SET changes you have made to those values. In some
windows, you may have to use this button to confirm each individual set; in other
windows, you can set several values at once and confirm the sets with one click
on the button.
The Help button brings up a Help text box with informat ion specific to the
current window. For more information concerning Help buttons, see Getting
Help, page 1-6 .
The command buttons, for example Bridge, call up a menu listing the wind ows,
screens, or commands available for that topic.
Any menu topic followed by ... (three dots) — for example Statistics... — calls up
a window or screen associated with that topic.
Software Conventions 1-5
Introduction
Getting Help
This section describes two different methods of getting help for questions or
concerns you may have while using NetS ight Element Manager
Using On-line Help
You can use the FN100 window Help buttons to obtain information specific to the
device. When you click on a Help button, a window will appear which contains
context-sensitive on-screen documentation that will ass ist you in the use of the
windows and their associated command and menu options. If a Help button is
grayed out, on-line help has not yet been implemented for the associated window.
From the Help menu accessed from the Chassis View window menu bar, you can
access on-line help specific to the Chassis View window, as well as bring up the
Chassis Manager window for reference. Refer to Chapter 2 for information on the
Chassis View and Chassis Manager windows.
All of the on-line help windows use the standard Microsoft Windows help facility. If you
NOTE
are unfamiliar with this feature of Windows, you can select H
elp —>How to Use Help from the primary NetSight Element Manager window.
H
elp from the Start menu, or
Getting Help from the Global Technical Assistance Center
If you need technical support related to NetSight Element Manager, contact the
Global Technical Assistance Center via one of the following meth ods:
By phone: (603) 332-9400
24 hours a day, 365 days a year
By fax: (603) 337-3075
By mail: Enterasys Networks
PO Box 5005
Rochester, NH 03866-5005
By e-mail: support@enterasys.com
FTP: ftp.ctron.com (134.141.197.25)
Login anonymous
Password your e-mail address
By BBS: (603) 335-3358
Modem Setting 8N1: 8 data bits, 1 stop bit, No parity
1-6 Getting Help
NOTE
Introduction
Send your questions, comments, and suggestions regarding NetSight Element
Manager to NetSight Technical Communications via the following address:
NetSight_docs@enterasys.com
To locate product specific information, refer to the Enterasys Web site:
http://www.enterasys.com/
For the highest firmware versions successfully tested with NetSight Element Manager
2.2.1, refer to the Readme file available from the NetSight Element Manager 2.2.1 program
group. If you have an earlier version of firmware and experience problems, contact
Technical Support for upgrade information.
Getting Help 1-7
Introduction
1-8 Getting Help
Chapter 2
The FN100 Chassis View
About the Chassis View window; the Chassis Manager window; Hub management functions
The FN100 Chassis View window is the main screen that immediately informs
you of the current condition of individual ports on your switch via a graphical
display. The Chassis View window also serves as a single point of access to all
other FN100 windows and screens, which ar e discussed at length in the following
chapters.
To access the FN10 0 Chassis View window, use one of the following options:
1. In any map, list, or tree view, double-click on the FN100 you wish to manage;
or
1. In any map, list, or tree view, click the left mouse button once to select the
FN100 device you wish to manage.
2. Select Manage—>Node from the main NetSight Element Manager window
menu bar, or select the Manage Node toolbar button.
or
1. In any map, list, or tree view, click the right mouse button once to select the
FN100 device you wish to manage.
2. On the resulting menu, click to select Manage.
2-1
The FN100 Chassis View
Viewing Chassis Information
The FN100 Chassis View window (Figure 2-1) provides a graphic representation
of the FN100, including a color-coded port display which immediately informs
you of the current configuration and status of the switch and its ports.
On an 8-port FN100, the
network management
port is represented as
port 9. On a 16-port
FN100, the network
management port will be
represented as port 17.
Figure 2- 1. FN100 Chassis View Window
By clicking in designated areas of the chassis graphical display (as detailed later
in this chapter), or by using the menu bar at the top of the Chassis View window,
you can access all of the menus that lead to more detailed device- and port- level
windows.
When you move the mouse cursor over a management “hot spot” the cursor icon will
TIP
change into a “hand” to indicate that clicking in the current location will bring up a
management option.
Front Panel Infor matio n
The areas above and below the main port display area provide the following
device information:
IP
The Internet Protocol address assigned to the FN100 appears in the title bar of the
Chassis View window; this field will display the IP address you have used to
create the FN100 icon. IP addresses are assigned via Local Management.
Connection Status
This color-coded area i ndicates the current state of communication between
NetSight Element Manager and the FN100.
2-2 Viewing Chassis Information
The FN100 Chassis View
• Green indicates the FN100 is responding to device polls (valid connection).
• Magenta indicates that the FN100 is in a temporary stand-by mode while it
responds to a physical change in the hub; note that port menus are inactive
during this stand-by state.
• Blue indicates an unknown contact status – poll ing has not yet been
established with the FN100.
• Red indicates the FN100 is not responding to device polls (device is off line, or
device polling has failed across the network for some other reason).
UpTime
The amount of time, in a day(s) hh:mm:ss format, that the FN100 has been
running since the last start-up.
Port Status
If management for your device supports a variable port display (detailed in The
FN100 Port Status Displays, later in this chapter), this field will show the display
currently in effect. If only a single port display is available — or if the default view
is in effect — this field will state Default.
NOTE
MAC
The physical layer address assigned to the interface associated with the IP
Address used to define the device icon when it was added to NetSight Element
Manager. MAC addresses are factory-set cannot be altered.
Boot Prom, Firmware, Time, and Date, are not available for the FN100 at the time of this
release.
Boot Prom
The revision of BOOT PROM installed in the FN100.
Firmware
The revision of device firmware stored in the FN100’s FLASH PROMs.
Time
The current time, in a 24-hour hh:mm:ss format, set in the FN100’s internal clock.
Date
The current date, in an mm/dd/yy format, set in the FN100’s internal clock.
Viewing Chassis Information 2-3
The FN100 Chassis View
Menu Structure
By clicking on various areas of the FN100 Chassis View display, you can access
menus with device- and port-level options, as well as utility applications which
apply to the device. The following illustration displays the menu structure and
indicates how to use the mouse to access the various menu s:
Figure 2-2. FN100 Chassis View Menu Structure
The Device Menu
From the Device Menu at the Chassis View window menu bar, you can access the
following selections:
evice Type..., which displays a window containing a description of the
• D
device being modeled. See Viewing th e Device Type for details.
• Device Find Source Address, enables you to determine through which
interface a specified MAC address is communicating by searching the 802.1d
bridge Filtering database. Ethernet MicroLAN switches will also search t he
repeater Source Address Table (SA T). If the specified MAC address is located,
a list of interface(s) through which the given address is communicating will be
displaye d.
ystem Group..., which allows you to manage the FN100 via SNMP MIB II.
• S
Refer to the Generic SNMP User’s Guide for further information.
/F Summary, which allows you to view statistics (displayed both graphically
• I
and numerically) for the traffic processed by each network interface on your
FN-10. See Viewing I/F Summary Information on page 2-13 for more
information.
2-4 Viewing Chassis Information
The FN100 Chassis View
• Virtual Switching..., which launches the FN100 Virtual Switching window,
allowing you to refine your network and control bandwidth usage by
assigning the FN100’s ports to any of four available virtual switches. See
Chapter 3, FN100 Virtual Switching, for details.
ort Trunking..., which allows you to use the FN100 Port T runking window to
• P
create trunk groups, letting you increase aggregate bandwidth when two or
more switches are connected. See Chapter 4, Using FN100 Trunking, for
details.
orkgroups..., which invokes a window that lets you configure work groups
• W
by specifying a subset of device ports and the type(s) of packets (multicast,
unicast, or both) that are to be forwar ded by those ports, thereby allowin g you
to restrict multicast traffic from being propagated through every bridge port
on your device. See Chapter 5, Workgroup Configuration, for details.
ridge Status..., which opens a window that provides an overview of bridging
• B
information for each interface, and allows you to access all other bridgerelated options. Refer to the bridging chapter in the Tools Guide for details.
it, which closes the FN100 Chassis View window.
• Ex
The Port Status Menu
The Port Status Menu allows you to select the status information th at will be
displayed in the port text boxes in the Chassis View window:
tatus allows you to select one of three status type displays: Bridge, Admin, or
• S
Operator .
oad will display the portion of network load processed per polling interval
• L
by each interface as a percentage of the theoretical maximum load (10 or 100
Mbits/sec).
rrors allows you to display the number of errors detected per polling interval
• E
by each interface as a percentage of the total number of valid packets
processed by the interface.
• I/F M
• I/F Sp
• I/F T
• B
apping will display the interface (if) index associated with each port on
your FN100 switch.
eed will display the speed (100 Mbits/sec) of the network segment
attached to each port. The speed of the network management port will be
displayed in Kbits/sec.
ype will display the interface type of each port in the FN100 — i.e., Eth
(ethernet-csmacd) for the bridging interfaces, and PPP for the network
management port.
ridge Type refers to the type of bridging in effect, which will always be TP
(transparent) on an FN100.
For more information on the port display options available via this menu, see The
FN100 Port Status Displays, later in this chapter.
Viewing Chassis Information 2-5
The FN100 Chassis View
The Utilities Menu
From the U
• M
• R
Using the MIBTools utility, you will have access to MIB information for FN100
NOTE
interfaces that are assigned to the default virtual switch. MIB information for interfaces
assigned to a virtual switch other than the default virtual switch will be unavailable via
MIBTools. See Chapter 3, FN100 Virtual Switching, for details on viewing and
changing the default virtual switch setting.
The Help Menu
The Help Menu has two selections:
tilities menu you can select:
IB Tools, provides direct access to the FN100’s MIB information. This
selection is also available from the T
ools menu at the top of the NetSight
Element Manager’s main window. Refer to the Tools Guide for more
information on the MIB Tools utility.
MON, for launching the Remote Network Monitoring application. RMON is
described in its own User’s Guide. Like MIB Tools, RMON can also be
launched from the T
ools menu.
ibs Supported, which brings up the Chassis Manager window. See The
• M
Chassis Manager Window, later in this chapter, for details.
hassis Manager Help, which brings up a help window with information
• C
specifically related to using the Chassis Manager and Cha ssis View windows.
bout Chassis Manager ..., which brings up a version window for the Chassis
• A
Manager application in use.
The Port Menus
The menu for bridging ports offers the following selections:
• Description..., which brings up a window describing the selected port; see
Viewing the Port Description, later in this chapter.
• Performance Graph..., which allows you to view the traffic going through a
selected bridge. This information is displayed both num erically and
graphically, as described in your Tools Guide bridging chapter.
• Source Addressing..., which displays a list of MAC Addresses that
communicate through the selected bridge port.
• I/F Statistics..., which allows you to view color-coded statistical information
about the selected bridge port; see Viewing Interface Detail later in this
chapter.
• CSMACD Stats..., which graphically displays Receive, Transmissio n, and
Collision errors over the selected bridge port; see Vi ewing CSMACD
Statistics later in this chapter.
2-6 Viewing Chassis Information
• Enable/Disable, which administratively turns the selected bridging port on or
off; see Viewing I/F Summary Information on page 2-13 for more
information.
The FN100 Port Status Displays
When you open the Chassis View window, each po rt on the FN10 0 will display its
Admin status (defined below); to change this status display, select one of the
options on the Port Status menu, as described in the following sections.
Selecting a Port Status View
To change the status of your ports:
The FN100 Chassis View
1. Click on P
a menu will appear.
2. Drag down (and to the right, if necessary) to select the status information you
want to display. The port text boxes will display the appropriate status
information.
Port status view options are:
Status
You can view four status categories for your ports:
ridge — FWD (forwarding), DIS (disabled), LIS (listening), LRN (learning),
• B
BLK (blocking), BRK (broken), or UNK (unknown).
• Bridge Mapping — bridge interface index numbers
• Ad
perator — ON or OFF
• O
If you have selected the B
• FWD (forwar ding) when the interfa ce is on-line and forwar ding packets fr om
one network segment to another.
• DIS (disabled) when bridging at the interface has been disabled by
management, and no traffic can be received or forwarded on this interface.
• LIS (listening) when the interface is not adding information to the filtering
database. It is monitoring Bridge Protocol Data Unit (BPDU) traffic whil e
preparing to move to the forwarding state.
ort Status on the menu bar at the top of the Chassis View window;
min — ON or OFF
ridge status mode, a port is considered:
• LRN (learning) when the Forwarding database is being created, or the
Spanning Tree Algorithm is being executed because of a network topology
change.
• BLK (blocking) when the interface is on-line, but filtering traffic from going
across the FN100 from one network segment to another.
Viewing Chassis Information 2-7
The FN100 Chassis View
• BRK (broken) when the physical interface has malfunctioned.
• UNK (unknown) if the interface’s status cannot be determined.
If you have selected Bridge Mapping, the port status boxes will display the bridge
interface index numbers assigned to each interface (which may or may not match
the ifIndex values displayed via the I/F Mapping option described below).
If you have selected the Ad
min status mode, a port is considered:
• ON if the port has been enabled by management.
• OFF if the port has been disabled by management.
If you have selected the O
perator status mode, a port is considered:
• ON if the port is actively forwarding and receiving packets.
• OFF if the port is not currently forwarding and receiving packets.
Load
If you choose L
oad, the interface text boxes will display the percentage of
network load processed by each port during the last polling interval. This
percentage reflects the network load generated per polling interval by devices
connected to the port compared to the theoretical maximum load (10 or 100
Mbits/sec) of an Ethernet network.
Errors
If you choose the E
rrors mode, the interface boxes will display the percentage of
the total number of valid packets processed by each port during the last polling
interval that were error packets. This percentage reflects the number of errors
generated during the last polling interval by devices connected to that port
compared to the total number of valid packets processed by the port.
The polling interval is set via the Tools —> Options.. .—>Poll in g op tion fr om the m ain
NOTE
window’s menu bar. Refer to the User’s Guide for full information on setting device
polling intervals.
I/F Mapping
If you choose the I/F M
apping mode, each port text box will display its
MIB II ifIndex value.
I/F Speed
If you choose the I/F Sp
eed mode, the port text boxes will display the speed (100
Mbits/sec) of the network segment connected to each port. The speed of the
network management port will be displayed in Kbits/sec.
2-8 Viewing Chassis Information
I/F Type
If you choose the I/F T
(e.g., Eth, PPP) of each port, as determined by the port’s MIB II ifType value.
Port Status Color Codes
The B
green = FWD, blue = DIS, magenta = LIS/LRN, orange = BLK, red = BRK, and
gray = UNK.
The FN100 Chassis View
ype mode, the port text boxes will display the port type
ridge port display mode incorporates the following color-coding scheme:
The Ad
scheme: green = ON, red = OFF.
For the L
color codes will continue to reflect the most recently selected mode which
incorporates its own color coding scheme.
min and Operator port display modes use the following color-coding
oad, Errors, I/F Mapping, I/F Speed, and I/F Type port display modes,
The Chassis Manager Window
The FN100 draws its functionality from a collection of proprietary MIBs and IETF
RFCs, and organizes its MIB data into a series of components. A MIB component
is a logical grouping of MIB data; each group controls a defined set of objects. For
example, FN100 bridging information is organized into its own component. Note,
too, that there is no one-to-one correspondence between MIBs and MIB
components; a single MIB component might contain o bjects from several differ ent
proprietary MIBs and RFCs.
The Chassis Manager window, Figure 2-3, is a read-only window that displays the
MIBs and the MIB components — and, therefore, the functionality — supported
by the currently monitored device.
To view the Chassis Manager window:
1. Click on H
elp on the menu bar at the top of the Chassis View window.
2. Drag down to M
IBs Supported, and release.
Viewing Chassis Information 2-9
The FN100 Chassis View
The MIBs which provide
the FN100’s functionality
— both proprietary MIBs
and IETF RFCs — are
listed here.
MIB Components are
listed here; remember,
there’s no one-to-one
correspondence
between MIBs and
MIB Components.
Figure 2-3. Chassis Manager Window
Viewing Hardware Types
In addition to the graphical displays described above, menu options available at
several levels provide specific information about the physical characteristics of
the FN100 and its ports.
Viewing the Device Type
Choosing the D
describes the management device being modeled:
Viewing the Port Description
Choosing the Description... option on the individual port interface menus brings
up a window that describes that interface you have selected. Depending on the
type of port you select, one of the following windows will appear:
evice Type... option on the Device menu brings up a window that
Figure 2-4. Device Type Window
2-10 Viewing Chassis Information
Figure 2-5. Port Description Windows
Managing the Hub
In addition to the performance and configuration information described in the
preceding sections, the Chassis View also provides you with the tools available to
configure your device and keep it operating properly. Hub management for the
FN100 is comprised of locating source addresses, viewing interface statistics and
CSMACD statistics, as well as a dministratively enabling and disabling the ports.
The FN100 Chassis View
Using Device Find Source Address
When you select the Device Find Source Address option, the device’s 802.1d
Filtering database is searched for the specified MAC address. If it is found, the
Component field will display the value “Bridge” indicating that the address was
found on a bridging interface, and the Port Instance field will display the index
number assigned to the bridge port on which the address was located.
You may receive an error message stating “Can’t Display Source Address” if a Port
NOTE
Instance of “0” or “0.0” is reported. This value indicates that the MAC address is
communicating through the backplane instead of through a front panel interface.
To open the Device Find Source Address window:
1. Click on Device in the Chassis View menu bar.
2. Click on Device Find Source Address. The Device Find Source Address
window, as shown in Figure 2-6, opens.
Managing the Hub 2-11
The FN100 Chassis View
The Device Find Source Address window displays the following information:
Figure 2-6. Device Find Source Address Window
NOTE
Component
Displays the type of interface through which the specified MAC address is
communicating. This field will report Bridge.
Port Instance
Displays the bridge port index number on which the specified MAC address was
found.
To use the Device Find Source Address window:
1. In the Address Mode field, select the format of the Source Address you wish
to find, either MAC or Canonical.
2. In the Enter Address text box, enter the Source Address you wish to find in
the appropriate XX-XX-XX-XX-XX-XX format.
If you enter the MAC format of a specified address, and then click on Canonical,
NetSight Element Manager will do the address conversion for you, from the Ethernet
hexadecimal format to the Token Ring Canonical format. The same is also true if you enter
the Canonical format of a spe cified address and then select MAC.
3. Click on the Find It! button. A “Processing Request” message opens in the
status bar at the bottom of the window.
2-12 Managing the Hub
If the specified MAC address is located, a list of the interface(s) through which the
given address is communicating displays in the lis t box. A status message at the
bottom of the window will display the number of interfaces through which the
given MAC address is communicating.
If the specified MAC address cannot be found, a “Source Address not found”
message displays.
If the MAC address is entered in an incorrect format, an “Invalid MAC Address.
NOTE
Enter Valid MAC Address” message displays. Enter the address in the correct
XX-XX-XX-XX-XX-XX hexadecimal format.
Viewing I/F Summary Information
The I/F Summary menu option available from the Device menu lets you view
statistics for the traffic processed by each network interface on your device. The
window also provides access to a detailed statistics window that breaks down
Transmit and Receive traffic for each interface.
The FN100 Chassis View
To access the I/F Summary window:
1. From the Module View, click on the Device option from the menu bar.
2. Click ag ain to select I/F Summary, and release. The I/F Summary window,
Figure 2-7, will appear.
Figure 2-7. I/F Summary Window
The I/F Summary window provides a variety of descriptive information about
each interface on your device, as well as statistics which display each interface’s
performance.
Managing the Hub 2-13
The FN100 Chassis View
The following descriptive information is provided for each interface:
UpTime
The UpTime field lists the amount of time, in a days, hh:mm:ss format, that the
device has been running since the last start-up.
Index
The index value assigned to each interface on the device.
Type
The type of the interface, distinguished by the physical /lin k protoc ol( s) runni ng
immediately below the network layer. Possible values are ethernet-csmacd (for
both standard and Fast Ethernet front panel interfaces) and PPP.
Description
A text description of the interface: Ethernet, Fast Ethernet, or Network
Managemen t Po rt.
Physical Status
Displays the current physical status — or operational state — of the interface:
Online or Offline.
Logical Status
Displays the current logical status — or administrative state — of the interface:
Up or Down.
Interface Performance Statistics/Bar Graphs
The statistical values (and, where available, the accompanying bar graphs) to the
right of the interface description fields provide a quick summary of interface
performance. Y ou can select the statistical value you want to display and the units
in which you want those values displayed by using the two menu fields directly
above the interface display area, as follows:
1. In the right-most menu field, click on the down arrow and select the unit in
which you wish to display the selected statistic: Load, Raw Counts, or Rate.
Bar graphs are only available when Load is the selected base unit; if you select Raw
NOTE
Counts or Rate, the Bar Graph column will be removed from the interface display.
2. Once you have selected the base unit, click on the down arrow in the left-most
field to specify the statistic you’d like to display. Note that the options available
from this menu will vary depending on the base unit you have selected.
2-14 Managing the Hub
The FN100 Chassis View
After you select a new display mode, the statistics (and graphs, where applicable)
will refresh to reflect the current choice, as described below.
Raw Counts
The total count of network traffic received or transmitted on the indicated
interface since device counters were last reset. Raw counts are provided for the
following parameters:
In Octets Octets received on the interface, including framing
characters.
In Packets Packets (both unicast and non-unicast) received by the
device interface and delivered to a higher-layer protocol.
In Discards Packets received by the device interface that were
discarded even though no errors prevented them from
being delivered to a higher layer protocol (e.g., to free up
buffer space in the device).
In Errors Packets received by the device interface that contained
errors that prevented them from being delivered to a
higher-layer protocol.
In Unknown Packets received by the device interface that were
discarded because of an unknown or unsupported
protocol.
Out Octets Octets transmitted by the interface, including framing
characters.
Out Packets Packets transmitted, at the request of a higher level
protocol, by the device interface to a subnetwork address
(both unicast and non-unicas t ).
Out Discards Outbound packets that were discarded by the device
interface even though no errors were detected that
would prevent them from being transmitted. A possible
reason for discard would be to fr ee up buff er space in the
device.
Out Errors Outbound packets that could not be transmitted by the
device interface because they contained errors.
Load
The number of bytes processed by the indicated interface during the last poll
interval in comparison to the theoretical maximum load of the network to which
the device is connected (100 Mbps for Fast Ethernet). Load is further defined by
the following parameters:
In Octets The number of bytes received by this interface, expressed
as a percentage of the theoretical maximum load.
Managing the Hub 2-15
The FN100 Chassis View
Out Octets The number of bytes transmitted by this interface,
When you select this option, a Bar Graph field will be added to the interface
display area; this field is only available when Load is the selected base unit.
Rate
The count for the selected statistic during the last poll interval. The available
parameters are the same as those provided for Raw Counts. Refer to the Raw
Counts section, above, for a complete description of each parameter.
Viewing Interface Detail
The Interface Statistics window (Figure 2-8) provides detailed MIB-II interface
statistical information — including counts for both transmit and receive packets,
and error and buffering information — for each individual port interface. Colorcoded pie charts also let you graphically view statistics for both received and
transmitted Unicast, Multicast, Discarded, and Error packets.
To open the Interface Statistics window:
expressed as a percentage of the theoretical maximum
load.
1. In the I/F Summary window, click to select the interface for which you’d like to
view more detailed statistics.
2. Click on Detail. The appropriate I/F Statistics window will appear.
Figure 2-8. Detail Interface Statistics
2-16 Managing the Hub
TIP
The FN100 Chassis View
You can also access this information via the I/F Statistics option available on the
individual port menus.
Three informational fields appear in the upper portion of the window:
Description
Displays the interface description for the currently selected interface: Ethernet or
Fast Ethernet.
Address
Displays the MAC (physical) address of the selected interface.
Type
Displays the interface type of the selected port: ethernet-csmacd.
The lower portion of the window provides the following transmit and receive
statistics; note that the first four statistics are also graphically displayed in the pie
charts.
Unicast
Displays the number of packets transmitted to or received from this interface tha t
had a single, unique destination address. These statistics are displayed in the pie
chart, color-coded green.
Non-Unicast
Displays the number of packets transmitted to or received from this interface tha t
had a destination address that is recognized by more than one device on the
network segment. The multicast field includes a count of broadcast packets —
those that are recognized by all devices on a segment. These statistics are
displayed in the pie chart, color-coded dark blue.
Discarded
Displays the number of packets which were discarded even though they
contained no errors that would prevent transmission. Good packets are typically
discarded to free up buffer space when the network becomes very busy; if this is
occurring routinely, it usually m eans that network traffic is overwhelming the
device. To solve this problem, you may need to re-configure your bridging
parameters, or perhaps re-configure your network to add additional bridges or
switches. These statistics are displayed in the pie chart, color-coded magenta.
Error
Displays the number of packets received or transmitted that contained errors.
These statistics are displayed in the pie chart, color-coded red.
Managing the Hub 2-17
The FN100 Chassis View
Unknown Protocol
(Received only)
Displays the number of packets received which were discarded because they were
created under an unknown or unsupported protocol.
Packets Received
(Received only)
Displays the number of packets received by the selected interface.
Transmit Queue Size
(Transmit only)
Displays the number of packets currently queued for transmission from this
interface. The amount of device memory devoted to buffer space, and the traffic
level on the target network, determine how large the output packet queue can
grow before the FN100 will begin to discard packets.
Packets Transmitted
(Transmit only)
Displays the number of packets transmitted by this interface.
Making Sense of Detail Statistics
The statistics available in this window can give you an idea of how an interface is
performing; by using the statistics in a few simple calculations, it’s also possible to
get a sense of an interface’s activity level:
To calculate the percentage of input errors:
NOTE
Received Errors /Packets Received
To calculate the percentage of output errors:
Transmitted Errors /Packets Transmitted
To calculate the total number of inbound and outbound discards:
Received Discards + Transmitted Discards
To calculate the percentage of inbound packets that were discarded:
Received Discards /Packets Received
To calculate the percentage of outbound packets that were discarded:
Transmit Discards /Packets Transmitted
The Interface Statistics window does not offer Disable or Test options. These options are
available in the Interface Group window, which can be accessed via the System Group
window (select S
ystem Group... from the Device menu). Refer to your Generic SNMP
User’s Guide for information on the System Group and Interface Group windows.
2-18 Managing the Hub
Viewing CSMACD Statistics
The CSCMACD Statistics Windows display statistics for each bridging interface
on your FN100. Receive errors, transmission errors, and collision errors are
displayed in this window.
Three color-coded pie charts allow you to view the breakdowns of each statistics
group.
To access the CSMA CD Statistics window from the Chassis View window:
1. Click on the desired port to reveal the Port menu.
2. Choose CSMACD Stats.... The following window will appear (Figure 2-9).
The CSMACD Statistics window can also be accessed from the Bridge Status window.
NOTE
See the bridging chapter in the Tools Guide for more information.
The FN100 Chassis View
Figure 2-9. CSMACD Statistics Window
Each of the receive, transmission, and collision errors is described below.
Receive Errors
Alignment
The number of frames received on a particular interface that contain a nonintegral number of bytes (color-coded green). Misaligned packets can result from
Managing the Hub 2-19
The FN100 Chassis View
a MAC layer packet formation problem, or from a cabling problem that is
corrupting or losing data.
FCS
The number of frames received on a particular interface that are an integral
number of bytes in length, but do not pass the FCS (Frame Check Sequence)
check. FCS, or Frame Check Sequence, errors occur when packets are somehow
damaged on transit. When each packet is transmitted, the transmitting interface
computes a frame check sequence (FCS) value based on the co ntents of the packet,
and appends that value to the packet. The receiving interface performs the same
computation; if the FCS values differ, the packet is assumed to have been
corrupted and is counted as an FCS error.
SQE Test
Displays the number of times that the SQE Test Error message is generated by the
PLS sublayer on the selected interface. The SQE (Signal Quality Error) Test tests
the collision detect circuitry after each transmission. If the SQ E Test fails, a SQE
Test Error is sent to the interface to in dicate that the collision detect circuitry is
malfunctioning.
Transmission Errors
Carrier Sense
Displays the number of times that the carrier sense condition was lost or never
asserted when attempting to transmit a frame on a particular interface. Carrier
sense describes the action an interface desiring to transmit will take to listen to the
communication channel to see if any other interface is transmitting. If a “carrier is
sensed,” the sensing interface will wait a random length of time, and then attempt
to transmit.
Frame Too Long
Displays the amount of frames received on this interface that exceed the
maximum permitted frame size.
Internal MAC
The number of frames that failed to be received by the interface due to an internal
MAC sublayer receive error. These errors are only counted if a Frame Too Long,
Alignment, or FCS Error did not occur along with the internal MAC error.
Receive Errors
Displays the total number of receive errors of all types that were detected by the
selected interface while it was receiving a transmission.
Deferred
Displays the number of frames for which the f irst transmission attempt on this
interface is delayed because the medium is busy.
2-20 Managing the Hub
Collision Errors
The FN100 Chassis View
Internal MAC
The number of frames for which transmission fails due to an internal MAC
sublayer transmit error. This error is only counted in this window if there have
not been corresponding Late Collisions, Excessive Collision s, or Ca rrier Sense
Errors.
Transmit Errors
The total of transmission errors of all types that occurred while the selected
interface was attempting to transmit frames.
Single
Displays the number of successfully transmit ted fra mes on the selected interface
for which transmission was prevented by one collision.
Multiple
Displays the number of successfully transmit ted fra mes on the selected interface
for which transmission was prevented by more than one collision.
Late
Displays the number of times that a collision has been detected on this interface
later than 51.2 microseconds into the transmission of the packet on a 10 Mbit/s
system or later than 5.12 microseconds on a 100 Mbit/s system.
Excessive
Displays the number of frames from this interface for which transmission was not
complete due to excessive collisions.
Collision Errors
Displays the total number of collision errors of all types tha t occurred during
transmission from this interface.
Enabling and Disabling Ports
From the Port menus on the FN100 Chassis View window, you can
administratively enable and disable the ports. When you administratively disable
a bridge port, you disconnect that port’s network from the bridge entirely. The
port does not forward any packets, nor does it participate in Spanning Tree
operations. Nodes connected to the network can still communicate with each
other, but they can’t communicate with the bridge or with other networks
connected to the bridge. When you enable a port, the port moves from the
Disabled state, through the Learning and Listening states, to the Forwarding
state; bridge port state color codes will change accordingly.
Managing the Hub 2-21
The FN100 Chassis View
To enable or disable a bridge port:
1. Click on the desired Port index. The Port menu will appear.
2. Click on Enable to enable the port, or Disable to disable the port. You will get
For more information about bridging functions and how to determine the current state of
NOTE
each bridge port, see the bridging chapter in the Tools Guide.
a confirmation window asking if you’re “sure you want to Enable/Disable this
Bridge Port.” Click OK and your port will now be enabled or disabled.
2-22 Managing the Hub
FN100 Virtual Switching
FN100 virtual switches; performing virtual switching
The FN100 Virtual Switching window (Figure 3-1) allows you to refine your
network and control bandwidth usage by assigning the FN100’s ports to any of
four available virtual switches. This feat ure can be used to logically group
network users and control the amount and type of traffic that is propagated
beyond each logical group.
Using this window, you can configure up to four logical segments that can
include multiple physical segments attached to the front panel ports (e.g.,
physical segments inserted in ports 1, 2, 5, and 8 could all be assigned to Switch 3,
and would communicate as if they actually w e re on the same physica l segment).
Using this capability , 10 and 100 Mbps devices can be placed on separate physical
segments, allowing the 100 Mbps devices to operate at full speed, and the switch
can treat both segments as a single logical net work.
Chapter 3
Each virtual switch is assigned a unique bridge ID and is treated as a separate
bridge by Spanning Tree. The bridge ID for each virtual switch is based on the
MAC address of the port in each group with the lowest index number.
The Default Switch setting determines which of the four available virtual switches
is queried for port-specific information for the Spanning Tree protocol. Because
each virtual switch is treated as a separate bridge by Spanning Tree, only ports
which are assigned to the Default Switch will be recognized by Spanning Tree and
correctly represented in the Bridge Status window.
Performing Virtual Switching
To launch the FN100 Virtual Switching window from the FN100 Chassis View:
1. Click to display the D
2. Drag down to V
window (Figure 3-1) will appear.
evice menu.
irtual Switching..., and release. The Virtual Switching
3-1
FN100 Virtual Switching
The Virtual Switching window features a column of four radio buttons (one
button for each virtual switch) for each of the FN100’s ports. The port indices are
listed atop each column.
Figure 3- 1. The Virtual Switching Window
The Virtual Switching window also features:
Update
When the Update button is clicked, the FN100 will be queried for its virtual
switch settings, and any changes that have occurred since the window was
opened (or since the Update button was last clicked) will be reflected in the
window.
Configuring Your Virtual Switch Settings
To assign the FN1 00’s ports to any of the four virtual switches:
1. For each port that you wish to assign to a virtual switch, click on the port’s
radio button (in the column beneath the port’s index number) that corresponds
to the desired switch setting.
2. Click Apply. The Virtual Switching window will update to reflect the new
configuration.
If you use the Virtual Switching window to assign por ts to a virt ual switc h other tha n the
NOTE
one defined as the default switch, those ports will not be correctly represented in the
Bridge Status window. This is because each virtual switch has a separate bridge ID and is
treated as a separate bridge by Spanning Tree. To correctly view these ports in th e Bridge
Status window, you must change the default virtual switch setting using the Default
Switch field.
3-2 Performing Virtual Switching
Defining a Default Switch
By defining a default switch setting, you decide which of the FN100’s four virtual
switches will be recognized by Spanning Tree and reflected in the FN100 Bridge
Status window. When you change the default switch, only those ports which are
assigned to the selected default switch will be correctly displayed in the Bridge
Status window. All other ports will return an UNKNOWN bridge state.
To define a default switch for your FN100:
1. Click the I-bar cursor ( ) next to the Default Switch: field near the bottom of
the Virtual Switching window. The Change Default Switch window will appear.
FN100 Virtual Switching
Figure 3-2. The Change Default Switch Window
NOTE
2. Enter the desired default switch number. Allowable entries are 1, 2, 3, or 4.
3. Click OK to select the default switch you have entered. Click Cancel to exit
the window without making any changes.
When the FN100 is reset, all p o rts will revert to Virtual Switch #1. The Default Switch
will also revert to 1.
Performing Virtual Switchi ng 3-3
FN100 Virtual Switching
3-4 Performing Virtual Switching
Using FN100 Trunking
The Trunking Table window; enabling and disabling trunking
Trunking, an extension of the 802.1D Spanning Tree protocol, allows you to
increase aggregate bandwidth w hen two or m ore switches ar e con nected. A single
10/100BASE-T connection between switches yields 10 or 100 Mbps of bandwidth,
depending on the speed of the ports used for the connection. A trunk group is
created when two or more ports on the same switch (for which trunking protocol
is enabled) are physically connected to the same remote switch. By creating a
trunk group, each additional connection results in another 10 or 100 Mbps of
bandwidth, since the group of ports effectively acts as a single connection. The
trunking protocol modifies Spanning Tree to allow the redundant links which
form a trunk group. Trunking can be enabled or disabled for a port using the
Trunking Table window (Figure 4-1). Trunking can be enabled for use on up to
eight ports per switch, allowing you to configure up to four trunk groups
potentially yielding 80 or 800 Mbps of bandwidth, depending on the speed of the
interfaces.
Chapter 4
NOTE
!
CAUTION
Although you can enable trunking for more than eight ports on an FN100 (if more than
eight ports exist on your device), the trunking protocol prohibits the use of trunking on
more than eight ports at a time. If you enable trunking and establish a valid link for a
ninth port, the extra port will be in “hot standby” mode. If connections are broken for any
of the original eight trunk p o rts, the hot standby port wil l then participate in trunkin g,
provided that it has a valid link to a remote switch which is participating in a trunk
group.
You can add ports of different interface speeds to the same trunk groups; however, doing so
will cause the higher speed ports to assu me the same bandwidth as the lower speed ports,
so you effectively lose any t ransmission speed benefits for the faster port.
4-1
Using FN100 Trunking
To display th e Port Trunking window from the FN100 Chassis View:
1. Click to display the D
2. Drag down to P
Figure 4-1, will appear.
ort Trunking..., and release. The Port Trunking window,
evice menu.
Figure 4- 1. The Port Trunking Window
The Port Trunking Window
The Port Trunking window features the trunking table (in the upper portion of
the window), which displays the following information about each interface for
which trunking is enabled:
Index
Displays the port’s sftrunkIfIndex identifier.
State
Indicates the port’s trunking condition (sftrunkState). The possible states are:
• closed — trunking is enabled, and the trunking protocol is attempting to
establish a trunk connection, but the port has not yet received any trunking
PDUs.
• oneway — trunking is enabled, and the trunking protocol is attempting to
establish a trunk connection, but incoming trunking PDUs do not indicate that
4-2 The Port Trunking Window
Using FN100 Trunking
the FN100’s trunking PDUs are being successfully received at the other end of
the link.
• joined — trunking is enabled, the trunking protocol has established a good
trunk connection, and the port is actively participating in the trunk group.
• perturbed — trunking is enabled, the trunking protocol has established a good
trunk connection, and the port is actively participating in the trunk group;
however, the transmission of data packets has been temporarily stopped due
to a change in trunk group membership.
• helddown — trunking is enabled, but the trunk connection has been rejected.
Indicates that an error has been detected and the link is being held out of
service until the error condition clears. After a short time-out period, another
attempt will be automatically initiated to establish a good trunk connection.
• broken — the port has been configured for trunking, but is physically non-
operational.
Rmt Bridge Id
Displays the MAC address portion of the remote bridge’s bridge ID.
NOTE
The Rmt Bridge Id field can be used to determine which ports belong to which trunk
group. Ports in the same trunk group wi ll have the same remote bridge ID.
Rmt IP Address
Displays the remote bridge’s IP address.
Last Error
Displays a value (1-8) corresponding to a reason for failure when the link is in a
helddown state. These values and their corresponding reasons for fa ilure include:
• 1 — none — no error; the trunking protocol may restart with no error
conditions when trunking is activated for a port o r when the MIB variable that
controls extra trunk groups is modified.
• 2 — in-bpdu — a spanning tree BPDU was received, indicating that the
connection is not point-to-point, or that the far end of the link does not have
trunking enabled.
• 3 — multiple-bridges — a different bridge has been connected at the far end
of the link, and the trunking protocol will restart.
• 4 — ack-lost (acknowledgment lost) — the far end of the link has detected a
problem, and the trunking protocol will restart.
The Port Trunking Window 4-3
Using FN100 Trunking
• 5 — standby — the trunk group is filled to capacity with other ports; this port
• 6 — too-many-groups — the maximum number of groups (4) has been
• 7 — no-ack (no acknowledgment) — this port has not received a valid
• 8 — perturbed-threshold — errors are preventing stabilization, and the
Link Ordinal
Displays the position of the port’s li nk within its trunk group.
Link Count
Displays the number of links within the port’s trunk group.
Last Change
Displays the time (in seconds) since the port’s trunk state (sftrunkState) changed.
is now a hot standby. If another port leaves the trunk group, this port will then
be included in the group.
reached, and a new group cannot be added. This port will not be used until the
condition clears.
trunking packet, and the trunking protocol will restart.
trunking protocol will restart.
NOTE
The lower portion of the Port Trunking window displays the port selection area
which, when used in conjunction with the Enable and Disable buttons at the
bottom of the window, allows you to enable or disable trunking for selected ports.
The port selection area lists each of the FN100’s ports, their trunking state
(enabled or disabled), their MIB II ifIndex, ifType, and ifSpeed.
Trunking cannot be enabled f or the local management (ppp) port (port 9 or 17 , depending
on your FN100’s port configuration).
The Trunking Table window also features:
Clear
When the Clear button is clicked, any selections you have made in the port
selection area will be deselected.
Update
When the Update button is clicked, the FN100 will be queried for trunking
information, and any changes that have occurred since the window was opened
(or since the Update button was last clicked) will be reflected in the trunking
table.
4-4 The Port Trunking Window
Enabling and Disabling Trunking
To enable trunking for your FN100 ports using the Port Trunking window:
1. In the port selection list, click on an entry representing a port for which you
would like to enable trunking.
2. Click on Enable. The trunking table will update to include the new trunking
selection.
3. Repeat steps 1 and 2 for each port for which you want to enable trunking.
802.1D Spanning Tree takes about 30 seconds to resolve which FN100 ports in a
trunk group are to become forwarding ports. As ports within a trunk group
become forwarding ports, traffic within the trunk group will be momentarily
halted to guarantee the first-in, first-out ordering of Ethernet packets.
Connections between FN switches must be point-to-point; there cannot be any other
NOTE
devices on those segments. The FN100 ports used for trunking can be in any order.
Remember, though, that the switches on both ends of the connections must have trunking
enabled for their ports which are used for the connections.
Using FN100 Trunking
To disable trunking for your FN100 ports using the Port Trunking window:
1. In the port selection list, click on an entry representing a port for which you
would like to disable trunking.
2. Click on Disable. The trunking table will update to reflect the new trunking
selection.
3. Repeat steps 1 and 2 for each port for which you want to disable trunking.
The Port Trunking Window 4-5
Using FN100 Trunking
4-6 The Port Trunking Window
Workgroup Configuration
Workgroups explained; adding and deleting workgroups from this window
The FN100’s Virtual Workgroups window allows you to restrict multicast traffic
from being propagated through every bridge port on your device. This optimizes
bandwidth by limiting the subnet broadcast traffic to only those ports that require
the traffic. You define a virtual work group by specifying a subset of device ports
and the type(s) of packets (multicast, unicast, or both) tha t are to be forwarded by
those ports. Each port can belong to more than one work group. In all, you can
create up to 100 virtual work groups per switch.
To access the Virtual Workgroups window from the FN100 Chassis View:
Chapter 5
1. Click to display the D
2. Drag down to W
Figure 5-1 will appear.
orkgroups..., and release. The Virtual Workgroups window,
evice menu.
5-1
Workgroup Configuration
Figure 5-1. Virtual Workgroups Window
You can view and modify existing work groups as well as configure new work
groups from this window . The Workgroup Table at the top of the window lists
each existing work group along with its configuration informa tion. The
Add/Modify section of this window allows you to set-up the parameters of your
work group, including Name and Type. The Ports in Workgroup section of the
window allows you to choose the ports that will be included in the workgroup.
The IP Address, IP Mask, and IPX Ne twork fields in the Add/Modify section of the
NOTE
V irtual Workgr oups window are not applicable to the FN100 and ar e therefor e grayed out.
Though they may not appear this way upon opening the window, once you select a Type
of workgroup (see step #3 below), these fields will go gray.
Configuring a Workgroup
To add or modify a workgroup using the Virtual Workgroups window:
1. To modify an existing workgroup, click on the desired entry in the Workgroup
Table. The selected workgroup’s configuration information will be reflected in
the Add/Modify and Ports in Workgroup sections of the window.
2. Type a name in the Name field in the Add/Modify portion of this window. The
name can be 1-16 alphanumeric characters. You will use the name to identify
the workgroup.
5-2 Configuring a Workgroup
Workgroup Configuration
3. Choose the Type of workgroup being created or modified. This determines
whether ports in this workgroup will forward only multicast packets, only
unicast packets, or both multicast and unicast packets. The following are your
possibilities:
• All — ports in this workgroup will forward both unicast and multicast
packets.
• Multicast — ports in this workgroup will forward only multicast packets.
• Unicast — ports in this workgroup will forward only unicast packets.
4. If necessary, use the Refresh button to deselect any ports you have
previously selected in the Port Selection area.
5. In the Ports In Workgroup area, click on the selection boxes corresponding
to the ports you would like to include in this workgroup. Each port is identified
by index number. Note that you cannot select the Network Management PPP
port for inclusion into a workgroup.
6. Click on Add if you are adding a new workgroup, or on Apply if you are
modifying an existing workgroup. New workgroup entries will be added to the
Workgroup Table, and changes to existing workgroups will be reflected in the
Workgroup Table.
7. Repeat steps 1-6 to add or modify any additional workgroups.
Deleting a Workgroup
In the Workgroup T a ble, h ighlight the work gr o up you would like to delete. Click
on Delete, the highlighted work group will be deleted. To have this change
reflected in the Workgroup Table, click on Refresh. The currently defined
workgroups will be displayed.
Configuring a Workgroup 5-3
Workgroup Configuration
5-4 Configuring a Workgroup
Index
A
ack-lost 4-3
B
BLK (Blocking) 2-7
Boot Prom, revision 2-3
Bridge Mapping 2-7
BRK 2-8
broken 4-3
buffer space 2-17
C
Cancel button 1-5
