Enterasys VH-4802 User Manual

VERTICAL HORIZON

VH-4802

FAST ETHERNET SWITCH

USER GUIDE

9033630

Notice

Only qualified personnel should perform installation
procedures.

NOTICE

Enterasys Networks reserves the right to make changes in specifications and other information
contained in this document without prior notice. The reader should in all cases consult Enterasys
Networks to determine whether any such changes have been made.

The hardware, firmware, or software described in this manual is subject to change without notice.

IN NO EVENT SHALL ENTERASYS NETWORKS BE LIABLE FOR ANY INCIDENTAL,
INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT
NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR
THE INFORMATION CONTAINED IN IT, EVEN IF ENTERASYS NETWORKS HAS BEEN
ADVISED OF, KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH
DAMAGES.

 2000 by Enterasys Networks, Inc., P.O. Box 5005, Rochester, NH 03866-5005

All Rights Reserved
Printed in Taiwan, R.O.C.

Order Number: 9033630 November 2000

Enterasys, Enterasys Networks, and Vertical Horizon are trademarks or registered trademarks of
Enterasys Networks, Inc.

Microsoft, Windows, Windows 95, Windows 98, and Windows NT are either trademarks or registered
trademarks of Microsoft Corporation.

Netscape and Netscape Navigator are trademarks of Netscape Communications Corporation.

All other product names mentioned in this manual may be trademarks or registered trademarks of
their respective companies.

9033630 i

Notice

FCC NOTICE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment uses, generates, and can radiate radio frequency energy and if not installed in
accordance with the operator’s manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause interference in which case the user
will be required to correct the interference at his own expense.

WARNING: Changes or modifications made to this device which are not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.

INDUSTRY CANADA NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.

VCCI NOTICE

This is a Class A product based on the standard of the Voluntary Control Council for Interference by
Information Technology Equipment (VCCI). If this equipment is used in a domestic environment,
radio disturbance may arise. When such trouble occurs, the user may be required to take corrective
actions.

SAFETY INFORMATION

CLASS 1 LASER TRANSCEIVERS

The VH-4802 48-port switch uses Class 1 Laser transceivers. Read the following safety information
before installing or operating these modules.

Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation limits. This
control loop eliminates the need for maintenance checks or adjustments. The output is factory set, and
does not allow any user adjustment. Class 1 Laser transceivers comply with the following safety
standards:

ii 9033630

Notice

• 21 CFR 1040.10 and 1040.11 U.S. Department of Health and Human Services (FDA).

• IEC Publication 825 (International Electrotechnical Commission).

• CENELEC EN 60825 (European Committee for Electrotechnical Standardization).

• When operating within their performance limitations, laser transceiver output meets the Class 1
accessible emission limit of all three standards. Class 1 levels of laser radiation are not considered
hazardous.

SAFETY INFORMATION

CLASS 1 LASER TRANSCEIVERS

LASER RADIATION AND CONNECTORS

When the connector is in place, all laser radiation remains within the fiber. The maximum amount of
radiant power exiting the fiber (under normal conditions) is -12.6 dBm or 55 x 10

Removing the optical connector from the transceiver allows laser radiation to emit directly from the
optical port. The maximum radiance from the optical port (under worst case conditions) is 0.8 W cm
or 8 x 10

Do not use optical instruments to view the laser output. The use of optical instruments to view laser
output increases eye hazard. When viewing the output optical port, power must be removed from the
switch.

3

W m2 sr-1.

-6

watts.

-2

WARNING: FIBER OPTIC PORT SAFETY

When using a fiber optic port, never look at the transmit laser while it is
powered on. Also, never look directly at the fiber TX port and fiber cable
ends when they are powered on.

AVERTISSMENT: PORTS POUR FIBRES OPTIQUES -

SÉCURITÉ SUR LE PLAN OPTIQUE

Ne regardez jamais le laser tant qu'il est sous tension. Ne regardez jamais
directement le port TX (Transmission) à fibres optiques et les embouts de
câbles à fibres optiques tant qu'ils sont sous tension.

WARNHINWEIS: FASEROPTIKANSCHLÜSSE -

9033630 iii

OPTISCHE SICHERHEIT

Niemals ein Übertragungslaser betrachten, während dieses eingeschaltet ist.
Niemals direkt auf den Faser-TX-Anschluß und auf die Faserkabelenden
schauen, während diese eingeschaltet sind.

Notice

SAFETY INFORMATION

WICHTIGE SICHERHEITSHINWEISE (GERMANY)

1. Bitte lesen Sie diese Hinweise sorgfältig durch.

2. Heben Sie diese Anleitung für den späteren Gebrauch auf.

3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie keine Flüssigoder
Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung.

4. Die Netzanschlu ßsteckdose soll nahe dem Gerät angebracht und leicht zugänglich sein.

5. Das Gerät ist vor Feuchtigkeit zu schützen.

6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen oder Fallen
könnte Beschädigungen hervorrufen.

7. Die Belüftungsöffnungen dienen der Luftzirkulation, die das Gerät vor Überhitzung schützt.
Sorgen Sie dafür, daß diese Öffnungen nicht abgedeckt werden.

8. Beachten Sie beim Anschluß an das Stromnetz die Anschlußwerte.

9. Verlegen Sie die Netzanschlußleitung so, daß niemand darüber fallen kann. Es sollte auch nichts
auf der Leitung abgestellt werden.

10. Alle Hinweise und Warnungen, die sich am Gerät befinden, sind zu beachten.

11. Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom Stromnetz
trennen. Somit wird im Falle einer Überspannung eine Beschädigung vermieden.

12. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten in das Gerät
gelangen. Dies könnte einen Brand bzw. elektrischen Schlag auslösen.

13. Öffnen sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen Sicherheit nur von
authorisiertem Servicepersonal geöffnet werden.

14. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen und von einer
qualifizierten Servicestelle zu überprüfen:

a. Netzkabel oder Netzstecker sind beschädigt.

b. Flüssigkeit ist in das Gerät eingedrungen.

c. Das Gerät war Feuchtigkeit ausgesetzt.

d. Wenn das Gerät nicht der Bedienungsanleitung entsprechend funktioniert oder Sie mit Hilfe

dieser Anleitung keine Verbesserung erzielen.

e. Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.

f. Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.

15. Zum Netzanschluß dieses Gerätes ist eine geprüfte Leitung zu verwenden. Für einen Nennstrom
bis 6A und einem Gerätegewicht größer 3kg ist eine Leitung nicht leichter als H05VV-F, 3G,

0.75mm

Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000 beträgt 70dB(A) oder
weniger.

iv 9033630

2

einzusetzen.

Notice

ENTERASYS NETWORKS, INC.

PROGRAM LICENSE AGREEMENT

BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT,

CAREFULLY READ THIS LICENSE AGREEMENT.

This document is an agreement (“Agreement”) between You, the end user, and Enterasys Networks,
Inc. (“Enterasys”) that sets forth your rights and obligations with respect to the Enterasys software
program (“Program”) in the package. The Program may be contained in firmware, chips or other
media. UTILIZING THE ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME BOUND
BY THE TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND THE
LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY. IF YOU DO NOT AGREE
TO THE TERMS OF THIS AGREEMENT, RETURN THE UNOPENED PRODUCT TO
ENTERASYS OR YOUR DEALER, IF ANY, WITHIN TEN (10) DAYS FOLLOWING THE DATE
OF RECEIPT FOR A FULL REFUND.

IF YOU HAVE ANY QUESTIONS ABOUT THIS AGREEMENT, CONTACT ENTERASYS
NETWORKS [phone]. Attn: Legal Department.

1. LICENSE. You have the right to use only the one (1) copy of the Program provided in this
package subject to the terms and conditions of this License Agreement.

You may not copy, reproduce or transmit any part of the Program except as permitted by the

Copyright Act of the United States or as authorized in writing by Enterasys.

2. OTHER RESTRICTIONS. You may not reverse engineer, decompile, or disassemble the
Program.

3. APPLICABLE LAW. This License Agreement shall be interpreted and governed under the
laws and in the state and federal courts of New Hampshire. You accept the personal jurisdiction and
venue of the New Hampshire courts.

4. EXPORT REQUIREMENTS. You understand that Enterasys and its Affiliates are subject to
regulation by agencies of the U.S. Government, including the U.S. Department of Commerce, which
prohibit export or diversion of certain technical products to certain countries, unless a license to
export the product is obtained from the U.S. Government or an exception from obtaining such license
may be relied upon by the exporting party.

If the Program is exported from the United States pursuant to the License Exception CIV under
the U.S. Export Administration Regulations, You agree that You are a civil end user of the Program
and agree that You will use the Program for civil end uses only and not for military purposes.

If the Program is exported from the United States pursuant to the License Exception TSR under
the U.S. Export Administration Regulations, in addition to the restriction on transfer set forth in
Sections 1 or 2 of this Agreement, You agree not to (i) reexport or release the Program, the source
code for the Program or technology to a national of a country in Country Groups D:1 or E:2 (Albania,
Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia, Iraq, Kazakhstan,
Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Moldova, North Korea, the People’s Republic of China,
Romania, Russia, Rwanda, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, Vietnam, or such other
countries as may be designated by the United States Government), (ii) export to Country Groups D:1
or E:2 (as defined herein) the direct product of the Program or the technology, if such foreign
produced direct product is subject to national security controls as identified on the U.S. Commerce
Control List, or (iii) if the direct product of the technology is a complete plant or any major
component of a plant, export to Country Groups D:1 or E:2 the direct product of the plant or a major
component thereof, if such foreign produced direct product is subject to national security controls as
identified on the U.S. Commerce Control List or is subject to State Department controls under the
U.S. Munitions List.

9033630 v

Notice

5. UNITED STATES GOVERNMENT RESTRICTED RIGHTS. The enclosed Product (i) was
developed solely at private expense; (ii) contains “restricted computer software” submitted with
restricted rights in accordance with section 52.227-19 (a) through (d) of the Commercial Computer
Software-Restricted Rights Clause and its successors, and (iii) in all respects is proprietary data
belonging to Enterasys and/or its suppliers. For Department of Defense units, the Product is
considered commercial computer software in accordance with DFARS section 227.7202-3 and its
successors, and use, duplication, or disclosure by the Government is subject to restrictions set forth
herein.

6. EXCLUSION OF WARRANTY. Except as may be specifically provided by Enterasys in
writing, Enterasys makes no warranty, expressed or implied, concerning the Program (including its
documentation and media).

ENTERASYS DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO

YOU BY ENTERASYS IN WRITING, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THE ACCOMPANYING
WRITTEN MATERIALS, AND ANY ACCOMPANYING HARDWARE.

7. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL
ENTERASYS OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER
(INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS, PROFITS,
BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, SPECIAL, INCIDENTAL,
CONSEQUENTIAL, OR RELIANCE DAMAGES, OR OTHER LOSS) ARISING OUT OF THE
USE OR INABILITY TO USE THIS ENTERASYS PRODUCT, EVEN IF ENTERASYS HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES, OR IN THE DURATION OR LIMITATION OF IMPLIED
WARRANTIES IN SOME INSTANCES, THE ABOVE LIMITATION AND EXCLUSIONS MAY
NOT APPLY TO YOU.

vi 9033630

DECLARATION OF CONFORMITY

Application of Council Directive(s): 89/336/EEC

73/23/EEC

Manufacturer’s Name: Enterasys Networks, Inc.

Manufacturer’s Address: 35 Industrial Way

PO Box 5005
Rochester, NH 03867

European Representative Name: Mr. J. Sims

European Representative Address: Enterasys Networks Limited

Nexus House, Newbury Business Park
London Road, Newbury
Berkshire RG14 2PZ, England

Conformance to Directive(s)/Product Standards: EC Directive 89/336/EEC

EC Directive 73/23/EEC
EN 55022
EN 50082-1
EN 60950

Notice

Equipment Type/Environment: Networking Equipment, for use in a

Commercial or Light Industrial
Environment.

We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged
with this notice conforms to the above directives.

Manufacturer Legal Representative in Europe

Mr. Thomas Whissel Mr. J. Sims

___________________________________ ___________________________________

Full Name Full Name

Compliance Engineering Manager Managing Director - E.M.E.A.

___________________________________ ___________________________________

Title Title

Rochester, NH, USA Newbury, Berkshire, England

___________________________________ ___________________________________

Location Location

9033630 vii

Notice

viii 9033630

TABLE OF CONTENTS

PREFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . XI

Purpose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi

Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi

Message Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi

Keyboard Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi

Other Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii

Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii

1. PRODUCT OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Optional Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Feature Summaries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

IEEE 802.1D Bridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Spanning Tree Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Frame Buffering and Frame Latency. . . . . . . . . . . . . . . . . . . . . . . . 7

Software Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Non-Volatile Parameter Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Configuration and Management Interfaces . . . . . . . . . . . . . . . . . . . 8

RMON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Port Mirroring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Auto-negotiation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

BootP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Full Duplex Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Flow Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Virtual LANs (VLANs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Class of Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Port Trunking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Application Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

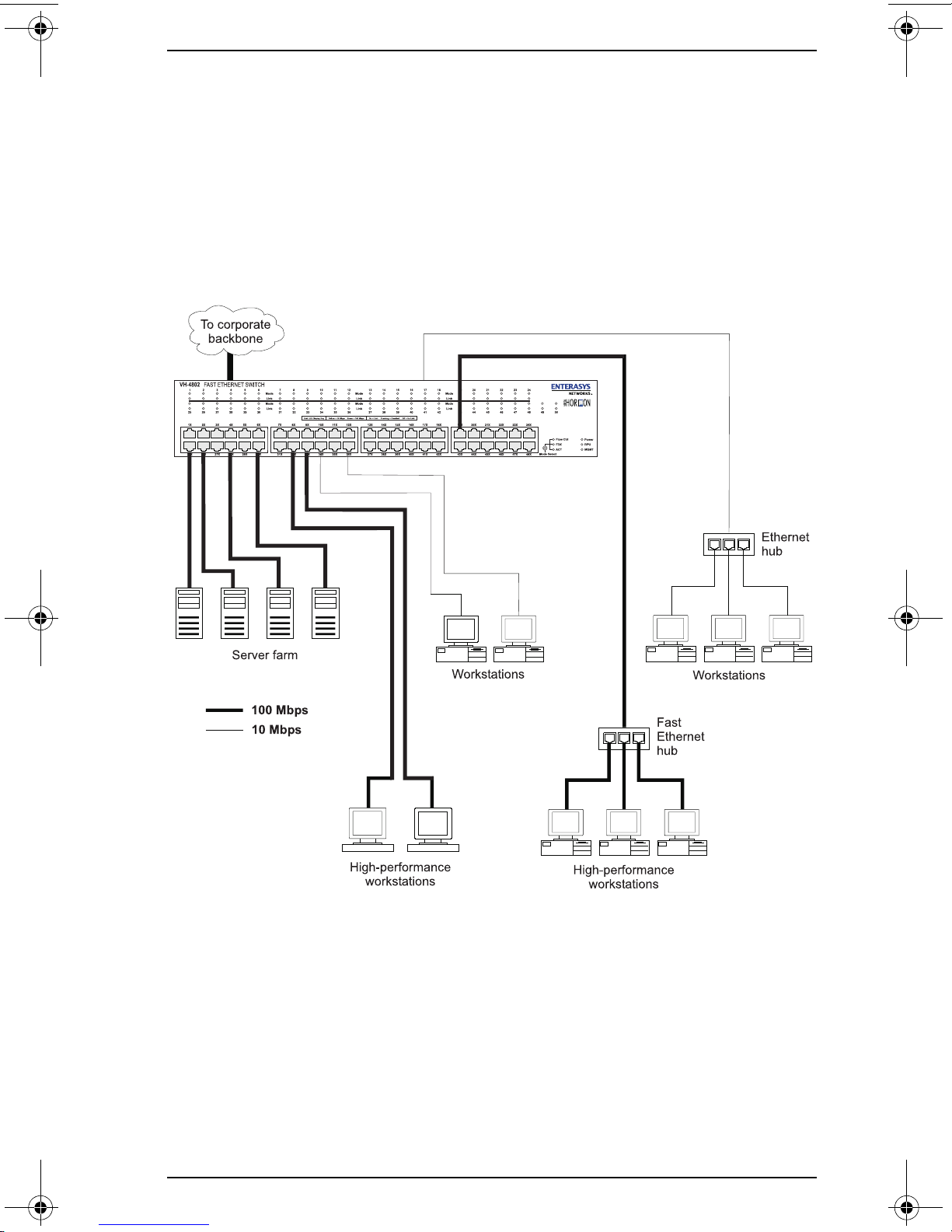

Client/Server Network Application . . . . . . . . . . . . . . . . . . . . . . . . . 15

Local Backbone Application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Inspecting Your Shipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Site Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Mounting the Switch on a Table or Shelf . . . . . . . . . . . . . . . . . . . . . . . 18

Mounting the Switch in a Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Installing an Optional Module into the Switch . . . . . . . . . . . . . . . . . . . . 20

Connecting a Terminal to the Console Port . . . . . . . . . . . . . . . . . . . . . 21

Console Port (Out-of-Band) Connections . . . . . . . . . . . . . . . . . . . 21

9033630 Table of Contents ix

Remote Management via the Console Port . . . . . . . . . . . . . . . . . 22

In-Band Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Powering the Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Network Cable Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Copper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Fiber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

10Base-T/100Base-TX Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

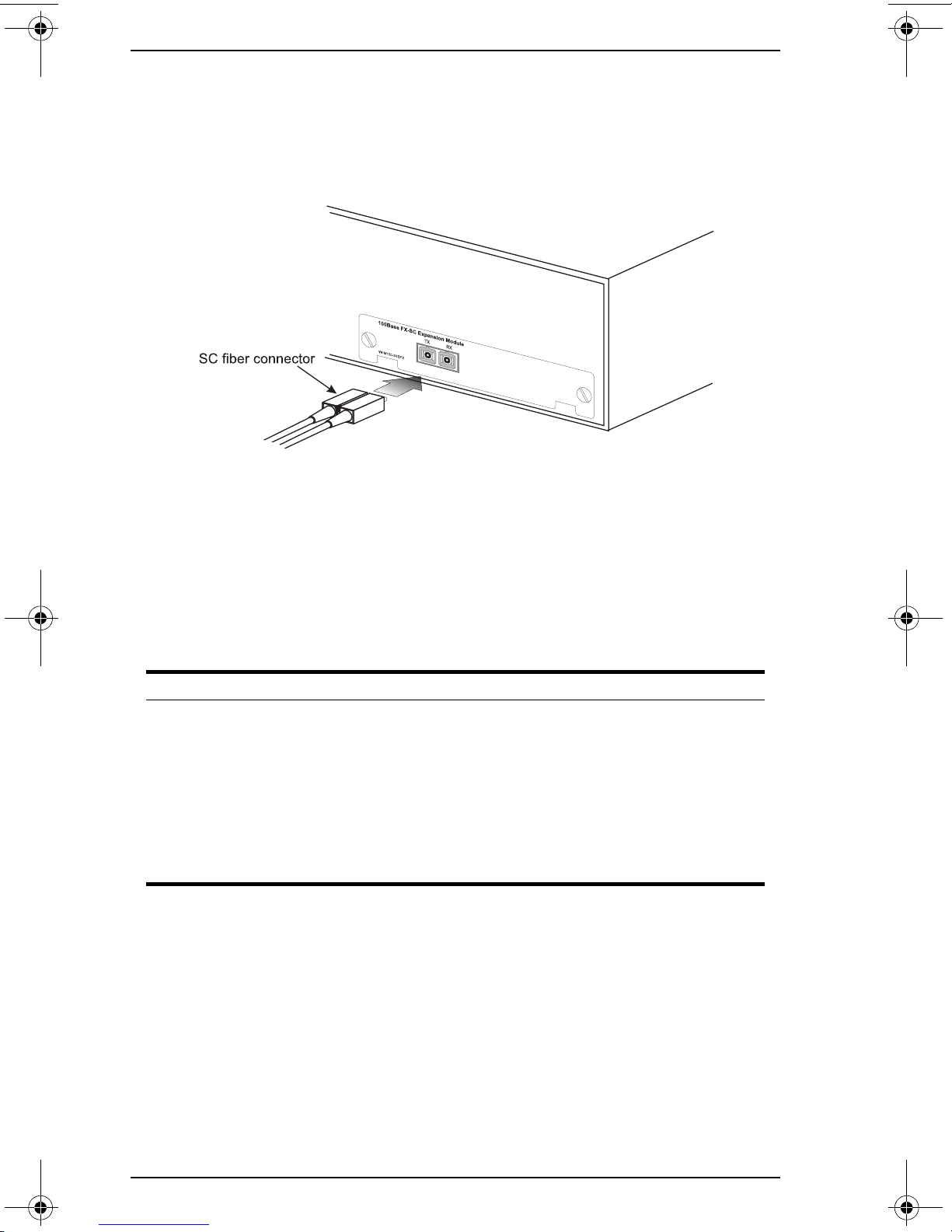

100Base-FX/1000Base-SX/LX Fiber Ports . . . . . . . . . . . . . . . . . . . . . 26

APPENDIX A. TECHNICAL SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . 27

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Standards Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Regulatory Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Data Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Port Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

10Base-T and 100Base-TX Ports . . . . . . . . . . . . . . . . . . . . . . . . . 29

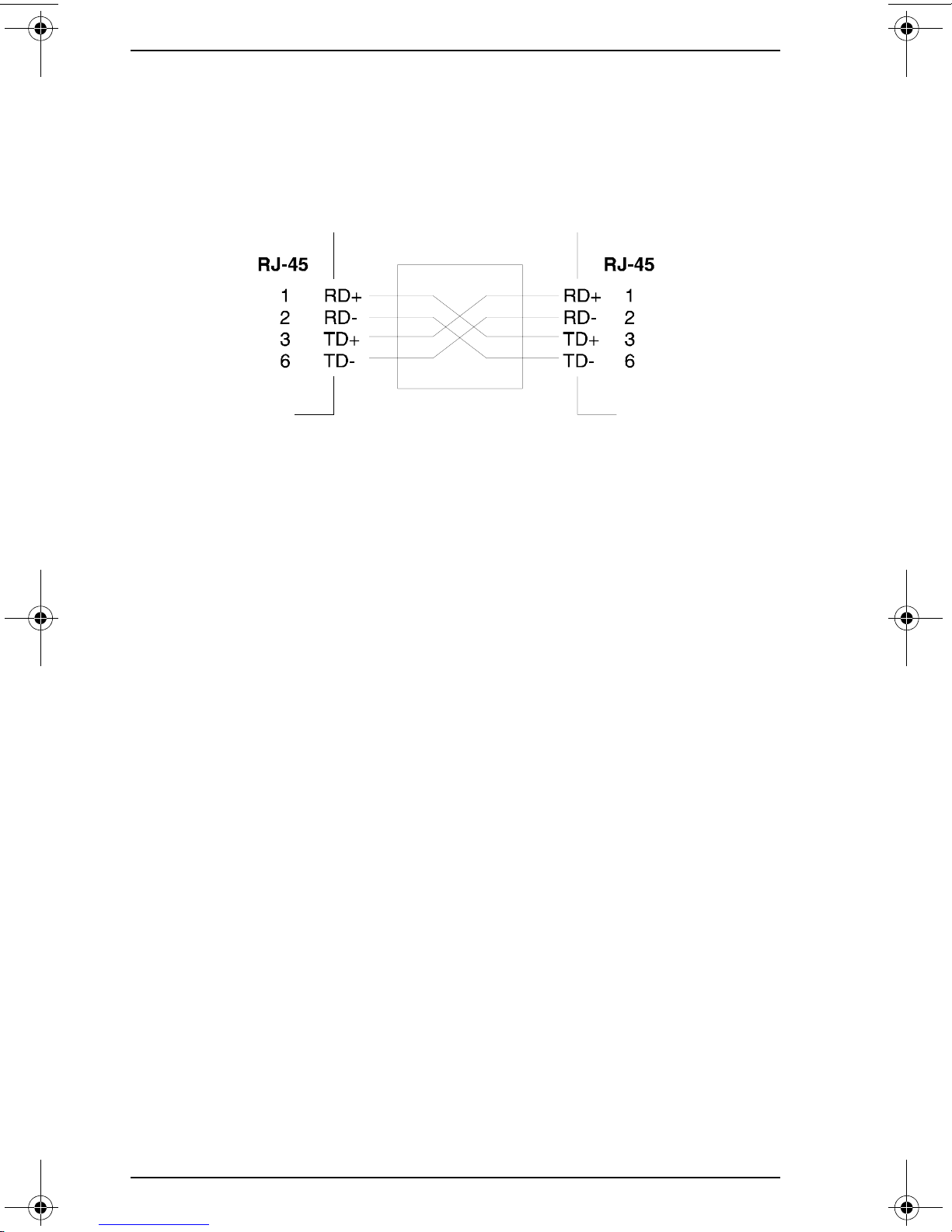

MDI/MDI-X Crossover Cable Wiring . . . . . . . . . . . . . . . . . . . . . . . 30

Power Cord Set Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

General Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Country-Specific Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 31

APPENDIX B. FLOW CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

APPENDIX C. ACRONYMS & ABBREVIATIONS . . . . . . . . . . . . . . . . . . . . . . 35

INDEX

x Table of Contents VH-4802

PREFACE

Purpose

This guide provides information about the features and applications of the
Enterasys Networks Vertical Horizon VH-4802 switch system.

Audience

This guide is intended for Ethernet Local Area Network (LAN)
administrators and Management Information Systems (MIS) personnel
with the following background:

• Working knowledge of Ethernet LANs

• Familiarity with Transmission Control Protocol/Internet Protocol

(TCP/IP) and Simple Network Management Protocol (SNMP)

Conventions

This section describes the conventions used in this guide.

Message Formats

Two types of messages, identified by icons, appear in the text:

A note informs you of special circumstances.

A caution indicates the possibility of equipment damage.

Keyboard Entries

This guide uses the following conventions for keyboard entries:

• When you read “enter,” type the text and press the [Enter] key.

• Example: Enter the Gateway IP address and press the [Enter] key.

• When you read “select,” highlight the menu item and press the [Enter]

key.

9033630 Preface xi

Other Conventions

This guide uses the following typographical conventions:

• Initial Caps Menu titles and console menu selections.

• [Enter] Used to designate the Enter or Return key.

• courier font Screen messages and user prompts.

• Selection Describes a user-configurable user interface item.

• Field Describes a read-only information item.

Organization

Chapter 1. Product Overview: Describes the features of the switch, front

and rear panel components and application examples.
Chapter 2. Installation: Describes the content of your switch shipment,

lists site requirements, and provides mounting instructions. Instructions
for making connections and powering up the switch are provided as well.

Appendix A. Technical Specifications: Provides a list of standards
compliance and certifications as well as physical and operational
specifications.

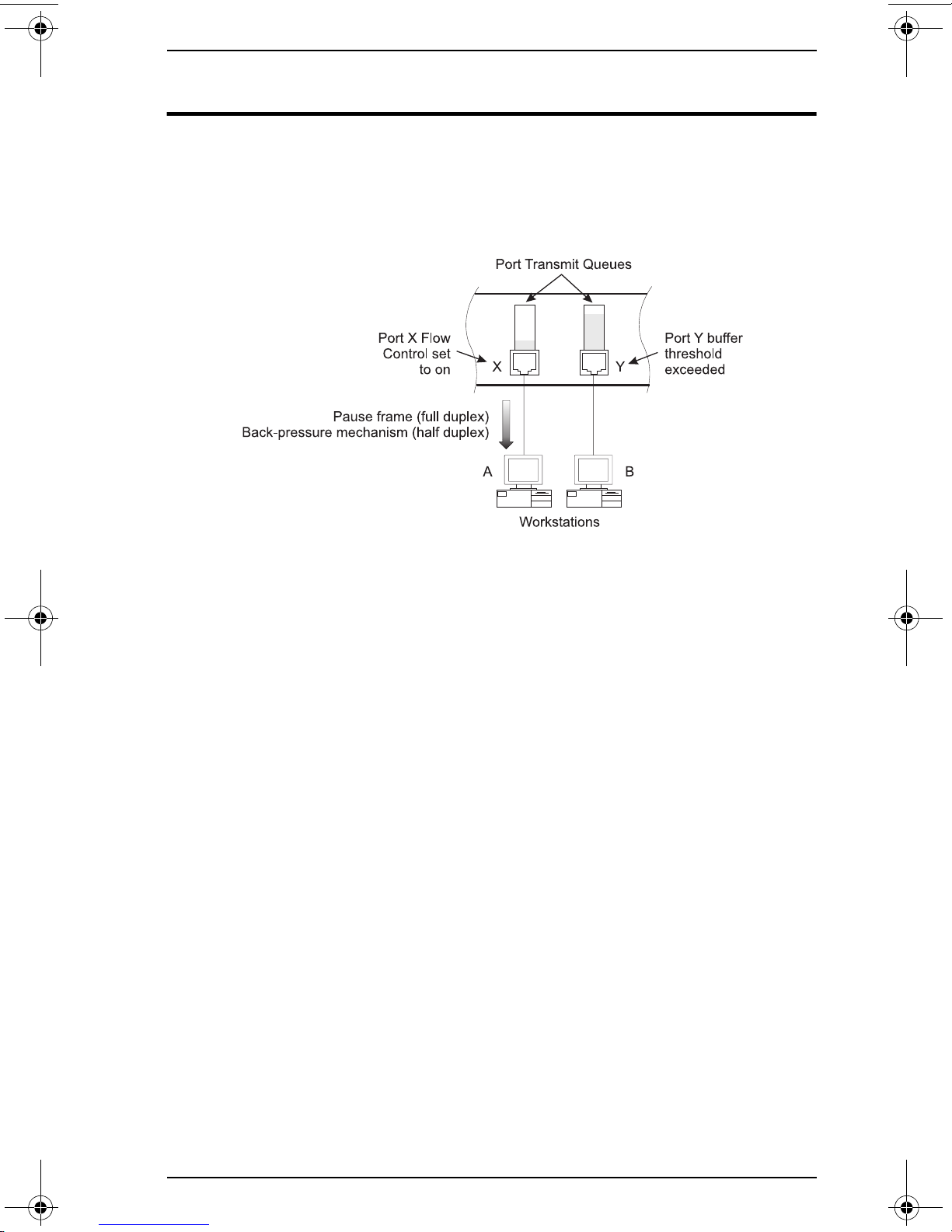

Appendix B. Flow Control: Describes how the flow control features are
used to provide a mechanism for protecting the switch from overload
conditions and to keep additional traffic off the network.

Appendix C. Acronyms and Abbreviations: Provides definitions for a
list of common acronyms and abbreviations used within the installation
guide and the networking industry.

xii Preface VH-4802

1. PRODUCT OVERVIEW

This chapter provides the following information:

• Product Description

• Features

• Front and Rear Panel Component Descriptions

• Feature Summaries

• Application Example

Description

This installation guide describes Enterasys Networks’ Vertical Horizon
VH-4802 Fast Ethernet switch. The switch provides 48
10Base-T/100Base-TX ports, plus two slots for optional slide-in
100Base-FX, 1000Base-SX or 1000Base-LX modules. There is also a
fixed SNMP-based management card included in the switch. This
management card supports both in-band and out-of-band access for
managing the switch.

The switch employs a high-speed switching fabric. This design allows for
simultaneous transport of multiple packets at low latency on all ports. It
also uses store-and-forward switching to ensure maximum data integrity.
In this mode, the entire packet must be received into a port buffer and
checked for validity before being forwarded. This prevents errors from
being propagated throughout the network. This switch also features full­duplex capability on all ports, which effectively doubles the bandwidth of
each connection.

The switch can connect up to 48 end-node workstations or servers using
its 10Base-T/100Base-TX ports. Moreover, you can use a 100 Mbps fiber
module for connecting to a remote site, or a Gigabit module for a high­speed backbone connection.

The RMON/SNMP/Web management card provides a broad range of
management options. It includes a standards-compliant Simple Network
Management Protocol (SNMP) agent. The SNMP agent allows network
management station applications to collect and present status and
performance information about the switch, as well as providing the ability
to configure and control functions in the switch. The management card
also supports Remote Monitoring (RMON) for Statistics, History, Alarm
and Event groups (Groups 1-3, 9).

Network management can be performed in-band using a TCP/IP or Telnet
connection to the switch.
provides management
Netscape Navigator and Microsoft’s Internet Explorer. In addition, the
console port allows out-of-band management using a PC, terminal, or
modem connection.

This card also includes a built-in Web agent that

access via common http browsers such as

9033630 Product Overview 1

The VH-4802 switch is desktop or rack-mountable. LEDs on the front
panel provide information about the operating status of the switch. The
rear panel contains the power connector, redundant power connector,
serial console port, and two slots for the optional modules. The side panel
includes two fans that maintain ventilation and cooling for internal switch
components.

Features

• Ports:

• Optional Media Modules:

- 48 dual-speed 10Base-T/100Base-TX ports using RJ-45
connectors (MDI-X)

- 2 slots for optional modules

- 1 serial console port

- 1 redundant power unit socket

- VHIM1000-S1SX: 1000Base-SX module provides 1 SC multi­mode fiber optic port for an uplink connection to the switch

- VHIM1000-S1LX: 1000Base-LX module provides 1 SC single­mode fiber optic port for an uplink connection to the switch

- VHIM100-S2MFX: 100Base-FX module provides 2 SC multi­mode fiber optic ports for an uplink connection to the switch

- VHIM100-S1SFX: 100Base-FX module provides 1 SC single­mode fiber optic port for an uplink connection to the switch

Additional interface modules may be added without notice.

• Switch Architecture:

- 6 controllers with 8 10/100 ports

- IEEE 802.3u auto-negotiation of half/full-duplex operation on
all RJ-45 ports

- 512 KB packet buffering for 10/100 ports, 2 MB packet
buffering for 1000 ports

- Store-and-forward switching

-

12K address forwarding table

- Forwarding: 14,880 packets-per-second (64 byte packets)
@10 Mbps; 148,800 pps @100 Mbps; 1,488,000 pps @1000
Mbps

- Filtering: 14,880 packets-per-second (64 byte packets) @10
Mbps; 148,800 pps @100 Mbps; 1,488,000 pps @1000 Mbps

2 Product Overview VH-4802

• Network Management:

- SNMP compliant agent: MIB II (RFC 1213); Bridge MIB (RFC

1493); Ethernet-like MIB (RFC 1643); RMON - Statistics,
History, Alarm and Event groups (RFC 1757); Interface
Evolution MIB (RFC 1573); Q-MIB (IEEE 802.1Q); private MIB
extensions

- Access via in-band, Internet browser, or Telnet

- Console port (RS-232, male DB-9 connector, null modem)
supports access via direct or modem connection

- BootP for IP address configuration

• Reliability:

- Redundant power supply support

• Software:

- Diagnostics for product testing and troubleshooting

- Firmware upgrades using the console port or in-band with
TFTP

• LED Indicators:

- System: Power, RPU, Management

- 10Base-T/100Base-TX ports: link/speed/disable,
mode (flow control, full duplex, activity)

- Media module ports: Status, Activity

9033630 Product Overview 3

Front Panel

Figure 1-1 shows the front panel of the Enterasys Networks Vertical
Horizon VH-4802. Table 1-1 defines the VH-4802 front panel
components.

Figure 1-1. VH-4802 Front Panel

Table 1-1. Front Panel Components

Name Function

Power LED Lights steady green to indicate power is supplied to the

switch. Off indicates no power is supplied to the switch.

RDP LED Lights steady to indicate that a redundant power unit is

attached and is in backup or active mode.

Mgmt LED Lights steady to indicate that the management is in

operational mode.

Link LEDs Yellow indicates a 10 Mbps link; green indicates a 100

Mbps link, off indicates no link; and flashing indicates
that the port has been manually disabled.

Mode LEDs The Mode Select button selects the LED display mode.

Act: Flashing indicates activity on the port segment.

FDX: Lights steady to indicate full-duplex operation.

Flow Ctrl: Lights steady to indicate that flow control is
enabled for the port.

Module LEDs Status: Indicates a module is installed in the slot.

Activity: Flashing indicates activity on the module.

10Base-T/100Base-TX
RJ-45 ports

4 Product Overview VH-4802

Copper ports using RJ-45 port connectors. All the ports
are wired MDI-X.

Optional Modules

Figure 1-2 shows the optional modules available for the Enterasys
Networks Vertical Horizon VH-4802. Table 1-2 defines the optional
module components.

Figure 1-2. Optional Modules

Table 1-2. Optional Module Components

Module Components

100Base-FX (MMF)

100Base-FX (SMF)

1000Base-SX

1000Base-LX

Ports: Two multi-mode fiber ports using SC connectors
for uplink. (See 100Base-FX/1000Base-SX/LX Fiber
Ports on page 26 for a detailed

Ports: One single-mode fiber port using SC connectors
for uplink. (See 100Base-FX/1000Base-SX/LX Fiber
Ports on page 26 for a detailed

Ports: One fiber port using SC connectors for uplink.
(See 100Base-FX/1000Base-SX/LX Fiber Ports on
page 26 for a detailed

Ports: One fiber port using SC connectors for uplink.
(See 100Base-FX/1000Base-SX/LX Fiber Ports on
page 26 for a detailed

description.)

description.)

description of these ports.)

description of these ports.)

9033630 Product Overview 5

Rear Panel

Figure 1-3 shows the VH-4802 rear panel and Table 1-3 defines the rear
panel components.

Figure 1-3. VH-4802 Rear Panel

Table 1-3. Rear Panel Components

Name Function

Power Connector Provides AC power to the switch.

Redundant Power
Connector

Management Connector The management card’s serial console port provides

Slots for Optional
Modules

This connector is provided for the option of adding an
additional DC redundant power unit (RPU) which can
supply power to the switch if its primary power supply
fails. (Refer to the manual provided with the RPU for
further details.)

out-of-band access to the switch.

The two slots support optional media modules.

6 Product Overview VH-4802

Feature Summaries

The following summaries describe VH-4802 features in areas such as
standards compliance, functionality, performance, and options.

IEEE 802.1D Bridge

The VH-4802 switch is fully compliant with IEEE 802.1D transparent
bridging specifications. An address table is provided for learning, filtering,
and forwarding. The switch can support up to a maximum of 12K
addresses. Addresses are automatically learned by the switch, and can
be individually assigned specific forwarding treatment by the network
administrator if desired. Forwarding table configuration can be made out­of-band via the console interface or in-band via SNMP or Telnet. Static
and dynamic addresses are both stored in this table. One static address
is assigned per port by default. The Static Unicast Address Table
Configuration screen in the console menus allows you to assign additional
static addresses if required.

Spanning Tree Protocol

The VH-4802 switch supports the IEEE 802.1D Spanning Tree Protocol.
This protocol allows redundant connections to be created between
different LAN segments for purposes of fault tolerance. Two or more
physical paths between different segments can be created through the
switch, with the Spanning Tree Protocol choosing a single path at any
given time and disabling all others. If the chosen path fails for any reason,
a disabled alternative is activated, thereby maintaining the connection.
This prevents network traffic from circulating in an endless loop formed by
multiple connections to the same LAN segment.

Spanning Tree parameters are configurable using the Spanning Tree
Configuration Menu of the console menus, the on-board Web agent, or
via SNMP (see Appendix B, “Spanning Tree Concepts,” in the
Management Guide for more information).

Frame Buffering and Frame Latency

The VH-4802 switch is a store-and-forward switching device. Each frame
is copied into switch memory before being forwarded to another port. This
method ensures that all forwarded frames conform to a standard Ethernet
frame size and have a correct cyclic redundancy check (CRC) for data
integrity. This switching method prevents bad frames from traversing the
network and using up valuable network bandwidth, as with cut-through
switching technology.

To minimize the possibility of dropping frames on congested ports, the
VH-4802 switch provides 512 KB of frame buffering per port. This buffer
space is used to queue packets for transmission on congested networks.
This is an additional advantage over cut-through switching technology,
which drops packets immediately when experiencing collisions.

9033630 Product Overview 7

Software Download

The VH-4802 switch supports the industry-standard Trivial File Transfer
Protocol (TFTP) for downloading software to the switch. All switch
software is stored in a 2 MB sectored flash ROM. The download feature
allows you to easily install software upgrades to the unit. Software can
alternatively be downloaded via the serial console port using the
XMODEM protocol.

A TFTP software download is invoked via the Management Setup Menu
using the console menus. A TFTP download can also be invoked using
the on-board Web agent or via SNMP.

Non-Volatile Parameter Storage

Important operating parameters such as IP addresses, Spanning Tree
configuration, and management security parameters, are stored in non­volatile flash memory. These values are retained when the switch
experiences power interruptions or is powered down for normal
maintenance.

Configuration and Management Interfaces

The VH-4802 switch can be managed using any of the following methods:

• Serial console, out-of-band

An RS-232 connection, using a DB-9 connector, is included on the
rear panel for system management. Serial console management can
be performed out-of-band using a terminal or computer running
communications software. You can connect directly to the RS-232
port on the rear panel, or make a connection via a modem. See the
Management Guide for information on managing the VH-4802 switch
via the serial console.

• Telnet, in-band (over Ethernet)

The switch supports management through a Telnet connection using
the TCP/IP protocols. Telnet is performed using a terminal or
computer running communications software. See the Management
Guide for information on managing the system via Telnet. Global
user name and password protection for changing the operating
parameters of the switch is provided.

• Web-based network manager, in-band

The system can be managed over HTTP protocol with a Web
browser (Internet Explorer 4.0 or above, or Netscape Navigator 4.0
or above). Standard agent MIBs embedded in the switch provide
basic SNMP management through an embedded graphic interface.

8 Product Overview VH-4802

• SNMP-based network manager, in-band

The system can also be managed using SNMP, the most common
protocol used today for network management. Standard agent MIBs
embedded in the switch provide basic SNMP management through
industry-standard SNMP applications.

Management security protection is provided based on SNMP
community names. See Chapter 4, “SNMP Management,” in the
Management Guide for more information.

RMON

RMON (Remote Monitoring) is a facility used to manage networks
remotely while providing multi-vendor interoperability between monitoring
devices and management stations. RMON is defined by an SNMP MIB.
This MIB is divided into nine different groups, each gathering specific
statistical information or performing a specific function. RMON-capable
devices gather network traffic data and then store them locally until
downloaded to an SNMP management station.

The VH-4802 supports four of the nine groups of RMON defined for
Ethernet networks on a per segment basis. Specifically, these are:

• Statistics: a function that maintains counts of network traffic statistics

such as number of packets, broadcasts, collisions, errors, and
distribution of packet sizes.

• History: a function that collects historical statistics based on user-

defined sampling intervals. The statistical information collected is the
same as the Statistics group, except on a time stamped basis.

• Alarm: a function that allows managers to set alarm thresholds based

on traffic statistics. Alarms trigger other actions through the Event
group.

• Event: a function that operates with the Alarm group to define an

action that will be taken when an alarm condition occurs. The event
may write a log entry and/or send a trap message.

Note that RMON statistics and other information can only be viewed using
a connection to the on-board Web agent or via other compatible SNMP
management applications.

Port Mirroring

The VH-4802 switch includes the ability to mirror the traffic being switched
on any port for purposes of network traffic analysis and connection
integrity. When this feature is enabled, a protocol analyzer or RMON
probe can be connected to the mirror port. You can only mirror one port
to another port at one time. Port mirroring occurs at the same speed
configured for the port (10Mbps-to-10Mbps or 100Mbps-to-100Mbps).
Port mirroring is configurable using the console interface menus, the on­board Web agent, or via SNMP.

9033630 Product Overview 9

Auto-negotiation

Auto-negotiation is a process that permits the switch to automatically
select the operational modes of its 10/100 RJ-45 ports. Upon first being
connected, the switch detects the speed of the network the port is
connected to, either 10Mbps or 100Mbps, and the type of communication
setting, half or full duplex. The port is then automatically set by the switch
to operate in the proper mode, without user intervention. It is not required
that the network device being connected to the switch supports auto­negotiation as the VH-4802 switch automatically adjusts to the network
device’s communication settings. Auto-negotiation is configurable using
the console interface menus, the on-board Web agent, or via SNMP.

BootP

The Bootstrap Protocol (BootP) provides for the capability of passing
configuration information to hosts on a TCP/IP network. Using this
process, network devices do not need to be configured before they can
communicate using the TCP/IP protocol suite. The VH-4802 switch uses
BootP to automatically configure IP address information without requiring
access to the console menus. BootP operation is configurable using the
console interface menus, the on-board Web agent, or via SNMP.

LEDs

The switch port LEDs provide a quick and accurate display of the integrity
of switch connections and port mode. Each RJ-45 port has a Link and
Mode LED. The color of the Link LED indicates a 10 Mbps or 100 Mbps
connection. The operation of the Mode LEDs can be changed by use of
the LED Mode button on the switch front panel. When the LED Mode
button is pressed, the operation of the RJ-45 Mode LEDs changes to
indicate Activity (Act) and full/half duplex operation (FDX), and flow
control (Flow Ctrl) respectively. The module LEDs indicate Status and
Activity for each of the modules. The module LEDs are not affected by the
LED Mode button.

Full Duplex Mode

The full-duplex mode of operation on a port can double the throughput of
switch connections. This mode disables the collision detection portion of
the Ethernet Carrier Sense Multiple Access with Collision Detection
(CSMA/CD) protocol, allowing for two-way traffic. Full duplex is
configurable using the console interface menus, the on-board Web agent,
or via SNMP.

10 Product Overview VH-4802

Flow Control

Flow control allows you to manage network traffic during congestion
periods and to prevent the loss of packets when port buffer thresholds are
exceeded. Flow control also serves to deny access to additional traffic
that could add to a congestion condition. The VH-4802 switch supports
flow control per the IEEE 802.3x standard. Note that flow control is
disabled on all ports by default but can be enabled on a per-port basis by
using the console interface menus, the on-board Web agent, or via
SNMP. See Appendix B, “Flow Control,” for more information on this
feature.

If flow control is desired for one port, it is recommended that
it be enabled on all ports. However, note that flow control
should not be used if a port is connected to a hub. Also, be
aware that when interconnecting high-speed LANs (such as
Gigabit Ethernet) and low-speed LANs, flow control can cause
traffic from the high-speed LAN to be blocked for all other
ports on the switch.

Virtual LANs (VLANs)

VLANs allow you to connect users to a specific LAN segment regardless
of their physical location. The VH-4802 switch supports tagged VLANs
per the IEEE 802.1Q draft standard. With frame tagging, a short tag is
appended to every frame that crosses the network backbone. The tag
identifies which VLAN the frame belongs to. See Appendix B, “Virtual
LANs,” in the Management Guide for more information.

Class of Service

Class of Service support allows you to assign a higher priority to selected
traffic passing through the switch. The VH-4802 switch supports Class of
Service attributes per the IEEE 802.1p standard using a priority queuing
mechanism. This feature ensures that traffic during congestion periods
will not interfere with traffic assigned a higher priority. Traffic assigned a
lower priority is subject to discard when memory is in short supply. See
Appendix C, “Class of Service,” in the Management Guide for more
information.

Port Trunking

Port trunking allows you to combine ports into an aggregate connection
between VH-4802 switches. Besides balancing the load across each port
in the trunk, the additional ports provide redundancy by taking over the
load if a port in the trunk should fail. The VH-4802 allows up to four ports
of the same media type to be joined together as a trunk. RJ-45 ports must
be selected from pre-determined port groups, and 100Mbps fiber ports
must be on the same module, but both 1000Mbps module ports can be
combined together. Up to eight port trunks on a single VH-4802 switch
can be configured.

9033630 Product Overview 11

Factory Defaults

Table 1-4 lists the default settings for switch configuration parameters.
Each parameter can be changed via the console menus or Telnet.

Table 1-4. Factory Default Settings

Parameter Default Value

Multicast Filtering

GMRP Disabled

IGMP Multicast Filtering Disabled

Port Configuration

Flow Control Disabled

Speed and Duplex Auto

Admin Enabled

Broadcast Storm Control Enabled - 500 pps

Port Priority

Default Ingress User Priority 0

Spanning Tree Algorithm

Active Aging Time 300

Bridge Priority 32768

Forward Delay 15

Hello Time 2

Max Age 20

Path Cost 4 - 1000Mbps ports

19 - 100Mbps ports
100 - 10Mbps ports

Port Priority 128

Spanning Tree Protocol Enabled

System Configuration

Management VLAN All

BootP Enable Disabled

Password <none>

Screen Timeout 10 min

Send Authentication Fail Traps Enabled

SNMP Community Name public, private

Terminal Baud Rate Auto

User Names admin, guest

12 Product Overview VH-4802

Parameter Default Value

Virtual LANs

Acceptable VLAN Frame Type All

Configurable PVID Tagging Yes

GVRP Disabled

Untagged VLAN Group Assignment 1

VLAN Ingress Filtering False

VLAN Learning SVL

9033630 Product Overview 13

Application Examples

The exploding popularity of the Internet and of corporate intranets, as well
as new, high-bandwidth desktop applications, are driving the demand for
Fast Ethernet. The increase in multimedia traffic and the need to support
legacy protocols alongside new, data intensive applications is driving the
need for network segmentation and traffic prioritization.

The VH-4802 switch is ideal for meeting the needs of today’s high
performance networks. The switch’s low cost and high port count makes
it attractive and affordable for dedicated 10/100Mbps connections to the
desktop. In addition, extensive features, including redundant links, traffic
Class of Service and VLAN capability, provide the management needed
for the workgroup and local backbone.

The following sections illustrate the VH-4802 switch employed in
application examples:

• Client/Server Network

• Local Backbone

14 Product Overview VH-4802

Client/Server Network Application

To improve workstation performance in a client/server environment, the
VH-4802 switch can be configured to provide 200 Mbps full duplex Fast
Ethernet connections to servers by connecting each to a dedicated switch
port (Figure 1-4). Users can be accommodated through connections to
hubs, both at 10Mbps and 100Mbps speeds, through 10Mbps switches
with 100Mbps uplinks, or through direct connections. The fiber uplinks are
available to connect the switch to a remote location, such as another
building floor or a separate building.

Figure 1-4. Client/Server Network Application

9033630 Product Overview 15

Local Backbone Application

The VH-4802 switch can be used in a local backbone application,
connecting network segments together and providing file-server access
(Figure 1-5). Workgroup hubs are provided with a single connection to the
switch while servers are put on dedicated 100 Mbps ports. Routers and
other networking devices can connect off of the switched backbone as
well. The fiber uplinks are available to connect the switch to a remote
location, such as another building floor or a separate building.

Figure 1-5. Local Backbone Application

16 Product Overview VH-4802

2. INSTALLATION

Inspecting Your Shipment

When you receive the shipment of your switch, check the package
contents and make sure you have the following items:

• VH-4802 switch

• Mounting ears and mounting screws

• Four rubber feet

• ESD wrist strap

• Power cord

• RS-232 null-modem cable

• Product documentation

Site Requirements

Before you install the switch, make sure the site meets the following
requirements:

• Mounting

Provide a flat table, shelf surface, or an optional 19 in. (48.3 cm)
equipment rack.

Use an EIA standard equipment rack that is grounded and physically
secure.

• Power source

Provide a power source within six feet (1.8 m) of the installation
location. This source must provide 100 VAC to 240 VAC at 50 Hz to
60 Hz, for 90 VA minimum power. Power specifications for the switch
are shown in Appendix A, “Technical Specifications.”

Primary voltage selection within the above ranges is
automatic and requires no user action.

9033630 Installation 17

• Environmental

Install the VH-4802 switch in a dry area, with adequate air circulation.
Avoid placing the switch in direct sunlight or near other heat sources,
such as hot-air vents. For temperature and humidity specifications,
see Appendix A, “Technical Specifications.”

• Ventilation

Do not restrict airflow by covering or obstructing air inlets on the side
of the switch.

Mounting the Switch on a Table or Shelf

You can mount the switch on a table or shelf. Locate the switch in a
position that allows access to the front panel RJ-45 ports, visibility of the
port LEDs, and access to the rear-panel modules and power cord. Make
sure that the mounting surface can safely support the switch and that
there is adequate space around the switch for ventilation and cooling.

1. The switch ships with four (4) rubber feet. Stick the self-adhesive
rubber foot pads on each of the four concave spaces located on the
bottom of the switch. The rubber foot pads cushion the switch against
shock/vibrations and provide space between each switch for
ventilation.

2. If you want to stack switches, repeat step 1 for each switch to be
stacked. Place the first switch on a firm flat surface where you want
to install the stack. Stack the other switches on top of this unit.

18 Installation VH-4802

Mounting the Switch in a Rack

The switch ships with two (2) multi-position mounting ears and four (4)
mounting screws.

The mounting screws are used to attach the mounting
ears to the switch. Once the ears are attached to the
switch, you will need to provide appropriate screws to
mount the switch in a rack.

Figure 2-1 shows the orientation of the mounting ears for attaching the
ears to the switch for a rack mount application. Mount the switch with the
front panel facing forward. Do the following:

1. Mount one of the ears to the switch using two (2) of the supplied

screws. Repeat this step for the other side of the switch.

2. Slide the switch into the rack and align the holes in the rack mounting

ears with the holes in the rack rails.

3. Insert and tighten appropriate rack-mounting screws (not provided).

Figure 2-1. Mounting the Switch in a Rack

9033630 Installation 19

Installing an Optional Module into the Switch

Optional modules are available for media expansion. These modules can
be installed into either of the two modular slots on the rear panel of the
switch.

DO NOT install slide-in modules with the switch
powered on. Be sure you power off the switch before
installing any module.

To install an optional module into the switch, do the following:

1. Disconnect power to the switch.

2. Remove the blank metal plate (or a previously installed module) from

the appropriate slot by removing the two screws with a flat-head
screwdriver.

3. Before opening the package that contains the module, touch the bag
to the switch casing to discharge any potential static electricity. Also,
use the ESD wrist strap included with the package.

4. Remove the module from the anti-static shielded bag.

5. Holding the module level, guide it into the carrier rails on each side

and gently push it all the way into the slot, ensuring that it firmly
engages with the connector.

Figure 2-2. Installing an Optional Module into the Switch

6. If you are sure the module is properly mated with the connector,

tighten the retainer screws by hand to secure the module in the slot.

7. Connect power to the switch.

20 Installation VH-4802

Connecting a Terminal to the Console Port

The console port is a serial RS-232 interface port that enables a
connection to a terminal for performing switch monitoring and
configuration functions. The terminal may be a PC or workstation running
terminal emulation software, or a terminal configured as a Data Terminal
Equipment (DTE) connection. Alternatively, this port can be connected to
an external modem to enable remote dial-in management. You can use
the out-of-band management program (described in the Management
Guide) over a standard modem connection.

If you connect a terminal to the console port prior to powering on the
switch, you can observe the progress and results of the power-on self test
as the switch goes through its initialization process. See “Powering the
Switch” on page 23.

The console port is configured as a standard RS-232 connection using a
male DB-9 connector (see Table A-1 for pinouts). A null-modem wired
RS-232 cable is supplied with the switch for connecting to this interface.
This cable is shielded to comply with emissions regulations and
requirements.

Console Port (Out-of-Band) Connections

To connect the VH-4802 console port to a terminal, do the following:

1. Connect a VT100 compatible terminal or a PC running a terminal

emulation program to the console port (Figure 2-3). Use the null­modem cable provided with the switch, or use a null-modem
connection that is compatible with the console port pin assignments
shown in Appendix A.

Figure 2-3. Connecting a Terminal to the Console Port

2. Connect one end of the interface cable directly to the switch’s

console port and tighten the retaining screws.

9033630 Installation 21

3. Connect the other end of the interface cable to a terminal (in some
instances, an adapter may be required to make this connection).

4. From your terminal, start the terminal emulation program.

5. Configure the terminal to the following communication settings:

VT100 emulation, 19200 baud, no parity, 8 data bits, 1 stop bit, no
flow control, ASCII character set.

Remote Management via the Console Port

Configure the Switch Site - Connect the switch’s DB-9 serial port to the

modem’s serial port using standard cabling. For most modems using a
25-pin port, you will have to provide an RS-232 cable with a 9-pin
connector on one end and a 25-pin connection on the other end. You do
not have to set the modem at the switch’s site, because the switch will
automatically configure it to auto-answer mode.

Configure the Remote Site - At the remote site, connect the PC’s COM
port (COM 1-4) to the modem’s serial port. Set terminal emulation type to
VT100, specify the port used by your PC (i.e., COM 1-4), then set
communications to 8 data bits, 1 stop bit, no parity, 19200 bps, and no
flow control.

In-Band Connections

Prior to accessing the switch via a network connection, you must
configure it with a valid IP address, subnet mask, and default gateway
using an out-of-band connection or the BootP protocol.

The switch must first be configured to issue BootP
requests, since the default is BootP disabled. Refer to
the Management Guide for more information.

Telnet Connection - Prior to accessing the switch via an in-band Telnet

connection, you must configure it with a valid IP address, subnet mask,
and default gateway using an out-of-band connection or the BootP
protocol. After configuring the switch’s IP parameters, you can access the
on-board configuration program from anywhere within the attached
network

In-Band Network Connection - The on-board configuration program can
be accessed using Telnet from any computer attached to the network.
The switch can also be managed by any computer using a Web browser
(Internet Explorer 4.0 or above, or Netscape Navigator 4.0 or above), or
from a network computer using third-party network management
software.

.

22 Installation VH-4802

Powering the Switch

To supply power to the switch, connect the power cord to the switch and
to a grounded three-prong wall outlet (Figure 2-4). See Appendix A,
“Technical Specifications” on page 27 for more information regarding
specific international power cord requirements.

Figure 2-4. Connecting the Power Cord

The Power LED lights green (see Figure 1-1). If it does not, check to make
sure that the power cable is plugged in correctly and that the power
source is good.

When power is applied, the switch conducts a series of hardware and
software tests to verify operation. If a terminal or computer is connected
to the console port, the results of the tests are displayed on the screen. If
you want to display the results of the tests after the switch has been
turned on, turn the power to the switch off then back on.

The switch performs two basic types of tests at power-up. During this
time, all the LEDs light in sequence. These tests are:

• Serial port

The serial console port test is the first test. If the switch fails, no
further tests are performed and the console displays no information.

• Memory

Memory tests on the CPU RAM are performed after the serial port
test. No results are displayed on the console.

After these tests are performed, the system initialization screen provides
the option of starting the operational software of the switch or performing
an XMODEM download to upgrade system firmware. When the
operational software is started, the system is functional and the user
interface is ready to receive commands at the console.

9033630 Installation 23
