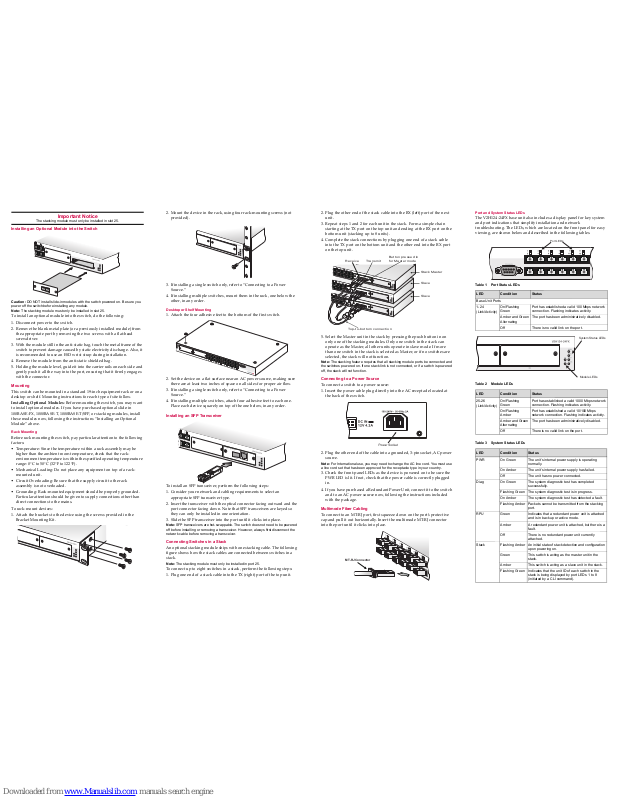

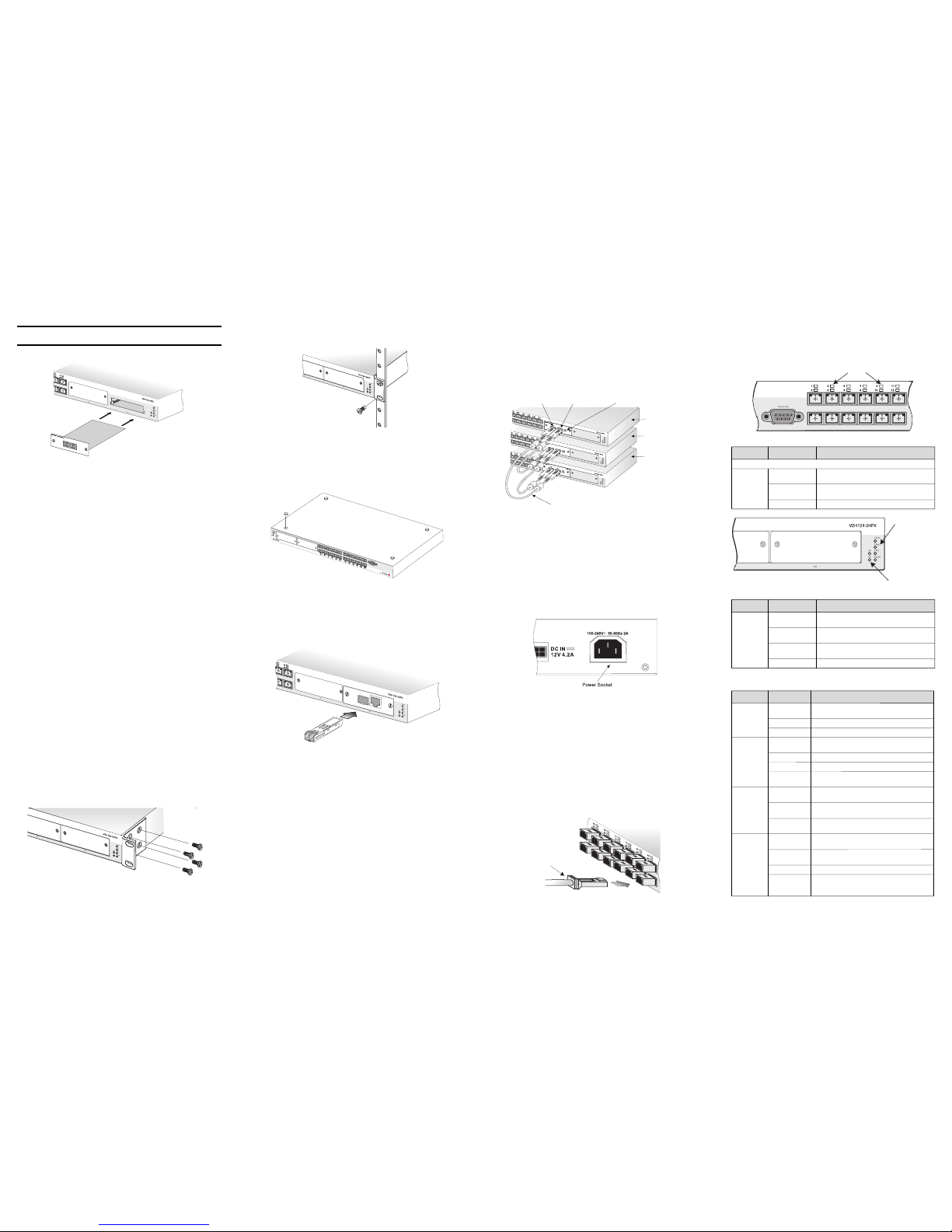

Page 1

Installing an Optional Module into the Switch

Caution: DO NOT install slide-in modules with the switch powered on. Be sure you

power off the switch before installing any module. Note: The stacking module must only be in stalled in slot 25.

To install an optional module into the switch, do the following:

1. Disconnect power to the switch.

2. Remove the b lank metal plate (or a previously installed module) from the appropriate port by removing the two screws with a flat-head screwdriver.

3. With the module still in the anti-static bag, touch the metal frame of the switch to prevent damage caused by static electricity discharge. Also, it is recommended to use an ESD wrist strap during installation.

4. Remove the module from the anti-static shielded bag.

5. Holding the module level, gui de it into the carrier rails on each sid e and gently push it all the way into the port, ensuring that it firmly engages with the connector.

Mounting

This switch can be mounted in a standard 19-inch equipment rack or on a desktop or shelf. Mounting instructions for each type of site fo llow.

Installing Optional Modules: Before mounting the switch, you may want to install optional modules. If you have purc hased optional slide-in 100BASE-FX, 1000BASE-T, 1000BASE-T/SFP, or stacking modules, install these modules now, following the instructions “Installing an Optional Module” above.

Rack Mounting

Before rack moun ting the switch, pay parti cular attention to the following factors:

• Temperature: Since the temperature within a rack assembly may be higher than the ambient room temperature, check that the rackenvironment temperature is within the specified operating temperature range: 0°C to 50°C (32°F to 122°F).

• Mechan ical Loading: Do not place any equipment on top of a rackmounted unit.

• Circ uit Overloading: Be sure that the supply circuit to the rack assembly is not overloaded.

• Groun ding: Rack-mounted equipment should be properly grounded. Particular attention should be given to supply connections other than direct connections to the mains.

To rack-mount devices:

1. Attach the brackets to the device using the screws provided in the Bracket Mounting Kit.

2. Moun t the device in the rack, using four rack-mounting sc rews (not provided).

3. If instal ling a single switch only, refer to “Connecting to a Power Source.”

4. If in stalling multiple switches, mount them in the rack, one below the other, in any order.

Desktop or Shelf Mounting

1. Attach the four adhesive feet to the bottom of the first switch.

2. Set the dev ice on a flat surface near an AC power source, making sure there are at least two inches of space on all sides for prop er air flow.

3. If instal ling a single switch only, refer to “Connecting to a Power Source.”

4. If inst alling multiple switches, attach four adhesive fee t to each one. Place each device squarely on top of the one below, in any order.

Installing an SFP Transceiver

To install an SFP transceiver, perform the following steps:

1. Consider your network and cabling requirements to select an appropriate SFP transceiver type.

2. Insert the transceiver with the optical connector facing outward and the port connector facing down. Note that SFP transceivers are keyed so they can only be installed in one orie ntation.

3. Slide the SFP transceiver into the port until it clicks into place.

Note: SFP transceivers are hot-swappable. The switch does not need to be powered off before installing or removing a transceiver. However, always first disconnect the network cable before removing a transcei ver.

Connecting Switches in a Stack

An optional stacking module ships with one stacking cable. The foll owing figure shows how the stack cables are connected between switches in a stack.

Note: The stacking module must only be installed in port 25.

To connect up to eight switches in a stack, perform the following steps:

1. Plug one end of a stack cable into the TX (right) port of the top unit.

2. Plug the other end of the stack cable into the RX (left) port of the next unit.

3. Repeat steps 1 and 2 for each unit in the stack. Form a simple chain starting at the TX port on the top unit and ending at the RX port on the bottom unit (stacking up to 8 units).

4. Complete the stack connections by plugging one end of a stack cable into the TX port on the bottom unit and the other end into the RX port on the top unit.

5. Select the M aster unit in the stack by pressing the push button in on only one of the stacking modules. Only one switch in the stack can operate as the Master, all other units operate in slave mode. If more than one switch in the stack is selected as Master, or if no switches are selected, the stack will not function.

Note: The stacking feature requires that all stacking module po rts be connected and the switches powered on. If one stack link is not connected, or if a switch is powered off, the stack will not function.

Connecting to a Power Source

To connect a switch to a power source:

1. Insert the power cable plug directly into the AC receptacle located at the back of the switch.

2. P lug the other end of the cable into a grounded, 3-pin socket, AC power source.

Note: For International use, you may need to change the A C line cord. You must use a line cord set that has been approved f or the receptacle type in your country.

3. Check the front-panel LEDs as the device is powered on to be sure the PWR LED is lit. If not, check that the power cable is correctly plugged in.

4. If you have purchased a Redundant Power Unit, connect it to the switch and to an AC power sou rce now, following the instructions included with the package.

Multimode Fiber Cabling

To connect to an MT-RJ port, first squeeze down on the port’s protective cap and pull it out horizontally. Insert the multimode MT-RJ connector into the port until it clicks into place.

Port and System Status LEDs

The V2H124-24FX base unit also includes a display panel for key system and port indications that simplify installation and network troubleshooting. The LEDs, which are located on the front panel for easy viewing, are shown below and describ ed in the following tables.

Table 1 Port Status LEDs

Table 2 Module LEDs

Table 3 System Status LEDs

Important Notice

The stacking module must only be installed in slot 25.

V2H124-24P

L i

n k

c t

P o

P W

ia g

Sta

c k

i n

o d

o E

/ L

2 6

L i n

k / A

c t

o E

P W

D i

a g

Sta

c k i

n g

M o

d e

o E

/ L i n

2 5

V2H124-24P

1000BASECombo

Module

V2G112-2

Top-to-bottomconnection

Transmit

Receive

StackMaster

Slave

Buttonpressed in forMaster mode

MT-RJ Connector

LED Condition Status

Base Unit Ports

1-24 (Link/Activity)

On/Flashing Green

Port has established a valid 100 Mbps network connection. Flashing indicates activity.

Amber and Green Alternating

The port has been administratively d isabled.

Off There is no valid link on the port.

LED Condition Status

25-26 (Link/Activity)

On/Flashing Green

Port has established a valid 1000 Mbps netwo rk connection. Flashing indicates activity.

On/Flashing Amber

Port has established a valid 10/100 Mbps network connection. Flashing indicates activity.

Amber and Green Alternating

The port has been administratively d isabled.

Off There is no valid link on the port.

LED Condition Status

PWR On Green The unit’s internal power supply is opera ting

normally.

On Amber The unit’s internal power supply has failed.

Off The unit has no power connected.

Diag On Green The system diagnostic test has completed

successfully.

Flashing Green The system diagnostic test is in progress.

On Amber The system diag nostic test has detected a fault.

Flashing Amber Packets cannot be transmitted from the stacking

port.

RPU Green Indicates that a redundant power unit is attached

and is in backup or active mode.

Amber A redu ndant power unit is attached, but there is a

fault.

Off There is no redundant power unit cu rrently

attached.

Stack Flashing Amber An initial state of stack detection and configuration

upon powering on.

Green This switch is acting as the master u nit in the

stack.

Amber This switch is acting as a slave unit in the stack.

Flashing Green Indicates that the unit ID of each switch in the

stack is being displayed by port LEDs 1 to 8 (initiated by a CLI command).

Port LEDs

System StatusLEDs

Module LEDs

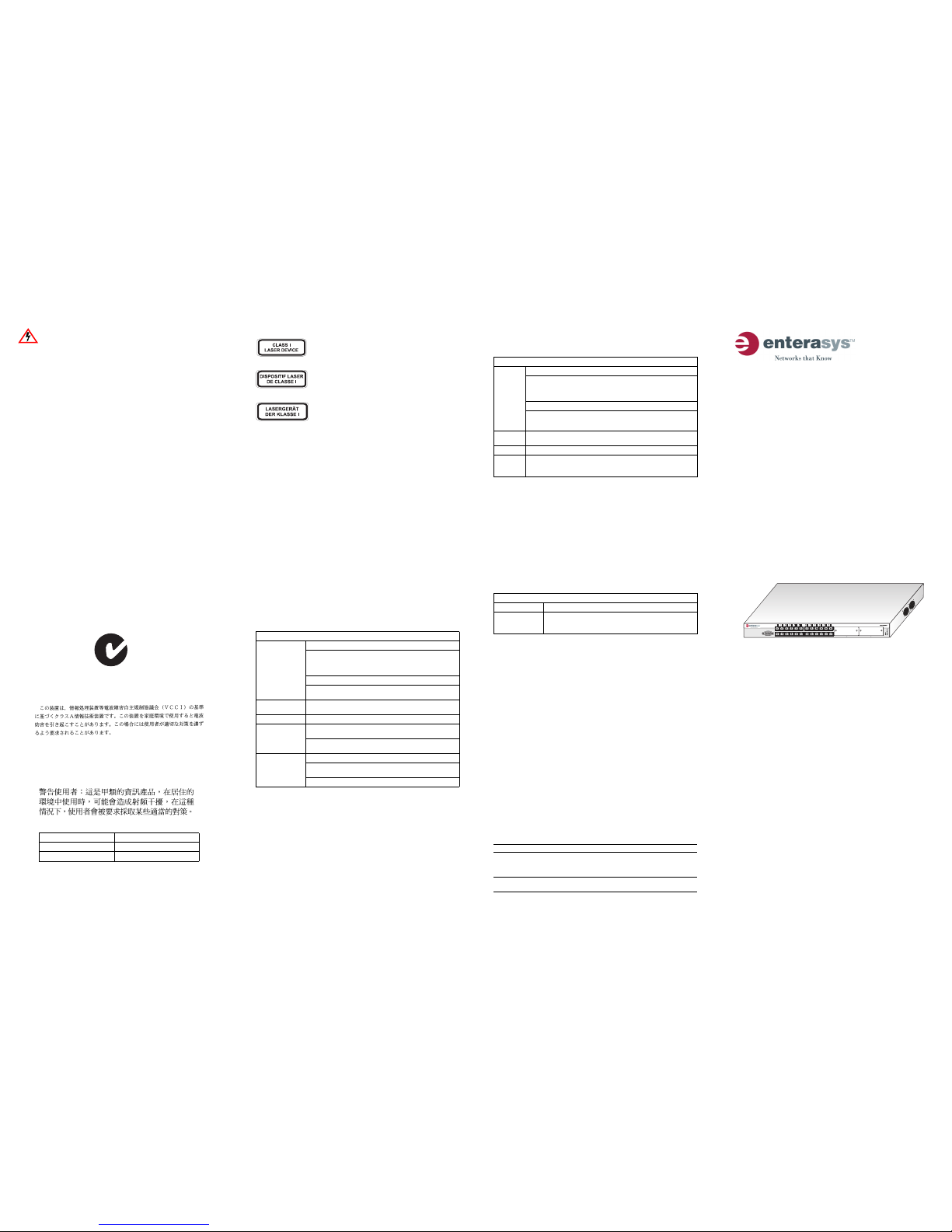

Page 2

Matrix V-Series

V2H124-24FX

Fast Ethernet Switch

Quick Reference Guide

Enterasys Networks 50 Minuteman Road Andover, MA 018107 Phone: 978.684.1000 www.enterasys.com

PN 9033975-01

Note: You can view and download all V2H1 24-24FX documentation from the Enterasys web site:

http://www.enterasys.com/support/manuals

Notice

Enterasys Networks reserves the right to make changes in specifications and othe r information contained in this document and its web site without prior notice. The reader should in all cases consult Enterasys Networks to determine whether any such changes have been made. The hardware, firmware, or software described in this document is subject to change without notice. IN NO EVENT SHALL ENTERASYS NETWORKS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQ UENTIAL DAMAGES WHATSOEVER (IN CLUDING BUT NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS DOCUMENT, WEB SITE, OR THE INFORMATION CONTAINED IN THEM, EVEN IF ENTERASYS NETWORKS HAS BEEN ADVISED OF, KNEW OF, OR SHOULD HAVE KNOWN OF, THE POSSIBILITY OF SUCH DAMAGES.

Enterasys Networks, Inc. 50 Minuteman Road Andover, MA 01810

and any logos associated therewith, are trademarks or registered trademarks of Enterasys Networks, Inc. in the United States and other countries. All other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies.

Regulatory Compliance Information

Federal Communications Commission (FCC) Notice

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: Thi s equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment uses, generates, and can radiate radio frequency energy and if not installed in accordance with the operator’s manual, may cause harmful interference to radio communications. Operation of this equipment in a residential ar ea is likely to cause interference in which case the user will be required to correct the interference at his own expense.

WARNING: Changes or modifications made to this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Industry Canada Notice

This digital apparatus does not exceed the class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada.

AS/NZS CISPR 22

VCCI Notice

This is a class A product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be required to take corrective actions.

Class A ITE Notice

WARNING: This is a class A product. In a domestic e nvironment this product may cause radio interference in which case the user may be required to take adequate measures.

BSMI EMC Statement — Taiwan

This is a class A product. In a domestic environment th is product may cause radio interference in which case the user may be required to take adequate measures.

Environmental Requirements

Product Safety

This product complies with the following: UL 60950, CSA C22.2 No. 60950, 73/23/EEC, EN 60950, IEC 60950, EN 60825, 21 CFR 1040.10.

Electromagnetic Compatibility (EMC)

This product complies with the following: 47 CFR Parts 2 and 15, CSA C108.8, 89/336/EEC, EN 55022, EN 61000-3-2, EN 61000-3-3, EN 55024, AS/NZS CISPR 22, VCCI V-3.

Safety Compliance

Warning: Fiber Optic Port Safety

When using a fiber optic media expansion module, never look at the transmit laser while it is powered on. Also, n ever look directly at t he fiber TX port and fiber cable ends when they are powered on.

Avertissment: Ports pour fibres optiques - sécurité sur le plan optique

Ne regardez jamais le laser tant qu’ il est sous tension. Ne regardez jamais directement le port TX (Transmission) à fibres optiques et les embouts de câbles à fibres optiques tant qu'ils sont sous tension.

Warnhinweis: Faseroptikanschlüsse - Optische Sicherheit

Niemals ein Übertragungslaser betrachten, während dieses eingeschaltet ist. Niemals direkt auf den Faser-TX-Anschluß und auf die Faserkabelenden schauen, während diese eingeschaltet sind.

Safety Information

Class 1 Laser Transceivers

Laser Radiation and Connectors

When the connector is in place, all laser radiation remains within the fiber. The maximum amount of radiant power exiting the fiber (under normal conditions) is -12.6 dBm or 55 x 10

-6

watts.

Removing the optical connector from the transceiver allows laser radiation to emit directly from the optical port. The maximum radiance from the optical port (under worst case conditions) is 0.8 W cm

-2

or 8 x 103 W m2 sr-1.

Do not use optical instruments to view the laser out put. The use of optical instruments to view laser output increases eye hazard. When viewing the output optical port, power must be removed from the network adapter.

Please read the following sa fety information carefully before installing the switch:

WARNING: Installation and removal of the unit must be carried out by qual ified personnel only.

• This guide is intended for use by network administrators who are responsible for setting up and installing network equipment; consequently it assumes a basic working knowledge of LANs (Local Area Networks).

• The unit mus t be conne cted to a n earthed (ground ed) outl et to comp ly with i nternati onal saf ety standards.

• Do not connect the unit to an A.C. outlet (power supply) without an earth (ground) connection.

• The appliance coupler (the connector to the unit and not the wall plug) must have a configuration for mating with an EN 60320/IEC 320 appliance inlet.

• The socket outlet must be near to the unit and easily accessible. You can only remove power from the unit by disconnecting the power cord from the outlet.

• This unit operates under SELV (Safety Extra Low Voltage) conditions according to IEC 60950. The conditions are only maintained if the equipment to which it is connected also operates under SELV conditions.

France and Peru only

This unit cannot be powered from IT

†

supplies. If your supplies are of IT type, this unit must be powered by 230 V (2P+T) via an isolation transformer ratio 1:1, with the secondary connection point labelled Neut ral, connected direct ly to earth (ground) .

†

Impédance à la terre

Veuillez lire à fond l'inform ation de la sécurité suivante ava nt d'installer le Switch:

AVERTISSEMENT: L’installation et la dépose de ce groupe doivent être confiés à un per sonnel

qualifié.

• Ne branchez pas votre appareil sur une prise secteur (alimentation électrique) lorsqu'il n'y a pas

de connexion de mise à la terre (mise à la mass e).

• Vous devez raccorder ce groupe à une sortie mise à la terre (mise à la masse) afin de respecter

les normes internationales de sécurité.

• Le coupleur d’appareil (le connecteur du groupe et non pas la prise murale) doit respecter une

configuration qui permet un branchement sur une entrée d’appareil EN 60320/IEC 320.

• La prise secteur doit se trouver à proximité de l’appareil et son accès doit être facile. Vous ne

pouvez mettre l’appareil hors circuit qu’en débranchant son cordon électrique au niveau de cette prise.

• L’appareil fonctionne à une tension extrêmement basse de sécurité qui est conforme à la norme

IEC 60950. Ces conditions ne sont maintenues que si l’équipement auquel il est raccordé fonctionne dans les mêmes conditions.

France et Pérou uniquement:

Ce groupe ne peut pas être alimenté par un dispositif à impédance à la terre. Si vos alimentations sont du type impédance à la terre, ce groupe doit être alimenté par une tension de 230 V (2 P+T) par le biais d’un transformateur d’isolement à rapport 1:1, avec un point secondaire de connexion portant l’appellation Neutre et avec raccordement direct à la terre (masse).

Bitte unbedingt vor dem Einbauen des Switches die folgenden Sicherheitsanweisungen durchlesen:

WARN UN G: Die Installation und der Ausbau des Geräts darf nur durch Fachpersonal erfolgen.

• Diese Anleitung ist fr die Benutzung durch Netzwerkadministratoren vorgesehen, die fr die Installation und das einstellen von Netzwerkkomponenten verantwortlich sind; sie setzt Erfahrung bei der Arbeit mit LANs (Local Area Networks) voraus.

• Das Gerät sollte nicht an eine ungeerdete Wechselstromsteckdose angeschlossen werden.

• Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche die internationalen Sicherheitsnormen erfüllt.

• Der Gerätestecker (der Anschluß an das Gerät, nicht der Wandsteckdosenstecker) muß einen gemäß EN 60320/IEC 320 konfigurierten Geräteeingang haben.

• Die Netzsteckdose muß in der Nähe des Geräts und leicht zugänglich sein. Die Stromversorgung des Geräts kann nur durch Herausziehen des Gerätenetzkabels aus der Netzsteckdose unterbrochen werden.

• Der Betrieb dieses Geräts erfolgt unter den SELV-Bedingungen (Sicherheitskleinstspannung) gemäß IEC 60950. Diese Bedingungen sind nur gegeben, wenn auch die an das Gerät angeschlossenen Geräte unter SELV-Bedingungen betrieben werden.

Declaration of Conformity

Application of Council Directive(s): 89/336/EEC

73/23/EEC

Manufacturer’s Name: Entera sys Networks, Inc.

Manufacturer’s Address: 50 Minuteman Road

Andover, MA 01810 USA

European Representative Address: Enterasys Networks Ltd.

Nexus House, Newbury Business Park London Road, Newbury Berkshire RG14 2PZ, England

Conformance to Directive(s)/

Product Standards: EC Directive 89/336/EEC

EN 55022 EN 55024 EC Directive 73/23/EEC EN 60950 EN 60825

Equipment Type/Environment: Networking Equipment,

for use in a Commercial or Light Industrial Environmen t.

Enterasys Networks, Inc. declares that the equipment packaged with this notice

conforms to the above directives.

Product Warranty

The Matrix V-Series includes a Limited Lifetime Warranty. You must register your product with Enterasys Networks

within 30 days after receipt.

To register your product, go to

http://www.enterasys.com/products/switching/v-warranty/

Please complete all sections of the form to ensure warranty coverage.

Getting Help

For additional support related to the product or this document, contact Enterasys Networks using one of the following methods:

Electrical Hazard: Only qualified personnel should perform installation procedures.

Operating Temperature: 0°C to 50°C (32°F to 122°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity: 5% to 95% (non-condensing)

N826

Power Cord Set

U.S.A. and Canada The cord set must be UL-approved and CSA certified.

The minimum specifications for the flexible cord are:

- No. 18 AWG - not longer than 2 meters, or 16 AWG.

- Type SV or SJ

- 3-conductor

The cord set must have a rated current capacity of at least 10 A

The attachment plug must be an earth-grounding type with NEMA 5-15P (15 A, 125 V) or NEM A 6-15P (15 A, 250 V) co nfiguration.

Denmark The supply plug must comply with Section 107-2-D1, Standard DK2-1a

or DK2-5a.

Switzerland The supply plug must comply with SEV/ASE 1011.

U.K. The supply plug must comply with BS1363 (3-pin 13 A) and be fitted with

a 5 A fuse which complies with BS1362.

The mains cord must be <HAR> or <BASEC> marked and be of type HO3VVF3GO.75 (minimum).

Europe The supply plug must comply with CEE7/7 (“SCHUKO”).

The mains cord must be <HAR> or <BASEC> marked and be of type HO3VVF3GO.75 (minimum).

IEC-320 receptacle.

Cordon électrique - Il doit être agréé dans le pays d’utilisation

Etats-Unis et Canada:

Le cordon doit avoir reçu l’homologation des UL et un certificat de la CSA.

Les spe'cifications minimales pour un cable flexible sont AWG No. 18, ouAWG No. 16 pour un cable de longueur infe'rieure a` 2 me'tres.

- type SV ou SJ

- 3 conducteurs

Le cordon doit être en mesure d’acheminer un courant nominal d’au moins 10 A.

La prise femelle de branchement doit être du type à mise à la terre (mise à la masse) et respecter la configuration NEMA 5-15P (15 A, 125 V) ou NEMA 6-15P (15 A, 250 V).

Danemark: La prise mâle d’alimentation doit respecter la section 107-2 D1 de la norme DK2

1a ou DK2 5a.

Suisse: La prise mâle d’alimentation doit respecter la norme SEV/ASE 1011.

Europe La prise secteur doit être conforme aux normes CEE 7/7 (“SCHUKO”)

LE cordon secteur doit porter la mention <HAR> ou <BASEC> et doit être de type HO3VVF3GO.75 (minimum).

Stromkabel. Dies muss von dem Land, in dem es benutzt wird geprüft werden:

Schweiz Dieser Stromstecker muß die SEV/ASE 1011Bestimmungen einhalten.

Europe Das Netzkabel muß vom Typ HO3VVF3GO.75 (Mindestanforderung)

sein und die Aufschrift <HAR> oder <BASEC> tragen.

Der Netzstecker muß die Norm CEE 7/7 erfüllen (”SCHUKO”).

Web http://www.enterasys.com/support

Phone 603-332-9400

1-800-872-8440 (toll-free in U.S. and Canada)

For the Enterasys Networks Support toll-free number in your country:

http://www.enterasys.com/support/gtac-all.html

Internet mail [email protected]

To expedite your message, please type [eth] in the subject line.
