Enterasys Matrix E7 6C107 Setup Manual

Matrix E7 6C107 Chassis

Overview and Setup Guide

SERIES E7

1

2 3

4 5

6

7

POWER FAN

9033280-03

AC ON

ACON

1

0

LINE
100-125V~12A
200-240V~6A

50/60Hz

POWER FAN

AC ON

ACON

1

0

LINE
100-125V~12A
200-240V~6A

50/60Hz

ELECTRICAL HAZARD: Only qualified personnel should perform installation
procedures.

NOTICE

Enterasys Networks reserves the right to mak e cha nges in specifications and other information contained in this
document and its web site without prior notice. The reader should in all cases consult Enterasys Networks to determine
whether any such changes have been made.

The hardware, firmware, or software described in this document is subject to change without notice.
IN NO EVENT SHALL ENTERASYS NETWORKS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL,

OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PR OFITS)
ARISING OUT OF OR RELATED TO THIS DOCUMENT, WEB SITE, OR THE INFORMATION CONTAINED IN
THEM, EVEN IF ENTERASYS NETWORKS HAS BEEN ADVISED OF , KNEW OF, OR SHOULD HAVE KNOWN
OF, THE POSSIBILITY OF SUCH DAMAGES.

Enterasys Networks, Inc.
35 Industrial Way
Rochester, NH 03866-5005

 2002 Enterasys Networks, Inc.
All Rights Reserved
Printed in the United States of America

Order Number: 9033280-03 August 2002

LANVIEW is a registered trademark of Enterasys Networks. ENTERASYS NETWORKS, NETSIGHT,
SMARTSWITCH, MATRIX, and WEBVIEW are trademarks of Enterasys Netw orks.

All other product names mentioned in this manual may be trademarks or registered trademarks of their respective
companies.

FCC NOTICE

This device complies with Part 15 of the FC C rules. Operation is subject to the following two conditions: (1) this de vice
may not cause harmful interference, and (2) this de vice must accept an y interference recei v ed, including interference that
may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment uses, generates, and can radiate radio frequency
energy and if not installed in accordance with the operator’s manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause interference in which case the user
will be required to correct the interference at his own expense.

WARNING: Changes or modifications made to this device which are not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

INDUSTRY CANADA NOTICE

This digital apparatus does not exceed the class A limits for radio noise emissions from digit al apparatus set out in the
Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicable s aux appa rei ls
numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des
Communications du Canada.

VCCI NOTICE

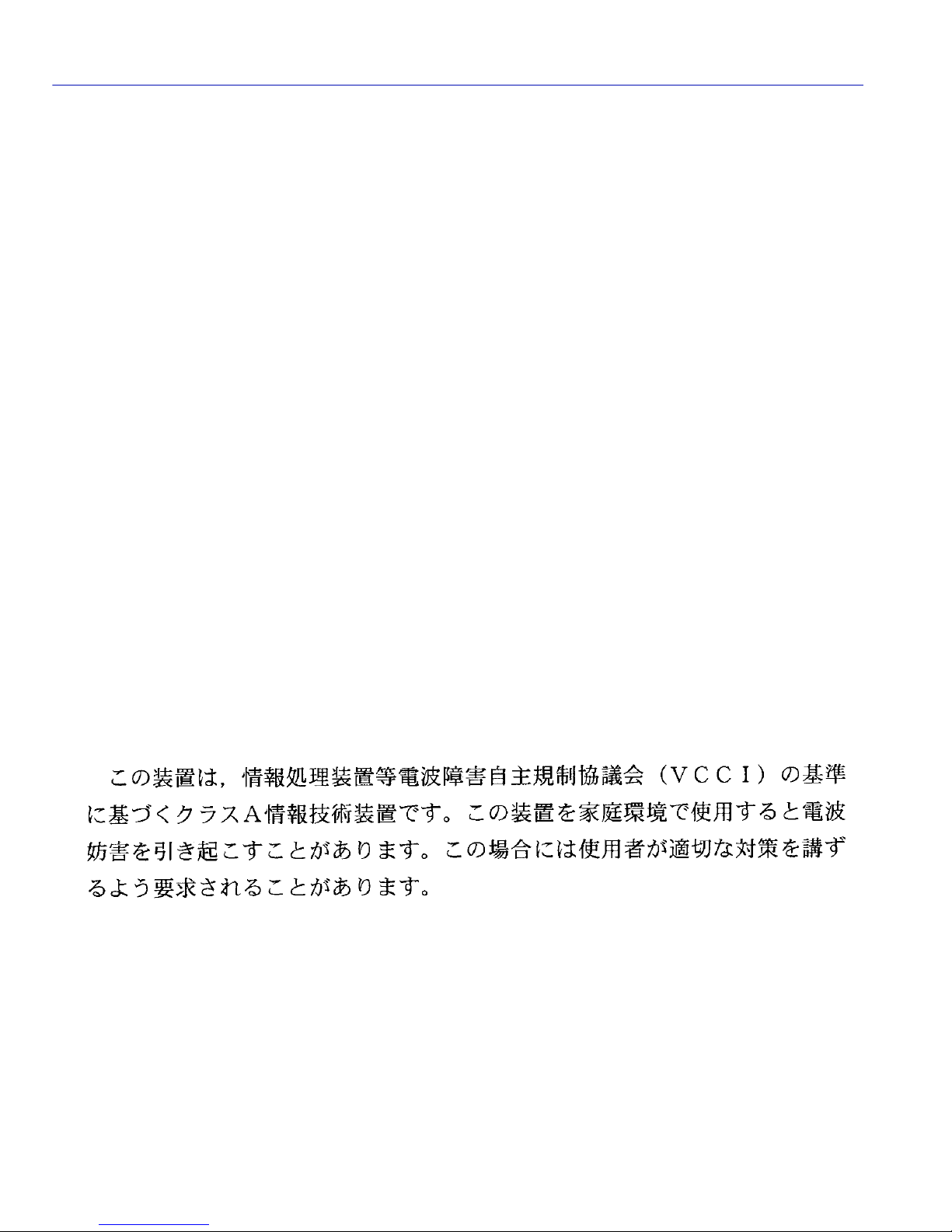

This is a class A product based on the standard of the Voluntary Control Council for Interference by Information
Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When
such trouble occurs, the user may be required to take corrective actions.

CLASS A ITE NOTICE

WARNING: This is a class A product. In a domestic environment this product ma y cause radio interference in which
case the user may be required to take adequate measures.

ENTERASYS NETWORKS, INC.

PROGRAM LICENSE AGREEMENT

BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT,

CAREFULLY READ THIS LICENSE AGREEMENT.

This document is an agreement (“Agreement”) between You, the end user, and Enterasys Netw orks, Inc. (“Enterasys”)
that sets forth your rights and obligations with respect to the Enterasys software progra m (“Program”) in the package.
The Program may be contained in firmware, chips or other media. UTILIZING THE ENCLOSED PRODUCT, YOU
ARE AGREEING TO BECOME BOUND BY THE TERMS OF THIS AGREEMENT, WHICH INCLUDES THE
LICENSE AND THE LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY. IF YOU DO NOT
AGREE TO THE TERMS OF THIS AGREEMENT, RETURN THE UNOPENED PRODUCT TO ENTERASYS OR
YOUR DEALER, IF ANY, WITHIN TEN (10) DAYS FOLLOWING THE DATE OF RECEIPT FOR A FULL
REFUND.

IF YOU HAVE ANY QUESTIONS ABOUT THIS AGREEMENT, CONTACT ENTERASYS NETWORKS
[phone]. Attn: Legal Department.

1. LICENSE. You have the right to use only the one (1) copy of the Program provided in this package subject to the
terms and conditions of this License Agreement.

You may not copy, reproduce or transmit any part of the Program except as permitted by the Copyright Act of the

United States or as authorized in writing by Enterasys.

2. OTHER RESTRICTIONS. You may not reverse engineer, decompile, or disassemble the Program.

3. APPLICABLE LAW. This License Agreement shall be interpreted and governed under the laws and in the state

and federal courts of New Hampshire. You accept the personal jurisdiction and venue of the New Hampshire courts.

4. EXPORT REQUIREMENTS. You understand that Enterasys and its Affiliates are subject to regulation by
agencies of the U.S. Government, including the U.S. Department of Commerce, which prohibit export or diversion of
certain technical products to certain countries, unless a license to export the product is obtained from the U.S. Government
or an exception from obtaining such license may be relied upon by the exporting party.

If the Program is exported from the United States pursuant to the License Exception CIV under the U.S. Export
Administration Regulations, You agree that You are a civil end user of the Program and agree that You will use the
Program for civil end uses only and not for military purposes.

If the Program is exported from the United States pursuant to the License Exception TSR under the U.S. Export
Administration Regulations, in addition to the restriction on transfer set forth in Sections 1 or 2 of this Agreement, You
agree not to (i) reexport or release the Program, the source code for the Program or technology to a national of a country
in Country Groups D:1 or E:2 (Albania, Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia,
Iraq, Kazakhstan, Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Moldova, North Korea, the People’s Republic of China,
Romania, Russia, Rwanda, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, Vietnam, or such other countries as may be
designated by the United States Government), (ii) export to Country Groups D:1 or E:2 (as defined herein) the direct
product of the Program or the technology, if such foreign produced direct product is subject to national security controls
as identified on the U.S. Commerce Control List, or (iii) if the direct product of the technology is a complete plant or an y
major component of a plant, export to Country Groups D:1 or E:2 the direct product of the plant or a major component
thereof, if such foreign produced direct product is subject to national security controls as identified on the U.S.
Commerce Control List or is subject to State Department controls under the U.S. Munitions List.

5. UNITED STATES GOVERNMENT RESTRICTED RIGHTS. The enclosed Product (i) was developed solely
at private expense; (ii) contains “restricted computer software” submitted with restricted rights in accordance with se ction

52.227-19 (a) through (d) of the Commercial Computer Software-Restricted Rights Clause and its successors, and (iii) in
all respects is proprietary data belonging to Enterasys and/or its suppliers. For Department of Defense units, the Product
is considered commercial computer software in accordance with DFARS section 227.7202-3 and its successors, and use,
duplication, or disclosure by the Government is subject to restrictions set forth herein.

6. EXCLUSION OF WARRANTY. Except as may be specifically provided by Enterasys in writing, Enterasys
makes no warranty, expressed or implied, concerning the Program (including its documentation and media).

ENTERASYS DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO YOU BY
ENTERASYS IN WRITING, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITN ESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO
THE PROGRAM, THE ACCOMPANYING WRITTEN MATERIALS, AND ANY ACCOMPANYING HARDWARE.

7. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL ENTERASYS OR ITS
SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION,
DAMAGES FOR LOSS OF BUSINESS, PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS
INFORMATION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR RELIANCE DAMAGES, OR OTHER LOSS)
ARISING OUT OF THE USE OR INABILITY TO USE THIS ENTERASYS PRODUCT, EVEN IF ENTERASYS HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR IN
THE DURATION OR LIMITATION OF IMPLIED WARRANTIES IN SOME INSTANCES, THE ABOVE
LIMITATION AND EXCLUSIONS MAY NOT APPLY TO YOU.

DECLARATION OF CONFORMITY

Application of Council Directive(s): 89/336/EEC

73/23/EEC

Manufacturer’s Name: Enterasys Networks, Inc.

Manufacturer’s Address: 35 Industrial Way

PO Box 5005

Rochester, NH 03867

European Representative Address: Enterasys Networks Ltd.

Nexus House, Newbury Business Park
London Road, Newbury

Berkshire RG14 2PZ, England

Conformance to Directive(s)/Product Standards: EC Directive 89/336/EEC

EC Directive 73/23/EEC
EN 55022
EN 55024
EN 60950

EN 60825

Equipment Type/Environment: Networking Equipment, for use in a Commercial

or Light Industrial Environment.

Enterasys Networks, Inc. declares that the equipment packaged with this notice conforms to the above directives.

Contents

Figures ............................................................................................................................................ix

Tables.............................................................................................................................................. x

ABOUT THIS GUIDE

Using This Guide.............................................................................................................xi

Structure of This Guide ................................. ... ................................. ... ... ........................ xi

Using the Matrix E7 6C107 Chassis Series Manual Set................................................xii

Document Conventions................................. ... ... .... ... ... ................................ .... ... ... .......xii

1

2

3

INTRODUCTION

1.1 Overview.........................................................................................................1-1

1.2 Features..........................................................................................................1-3

1.3 Getting Help ....................................................................................................1-6

INSTALLATION REQUIREMENTS AND GUIDELINES

2.1 Site Guidelines................................................................................................2-1

2.2 Configuration Guidelines............................... ................................ ... .... ...........2-2

2.3 LANVIEW LEDs ..............................................................................................2-2

2.3.1 Power Supply LEDs........................................................................2-2

2.3.2 Fan Tray LED..................................................................................2-4

MATRIX E7 SETUP

3.1 Unpacking the Matrix E7 Chassis...................................................................3-2

3.2 Setting Up the Matrix E7 Chassis .............................. ... ................................ ..3-3

3.2.1 Order of Installation.........................................................................3-3

3.2.2 Installing the Rubber Feet and Cable Management Bar.................3-3

3.2.3 Rack Mounting the Matrix E7 Chassis............................................3-6

3.2.4 Installing a Power Supply................................................................3-9

3.2.5 Installing Matrix E7 Interface Modules..........................................3-12

3.3 Powering Up a Matrix E7 Chassis with Power Supplies ...............................3-15

3.4 Removing and Reinstalling the Fan Tray......................................................3-17

3.4.1 Removing the Fan Tray ................................................................3-17

3.4.2 Reinstalling the Fan Tray..............................................................3-19

A

SPECIFICATIONS AND REGULATORY COMPLIANCE

Contents vii

Figures

Figure Page

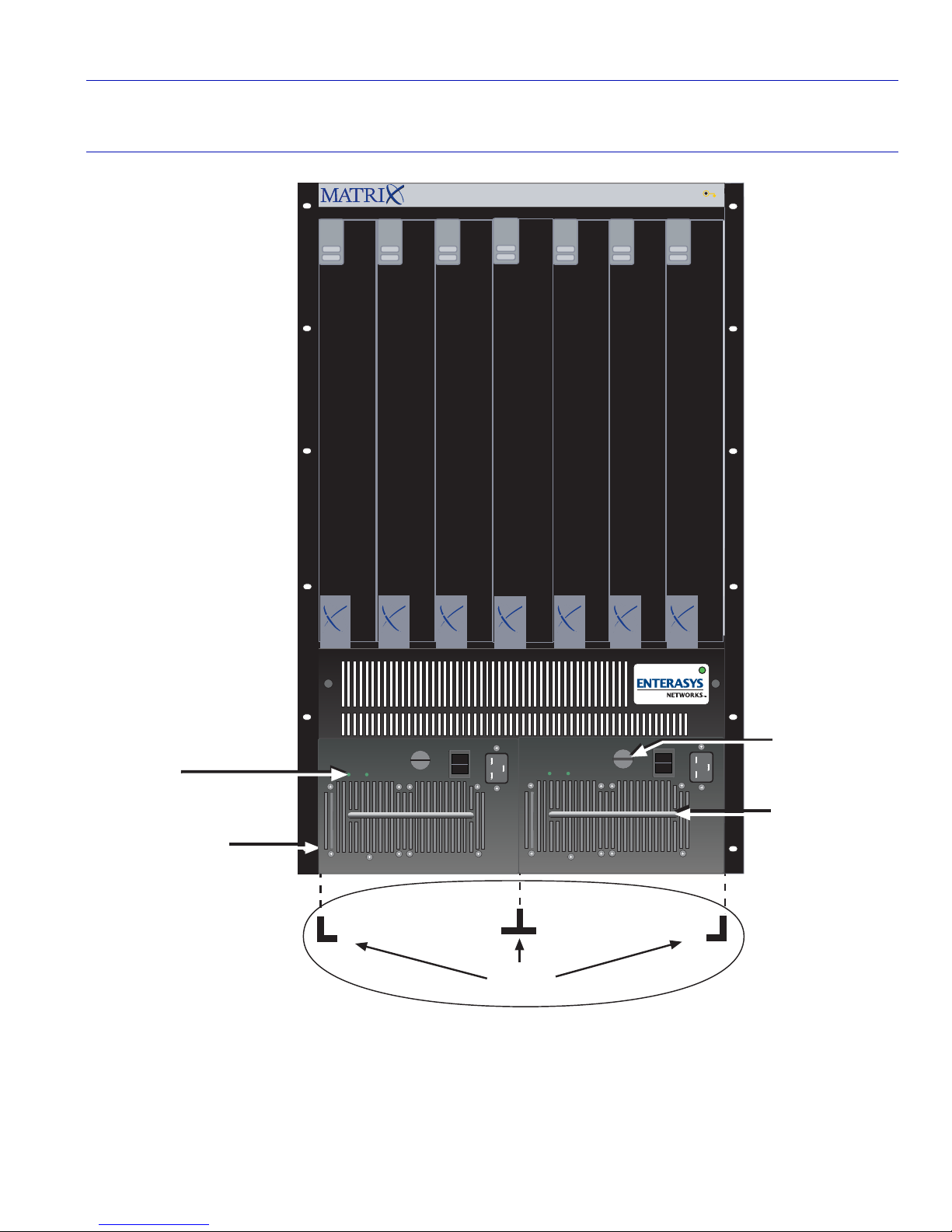

1-1 The Matrix E7 6C107 Chassis with Redundant Power Supplies.....................................1-2

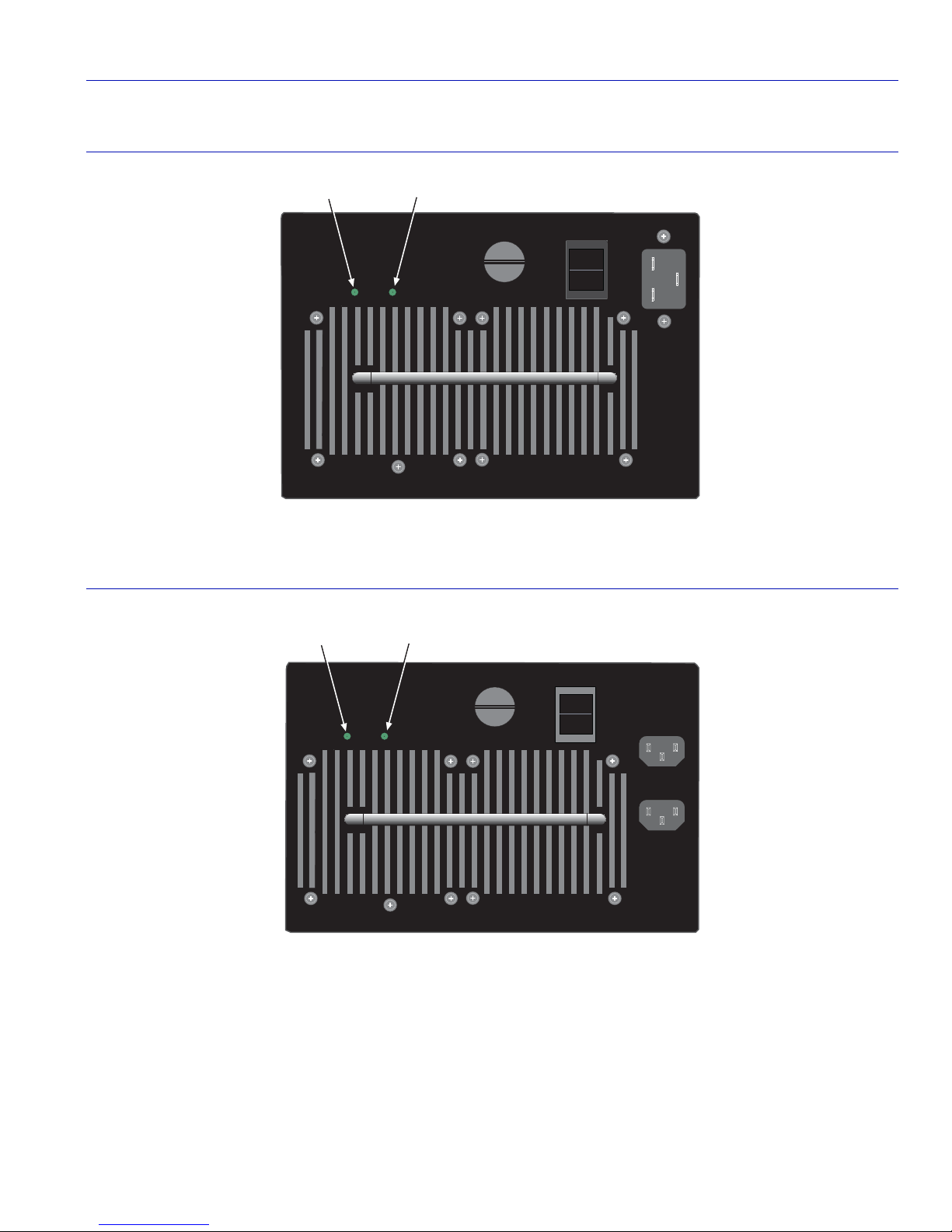

2-1 6C207-1 (Rev. OF) Power Supply LEDs.........................................................................2-3

2-2 6C207-3 Power Supply LEDs................. .... ... ... ... ................................. ... ... ... ... ...............2-3

2-3 Fan Tray LED..................................................................................................................2-4

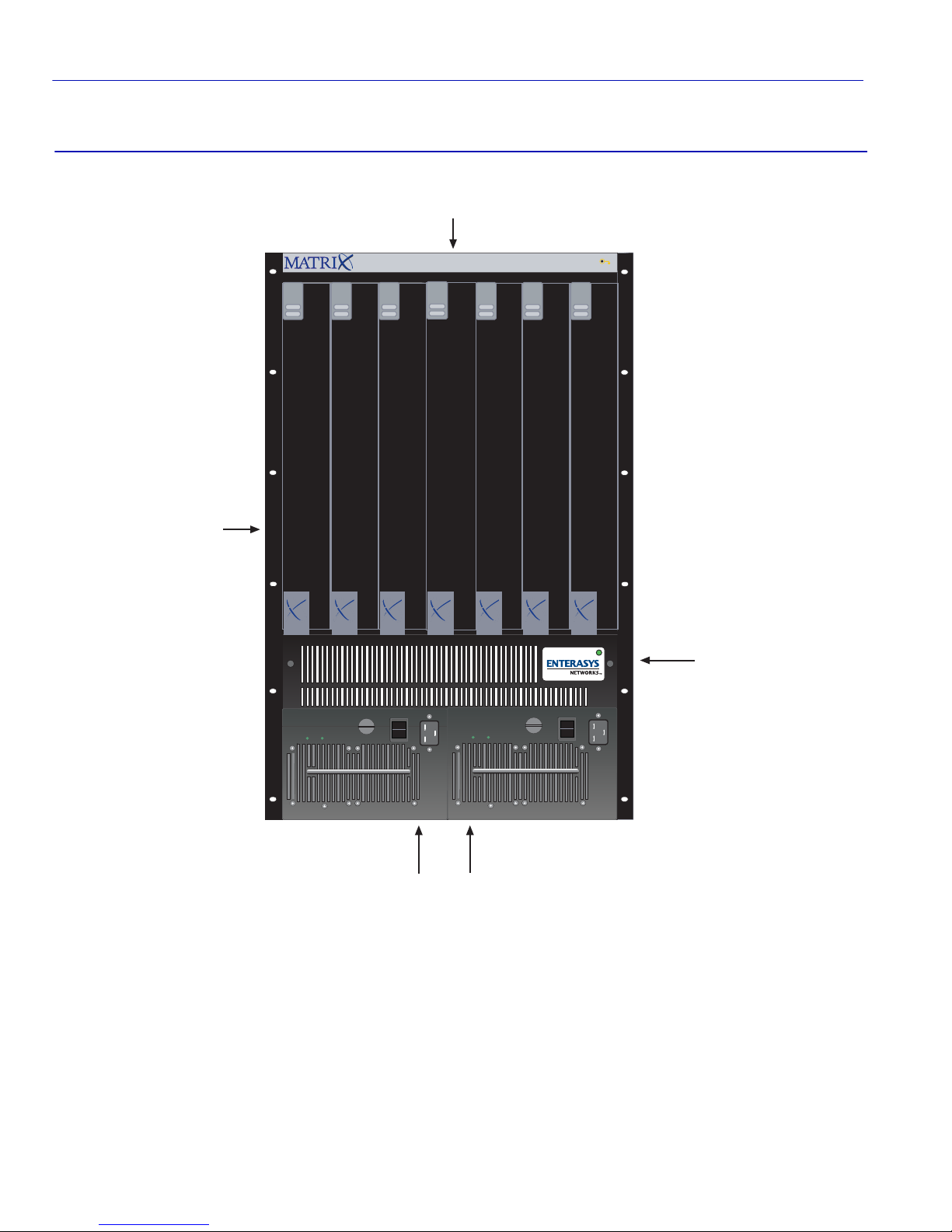

3-1 Chassis Bottom, Rubber Feet Placement .......................................................................3-4

3-2 Installing the Cable Management Bar .............................................................................3-5

3-3 Shelf Installation................................................................................... ... ... .....................3-7

3-4 Rack Mounting the Matrix E7 Chassis ............................................................................3-8

3-5 ESD Grounding Receptacle ............................................................................................3-9

3-6 Installing the Power Supply Module(s)..........................................................................3-11

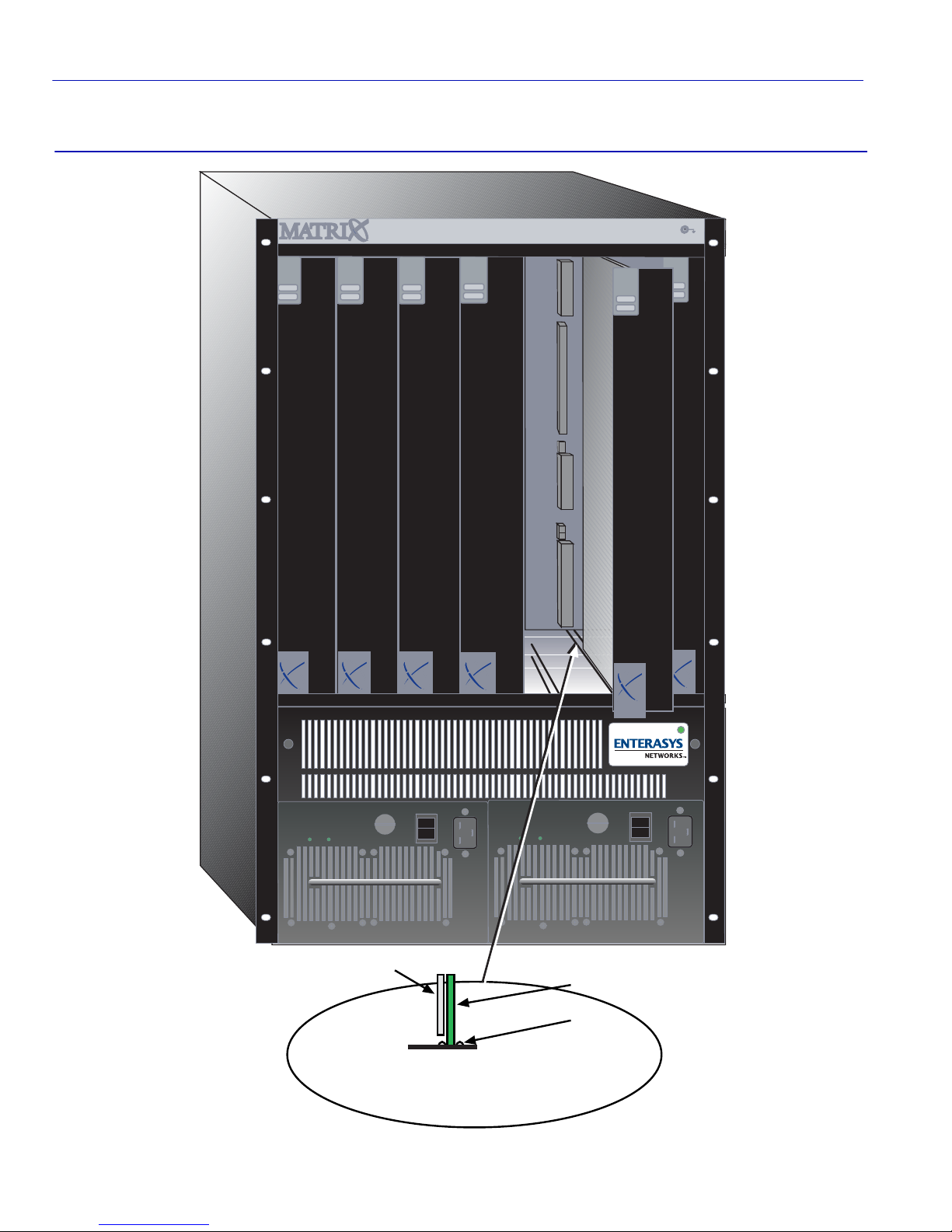

3-7 Installing an Interface Module .......................................................................................3-14

3-8 Connecting the 20-Amp AC Power Cord to the 6C207-1..............................................3-15

3-9 Connecting the 15-Amp AC Power Cords to th e 6C 20 7- 3 ................................... .........3-16

3-10 Removing the Fan Tray.......................... .... ... ................................ ... .... .........................3-18

3-11 Reinstalling the Fan Tray ..............................................................................................3-20

Figures ix

Tables

Table Page

2-1 Power Supply (PS) LED Status Definitions...................................................................2-4

2-2 Fan Tray LED States and Their Definitions ..................................................................2-4

x Tables

About This Guide

Welcome to the Matrix E7 6C107 Chassis Overview and Setup Guide. This guide lists the
features and options of the Matrix E7 6C107 chassis and explains how to remove and reinstall its
fan tray, install the cable m anagement bar, power supplies, and interface modules.

USING THIS GUIDE

Read through this guide completely to familiarize yourself with its contents and to gain an
understanding of the features and capabilities of the Matrix E7 6C107 chassis. A general working
knowledge of data communications networks is helpful when setting up the Matrix E7 6C107
chassis.

NOTE: In this guide, the Matrix E7 6C107 chassis is also referred to as the Matrix E7
chassis.

STRUCTURE OF THIS GUIDE

This guide is organized as follows:
Chapter 1, Introduction, describes the features and capabilities of the Matrix E7 chassis, and how

to get help.
Chapter 2, Installation Requirements and Guidelines, lists the installation site requirements that

must be met before installing the Matrix E7 chassis in a cabinet or rack. This chapter also includes
configuration guidelines, and operating specificat ions for the Matrix E7 enclosure and power
supply modules.

Chapter 3, Matrix E7 Setup, contains instructions for a standalone or rackmount installation of
the Matrix E7 chassis. It also provides instructions for installing the cable management bar,
installing the power supply modules, removing and reinstalling the fan tray, installing an interface
module, and powering up the Matrix E7 chassis.

Appendix A, Specifications and Regulatory Compliance, lists environmental and operating
specifications for the Matrix E7 chassis and power supply modules.

About This Guide xi

Using the Matrix E7 6C107 Chassis Series Manual Set

USING THE MATRIX E7 6C107 CHASSIS SERIES MANUAL SET

Separate manuals have been developed for the interface modules that can be installed in the
Matrix E7 chassis. These manuals explain how to install the modules into the Matrix E7 chassis,
how to attach cable segments to the modules, and how to configure the modules using Local
Management after installation is complete. The specifications for modules are included in each
manual.

Each manual in this set assumes that the qualified personnel installing the module has a general
working knowledge of data communications networks and their physical layer components.

Manuals can be accessed on the World Wide Web, using the following url:

http://www.enterasys.com/support/manuals/

DOCUMENT CONVENTIONS

Throughout this guide the following symbols are used to call attention to important information.

Note symbol. Calls the reader’ s attention to an y item of information that may be
of special importance.

Caution symbol. Contains information essential to avoid damage to the
equipment.

Electrical Hazard Warning symbol. Warns against an action that could result
in the presence of an electrical hazard.

xii About This Guide

1

Introduction

This chapter provides an overview of the Matrix E7 chassis and its features. Also covered in this
chapter are the instructions on how to obtain additional help from Enterasys Networks if needed.

1.1 OVERVIEW

The Matrix E7 chassis design provides seven slots that can contain a variety of interface modules.
The chassis backplane provides support for a new generation of advanced switching modules,
while also providing backward compatibility and support for the complete family of existing
SmartSwitch 6000 modules.

The Matrix E7 chassis

• uses a distributed switching architecture,

• allows hot swapping of the interface modules,

• supports redundant power supplies, and

• can be installed as a freestanding unit or installed into a standard

48.26-centimeter (19-inch) rack.

All chassis components (power supplies, fan tray, and modules) are installed from the front of the
chassis for ease of maintenance. All LED indicators are observable from the front of the chassis to
aid in monitoring network operational status and performing maintenance. Figure 1-1 illustrates
the Matrix E7 chassis equipped with two 1200-Watt, 6C207-1 redundant power supplies.

There is another power supply available (6C207-3) that has a 1600-Watt power output. The
6C207-3 power supply should be installed for po wer redundan c y in a Matrix E7 chassis pop ulated
with a set of modules requiring more power than a 6C207-1 (1200 Watts).

1-1

Overview

50/60Hz

LINE

Figure 1-1 The Matrix E7 6C107 Chassis with Redundant Power Supplies

Module Slots (7 Total)

SERIES

E7

6

1

2 3

4 5

7

Chassis
(6C107)

AC ON

ACON

1

POWER FAN

0

LINE
100-125V~12A
200-240V~6A

50/60Hz

PS1 PS2

Redundant Power

Supplies (2) (6C207-1)

POWER FAN

Fan Tray
(6C407)

AC ON

ACON

1

0

LINE
100-125V~12A
200-240V~6A

50/60Hz

3280-01-01

1-2

Features

1.2 FEATURES

The following provides an overview of the chassis features.

Matrix E7 Chassis Modules

The Matrix E7 chassis has seven slots for interface modules. The Matrix E7 chassis supports all
generations of Matrix and SmartSwitch 6000 modules. This provides the flexibility to configure
the chassis with the maximum types of boards available to support 10/100 Ethernet and Gigabit
Ethernet to WAN and ATM applications.

Redundant Power Supplies

The Matrix E7 chassis supports two power supplies that reside in the lower section of the chassis,
in slots labeled PS1 and PS2. The second power supply provides redundancy and load sharing.

There are two models of ac power supplies available: 6C207-1 and 6C207-3.

6C207-1

The 6C207-1 is a 1200-Watt power supply, which has one front-panel ac input power connector.
This allows the connection of each power supply to a separately fused ac po wer source. One po wer
cord is shipped with the 6C207-1. The type of power cord shipped with the unit is
country-dependent.

CAUTION: Newe r models of modu les ma y require mor e pow er to ope rate . If the p ow er
requirement of the module population in a Matrix E7 chassis exceeds the power output
of a single 6C207-1 (1200-Watt) power supply, it is not recommended to install a
6C207-1 (1200-Watt) and a 6C207-3 (1600-Watt) power supply in the same chassis. If
the 6C207-3 fails, the 6C207-1 may not be able to handle the power requirements,
eliminating power redundancy and causing the system to fail and disrupt network traffic.

When two power supplies are installed, each po wer supply is capable of load sharing 50% (+/- 5%)
of the power

in a Matrix E7 chassis power load. This not only provides redundancy, it also extends

the life of the power supplies. If one power supply fails, the other power supply supports the entire
power load of the chassis without interruption to network traffic. Refer to Section 2.1 for power
outlet requirements.

1-3

Features

6C207-3

The 6C207-3 is a 1600-Watt power supply, which has two front-panel ac input power connectors.
The type of power cords shipped with the unit is country-dependent. Each power cord must be
plugged into a separately fused power circuit.

NOTE: Both power cords must be connected to the 6C207-3 for it to operate, and
connected to two separately fused ac power sources to handle the input power
requirements.

CAUTION: Newer models of modules may require more power to operate. If the power
requirement of the module population in a Matrix E7 chassis exceeds the power output
of a single 6C207-1 (1200-Watt) power supply, it is not recommended to install a
6C207-1 (1200-Watt) and a 6C207-3 (1600-Watt) power supply in the same chassis. If
the 6C207-3 fa ils, the 6C207-1 may not be able to handle the power requirements,
eliminating power redundancy and causing the system to fail and disrupt network traffic.

As with the 6C207-1 power supplies, the 6C207-3 is capable of load sharing 50% (+/- 5%) of the
power Matrix E7 chassis power load. If one power supply fails, the other power supply supports
the entire load of the chassis without interruption to network traffic. Refer to Section 2.1 for power
outlet requirements.

Power Supply LANVIEW LEDs

Each power supply comes equip ped with LEDs for at -a-glance diagnostics that indicate indi vidual
power supply status and overall chassis redundancy status. Refer to Chapter 2, Installation

Requirements and Guidelines , for a full explanation of the power supply LEDs and their

definitions.

Power Supply Status via Management

The Matrix E7 chassis power supplies report information to the interface modules installed in the
chassis regarding their present operating status as well as the Fan Tray status. This information
includes the following:

• Power Supply ID (PS1, PS2)

• Power Supply Status (normal/fault/not installed)

• Power Supply Redundancy Indication (redundant/not available)

• Fan Status (normal/fault)

Refer to the module-specific User’s Guide for instructions on how to access power supply status
information via Local Management.

1-4

Features

Auto-Ranging Power Supplies

The Matrix E7 chassis power supplies automatically adjust to the input voltage and frequency,
which allows an input voltage of 100 to 220 Vac, and a frequency between 50 and 60 Hz. See the
operating specifications in Appendix A. No additional adjustments are necessary. For installations
in North America and depending on which power supplies are installed, one 20 A or two 15 A
power cords are required. See Section 3.3 for more details.

Hot Swapping

To reduce network downtime, the power supplies are hot swappable. This allows the removal of
one power supply without powering down the chassis and interrupting network traffic.

The Matrix E7 Chassis Cooling System

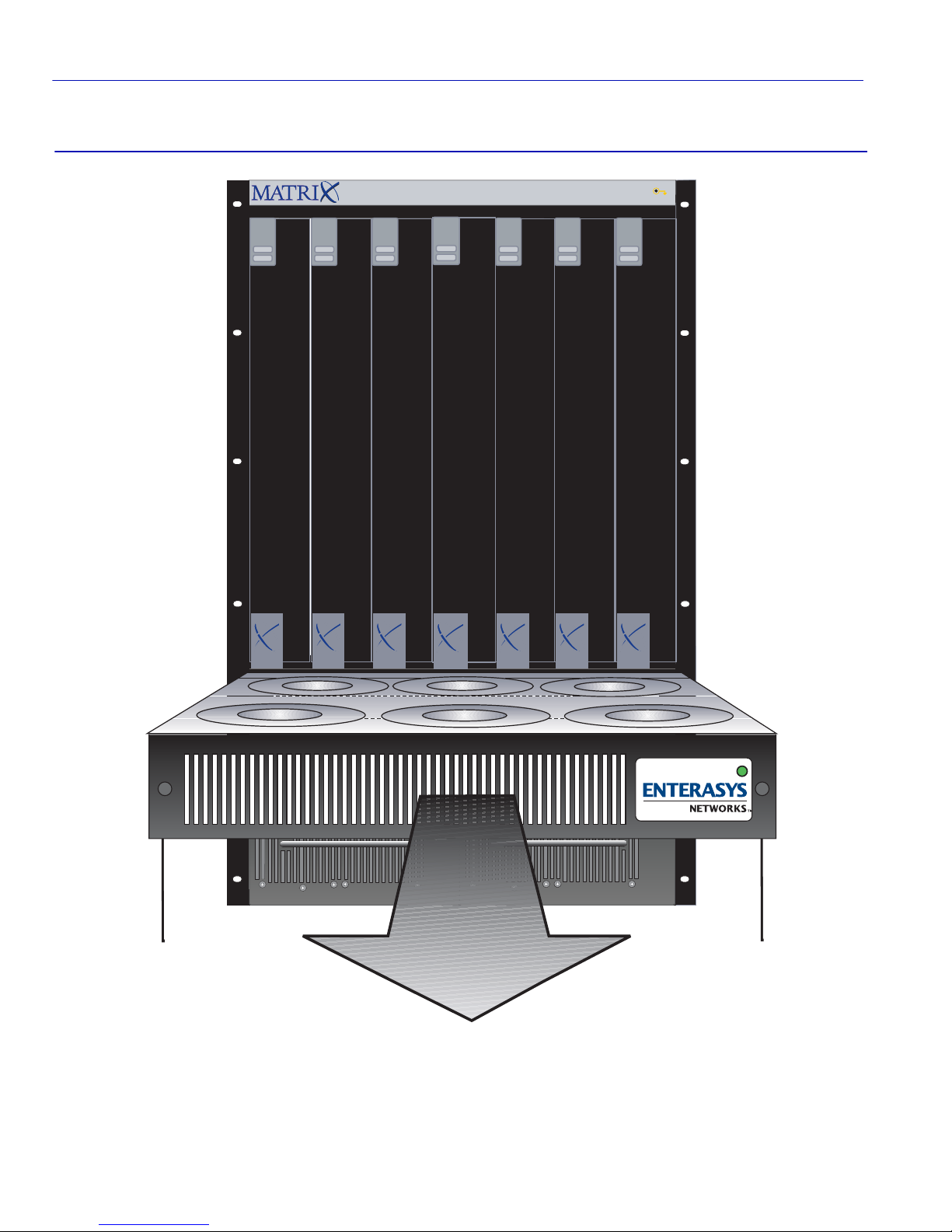

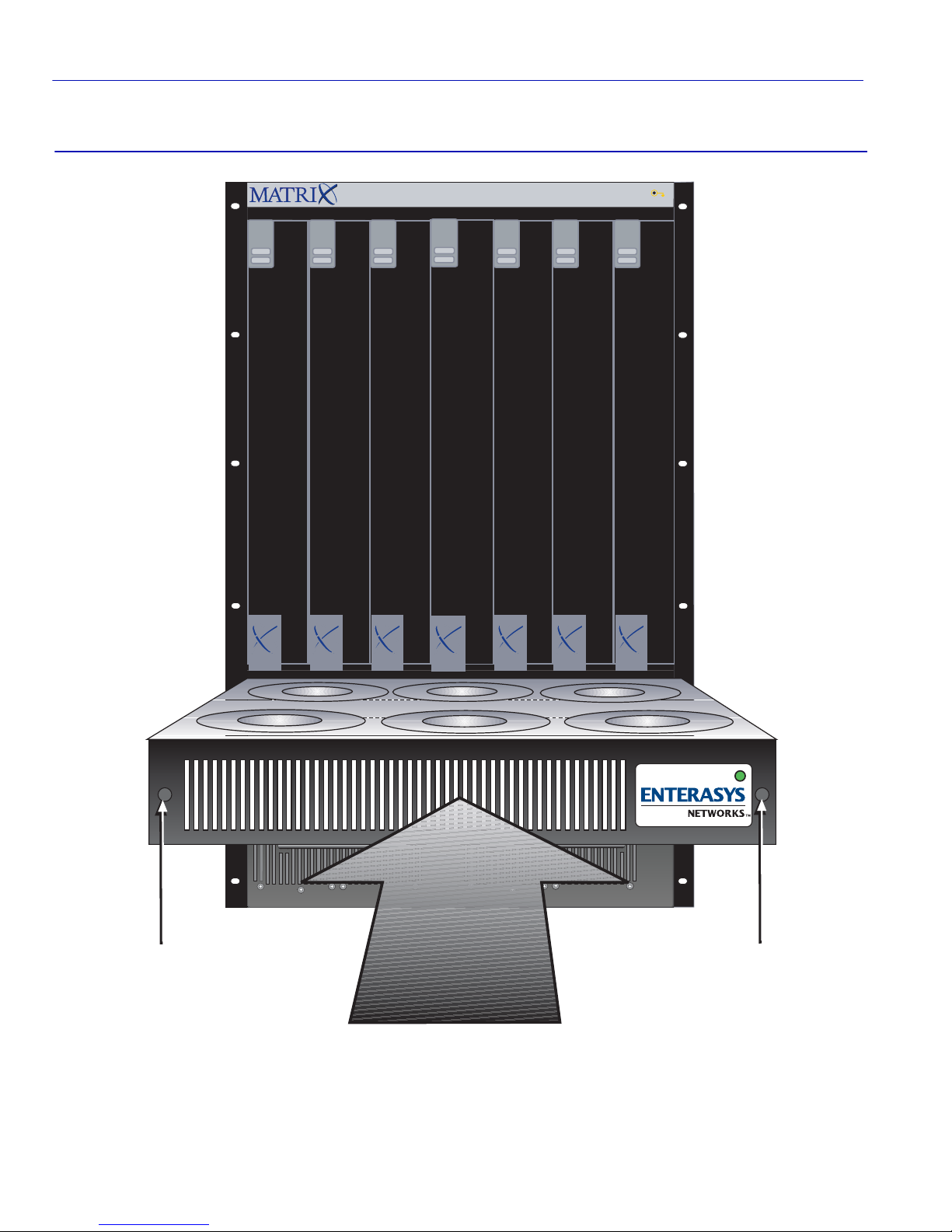

The Matrix E7 chassis features a removable fan tray that is accessible from the front of the unit.
This unit is hot swappable, which allows it to be replaced without powering down the chassis. The

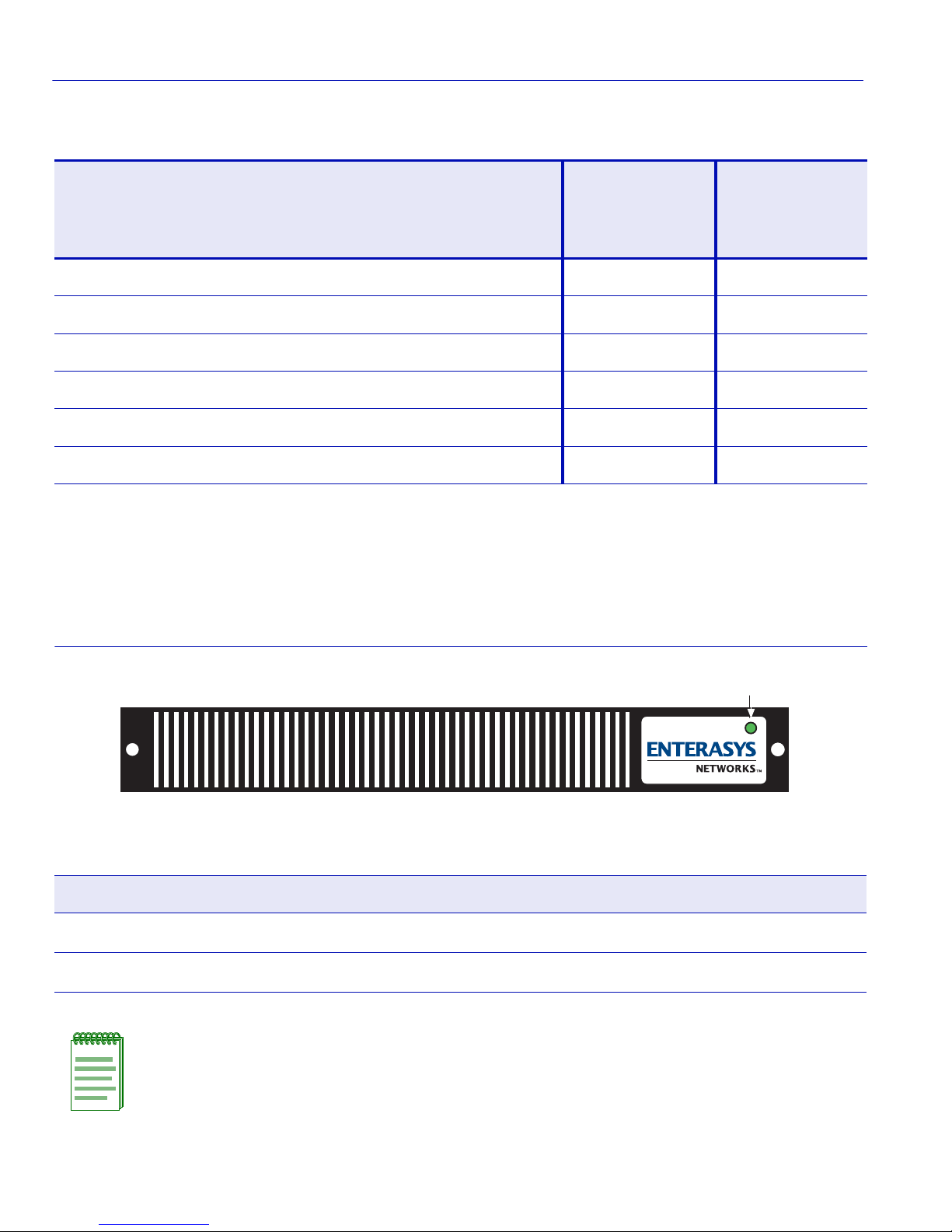

fan tray has one LANVIEW LED located on the front of the unit. This LED indicates the status of
the fan tray (normal/fault/not installed). Refer to Chapter 2 for a full description of the fan tray
LED states.

Rack Mountable Chassis

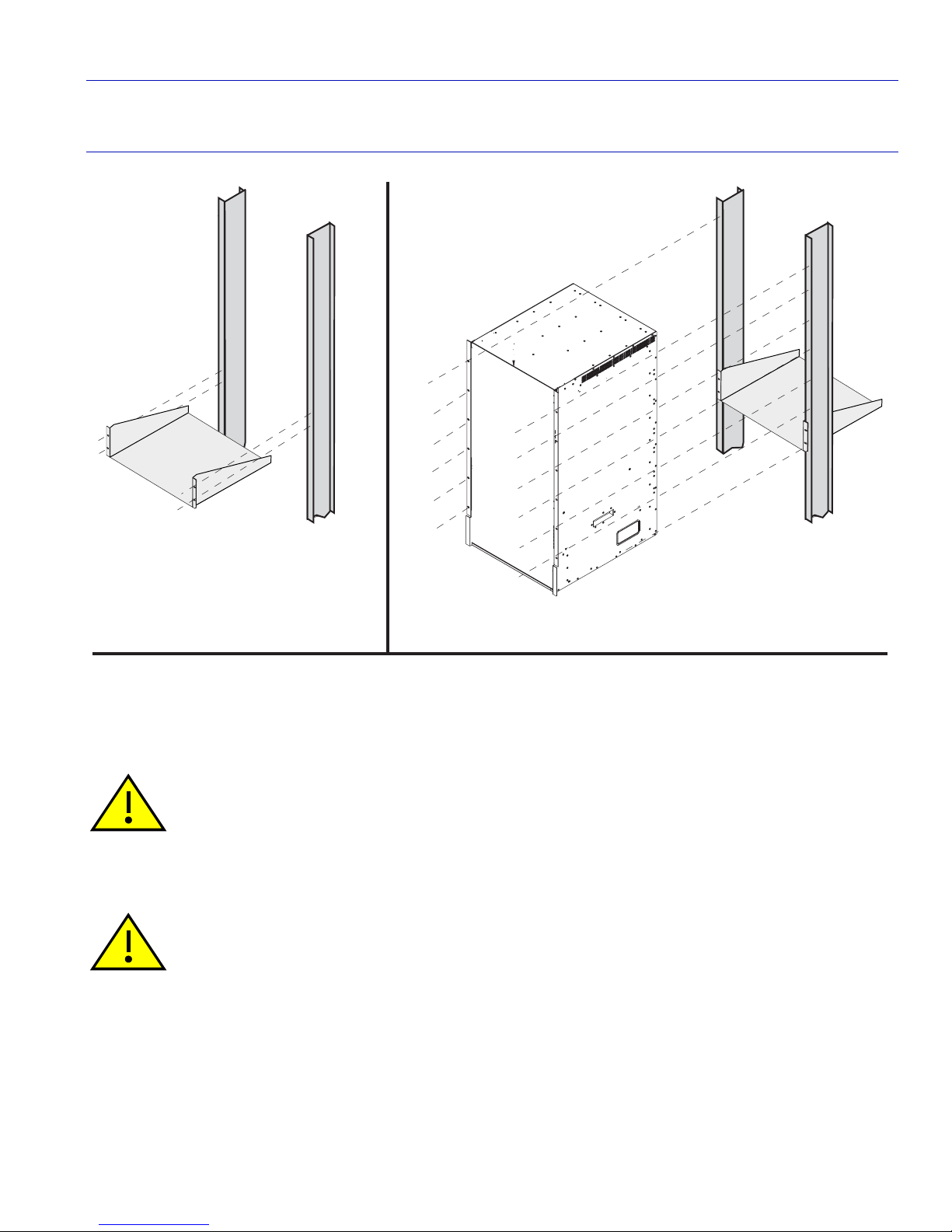

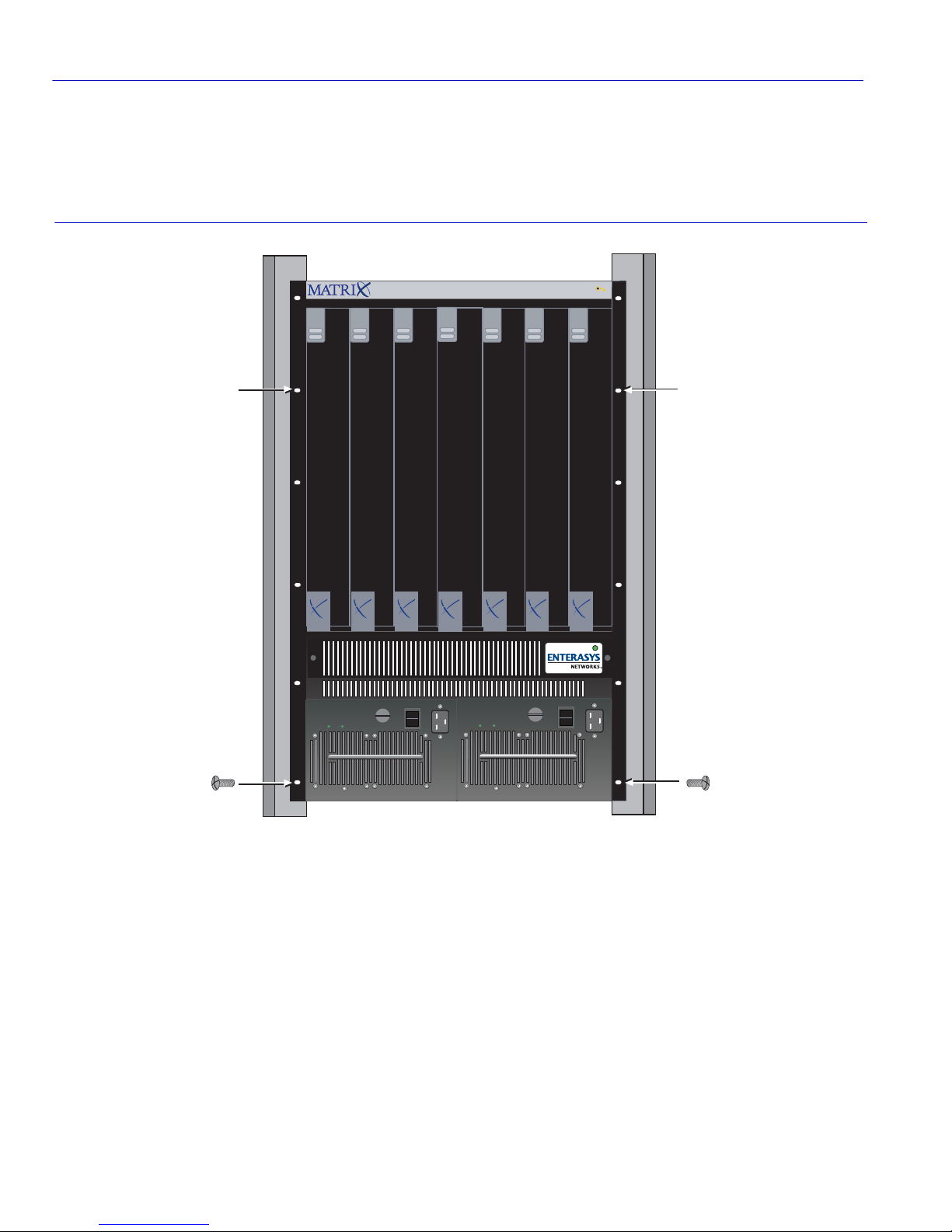

The Matrix E7 chassis can be mounted into a standard 48.26-centimeter (19-inch) equipment rack.
An equipment shelf is shipped with the chassis that you install prior to installing the chassis. The
Matrix E7 chassis can then be slid onto the shelf into place and then fastened to the chassis. Refer
to Section 2.1 for requirements on ventilation and cooling.

1-5

Getting Help

1.3 GETTING HELP

For additional support related to the Matrix E7 chassis or this document, contact Enterasys
Networks using one of the following methods:

World Wide Web http://www.enterasys.com/
Phone [phone]
Internet mail [email protected]
FTP ftp://ftp.enterasys.com

Login anonymous
Password your email address

To send comments or suggestions concerning this document, contact the Technical Writing
Department via the following email address: [email protected]

Make sure to include the document Part Number in the email message.

Before contacting Enterasys Networks for technical support, have the following information
ready:

• Your Enterasys Networks service contract number

• A description of the failure

• A description of any action(s) already taken to resolve the problem (e.g., changing mode

switches, rebooting the unit, etc.)

• The serial and revision numbers of all involved Enterasys Networks products in the network

• A description of your network environment (layout, cable type, etc.)

• Network load and frame size at the time of trouble (if known)

• The device history (i.e., have you returned the device before, is this a recurring problem, etc.)

• Any previous Return Material Authorization (RMA) numbers

1-6

Installation Requirements and Guidelines

This chapter describes the following:

• Site guidelines that must be met before installing a Matrix E7 chassis into a rack or cabinet

• Matrix E7 chassis configuration guidelines

• Operating specifications for the Matrix E7 chassis enclosure and power supply modules

ELECTRICAL HAZARD: Only qualified personnel should install or service this unit.

2.1 SITE GUIDELINES

2

The following guidelines must be followed when a site i s selected for the Matrix E7 chassis. If the
guidelines are not followed, unsatisfactory network performance may result.

• T o allow proper cooling within the rack, there must be 7.62 centimeters (3 inches) of clearance

above the unit and 5.08 centimeters (2 inches) of clearance on either side of the unit.

• T o install the Matrix E7 chassis as a free standing unit on a shelving unit, the shelf must be able

to support 80 kilograms (176 pounds) of static weight .

• T o install the Matrix E7 chassis as a rack mounted unit, care must be taken to ensure that the rack

used will support the unit and that the rack remains stable with the Matrix E7 installed.

• Matrix E7 6C207-1 ac power supplies require a three-pronged power receptacle capable of

delivering the current and voltage specified in Section A.2. An ac outlet on a separately fused
circuit is required for each 6C207-1, and must be located within 182 centimeters (6 feet) from
the site. The power co rd used and type of outlet is dependent on the country. In the United States,
a power cord with a NEMA 5-20P plug is provided with each 6C207-1.

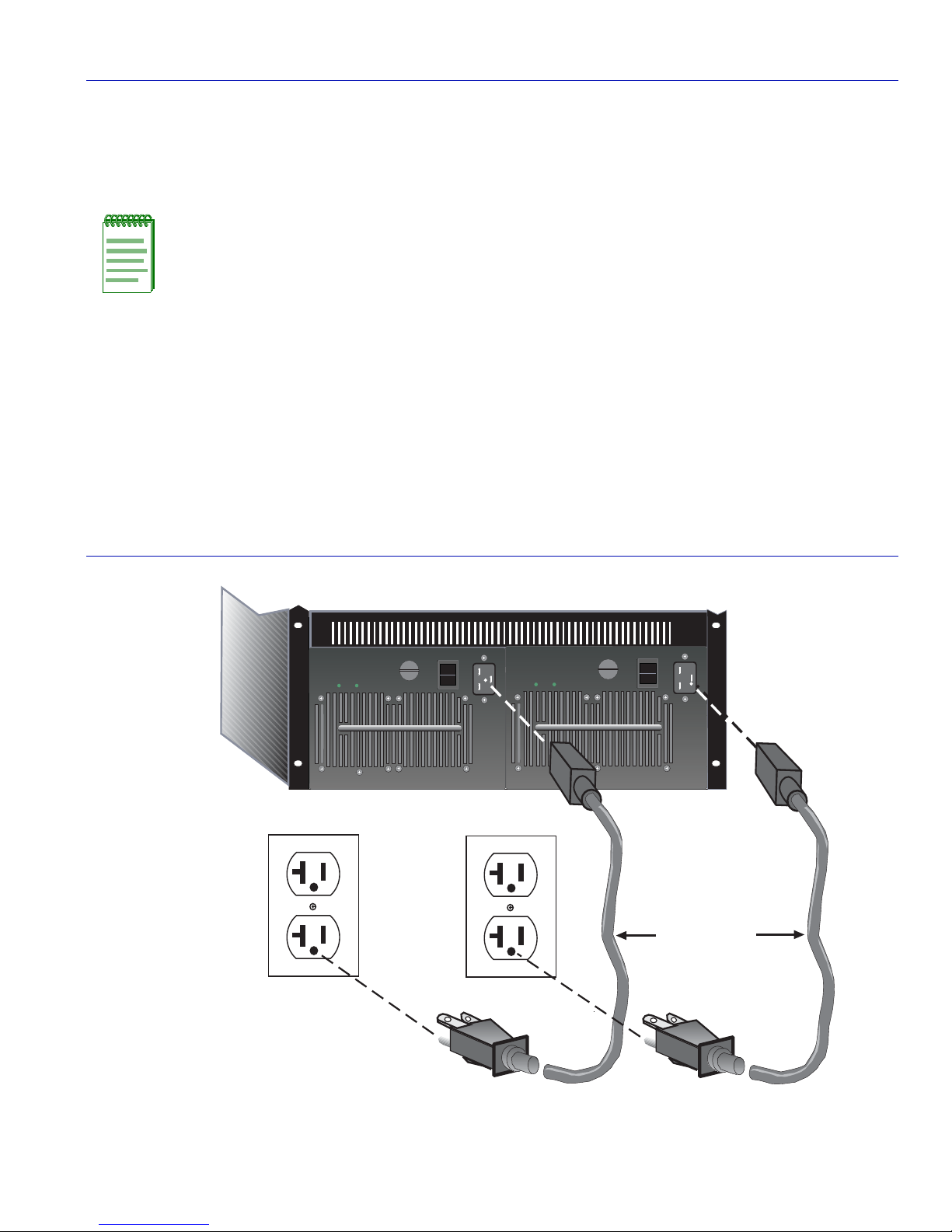

• Matrix E7 6C207-3 ac power supplies require two three-pronged power receptacles capable of

delivering the current and voltage specified in Section A.2. Two ac outlets on separately fused
circuits are required for each 6C207-3, and must be located within 182 centimeters (6 feet) from
the site. The power co rd used and type of outlet is dependent on the country. In the United States,
two power cords with NEMA 5-15P plugs are provided with each 6C207-3.

2-1

Configuration Guidelines

• Ambient temperature at the installation site must be maintained between 5° and 40°C

(41° to 104°F). Temperature changes must be maintained within 10°C (18°F) per hour.

2.2 CONFIGURATION GUIDELINES

The Matrix E7 chassis has seven slots that accept interface modules. The slots are numbered 1 to 7
beginning with the leftmost slot. There are two slots near the bottom of the chassis that are strictly
for power supplies. These slots are labeled PS1 and PS2.

NOTE: The 3rd Generation (6x3xx series) interface modules are designed for the
Matrix E7 chassis, and can be inserted in any of the 7 slots of the Matrix E7. The
previous generat ion boards (6x1xx and 6x2 xx series), can be inserted in slots 1 through
5, but should not be inserted in slot 6 or 7, if backplane connectivity is desired.

Refer to Section 3.2.5 and the Release Notes for further guidance.

Modules for the Matrix E7 chassis are equipped with a firmware-based management tool called
Local Management, which provides the capability to configure the module; and access chassis,
power supply, and fan tray information. WebView can also be used for management of the
modules and the chassis.

2.3 LANVIEW LEDs

The following sections describe the LANVIEW LED indications for the following:

• 6C207-1 (Rev. OF) and 6C207-3 power supply modules

• Fan tray unit

2.3.1 Power Supply LEDs

There are two LEDs on the power supply. Refer to Figure 2-1 and Figure 2-2 for the location of the
power supply LEDs. Table 2-1 describes the different states of the power supply LEDs under six
different conditions. The power supplies are installed in chassis slots PS1 and PS2 in the
front-bottom part of the chassis.

NOTE: It is not recommended to install the 6C207-1 and 6C207-3 power supply
modules in the same chassis.

2-2

Figure 2-1 6C207-1 (Rev. OF) Power Supply LEDs

LANVIEW LEDs

PWR LED

POWER FAN

FAN LED

Figure 2-2 6C207-3 Power Supply LEDs

PWR LED

FAN LED

AC ON

ACON

1

0

LINE
100-125V~12A
200-240V~6A

50/60Hz

3280-01-02

POWER FAN

AC ON

ACON

LINE

100-125V~12A

1

200-240V~6A

50/60Hz

0

LINE

100-125V~12A

200-240V~6A

50/60Hz

3280-00-20

2-3

LANVIEW LEDs

Table 2-1 Power Supply (PS) LED Status Definitions

Condition PS1 PS2 Load PS1 LEDs PS2 LEDs

PWR FAN PWR FAN

1 ON OFF Amber Green Red Red
2 OFF ON Red Red Amber Green
3 ON Out of chassis Green Green Off Off
4 Out of chassis ON Off Off Green Green
5 ON ON <50% Green Green Green Green
6 ON ON >50% Amber Green Amber Green

2.3.2 Fan Tray LED

Refer to Figure 2-3 for the location of the fan tray LED. Table 2-2 describes the different states of
the fan tray LED.

Figure 2-3 Fan Tray LED

Fan Tray LED

3280-01-03

Table 2-2 Fan Tray LED States and Their Definitions

LED Color Status

Green All fans are operating normally.
Red One or more fan failures have occurred.

NOTE: When the Matrix E7 is first powered up, the Fan Tray LED will display red briefly,
until the fans are operating at the proper speed.

2-4

3

Matrix E7 Setup

This chapter contains instructions on setting up the Matrix E7 chassis.
Equipment needed:

• Phillips screwdriver

• Flat blade screwdriver

ELECTRICAL HAZARD: Only qualified personnel should install or service this unit.

A Phillips screwdriver is needed to install the unit in a 48.26-centimeter (19-inch) equipment rack
and to install the cable management bar. A large flat blade screwdriver is needed to secure the
power supplies and to remove and reinstall the fan tray. Refer to Chapter 2 for the guidelines that
must be followed to install the Matrix E7 chassis.

3-1

Unpacking the Matrix E7 Chassis

3.1 UNPACKING THE MATRIX E7 CHASSIS

NOTE: Unpack the Matrix E7 chassis components only as needed. Leave the

components in their respective shipping cartons until you are ready to install that
component.

CAUTION: Observe all Electrostatic Discharge (ESD) precautions when handling
sensitive electronic equipment.

To unpack the Matrix E7 chassis, proceed as follows:

1. Unpack the Matrix E7 chassis by carefully removing it from the shipping box. (Save the

shipping box and materials in the event the chassis has to be reshipped.)

2. Remove the chassis from the protective plastic bag.

3. Examine the Matrix E7 chassis carefully, checking for damage. If any damage is noted, DO

NOT install the chassis. Contact Enterasys Networks immediately.

4. Remove the accessory package.

5. Remove the package containing the four rubber feet/screw assemblies.

6. Remove the Electrostatic Discharge (ESD) wrist strap package.

7. Remove the Console Cable Kit and set aside. This kit is needed to set up the Matrix E7 modules

through Local Management.

3-2

Setting Up the Matrix E7 Chassis

3.2 SETTING UP THE MATRIX E7 CHASSIS

The following sections describe the procedures that must be followed to complete the installation
of the Matrix E7 chassis.

3.2.1 Order of Installation

Once a suitable site has been chosen, the Matrix E7 chassis can be installed as a freestanding or
rack-mounted unit.

It is recommended that the Matrix E7 chassis installation proceed in the following order:

1. Install the rubber feet (for freestanding installation) and cable management bar. (Section 3.2.2)

2. Mount the chassis to a 48.26-centimeter (19-inch) rack or other secure location. (Section 3.2.3)

3. Attach the Electrostatic Discharge wrist strap. (Section 3.2.3.3)

4. Install the power supply module(s). (Section 3.2.4)

5. Install the interface modules. (Section 3.2.5)

3.2.2 Installing the Rubber Feet and Cable Management Bar

CAUTION: Using longer screws than the ones packaged with the cable management

bar may cause damage to the chassis.

If you are installing the Matrix E7 chassis as a freestanding device, start with Section 3.2.2.1 to
install the rubber feet. To install the chassis in a rack, rubber feet are not needed. Therefore, start
with Section 3.2.2.2 to install the cable management bar.

NOTE: Before installing the rubber feet and cable management bar, place the chassis
on its back on a sturdy flat surface to have access to the bottom of the chassis.

3-3

Setting Up the Matrix E7 Chassis

3.2.2.1 Installing the Rubber Feet

To install the rubber feet, proceed as follows:

1. Remove the four rubber foot/screw assemblies from their plastic bag in the shipping box.

2. Locate the four tapped holes in the bottom four corners of the chassis shown in Figure 3-1.

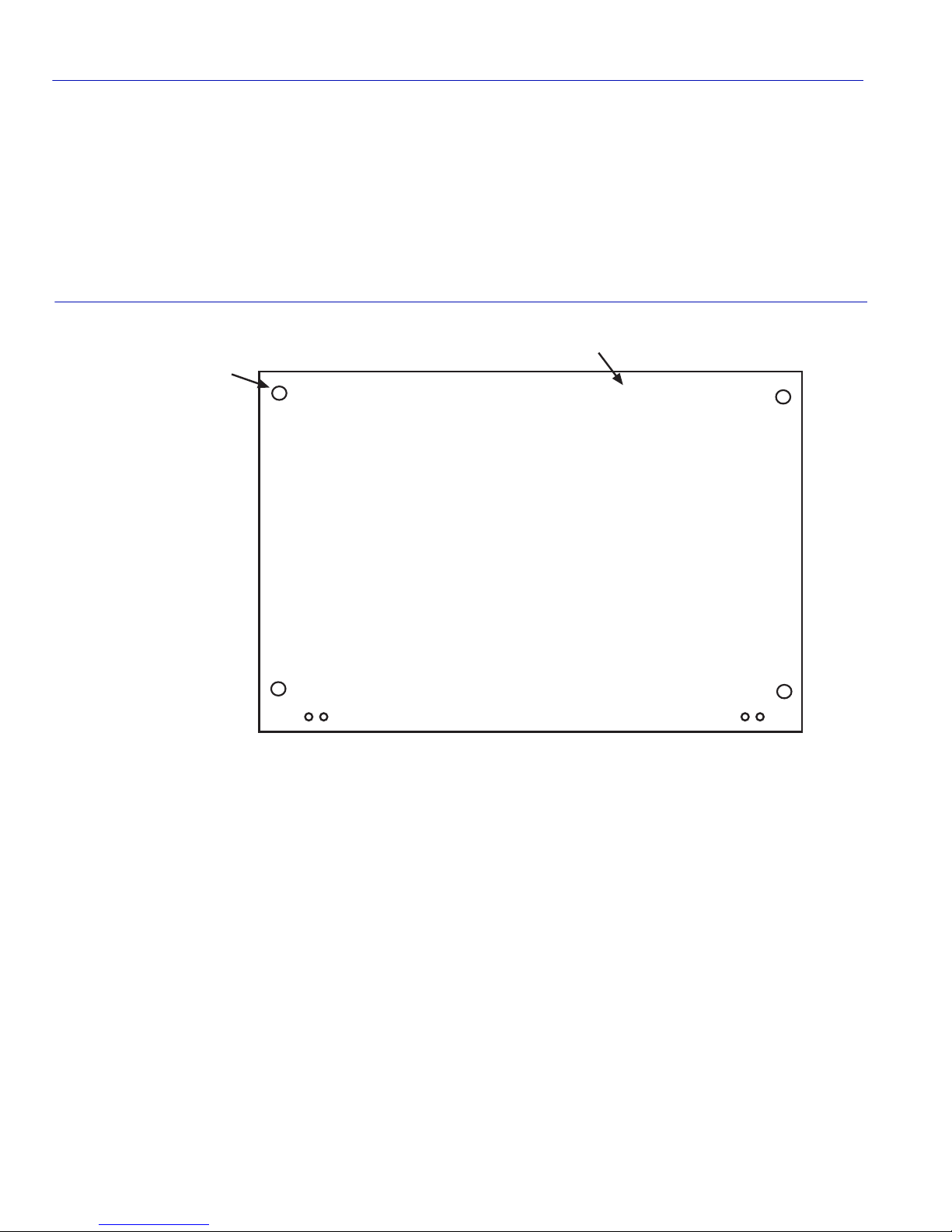

Figure 3-1 Chassis Bottom, Rubber Feet Placement

Bottom of Chassis

Tapped hole
for rubber foot
(Four places)

3280-00-14

3. Screw in and hand tighten each of the four rubber foot/screw assemblies into the four tapped

holes. Then tighten with a Phillips screwdriver.

4. After installing the rubber feet, proceed to install the Cable Management Bar.

3-4

Setting Up the Matrix E7 Chassis

Bottom of Chassis

Front Panel of Chassis

Screws (4)

328001_04

Cable Management Bar

3.2.2.2 Installing the Cable Management Bar

With the cable management bar , cables can be attached along the bar using cable ties to ensure that
the cables are not accidentally loosened or disconnected from the chassis during operation. To
install the cable management bar, proceed as follows:

1. Remove the cable management bar from the shipping box. Ensure that there are four screws

inside the bag with the cable management bar.

2. Line up the two holes on each side of the cable management bar with the two holes located on

the bottom of the Matrix E7 chassis, near the front of the chassis as shown in Figure 3-2.

3. Use a Phillips screwdriver and the four screws supplied with the bar to fasten the Cable

Management Bar to the bottom of the chassis.

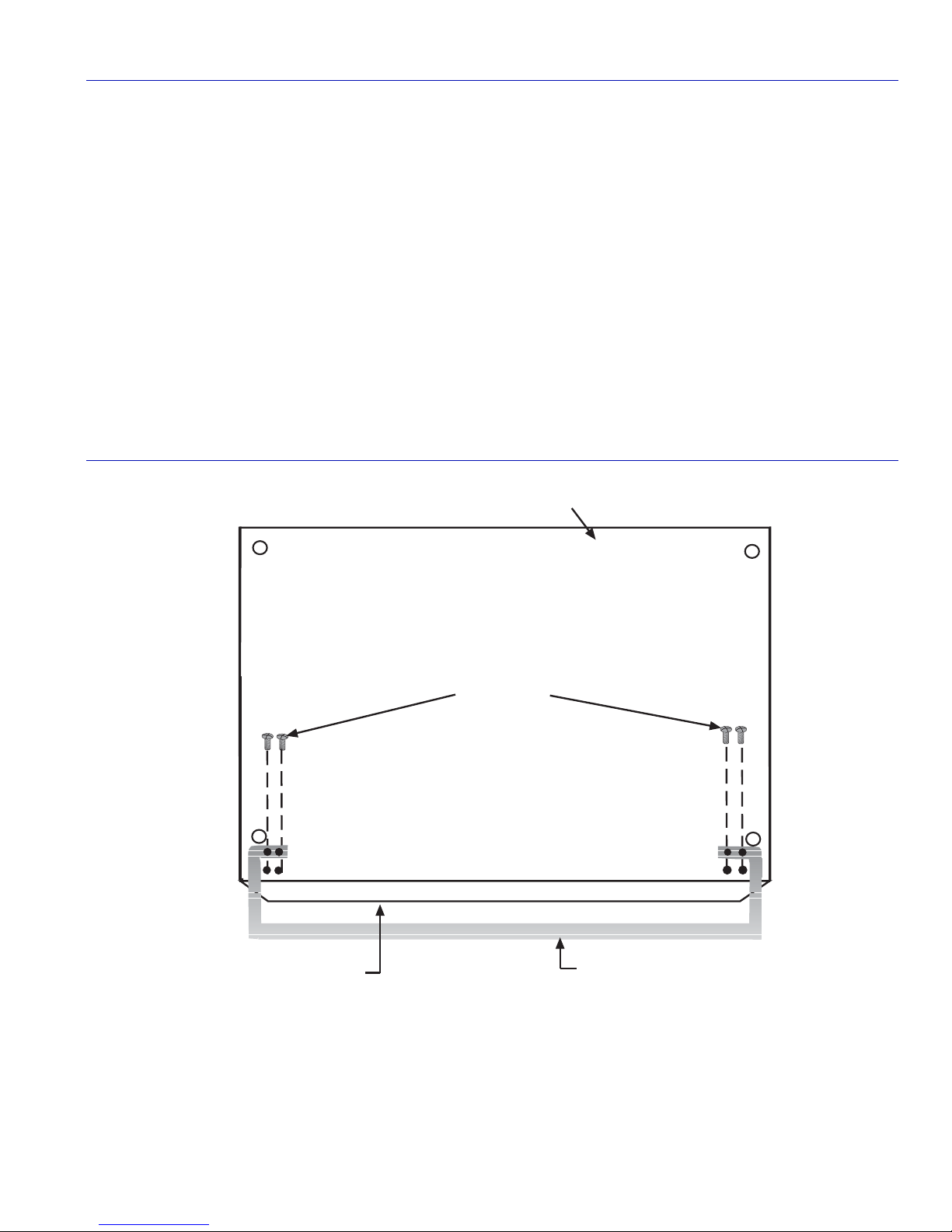

Figure 3-2 Installing the Cable Management Bar

Bottom of Chassis

3-5

Setting Up the Matrix E7 Chassis

3.2.3 Rack Mounting the Matrix E7 Chassis

The Matrix E7 chassis can be mounted in a standard 48.26-centimeter (19-inch) equipment rack.
To rack mount the chassis into a rack you need to

• allow at least 60 centimeters (24 inches) of clearance in front of the rack for chassis installation,

• install the shelf into the rack first, then

• install the Matrix E7 chassis into the chassis.

3.2.3.1 Installing the Shelf

To install the shelf, proceed as follows:

CAUTION: If the rack is not secured to the floor, it is recommended that you install the
chassis in the bottom half of the rack. This helps prevent the rac k from being top heavy.

1. Keeping the above Caution note in mind, locate the position on the rack where you will install

the shelf. The chassis requires 77.47 centimeters (30.5 inches) of vertical spacing.

2. Align the four holes in the ears of the shelf with those in the rack (see Figure 3-3, A), then fasten

the shelf to the rack using four of the screws supplied with the rack.

3. After installing the shelf, proceed to install the Matrix E7 chassis as described in Section 3.2.3.2.

3-6

Figure 3-3 Shelf Installation

Setting Up the Matrix E7 Chassis

AB

3280_18

3.2.3.2 Installing the Matrix E7 Chassis

CAUTION: Read Chapter 2 before completing the following procedure to ensure that

all installation guidelines are met.

To install the Matrix E7 chassis, proceed as follows:

CAUTION: To help prevent personal injury, at least two people are required to lift the
chassis into the rack.

1. Lift the chassis onto the shelf and slide it all the way into the rack. Refer back to Figure 3-3, B.

3-7

Setting Up the Matrix E7 Chassis

2. Use 12 screws provided with the equipment rack to secure the chassis to the rack, starting with

the bottom holes and working toward the top of the chassis, as shown in Figure 3-4.

Figure 3-4 Rack Mounting the Matrix E7 Chassis

SERIES E7

6

1

2 3

4 5

7

Rack Mounting
Holes (6 per side)

Rack Mounting
Screws
(6 per side)

POWER FAN

Rack Mounting
Holes (6 per side)

AC ON

ACON

1

0

100-125V~12A
200-240V~6A

POWER FAN

LINE

50/60Hz

AC ON

ACON

1

0

LINE
100-125V~12A
200-240V~6A

50/60Hz

Rack Mounting
Screws
(6 per side)

3280-01-05

3.2.3.3 Attaching the Electrostatic Discharge Wrist Strap

The Electrostatic Discharge (ESD) wrist strap must be attached before handling the power
supplies, fan tray, and modules used in the Matrix E7 chassis. In addition, observe all precautions
when handling these modules to prevent damage from electrostatic discharge.

Place the ESD wrist strap on your wrist and plug the other end into the grounding receptacle, at the
top right corner of the chassis, shown in Figure 3-5.

3-8

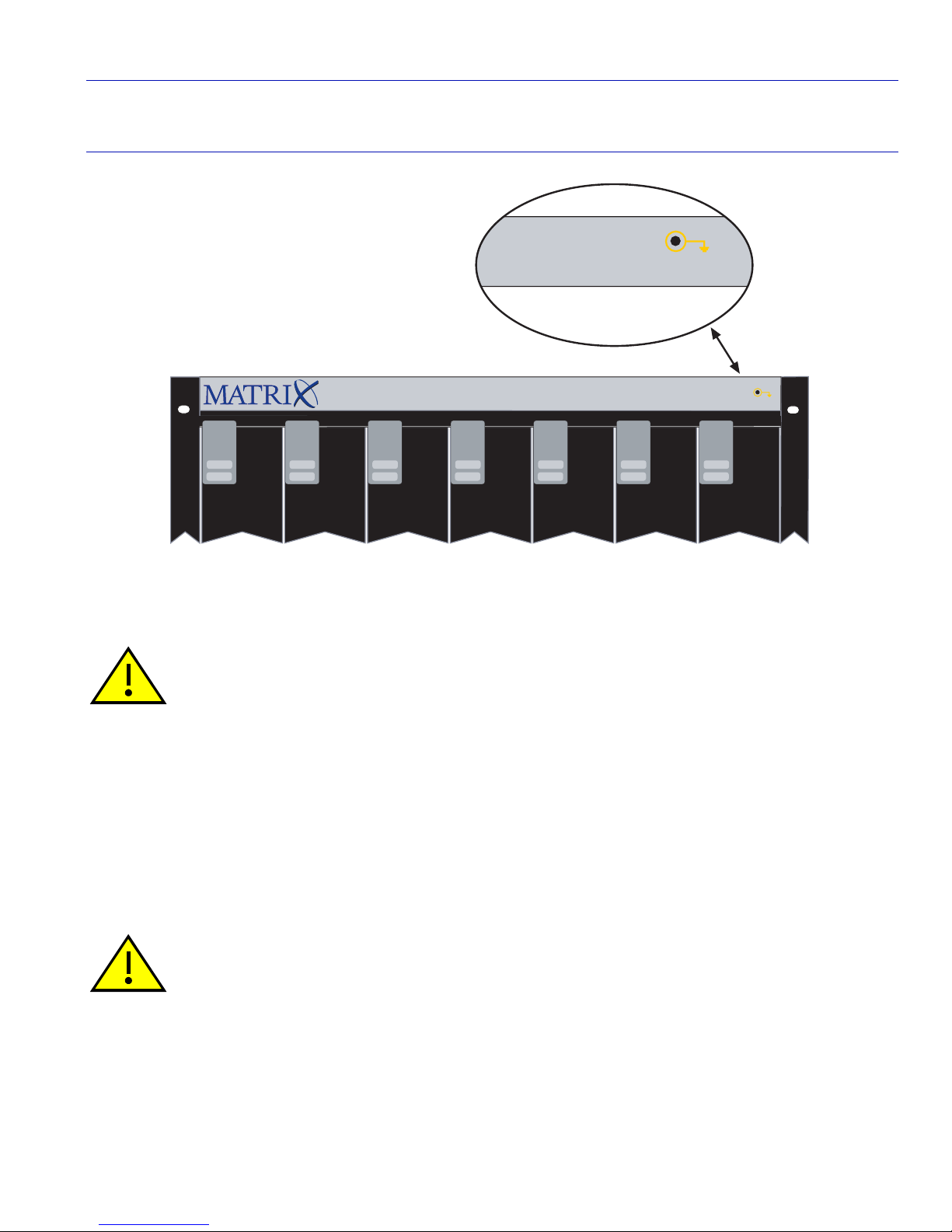

Figure 3-5 ESD Grounding Receptac le

1

Setting Up the Matrix E7 Chassis

SERIES E7

5432

6

SERIES E7

7

3280-01-06

3.2.4 Installing a Power Supply

CAUTION: Newe r models of modu les ma y require mor e pow er to ope rate . If the p ow er

requirement of the module population in a Matrix E7 chassis exceeds the power output
of a single 6C207-1 (1200-Watt) power supply, it is not recommended to install a
6C207-1 (1200-Watt) and a 6C207-3 (1600-Watt) power supply in the same chassis. In
the event that the 6C207-3 fails, the 6C207-1 may not be able to handle the maximum
power requirements, eliminating power redundancy and causing the system to fail and
disrupt network traffic.

You must install at least one power supply in the Matrix E7 chassis. One power supply provides
sufficient power for most module configurations, but a second power supply can be installed to
provide a redundant, load sharing power source.

CAUTION: Make sure that the correct power supply is installed to handle the power
needed by the module population. Otherwise, an overload may result in damage to the
power supply.

3-9

Setting Up the Matrix E7 Chassis

When two power supplies are installed, t he load is e v enly distributed. If one power supply fails for
any reason, the second power supply assumes the load.

The Matrix E7 power supplies must be installed in the two slots labeled PS1 and PS2 at the bottom
of the chassis (Figure 3-6). If you intend to install a single power supply, it must be installed in the
slot labeled PS1 in the chassis. A large flat blade scre wdriver is needed to install the power
supplies.

To install the power supply into the Matrix E7 chassis, refer to Figure 3-6 and proceed as follows:

1. Unpack the power supply by removing it from the shipping box and sliding the two foam end

caps off the unit. (Save the shipping box and materials in the event the unit must be reshipped.)

2. Remove the power supply from its protective plastic bag. (Save the shipping box and materials

in the event the unit must be reshipped.)

3. Examine the power supply carefully, checking for damage. If any damage is noted, DO NOT

install the power supply. Contact Enterasys Networks immediately.

4. Slide the power supply into the slot labeled PS1 as follows:
a. Hold the power supply by placing one hand on the handle located on the front panel and using

the other hand to support the power supply.

b. Holding the power supply right side up, align the power supply with the plastic guides on the

bottom of the opening.

CAUTION: Forcing a misaligned power supply into pla ce can damage the po wer supply
and/or the chassis backplane.

c. With the power supply properly inserted into the opening, carefully slide the supply forward

until it is connected to the backplane. The front panel should be flush with the face of the
Matrix E7 chassis. If significant resistance is encountered before the front panel is flush,
remove and reinsert the power supply. Do not force the power supply into place.

d. Secure the power supply to the chassis by using a large flat blade screwdriver to turn the large

screw and lock the power supply in place.

5. If you are installing a second power supply, remove the blank plate from the second power
supply slot (keep the blank plate in the event you need to remove the power supply), and repeat
steps 1–4.

3-10

Figure 3-6 Installing the Power Supply Module(s)

1

2 3

4 5

Setting Up the Matrix E7 Chassis

SERIES E7

6

7

Power Supply
LEDs

Mandatory Power
Supply Installed
in Slot PS1

POWER FAN

AC ON

ACON

1

0

LINE
100-125V~12A
200-240V~6A

50/60Hz

Card
Guides

POWER FAN

AC ON

ACON

1

0

LINE
100-125V~12A
200-240V~6A

50/60Hz

Slotted
Screw

Power
Supply
Handle

3280-01-13

3-11

Setting Up the Matrix E7 Chassis

After completing the power supply installation, the Matrix E7 chassis is ready to be powered up.
Before you power up the Matrix E7 chassis, it is recommended that you complete the installation
of the interface modules in the Matrix E7 chassis. Refer to the following sections to complete the
installation.

3.2.5 Installing Matrix E7 Interface Modules

NOTE: A lowercase x indicates the general use of an alphanumeric character (e.g.,

6x1xx, the x’s indicate a combination of numbers or letters).

3.2.5.1 Considerations Before Installing Modules

Check the Release Notes for the correct module firmware version for proper operation in the
Matrix E7 chassis. Module functionality is different in the new Matrix E7 chassis as compared to a
SmartSwitch 6000 chassis. For example, the Distributed Ch assis Management is not supported in
the Matrix E7 chassis. Refer to the module release notes for specific information on supported
functionality.

The 6x3xx series interface modules can be installed in any of the 7 slots of the Matrix E7 chassis.
The 6x1xx and 6x2xx series modules were initially designed for the five-slot SmartSwitch 6000
chassis and should be installed in slots 1 to 5 in the chassis. If a 6x1xx or 6x2xx series module is
installed in slot 6 or 7, it will operate in standalone mode (no backplane connectivity).

If there are 6x1xx or 6x2xx series modules in the chassis, at least one 6x3xx module must be
installed in slots 1 to 5 for communication to 6x3xx boards in slots 6 and 7. The 6x3 xx module will
provide a proxy function, which allows the 6x1xx and 6x2xx modules to communicate with 6x3xx
modules in slot 6 or 7. If more than one 6x3xx module is installed in slots 1 to 5, the module in the
lowest numbered slot performs the proxy function for slots 6 and 7. Therefore, if a 6x3xx module
is already performing the proxy function, and another 6x3xx module is inserted into a lower
numbered slot, connectivity will be temporarily interrupted, as the new board takes over the proxy
function. When a 6x3xx module in a lower numbered slot is remov ed, and there is a 6x3xx mo dule
in a higher numbered slot, communication is not interrupted.

Uplink modules, such as the 6G306-06, should not be used to perform the proxy function.
Switching performance will be reduced on the uplink module if used for this purpose. The use of
other 6x3xx modules in the lower slots to perform the proxy function is recommended.

For Local Management, plugging the Local Management connection into the 6x3xx boards will
allow management connections no matter what the generation of the interface module. If the
connection is used to plug into a 6x1xx or 6x2xx board, onl y the modules in the first f i v e slots will
be recognized by the management client.

3-12

Setting Up the Matrix E7 Chassis

3.2.5.2 Installation Procedure

To install an interface module, proceed as follows:

1. Remove the blank panel covering the slot in which the interface module will be installed. All

other slots must remain covered to ensure proper airflow and cooling. (Save the blank plate in
the event you need to remove the module.)

2. Carefully remove the module from the shipping box. (Save the box and packing materi als in the

event the module must be reshipped.)

3. Locate the ESD wrist strap shipped with the Matrix E7 chassis. Attach the ESD wrist strap to

your wrist and plug the cable from the ESD wrist strap into the ESD grounding receptacle at the
upper right corner of the Matrix E7 chassis.

4. Remove the module from the plastic bag. (Save the bag in the event the module must be

reshipped.) Observe all precautions to prevent damage from Electrostatic Discharge (ESD).

5. Examine the module for damage. If any damage exists, DO NOT install the module.

Immediately contact Enterasys Networks.

CAUTION: To prevent damaging the backplane connectors in the following step, take
care that the module slides in straight and properly engages the backplane connect ors.

6. Locate the slot guides that line up with the number of the slot in which the module will be

installed. Ensure that the top plastic locking tab lines up with the desired slot number located on
the front panel of the Matrix E7 chassis. Refer to Figure 3-7. Install the interface module in the
chassis by aligning the module circuit card between the upper and lower metal rail guides of the
desired slot, sliding it into the chassis, and locking down the top and bottom plastic locking tabs,
as shown in Figure 3-7. Take care that the interface module slides in straight and properly
engages the backplane connectors.

3-13

Setting Up the Matrix E7 Chassis

50/60Hz

Figure 3-7 Installing an Interface Module

1

1

2 3

23

4 5

45

6

SERIES E7

6

SERIES

E7

7

7

POWER FAN

3-14

AC ON

ACON

1

0

100-125V~12A
200-240V~6A

Metal Back-Panel

50/60Hz

AC ON

ACON

1

POWER FAN

LINE

Circuit Card

0

LINE
100-125V~12A
200-240V~6A

50/60Hz

Card Guides

3280-01-07

Powering Up a Matrix E7 Chassis with Power Supplies

3.3 POWERING UP A MATRIX E7 CHASSIS WITH POWER SUPPLIES

To power up a Matrix E7 chassis with ac power supplies, proceed as follows:

NOTE: If two power supplies are installed, repeat the following procedure for each
supply.

For proper redundancy using two 6C207-1 power supplies, the power cord from each
power supply must be connected to a dedicated 20-Ampere ac pow er circuit.

For redundancy using two 6C207-3 power supplies, each of the four power cords from
the two power supplies must be connected to dedicated 15-Ampere ac power circuits.

Plug one end of the power cord (supplied with the power supply) into the ac power socket on the
front panel of the power supply.

1. See Figure 3-8 for the 6C207-1 power connections and Figure 3-9 for the 6C207-3 power

connections.

Figure 3-8 Connecting the 20-Amp AC Power Cord to the 6C207- 1

AC ON

ACON

1

0

POWER FAN

115 Vac, 20 A
Power Outlet

AC ON

ACON

1

0

LINE
100-125V~12A
200-240V~6A

50/60Hz

115 Vac, 20 A
Power Outlet

POWER FAN

NEMA 5-20P
20 A Power
Cords (2)

LINE
100-125V~12A
200-240V~6A

50/60Hz

Notes:

Power cords shown are for
North America only.

Each outlet must be on a
separate circuit.

3280-02-16

3-15

Powering Up a Matrix E7 Chassis with Power Supplies

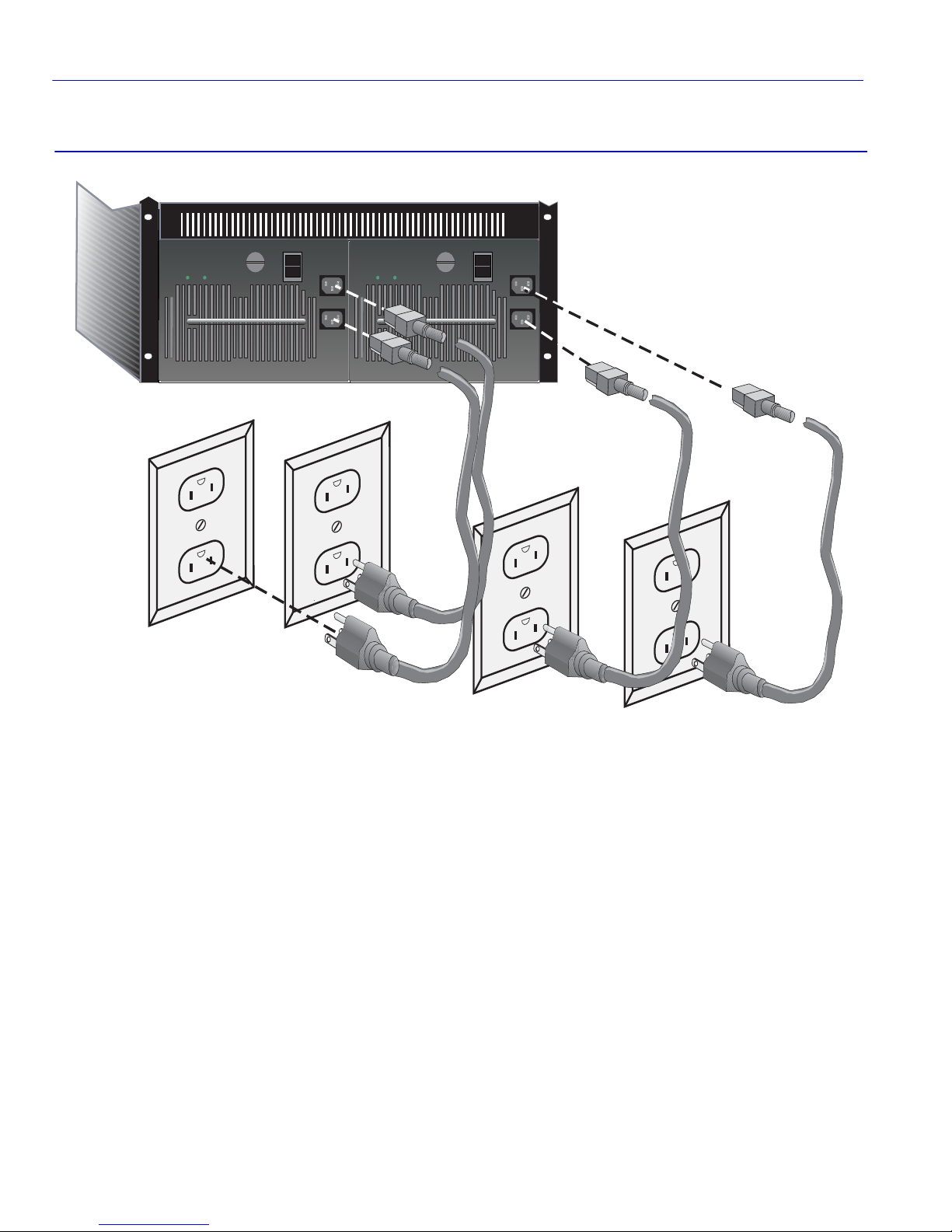

Figure 3-9 Connecting the 15-Amp AC Power Cords to the 6C207-3

POWER FAN

115 Vac, 15A
Power Outlet

Notes:

Power cords shown are for
North America only.

Each outlet must be on a
separate circuit.

AC ON

LINE

100-125V~12A

ACON

200-240V~6A

1

50/60Hz

0

LINE
100-125V~12A
200-240V~6A

50/60Hz

115 Vac, 15A
Power Outlet

POWER FAN

AC ON

LINE

100-125V~12A

ACON

200-240V~6A

1

50/60Hz

0

LINE

100-125V~12A

200-240V~6A

50/60Hz

NEMA 5-15P
15 A Power
Cords (4)

115 Vac, 15A
Power Outlet

115 Vac, 15A
Power Outlet

3280-01-19

2. Plug the other end of the 20 A power cord into a dedicated 20 A/120 Vac receptacle for the

6C207-1. For the 6C207-3, plug each of the two power cords into separate dedicated
15 A/115 Vac receptacles. Set the 0/| Power switch on the front panel of the power supply to |.

3. Ensure that the Power LED is green.

4. Ensure that all fans in the fan tray unit are operating properly when power is received from the

power supply modules (fan tray LED will be green). For more information on the power supply
LEDs (Power and Fan), refer to Section 2.3.

If you experience any problems with this installation, contact Enterasys Networks for assistance.

3-16

Removing and Reinstalling the Fan Tray

3.4 REMOVING AND REINSTALLING THE FAN TRAY

The Matrix E7 chassis is equipped at the factory with a removable fan tray that allows for easy
periodic cleaning and/or replacement if a problem occurs with fan operation. A flat blade
screwdriver is needed to remove and reinstall the fan tray. To remove and reinstall the fan tray,
refer to Section 3.4.1 and Section 3.4.2.

CAUTION: The fan tray is hot swappab le. However, do not run the chassis for any
extended periods of time without the fan tray, as the chassis will quickly overheat and
cause damage.

3.4.1 Removing the Fan Tray

To remove the fan tray, refer to Figure 3-10 and proceed as follows:

1. Locate the ESD wrist strap shipped with the Matrix E7 chassis. Attach the ESD wrist strap to

your wrist and plug the cable from the ESD wrist strap into the ESD grounding receptacle at the
upper right corner of the chassis.

2. Use the flat blade screwdriver to loosen the slotted screws located on either side of the fan tray.

3. Slowly slide the fan tray out of its slot in the bottom of the chassis.

3-17

Removing and Reinstalling the Fan Tray

100-125V~12A
200-240V~6A

Figure 3-10 Removing the Fan Tray

1

2 3

4 5

6

SERIES E7

7

3-18

POWER FAN

Slotted Screw

AC ON

ACON

1

0

100-125V~12A
200-240V~6A

50/60Hz

POWER FAN

LINE

AC ON

ACON

1

0

LINE
100-125V~12A
200-240V~6A

50/60Hz

Slotted Screw

3280-01-10

Removing and Reinstalling the Fan Tray

3.4.2 Reinstalling the Fan Tray

To reinstall the fan tray, refer to Figure 3-11 and proceed as follows:

1. Locate the ESD wrist strap shipped with the Matrix E7 chassis. Attach the ESD wrist strap to

your wrist and plug the cable from the ESD wrist strap into the ESD grounding receptacle at the
upper right corner of the chassis.

2. Hold the sides of the fan tray.

3. Line up the rails on each side of the fan tray with the slot guides on the chassis.

CAUTION: In the f ollowing step, ensure that you do not force the fan tray into place as
it may damage the unit.

4. Slide the fan tray into the chassis until the faceplate of the tray is flush with the face of the

Matrix E7 chassis. If there is any strong resistance, remove the fan tray and reinsert it.

3-19

Removing and Reinstalling the Fan Tray

200-240V~6A

Figure 3-11 Reinstalling the Fan Tray

1

2 3

4 5

6

SERIES E7

7

POWER FAN

Slotted Screw

Once the tray is in place, tighten the two slotted screws (see Figure 3-11) to secure the tray to the
Matrix E7 chassis.

3-20

AC ON

ACON

1

0

100-125V~12A

LINE

200-240V~6A

50/60Hz

POWER FAN

AC ON

ACON

1

0

LINE
100-125V~12A
200-240V~6A

50/60Hz

Slotted Screw

3280-01-12

A

Specifications and Regulatory Compliance

This appendix provides operating specifications for the Matrix E7 6C107 chassis. Enterasys
Networks reserves the right to change the specifications at any time without notice.

A.1 PHYSICAL SPECIFICATIONS

The physical specifications for the Matrix E7 6C107 chassis, the 6C207-1 and 6C207-3 power
supply modules, and the 6C407 fan tray module are as follows:

6C107 Chassis

Dimensions: 77.47 H x 44.04 W x 36.83 D (cm)

30.5 H x 17.34 W x 14.5 D (in.)
Weight (with factory installed fan tray): 23.6 kg (52 lb)
MTBF (Predicted): 395,650 hours

6C207-1 and 6C207-3 Power Supply Modules

6C207-1 6C207-3

Dimensions: 12.7 H x 21.0 W x 27.94 D (cm)

5.0 H x 8.27 W x 11.0 D (in.)
Weight: 9.1 kg (20 lb) 9.1 kg (20 lb)
MTBF (Predicted): 200,000 hours 200,000 hours

6C407 Fan Tray

Dimensions: 6.57 H x 43.64 W x 34.82 D (cm)

2.59 H x 17.18 W x 13.71 D (in.)

Weight: 2.3 kg (5.0 lb)

12.7 H x 21.0 W x 27.94 D (cm)

5.0 H x 8.27 W x 11.0 D (in.)

MTBF (Predicted): 403,415 hours

A-1

Power Supply Requirements

A.2 POWER SUPPLY REQUIREMENTS

The requirements for the 6C207-1 and 6C207-3 ac power supply modules are as follows:

6C207-1 6C207-3

Input Frequency: 50 to 60 Hz 50 to 60 Hz
Input: (Voltage/Current): 100 to 125 Vac: 16 A

200 to 240 Vac: 8 A

2 x 100 to 125 Vac: 10.5 A
2 x 200 to 240 Vac: 5.5 A

Input Power 1200 W 1600 W

A.3 ENVIRONMENTAL REQUIREMENTS

Operating Temperature: 5°C to 40°C (41°F to 104°F)
Storage Temperature: -30°C to 73°C (-22°F to 164°F)
Operating Relative Humidity: 5% to 90% (non-condensing)

A.4 REGULATORY COMPLIANCE

This equipment meets the following safety and electromagnetic compatibility (EMC)
requirements:

Safety: UL 1950, CSA C22.2 No. 950,

73/23/EEC, EN 60950, IEC 950, and EN 60825

Electromagnetic Compatibility (EMC): FCC Part 15, CSA C108.8, 89/336/EEC,

EN 55022, EN 61000-3-2, EN 61000-3-3,
EN 55024, AS/NZS 3548, and VCCI V-3

A-2
