Enterasys 6000, Matrix E7, NetSight Element Manager User Manual

Download

SmartSwitch 6000 and

Matrix E7 Modules

User’s Guide

Notice

Enterasys reserves the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Enterasys to determine whether any such changes have been m ade.

The hardware, firmware, or software described in this manual is subject to chang e without notice. IN NO EVENT SHALL ENTERASYS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, OR

CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION CONTAINED IN IT, EVEN IF ENTERASYS HAS BEEN ADVISED OF, KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH DAMAGES.

Virus Disclaimer

Enterasys has tested its software with current virus checking technologies. However, because no anti-virus system is 100% reliable, we strongly caution you to write protect and then verify that the Licensed Software, prior to installing it, is virus-free with an anti-virus system in which you have confidence.

Enterasys makes no representations or warranties to the effect that the Licensed Software is virus-free.

Enterasys, Inc. P.O. Box 5005 Rochester, NH 03866-5005

Enterasys, NetSight and Matrix E7 are trademarks of Enterasys. MiniMMAC, FNB, Multi Media Access Center, and DNI are registered trademarks, and Portable Management Application, IRM, IRM2, IRM3, IRBM, ETSMIM, EFDMIM, EMME, ETWMIM, FDMMIM, FDCMIM, MRXI, MRXI-24, NB20E, NB25E, NB30, NB35E, SEHI, TRBMIM, TRMM, TRMMIM, TRXI, Media Interface Module, MIM, and Flexible Network Bus are trademarks of Cabletron, Inc.

UNIX and OPENLOOK is a trademark of Unix System Laboratories, Inc. OSF/Motif and Motif are

trademarks of the Open Software Foundation, Inc. X Window System is a trademark of Massachusetts Institute of Technology. Ethernet and XNS are trademarks of Xerox Corporation. Apple and AppleTalk are registered trademarks of Apple Computer, Inc. Banyan is a registered trademark of Banyan Systems, Inc. DECnet is a registered trademark of Digital Equipment Corporation. Novell is a registered trademark of Novell, Inc.

CompuServe is a registered trademark of CompuServe. Sun Microsystems is a registered trademark, and Sun, SunNet, and OpenWindows are trademarks of Sun Microsystems, Inc.

Restricted Rights Notice

(Applicable to licenses to the United States Government only.)

1. Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013.

Enterasys, Inc., 35 Industrial Way, Rochester, New Hampshire 03867-0505.

2. (a) This computer software is submitted with restricted rights. It may not be used, reproduced, or disclosed

by the Government except as provided in parag raph (b) of this Notice or as o therwise expressly stated in the contract.

(b) This computer software may be:

(1) Used or copied for use in or with the computer or computer s for which it was acquired, including

use at any Government installation to which such computer or computers may be transferred;

(2) Used or copied for use in a backup computer if any computer for which it was acquired is

inoperative;

(3) Reproduced for safekeeping (archives) or backup purposes;

(4) Modified, adapted, or combined with other computer software, provided that the modified,

combined, or adapted portions of the derivative software incorporating restricted computer software are made subject to the same restricted rights;

(5) Disclosed to and reproduced for use by support service contractors in accordance with

subparagraphs (b) (1) through (4) of this claus e, pro vided the Gov ernment m akes s uch disclos ure or reproduction subject to these restricted rights; and

(6) Used or copied for use in or transferred to a replacement computer.

is licensed to the Government, without disclosure prohibitions, with the minimum rights set forth in paragraph (b) of this clause.

(d) Any other rights or limitation s regarding the use, d uplication, or d isclosure of t his computer s oftware are

to be expressly stated in, or incorporated in, the contract.

(e) This Notice shall be marked on any reproduction of this computer software, in whole or in part.

iii

Contents

Chapter 1 Introduction

Using the SmartSwitch 6000 and Matrix E7 User’s Guide.............................................1-5

Related Manuals ..............................................................................................................1-7

Getting Help.....................................................................................................................1-7

Using On-line Help................................................................................................... 1-7

Accessing On-line Documentation........................................................................... 1-8

Documentation Feedback.................................................................................. 1-8

Getting Technical Support........................................................................................1-8

Online Services on the Wor ld Wide Web..........................................................1-8

Global Technical Assistance Center..................................................................1-8

Chapter 2 The Device View

Viewing Devi ce Inform ation .................. ...... ............................................. ...... ................ 2-2

General Device Information.....................................................................................2-4

6C105/6C107 Chassis-specific Information.............................................................2-5

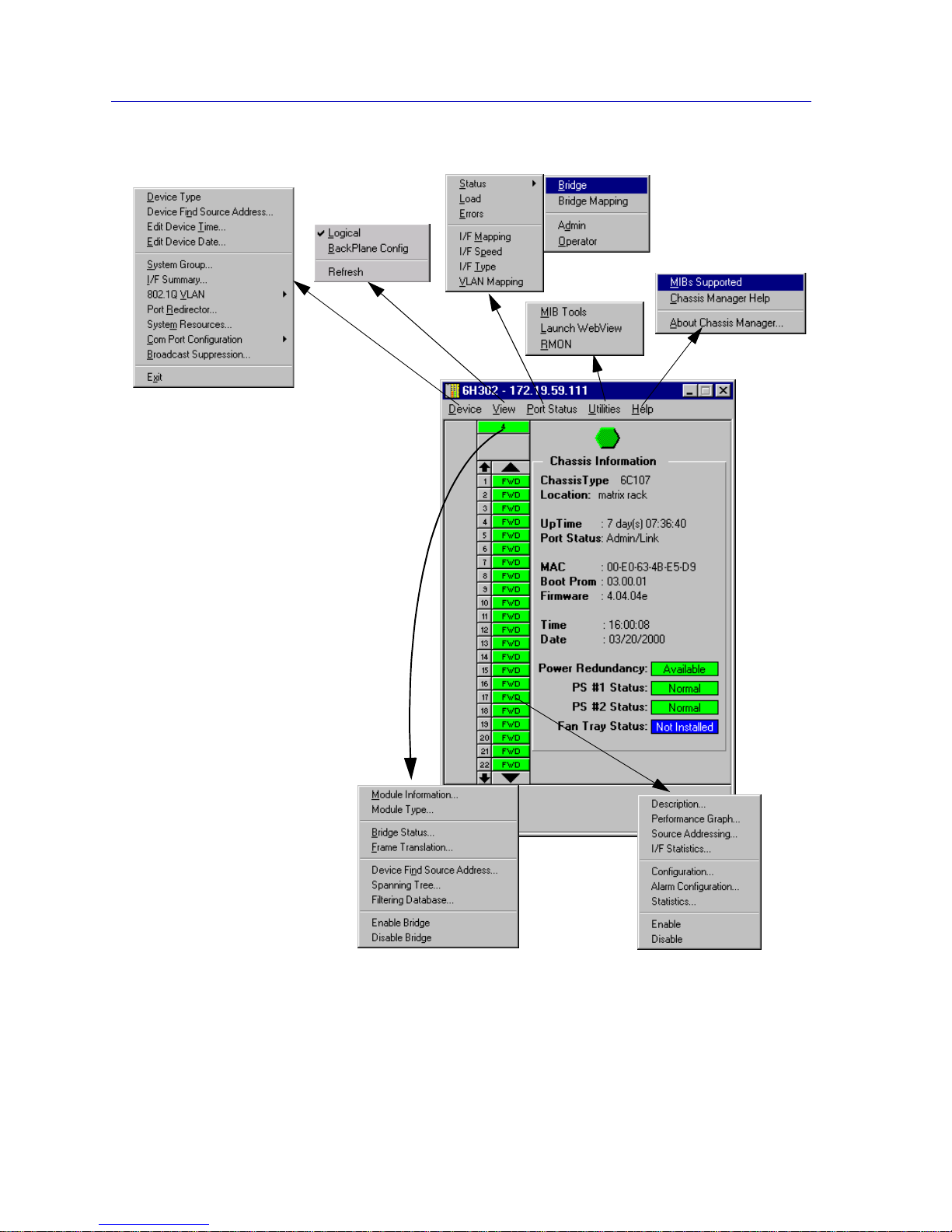

Menu Structure.........................................................................................................2-7

Port Status Displays.................... ..... ............................................. ..........................2-14

Selecting a Port Status View............................................................................2-14

Port Status Color Codes..................................................................... ..... ......... 2-19

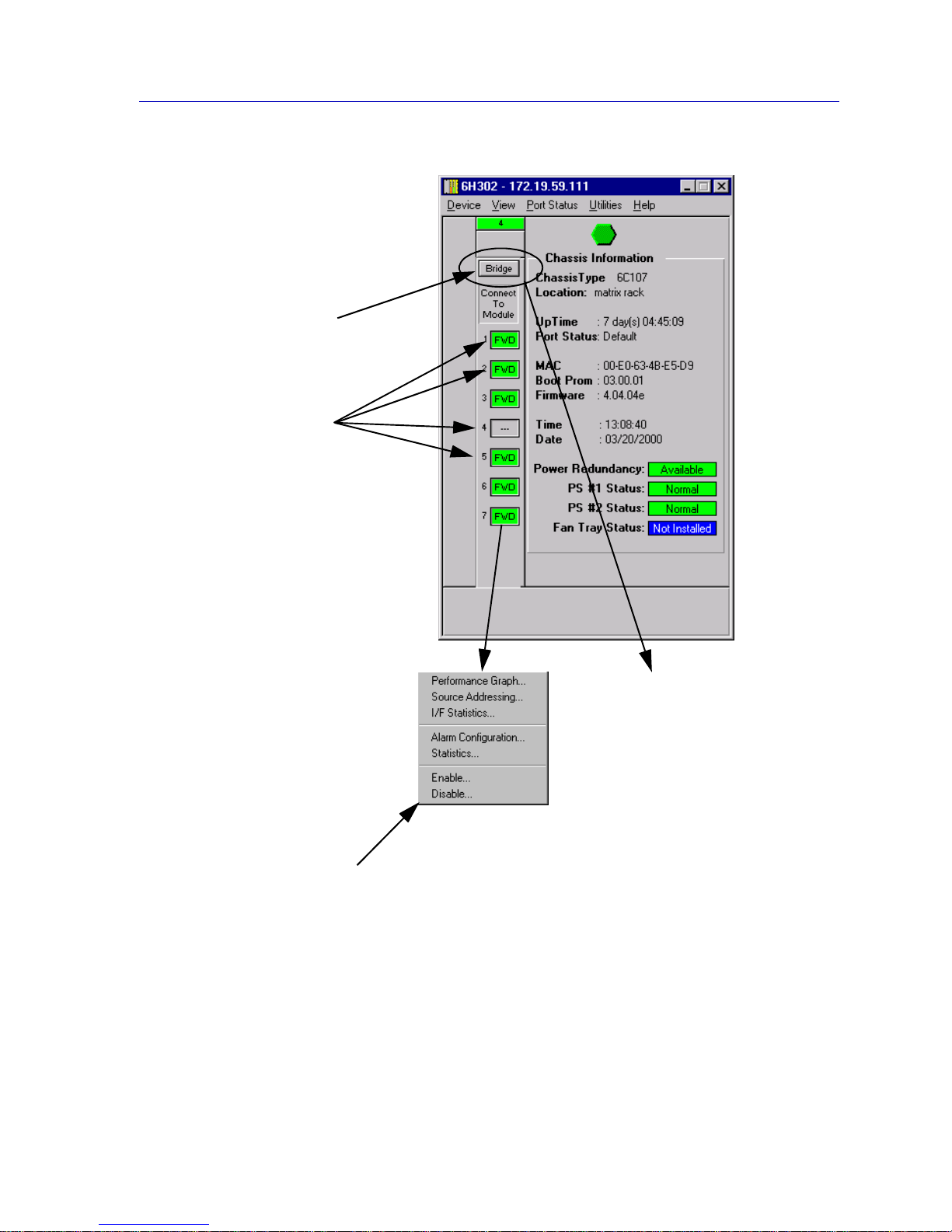

The Chassis Backplane View.................................................................................. 2-20

The Chassis Backplane View .......................................................................... 2-20

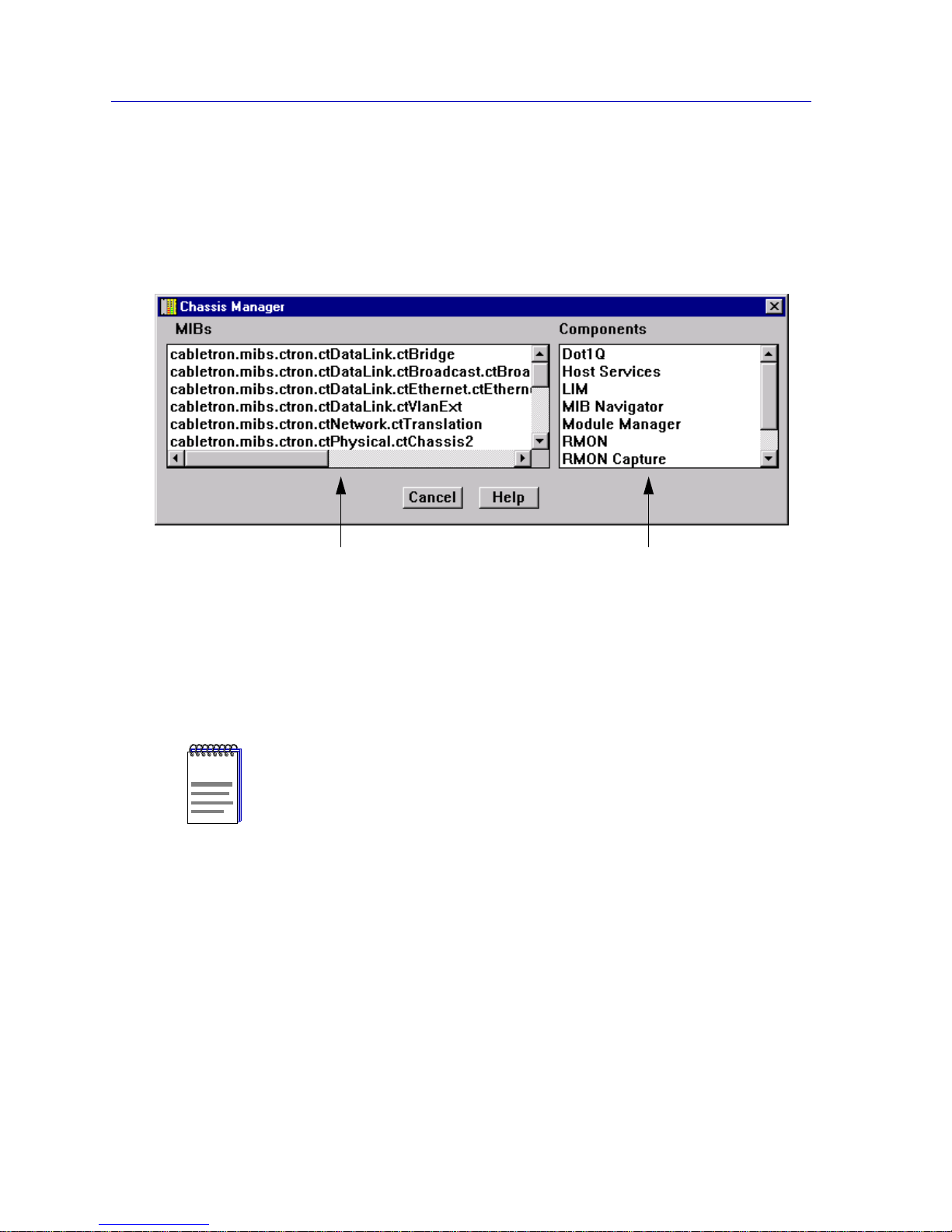

The Chassis Manager Window...............................................................................2-23

The Module Information Window.......................................................................... 2-24

Viewing Har dware Types ...................... ...... ..... ............................................. ...... ...2-25

Device Type.....................................................................................................2-26

Module Type.................................................................................................... 2-26

Interface Description.......................................................................................2-26

Viewing I/F Summary Information ........................................................................ 2-27

Interface Performance Statistics...................................................................... 2-28

Viewing Interface Detail..................................................................................2-30

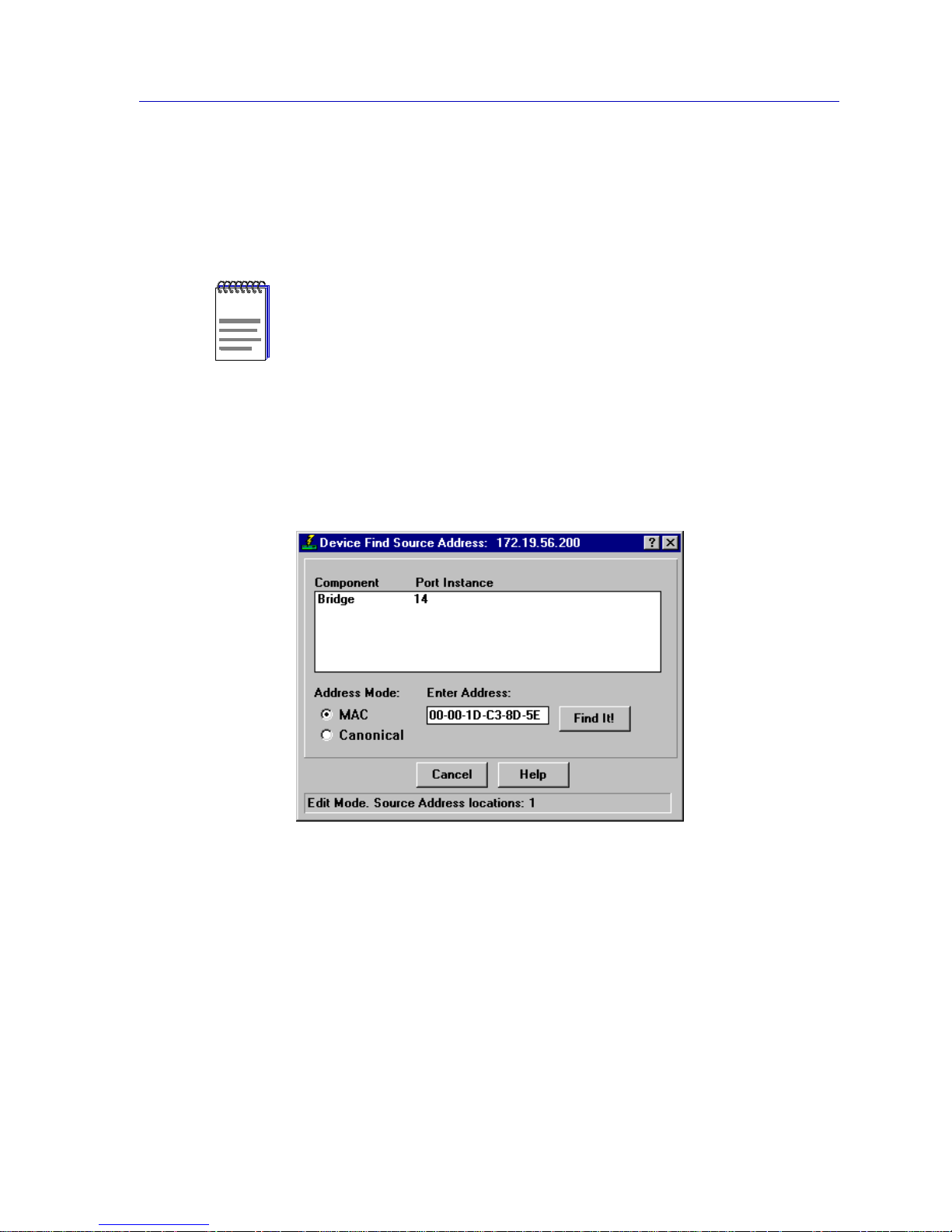

Using the Device Find Source Address Option......................................................2-32

Using Device Find Source Address on Ethernet MicroLAN Modules........... 2-34

Managing the Module............................. ...... ............................................. ...... .............. 2-36

Configuring Ports ...................................................................................................2-36

Configuring Standard Ethernet and FDDI Ports ............................................. 2-37

Configuring Fast Ethernet Ports on First Generation Modules.......................2-39

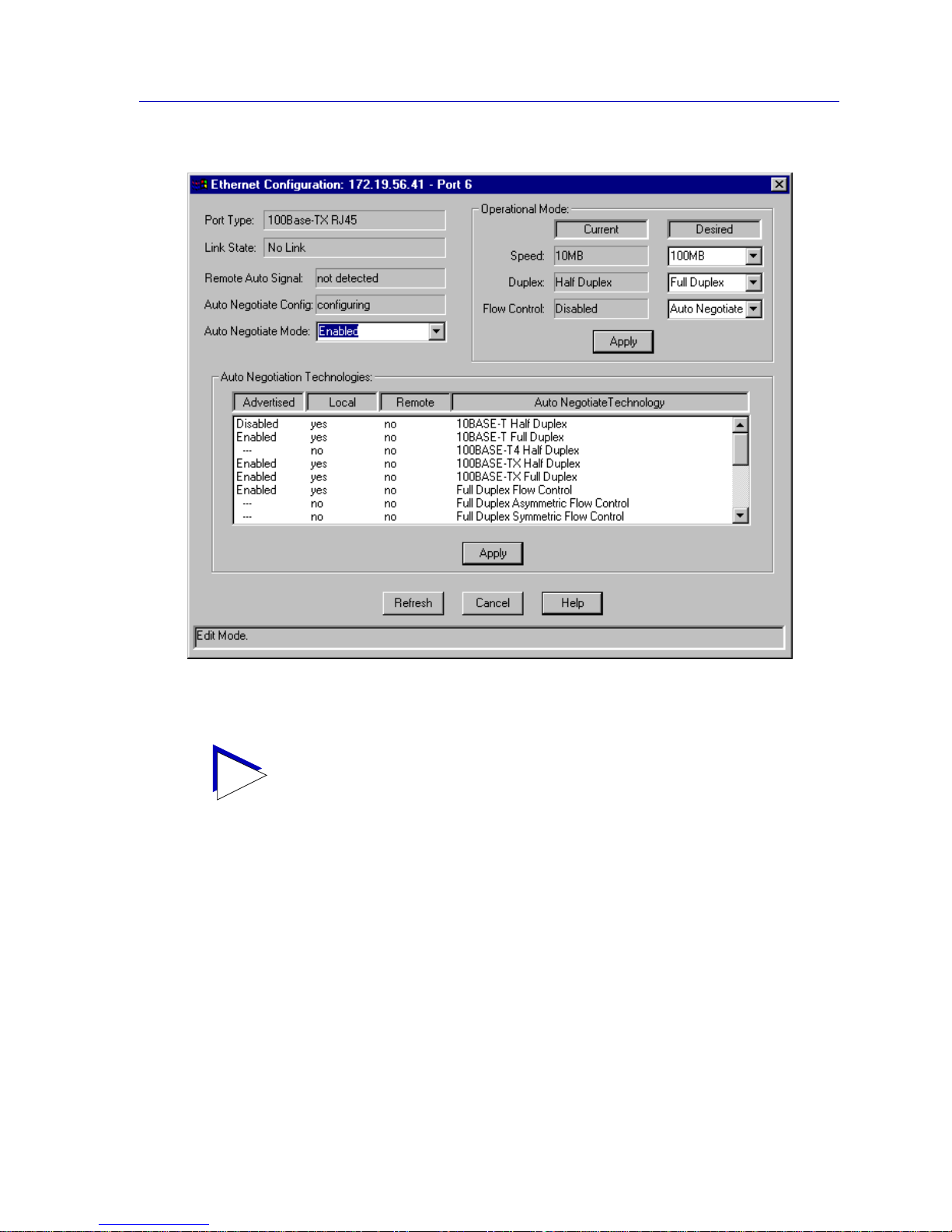

Configuring Ethernet Ports on Second Generation Modules .......................... 2-44

Configuring the COM Port..............................................................................2-49

Contents

Using an Uninterruptable Power Supply (UPS).....................................................2-51

Accessing the UPS Window............................................................................2-51

Setting the UPS ID ..........................................................................................2-53

Using the Test Option......................................................................................2-53

Using the Disconnect Option...........................................................................2-54

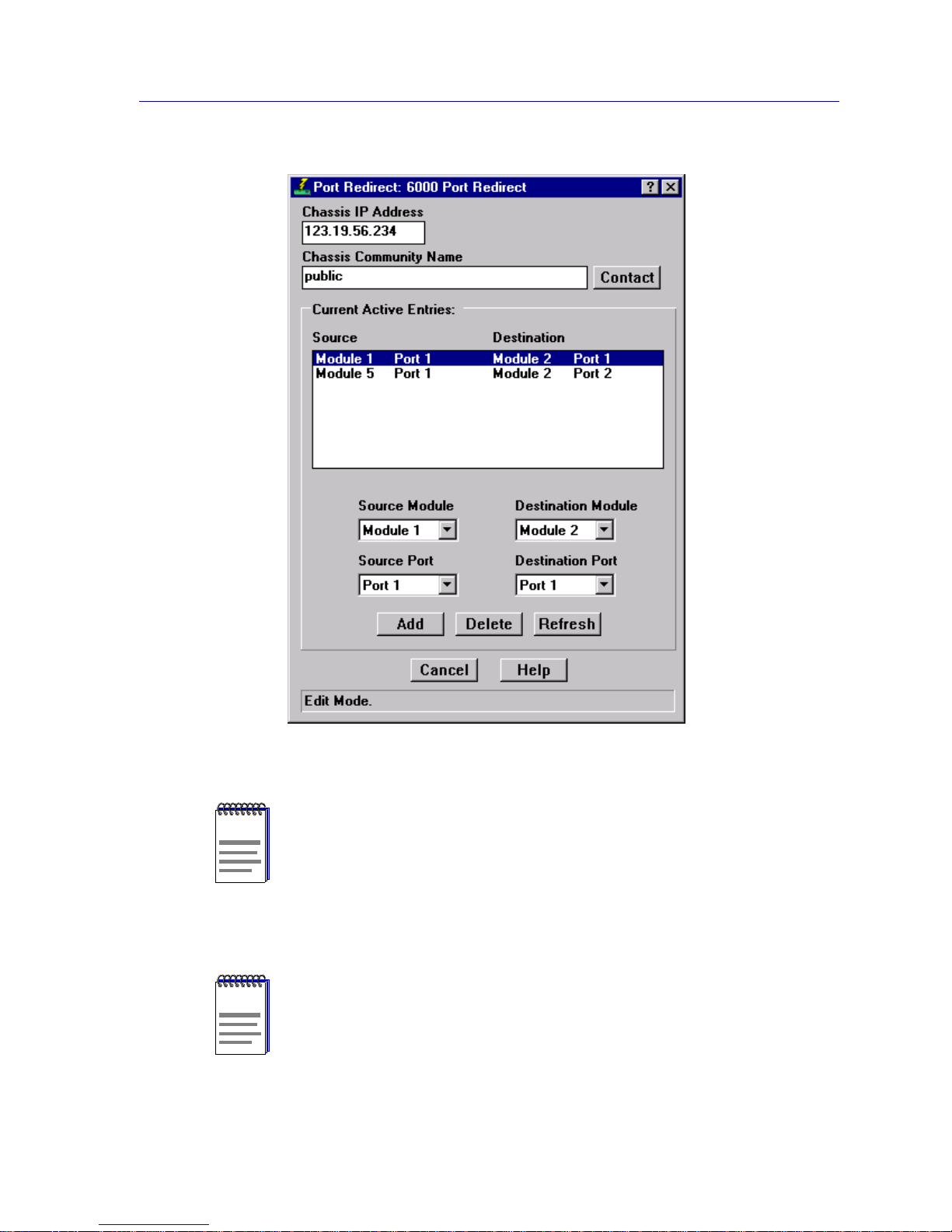

Redirecting Traffic..................................................................................................2-54

Priority Configuration.............................................................................................2-56

Configuring Priority Queuing Based on Receive Port ....................................2-58

Configuring Priority Queuing Based on MAC-layer Information ..................2-59

Configuring Priority Queuing Based on Packet Type.....................................2-62

Broadcast Suppression............................................................................................2-64

The System Resources Window .............................................................................2-66

Reserving CPU Bandwidth...................................................... ........................2-69

802.1Q VLANs.......................................................................................................2-70

What is a VLAN? ............................................................................................2-70

What is an 802.1Q Port-Based VLAN?...........................................................2-70

About 802.1Q VLAN Configuration and Operation.......................................2-70

Configuring Your 802.1Q VLANS.........................................................................2-72

Setting VLAN Parameters and Operational Modes ........................................2-73

Performing Ingress List Configuration............................................................2-75

Performing Egress List Configuration.............................................................2-78

VLAN and Priority Configuration..........................................................................2-81

Configuring Bridge and Bridge Port Capability..............................................2-81

Setting VLAN Parameters and Operational Modes ........................................2-84

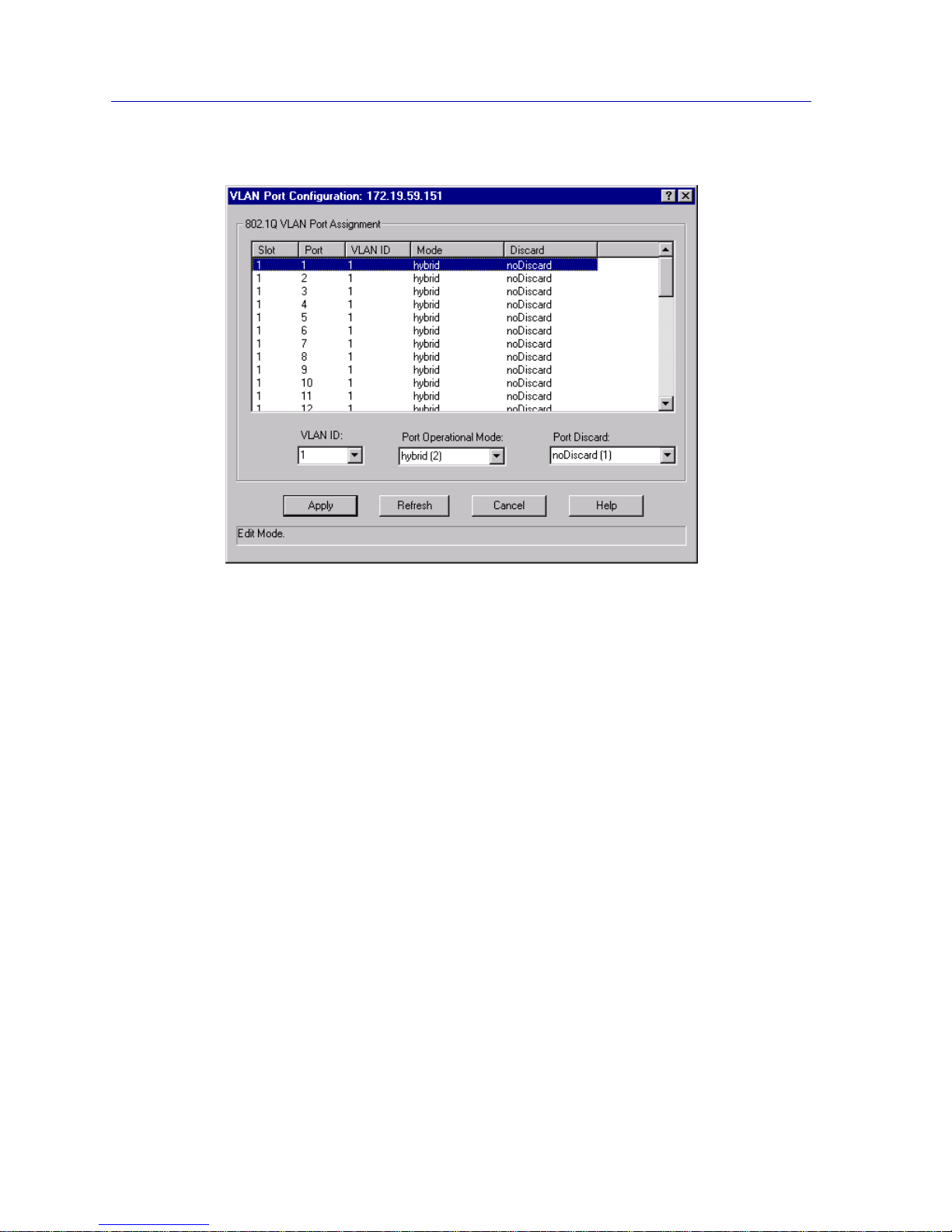

Configuring Basic VLAN Port Parameters.....................................................2-87

Configuring Advanced VLAN Port Parameters..............................................2-89

Performing Egress List Configuration.............................................................2-93

Setting Port Priority.........................................................................................2-96

Setting Port Priority-to-Traffic Class Mapping...............................................2-97

Setting GARP Times .......................................................................................2-99

Configuring GMRP Status.............................................................................2-101

Clicking the Refresh button will update the information displayed in the Port GMRP

table without closing the window..................................................................2-103

Setting the Device Date and Time........................................................................2-103

Enabling and Disabling Ports ...............................................................................2-104

Chapter 3 Statistics

Accessing the Statistics Windows....................................................................................3-1

RMON Statistics..............................................................................................................3-2

Viewing Total, Delta, and Accumulated Statistics....................................................3-5

Printing Statistics......................................................................................................3-6

Interface Statistics............................................................................................................3-7

Making Sense of Interface Statistics.........................................................................3-9

Contents

Chapter 4 Alarm Configuration

About RMON Alarms and Events................................................................................... 4-1

Basic Alarm Configuration..............................................................................................4-2

Accessing the Basic Alarm Configuration Window.................................................4-3

Viewing Alarm Status........................................................................................ 4-3

Creating and Editing a Basic Alarm.........................................................................4-6

Disabling a Basic Alarm...........................................................................................4-9

Viewing the Basic Alarm Log ..................................................................................4-9

Advanced Alarm Configuration..................................................................................... 4-11

Accessing the RMON Advanced Alarm/Event List...............................................4-11

Creating and Editing an Advanced Alarm..............................................................4-14

Creating and Editing an Event................................................................................4-21

Adding Actions to an Event............................................................................4-24

Deleting an Alarm, Event, or Action............................................ ...... ....................4-26

Viewing an Advanced Alarm Event Log................................................................4-27

How Rising and Falling Thresholds Work..................................................................... 4-27

Chapter 5 Managing Ethernet MicroLAN Modules

Repeater Statistics............................................................................................................ 5-1

The Statistics Windows ............................................................................................5-2

Accessing the Statistics Windows.....................................................................5-2

Statistics Defined...............................................................................................5-3

Using the Total and Delta Option Buttons ........................................................5-5

Timer Statistics .........................................................................................................5-6

Accessing the Timer Statistics Windows...........................................................5-6

Setting the Timer Statistics Interval ..................................................................5-8

Repeater Performance Graphs.................................................................................. 5-8

Accessing the Performance Graph Windows....................................................5-9

Configuring the Performance Graphs.............................................................. 5-12

The Detail Button............................................................................................5-12

Using Port Locking and Unlocking........................................................................ 5-13

Viewing Lock Status Information ......................................... ...... ...... .............. 5-14

Determining a Port’s Topology Status............................................................. 5-15

Locking and Unlocking all Ports on a Repeater Channel................................5-15

Locking and Unlocking Individual Ports........................................................5-17

Alarm Limits..................... ............................................. ............................................. ...5-17

Accessing the Alarm Limits Windows...................................................................5-18

Configuring Alarms................................................................................................5-22

Setting the Alarm Limits Time Interval .......................................................... 5-22

Setting Alarm Limits ..............................................................................................5-23

Trap Selection................................................................................................................5-24

Accessing the Trap Selection Windows .................................................................5-24

Trap Definitions...................................................................................................... 5-26

Configuring Traps...................................................................................................5-27

Contents

vii

Chapter 6 FDDI Management

Viewing FDDI Information............................ ...... ............................................. ...... ..... ....6-1

Configuration............................... ...... ..... ...... ...... ............................................. ..... ....6-3

Connection Policy.....................................................................................................6-6

Station List................................................................................................................6-9

Stations Panel...................................................................................................6-10

Performance............................................................................................................6-11

FDDI Statistics........................................................................................................6-12

Setting the FDDI Statistics Poll Rate...............................................................6-14

Configuring FDDI Frame Translation Settings..............................................................6-14

Information about Ethernet and FDDI Frame Types..............................................6-15

Ethernet Frames...............................................................................................6-16

FDDI Frames...................................................................................................6-17

FDDI Frame Translation Options ...........................................................................6-18

Chapter 7 ATM Configuration

Accessing the ATM Connections Window ......................................................................7-1

Configuring Connections.................................................................................................7-4

Adding a New Connection........................................................................................7-4

Deleting a Connection ............................................. ...... ...... .....................................7-4

Chapter 8 HSIM-W87 Configuration

The T3 Configuration Window........................................................................................8-1

The T1 Configuration Window........................................................................................8-3

Configuring IP Priority....................................................................................................8-6

Index

1-1

Chapter 1

Introduction

About the SmartSwitch 6000 and Matrix E7 families; how to use this guide; related guides; getting help.

Welcome to the Element Manager for the SmartSwitch 6000 and Matrix E7 Modules User’s Guide. This guide is a reference for using NetSight Element Manager for the SmartSwitch 6000 and Matrix E7 products. The SmartSwitch 6000 and Matrix E7 products encompass the 6C105 chassis (for the 6000) and 6C107 chassis (for the Matrix E7), as well as the SmartSwitch 6000 and Matrix E7 series modules.

The 6C105 SmartSwitch chassis is a stand-alone chassis. It offers five slots for interface modules; it also has two slots for dual redundant power supplies (installed vertically to the right of the module slots), and a removable fan tray (installed horizontally across the bottom the chassis).

The 6C107 Matrix E7 chassis is also a stand-alone chassis. It offers seven slots for interface modules; it has a removable fan tray (installed underneath the module slots); it also has two slots for dual redundant power supplies (installed across the bottom of the chassis).

The SmartSwitch 6000 Frame Transfer Matrix (FTM) backplane and Matrix E7 nTERA

backplane provide distributed processing po wer. The backplane’s passive design provides a separate independent backplane connection from each module in the chassis to every other module installed in the chassis; each module contains its own active switching components (so switching horsepower increases with module density), and each module can be managed independently (via its Module Manager management component) or — for devices which support distributed management — as part of the chassis unit.

NOTE

For Matrix E7 users: Modules for the Matr ix E7 (6C107) chassis are third generation

(6x3xx) boards. Third generation boards are fully supported in any of the 6C107 chassis’ seven slots. Second generation boards (6x2xx SmartSwitch modules) are fully supported in slots 1-5 in the 6C107 chassis. A second generation board in slot 6 or 7 of the 6C107 will act as a standalone module.

Introduction

1-2

The SmartSwitch 6000 and Matrix E7 modules include:

•The 6E122-26 and 6E123-26 SmartSwitch modules each provide 24 fixed 10Base-T

switch ports (via RJ45 connect ors on the 6 E122; RJ21 T elco connectors on t he 6E123) and two slots for optional FE-100xx Fast Ethernet Port Interface Modules (FEPIMs). Several Fast Ethernet port modules are available:

- the FE-100FX, which provides one multi-mode fiber port via an SC connector;

- the FE-100TX, with one Category 5 UTP RJ45 connector;

- the FE-100F3, with one single-mode fiber port via an SC connector;

- and the FE-100S1, S3, and S5, which prov ide one mult i-mode fib er , singl e-mode

fiber, or long reach single-mode fiber SONET/SDH port, all via SC connectors.

•The 6E132-25 and 6E133-25 SmartSwitch modules each provide 24 fixed 10Base-T

switch ports (also via R J45 fo r the 6E 132 and RJ2 1 for t he 6E133 ) and one s lot for an optional High Speed Interface Module (HSIM) that can link the chassis to an FDDI, ATM, WAN, or Gigabit Ethernet backbone. Each HSIM provides frame translation between ATM, FDDI, WAN, Gigabit Ethernet, and Ethernet through an on-board Intel i960 processor:

- The HSIM-F6 is an FDDI/Ethernet Translator , which can act as a Single Attached

Station (SAS) or Dual Attached Station (DAS) on an external FDDI ring. Enterasys’ FDDI Port Interface Modules ( FPIMs) pro vide a wide rang e of med ia connectivity to the ring. The HSIM-F6 also has full-duplex capability, allowing for a 200 Mbps connection to another HSIM-F6.

- The HSIM-A6DP is an Asynchronous Transfer Mode (ATM) HSIM, which

provides an ATM uplink via two media-configurable ATM Port Interface Modules (APIMs). The dual APIM design allows for a redundant connection to the uplink, so that if the primary interface fails, the secondary interface will automatically take over. The HSIM-A6DP acts as an ATM Forum LAN Emulation Client (LEC) so that it can transfer data between devices on an 802.x LAN supported by the SmartSwitch 6000 and Matrix E7 and ATM-connected end stations across a high speed ATM Link. The HSIM-A6DP adheres to the ATM Forum-approved LAN Emulation (LANE) standard, which defines how end users that rely on existing data communications technology and protocols can operate over an ATM network without penalty.

- The HSIM-W6 and HSIM-W84 are Wide Area Networking (WAN) HSIMs,

which can provide uplinks to WAN backbones and allow you to perform seamless LAN to WAN switching. The HSIM-W6 support s IP and IPX bridg ing or rout ing services, including IP RIP. Multiple WAN connectivity options are supported, including Sync, T1, E1, D&I, ISDN S/T , DDS, and HDSL interfaces, through the use of two configurable WAN Physical Interface Modules (WPIMs). Connectivity is available for Point to Point Protocol (PPP), as well as Frame Relay and Leased Lines. Each WPIM can act independently, allowing simultaneous communication, or configured to provide redundant channels if desired. The HSIM-W84 provides a fixed configuration of four RJ45 ports for four active T1 interfaces.

1-3

Introduction

- The HSIM-W87 is a Wide Area Network (WAN) HSIM that provides LAN to

WAN connectivity for any SmartSwitch that supports high-speed interface

modules (HSIMs). The HSIM-W87 has a DS3 interface (T3), providing up to 28

separate DS1 connections (T1). Refer to Chapter 8, HSIM-W87 Configuration,

for information on configuring an HSIM-W87.

- The HSIM-G01 and HSIM-G09 are Gigabit Ethernet HSIMs, each of which

provide a single Gigabit Ethernet connection that fully conforms to the IEEE

P802.3z (D3.1) Draft Standard. The HSIM-G01 provides a single 1000Base-SX

(short-wave) multimode fiber optic SC interface, allowing for link distances of up

to 500 meters. The HSIM-G09 provides a single 1000Base-LX (long-wave)

single mode/multimode fiber optic SC interface, allowing for link distances of up

to 3 kilometers.

- The HSIM-SSA710/20 are Wide Area Networking (WAN) HSIMs that support

up to two ISDN PRI interfaces with up to 24 V.90 56K modem connections.

The HSIM-SSA710/20 are intelligent devices that are managed as individual

devices rather than as part of the device in which they are installed. Before you

can access the device, you must add it to your central node database by inserting

it in an existing List, Tr ee, or Map View, or by doing a Discover p rocess (r efer to

your User’s Guide for more information). Once it has been added to your List,

Tree, or Map view, you can access and manage the HSIM according to the

information in Chapter 2, The Device View.

•The 6E128-26 and 6E129-26 SmartSwitch modules each provide 24 fixed Ethernet

fiber ports (multi-mode fiber on the 6E128; single-mode fiber on the 6E129) via ST connectors, plus two slots for FEPIMs.

•The 6E138-25 and 6E139-25 SmartSwitch modules each provide 24 fixed Ethernet

fiber ports (multi-mode fiber on the 6E138; single-mode fiber for the 6E139) via ST connectors, plus a single slot for an HSIM.

•The 6E123-50 and 6E133-49 SmartSwitch modules are 48 port MicroLAN Ethernet

modules (4 MicroLANs of 12 ports each, via four RJ21 Telco connectors). The 6E123-50 provides tw o FEPIM slots, wh ile the 6E133-4 9 provides a s ingle HSIM slot.

•The 6E233-49 SmartSwitch module provides 48 Ethernet ports via four RJ21

interfaces and one HSIM slot which can accept an y of the p revio usly detailed HSIMs.

•The 6G306-06 is a third-generation Matrix E7 and SmartSwitch 6000 module which

provides six Gigabit Ethernet ports via flexible GPIM uplin k m odules.

NOTE

The HSIM-W6 and HSIM-W84 are intelligent devices that are functionally identical to the CSX400. These HSIMs require their own IP addresses, and are managed as individual devices rather than as part of the device in which they ar e installed. R efer to the CSX200 and CSX400 User’s Guide for details on managing these devices using NetSight Element Manager.

Introduction

1-4

•The 6H123-50 SmartSwitch module is a 48 port MicroLAN 10/100 Mbps Ethernet

module (4 separately repeated MicroLANs of 12 ports each, via four RJ21 Telco connectors). The 6H123-50 also provides two FEPIM slots for uplinks.

•The 6H133-37 SmartSwitch module is a 36 port MicroLAN 10/100 Mbps Ethernet

module (3 separately repeated MicroLANs of 12 ports each, via RJ21 Telco connectors). A single HSIM slot is also provided.

•The 6H122-08, 6H128-08, and 6H129-08 SmartSwitch modules each provide six

fixed Fast Ethernet ports (via RJ45 on the 6H122, multi-mode fiber on the 6H128, and single-mode fiber on the 6H129), plus two slots for FEPIMs.

•The 6H122-16 SmartSwitch module provides 16 fixed Fast Ethernet ports via RJ45

connectors, with no additional slots.

•The 6H202-24 and 6H252-17 SmartSwitch modules are 10/100 Fast Ethernet

modules. The 6H202-24 provides 24 ports via RJ45 connections. The 6H252-17 provides 16 ports via RJ45 connections as well as a VHSIM slot, which can accept any of the previously detailed HSIMs or the VHSIM-G6 Gigabit Ethernet High Speed Interface Module:

- The VHSIM-G6 is a Gigabit Ethernet module which provides two slots for

GPIMs of various media to offer integrated Gigabit Ethernet uplink capability. The VHSIM-G6 can accept the GPIM-01, which offers one SC connector for MMF 1000Base SX Gigabit Ethernet connectivity, the GPIM-09, which offers one SC connector for MMF or SMF 1000Base LX connectivity , or the GPIM-04, which offers one ANSI Fibrechannel style-2 connector for 150 Ohm STP 1000Base CX connectivity.

•The 6H203-24 and 6H253-13 SmartSwitch modules are 10/100 Fast Ethernet

modules. The 6H203-24 provides 24 ports via dual RJ21 connectors. The 6H253-13 provides 12 10/100 Fast Ethernet ports via a single RJ21 connector and also features a VHSIM slot.

•The 6H258-17 and 6H259-17 SmartSwitch modules are 16-port 100BaseFX (via

MT-RJ connectors) modules, each with a single VHSIM slot. The 6H258-17 features 16 MMF ports, while the 6H259-17 features 16 SMF ports.

•The 6H262-18 SmartSwitch module provides 16 10/100BaseTX ports (via RJ45

connectors) plus two GPIM slots for Gigabit Ethernet connectivity.

•The 6H302-48 and 6H303-48 are third-generation 10/100 Fast Ethernet modules for

the SmartSwitch 60 00 and Mat rix E7 chass is, pr oviding 4 8 10/100 Fast Ether net ports via RJ45 (6H302-48) and RJ21 (6H303-48) interfaces.

•The 6H308-24 and 6H308-48 high-density switching modules are Enterasys'

third-generation 100Base-FX switching solutions for the SmartSwitch 6000 and Matrix E7. The addition of 100Base-FX technology allows cu stomers the ability to securely depl oy fiber solutions to the de sktop.

•The 6H352-25 is a third generation 10/ 100 Gigabit Ether net switching so lution for t he

SmartSwitch 6000 and Matrix E7which delivers pinpoint control to critical network entry areas, without the expense and com plexity of routed solutions.

Using the SmartSwitch 6000 and Matrix E7 User’s Guide 1-5

Introduction

•The 6M146-04 SmartSwitch carrier modul e provides t wo FEPIM slots an d two HSIM

slots.

Each of these SmartSwitch modules provide key mission-critical features such as redundant links for load sharing, alarm thresholding, broadcast storm control, port redirecting for traffic analysis, traffic priority configuration, and full error breakdown. Per-port RMON support is also provided. By default, these modules perform traditional switching (or bridging); each can also be configured to perform prestandard IEEE 8 02.1 Q VLAN switching (a.k.a “port-based VL AN” switching) or Enterasys’ SecureFast switching (activated via Local Management).

The 6C105 SmartSwitch 6000 and 6C107 Matrix E7 chassis themselves offer the following features:

• Slots for up to 5 (for the 6C105) and 7 (for the 6C107) double-wide 2.4" interface modules. Each interface module is individually driven and managed by on-board processors, including an onboard SmartSwitch ASIC processor fo r switching, and Intel i960 Host microprocessors for dedicated module management.

• A Frame Transfer Matrix (FTM) backplane design, that provides a separate independent backplane connection from each module in the chassis to every other module installed in the chassis. This allows a backplane bandwidth capacity of up to

3.2 Gbps.

• Support for redundant, load-sharing power supplies to provide fault tolerance.

• Enterasys’ LANVIEW Diagnostic LEDs for quick visual diagnosis of interface and device performance; a single removable fan tray; a 19" footprint for ease of installation in rack mounts; and front panel accessibility to all chassis components for easy maintenance.

Using the SmartSwitch 6000 and Matrix E7 User’s Guide

Each chapter in this guide describes one major functio nality or a collection of several smaller functionalities of the SmartSwitch 6000 and Matrix E7 modules and the chassis in which they are installed. This guide contains information about software functions which are accessed directly from the device icon; additional management information about tools and features common to many devices can also be found in the Element Manager

User’s Guide, the Element Manager Tools Gu ide, the Remote Administration Tools User’s Guide, the Alarm and Event Handling User’s Guide, and the RMON User’s Guide.

Because the aforementioned modules share much of their functionality, they will be collectively referred to as the SmartSwitch 6000 and Matrix E7 modules. Where there are differences, however , each device will be named separately , as necessary. The information displayed in many of the wi ndows will differ slightly depending upon which type of device is being managed; however, only a single window will be shown unless significant differences in functionality exist.

Introduction

1-6 Using the SmartSwitch 6000 and Matrix E7 User’s Guide

Chapter 1, Introduction, provides a list of related documentation and shows you how to contact the Enterasys Global Call Center. It also briefly describes the SmartSwitch 6000 and Matrix E7 modules and 6C105/6C107 chassis.

Chapter 2, The Device View, describes the visual display of the SmartSwitch 6000 and Matrix E7 chassis as a whole and explains how to use the mouse within the Device View. It also details all chassis-level management functions, including Find Source Address, Port Redirect, Advanced Priority Configuration, and pre-standard 802.1Q port-based VLAN configuration at the chassis level. It also documents chassis-specific information, including MIB-II System Group information, chassis IP and MAC addresses, chassis clock information and uptime, power supply configuration and status, fan operational status, and backplane configuration.

The chapter also details how each module is displayed in the chassis, and explains how to access management menus from the module display and ch ange port status information. It

also explains how to manage the individual module by monitoring the module’s system resources, finding a source address on the module, establishing module-level port priorities, setting up broadcast supp res sion on the device, and configuring the module’s front panel COM port and any attached Uninterruptable Power Supply (UPS).

Chapter 3, Statistics, describes the two statistics views available at the interface level: MIB-II Interface statistics and RMON Ethernet statistics.

Chapter 4, Alarm Configuration , provides instructions for using both the Basic and Advanced alarm applications to configure both alarms and the events that notify you that an alarm condition has occurred. The ability to automatically initiate a SET or a series of SETs in response to an alarm — functionality provided by Enterasys’ proprietary Actions MIB — is also described.

Chapter 5, Managing Ethernet MicroLAN Modules, describes Ethernet repeater-specific functionality which you can use to monitor and manage Ethe rnet MicroLAN Modules (e.g., the 6E123-50 and 6E133-49 SmartSwitch modules).

Chapter 6, FDDI Management, describes the Configuration, Connection Policy, Station List, Performance, FDDI Statistics, and Frame Translation selections available when an HSIM-F6 module is installed.

Chapter 7, ATM Configuration, discusses the ATM Connections wind ow which will appear if you have an HSIM-A6DP module installed in your device.

Chapter 8, HSIM-W87 Configuration, describes the T3, T1, and IP Priority configuration windows which will be available when an HSIM-W87 is installed.

We assume that you have a general working knowledge of Ethernet IEEE 802.3, Fast Ethernet, Gigabit Ethernet, FDDI, ATM, and WAN type data communication networks and their physical layer components, and that you are familiar with general bridging and switching concepts.

Related Manuals 1-7

Introduction

Related Manuals

The SmartSwitch 6000 and Matrix E7 User’s Guide is only part of a complete document set designed to provide comprehensive information about the features available to you through NetSight Element Manager. Other guides which include important information related to managing the SmartSwitch 6000 and Matrix E7 include:

Element Manager Chassis User’s Guide Element Manager User’s Guide Element Manager Tools Guide Element Manager Remote Admini stration Tools User’s Guide Element Manager Remote Monitoring (RMON) U ser’s Guide Element Manager Alarm and Event Handling User’s Guide Network Troubleshooting Guide Microsoft Corporation’s Microsoft Windows User’s Guide

For more information about the capabilities of the SmartSwitch 6000 and Matrix E7, consult the appropriate hardware documentation.

Getting Help

This section descri bes dif ferent metho ds of get ting help f or quest ions or con cerns you may have while using NetSight Element Manager.

Using On-line Help

You can use the Help buttons to obtain information specific to a particular window. When you click on a Help button, a window will appear which contains context-sensitive on-screen documentation that will assist you in the use of the windows and their associated command and menu options. Note that if a Help button is grayed out, on-line help has not yet been implemented for the associated window.

NOTE

The Element Manager Chassis User’s Guide discusses how to initially config ure the SmartSwitch 6000 or Matrix E7 chassis using the Chassis Setup window. It gives an overview of SmartSwitch 6000 and Matrix E7 management views and general module information, and discusses changing the current view as well as the default view.

Introduction

1-8 Getting Help

From the Help menu accessed from the Device View window menu bar, you can access on-line Help specific to the Device View window, as well as bring up the Chassis Manager window for reference. Refer to Chapter 2, The Device View, for information on the Device View and Chassis Manager windows.

Accessing On-line Documentation

The complete suite of documents available for NetSight Element Manager can be accessed via a menu option from the primary window menu bar: Help —> Online Documents. If you chose to install the documentation when you

installed NetSight Element Manager, selecting this option will launch Adobe’s Acrobat Reader and a menu file which provides links to all other available documents.

Documentation Feedback

6HQG\RXUTXHVWLRQVFRPPHQWVDQGVXJJHVWLRQVUHJDUGLQJ1HW6LJKW GRFXPHQWDWLRQWR1HW6LJKW7HFKQLFDO&RPPXQLFDWLRQVYLDWKHIROORZLQJ HPDLODGGUHVV

1HWVLJKWBGRFV#HQWHUDV\VFRP

Getting Technical Support

Online Services on the World Wide Web

7RORFDWHSURGXFWVSHFLILFLQIRUPDWLRQUHIHUWRWKH(QWHUDV\V:HE3DJHDWWKH IROORZLQJDGGUHVV

KWWSZZZHQWHUDV\VFRP

Global Technical Assistance Center

,I\RXKDYHDGGLWLRQDOTXHVWLRQVFRQWDFWWKH*ORDEO7HFKQLFDO$VVLVWDQFH &HQWHUXVLQJRQHRIWKHVHPHWKRGV

NOTE

All of the online help windows use the standard Microsoft Windows help facility. If you are unfamiliar with this feature of Windows, you can select Help from the Windows Start menu, or Help —>How to Use Help from the primary NetSight Element Manager window, or consult your Microsoft Windows product User’s Guide.

TIP

If you have not yet installed the documentation, the Online Documents option will not be able to access the menu file. In order to activate this option, you must run the setup.exe again to install the documentation component. See your Installation Guide for details.

Getting Help 1-9

Introduction

7HOHSKRQHKRXUVDGD\GD\VD\HDU

)D[

(OHFWURQLF0DLOVXSSRUW#HQWHUDV\VFRP

0DLOLQJ$GGUHVV

(QWHUDV\V1HWZRUNV,QF 7HFKQLFDO6XSSRUW ,QGXVWULDO:D\ 5RFKHVWHU1+

)73 IWSFDEOHWURQFRP /RJLQDQRQ\PRXV 3DVVZRUG\RXUHPDLODGGUHVV

Introduction

1-10 Getting Help

2-1

Chapter 2

The Device View

Information displayed in the Device View; the logical Device View; the Chassis Manager window; chassis management functions

The Device View displays the current configuration of your SmartSwitch 6000 or Matrix

E7 module via a graphical representation of the module’s front panel. The Device View serves as a single point of access to all other SmartSwitch 6000 and Matrix E7 windows and screens, which are discussed at length in the following chapters.

To access the Device View, use one of the following options:

1. In any map, list, or tree view, double-click on the SmartSwitch 6000 or Matrix E7 you wish to manage. The Management Selection window , Figure2-1, will appear.

1. In any map, list, or tree view, click the left mouse button once to select the device you wish to manage.

2. Select Manage —> Node from the primary window menu bar, or select the Manage Node toolbar button. The Management Selection window, Figure 2-1, will appear.

1. In any map, list, or tree view, click the right mouse button once to select the device you wish to manage.

2. Select Manage from the resulting menu. The Management Selection window,

Figure 2-1, will appear.

NOTE

On the 6C105, the instructions below bring you to the Chassis Setup, instead of the Management Selection window. There, you will create a .dmf file for the chassis, which

enable you to access the 6C105’s Device View. Refer to the Element Manager Chassis

User’s Guide for information on performin g chassis setup.

The Device View

2-2 Viewing Device Information

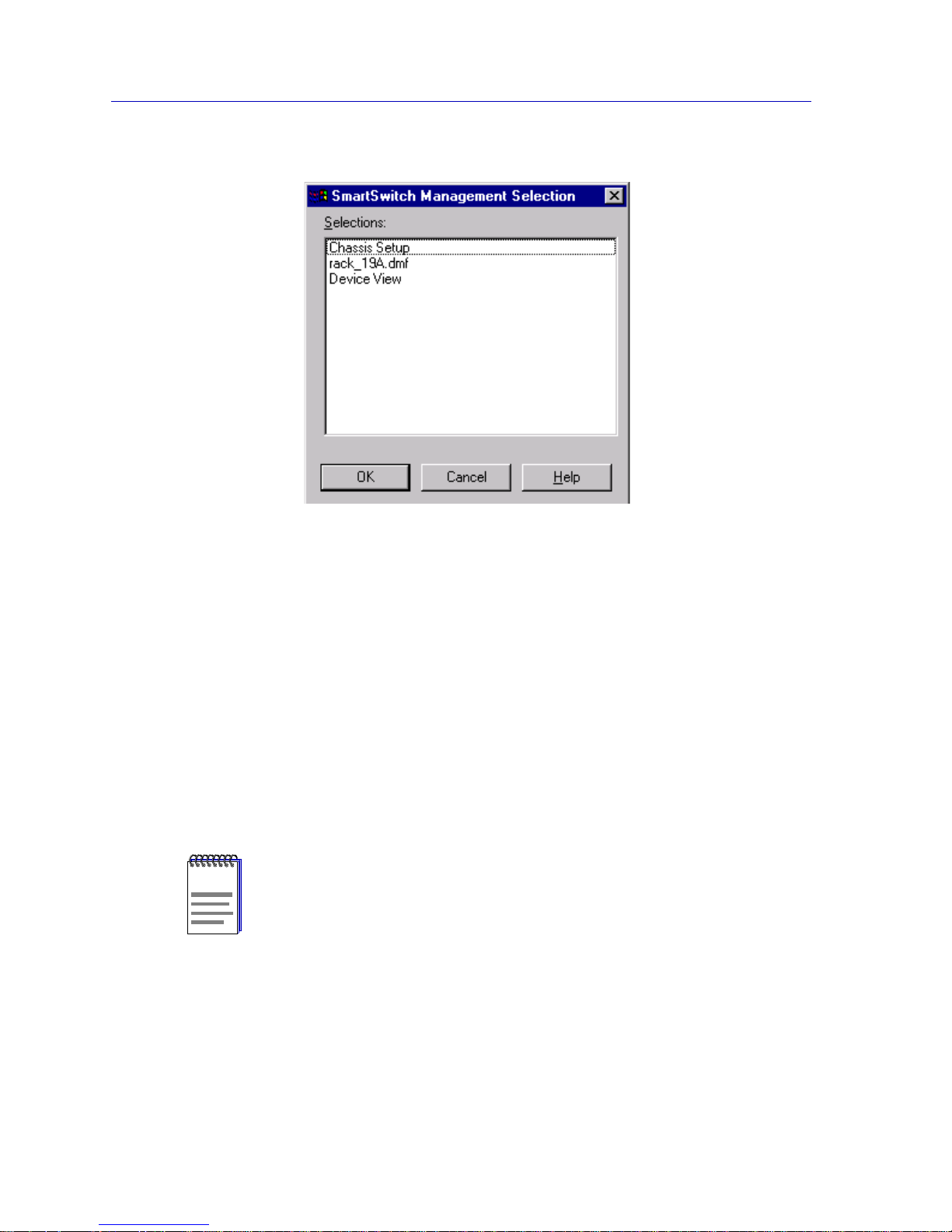

Figure 2-1. The Management Selection Window

In the Management Selection window, click to select Device View, and click the OK button. The Device View window, Figure 2-2, will appear.

Viewing Device Information

The Device V iew (Figure 2-2) provides a graphic representation of the SmartSwitch 6000 and Matrix E7 chassis and the curr ently mode led SmartSwitch 6000 or Matr ix E7 mo dule, including a color-coded port display which immediately informs you of the current configuration and status of all the port interfaces on the module. Note that the module will appear in its corresponding physical slot in the SmartSwitch 6000 or Matrix E7. Slots are

numbered from 1–5 (for the SmartSwitch 6000) or 1-7 (for the Matrix E7), from left to right in the chassis.

The Device View also will provide you with environmental status information about the fan tray and power supplies installed in the chassis.

NOTE

The Device V iew for HSIMs that have their own IP address and are managed individually (the HSIM-W6, HSIM-W84, and HSIM-SSA710/20), does not show a representation of a five-slot SmartSwitch 6000 or seven-slot Matrix E7 chassis; it shows only a single-slot representation.

Viewing Device Information 2-3

The Device View

Figure 2-2. The Device View Window

By clicking in designated areas of the chassis graphical d isp lay (as detailed later in this chapter), or by using the menu bar at the top of the Device View window, you can access all of the menus that lead to more detailed windows.

TIP

When you move the mouse cursor over a management “hot spot,” the cursor icon will change into a hand symbol to indicate that clicking in the current location will bring up a management option.

NOTE

Note that up to 22 ports can be displayed simultaneously on a module. If a module has a higher port density than 22 ports, arrows will appear at the top and bottom of the port stack so that you can scroll through the remaining ports.

General device information

Chassis-specific

information

Module information

The Device View

2-4 Viewing Device Information

General Device Information

In addition to the main interface display, the Device View window provides the following device information:

The Device View window title displays the device’s IP (Internet Protocol) Address; this will be the SmartSwitch 6000 or Matrix E7 module IP address used to d e fine the device icon. The IP address is assigned to the SmartSwitch 6000 or Matrix E7 module via the Device Configuration portion of Local Management; it cannot be changed via NetSight Element Manager. Note that although each interface in the SmartSwitch 6000 or Matrix E7 module has its own MAC, or physical, address, only a single IP address is assigned to the device.

Connection Status

This color-coded area indicates the current state of communication between NetSight Element Manager and the SmartSwitch 6000 or Matrix E7 module. If you click this icon, you can restart the device.

• Green indicates the SmartSwitch 6000 or Matrix E7 module is responding to device

polls (valid connection).

• Magenta indicates that the SmartSwitch 6000 or Matrix E7 module is in a temporary

stand-by mode while it responds to a physical change in the hub (such as when a module is inserted ). Note that mo dule and por t menus are i nactive during this stand-by state.

• Blue indicates an unkno wn contact status; polling has not yet been established with t he

SmartSwitch 6000 or Matrix E7 module.

• Red indicates the SmartSwit ch 6000 or Matrix E7 module is not res ponding to dev ice

polls (device is off line, or device pol ling has failed across the network for some other reason).

Chassis Type

The model of the chassis — 6C105 or 6C107 —þin which the monitored SmartSwitch 6000 or Matrix E7 module is installed.

Location

A descriptive field you can use to id entify where the chassis is physically located. You can edit this field through the device’s System Group window; refer to the Generic SNMP

User’s Guide for further details.

UpTime

The amount of time, in a days hh/mm/ss format, that the SmartSwitch 6000 or Matrix E7 module has been running since the last start-up. Note that when distributed chassis management is available, this field will indicate the time that the longest active module has been running since start-up.

Viewing Device Information 2-5

The Device View

Port Status

Indicates the port status display selection currently in effect. The default port status view is bridge status; if you have not changed the port status selection since launching the Device View, this field will display Default. For more information about changing the port status display, see Port Status Displays, on page 2-14.

MAC

Displays the manufacturer-set MAC, or physical, address associated with the IP address used to define the device icon. This will be the MAC address assigned to the first interface detected on the SmartSwitch 6000 or Matrix E7 module (although each interface in the SmartSwitch 6000 or Matrix E7 module has its own MAC address). MAC addresses are factory-set and cannot be altered.

Boot Prom

The revision of BOOT PROM installed in the SmartSwitch 6000 or Matrix E7 module.

Firmware

The revision of device firmware stored in the SmartSwitch 6000 or Matrix E7 module’s FLASH PROMs.

Time

The current time, in a 24-hour hh:mm:ss format, set in the SmartSwitch 6000 or Matrix E7 module’s internal clock.

Date

The current date, in an mm/dd/yyyy format, set in the SmartSwitch 6000 or Matrix E7 module’s internal clock.

6C105/6C107 Chassis-specific Information

The Device V iew provi des the followi ng informat ion about t he 6C105 o r 6C107 chas sis in which the SmartSwitch 6000 or Matrix E7 module is installed. There are four color-coded fields which provide status information for the operation of the power supplies and fan tray installed in the 6C105/6C107 chassis.

Power Redundancy

The 6C105 and 6C107 support two power supply modules. Each supports a separate AC input connector, so that two separate power sources can be used for the chassis. Additionally, with two power supplies installed, the total load presented by the

NOTES

In accordance with Year 2000 compliance requirements, NetSight Element Manager now displays and allows you to set all dates with four-digit year values.

You can set the da te an d tim e by us ing the Edit Device Date and Edit Device T ime opti ons on the Device menu; see Setting the Device Date and Time, on page 2-103, for details.

The Device View

2-6 Viewing Device Information

6C105/6C107 and its installed modules is split 50/50 between the supplies (+/- 5%). The Power Redundancy field displays whether or not the chassis is currently configured for load sharing and power redundancy. Poss ible values are:

• A v ailable (Green) — Two 6C205-01 or 6C207-01 power su pply modul es are ins talled in the 6C105/6C107 chassis.

• Not A vailabl e (Y ell ow) — Only a single 6C205-01 or 6C20 7-01 power supply module is installed in the 6C105/6C107 chassis. Note that when only a single power supply module is installed, it must always be in power slot 1 (PS1).

PS #1/#2 Status

Indicates the state of any power supplies installed in the 6C105/6C107 Chassis. Possible states returned are:

• Not Available (Yellow) — No response has been returned from the device regarding the power supplies.

• Normal (Green) — A power supply is installed and operating in the associated power slot.

• Fault (Red) — The power supply in the associated power slot is not operational.

• Not Installed (Blue) — The indicated power slot is not occupied by a power supply.

Fan Tray Status

The 6C105/6C107 supports a single, removable fan tray that has four fans. T he tray is hot swappable, so it can be removed without powering down the chassis. This field indicates the status of the 6C105/6C107 Fan Tray:

• Not Available (Yellow) — No response has been returned regarding the fan tray.

• Normal (Green) — A fan tray is installed and operational.

• Fault (Red) — One or more fans in the tray have failed.

• Not Installed (Blue) — The fan tray slot is not occupied. The chassis is in danger of overheating if it continues to run without the fan tray installed.

Viewing Device Information 2-7

The Device View

Menu Structure

By clicking on various areas of the Device View display, you can access menus with device-, module-, and port-level options, as well as utility applications which apply to the device. The following illustration displays the menu structure and indicates how to use the mouse to access the various menus.

NOTE

By default, the SmartSwitch 6000 or Matrix E7 module performs traditional switching (or bridging). Depending on the version of firmware you have installed, the module can also be configured to perform pre-standard 802.1Q VLAN switching or Enterasys SecureFast Switching. (Check your firmware release notes to see if your version of firmware supports these features).

For SmartSwitch 60 00 an d Matr ix E7 module s tha t suppo rt 802.1Q VLA Ns or S ecureFast Switching, the toggle from traditional bridging to 802.1Q or SecureFast Switching is performed via Local Management. Refer to your Local Management documentation for details.

When using NetSight Element Manager to manage a device configured for SecureFast Switching, no bridging-related windows o r port status display options will be available. All other management options will be a v ailable.

The Device View

2-8 Viewing Device Information

Figure 2-3. Device View Menu Structure

For the Device menu:

• The FDDI Statistics option will appear if you have an HSIM-F6 module installed.

• The ATM Connections option will appear if you have an HSIM-A6DP module installed.

• The VLAN option will appear if your device has been configured to operate in

802.1Q mode.

• The Priority Configuration option will appear if your device supports 802.1P Dynamic Multicast Filtering/Priority Queuing.

• The UPS option will only appear if your COM port has been configured for use with an Uninterruptable Power Supply.

No bridge-related options appear in any menus if the device is running in SecureFast Switching mode.

Viewing Device Information 2-9

The Device View

The Device Menu

From the Device menu at the Device View menu bar, you can access the following selections:

• Device T ype displa ys a window containing a description of the d evice being modeled. See Device Type, on page 2-26, for details.

• Device Find Source Address enables you to determine which interface a specified MAC address is communicating through by searching the 802.1d bridge Filtering database. Ethernet MicroLAN modules (e.g., the 6E123-50 or 6E1 44-49) will also search the repeater Source Address Table (SAT). If the specified MAC address is located, a list of interface(s) through which the given address is communicating will be displayed.

• Edit Device Time and Edit Device Date allow you to set the SmartSwitch 6000 or Matrix E7 module’s internal clock; see Setting the Device Date and Time, on

page 2-103

• System Group allows you to manage the Sm art Switc h 6 000 or Matrix E7 via SNMP MIB II. Refer to the Generic SNMP User’s Guide for further information.

• I/F Summary lets you view statistics (displayed both graphically and numerically) for the traffic processed by each network interface on your device. See Viewing I/F

Summary Information, on page 2-27, for details.

• 802.1Q VLAN appears in the Device menu if your module is configured to operate in

802.1Q mode. The windows launched via the VLAN option allow you to configure and operate port-based VLANs on the module. See 80 2.1Q VLANs, on page 2-70, for details.

• ATM Connections appears in the Device menu if you have an HSIM-A6DP installed in your module. This launches a win dow whi ch let s you configure Permanent V i r tu al Circuits (PVCs) for the module. See Chapter 7, ATM Configuration, for more information.

• Port Redirect launches a window that allows you to mirror — or redirect — traffic received or transmitte d at one p ort o n yo ur mo dul e t o one o r more other ports, so that you can unobtrusively a ttach network analyzers to ascertain probl ems or trends in your data flow. For more information about using the Port Redirect window, see

Redirecting Traffic, on page 2-54.

• System Resources displays information about the processor used on the mon itored SmartSwitch 6000 or Matrix E7 module, as well as the amount of installed and currently available FLASH memory, DRAM, and NVRAM. See The System

Resources Window, on page 2-66.

• Priority Configuration allows you to establish priority packet forwarding for the SmartSwitch 6000 or Matrix E7 module. For more information, see Priority

Configuration, on page 2-56.

The Device View

2-10 Viewing Device Information

• Com Port Configuration allows you to configure the settings of the COM ports on the SmartSwitch 6000 or Matrix E7 module; see Configuring the COM Port, on

page 2-36, for details.

• Broadcast Suppression allows you to set a threshold on the number of broadcast packets issued from each port on the SmartSwitch 60 00 or Matrix E7 mod ule whe n it is operating in traditional switch (bridge) mode. See Broadcast Suppression, on

page 2-64.

• FDDI Statistics option will appear in the Device menu if you have an HSIM-F6 installed in your module. This launches a window which displays traffic-related statistics for each Station Management (SMT) en tity present on an installed HSIM-F6. See Chapter 6, FDDI Management, for more information.

• UPS brings up a window that allows you to configure an Uninterruptable Power Supply attached to your SmartSwitch 6000 or Matrix E7 Module’s COM port. See

Using an Uninterruptable Power Supply (UPS), on page 2-51, for details.

• Exit closes the Device View window.

The View Menu

The View menu lets you switch the front panel display between three graphical representations of the device:

•The Logical view p rovi des the logical front panel d isplay of the SmartS witch 60 00 or Matrix E7 module and its interfaces.

•The BackPlane Config view displays the backplane connections between the SmartSwitch 6000 or Matrix E7 module and other modules installed in the 6C105/6C107 chassis.

• Refresh updates the display.

The Port Status Menu

The Port Status menu allows you to select the status information that will be displayed in the port text boxes in the Device View:

• Status allows you to select one of four status type disp l ays : B ri dg e , Brid ge Mappi n g, Admin, or Operator.

• Load will display the portion of network load processed per polling interval by each interface, expressed as a percentage of its theoretical maximum load (10, 100, 155.5, 800, or 1000 Mbps).

NOTE

The Priority Configuration menu option will only appear in the Device menu for modules that respond to any of NetSight Element Manager’s queries to the following OIDs:

ctPriorityExtPortStatus, ctPriorityExtMaxNumMACEntries, or ctPriorityExtNumPktTypeEntries. If your module’s firmware does not respond to these

queries, contact the Enterasys Global Call Center for firmware upgrade information.

Viewing Device Information 2-11

The Device View

• Errors allows you to display the number of errors detected by each interface, since the

last reset, expressed as a percentage of the total number of valid packets processed by the interface.

• I/F Mapping will display the interface ifIndex associated with each port on your

SmartSwitch 6000 or Matrix E7 module.

• I/F Speed will display the port’s bandwidth: 10M (megabits) for Ethernet; 100M for

Fast Ethernet; 155.5M for ATM; and 800M for the backplane interfaces.

• I/F Type will display the port type of each port on your SmartSwitch 6000 or Matrix

E7 module, e.g., Eth (ethernet-csmacd), ATM, or FDDI.

• VLAN Mapping will appear if your device has been configured to operate in 802.1Q

mode. It displays the VLAN ID number associated with each port on your SmartSwitch 6000 or Matrix E7 module.

For SmartSwitch 6000 and Matrix E7 Et her net Mi croLAN mo dul es, t he Port Status menu will contain the following option s:

• Load will display the portion of network load pr ocessed by each port as a percentage

of the theoretical maximum load of the connected network segment (10, 100, 155.5, 800, or 1000 Mbps).

• Port Assignment will display each port’s repeater channel assignment (A-H).

• Status allows you to select one of three status type displays: Admin/Link, Admin, or

Link.

• Errors, and Frame Size allow you to display the percentage per port of the specific

Error or Frame Size you select.

For more information on the port display options avail able via this menu, see Selecting a

Port Status View, on page 2-14.

The Repeater Menu

If you are modeling a SmartSwitch 6000 or Matrix E7 Ethernet MicroLAN module, the Repeater menu will appear, offering the following options for each repeater segment (A-H) on the device:

•Statistics

• Timer Statistics

• Performance Graph

• Source Address Type

• Lock/Unlock Ports

•Alarm Limits

• Trap Selection

Refer to Chapter 5, Managing Ethernet MicroLAN Modules, for information on these menu selections.

The Device View

2-12 Viewing Device Information

The FDDI Menu

If your SmartSwitch 6000 or Matrix E7 has an installed HSIM-F6, the FDDI menu will appear on the Device View menu bar, with the following options:

• Configuration

• Connection Policy

•Station List

• Performance

• Frame Translation

Refer to Chapter 6, FDDI Management, for information on these menu selections.

The Utilities Menu

The Utilities menu provides the followin g selections

• MIB Tools -- provides direct access to the SmartSwitch 6000 or Matrix E7 module’s MIB information; refer to the Element Manager Tools Guide for more information.

• Launch WebView opens up the Web View for the device, if the device supports it.

• RMON -- a remote monitoring feature that is supported on a per-port basis when at least one Ethernet or Fast Ethernet module is installed in the chas sis; refer to the

RMON User’s Guide for more information.

These selections are also available from the Tools menu at the top of the primary NetSight Element Manager window.

The Help Menu

The Help Menu has the following three selections:

• MIBs Supported brings up the Chassis Manager window, described later in this chapter.

• Chassis Manager Help brings up a help window with in formation specifical ly related to using the Chassis Manager and Device View windows.

• About Chassis Manager brings up a version window for the Chassis Manager application in use.

The Module Menu

The Module menu for the SmartSwitch 6000 or Matrix E7 module provides mostly bridging-related selections, many of which are also available from the B ridge Status window:

• Module Information opens a Module Information window that provides firmware and manufacturing information which may be useful when troubleshooting any problems that you are having with the module. For more information, refer to The

Module Information Window, on page 2-24.

• Module Ty pe brings up a window containing a descript ion of the selected module; see

Viewing Hardware Types, on page 2-25.

Viewing Device Information 2-13

The Device View

• Bridge Status opens a window that provides an overvi ew of bridgi ng info rmation for

each port, and allows you to access all other bridge-related options. Refer to the Bridging chapter in the Element Manager Too ls Guide for more information.

• Broadcast Suppression allows you to set a threshold on the number of broadcast

packets issued from each port on the SmartSwitch 60 00 or Matrix E7 module when it is operating in traditional switch (bridge) mode.

• HSIM W87 Config (T1) allows you to configure T1 connections for an installed

HSIM-W87; see Chapter 8, HSIM-W87 Configuration, for details.

• IP Priority Config allows you to configure priority transmission for up to 16 IP

addresses for an installed HSIM-W87; see Chapter 8, HSIM-W87 Configuration, for details.

• Performance Graph appears if there are between one and eight bridge ports, they are

all running at the same speed, and the speed is less than 100 Mb/s. The bridge performance graph visually displays the combined performance of all bridging interfaces installed in the SmartSwitch 6000 or Matrix E7 module. Refer to the Bridging chapter in the Element Manager Tools Guide for more information.

• Spanning Tree allows you to set bridge parameters when it is operating using the

Spanning Tree Algorithm (STA) — the method that bridges use to decide the controlling (root) bridge when two or more bridges are in parallel. Refer to the Bridging chapter in the Element Manager Tools Guide for more information.

• SmartTrunk invokes the SmartT runk Configuration and Status Screen, which enables

you to group interfaces logically to achiev e greater bandwidth between devices, if both devices support the SmartTrunk feature. There is no limit to the number of ports that can be included in a single “trunk,” nor is there a limit to the number of trunked “instances” that can be supported. Refer to the Bridging chapter in the Element Manager Tools Guide for more information.

• Filtering Database lets you see and configure the contents of the 802 .1d bridge St atic

and Filtering Databases. Refer to the Bridging chapter in the Element Manager T ools Guide for more information.

• Duplex Modes allows you to set Duplex Mode operation for standard Ethernet

interfaces.

• Enable/Disable Bridge enables or disables bridging across every inter face installed in

the SmartSwitch 6000 or Matrix E7 module.

The Port Menus

Each port menu offers the following selections:

• Description displays a text description of the selected port. See Viewing Hardware

Types, on page 2-25, for details.

• Performance Graph appears if the port’s speed is less than 100 mb/s. The resulting

bridge port performance windows visually display bridging performance at the selected interface. Refer to the Bridging chapter in the Element Manager Tools Guide for more information.

The Device View

2-14 Viewing Device Information

• Source Addressing allows you to view the source MAC addresses communicating through the currently selected interface.

• HSIM W87 Config (T3) allows you to configure a T3 interface for an installed HSIM-W87; see Chapter 8, HSIM-W87 Configuration, for details.

• I/F Statistics launches a window that displays MIB-II interface statistics for the selected interface.

• Configuration allows you to configure Ethernet ports for Standard or Full Duplex Mode, or configure operational parameters for Fast Ethernet ports, depending on the type of interface selected.

• Alarm Configuration launches the RMON-based Basic and Advanced Alarm applications; see Chapter 4, Alarm Configuration, for details. Note that this selection is available for all bridge port interfaces — even those (like ATM) that do not specifically support RMON functionality — as lo ng as at least one Ethernet or Fast Ethernet port is on the module.

•Statistics launches the highest level of statistics currently available for the selected port. For standard Ethernet and Fast Ethernet ports, RMON statistics will be displayed if the RMON Default MIB component is active; if it has been disabled, MIB-II interface statistics will display. See Chapter 3, Statistics, for more information.

• Enable/Disable Port, which activates or disables bridging for the selected port, respectively; refer to the Bridging chapter in the Element Manager Tools Guide, and

Enabling and Disabling Ports, on page 2-104, for more information.

Port Stat us Displays

When you open the Logical View of the chassis, each port will display its current bridging state (defined below), with the exception of SmartSwitch 6000 or Matrix E7 Ethernet MicroLAN ports, which will display their Admin/Link status (also defined below) by default; to change this status display, select one of the options on the Port Status menu, as described in the following sections.

Selecting a Port Status View

To change the status view of your ports:

1. Click on Port Status on the menu bar at the top of the Device View window; a menu will appear.

2. Select the status information you want to display. The port text boxes will display the appropriate status information.

Port status view options are:

Viewing Device Information 2-15

The Device View

Status

You can view four port status categories, as follows:

• Bridge — FWD, DIS, LRN, LIS, BLK, or BRK

• Bridge Mapping — the instance of the physical interface associated with a bridge port

• Admin — ON or OFF

• Operator — ON or OFF

If you have selected the Bridge status mode, a port is considered:

• FWD (Forwarding) if the port is on-line and ready to forward packets across the

SmartSwitch 6000 or Matrix E7 from one network segment to another. This is also the default display for ports which are administratively enabled but not connected. In pre-5.1.x firmware, the default state of a por t not in use is “forwarding,” whereas in the

5.1.x firmware, the default is “blocking” (BLK).

• DIS (Disabled) if bridging at the port has been disabled by management; no traf fic can

be received or forwarded on this port, including configuration information for the bridged topology.

• LIS (Listening) if the port is not adding information to the filtering database. It is

monitoring Bridge Protocol Data Unit (BPDU) traffic while preparing to move to the forwarding state.

• LRN (Learning) if the Forwarding database is being created, or the Spanning Tree

Algorithm is being executed because of a network topology change. The port is monitoring network traffic, and learning network addresses.

• BLK (Blocking) if the port is on-line, but filtering traffic from going across the

SmartSwitch 6000 or Matrix E7 from one network segment to another. Bridge topology information will be forwarded by t he port. In the 5.1.x firmware , t he default state of a port not in use is “blocking,” whereas in previous firmware versions, the default is “forwarding” (FWD).

• BRK (Broken) if the physical interface has malfunctioned. If you have selected the Bridge Mapping status mode, the port display will alter to show

the dot1dBasePortIfIndex, which is the value of the instance of the interface index (the MIB II ifIndex) that corresponds to each bridge/switch port on the device. For a SmartSwitch 6000 or Matrix E7 module, the dot1dBasePortIfIndex of the bridge interfaces will map directly to the ifIndex.

If you have selected the Admin status mode, a port is considered:

• ON if the port is enabled by management.

• OFF if it has not been enabled or if it has been disabled through management action. The Admin state reflects the state requested by management; depending on the

circumstances, this may or may not match the current Operator status, described below.

The Device View

2-16 Viewing Device Information

If you have selected the Operator status mode, a port is considered:

• ON if the port is currently forwarding packets.

• OFF if the port is not currently forwarding packets.

Note that the Operator status provides the actual status of the port; depending on the circumstances, this may or may not reflect the Admin state currently requested by management. For example, ports which are administratively ON but not yet connected would display an Operator status of OFF, since no packets are being forwarded.

Load

If you choose Load, the interface text boxes will display the percentage of network load processed by each port during the last polling interval. This percentage reflects the network load generated per polling interval by devices connected to the port compared to the theoretical maximum load (10, 100, 155.5, 800, or 1000 Mbps) of the connected network.

Errors

If you choose the Errors mode, the interface boxes will display the percentage of the total number of valid packets processed by each port during the last polling interval that were error packets. This percentage reflects the number of errors generated during the last polling interval by devices connected to that port compared to the total number of valid packets processed by the port.

I/F Mapping

If you choose the I/F Mapping mode, the interface boxes will display the interface number (ifIndex) associated with each port on the SmartSwitch 6000 or Matrix E7 module.

I/F Speed

If you choose the I/F Speed mode, the interface boxes will display the bandwidth of each individual port on the SmartSwitch 6000 or Matrix E7 module: 10M (megabits) for standard Ethernet; 100M for Fast Ethernet, 155.5 M for ATM, 800M for a backplane interface, and 1.00 G for Gigabit Ethernet.

I/F Type

If you choose the I/F Type mode, the interface boxes will display the network type supported by each interface on the SmartSwitch 6000 or Matrix E7 module, e.g., Eth (ethernet-csmacd), ATM, or FDDI. Note that there is no type distinction between standard Ethernet, Fast Ethernet, and Gigabit Ethernet.

Port status view options for a SmartSwitch 6000 or Matrix E7 Ethernet MicroLAN module are:

NOTE

The polling interval is set using the Device Management page of the Options window, accessed via the To ols—>O ptions selection fr om the main menu bar. Refer to the Element Manager User’s Guide for full information on setting node pol ling intervals.

Viewing Device Information 2-17

The Device View

Load

If you choose Load, the port text boxes will display the percentage of network load processed by each port during the last polling interval. This percentage reflects the network load generated by devices connected to the port compared to the theoretical maximum load (10, 100, 155.5, 800, or 1000 Mbps).

Port Assignment

If you choose Port Assignment, each port’s status box will display a letter which designates its current repeater channel assignment (A-H).

Status

You can view three status categories for your p orts which reflect six possible Adm in/Link, Admin, or Link Status conditions:

• Admin/Link — ON, OFF, SEG (segmented), or NLK (not linked)

• Admin — ON or OFF

• Link — LNK (link), NLK (not linked), or N/A (not available) If you have selected the Admin/Link status mode, a port is considered:

• ON if the port is enabled and has a valid link.

• OFF if it has not been enabled or if it has been disabled through management action.

• SEG (segmented) if the port has been enabled by management and has a valid

connection, but has been segmented by the repeater because 33 consecutive collisions have occurred on the attached segment, or the collision detector was on for more than

2.4 µs.

• NLK (Not Linked) when the port is on, but there is no physical link to the port. This

field is a combination of two status conditions: No Link and Port Administrative Status On.

If you have selected the Admin status mode, a port is considered:

• ON if the port is enabled.

• OFF if the port has been disabled by management. These conditions do not reflect link status.

The Device View

2-18 Viewing Device Information

If you have selected the Link status mode, a port is considered:

• LNK (Linked) when a valid link has bee n esta blished bet ween t he port and the devi ce at the other end of the segment.

• NLK (Not Linked) when the port is on, but there is no physical link to the port or the device at the other end of the port’s segment is down.

• N/A (not available) when NetSight Element Manager cannot determine the link status for the port.

Errors or Frame Size

If you choose the Errors or Frame Size modes, additional menus offer the following options for each mode:

Errors Total Errors, Collisions, Alignment, CRC, R unts, Giants, or OOW

Collisions

Frame Size Runts, 64-127, 128-255, 256-511, 512-1023, 1024-1518, or Giants

NOTE

Because BNC thin coax and AUI ports do not support the link feature, the displayed Admin/Link, Admin, and Link status co nditions will not always follow the pattern described above:

Under Admin/Link statu s mo de, BNC ports will display as ON if there is a valid connection and the por t has b een enabled; OFF if the port has been di sa bled; and SEG if the port has experienced 33 consecutive collisions or if there is no cable attached. An AUI port will display as ON i f th e por t has been enabled (regardless of whether or not there is a valid connection), OFF if the port has been disabled, and SEG if the port has detected 33 consecutive collisions. Note that the Admin/Link status displays for BNC and AUI ports can be misleading in terms of troubleshooting; be sure to keep in mind that a BNC port displaying as segmented may only have had its cable disconnected, and an AUI port that appears to be on and linked may not have any cable attached.

Under Admin status mode, AUI and BNC ports will display as ON if the port has been enabled, and OFF if it has been disabled; as with other port types, these ON and OFF conditions indicate nothing about link status.

Under Link status mode, AUI and BNC port display boxes w ill display N/A, indicating that NetSight Element Manager is u nable to determine their link status.

Viewing Device Information 2-19

The Device View

The port status boxes will display the percentage for each active port that represents what

portion of that port’s total traffic is of the specific type (Errors or Frame Sizes) that you selected. Select one of the Errors options to see what percentage of the total packets received by each active port during the last polling interval was of the error type you selected. This percentage reflects the number of errors generated by devices connected to that port in relation to the total number of packets processed by the port (errors [errors + packets]). Choose the Frame Size option to check on the sizes, in bytes, of frames passing through your ports. The percentages are calculated just like the Errors selection described above: the number given represents the number of packets of the selected size generated by devices connected to that port in relation to the total number of packets processed. Remember, these percentages are calculated based on the numbers of packets processed during one polling cycle.

Port Status Color Codes

Three of the Port Status display options — Bridge, Admin, and Operator — incorporate their own color coding schemes: for the Bridge option, green = FWD, blue = DIS, magenta = LIS or LRN, orange = BLK, and red = BRK; for Admin and Operator, green = ON, red = OFF, and blue = N/A (not available).

For all other Port Status selections — Bridge Mapping, Load, Errors, I/F Mapping, I/F Speed, and I/F Type — color codes will continue to reflect the most recently selected mode which incorporates its own color coding scheme.

For a SmartSwitch 6000 or Matrix E7 Ethernet MicroLAN module, three of the port status display options — Port Assignment, Port Type, and Status — incorporate their own color coding schemes. For any of th e Status display options — Admin/Li nk, Adm in, o r Link — green = ON/LNK, yellow = SEG/NLK, red = OFF, and blue = N/A (not available). For the Port Assignment display option, Channel A = magenta, Channel B = olive, Channel C = cyan, Channel D = yellow, Channel E = orange, Channel F = white, Channel G = green, Channel H = hot pink. For the Port Type display option, station p orts will display as yellow; trunk ports will display as green.

For all other MicroLAN Port Status selections — Load, Errors, and Frame Size — color codes will continue to reflect the most recently selected mode which incorporates its own color coding scheme.

The Device View

2-20 Viewing Device Information

The Chassis Backplane View

By default, the Device View window displays the Logical View of the 6C105/6C107 Chassis and an installed SmartSwitch 6000 or Matrix E7 module. The Logical View provides port status information and access to device-, module-, and port-level menus, as described above. In addition to the default Logical View, the View menu available via the menu bar at the top of the Device View window allows you to display views of the

chassis’ backplane:

• The Chassis Backplane View indicates the five (for the 6C105) or seven (for the 6C107) point-to-point backplane connections between the monitored SmartSwitch 6000 or Matrix E7 module and other modules in the chassis. The Backplane View also lets you disable those backplane connections.

The Chassis Backplane View

The Chassis Backplane View, Figure 2-4, indicates the operational status of the five point-to-point backplane connections between the monitored SmartSwitch 6000 or Matrix E7 module and other modules in the chassis slots. It also lets you enable or disable the backplane connections to other modules in the chassis.

To access the Chassis Backplane View:

1. In the Device View, click on View in the menu bar to access the View menu.

2. Click on BackPlane Config. The Chassis Backpl ane View, Figure 2-4, will appear.

Viewing Device Information 2-21

The Device View

Figure 2-4. The Backplane View

From the Backplane View you can display

the device interfaces with respect to their bridging status or their MIB II Interface status. The currently selected Port Display Form is shown in the label above the interfaces.

Below the Port Display Form label, the interfaces appear according to the currently selected Display Form. In the Bridge display form, you can access management options for the individual interfaces.

To change the display form between Bridge and Interface, click on the label and select the desired display form from the resulting menu. Bridge is the default display form.

When the display form is in Bridge mode, clicking on an interface results in a menu of options applicable to the selected backplane interface. The Performance Graph

option appears only if the port’s speed is less than 100 mb/s. For information on enabling or disabling the interface, see Enabling or Disabling a Backplane Interface, on

page 2-23. For details on the remaining menu options, refer

to their entries in The Port Menus, on page 2-13.

The Device View

2-22 Viewing Device Information

SmartSwitch 6000 cha ssi s: The backplane co nnections are indexed 1– 5, where 1 indicates the connection to first slot in the chassis and 5 indicates the connection to the last slot.

Matrix E7 chassis: The backplane connections are indexed 1–7, where 1 indicates the connection to first slot in the chassis and 7 indicates the conn ection to the last slot. Second generation boards used in the Matrix E7 show only 5 slots.

Backplane View Bridge Display Form

When the Backplane View display form is in the default Bridge mode, each connection is represented by a color-coded text field as follows:

FWD (Green) The interface is on-line and ready to fo rward packets across the

SmartSwitch 6000 or Matrix E7 from one module to another.

DIS (Blue) Bridging at the interface has been disabled by management; no

traffic can be received or forwarded o n this interface, including configuration infor mat i on for th e br id ged to pology .

LIS (Magenta) The interface is not adding information to the filtering

database. It is monitoring Bridge Protocol Data Unit (BPDU) traffic while preparing to move to the forwarding state.

LRN (Magenta) The Forwarding database is being created, or the Spanning

Tree Algorithm is being executed because of a network topology change. The interface is monitoring network traffic, and learning network addresses.

BLK (Orange) The interface is on-line, but filtering traffic from going across

the SmartSwitch 6000 or Matrix E7 from one module to another. Bridge topology informat io n wi ll be fo rward ed by t he interface.

BRK (Red) The interface has malfunctioned.

Backplane View Interface Display Form

When the Backplane View is in Interface mode, each connection is represented by a color-coded text field that indicates a combination of the interface’s Administrative status, Operational status, and Link status.

The following status conditions are supported: UNK (Gray) NetSight Element Manager cannot determine the backplane

interface’s Administrative, Operational, or Link status.

NOTE

For Matrix E7 users: Modules for the Matr ix E7 (6C107) chassis are third generation

Viewing Device Information 2-23

The Device View

ON (Green) The backplane interface is operational (up) and

administratively enabled. Link status is linked, or not applicable to the interface.

ON (Yellow) The backplane interface is operational (up) and

administratively enabled; however, the interface link status is Not Linked (NLK).

OFF (Blue) The interface is not operational, and prior to going do wn it was

also administratively disabled.

OFF (Red) The interface is not operational, but prior to going d own it was

in an administratively enabled state.

TEST (Magenta) The interface is in some test operational state.

--- (Gray) The backplane interface is that associated with the slot in

which the currently monitored SmartSwitch 6000 or Matrix E7 module is installed.

Enabling or Disabling a Backplane Interface

You can enable or disable a backplane interface as follows:

1. With the display form in Bridge mode, click on the backplane interface which

you wish to enable or disable. A menu will appear.

2. Select Enable or Disable, as desired.

The Chassis Manager Window

Like most networking devices, Cabletron and Enterasys devices draw their functionality from a collection of proprietary MIBs and IETF RFCs. In addition, certain Enterasys

intelligent devices — like the SmartSwitch 6000 or Matrix E7 module — organize their MIB data into a series of “components.” A MIB component is a logical grouping of MIB data, and each group controls a defined set of objects. For example, SmartSwitch 6000 or Matrix E7 module bridging information is organized into its own co mponent; Local Management (LIM) and RMON are also contained in separate components. Note, too, that there is no one-to-one correspondence be tween MIBs and MIB compon ents; a single MIB component might contain objects from several different proprietary MIBs and RFCs.

The Chassis Manager window, Figure 2-5, is a read-only window that displays the MIBs and the MIB component s — and, t herefore, t he function ality — s upported by the curren tly monitored device.

TIP

The SmartSwitch 6000 and Matrix E7 firmware will not allow you to disable the operational status of an interfa ce supporting yo ur active net work connectio n. This appl ies to both backplane and front panel interfaces. If you attempt to disable the backplane interface to the module that is supporting your active network connection, you will receive a SET FAILED message.

The Device View

2-24 Viewing Device Information

To view the Chassis Manager window:

1. Click on Help on the far right of the menu bar at the top of the Device View window.

2. Click on MIBs Supported.

Figure 2-5. The Chassis Manager Window

The Module Information Window

The Module Information window (Figure 2-6) displays system information, as well as data provided by the PIC chip (Product Information Chip). The PIC chip, which is updated each time a module is redesigned, maintains the manufacturing data for the module and stores certain information such as the MAC addresses of various components. Note that some devices will not return all the data displayed in the Module Information window; these fields will remain blank.

To view the Module Information window:

1. Click on the desired Module Index. The Module menu will appear.

NOTE

The Chassis Manager window will also appear briefly when the Device View window is launched.

The MIBs which provide the SmartSwitch 6000

and Matrix E7’s functionality — both proprietary MIBs and

MIB Components are listed here; remember, there’s no one-to-one correspondence between MIBs and MIB

Viewing Device Information 2-25

The Device View

2. Click on Module Information. The Module Information window, Figure 2-6,

will appear.

Figure 2-6. The Module Information Window

Firmware Version

The system description of the module, includin g its firmware revision number.

Boot Prom

The revision of boot PROM firmware in the module, incl ud i ng maj or v ers io n n umber and minor revision number. The boot PROM provides power-on diagnostics and download

capability which enables the module’s system image (which provides its runtime functionality) to be downloaded over the network.

Top Level Serial Number

The top level serial number of the module associated with this PIC chip which provides encoded manufacturing date, location , serial number, and top level revision number whic h can be used for troubleshooting information.

Base MAC Address

The base MAC address (in Ethernet format) assigned to the module.

SMB 1 Prom Version

This field is not applicable to the SmartSwitch 6000 or Matrix E7 module. It will be blank.

Viewing Hardware Types

In addition to the graphical displays d escribed above, menu optio ns available at the device and module levels provide specific information about the physical characteristics of the SmartSwitch 6000 or Matrix E7 chassis and its installed modules.

The Device View

2-26 Viewing Device Information

Device Type

Choosing the Device Type option on the Device menu brings up a window that describes the management device being modeled.

Figure 2-7. Example Device Type Windows

Module Type

From the Module menus on the Device View window, you can view a description of the Module types installed in your chassis.

To view a Module type:

1. Click on the desired Module Index. The Module menu will appear.

2. Click on Module Type. A Module Type text box (similar to the example shown in Figure 2-8) will appear , describing the module type.

Figure 2-8. Sample Module Type Text Box

Interface Description

Choosing the Description option from the Port menu brings up a window that describes the selected interface.

Viewing Device Information 2-27

The Device View

Figure 2-9. Sample Interface Description Windows

Viewing I/F Summary Information

The I/F Summary menu option available from the Device menu lets you view statistics for the traffic processed by each network interface on your device. The window also provides access to a detailed statistics window that breaks down Transmit and Receive traffic for each interface.

To access the I/F Summary window:

1. From the Device View, click on the Device option from the menu bar.

2. Click again to select I/F Summary. The I/F Summary window, Figure 2-10,

will appear.

Figure 2-10. The I/F Summary Window

The Device View

2-28 Viewing Device Information

The I/F Summary window provides a variety of descriptive information about each

interface on your device, as well as statistics which display each interface’s performance. The following descriptive information is provided for each interface:

Index

The index value assigned to each interface on the device.

Type

The type of the interface, distinguished by the physical/link protocol(s) running immediately below the network layer. Possible values are fddi (for an installed HSIM-F6), ethernet-csmacd (for standard, Fast Ether net, and Gigabit Ethernet front pan el interfaces, as well as the backplane interfaces to the chassis), atm (for an installed HSIM-A6), and Software LoopBack for the i960 Host Data port.

Description

A text description of the interface: Enterasys Enet or Ethernet Front (for the standard Ethernet front panel interfaces), Enterasy s F as t or Fast Ethernet (for front panel Fast Ethernet interfaces), Enterasys Back or FTM Backplane (for the backplane interfaces to the chassis), Host or Host Data Port for the on-board i960 Host interface, and ATM, Enterasys ATM, FDDI, or Enterasys FDDI for an installed HSIM.

Physical Status

Displays the current physical status — or operational state — of the interface: Online or Offline.

Logical Status

Displays the current logical status — or administrative state — of the interface: Up or Down.

Interface Performance Statistics

The statistical values (and, where available, the accompanying bar graphs) to the right of the interface description fields provide a quick summary of interface performance. You can select the statistical value you want to display and th e un its in which you want those values displayed by using the two menu fields directly above the interface display area, as follows:

1. In the right-most menu field, click on the down arrow and select the unit in which you wish to display the selected statistic: Load, Raw Counts, or Rate.

2. Once you have selected the base unit, click on the down arrow in the left-most

field to specify the statistic you’d like to display. Note that the options available from this menu will vary depending on the base unit you have selected.

After you select a new display mode, the statistics will refresh to reflect the curr ent choice, as described below.

Viewing Device Information 2-29

The Device View

Raw Counts

The total count of network traffic received or transmitted on the indicated interface since device counters were last reset. Raw counts are provided for the following parameters:

In Octets Octets received on the interface, including framing characters. In Packets Packets (both unicast and non-unicast) received by the device

interface and delivered to a higher-layer protocol.

In Discards Packets received by the device interface that were discarded

even though no errors prevented them from being delivered to a higher layer protocol (e.g., to free up buffer space in the device).

In Errors Packets received by the device interface that contained errors

that prevented them from being delivered to a higher-layer protocol.

In Unknown Packets received by the device interface that were discarded

because of an unknown or unsupported protocol.

Out Octets Octets transmitted by the interface, including framing

characters.

Out Packets Packets transmitted, at the request of a higher level protocol,

by the device interface to a subnetwork address (both unicast and non-unicast).

Out Discards Outbound packets that were discarded by the device interface

even though no errors were detected that would prevent them from being transmitted. A possible reason for discard would be to free up buffer space in the device.

Out Errors Outbound packets that could not be transmitted by the device

interface because they contained errors.

Load

The number of bytes processed by the indicated interface during the last poll interval in comparison to the theoretical maximum load for that interface type (10 Mbps for standard Ethernet; 100 Mbps for Fast Ethernet or FDDI; 155.5 Mbps for ATM; 800 Mbps for a backplane port; 1000 Mbps for Gigabit Ether net). Load is further defin ed by the following parameters:

In Octets The number of bytes received by this interface, expressed as a

percentage of the theoretical maximum load.

Out Octets The number of bytes transmitted by this interface, expressed as

a percentage of the theoretical maximum load.

The Device View

2-30 Viewing Device Information

Rate

The count for the selected statistic during the last poll interval. The available parameters are the same as those provided for Raw Counts. Refer to the Raw Counts section,

page 2-29, for a complete description of each parameter.

Viewing Interface Detail

The Interface Statistics window (Figure 2-11) provides detailed MIB-II interface

statistical information — including counts for both transmit and receive p ackets, and error and buffering information — for each individual port interface. Color-coded pie charts also let you graphically view statistics for both received and transmitted Unicast, Multicast, Discarded, and Error packets.

To open the Interface Statistics window:

1. In the I/F Summary window, click to select the interface for which you’d like to view more detailed statistics.

2. Click on Detail. The appropriate I/F Statistics window, Figure 2-11, will appear.

Figure 2-11. Detail Interface Statistics

Viewing Device Information 2-31

The Device View

Three informational fields appear in the upper portion of the window:

Description

Displays the interface description for the currently selected interface (e.g., Enterasys Enet Port, Enterasys Fast Enet Port, FDDI, ATM, or Enterasys Backplane Port).

Address

Displays the MAC (physical) address of the selected interface.

Type

Displays the interface type of the selected port: ethernet-csmacd, fddi, or atm.

The lower portion of the window provides the following transmit and receive statistics; note that the first four statistics are also graphically displayed in the pie charts.

Unicast

Displays the number of packets transmitted to or received from this interface that had a single, unique destination address. These statistics are displayed in the pie chart, color-coded green.

Non-Unicast

Displays the number of packets transmitted to or received from this interface that had a destination address that is recognized by more than one device on the network segment.

The multicast field includes a count of broadcast packets — those that are recognized by all devices on a segment. These statistics are displayed in the pie chart, color-coded dark blue.

Discarded

Displays the number of packets which were discarded even though they contained no errors that would prevent transmission. Good packets are typically discarded to free up buffer space when the network becomes very busy; if this is occurring routinely, it usually means that network traffic is overwhelming the device. To solve this problem, you may need to re-configure your bridging parameters, or perhaps re-configure your network to add additional bridges or switch e s. Consult the Enterasys Network Troubleshooting Guide for more information.

These statistics are displayed in the pie chart, color-coded magenta.

Error

Displays the number of packets received or transmitted that contained errors. These statistics are displayed in the pie chart, color-coded red.

TIP

You can also access this information via the I/F Statistics option available on the individual port menus.

The Device View

2-32 Viewing Device Information

Unknown Protocol

(Received only)

Displays the number of packets received which were discarded because they were created under an unknown or unsupported protocol.

Packets Received

(Received only)

Displays the number of packets received by the selected interface.

Transmit Queue Size

(Transmit only)

Displays the number of packets currently queued for transmission from this interface. The amount of device memory devoted to buffer space, and the traffic level on the target network, determine how large the output packet queue can grow before the SmartSwitch 6000 or Matrix E7 module will begin to discard packets.

Packets Transmitted

(Transmit only)

Displays the number of packets transmitted by this interface.

Making Sense of Detail Statistics

The statistics available in this window can give you an idea of how an interface is

performing; by using the statistics in a few simple calculations, it’s also possible to get a sense of an interface’s activity level:

To calculate the percentage of input errors:

Received Errors /Packets Received

To calculate the percentage of output errors:

Transmitted Errors /Packets Transmitted

To calculate the total number of inbound and outbound discards:

Received Discards + Transmitted Discards

To calculate the percentage of inbound packets that were discarded:

Received Discards /Packets Received

To calculate the percentage of outbound packets that were discarded:

Transmit Discards /Packets Transmitted

Using the Device Find Source Address Option

To detect the port through which a given MAC address is communicating, use the Device Find Source Address window.

Viewing Device Information 2-33

The Device View

When you select the Device Find Source Address option, the device’s 802.1d Filtering database is searched for the specified MAC address. If it is found, the Component field will display the value “Bridge” indicating that the addres s was found on a bridging interface, and the Port Instance field will display the index number assigned to the bridge port on which the address was located.

To open the Device Find Source Address window:

1. Click on Device in the Device View menu bar.

2. Click on Device Find Source Address. The Device Find Source Address

window, as shown in Figure 2-12, will appear.

Figure 2-12. Device Find Source Address Window

The Device Find Source Address window displays the following information:

Component

Displays the type of interface through which the specified MAC address is communicating. This field will report Bridge.

Port Instance

Displays the bridge port index number on which the specified MAC address was found.

NOTE

You may receive an error message stating “Can’t Display Source Address” if a Port Instance of “0” or “0.0” is reported. This value indicates that the MAC address is communicating through the backplane instead of through a front panel interface.

The Device View

2-34 Viewing Device Information

To use the Device Find Source Address window:

1. In the Address Mode field, select the format of the Source Address you wish to find, either MAC or Canonical.

2. In the Enter Address text box, enter the Source Address you wish to find in the appropriate XX-XX-XX-XX-XX-XX format.

3. Click on t he Find It! button. A “Processing Request” message will appear in

the status bar at the bottom of the window.

If the specified MAC address is located, a list of the interface(s) through which the given address is communicating will appear in the list box. A status message at the bottom of the window will display the number of interfaces through which the given MAC address is communicating.

If the specified MAC address cannot be found, a “Source Address not found” message will appear.

Using Device Find Source Address on Ethernet MicroLAN Modules

When you select the Device Find Source Address option on an Ethernet MicroLAN module (e.g., the 6E123-50 or 6E133-49), a search is made of both the Source Address Table (SAT) and the 802.1d Filtering database to discover through which interface(s) a specified source MAC address is communicating. If the MAC address is found, the interface types “Bridge” and “Enet #” will display in the Component field with their associated port index number displayed in the Port Instance field.

To open the Device Find Source Address window:

NOTE

If you enter the MAC format of a specified address, and then click on Canonical, NetSight Element Manager will do the address conversion for you. The same is also true if you enter the Canonical format of a specified address and then select MAC.

NOTE

If the MAC address is entered in an incorrect format, an “Invalid MAC Address. Enter Valid MAC Address” message will appear. Enter the address in the correct

XX-XX-XX-XX-XX-XX hexadecimal format.

NOTE

You may receive an error message stating “Can’t Display Source Address” if a Port Instance of “0” or “0.0 ” is reported while us i ng th e Device Find Source Address feature. This value indicates that the MAC address is communicating through the backplane instead of through a front panel interface.

Viewing Device Information 2-35

The Device View

1. Click on Device in the Device View menu bar.

2. Click to select Device Find Source Address. The Device Find Source

Address window, as shown in Figure 2-12, will appear.

Figure 2-13. Device Find Source Address Window

The Device Find Source Address window displays the following information:

Component

Displays the type of interface through which the specified MAC address is communicating . This field will displa y Bridge and Enet #, indicating that the specified MAC address was found on a bridging interface and on an Ethernet repeater channel.

Port Instance

Displays the port index number associated with the interface on which the specified MAC address was found. For an address found on a bridging interface, this field displays the bridge interface index number on which the specified MAC address was found. For an address found on a repeater port, this field displays the board (port group) number and the port index number on which the specified MAC address was found. The board and port index numbers are separated by a period; for example, a Port Instance of 1.2 refers to board (port group) 1 and port number 2.

To use the Device Find Source Address window:

1. In the Address Mode field, select the format of the Source Address you wish

to find, either MAC or Canonical.

2. In the Enter Address text box, enter the Source Address you wish to find in

the appropriate XX-XX-XX-XX-XX-XX format.

The Device View

2-36 Managing the Module

3. Click on t he Find It! button. A “Processing Request” message will appear in

the status bar at the bottom of the window.

If the specified MAC address cannot be found, a “Source Address not found” message will appear.

Managing the Module

In addition to the performance and configuration information described in the preceding sections, the Device View also provides you with the tools you need to configure your SmartSwitch 6000 or Matrix E7 module and keep it operating properly. Hub management functions include setting operatin g parameters for Ethernet, FDDI, Fast Ethernet, Gigabit Ethernet and COM ports; managing an attached UPS; redirecting traffic from one module interface to another; setting port priority parameters; configuring transmission thresholds for broadcast packets; viewing and configuring system resources; setting device date and time; and enabling and disabling bridging at specific port interfaces.

Configuring Ports

The Configuration options available for FDDI, Ethernet, Fast Ethernet, Gigabit Ethernet and COM ports allow you to configure operating parameters specific to each port type: for FDDI and standard Ethernet ports, you can set the Duplex Mode; for Fast Ethernet ports on first generation modules, you can set a variety of duplex mode and negotiation parameters; for Fast Ethernet and Gigabit Ethernet ports on second generation modules you can set speed, duplex mode , and flow contro l parameters ; and for COM por ts, you can select the operation you wish the port to perf orm, and set any associated speed p arameters. FDDI, Ethernet, Fast Ethernet and Gigabit Ethernet Port Configuration windows are

NOTE

If the MAC address is entered in an incorrect format, an “Invalid MAC Address. Enter Valid MAC Address” message will appear. Enter the address in the correct

XX-XX-XX-XX-XX-XX hexadecimal format.

Managing the Module 2-37

The Device View

available from the Device View Port menus (except on Ethernet MicroLAN modules where they are available from the Bridge Port menu); the COM Port option is available from the Device menu. Note that no configuration option currently exists for ATM ports.

Configuring Standard Ethernet and FDDI Ports

The Port Configuration window available for both standard Ethernet and FDDI ports allows you to set an interface to either Standard or Full Duplex Mode. Full Duplex mode effectively doubles the available wire speed by allowing the interface to both receive and transmit simultaneously. This window will also display the mode currently in effect on the selected interface.

T o access the Port Configuration window:

1. From the Device View, click to select the port you wish to configure. The Port

Menu will display.

2. Click on Configuration. The Port Configuration window, Figure 2-14, will

appear.

To access the Port Configuration window on SmartSwitch 6000 or Matrix E7 MicroLAN modules (e.g., 6E123-50 and 6E133-49):

1. In the Device View, click on Device in the menu bar to access the Device

menu.

2. Click on Bridge Status. In the resulting window, click on the Bridge Port

button to access the Bridge Port menu.

3. Click on Configuration. The Port Configuration window, Figure 2-14, will

appear.

Figure 2-14. The Port Configuration Window

The Device View

2-38 Managing the Module

Use the options in this window to select the desired mode:

Standard Mode

In Standard Mode, an interface can only either transmit or receive at any given time, and must wait for one activity to be completed before switching to the next activity (receive or transmit). In this mode, st andar d wire s peed s (10 Mbp s f or Ethern et, 10 0 Mbp s for F DDI) are available.

Full Duplex

In Full Duplex Mode, an interface can bo th r eceive and transmit packets at the same time, effectively doubling the available wire speed to 20 Mbps (for Ethernet) or 200 Mbps (for FDDI).

Be sure to click on the Apply button to set your changes; note that the interface’s current

mode can be determined by the field selected in the window.

TIP

If you select the Configuration option availab le for a Fast Ethernet interface, an entirely different window will appear; see Configuring Fast Ethernet Ports on First Generation

Modules, on page 2-39, or Configuring Ethernet Ports on Second Generation Modules,

page 2-44, for information on configuring these ports.

WARNING

For standard Ethernet interfaces, Full Duplex should only be enabled on an interface that has a connection to a single destination address at the other end of the connection (i.e., it is not a segment with an attached repeater cascadin g the connection to multiple destination addresses).

Full Duplex mode disables the collision detection circuitry at the interface, so that bo th Transmit and Receive wir es can be used simultaneously. W ith a single destination addr ess at the other end of the connection (for example, if the connection was to a full duplex interface on another switching module, or if a single file server was connected to the full duplex switch port), this essentially doubles the available bandwidth from 10 Mbit/sec to 20 Mbit/sec. Note that the interface at the other end of the connection must also have Full Duplex enabled at the attached interface.

Full Duplex mode must be disabled if the interface is communicating with multiple destinations simultaneously (i.e., if a repeater is cascaded from the interface), since Ethernet relies on Collision Sense for proper operation.

Similarly, an FDDI Full Duplex connection must also only be run point-to-point between two supporting FDDI interfaces (e.g., another HSIM-F6), since the dual bandwidth is attained by running data on both pr imary and s econdar y paths simul tane ously. Since Full Duplex overrides standard FDDI protocol (and eliminates ring redundancy), it will not

operate in a “ring” configuration, but only as a point-to-point high speed data trunk between hubs. Note that you must use Local Management to configure your HSIM-F6 for Full Duplex operation prior to making physical connections. Refer to your Local Management Guide for more information.

Managing the Module 2-39

The Device View

Configuring Fast Ethernet Ports on First Generation Modules

The Fast Ethernet Configuration window available for Fast Ethernet ports on first generation modules (e.g., 6H1 22-xx an d 6H128-0 8) allows you to both view and set t hose

ports’ available modes. All 100Base-TX Fast Ethernet ports can be configured to operate in either standard Ethernet (10 Mbps) or Fast Ethernet (100 Mbps) mode, and in each mode can be configured to operate in Full Duplex, effectively dou bling the available wire speed (from 10 to 20 Mbps in standard Ethernet mode, or from 100 to 200 Mbps in Fast Ethernet mode); 100Base-FX (fiber) ports can be configured to operate in their standard 100 Mbps mode, or in Full Dupl ex mode. Th is window al so display s the mod e currently in effect on the selected interface, and provides some information (where it is available) about the interface’s link partner.

To access the Fast Ethernet Configuration Window:

1. From the Device View, click to select the port you wish to configure; the Port

Menu will display.

2. Click on Configuration. The Fast Ethernet Configuration window,

Figure 2-15, will appear.

To access the Fast Ethernet Configuration window on SmartSwitch 6000 or Matrix E7 MicroLAN modules (e.g., 6H123-50):

1. In the Device View, click on Device in the menu bar to access the Device

menu.

2. Click on Bridge Status. In the resulting window click on the Bridge Port

button to access the Bridge Port menu.

3. Click on Configuration. The Fast Ethernet Configuration window,

Figure 2-14, will appear.

The Device View

2-40 Managing the Module

Figure 2-15. The Fast Ethernet Port Configuration Window

From this window you can manually set the operational mode of the port, or — for 100Base-TX interfaces — set the port to Auto-Negotiation so that the appropriate operational mode can be determined automatically. The mode you set will determine the speed of the port and whether it uses Full Duplex or Standard Mode bridging.

NOTE

Auto-Negotiation is not s upp or t ed by t he FE-1 00FX Fast Et her net po rt i nte rfa ce modul e. If you launch the window for a port module slot which has no FE module installed, the Port Type will display as Unknown, the Link State will display No Link, and the rest of the fields will be blank and/or grayed out.

TIP

If you select the Configurat ion option a vailable for a s tandar d Et hernet or FDDI interf ace or for an Ethernet port on a second generation module, an entirely different window will appear; see Configuring Standa rd Eth ernet an d FDDI Po rts , page 2-37, or Co nfig urin g

Ethernet Ports on Second Gene ration Modules, page 2-44, for information on

configuring these port s.

Managing the Module 2-41

The Device View

The window displays the following information about the selected Fast Ethernet port:

Port Type

Displays the port’s type: 100Base-TX RJ-45 (for built-in Fast Ethernet ports and the FE-100TX Fast Ethernet port module), 100Base-FX MMF SC Connector (for the FE-100FX Fast Ethernet port module), or Unknown (for a port slot with no module installed).

Link State

Displays the current connection status of the selected port: Link or No Link.

Current Operational Mode

Indicates which of the available operational modes is currently in effect: 10Base-T, 10Base-T Full Duplex, 100Base-TX, 100Base-TX Full Duplex, 100Base-FX, or 100Base-FX Full Duplex. If the port is still initializin g, not linked, or if there is no port module installed in the slot, this field will remain blank.

Desired Operational Mode

Displays the operational mode that you have selected for th is port, and allows you to change that selection. The following operational modes are available for each port:

100Base-TX Auto-Negotiation, 10Base-T, 10BASE-T Full Duplex, 100Base-TX,

and 100Base-TX Full Duplex.

100Base-FX 100Base-FX and 100Base-FX Full Duplex

Note that if Auto-Negotiation is the selected mode, the Current Operational Mode field will indicate which mode was selected by the link partne r.

See Setting the Desired Operational Mode, on page 2-42, for more information.

Advertised Abilities

For 100Base-TX ports which have been configured to operate in Auto-Negotiation mode, this field allows you to select which of the operational modes available to the port can be selected by the negotiating link partners.

CAUTION

If you choose to select a specific mode of operation (rath e r than auto-negotiation), you should be sure that the link partner supports the same mode. Otherwise, no link will be achieved.

If you select a Full Duplex mode and the link partner supports the same wire speed but not Full Duplex, a link will be achieved, but it will be unstable and will behave erra tically.

If you select Auto-Negotiation, the local node will try to match the mode of the link partner, even if the link partner is not set to auto-negotiate, and even if the local node must use a mode which it is not currently advertising.

The Device View

2-42 Managing the Module

During Auto-Negotiation, each of the link partners will advertise all selected modes in descending bandwidth order: 100Base-TX Full Duplex, 100Base-TX, 10Base-T Full Duplex, and 10Base-T. Of the selected abilities, the highest mode mutually available will automatically be used. If there is no mode mutually advertised, no link will be achieved.

If you have selected a specific operational mode for your 100Base-TX port, the Advertised Abilities do not apply; the selected Advertised Abilities also do not restrict the

local node’s ability to set up a link with a partner who is not currently Aut o-Negotiating.

Remote Capabilities

When the local node is set to Auto-Negotiation, this field will display the advertised abilities of the remote link — even if the remote link is not currently set to auto-negotiate. Possible values for this field are:

• 100Base-TX Full Duplex

• 100Base-TX

• 10Base-T Full Duplex

• 10Base-T

• Link Partner does not support Auto-Negotiation — Auto-Negotiation is either not supported by or is not currently selected on the remote port.

• Unknown — the link partner ’s capabilities could not b e determ ined.

When the local node is not set to Auto-Negotiation, this field will be grayed out, even if the link partner is set to Auto-Negotiation and is advertis ing abilities.

Setting the Desired Operational Mode

For any 100Base-TX port, you can specifically choose any one of the four available operational modes, or you can select Auto-Negotiation mode, which allows the port to negotiate with its link partner to find the highest m utually available bandwidth. If you select Auto-Negotiation mode, you must also choose which of the port’s bandwidth capabilities you wish to advertise to the link partner.

NOTE

Auto-Negotiation is not currently supported for 100Base-FX ports.

NOTE

If both link partners are set to Auto-Negotiation, but there is no mutually-advertised operational mode, no link will be achieved, and both nodes may display the message

“Link Partner does not support Auto-Negotiation.” T o resolve this situation, be sure both link partners advertise all their abilities, or be sure they advertise at least one mutually-available mode.

Managing the Module 2-43

The Device View

For a 100Base-FX port, the selection process is somewhat simpler; Auto-Negotiation for these ports is not supported at this time, so you need only choose between 100Base-FX standard mode and 100Base-FX Full Duplex. However, you must still be sure that both link partners are set to the same operational mode, or the link will be unstable.

To set your desired operational mode:

1. Click on the Desired Operational Mode list box to display the menu of

available options; click to select the operational mode you wish to set.

For 100Base-TX ports, the available options are:

Auto Negotiation — the operational mode will be dynamically set based on the modes selected in the Advertised Abilities field (where both link partners are auto-negotiating) and the speeds and modes supported by the attached device

10Base-T — 10 Mbps connection, Standard Mode 10Base-T Full Duplex — 10 Mbps connection, Duplex Mode 100Base-TX — 100 Mbps connection, Standard Mode 100Base-TX Full Duplex — 100 Mbps connection, Duplex Mode

For 100Base-FX ports, options are:

100Base-FX — 100 Mbps connection, Standard Mode 100Base-FX Full Duplex — 100 Mbps connection, Duplex Mode

2. If you have selected Auto-Negotiation (for 100Base-TX ports only), use the

Advertised Abilities field to select the operational capabilities you wish to advertise to the port’s link partner. If both link partners will be auto-negotiating, be sure there is at least one mutually-advertised operational mode, or no link will be achieved.

TIP

If you select Auto-Negotiation at both ends of a link, be sure at least one mutually-advertised operational mode is available.

TIP

The selected Advertised Abilities only come into play when both link partners are auto-negotiating; if only one link partner is set to auto-negotiate, that node will establish a link at whatever mode its partner is set to, even if that mode is not currently being advertised.

The Device View

2-44 Managing the Module

3. Click on the Apply button to save your changes. Click on the Refresh button to display the new settings. Note that it may take a few minutes for mode changes to be completely initialized, particularly if the link partners must negotiate or re-negotiate the mode; you may need to refresh the window a few times before current operational data is displayed.

Configuring Ethernet Ports on Second Generation Modules

The Ethernet Configuration wi ndow availab le for Fast Ethernet and Gig abit Ethernet ports on second generation modules (e.g., 6E233-49 and 6H258-17) allows you to both view

and set those ports’ available speed, modes, and flow control. All second generation modules support t he ctEthernetParameters MIB. All Ethernet ports that return at least one instance for a query of the ctEtherSupportedDuplex OID will use the Ethernet Configuration window as shown in Figure 2-16.

All 100Base-TX Fast Ethernet ports can be configured to operate in either standard Ethernet (10 Mbps) or Fast Ethernet (100 Mbps) mode, and each mode can be configured to operate in Full Duplex effectively doubling the available wire speed (from 10 to 20 Mbps in standard Ethernet mode, or from 100 to 200 Mbps in Fast Ethernet mode). 100Base-FX (fiber) ports can be configured to operate in their standard 100 Mbps mode, or in Full Duplex mode. 1000Base-SX/LX/CX Gigabit Ethernet ports are always configured to operate in 1000 Mbps, Full Duplex mode.

This window displays the mode currently in effect on the selected interface, and provides some information (where it is available) about the interface’s link partner.

T o access the Ethernet Configuration Window:

1. From the Device View, click to select the port you wish to configure; the Port Menu will display.

2. Click on Configuration. The Ethernet Configuration window, Figure 2-15, will appear.

Managing the Module 2-45

The Device View

Figure 2-16. The Ethernet Configuration Window

From this window you can manually set the operational mode of the port, or — for 100Base-TX and 1000Base-SX/LX/CX interfaces — set the port to Auto Negotiate so that the appropriate operational mode can be determined automatically. The mode you set will determine the port’s speed, duplex mode, and flow control.

The window displays the following information about the selected Ethernet port:

Port Type

Displays the port’s type: 100Base-TX RJ-45or RJ71 (for built-in Fast Ethernet ports and the FE-100TX Fast Ethernet port module), 100Base-FX MMF SC Connector (for the

TIP

If you select the Configurat ion option a vailable for a s tandar d Et hernet or FDDI interf ace or for a Fast Ethernet port on a first generation module, an entirely different window will appear; see Configuring Standard Et hernet and FDDI Po rts, pa ge 2-37, or Conf igu rin g

Fast Ethernet Ports on First G e neration Modules, page 2-39, for information on

configuring these port s.

The Device View

2-46 Managing the Module

FE-100FX Fast Ethernet port modul e), 1000Bas e-SX/LX/CX (for the VHSI M-G6 Gigabit Ethernet port module), or Unknown (for a port slot with no module installed).

Link State

Displays the current connection status of the selected port: Link or No Link.

Remote Auto Signal

Indicates whether the operating mode at the remote end of the link is set to Auto Negotiate.

Auto Negotiate Config

Indicates whether Auto Negotiate signalling is in progress or has completed. Possible values for this field are: configuring, complete, disabled, parallel detect failed, or other.

Auto Negotiate Mode

Use this field to enable or disable Auto Negotiate for the port. If Auto Negotiate is disabled, the port will use the speed, duplex mode, and flow control settings specified in the Operational Mode fields. Note that 100-BaseFX ports do not support Auto Negotiation; they must use the control settings specified in the Operational Mode fields.

Operational Mode Fields

If the port is not set to Auto Negotiate then the settings in the Operational Mode fields are used.

The Current Operational Mode settings indicate which of the available operational modes is currently in effect. If Auto Negotiate is the selected mode, the Current Operational Mode fields will indicate which mode was selected by the link partner.

The Desired Operational Mode settings display the operational mode that is currently selected for this port, and allows you to change the selection.

The following operational modes can be specified:

Speed

This field specifies a port speed of 10MB, 100MB, or 1000MB.

CAUTION

If you choose to select a specific mode of operation (rath e r than auto negotiation), you should be sure that the link partner supports the same mode. Otherwise, no link will be achieved.

For example, if you select Full Duplex mode and the link partner supports the same wire speed but not Full Duplex, a link will be achieved, but it will be unstable and will behave erratically.

If you select Auto-Negotiation, the local node will try to match the mode of the link partner, even if the link partner is not set to auto-negotiate, a nd even if the local node must use a mode which it is not currently advertising.

Managing the Module 2-47

The Device View

Duplex

This field specifies Half Duplex or Full Duplex mode for the port.

Flow Control

Flow control allows Ethernet devices to notify attached devices that congestion is occurring and that the sending device should stop transmitting until the congestion can be cleared. There are two commonly used methods of flow control: Frame-based (operates on Full Duplex links) and Backpressure (operates on Half Duplex links).

Ports set to Full Duplex mode have frame-based flow control, using pause control frames. Frame-based flow control options are:

Symmetric The port is able to both receive and transmit pause control frames. Asymmetric RX This option appears only for Gigabit Ethernet ports. The port will

receive pause control frames, but will not transmit its own.

Asymmetric TX This option appears only for Gigabit Ethernet ports. The port is

capable of sending pause control frames, but will not acknowledge received pause control frames.

Disabled Disables flow c ontrol on the port. Auto Negotiate Ports co nfigured to operate in auto negotiation mode will only use

pause control frames if the negotiation process determines that the link partner supports them. Both ends of the link must support auto negotiation and a common mode of operation.

Ports set to Half Duplex mode use Backpressure flow control. Backpressure flow control simply asserts the carrier sense signal out the port causing the device transmitting to detect a collision, stop transmitting data, and sen d the jam signal. Backpressure flow control options are enabled or disabled.

Setting the Desired Operational Mode

For any 100Base-TX port, you can configure operational modes, or you can select Auto Negotiate mode, which allows the port to negotiate with its link partner to find the highest mutually available bandwidth and flow control. If you select Auto Negotiate mode, you

must also choose which of the port’s bandwidth and flow control capabilities you wish to advertise to the link partner (refer to Auto Negotiation Technologies, page 2-48).

100Base-FX ports do not support auto negotiation for bandwidth or flow control capability, so you must choose between 100Base-FX Half Duplex and 100Base-FX Full Duplex mode, and set the flow control option. H owever, you must still be sure that both link partners are set to the same operational mode, or the link will be unstable.

For 1000Base-SX/LX/CX ports the speed and duplex modes are always configured at 1000MB Full Duplex. However, you can select Auto Negotiate mode, which allows the port to negotiate with its link partner to find the highest mutually available bandwidth and flow control. If you select Auto Negoti ate mod e, you must also choose which of the port ’s bandwidth and flow control capabilities you wish to advertise to the link partner (refer to

Auto Negotiation Technologies, page 2-48).

The Device View

2-48 Managing the Module

To set your desired operational mode:

1. Click on the Speed, Duplex, or Flow Control list box to display the menu of available options; click to select the operational mode you wish to set.

2. Click on the Apply button to save your changes.

Auto Negotiation Technologies

For ports which have been configured to operate in Auto Negotiate mode, this list box allows you to select which of the operational modes available to the port will be advertised to the negotiating link partner.

During Auto Negotiation, each of the link partners will advertise all selected modes. Of the selected modes, the highest mode mutually available will automatically be used. If there is no mode mutually advertised, no link will be achieved.

If you have manually configured s pecifi c op erati onal mo des for y our 100Base-TX port or if you are configuring a 100Base-FX port, the Auto Negotiation Technologies list box does not apply.

The Auto Negotiation Technologies list box has the following column headings:

Advertised

This column specifies whether the operational mode listed in the far right column of the list box will be advertised to the link partner. Only those operational modes supported by

the local port (those with a “yes” listed in the Local column) can be advertised. Valid values are Enabled (the mode is supported and will be advertised), Disabled (the mode is supported but will not be adve rtised), and “---” (the mode is not supported).

Local

Indicates whether the operational mode listed in the far right column of the list box is supported by the local port.

Remote

Indicates whether the operational mode listed in the far right column of the list box is supported by the remote port.

NOTE

If the port you are configuring does not support Flow Control, the Current Mode field will

display “not supported” and the Desired Mode list box will be disabled.

TIP

If you select Auto-Negotiation at both ends of a link, be sure at least one mutually-advertised operational mode is a v ailable.

Managing the Module 2-49

The Device View

Auto Negotiate Technology

This column lists possible operational modes.

Setting Advertised Abilities for Auto Negotiation

You can determine which operational mode supported by the local port will be advertised to the negotiating link partner. Of the advertised modes, the highest mode mutually available will automatically be used.

To advertise an operational mode:

1. In the list box, click on the operational mode of choice.

If the Advertised column had a value of Enabled, it will change to Disabled; a value of Disabled will change to Enabled. If the Advertised column has a

value of “---”, then the value is not changed.

2. Click on the Apply button to save your changes. Click on the Refresh button

to display the new settings. Note that it may take a few minutes for mode changes to be completely initialized, particularly if the link partners must negotiate or re-negotiate the mode; you may need to refresh the window a few times before current operational data is displayed.

Configuring the COM Port

You can use the COM Port Configuration window (Figure 2-17) to specify the functions that will be performed by the RS232 COM port on the front panel of the monitored SmartSwitch 6000 or Matrix E7 module. To do so:

1. Click on Device in the Device View menu bar to display the Device menu.

2. Click on COM Port Configuration and then select Port 1. The COM Port

Configuration window, Figure 2-17, will appear.

Figure 2-17. The COM Port Configuration Window

The Device View

2-50 Managing the Module

You can use the COM Port Configuration window to set the following operating parameters:

COM Port Admin

Use this field to administratively enable or disable the COM port.

COM Port Function

Use this field to select the function for which you wish to use the COM port: LM Local Management: select this option if you wish to connect a terminal

to the COM port from which to run Local Management.

UPS Select this option if you wish to connect an uninterruptable power

supply (UPS) to the COM Port. Note that if you select this option, an

additional option — UPS — will appear on the Device menu when yo u exit and re-enter device management; use the resulting window to configure specific UPS settings.

SLIP Select this option to use the COM port as a SLIP connection for

out-of-band SNMP management via direct connection to a serial por t on your network management workstation. Note that when you configure the port as a SLIP connection, you must select the desired baud rate in the Speed Selection field described below.

PPP Select this option to use the COM port as a PPP connection for

out-of-band SNMP management via direct connection to a serial por t on your network management workstation. Note that when you configure the port as a PPP connection, you must select the desired baud rate in the Speed Selection field, page 2-50.

Speed Selection

If you have configured the selected port as a SLIP or PPP connection, you must select the appropriate baud rate: 2400, 4800, 9600, or 19,200. Note that this field will default to Auto-Baud and become unselectable when the COM Port Function is set to LM or UPS.

NOTE

Current SmartSwitch 6000 or Matrix E7 firmware versions support only Local Management and UPS via the COM ports; future versions will add SLIP and PPP support. You will receive a SET failed message if you attempt to configure the COM port for SLIP or PPP support.

TIP

If the COM port you wish to configure is currently set to LM or UPS, the Speed Selection field will be unavailable until the COM Port Function is set to SLIP or PPP and that change is applied. Once available, the Speed Selection field will default to the last know n speed setting; use the down arrow to change this setting if necessary, then click the Apply button again to complete th e configuration.

Managing the Module 2-51

The Device View

To change the configuration of the selected COM port:

1. Click on the arrow to the right of each field.

2. Drag down to select the desired setting, then release.

3. Click on the Apply button to save your changes.

Using an Uninterrupt able Power Supply (UPS)

Your SmartSwitch 6000 or Matrix E7 supports the use of a UPS (uninterruptable power supply) through its COM port (if configured through local management). (For more information on the use of a UPS with the SmartSwitch 6000 or Matrix E7, co nsult the SmartSwitch 6000 or Matrix E7 Installation Manual that was included when you purchased the unit.) You can view or change the status of the UPS connected to your SmartSwitch 6000 or Matrix E7 at the UPS window.

Please note that the UPS window will only be active if you currently have a UPS attached to your SmartSwitch 60 00 or Matr ix E7 thro ugh the C OM por t, and yo u ha ve correctl y set the Set UPS ID field.

Accessing the UPS Window

At the UPS window, you can configure the UPS ID model type for the uninterruptable power supply you have attached to the COM port on your device.

You can also view information concerning the UPS connected to your SmartSwitch 6000 or Matrix E7 including:

• The amount of time that your UPS has been running since the last start-up

• The line voltage and battery output

• The actual battery capacity of the UPS (dynamic bar graph) You can also use a butt on at the bo ttom of the windo w to discon nect yo ur UPS, or y ou can

use the Test option to initiate a self test of the unit. T o access the UPS window:

1. From the Device View window, click on Device in the menu bar to access the

Device menu.

2. Click on UPS. The UPS window , Figure 2-18, will appear.

WARNING

Do not set the Set UPS ID field unless you have a UPS attached to the SmartSwitch 6000 or Matrix E7, or you will disrupt your use of NetSight Element Manager.

The Device View

2-52 Managing the Module

Figure 2-18. The UPS Window

UPS ID

Displays the manufacturer and model typecode of the UPS attached to the COM port of the SmartSwitch 6000 or Matrix E7. You must assign this typecod e for the UPS wind ow to be active. (See Setting the UPS ID, on page 2-53, for instructions for setting the typecode for your UPS.) The valid typecodes are:

• Model 370

• Model 400

• Model 600

• Model 900

• Model 1250

• Model 2000

• Matrix 3000

• Matrix 5000

•SU 700

• SU 1400

• SU 2000XL

•Other

UPS Uptime

Displays the number of hours that the UPS has been operating since the last time it was started up.

Managing the Module 2-53

The Device View

Line Voltage

Displays the voltage coming through the line attached to the SmartSwitch 6000 or Matrix E7.

Battery Output

Displays the amount of battery output voltage.

Battery Capacity

Displays the percentage of remaining battery capacity (100% indicates a fully charged battery).

Test Results

Displays the result of the last self-test performed by the UPS. The possible test results are: Unit OK The UPS unit is in working order. Unit Failed The UPS unit has failed the self-test. Check the unit

for damage or consult your UPS user’s manual. Bad Battery The UPS unit battery is bad. No recent test No UPS self-test has been performed in the last five

minutes. Unit in test... The UPS is currently in test mode.

Please standby

Setting the UPS ID

You need to set the UPS ID typecode that indicates the manufacturer and model of the UPS.

To set the UPS ID:

1. Click on the arrow next to the SET UPS ID text box. A Model number menu

will appear. Scroll to highlight the appropriate UPS ID. (Consult the manual that was included when you purchased your UPS for the correct Model ID number.)

2. Click on the OK button. The UPS ID you have chosen will appear in the text

box, and the UPS window will be active.

If your UPS unit does not function after you have set this ID, check the manual you received with the UPS to ensure that you have chosen the correct UPS ID. If you need to change the ID, follow the directions given above.

Using the Test Option

You can use the test option to activate a self-test cycle for your unit. This self-test will check the viability of your unit and it s battery.

The Device View

2-54 Managing the Module

T o activate the test:

1. Click on the Test button. The unit will begin its self-test. The results of the test will appear in the Test Result text box next to the Test button.

Using the Disconnect Option

You can disconnect the UPS attached to your SmartSwitch 6000 or Matrix E7 through its COM port, as follows:

1. Click on the Disconnect button near the bottom of the UPS window. Your UPS will now be disconnected.

To reconnect, simply click on the OK button, or close, then re-open the UPS window.

Redirecting Traffic

The Port Redirect window (Figure 2-19) allows you to redirect traffic from one or more

interfaces directly to another interface — essentially mirroring the traffic at the “redirect” interface. This feature is useful in that it allows you to use an external analyzer on the “redirect” port to analyze data, without disturbing the normal switching operations at the original source ports. The Port Redirect window displays the interface remap table and allows you to add new entries to and delete existing entries from this table. When you set a source port to redirect to a destination port, the destination po rt wi ll transmit out all packets received or transmitted on the source port.

To access the Port Redirect window:

1. In the Chassis View window, select Device>Port Redirect (if you are managing a single device) or Chassis>Port Redirect (if you are managing a chassis with multiple modules). The Port Redirect window, Figure 2-19, appears.

Managing the Module 2-55

The Device View

Figure 2-19. The Port Redirect Window

The current port mappings are listed in the Current Active Entries list. You may add or delete entries in this list.

NOTE

Chassis IP Address, Chassis Commun i ty Name, and the Contact button appear only if the chassis is a S martSwi tch 600 0 with an assign ed IP ad dr ess. In or der t o see the Cu rr ent Active Entries for this type of device, you must enter the Chassis IP Address and Community Name, then click Contact.

NOTE

Not all devices support the Source Module and Destination Module fields.

The Device View

2-56 Managing the Module

T o add an entry:

1. SmartSwitch 6000 with assigned IP address only: Enter the Chassis IP Address and the Chassis Community Name, then click Contact to display

the Current Active Entries.

2. If applicable: Click the arrow next to Source Module and select the desired source module from the drop-down list.

3. Click the arrow next to Source Port and select the desired source port from the drop-down list.

4. If applicable: Click the arrow next to Destination Module and select the desired destination module from the drop-down list.

5. Click the arrow next to Destination Port and select the desired destination port from the drop-down.

6. Click Add. The new entry is displayed in the Current Active Entries list, and redirection of the port traffic will begin.

To delete an entry:

1. SmartSwitch 6000 with assigned IP address only: Enter the Chassis IP Address and the Chassis Community Name, then click Contact to display

the Current Active Entries.

2. In the Current Active Entries list, click to highlight the entry you wish to delete.

3. Click Delete. The entry is deleted from the Current Active Entries list and the traffic from the source port will no longer be redirected to the destination port.

Priority Configuration

The SmartSwitch 6000 and Matrix E7 modules support priority packet forwarding. Priority packet forwarding lets you designate certain packets to be of higher importance than others, thereby allowing for the forwarding of these packets before packets of lower

priority. This functionality is essential for time-critical applications — such as real-time video — on shared networks.

Frame priority is enabled by the “tagging” of MAC frames so that they are given a priority designation when they are forwarded by the SmartSwitch 6000 or Matrix E7 module — which is a tag-aware switch (i.e., one that adheres to the IEEE P802.1p and IEEE P802.1q Draft Standards). Tagging a frame is accomplished by adding a Tag Header to a frame immediately following its original Destination and Source MAC address fields (and any

NOTE

The Priority Configuration menu option will only appear in the Device menu for modules that respond to any of NetSight Element Manager’s queries to the following OIDs:

ctPriorityExtPortStatus, ctPriorityExtMaxNumMACEntries, or ctPriorityExtNumPktTypeEntries. If your module’s firmware does not respond to these

queries, contact the Enterasys Global Call Center for firmware upgrade information.

Managing the Module 2-57

The Device View

routing fields, if present), and then recomputing the Frame Check Sequence (FCS) appropriately. On receiving such a frame, a tag-aware switch will read the priority from the tagged portion of the frame, remove the Tag Header, recompute the FCS, and then direct it to its appropriate transmission queue.

There are eight priority levels — indicated 0 through 7— available to designate user priority . Frames tagged with a 0 represen t the lowest priority level (o r no rmal) traffic, and frames tagged with a 7 indicate the highest priority level traffic.

The 6000 and Matrix E7 series modules themselves support two transmission queues: one that is for 0 or normal priority traffic (or any non-tagged traffic), and a second queue that is reserved for frames that have been tagged with a priority level of 1 or higher. On receiving any priority-tagged frames, the SmartSwitch 6000 or Matrix E7 will forward them out of the high priority queue before forwarding any frames in the normal priority queue. However, the SmartSwitch 6000 or Matrix E7 will tag outgoing frames with the full range of eight priority levels, so that upon reception, a device that supports the entire range of priority queuing will forward the frame appropriately.

You can use NetSight Element Manager to configure the criteria that determine the priority in which frames will be queued for transmissio n by your SmartSwitch 6000 or Matrix E7 module. Several different criteria can be used to determine a frame’s transmission queue order:

• The module and port at which the frame was received.

• The destination and/or source MAC address associated with the frame.

• A combination of destination and/or source MAC address and the frame’s protocol

type.

• The frame’s protocol type. When you configure the transmission queue for a specific frame, an entry is made in one

of three priority tables maintained by the SmartSwitch 6000 or Matrix E7 module. These tables are used to determine which transmit queue to use — normal priority or high priority — when forwarding frames.

•The ctPriorityExtPortTable maintains priority entries based on a frame’s receive port.

•The ctPriorityExtMACTable maintains priority entries based on a frame’s MAC-layer

information.

•The ctPriorityExtPktTypeTable maint ai ns priority entries based on the frame’s

protocol type.

The following sections discuss how to use the Port Priority Configuration window, the MAC Based Priority Configuration window, and the Frame Priority Configuration window to make entries in these transmit priority tables.

The Device View

2-58 Managing the Module

Configuring Priority Queuing Based on Receive Port

You can use the Port Priority Configuration window, Figure 2-20, to determine packet queuing based solely upon the port at which the packet was received. This allows you to ensure that a connected user or LAN segment will have priority when frames that were received on that port are queued for transmission.

Figure 2-20. The Port Priority Configuration Window

To access the Port Priority Configuration window:

1. Click on Device to access the Device menu.

2. Drag down to Priority Configuration, and to the right to select Port Based from the cascading menu. The Port Priority Configuration window (Figure 2-20) will appear.

The Port Priority Configuration window displays the contents of the ctPriorityExtPortTable. It has a list box that displays the front panel interfaces supported by the SmartSwitch 6000 or Matrix E7 module, along with the slot number occupied by the module, and any transmit priority that has been assigned to those interfaces.

NOTES

In the event that an incoming packet received on a designated port already has a priority associated with it, you can use the ctPriorityExtPortFwdInboundPriority OID to determine whether the incoming priority should remain intact, or be replaced with the priority that you have set for the receiving port.

Use the MIB Tools utility suite to set the ctPriorityExtPortFwdInbound Prio rity OID to 1 (for the appropriate port instance) if you want the incoming packet to r etain its originally set priority when received by the port; set the OID to 2 if you want the packet to take the default priority set for the receiving port. Refer to the Element Manager Tools Guide for information on usin g the MIB Tools suite.

Highlight a module/port, then use the drop-down list box to

select a priority (Normal–7).

Click Apply to set the priority at the device. Any priority of 1 or higher will allow packets received at the chosen port to be forwarded from the higher priority transmission queue.

Managing the Module 2-59

The Device View

T o assign a transmit priority to a port:

1. Click to highlight the port interface of interest in the Port # column. Each

interface is identified by its MIBII

IfIndex

2. Click on the Transmit Priority drop-down list box, and scroll to select the

desired priority level (Normal–7) for forwarding packets received on the selected port.

3. Click the Apply button. The defined priority will appear next to the port in the

Transmit Priority column.

Configuring Priority Queuing Based on MAC-layer Information

You can use the MAC Based Priority Configuration window, Figure 2-21,

to determine packet queuing based upon the packet’s Source and/or Destination MAC address, as well as the packet’s frame Type. These priority entries, based on the frame’s MAC-layer information, are maintained in the ctPriorityExtMACTable. You can create up to 1024 priority entries for queuing frames based upon on MAC-layer information.

NOTE

Since the SmartSwitch 6000 a nd Matrix E7 modules have two transmit queues, a priori ty of Normal will cause packets received on that port to be forwarded through the lower priority queue, and any priority of 1 through 7 will cause the packets to be forwarded through the higher priority queue. However, other tag-aware switches may use the full

range of eight pr i ority queu e s — s o the priority that you ass ig n ma y ha ve b e aring on how the frame is forwarded when it is received by another device.

The Device View

2-60 Managing the Module

Figure 2-21. The MAC Based Priority Configuration Window

To access the MAC Based Priority Configuration window:

1. Click on Device to access the Device menu.

2. Drag down to Priority Configuration, and to the right to select MAC Based from the cascading menu. The MAC Based Priority Configuration window will appear.

The MAC Based Priority Configuration window contains the following information.

Current Priority Entries

The Current Priority Entries list box displays any MAC-based p riority entries that have been configured for the SmartSwitch 6000 or Matrix E7 module. It has four columns:

• MAC Address, which identifies the physical address for which a frame transmit priority entry has been configured .

• Address Type, which identifies whether the address of interest is in the source or destination field, or in both fields, of the frame.

• Frame Type, which indicates whether all frames with the given addr ess will have a transmit priority, or whether a specified frame T ype will be used in combination with the address.

• Priority, which displays the current transmit priority assign ed to the entry.

Click Add to enter a MAC Address to which you want to assign a higher priority transmission queue.

Select whether you want the address type to be destination, source, or either type.

Determine whether to apply the priority to all frames with the given address and SA/DA type, or only to frames of a specific type.

Finally, select a priority level, and click Apply.

Managing the Module 2-61

The Device View

Below the Current Priority Entries list box, several text fields and command buttons allow you to configure or edit MAC-based priority ent ries :

MAC Address

This text field allows you to enter a new MAC address that will have a transmit priority associated with it.

Address Type

This drop-down list box allows you to select whether the given MAC address must be in the source address portion of the frame (SA), the destination address portion (DA), or in either portion (SA/DA).

Frame Type

This radio button/text box combination allows you to choose whether All frame Types with the given address will be given priority, or whether frames of a Specific type (as defined in the associated text box) will be given priority.

Priority

Priority, which indicates the transmit priority level assigned to the configured entry. To assign a transmit priority based on MA C-layer information:

1. Click on the Add button. The entry fields will be activated.

2. Click in the MAC Address text box, and type in the physical address in

XX-XX-XX-XX-XX-XX format, where X is a valid hexadecimal value (A-F or 0-9), for which you want to configure a transmit priority.

3. Click on the Address Type drop-down list box, and select whether you want

the specified address to be in the Source Address portion of the frame (SA), the Destination Address portion (DA), or in either portion (SA/DA).

4. Specify a Frame Type that you want associated with the frame:

a. Click on the appropriate Frame T ype option button: Specific if you want a

certain Frame Type associated with the given MAC address, or All if you do not care about the Frame Type.

b. If you select Specific, click in the associated text box and type in the

two-byte hexadecimal value for that protocol type (e.g., 0BAD for Banyan frames).

NOTE

When creating priority entries, you can specify up to four Frame Types for the same MAC Address value.

The Device View

2-62 Managing the Module

5. Click on the Priority drop-down list box, and scroll to select the desired priority level — Normal (0)–7 — for forwarding packets received with the specified MAC-layer information.

6. Click the Apply button. The Current Priority Entries list box will be updated with the newly created entry.

You can edit an existing address entry by changing the priority currently associated with the entry . To do so:

1. Highlight the desired entry in the Current Priority Entries list box, and click on the Edit button. The Priority drop-down list box will be activated. (All other parameters will remain grayed-out, since they cannot be edited once they are initially configured).

2. Click on the Priority drop-down list box, and scroll to select the new priority level (Normal–7) for forwarding packets received with the specified MAC-layer information.

3. Click the Apply button. The Current Priority Entries list box will be updated with the newly edited entry.

T o clear a priority entry from the ctPriorityExtMACTable:

1. Highlight the desired entry in the Current Priority Entries list box, and click on the Delete button. The entry fields will be cleared from the table.

Configuring Priority Queuing Based on Packet Type

You can use the Frame Priority Configuration window, Figure 2-22, to determine packet queuing based solely upon its Type field data. Frame type entries are maintained in the ctPriorityExtPktTypeTable. You can configure up to 15 frame Type priority entries for the device.

NOTE

Since the SmartSwitch 6000 a nd Matrix E7 modules have two transmit queues, a priori ty of Normal will cause packets to be forwarded through the lower priority queue, and any priority of 1 through 7 will cause the packets to be forwarded through the higher priority queue.

Managing the Module 2-63

The Device View

Figure 2-22. Frame Priority Configuration Window

To assign a transmit priority based on frame Type information:

1. Click on the Add button. The entry fields will be activated.

2. Click in the Frame Type text box, and type in the 2-byte frame Type in XXXX

format, where X is a valid hexadecimal value (A-F or 0-9), for which you want to configure a transmit priority.

3. Click on the Priority drop-down list box, and scroll to select the desired

priority level (Normal–7) for forwarding packets received with the specified Type field information.

4. Click the Apply button. The Frame Type Entries list box will be updated with

the newly created entry.

You can edit an existing frame T ype entry by changing its previously assigned priority. T o do so:

1. Highlight the desired entry in the Current Priority Entries list box, and click on

the Edit button. The Priorities drop-down list box will be activated (the Frame Type cannot be edited once it is initially configured).

NOTE

Remember, since the SmartSwitch 6000 and Matrix E7 modules have two transmit queues, a priority of Normal will cause packets to be forwar ded through the lower priority queue, and any priority of 1 through 7 will cause the packets to be forwarded through the higher priority queue.

Click Add to activate the Frame Type field, then type in the 2 byte hexadecimal frame Type.

Use the drop-down list box to

select a priority (Normal–7) associated with that frame Type.

Click Apply to set the priority at the device. Any priority of 1 or higher will allow packets received at the chosen port to be forwarded from the higher

The Device View

2-64 Managing the Module

2. Click on the Priority drop-down list box, and scroll to select the desired priority level (Normal–7) for forwarding packets received with the specified frame Type information.

3. Click the Apply button. The Frame Type Priorities Entries list box will be updated with the newly edited entry.

T o clear a priority entry from the ctPriorityExtPktTypeTable:

1. Highlight the desired entry in the Frame Type Priorities Entries list box, and click on the Delete button. The entry fields will be cleared from the table.

Broadcast Suppression

From the Broadcast Statistics and Suppression window, you can monitor broadcast peak statistics, and suppress the amount of b road cast frames received on each interface on your SmartSwitch 6000 or Matrix E7 modu l e (t hereb y pro tec ti n g you r net work from broadcast storms). Specifically, you can monitor the number of frames each interface is receiving, and set limits on how many of those broadcast frames will be forwarded to the other interfaces. Once a threshold has been reached on an interface, broadcast frames will be dropped. From the Broadcast Statistics and Suppression window, you can set a unique threshold for each interface on a frames per second basis.

To access the Broadcast Statistics and Suppression window:

1. Click on Device to access the Device menu.

2. Click on Broadcast Suppression. The Broadcast St atistics and Suppression window, Figure 2-23, will appear.

Managing the Module 2-65

The Device View

Figure 2-23. The Broadcast Statistics and Suppression Window

Port #

This read-only field indicates the number assigned to each interface on the device.

Total RX

Displays the total number of broadcast frames received on the interface since the device was last initialized.

Peak Rate

The peak rate of broadcast frames (in frames per second) received on the interface since the device was last initialized or the peak value was administratively reset th rough this window.

Time Since Peak

The time (in a days HH:MM:SS format) since the peak broadcast rate occurred; that is, the current MIB-II system uptime minus the system uptime when the peak occurred (as recorded by the ctBroadcastPeakBroadcastRateTime OID). This value will be reset to 0 days 00:00:00 when the device is re-initialized o r when you administratively reset the peak values.

The Device View

2-66 Managing the Module

To reset the Peak Rate and Time Since Peak values:

1. Shift- or Control-click to select one or more interfaces for which you want to reset the values.

2. Click on the Reset Peak Rate and Peak Time on Selected Ports: drop-down list box, and select YES.

3. Click on the Apply button. The Peak Rate and Time Since Peak values will be reset for the selected interfaces.

Threshold

The maximum number of received b roadcast frames per second that may be forwarded by this interface to other interfaces on the device. Any number of broadcast frames received over this threshold will be dropped. The default value for the interface is near the theoretical maximum frames per second for the interface, i.e., 14,880 for 10Mb Ethernet interface, 148,880 for 100Mb Ethernet or 1,488,800 for Gigabit Ethernet.

To change the Receive Broadcast Threshold:

1. Shift- or Control-click to select one or more interfaces for which you want to change the broadcast packet threshold.

2. Highlight the value currently in the Receive Broadcast Threshold on Selected Ports: field and type in a new broadcast threshold value. Allowable values begin at 10 and proceed in multiples of ten.

3. Click on the Apply button. The new threshold will be applied to the selected interfaces. Any broadcast frames received by the interface exceeding the set threshold will be dropped.

The System Resources Window

The System Resources window displays attributes of the SmartSwitch 6000 or Matrix E7

module’s CPU (including CPU type, and installed and available memory), as well as the current and peak utilization of the CPU for switching. It also lets you reserve the desired amount of CP U processing used for switching or management purposes, as well as reset the peak switch utilization information.

NOTE

When you enter a value less than 10, the threshold will default to a value of 0. If you enter a value that is not a multiple of 10 it will default to the last multiple of 10, i.e., if you enter 15 as the new threshold value, the threshold value will be set to 10; if you enter 49 as the new threshold value, the threshold value will be set to 40.

Managing the Module 2-67

The Device View

To display the System Resources window:

1. Click on Device in the Device View menu bar to display the Device menu.

2. Click on System Resources. The System Resources window, Figure 2-24,

will appear.

Figure 2-24. The System Resources Window

CPU Type

Displays the type and speed (in megahertz) of the CPU (processor) used by the system.

Flash Memory Installed:

Displays the total amount of installed flash memory (in Mbytes). Flash m e mory is the

reprogrammable memory used to store the device’s image code.

Flash Memory Available:

Displays (in Kbytes) the current amount of flash memory that is currently free and not currently being used for code and data.

DRAM Installed:

Displays the total installed Dynamic Random Access Memory (DRAM) in Mbytes. DRAM is volatile memory used to temporarily store data via capacitors and transistors, which must be constantly recharged to retain data. Access time to read data stored on DRAM is slower than reading data stored on Static Random Access Memory (SRAM) — since the processor cannot read DRAM while the capacitors are being recharged. A DRAM chip, however, can store about four times more data than a comparable SRAM chip, and is less expensive to manufacture.

The Device View

2-68 Managing the Module

DRAM Available:

Displays (in Kbytes) the amount of free DRAM that is not currently being used for data storage.

SRAM Installed:

Displays the total amount of SRAM (Static Random Access Memory) that is installed (in Mbytes). SRAM retains data as long as the CPU is powered up. Since it does not need the constant recharging of DRAM memory, its data can be accessed much faster. SRAM is

often used to temporarily cache — or store — frequently accessed data or instructions commonly used by the processor. SRAM can store less data than DRAM, however, and is more expensive to manufacture.

SRAM Available:

Displays (in Kbytes) the amount of free SRAM that is not currently being used for data storage.

NVRAM Installed:

Displays (in Kbytes) the total installed Non-volatile Random Access Memory (NVRAM). NVRAM retains data when the device is powered down, such as the device IP address, community table information, and so forth.

NVRAM Available:

Displays (in Bytes) the amount of free NVRAM that is not currently bein g used for data storage.

Current Switch Utilization:

Displays the current load on the switch, which is based on a percentage of maximum switching capacity of 100%.

Peak Switch Utilization:

Displays the peak percentage of switch load (based on a maximum of 100%) that has occurred on the switch, since power-up or last reset, along with the time and date that it occurred. This field can be administratively refreshed, as described below.

Reset Peak Switch Utilization:

This option allows you to clear the Peak Switch Utilization field.The Peak Switch Utilization field will refresh to display the current switch utilization, date, and time as the new peak values (until a new peak is experienced).

NOTE

In accordance with Year 2000 compliance requirements, NetSight Element Manager now displays all dates with four-digit year values.

Managing the Module 2-69

The Device View

T o reset peak switch utilization:

1. Click on the arrow next to the Reset Peak Switch Utilization field and select

Yes from the drop-down list. (The default value is No.)

2. Click on the Apply button to reset the displayed peak switch utilization. Note

that when the window refreshes the value in this field will return to No.

The peak switch utilization values — including percentage, date, and time — will be refreshed to display the current values. These values will change once a new peak is experienced (or at the next peak reset).

CPU Management Reservation:

Displays the desi red amoun t of C PU bandwi dth reserv ed for man agement p urposes: None, Limited, or Full. Bandwidth that is not reserved for management will be devoted to switching.

Reserving CPU Bandwidth

Depending on your needs and the main function of your SmartSwitch 6000 or Matrix E7 module, you may wish to change the amount of CPU band width that is currently reserved for management purposes. The three possible allocations of CPU bandwidth on your SmartSwitch 6000 or Matrix E7 for management are:

• None — the SmartSwitch 6000 or Matrix E7 will reserve all bandwidth for switching,

therefore management frames may be dropped under heavy loads.

• Limited — the management of the SmartSwitch 6000 or Matrix E7 may be slow while

the device is experiencing heavy switching loads.

• Full — management of the SmartSwitch 6000 or Matrix E7 is always possible and

management frames will take priority over switched data if full C PU ban dwidth is required (switched frames may be dropped).

T o conf ig ure t he CPU Management Reservat ion :

1. Next to the CPU Management Reservation field click on the arrow and select

None, Full, or Limited from the drop-down list.

2. Click on the Apply button to set the new CPU management reservation. A

window will appear stating the set was successful.

NOTE

The default setting for this field is No. While No is selected the peak switch utilization value will not be reset when you click on the Apply button. Y ou must choose Yes for a r eset to take place.

The Device View

2-70 Managing the Module

802.1Q VLANs

This section introduces and describes pre-standard IEEE 802 .1Q po rt-based Virtual Local Area Network (VLAN) technology and the windows used to configure Enterasys 802.1Q VLAN-capable devices.

SmartSwitch 6000 or Matrix E7 firmware version 4.00.08 and above support the pre-standard IEEE 802.1Q draft specification for port-based VLANs.

What is a VLAN?

A Virtual Local Area Network (VLAN) is a logical group of devices that function as a single Local Area Network segment (broadcast domain). Devices comprising a VLAN may be (physically) widely separated, allowing users located in separate areas or connected to separate ports to belong to a single VLAN group. Users assigned to a VLAN can send and receive broadcast and multicast traffic as though they were all physically connected to a single network segment. VLAN-capable switches isolate broadcast and multicast traffic received from VLAN groups, and contain broadcasts and multicasts from members of a VLAN within that group.

What is an 802.1Q Port-Based VLAN?

Switches that support the pre-standard IEEE 802.1Q draft specification for port-based VLANs act by classifying frames into VLAN membership. Usually, VLAN classification is based on tag headers (VLAN tags) in the headers of data frames. The tag header is inserted into the frame directly after the Source MAC address field. A four-byte field in the tag header is used as the VLAN identifier. These VLAN tags are added to data frames by the switch as the frames are transmitted and/or received by certain ports, and are later used to make forwarding decisions by the switch and other 802.1Q switches. In the absence of a VLAN tag, a frame is assigned VLAN membership according to the VLAN configuration of the switch port that receives the frame.

About 802.1Q VLAN Configuration and Operation

An 802.1Q VLAN is defined by assigning it a unique identification number (the VLAN ID) and an optional name. The VLAN ID is used to identify data frames that originate from, and are intended for, the ports assigned to the VLAN. Up to 64 VLANs may be created, with VLAN IDs ranging from 2-4094. VLAN ID 1 is reserved for the Default VLAN.

NOTES

In certain SmartSwitch 6000 firmware versions, 802.1Q operation is not fully supported.Refer to your firmware release notes for more information.

Managing the Module 2-71

The Device View

Ports on 802.1Q switches are assigned membership in a VLAN by associating a VLAN ID

with each port on the switch. The VLAN ID is combined with the port’s identification (e.g., module X port X) to form the Port VLAN ID (PVID).

When 802.1Q is implemented for a SmartSwitch 6000 or Matrix E7 that has an HSIM-A6DP installed, each LEC will be represented as an individual port which can be easily assigned membership in a VLAN.

Once VLANs have been configured and activated, all frames with unknown destination addresses (including broadcast, unknown multicast, and unknown unicast frames) will be contained within the VLAN of their origin. The switch’s Filtering Database tracks the associations between MAC addresses, VLAN eligibilities, and port numbers, and is used to make forwarding decisions for frames. All VLANs share a single Spanning Tree.

Ingress List Operation

A port’s ingress list specifies the VLAN with which received frames will be associated. The switch’s Filtering Database tracks the associations between VLAN eligibilities, MAC addresses, and port numbers.

Untagged frames received by an 802.1Q switch port are classified accord ing to the VLAN membership of the port that receives the frame.

Tagged frames received by an 802.1Q switch port are classified according to the VLAN indicated in their tag header. A port may receive a tagged frame that specifies a VLAN other than the one assigned to the port.

Egress List Operation

Each port’s egress list specifies which VLANs are associated with the port, and specifies what type of frame (tagged and/or untagged) to transmit for each particular VLAN on a port. This information may be statically defined by the user, or dynamically learned and maintained by the switch’s Filtering Database.

NOTE

When 802.1Q mode is initially activated on a device, all ports are associated with the Default VLAN (VLAN ID 1). If a VLAN ID has not been assigned to a particular port on an 802.1Q switch, any frames r eceived fr om that po rt will be classified as belonging to the Default VLAN.

NOTE

For SmartSwitch 6000 or Matrix E7 firmware versions 4.00.08 and above, the number of LECs supported by the HSIM-A6DP in 802.1Q mode is limited to 32.

The Device View

2-72 Managing the Module

If a port receives a tagged frame that specifies a VLAN other than the one assigned to the

port, the switch will dynamically associate that frame’s source address and VLAN with the port (i.e., add that frame’s VLAN to the receiving port’s egress list). Dynamically learned VLANs are subject to the same aging rules as source addresses (e.g., if a tagged frame belonging to a dynamically learned VLAN is not received by the port within the switch’s aging time, the transmitting station’s source address and VLAN will be aged out for that port; no unknown destination frames belonging to the station’s VLAN will be transmitted through the port until the VLAN is dynamically learn e d once again). Only tagged frames can cause the switch to dynamically change a port’s egress list.

802.1Q Port Types

Each 802.1Q switch port is assigned a mode of operation. Port types include:

1Q Trunk

If VLAN membership is to apply to users across several switches, ports used to connect

802.1Q-aware devices are configured to use 1Q Trunk mode. In this mode, all frames

(except BPDUs) are transmitted with a tag header included in the frame, allowing VLAN frames to maintain their VLAN ID across multiple switches. Any untagged frames received by the port are dropped. 1Q Trunk ports are configured to be members of all VLANs.

1d Trunk

This mode allows a port to transmit to a traditional (802.1d ) switch fabric. These ports transmit only untagged frames, and the switch expects to receive only untagged traffic through the port. 1d Trunk ports are configured to be members of all VLANs. This mode can be used to share a connection among multiple VLANs (e.g., sharing a server between two or more separate VLANs).

Hybrid

Hybrid mode (enabled by default) allows a port to receive and transmit b oth tagged and untagged frames. In this mode, the port will be a member of its statically assigned VLAN, as well as any dynamically learned VLANs (remember, dynamically learned VLANs are subject to the same aging rules as source addresses).

Configuring Your 802.1Q VLANS

Before you can define an d configu re 802. 1Q port -based VLANs on your d evice, you must activate the device’s 802.1Q operational mode; this operation can be performed using Local Management or the MIB Tools application. Using MIB Tools, 802.1Q mode can be activated through the Container MIB’s Logical Entry Table (contLogicalEntryTable). When the 802.1Q component is activated, the device will automatically reset, and begin operating in 802.1Q mode.

Refer to your device’s Local Management documentation for instructions on activating a device’s 802.1Q operational mode via Local Management. For details on the MIB Tools application, refer to your Element Manager Tools Guide.

Managing the Module 2-73

The Device View

To set up your 802.1Q port-based VLANs using NetSight Element Manager, you must first define the desired VLANs using the VLAN Config window (Figure 2-25), which allows you to assign VLAN IDs and optional VLAN names, and enable or disable VLANs.

After your VLANs are defined, you may configure the ingress and egress lists for each port using the VLAN Port Config window (Figure 2-26) and the VLAN Egress Port Config window (Figure 2-27), respectively.

Setting VLAN Parameters and Operational Modes

802.1Q VLANs are defined using the VLAN Config window, which is accessed from the

Device menu in your switch’s Device View. To launch the window:

1. Click on Device in the Device View menu bar to display the Device menu.

2. Drag down to 802.1Q VLAN, then right to select 802.1Q VLAN Config. The

VLAN Config window, Figure 2-25, will appear.

Figure 2-25. The VLAN Config Window

The Configured VLANS list box and fields allow you to view, create, modify, delete, enable, and disable 802.1Q port-based VLANs. The list box displays the following information about your defined VLANs:

The Device View

2-74 Managing the Module

VLAN ID

The VLAN ID is used to identify data frames that originate from, and are intended for, the ports assigned to the VLAN. Up to 64 VLANs may be created, with VLAN IDs ranging

from 2-4094. The VLAN ID is combined with the port’s identification (e.g., module X port X) to form the Port VLAN ID (PVID). VLAN ID 1 is reserved for the Default VLAN.

VLAN Name

An optional 32-character VLAN name may be assigned to a created VLAN. The Default VLAN is assigned the name DEFAULT VLAN, which cannot be changed or deleted.

Admin Status

This field indicates whether the VLAN is enabled or disabled. Unless Enable is selected when port-based VLANs are initially defined, they are disabled by default. The Default VLAN cannot be disabled.

Creating and Modifying VLANs

The fields immediately below the Configured VLANS list box are used to create and modify your port-based VLANs. To create a new VLAN:

1. In the VLAN ID field, enter a unique value between 2-4094. VLAN ID 1 is reserved for the Default VLAN, and cannot be used.

2. If desired, enter a name for the VLAN in the VLAN Name field. VLAN names must be 32 characters or less.

3. Click the Apply button. The new VLAN will be added to the Configured VLANS list box.

Once a VLAN has been created, its VLAN ID cannot be modified. If you wish to change a VLAN’s ID, you’ll have to delete the VLAN and create a new entry. See Deleting

VLANs, below, for instructions on deleting a VLAN. Attempting to change a VLAN’s ID

will result in the creation of a new VLAN with the same VLAN name. T o modify an existing VLAN’s name, select its entry in the Configured VLANS list box.

The selected VLAN’s name will be displayed in the VLAN Name field. Modify the displayed name as outlined in Steps 2-3, above.

NOTE

Unless Enable is selected when a port-based VLAN is initially defined, it will be disabled by default. A new VLAN that is left in a Disabled state will remain disabled until a port is assigned to it, at which tim e it will b e automatically enabled. If you are changing a

VLAN’s port assignment, the VLAN should be disabled before changing the port configuration. See Enabling and Disabling VLANs, on page 2-75, for instructions on disabling VLANs. See Performing Ingress List Configuration, on page 2-75, for details on completing your VLAN port con figuration.

Managing the Module 2-75

The Device View

Deleting VLANs

The VLAN Config window also allows you to delete VLANs (except for the Default VLAN, which cannot be deleted). When a VLAN is deleted, any ports assigned to that VLAN will automatically become members of the Default VLAN. To delete a VLAN from your 802.1Q switch:

1. Click to select the desired VLAN entry in the Configured VLANS list box.

2. Click the Delete button. The selected VLAN will be removed from the list box.

Enabling and Disabling VLANs

To enable or disable VLANs:

1. Select the desired VLAN entry in the Configured VLANS list box.

2. In the VLAN Admin field, click to select Enable or Disable.

3. Click the Apply button. The selected VLAN will be enabled or disabled,

depending on your selection.

Updating VLAN Config Window Information

Clicking the Refresh button will update the information displayed in the Configured VLANs list without closing the window.

Performing Ingress List Configuration

802.1Q VLAN port assignment and ingress list configuration operations are performed using the VLAN Port Config window, which is accessed from the Device menu in your

switch’s Device View. See Ingress List Operation, on page 2-71 for details on ingress lists. To launch the window:

1. Click on Device in the Device View menu bar to display the Device menu.

2. Drag down to 802.1Q VLAN, then right to select 802.1Q VLAN Port Config.

The VLAN Port Config window, Figure 2-26, will appear.

NOTE

Unless Enable is selected when a VLAN is initially defined, it is disabled by default. A new VLAN that is left in a Disabled state will r emain disabled until a port is assigned to it,

at which time it will be automatically enabled. If you are changing a VLAN’s port assignment, the VLAN should be disabled before changing the port configuration. See

Performing Ingress List Configuration, on page 2-75, for details on completing your

VLAN port configuration.

The Device View

2-76 Managing the Module

Figure 2-26. The VLAN Port Config Window

The 802.1Q VLAN Port Assignment list box in this window displays the following information about ports on your 802.1Q switch:

Slot/Port

These fields display the slot and port index for each port on your 802.1Q switch.

VLAN ID

This field displays the VLAN ID of the VLAN to which the port is currently assigned.

Mode

This field displays the port’s current mode of operation. Port operational modes include:

• Dot1DTrunk mode, which is used for ports that are to connect to a traditional (802.1D) switch fabric. Th ese ports transm it only untagged frames. 1d T runk ports are configured to be members of all VLANs.

• Dot1QTrunk mode, which is us ed for ports used to connect 80 2.1 Q- aware d e vices if VLAN membership is to apply to users across several switches. These ports transmit only tagged frames. 1Q Trunk ports are configured to be members of all VLANs.

• Hybrid mode, which allows a port to receive and transmit both tagged and untagged frames. In this mode, the port will be a member of its statically assigned VLAN, as well as any dynamically learned VLANs. Hybrid mode is enabled by default.

Managing the Module 2-77

The Device View

For more information on 802.1Q port operational modes, see 802.1Q Port Types, on

page 2-72.

Discard

This field displays the port’s current frame discard format (discardTagged, discardUntagged, or noDiscard).

The VLAN ID, Port Operational Mode, and Port Discard fields, below the list box, allow you to configure your ports as follows:

VLAN ID

This field allows you to associate a selected port with an existing VLAN. See Assigning

VLAN Membership to Ports, on page 2-77, for details on performing this operation.

Port Operational Mode

This field allows you to assign a mode of operation to a selected port. See Sett ing Port

Operational Modes, on page 2-77, for details on using this field.

Port Discard

This field allows you to specify the frame discard format (discardTagged, discardUntagged, or noDiscard) for a selected port. See Setting Port Frame Discard

Formats, on page 2-78, for details on using this field.

Assigning VLAN Membership to Ports

To assign a port on your 802.1Q switch to any of your defined VLANs:

1. In the list box, click to select a port that you wish to assign to a VLAN. The

port’s current VLAN configuration information, including its VLAN ID, will be displayed in the fields below the list box.

2. In the VLAN ID field, click to select the VLAN ID of the VLAN to which you

wish to assign the selected port.

3. Click the Apply button. The new VLAN assignment will be reflected in the

VLAN Port Config window’s list box for the selected port.

Setting Port Operational Modes

To assign a port operational mode (dot1dTrunk, dot1QTrunk, or hybrid) to a port on your 802.1Q switch:

NOTE

If you assign a port to a VLAN that is i n a Disabled state, the VLAN will automatica lly be Enabled once the port assignment operation has been completed.

The Device View

2-78 Managing the Module

1. In the VLAN Port Config window’s list box, click to select a port to which you

wish to assign a port operational mode.

2. In the Port Operational Mode field, click to select the desired operational mode.

3. Click the Apply button. The selected mode will be reflected in the list box for the selected port.

Setting Port Frame Discard Formats

T o assign a frame discard format (disc ard Tagged, discardUntagged, or noDiscard) to a port on your 802.1Q switch:

1. In the VLAN Port Config window’s list box, click to select a port to which you wish to assign a frame discard format.

2. In the Port Discard field, click to select the desired frame discard format.

3. Click the Apply button. The selected mode will be reflected in the list box for the selected port.

Updating VLAN Port Config Window Information

Clicking the Refresh button will update the information displayed in the 802.1Q VLAN Port Assignment list without closing the window.

Performing Egress List Configuration

802.1Q VLAN switching allows each port on a switch to transmit traffic for any or all

defined VLANs on your network. During egress list configuration, you determine which

VLANs are on each port’ s egress list. See Egress List Operat ion, on page 2-71 for details on egress lists.

Egress list configuration operations are performed using the VLAN Egress Port Config window. To launch the window:

1. In the Chassis View window, select Device>VLAN>VLAN Egress Port

Config.... from the menu. The VLAN Egress Port Config window, Figure 2-27,

appears.

Managing the Module 2-79

The Device View

Figure 2-27. The VLAN Egress Port Config Window

Selected VLAN

The Selected VLAN box at the top of this window lists the VLANs currently configured on the device. You can select a VLAN from this list to associate with the egress lists on the

device’s ports. The Selected VLAN list includes the following information:

Slot Number

Sequence number identifying the slot location of the device on which the VLAN is configured.

The Device View

2-80 Managing the Module

VLAN ID

Unique identifier for the VLAN.

Name

Name assigned to the VLAN.

Port Egress Information

The Port Egress Information box lists the ports whose egress lists contain the selected VLAN. You can use this list to change how frames belonging to the selected VLAN will be forwarded out a port.

Index

Sequence number identifying the port.

Current

Displays how frames belonging to the selected VLAN are currently forwarded out the port: No Egress (frames will not be transmitted), Tagged (frames will be transmitted as tagged), or Untagged (frames will be transmitted as untagged).

Desired

Displays how frames belonging to the selected VLAN will be forwarded out the port: No Egress (frames will not be transmitted), Tagged (frames will be transmitted as tagged), or Untagged (frames will be transmitted as untagged).

The Status bar at the bottom of the window indicates the operation currently taking place in the window.

Building an Egress List

T o bui l d egres s lis t s for your 802.1Q switch:

1. In the list box at the top of the VLAN Egress Port Configuration window, click to select a VLAN. The ports that contain this VLAN in their egress lists are displayed in the lower portion of the window.

To set the egress type for one port

: In the Port Egress Information list, right-click the desired port, and select how the frames are to be transmitted: No Egress (frames will not be transmitted), Tagged (frames will be transmitted as tagged), or Untagged (frames will be transmitted as untagged).

To set the egress type for all ports:

In the Port Egress Information list, right-click any port, and select All No Egress (frames will not be transmitted), All Tagged (frames will be transmitted as tagged) or All Untagged (frames will be transmitted as untagged).

3. Click Apply to set the change(s).

4. Repeat for another VLAN, if desired.

Managing the Module 2-81

The Device View

VLAN and Priority Configuration

For firmware versions 5.0.x and higher, the Bridge Extension Configuration windows allow you to define and configure 80 2.1 Q VLANs and po rt pri or i ty for your Smar t Switc h 6000 and Matrix E7 modules. Define your VLANs using the VLAN Configuration window, which allows you to assign VLAN IDs and VLAN names, and enable or disable VLANs.

After your VLANs are defined, you can configure basic and advanced VLAN parameters and VLAN port egress lists using the VLAN Port Configuration windows and the VLAN Egress Port Configuration window, respectively.

Bridge Extension functionality also lets you configure port pr iority and traffic classes using the Port Priority and Port Traffic Classes windows. Additional priority windows also allow you to configure GARP (Generic Attribute Registration Protocol) times and enable GMRP (GARP Multicast Registration Protocol) on each port.

Configuring Bridge and Bridge Port Capability

Use the Bridge Extension Configuration windo w to view the bridge extension functionality implemented on the device, and enable or disable Traffic Classes, GMRP, and GVRP at the device level (if supported). You can also access further configuration windows using the VLAN and Priority buttons at the bottom of the window.

1. In the Device View, select Bridge Extension Configuration... from the

Device menu. The Bridge Extension Configuration window, Figure 2-28, appears.
