Page 1

User Guide – HT640 Series

Professional submersible marine handheld transceivers

Common Information

v08/08

(all models)

HT642

Entry

HT644

LCD

HT648

Entry GMDSS

HT649

LCD GMDSS

Page 2

Introduction

This guide covers the ‘basics’ of your radio’s operation.To meet your exact

Common

requirements the radio may have been customised by your Entel authorised dealer. These features will be explained in a separate guide issued by the dealer.

Table of Contents

Common Information (all models) Page

Certification 2 Radio / Battery Care 3 Battery Care / Communications 4 Packing List 5 Optional Accessories 5 & 6 PreparingYour Radio For Use 6 & 7 Using Your Radio HT642/HT648 8 Using Your Radio HT644/HT649 9

HT642

Feature List 10 Controls & Indicators 11

HT644

Feature List 12 Controls & Indicators 13 LCD Icons 14

HT648 (GMDSS)

Feature List 16 Controls & Indicators 17

HT649 (GMDSS)

Feature List 18 Controls & Indicators 19 LCD Icons 20

Page 3

Certification

CE Compliance Statement

The HT64X series transceiver displays "CE" on the serial number label, indicating its compliance with the essential requirements of the EEC directive for Electromagnetic

Compatibility.

Declaration of Conformity

We Entel UK Limited

OF:

4 Elstree Gate, Elstree Way Borehamwood Hertfordshire WD6 1JD United Kingdom

Declare under our sole responsibility that the product:HT640 series VHF handheld transceiver

Common

Serial Number________________________________ To which this declaration relates, is in accordance with directive 99/5/EC and conforms to the following standard or other nominative documents:EN 300 086-2 V1.1.1, EN 301 489-1 V1.5.1:2003, EN 60065:2002 Following provisions of the R&TTE directive.

M Austin

Page 4

Radio care

Advice

Common

• Do not use options or accessories not

specified by Entel

• Ensure that the radio is used within the

parameters for which it was designed

• Please switch the transceiver off before

connecting optional accessories

Warning

Turn the transceiver off in the following locations:

• In explosive atmospheres (flammable gas, dust

including metallic & grain powders etc)

• Whilst taking on fuel or while parked near a fuel

station

• Near explosives or blasting sites

Battery care

Introduction

Your Entel radio is supplied with a high performance Lithium-Ion (Li-Ion) battery.

These batteries:

• Extend talk time

• Reduce the battery’s size and weight

• Do not suffer from ‘memory effect’ that

reduces the life of Ni-Cad and NiMH batteries

• Have a low toxicity, therefore reducing the impact on the environment

Battery Pack Precautions

• Switch the transceiver OFF before charging

• Charge the battery pack before use

• Do not recharge the battery pack if it is already

fully charged.This could lead to a premature battery replacement warning message. (See Battery Communications on page 4)

• In aircraft, medical institutions or near

persons known to be wearing a pacemaker

Caution

• Do not disassemble or modify the transceiver

for any reason

• Do not transmit while touching the antenna

terminal or any exposed metallic parts of the aerial as this may result in a burn

• Please check and observe regulations in your

country with regard to use whilst driving

End of Life Disposal

• When your Entel transceiver reaches the end of

its useful life, please ensure that the unit is disposed of in an environmentally friendly way. For country specific information please see www.entel.co.uk/recycling.

• Charge the battery in accordance with the instructions enclosed with your charger

• Do not charge the transceiver and/or battery pack if they are wet

The battery pack includes potentially hazardous components. Please:

• Do not disassemble or reconstruct battery

• Do not short-circuit the battery

• Do not incinerate or apply heat to the battery

• Do not immerse the battery in water unless

attached securly to the radio or get it wet by other means

• Use only the specified charger and observe charging requirements

• Do not pierce the battery with any object or strike it with an instrument

• Do not use the battery pack if it is damaged in any way

Page 5

Battery care / information

• Do not reverse-charge or reverse-connect the battery

• Do not touch a ruptured or leaking battery

If liquids from the battery get into your eyes, immediately:

Wash your eyes out with fresh water and avoiding rubbing them. Seek medical treatment.

Battery Pack

• If a battery is not to be used for an extended period of time (e.g. several months) remove the battery pack from the equipment and store in a cool and dry location (around 0°C) part charged. Do not fully discharge the battery before storage.

• Each charge cycle reduces the battery’s life. Minimise the number of times you charge your battery especially in hotter environments which further shortens a battery’s life

GMDSS Battery (CLB750)

Your CLB750 GMDSS battery is a non rechargeable lithium ion battery.The battery is supplied with a security seal that must be removed before fitting to the radio. An expiry date is printed on the battery.Do not use this battery if past the expiry date. Replacement batteries are available from your local authorised dealer. If you require assistance where to purchase please contact Entel for details.

Under no circumstances must you attempt to recharge this battery

Battery Communications (exc CLB750 GMDSS battery)

Each battery used with your radio (excluding the HT644) has a microprocessor fitted, which logs the number of times your battery has been charged. On a portable radio with an LCD display,the number of times the battery has been charged, together with the remaining charge cycles available, will be shown during switch on (if not de-activated by your dealer).

Common

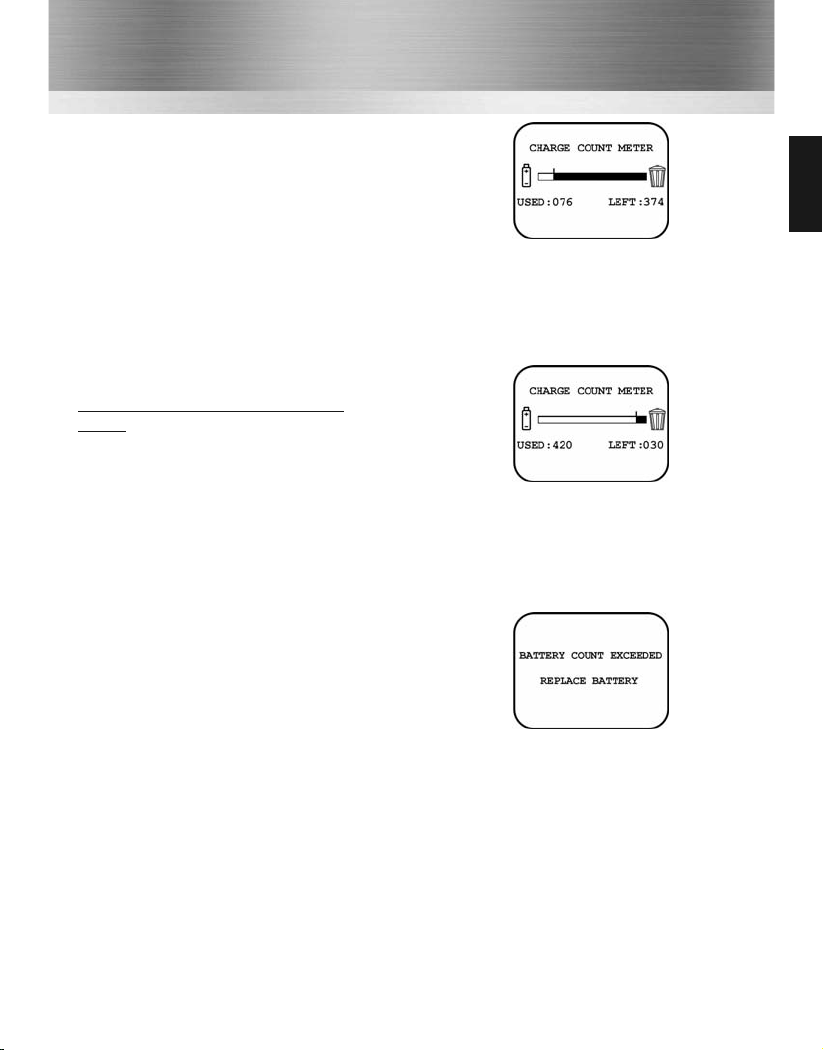

The warranty on all batteries is 12 months from new, or 450 charge cycles, whichever is the sooner. After 420 cycles, at switch on the radio will emit a series of short tones, and on LCD models a waste bin icon will flash to alert you to the need to buy a new battery.

After 450 cycles, at switch on the radio will emit a series of long beeps, and LCD models the message will change to BATTERY COUNT EXCEEDED REPLACE BATTERY. The radio will continue to operate but its operational time may be reduced, eventually failing all together.

Note: only genuine Entel batteries should be used. Only genuine batteries offer the battery charge count feature informing you when the battery is reaching the end of its useful life. Customer satisfaction is assured as you can not be supplied with sub standard, potentially dangerous battery packs from 3rd party manufacturers, ensuring it delivers the expected capacity and endurance.

On HT series batteries a breathable membrane is used.This is clearly marked on the battery label. Piercing the membrane will allow water ingress to the battery, and will invalidate the warranty.

Page 6

Packing List

• HT64X Transceiver

Common

• CNB750E Rechargeable 1800mAh Li-Ion battery (May not be included with GMDSS)

• CLB750E Non rechargeable Li-Ion battery (GMDSS only)

• CBH750 Spring loaded belt clip

• CATXX Antenna

CCA trickle charger included with certain models

Optional Accessories

Battery & Charger Options

CNB750E Spare 1800mAh Lithium-Ion battery pack with rear clip CLB750E Spare 2000mAh Lithium-Ion non-rechargeable battery pack with rear clip CSAHT 1-way intelligent rapid charger,110-230v CSBHT 6-way intelligent, rapid charger, 110-230v CCA230 1-way trickle charger with 230V mains adapter CCA110 1-way trickle charger with 110V mains adapter CCA12 1-way trickle charger with cigar lighter lead, 12V DC operation

Carry Options

CFC750 HT7X2, HT7X3 & HT7X5 soft leatherette case finished in black with carry strap CLC752 HT7X2 heavy duty black leather case with strap & belt loop CLC753 HT7X3 & HT7X5 heavy duty black leather case with strap & belt loop CLC756 HT7X6 heavy duty black leather case with strap & belt loop CBH750 Spare spring loaded belt clip

(for GMDSS models only)

Audio Accessory Options

CMP1/750 Compact medium duty speaker microphone with earpiece jack CMP750 Heavy duty submersible speaker microphone EHP9 D-shaped earpiece (plugs into CMP1/750 or CMP750 above) Tattoo Lightweight Bluetooth earpiece/microphone X3 Durable, water resistant Bluetooth earpiece/microphone M10 Ultra small Bluetooth earpice/microphone BTPTT Small Bluetooth remote press to talk button EA12/750 D-shaped earpiece with in-line PTT/microphone & VOX* EA15/750 Earpiece microphone with transparent acoustic tube & VOX* EA19/750 D-shaped earpiece with boom microphone and in-line PTT & VOX* EHP750 D-Shaped earpiece (connects directly to radio) EPT40/750 Bone conductive earpiece microphone with PTT CXR5/750 Bone conductive skull microphone with in-line PTT CXR16/750 D-shaped earpiece and throat microphone with in-line PTT

Page 7

Optional Accessories cont...

CHP1/750 Light weight single earpiece headset with in-line PTT & VOX* CHP750HS Single earpiece ear defender headset with boom mic and in line PTT for hard hat & VOX* CHP750HD Double earpiece defender headset with boom mic and in line PTT for hard hat & VOX* CHP750D Double earpiece headband defender headset with boom mic and in line PTT & VOX* CHP750BT Bluetooth double earpiece headband defender headset with boom mic and ear cup PTT CBH750 Spare spring loaded belt clip * VOX =Voice Operated Transmit (hands free operation)

For complete up to date list of optional accessories visit www.entel.co.uk

PreparingYour Radio For Use

Simplex/ Duplex Channel Use

Your transceiver has been factory programmed in accordance with International regulations. The mode of operation cannot be altered from simplex to duplex or vice versa. Simplex or duplex mode is automatically activated, depending on the channel selected. If you have a licence to use a specific simplex or semi-duplex channel, contact your dealer who may be able to programme your channel using the transceiver’s private channel memory.

---

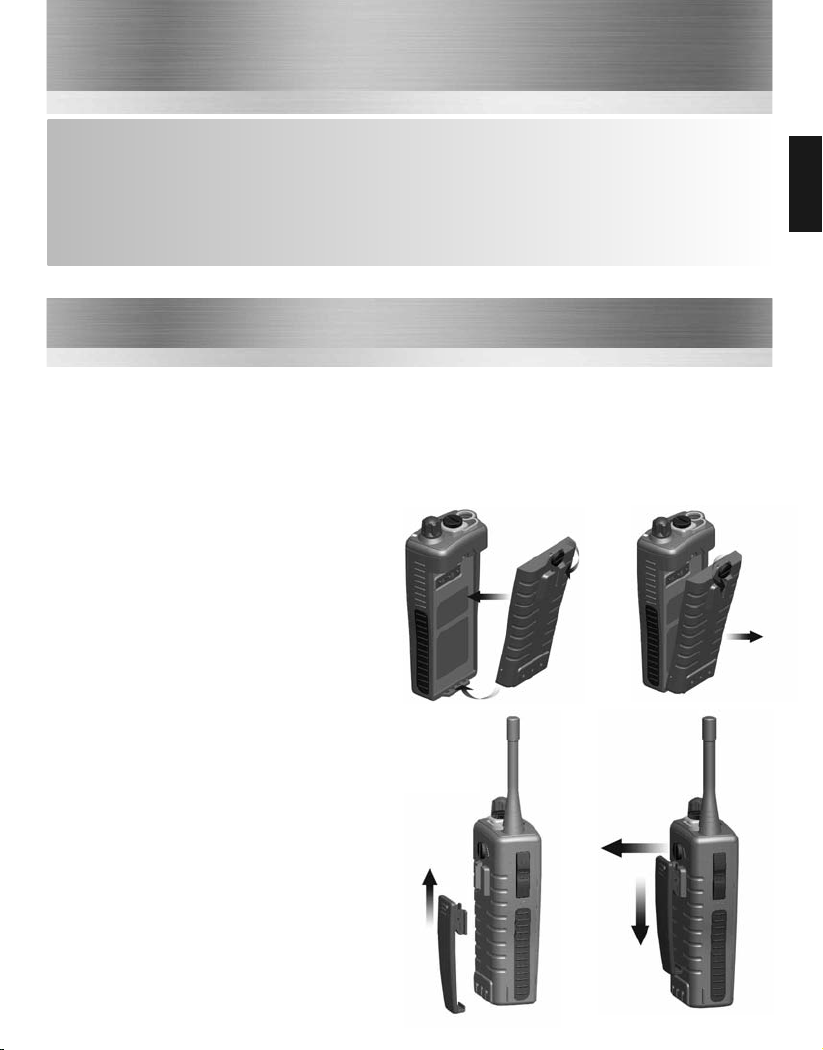

Attaching / Removing the Battery Pack

To attach, locate the pegs on the bottom of the

battery into the slots on the radio and press the top of the battery against the radio. Secure battery by tightening the screw clockwise by hand. (Do not over tighten)

To remove, unscrew the locking screw

anticlockwise and pull the battery away from the top of the radio.

Common

Attaching / Removing the Belt Clip

To attach, locate the clip into the slot on the

back of the battery and slide up until you hear a “click”.

To remove, pull the tab (a) towards the belt

clip.Then slide the belt clip -down-wards (b).

Page 8

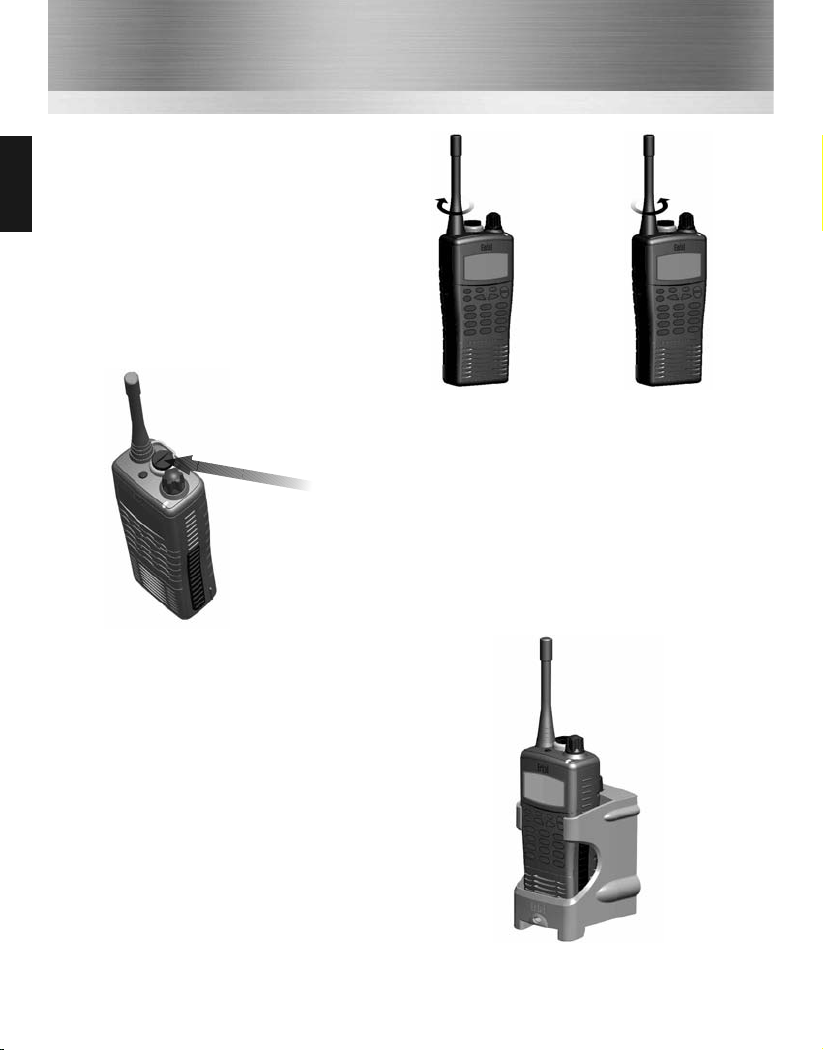

PreparingYour Radio For Use cont...

Common

Attaching / Removing the Aerial

To attach, carefully align the aerial with the

socket. Screw in the aerial clockwise (taking care not to cross the thread) until it is seated firmly against the top of the radio.

To remove, unscrew the aerial

anti-clockwise.

Attaching / Removing Audio Accessories

To attach, remove the accessory cover by unscrewing the

locking screw anti-clockwise (leave cover attached or store in a safe place).Attach accessory plug by locating over the socket. Carefully tighten the locking screw clockwise until finger tight (do not tighten with a screwdriver etc).

To remove, unscrew the locking screw by hand in an

anti-clockwise direction (carefully use a coin or screwdriver if too tight). Ensure you re-fit the accessory cover so as to protect the socket.

Charging Your Radio

Several charger options are available. Please refer to your charger user guide.

Page 9

Using Your HT642/HT648

On / Off button Press the on / off button to turn your radio on. A short turn on beep will be heard. To turn off, press and hold the on / off button until the display extinguishes.

Using your radio Before using your radio you may need to adjust the volume on the radio to take in to account background noise. Adjust the volume using the rotary control on the top of the radio.

Transmitting on your radio Before transmitting, ensure that the channel is not in use.To transmit press and hold the PTT button and speak approximately 35 - 50mm from the microphone on the radio.To receive, release the PTT button.

Channel Scan (dealer programmable feature) Press the dealer assigned button on the radio to start scan. Press again to return to stop.

Monitor Button Press the orange monitor button on the top of the radio to defeat the squelch mute. Press again to return to squelch mute.

Securing Your Radio You may secure your radio to you using either the supplied CBH750 belt clip or using an optional leather case.

Common

Page 10

Using Your HT644/HT649

On / Off button

Common

Press the on / off button to turn your radio on. A short turn on beep will be heard. To turn off, press and hold the on / off button until the display extinguishes.

Using your radio Before using your radio you may need to adjust the volume on the radio to take in to account background noise. Adjust the volume using the rotary control on the top of the radio.

Scan (HT644/HT649)

1. Select the desired channel to be scanned using the & buttons.

2. Press the [MEM] button to store the channel into the transceiver’s memory. [MEM] is displayed on the LCD.This channel is now memorised to be scanned.

3.To add further channels, repeat steps 1 & 2.

4.To delete a channel from the transceiver’s scan memory, simply press [MEM] button again whilst the memorised channel is displayed. [MEM] disappears.

5.All channels programmed remain in the transceivers scan memory even if the power is switched off.

6.Adjust the squelch control until the white noise is eliminated.

7.To start scanning, press the [SCAN] key.The scan proceeds from the lowest to the highest programmed channel number and stops on channels when a transmission is received.

8.To stop the scan at any time, press the [SCAN] key.

Emergency Channel Channel 16 is used for emergency contact with other vessels. Hold down the [16] key for 1 second to select channel 16.

Monitor Button Press the monitor button on the front of the radio to defeat the squelch mute. Press again to return to squelch mute.

Securing Your Radio You may secure your radio to you using either the supplied CBH750 belt clip or using an optional leather case.

Page 11

HT642

Standard Features:

• Environmentally protected to IP68 i.e. submersible to 5 metres for up to 60 minutes

• Robust design, exceeds MIL-STD-810C/D/E/F

• 1800mAH Lithium-Ion battery for superior operational time

• 16 programmable channels

• Full transmit power output 5 Watts

• Exceptionally loud and clear audio

• Top mounted monitor button

• Automatic power save to further increase operational time

• Low battery alert indicates when the battery needs replacing

Dealer programmable features:

• Channel Scan

• Key lock button

• Prefixed minimum volume level and fixed bleep level

HT642

Page 12

HT642

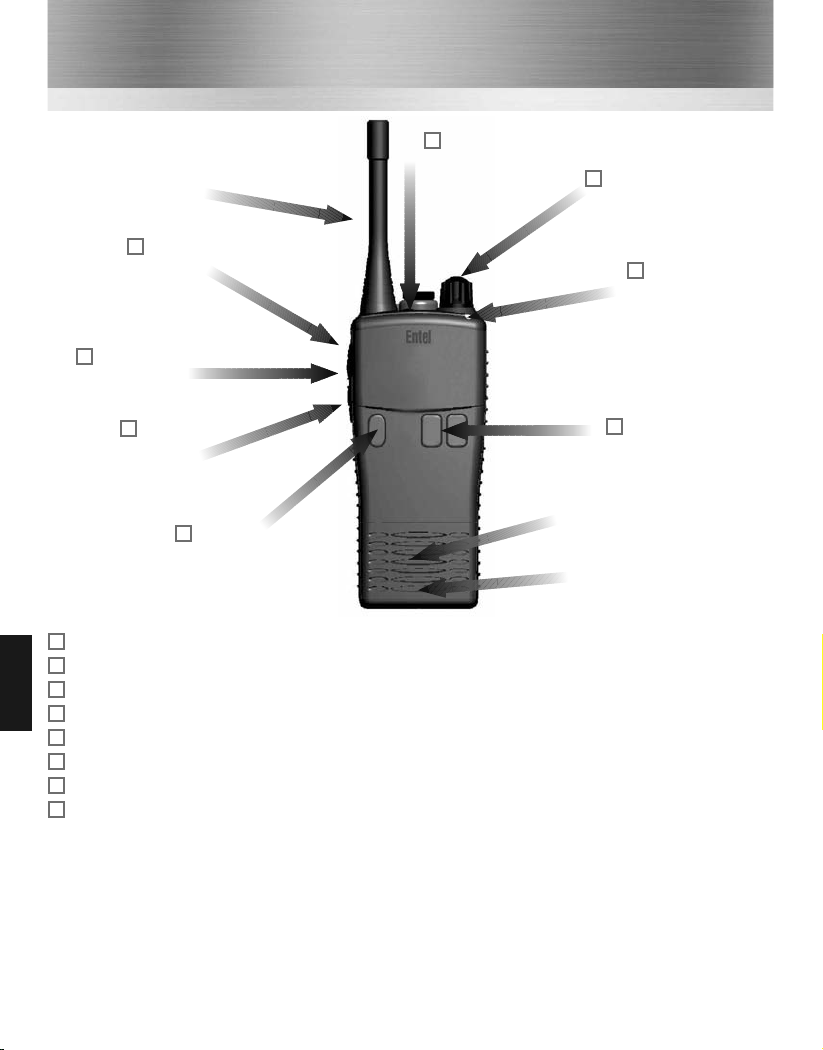

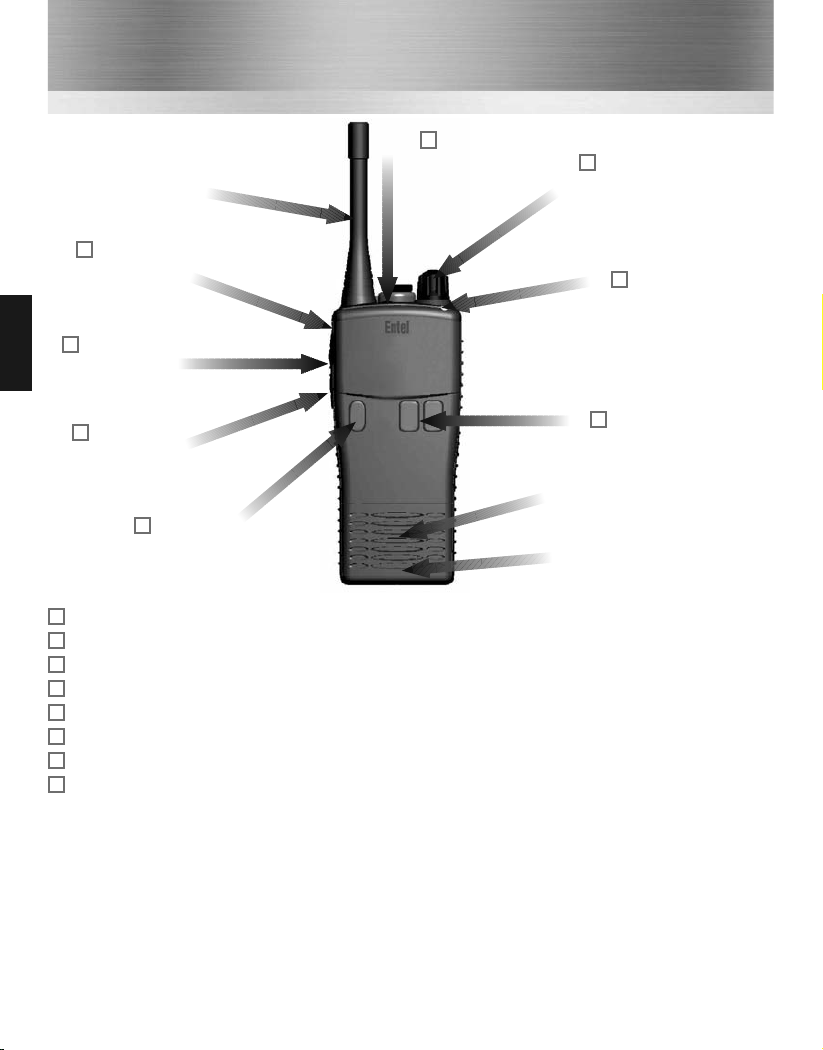

Controls & Indicators

Monitor

button

Antenna

Dealer programmable button 1

Push To Talk

(PTT) button

Dealer programmable button 2

On / Off

On / Off button. Press to turn radio on, press and hold to turn off.

Press up / down buttons to increase / reduce volume.

Channel / Scan Control. Rotate to select the desired channel or scan setting.

Push To Talk (PTT) button. Press to speak and release to listen.

Dealer programmable button 1 (ask your dealer for more information).

Dealer programmable button 2 (ask your dealer for more information).

Monitor button. Press button to turn on / off.

LED indicator.

• RED Steady = Transmitting

• RED flashing slowly = Battery needs re-charging

• GREEN Steady = Receiving

• GREEN flashing slowly = Selcall received

• YELLOW Steady = Non valid signal detected

• YELLOW flashing rapidly = Scanning

Channel / Scan /

control

Speaker

Microphone

LED indicator

Volume control

Page 13

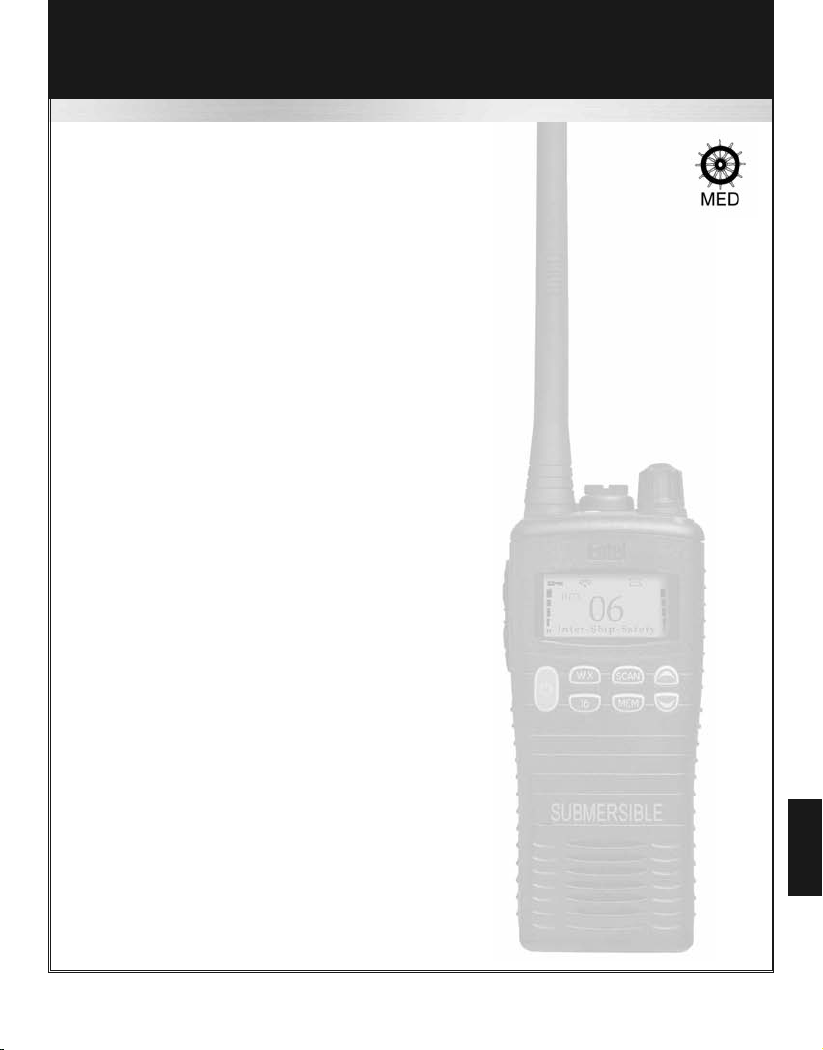

HT644

Standard Features:

• Environmentally protected to IP68 i.e. submersible to 5 metres for up to 60 minutes

• Robust design, exceeds MIL-STD-810C/D/E/F

• LCD screen to display channel number

• 1800mAH Lithium-Ion battery for superior operational time

• INT, USA,CAN channels

• Full transmit power output 5 Watts

• Exceptionally loud and clear audio

• Ch 16 shortcut button

• Scan button

• Monitor button

• MEM button

• Automatic power save to further increase operational time

• Low battery alert indicates when the battery needs replacing

Dealer programmable features:

• Key lock button

• Prefixed minimum volume level and fixed bleep level

HT644

Page 14

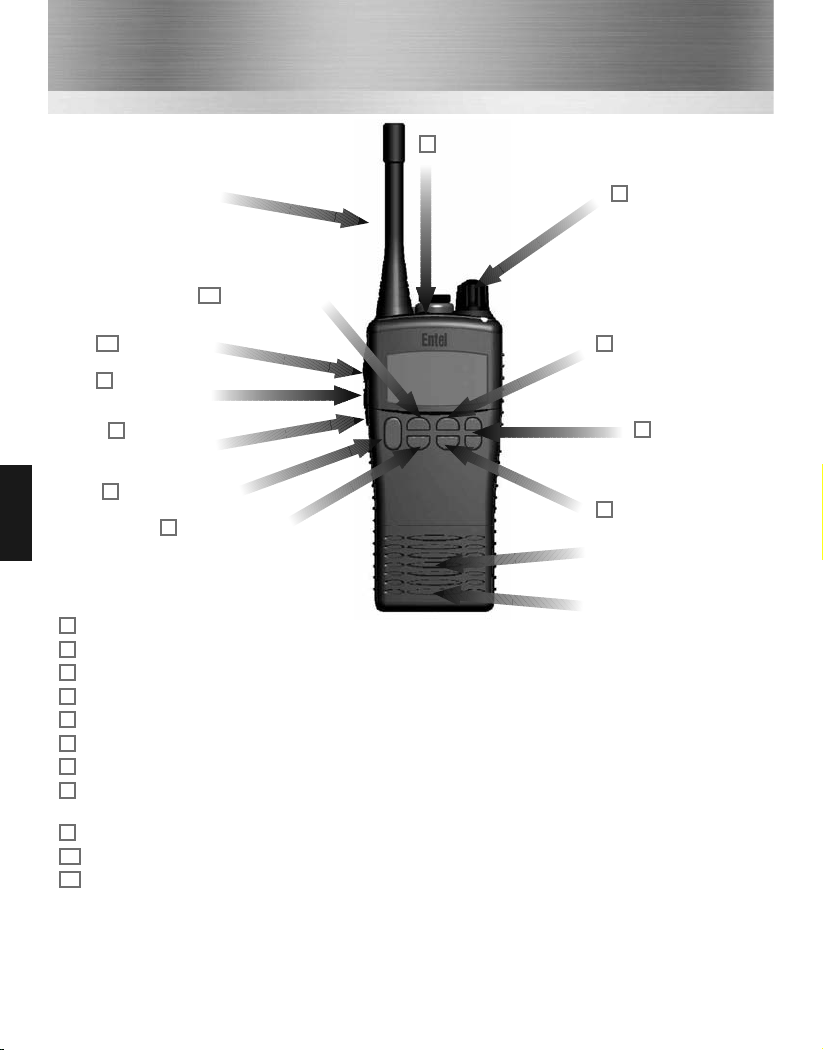

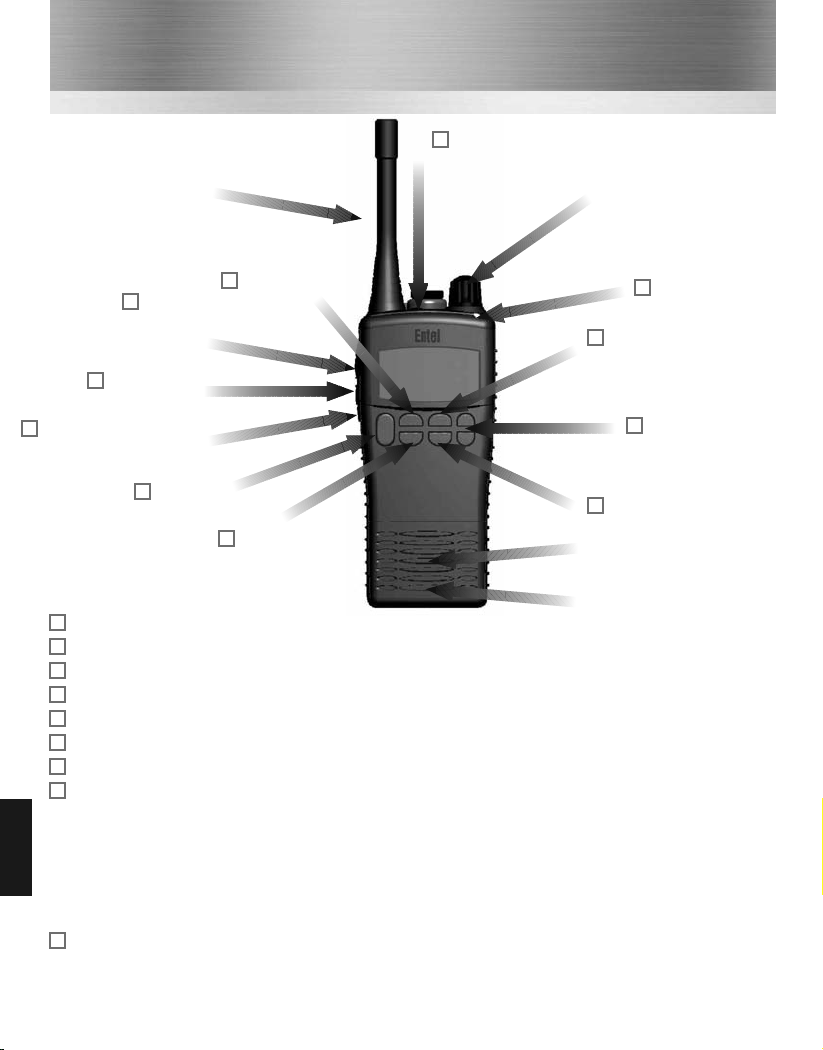

Controls & Indicators

Monitor button

H/L button

Push To Talk

Antenna

WX button

Volume control

Scan button

(PTT) button

Lamp / key

Up / down buttons

lock button

HT644

On / Off button

Ch. 16 button

MEM button

Speaker

Microphone

Monitor button. Press to monitor channel.

Volume control

Channel scan button. Press to start / stop channel scanning.

Up / down buttons. Press up / down buttons to change channel.

MEM button. Memorise a desired channel for scanning.

Ch. 16 button. Shortcut button to access channel 16.

On / Off button. Press to turn radio on, press and hold to turn off.

Lamp/key lock button. Momentarily pressing this button illuminates the LCD display. Holding this button for over 1 second activates the key lock.To deactivate press button again.

PTT button. Press & hold to speak. Release to listen.

H/L button. Press and hold this button for one second to toggle between high and low power (1 & 5 Watts).

WX button. Immediately recalls the weather channels.

Page 15

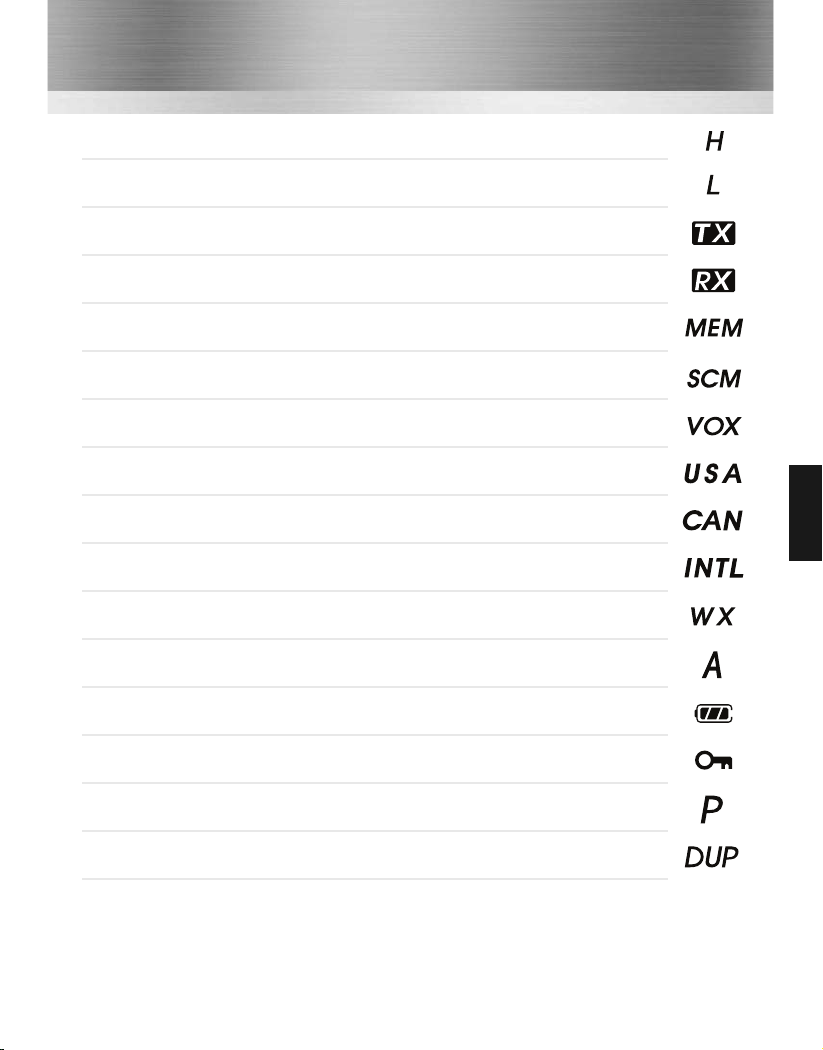

LCD Indicators

• High power selected (5 Watts)

• Low power (1 Watt)

• Transmit in progress

• Receive in progress

• Indicated channel is memorised for scanning

• Scrambler mode enabled (version A & B only)

• Voice operated mode enabled

• Indicates the channel set for USA

• Indicates the channel set for Canadian

• Indicates the channel set for International

• NOAA weather channels (USA and Canadian waters only)

• A ship-to-ship channel (in USA or Canadian mode)

• Battery life indicator

• Indicates keypad is locked, excluding the PTT, H/L and LAMP buttons

• Private channel number selected

• Duplex channel selected (not simplex)

HT644

Page 16

PAGE

INTENTIONALLY

LEFT BLANK

Page 17

HT648

Standard Features:

• Environmentally protected to IP68 i.e. submersible to 5 metres for up to 60 minutes

• Robust design, exceeds MIL-STD-810C/D/E/F

• GMDSS (Conforms to Pan European Specification ETS300-225

for the use of radios for Safety at sea

• Non rechargeable Lithium-Ion battery for superior operational time

• 16 programmable channels

• Transmit power output 2 Watts

• Exceptionally loud and clear audio

• Top mounted monitor button

• Automatic power save to further increase operational time

• Low battery alert indicates when the battery needs replacing

Dealer programmable features:

• Channel Scan

• Key lock button

• Prefixed minimum volume level and fixed bleep level

HT648

Page 18

Antenna

programmable

button 1

Push To Talk

(PTT) switch

Controls & Indicators

Monitor

button

Dealer

Channel Change

LED indicator

Dealer

Volume control

programmable

button 2

Speaker

On / Off

Microphone

HT648

On / Off button. Press to turn radio on, press and hold to turn off.

Press up / down buttons to increase / reduce volume.

Channel change control, rotate to select the desired channel or scan setting.

Push to talk button, press to speak and release to listen.

Dealer programmable button 1 (ask your dealer for more information).

Dealer programmable button 2 (ask your dealer for more information).

Monitor button. Press to turn monitor on / off.

LED indicator.

• RED Steady = Transmitting

• RED flashing slowly = Battery needs re-charging

• GREEN Steady = Receiving

• GREEN flashing slowly = Non valid signal detected

• GREEN flashing rapidly = Scanning

Page 19

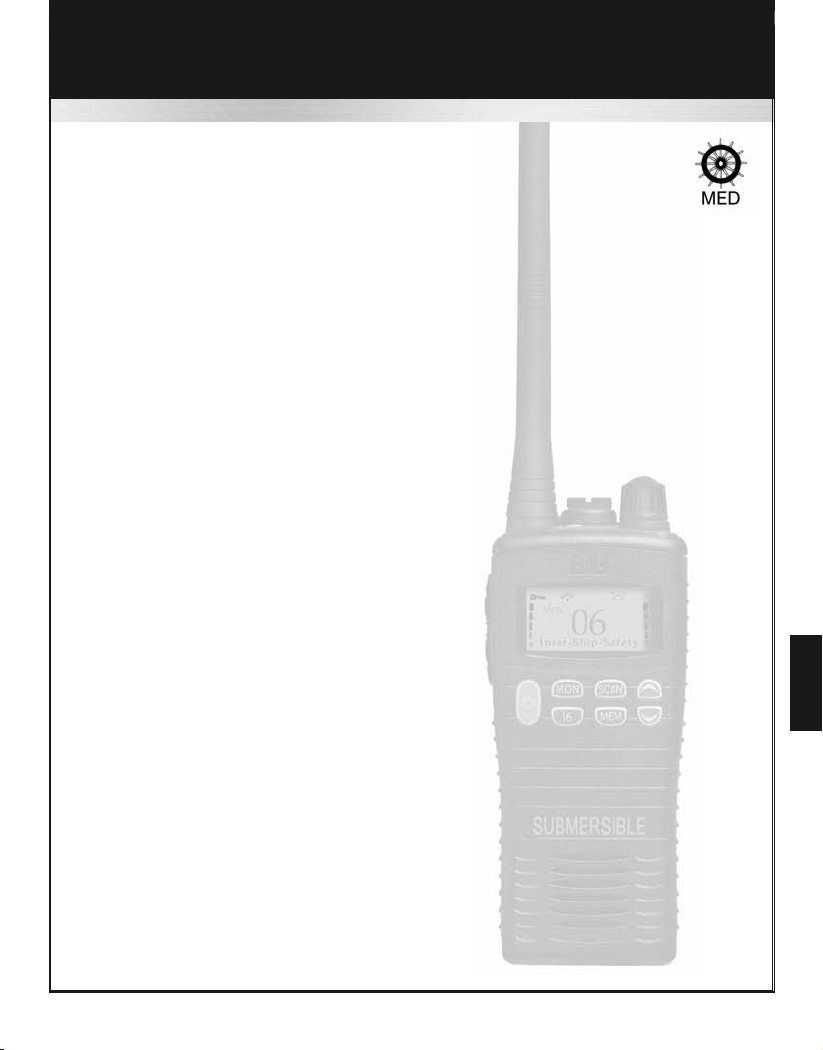

HT649

Standard Features:

• Environmentally protected to IP68 i.e. submersible to 5 metres for up to 60 minutes

• Robust design, exceeds MIL-STD-810C/D/E/F

• GMDSS (Conforms to Pan European Specification ETS300-225 for the use of radios for Safety

at sea

• LCD screen to display channel number

• Non rechargeable Lithium-Ion battery for superior operational time

• 255 channel capacity

• Transmit power output 2 Watts

• Exceptionally loud and clear audio

• Ch 16 shortcut button

• Scan button

• Monitor button

• MEM button

• Automatic power save to further increase operational time

• Low battery alert indicates when the battery needs replacing

Dealer programmable features:

• Key lock button

• Prefixed minimum volume level and fixed bleep level

HT649

Page 20

programmable

Push To Talk

(PTT) switch

Dealer programmable

On / Off button. Press to turn radio on, press and hold to turn off.

Monitor button. Press to monitor channel

Channel scan button. Press to start/stop channel scanning.

Channel change buttons. Press up/down buttons to change channel.

Mem button.

Ch 16 button. Shortcut button to access channel 16.

PTT button. Press & hold to speak. Release to listen.

LED indicator.

HT649

• RED Steady = Transmitting

• RED flashing slowly = Battery needs re-charging

• GREEN Steady = Receiving

• GREEN flashing slowly = Non valid signal detected

• GREEN flashing rapidly = Scanning

Dealer programmable buttons (ask your dealer for more information).

Antenna

Dealer

button

Controls & Indicators

Dealer programmable button

Monitor button

On / Off

Ch16 button

Volume control

LED indicator

Scan button

Channel change

MEM button

Speaker

Microphone

Page 21

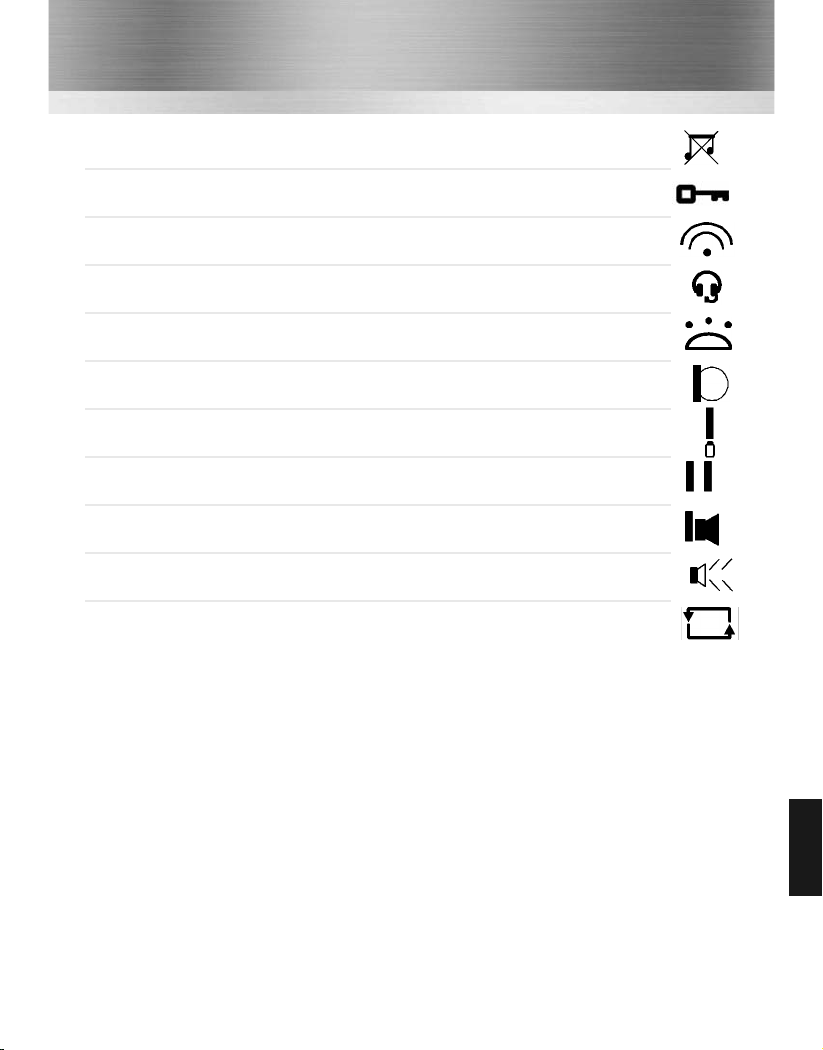

LCD Indicators

• Key Bleeps Off

• Keypad Locked

• Blue-Com device connected

• Accessory Connected

• GPS Connected

• VOX Enabled

• Battery State

• Receive strength / TX Output

• Speaker muted

• Speaker unmuted

• Channel scanning

RX / M

HT649

Page 22

NOTES

Page 23

NOTES

Page 24

‘the

professional’s

choice’

BE BG CZ DK DE EE IE

Headquarters: United Kingdom www.entel.co.uk

EL ES FR IT CY LV LT

LU HU MT NL AT PL PT

RO SI SK FI SE UK
