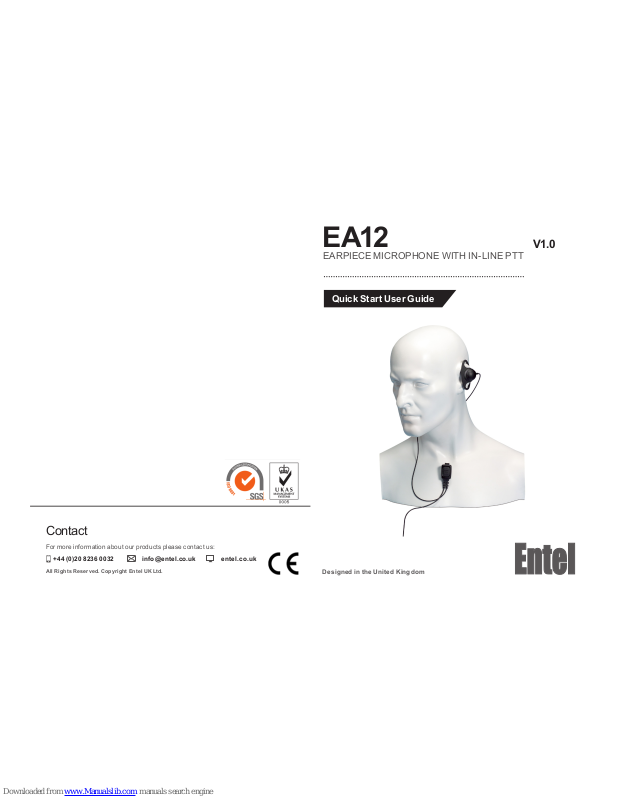

EA12
Quick Start User Guide
EARPIECE MICROPHONE WITH IN-LINE PTT
Desig ned in the United Kingdom
Contact
For more informati on about our product s please co ntact us:
+44 (0)20 8236 003 2
entel.co.uk
All Rights Reserved. Copyright Entel UK Ltd.
V1.0
Page 2
EA12
Thank you for purchasing the Entel earpiece
microphone. With care, this product should
provide years of trouble free use.
FITTING
Place the D-shaped shell comfortab ly and
securely over your lef t ear. The combination
microphone/PTT button should be attached
around the lapel area about 10cm from your
mouth.
OPERATING INSTRUCTIONS
• Press the PTT button to transmit and
release to receive.
• Speak normally, do not shout direc tly into
the microphone.
IM PO RTAN T
Always swi tch the radio o be fore
attach ing an audio access ory. Models that
are certi ed to ATEX & IECEx have b een
clearly l abelled. Shou ld, in the course o f
use, any lab els be removed or b ecome
illegib le please retur n the accessory t o
Entel for relabelling.
SPECIFICATIONS
EARPIECE MICROPHONE
Mic. element Electret condenser
Speaker impedance 16 ohm
Output sound pressure level <85dBA
Weight 60g
Quick Start User Guide
Model Series Intrinsically Approval
safe cert. no
EA12/9 50 HT500, HT800,
HT900
IECExSI R10.0097X &
Sira 10ATEX2066X
IECEx
ATE X
EA12/750 H T700 None None
EA1 2/4 50 HX None None
EA12/D X DX None None
V1.0
Above approvals apply to specific models only
D-SHAPE EARPIECE
CON NECT
TO RAD IO
PTT U NIT
