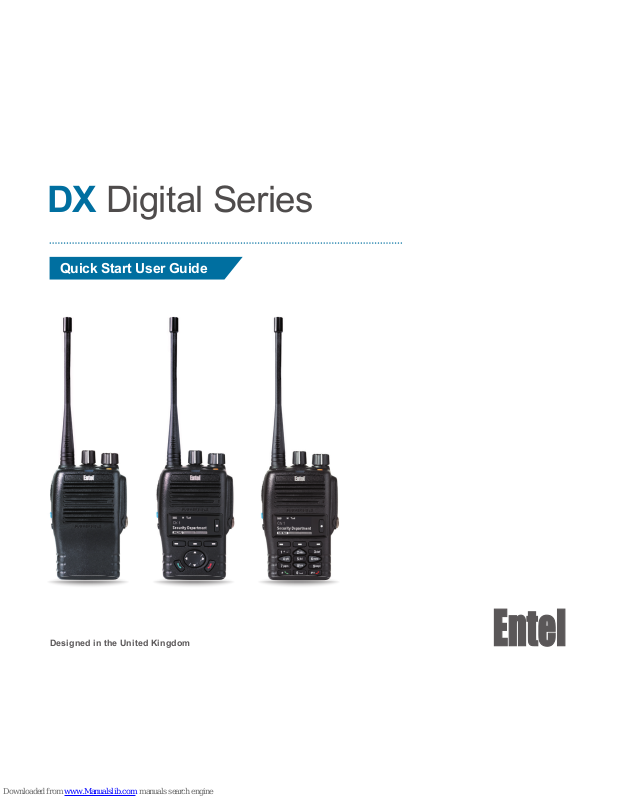

DX Digital Series
Quick Start User Guide
Designed in the United Kingdom
Quick Start User Guide V2.0
DX Digital Series
INTRODUCTION
The Entel DX4xx digital series is designed for those users who demand the
ultimate per formance for their business critical communications.
Your ra di o c an be congu re d for Digita l or An al ogu e channel s, or b ot h and to
meet your exact requirements the radio may have been customised by your
Entel dealer. These features will be explained in a separate guide issued
by the dealer.
PACK IN G LIST
DX4xx Digital Radio
CNB4xxE Rechargeable Li-Ion battery
CBH450 Loaded belt clip
CATxxx High efciency antenna
CSAHX Rapid charger
OPTIONAL ACCESSORIES
Attaching and removing accessories
1.To attach an accessory, remove the acc essory cover by unscrewing the
locking screw anti- clockwise (store in a
safe place).
2.Plug the accessory into the socket,
then carefully tighten the locking screw
clockwise until nger tight (do not
overtighten or use any implement)
3.To remove an accessor y, unscrew the loc king
screw of the accessory by hand in an anti-
clockwise direction. Ensure you re -t the
accessor y socket cover so as to protect the
socket.
BAT T ERY IN FOR MATIO N
Battery charging
1. Connect the AC adapter to the charger pod and plug in.
2. Turn the radio off.
3. Insert the battery pack into the charger pod, either with or without the
radio attached. The charger LED status light changes to red and charging
begins.
4. When charging is complete the charger status LED changes from red to
green, a fully discharged battery pack will take approximately 2 hours
(CNB420E), 3 hours (CNB450E) to re-charge.
A ashing red LED on the charger indicates there is a problem with the
bat ter y. Remove the bat tery from the ch arg er an d consult your Ente l Dealer.
CAUTION
BATTERY PACK PRECAUTIONS
• Do not recharge the battery pack if it is already fully charged. Doing so
may reduce the life of the battery pack.
• After charging is complete, remove the battery from the charger. If the
power to the charger is turned of f and on again, charging will restart and
the bat tery will become overcharged.
• Please ensure the radio is turned off before placing it in the charger and
never switch a radio on whilst in the charger.
• Only use Entel branded battery packs and chargers.
• Do not shor t the batter y terminals or dispose of the battery in a re.
• Do not charge the radio and/or batter y pack if they are wet.
DANGER
DO NOT DISASSEMBLE OR MODIFY THE BATTERY IN ANY WAY!
Your Entel battery pack incorporates a safety circuit to avoid danger, if the
safety circuit is damaged or bypassed, or the battery cells are damaged
directly, they may generate extreme heat, smoke, rupture and emit ames.
