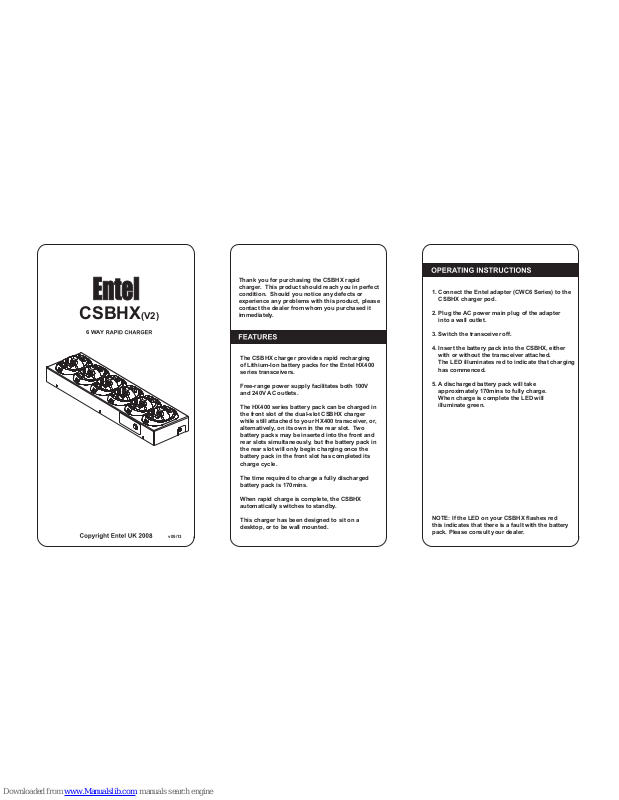

CSBHX(V2)
v05/13
Thank you for purchasing the CSBHX rapid
charger. This product should reach you in perfect
condition. Should you notice any defects or
experience any problems with this product, please
contact the dealer from whom you purchased it
immediately.
The CSBHX charger provides rapid recharging
of Lithium-Ion battery packs for the Entel HX400
series transceivers.
Free-range power supply facilitates both 100V
and 240V AC outlets.
The HX400 series battery pack can be charged in
the front slot of the dual-slot CSBHX charger
while still attached to your HX400 transceiver, or,
alternatively, on its own in the rear slot. Two
battery packs may be inserted into the front and
rear slots simultaneously, but the battery pack in
the rear slot will only begin charging once the
battery pack in the front slot has completed its
charge cycle.
The time required to charge a fully discharged
battery pack is 170mins.
When rapid charge is complete, the CSBHX
automatically switches to standby.
This charger has been designed to sit on a
desktop, or to be wall mounted.
1. Connect the Entel adapter (CWC6 Series) to the
CSBHX charger pod.
2. Plug the AC power main plug of the adapter
into a wall outlet.
3. Switch the transceiver off.
4. Insert the battery pack into the CSBHX, either
with or without the transceiver attached.
The LED illuminates red to indicate that charging
has commenced.
5. A discharged battery pack will take
approximately 170mins to fully charge.
When charge is complete the LED will
illuminate green.
NOTE: If the LED on your CSBHX flashes red
this indicates that there is a fault with the battery
pack. Please consult your dealer.
6 WAY
Page 2
• Adapter (CWC6 Series)
Input Voltage: 100~240VAC 50Hz/60Hz
Output Voltage: 12VDC 6 A
Weight: 550g (approx)
Adapter Type
CWC6EA - 2Pin (Australia)
CWC6ED - 2Pin (Europe)
CWC6EE - 3Pin (UK)
CWC6ES - 2Pin (US)
• CSBHX
Input Voltage: 12VDC 6 A
Output Voltage: 8.4VDC 800mA
Charge Time: 170mins
Dimensions: 65(H)mm x 630(W)mm x 180(D)mm
Weight: 4.6kg (approx)
The CSBHX is designed exclusively for use
with battery packs related to the Entel HX series.
Do not use it to charge any other types of battery
pack.
Do not use the CSBHX with any adapter other
than CWC6 series.
The Entel adapter is designed for use with an
AC power supply voltage between 100V and 240V.
Do not connect it to a power source outside
this range.
Never charge the transceiver whilst it is switched on.
Unplug the adapter when it is not in use.
Do not dismantle the CSBHX or the CWC6 adapter.
Never insert any metal or any other conductive
objects into the charger.
Do not touch the charger’s terminals.
Never short the charger contacts with metal or any
other conductive object.
The CSBHX should be placed in a well ventilated,
dry area.
In the event that your CSBHX gets wet, do not
switch on. Consult your dealer immediately.

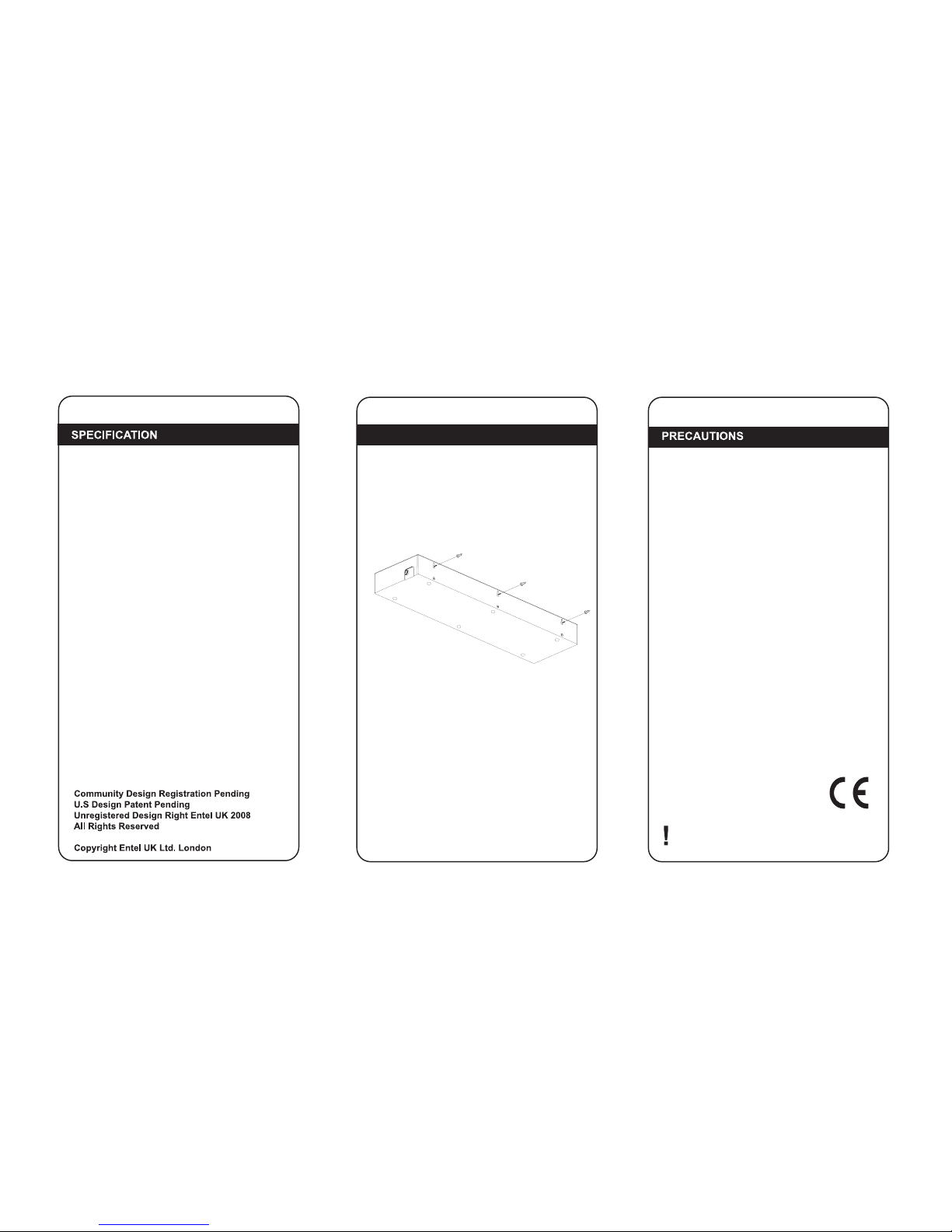

BULK-HEAD MOUNTING
For your convenience the CSBHX can be
bulkhead mounted
