This user guide provides detailed information for using the BrightEye 91-A HD upconverter with analog audio output.

The information is organized into the following sections:

• Product Overview

• Functional Description

• Applications

• Rear Connectors

• Operation

• Front Panel Controls and Indicators

• Using The BrightEye Control Application

• Warranty and Factory Service

• Specifications

• Glossary

BrightEye-1

HD Upconverter

with Analog Audio

User Guide

Revision 2.2 SW v1.2.0

BrightEye 91-A

BrightEye 91-A HD Upconverter with Analog Audio

PRODUCT OVERVIEW

BrightEye 91-A upconverts standard definition (SD) signals into high definition (HD) and performs format and aspect ratio conversion as needed. The built-in frame synchronizer handles any asynchronous signals fed to the unit.

As video is processed, audio is processed too, since the BrightEye 91-A accommodates both embedded audio and analog audio streams. Up to sixteen channels of embedded audio are supported. Audio mixing is available for two of the four embedded audio groups. The analog audio ports can be configured for eight channels of audio input, eight channels of audio output, or four in/four out.

The rear-panel HDMI output connector is compatible with many LCD monitors and allows confidence monitoring of signal feeds.

Basic controls are accessed on the front panel. BrightEye PC and BrightEye Mac Control applications provide access to video processing functions, input and output, and audio mixer controls that are not available from the front panel.

FUNCTIONAL DESCRIPTION

As shown in the diagram below, when a standard definition serial digital video input is fed to the BrightEye 91-A, the signal enters the serial digital receiver and is frame synchronized to the reference input. Audio is disembedded and passed around the upconversion process.

Alternately, when analog composite video is fed to BrightEye 91-A, the analog video is converted at 14 bits of resolution to digital YCrCb components (601). The signal is frame synchronized to the reference input and then fed to the upconverter. Aspect ratio of the video output is selectable between Anamorphic, Pillar Box, Crop or can be set manually.

There are four analog audio Phoenix connectors that can be used for input or output. There are 3 ways to configure the audio ports: Mux 8 where all connectors are configured as 8 input channels, Mux 4 where there are 4 input channels and 4 outputs channels, and Demux 8 where the all connectors are configured as 8 output channels. Audio level adjustment and channel mixing is provided.

All 16 channels of audio are passed through. Audio is passed around the upconversion process in order to preserve lip sync. Audio is embedded into the video stream prior to output. Two channels of audio, selected by the user, can be monitored on the headphone jack. The HDMI output provides confidence monitoring of the same signal that is on the two HD SDI output BNCs.

BrightEye 91-A is powered by a 12 volt DC universal power supply. This power supply can accept an input voltage between 91 and 230 volts, at 50 or 60 Hertz. It uses a standard IEC line cord and can be used anywhere in the world. It is normal for the converter to be quite warm to the touch when operating.

BrightEye-2

BrightEye 91-A

BrightEye-3

BrightEye 91-A Functional Block Diagram

Composite

or Tri-Level

Ref In

SD SDI/Composite

Video In

Balanced

Analog

Audio Inputs

Genlock

Analog

Decoder

Auto-Selecting

SDI

Receiver

Audio

Demux

Ch 1/2

Ch 3/4

Ch 5/6

Ch 7/8

Audio I/O selectable as: Mux 8 = 8 inputs or Mux 4 = 4 in/4 out or Demux = 8 outputs

Provides embedded pass throu

Upconversion Audio Mux

Audio

Processing

h of all 16 audio channels

SDI Driver

HDMI

Xmtr

Monitor

Amp

HD SDI Outputs

HDMI Out

Headphone Jack

Ch 1/2

Ch 3/4

Ch 5/6

Ch 7/8

Balanced Audio Outputs

BrightEye 91-A HD Upconverter with Analog Audio

BrightEye-4

PERFORMANCE ADVANTAGES OF THE BRIGHTEYE SERIES

When images are converted between different formats, color spaces, and resolution geometries, the need for accuracy and fidelity are extremely important. Whether upconverting from standard definition to HD formats, converting between different HD formats, or downconverting to SD, extra care must be paid to every aspect of the signal and the content of the images. The BrightEye series of up, down, and cross converters were designed specifically with this in mind and provide the highest possible level of signal processing quality.

Key aspects of this design are:

1) The Standard Definition analog inputs and outputs feature 12-bit quantization, with 4-times oversampling and 4:4:4 internal processing. This allows for better separation of real image content from artifacts.

2) The RF aspects of the electrical performance of the SDI inputs and outputs have been carefully optimized for reliable and dependable SDI I/O performance even under adverse conditions. Real-world operation of these ports is at nearly twice the industry accepted specification of 100 meters of digital cable.

3) Input signals are upsampled to 4:4:4 spatial resolution in RGB colorspace and adaptively de-interlaced. This enables all of the geometrical conversions of the image to be performed in the Progressive domain. This enhancement to the temporal resolution of the image is a key contributor to final image quality, even if the final output is interlaced.

4) The colorspace and geometrical conversions of the signal are performed at up to 16 bits of resolution.

5) The final output signal is built from this intermediate progressive workspace, which is the most uncompromised version of the image possible. It provides the best possible starting point from which to create the final output signal.

BrightEye 91-A

APPLICATIONS

Upconversion 1

The BrightEye 91-A can upconvert SD video from many different source types. As shown in the example below, the SD ingest signal from a satellite is fed to a BrightEye 91-A where it is upconverted to feed an HD Master Control Switcher. The other output can be sent to another HD destination.

Upconversion 2

Standard definition cameras and other SD gear can be used with an upconverter such as BrightEye 91-A. Leverage existing SD equipment by upconverting for HD production. As shown below, a standard definition camera is fed to a BrightEye 91-A upconverter. The HD output of the BrightEye is fed to a production switcher and on to a projector. The HDMI out provides confidence monitoring of the camera.

BrightEye-5

Signal In

BE 91-A

Upconversion

House Reference

HD Master

Control

Switcher

Other HD

Destinations

SD SDI

SD Camera Projector

or Composite

BE 91-A

HD SDI

HDMI

Production

Switcher

LCD

Display

BrightEye 91-A HD Upconverter with Analog Audio

BrightEye-6

REAR CONNECTORS

All connections to the BrightEye 91-A are made on the rear of the unit. Refer to the photo below.

Power Connection

Connect a modular power supply to the 12 volt DC power input connection on the far left of the unit. Use the locking ring to secure it.

USB Connector

Connect a PC to the USB connector to enable more comprehensive control, diagnostics, and upgrades to the BrightEye 91-A. Use the BrightEye PC or BrightEye Mac application included on CD-ROM to make adjustments as described in the OPERATION section of this user guide.

HDMI Out

Connect an LCD monitor to this port for confidence monitoring of a video feed.

Audio Monitor

Connect a headset to this 3.5 mm mini jack to monitor the audio channels selected from the front panel.

Input/Output BNCs

There are eight rear BNC connectors used as inputs and outputs as follows:

HD SDI Out

This BNC outputs a timed HD SDI video signal with embedded audio.

HD SDI Out

This BNC also outputs a timed HD SDI video signal with embedded audio.

SD SDI/Cpst In

This BNC input accepts an analog composite video signal or SD SDI serial digital video signal with or without embedded audio. External audio can be inserted into the SDI input stream or replace existing embedded audio.

BrightEye 91-A Rear Connectors

BrightEye-7

Ref In

This BNC accepts an analog composite video signal or Tri-Level Sync signal which is used as the genlock and timing reference for the internal Frame Synchronizer. Typically the reference signal is Color Black or Color Bars fed from a master sync generator (such as the BrightEye 55).

Analog Audio Connectors

The four Phoenix connectors are either analog audio inputs or outputs depending on how the unit is configured (Mux 8, Mux 4, or Demux). Each connector inputs or outputs 2 channels of audio (1 pair.) When the unit is configured as Mux 8, the four Phoenix connectors are inputs. When configured as Demux, the four Phoenix connectors are outputs.When configured as Mux 4, two Phoenix connectors are inputs and two Phoenix connectors are outputs.

OPERATION

Control and operation of the BrightEye 91-A is performed from the front panel or remotely from a networked PC with the BrightEye PC or BrightEye Mac Control application.

Some control settings are only available with BrightEye PC or Mac. These parameters cannot be monitored or controlled from the front panel.

Front Panel Controls and Indicators

The front panel of the BrightEye 91-A, shown below, provides status and control indicators for the module.

Status Indicators

The following status indicators are provided on the front panel:

Embed In

Illuminates when an embedded audio stream is detected on the SD SDI/Cpst In video input BNC. This applies only to SDI signals.

BrightEye 91-A Front Panel

NOTE:

BrightEye 91-A

BrightEye 91-A HD Upconverter with Analog Audio

BrightEye-8

Audio Mode

Indicates the currently selected audio I/O mode. Choices are Mux 4 (4 inputs and 4 outputs), Mux 8 (8 inputs), or Demux (8 outputs).

Gain (Audio)

These controls allow for quick adjustment of Gain level for the channel pairs.Gain adjustment is done in conjunction with the VU indicators. For independent channel adjustment, and other controls, use BrightEye PC or Mac. The indicator illuminates green when the gain for a given audio channel pair is set to nominal or unity setting, or red when set to other than unity.

VU output level and the status of the Gain adjustment for each of these channel pairs is indicated by the state the VU and Gain indicators for each of the channel pairs. The VU indicator illuminates red when the audio level exceeds the headroom level set by the user (with the Peak Indicator control in BrightEye PC or Mac.) The indicator illuminates green when the gain for a given audio channel pair is set to unity, red when set to other than unity, or yellow when gain exceeds 0 VU (-20dBFS).

Mon Vol (Monitor Volume)

Illuminates green when monitor volume is set to unity, or red when set to other than unity.

Input

Indicates the type of video signal detected on the SD SDI/Cpst In video input BNC. Choices are SD SDI or Composite. Ref (Reference) illuminates when a valid reference is detected on the Ref BNC.

Output

Indicates the type of video signal selected on the HD SDI Out BNC. Choices are 1080i, 720p, 1080p, or 1080sF.

Mode

Indicates the output aspect ratio when upconverting the input signal.Choices are:

• Anamorphic – original material is stretched as needed to 16:9.

• Box – Letter Box or Pillar Box side bars are added to the original material.

• Crop – top and bottom edges are cropped off the original material.

Bars

Illuminates green when color bars are selected as the output signal.

Graticule

Illuminates green when the on-screen aspect ratio graticule is displayed.

Gain

Illuminates green when video gain is set to unity, or red when set to other than unity.

BrightEye-9

Pwr (Power)

Illuminates green when power is applied to the converter.

ADJUSTING PARAMETERS FROM THE FRONT PANEL

Use the Mode, Right Arrow, and Left Arrow buttons to select and adjust parameters from the front panel.

Pressing the Mode button activates the front panel for editing and tabs between each section of editable parameters.

Pressing the Right Arrow or Left Arrow advances the selection within a given section of parameters, or increases (Right Arrow) or decreases (Left Arrow) the value of a selected parameter.

The LED of an edited parameter will blink for 15 seconds, after which time its value is stored in memory. If power is interrupted before this 15 second timeout period has elapsed, the edited state will not be not saved.

USING THE BRIGHTEYE CONTROL APPLICATION

The BrightEye PC and BrightEye Mac applications included on CD-ROM are designed to allow you to configure and control the BrightEye 91-A from a personal computer. Installation and instructions for using this software application are given in the PDF manual on disk.

If the BrightEye 91-A is connected to a computer running this software, the following menus are available for controlling and monitoring the unit.

Video In

• Input Pres – indicates the status of the video input (SD 525, SD 625, No Input, Unknown).

• Captions In – indicates the presence of closed captioned material on the

input signal. The BrightEye 91-A translates closed caption data from the CEA-608 standard to CEA-708.

• Ref Source – use this control to set the reference input source. Video In Ref indicates that the video output will be locked to the incoming video

signal. Ext Ref indicates that the video output will be locked to the external reference input.

• Reference – indicates the status of a reference video presence (Ref Mismatch, Ref Unlocked, Ref TLS Lock, No Reference, Ref 525 Lock, Ref 625 Lock).

NOTE:

BrightEye 91-A

BrightEye 91-A HD Upconverter with Analog Audio

Mode

• Mode – use this control to set the aspect ratio for the upconverted HD video

output (Anamorphic, Pillar Box, Crop, Manual). When Manual is selected, use the Manual menu to set the aspect ratio.

• Format – use this control to set the desired output format (1080i,

720p, 1080p, 1080sF). Note that closed captions are not supported for 1080p and 1080sF outputs. The unit automatically detects the input

standard.

Manual

• Width – sets the aspect ratio width (range is 30 to 145, default is 100).

• Height – sets the aspect ratio height (range is 30 to 140, default is 100).

• Hor Position – sets the horizontal position of the output (range is -100 to

100, default is 0).

• Ver Position – sets the vertical position of the output (range is -100 to 100,

default is 0).

Use the Default button in each control to return to the default value.

BrightEye-10

BrightEye 91-A

Config

• Noise Reduce – adjusts the amount of noise reduction on the output signal

from Low, Medium, or High. The typical setting for this parameter is Off or Low.

• Detail – adjusts the amount of picture detail enhancement on the output from

Low, Medium, or High. The typical setting for this parameter is Off or Low.

• 3:2 Detect – turns the control to detect video that has been converted from

film, on or off. Use this only for film applications. The typical setting for this parameter is Off.

• Cpst Setup – turns on Setup on the composite output On or Off (525 only).

Set this to On if your material has Setup on it.

• Output Muting – set to either Mute On Noise or Off. Mute On Noise

means that the module will mute the video output (output a black signal) when the module detects that the video quality is unacceptable. Off allows the video to pass through to the output regardless of video quality.

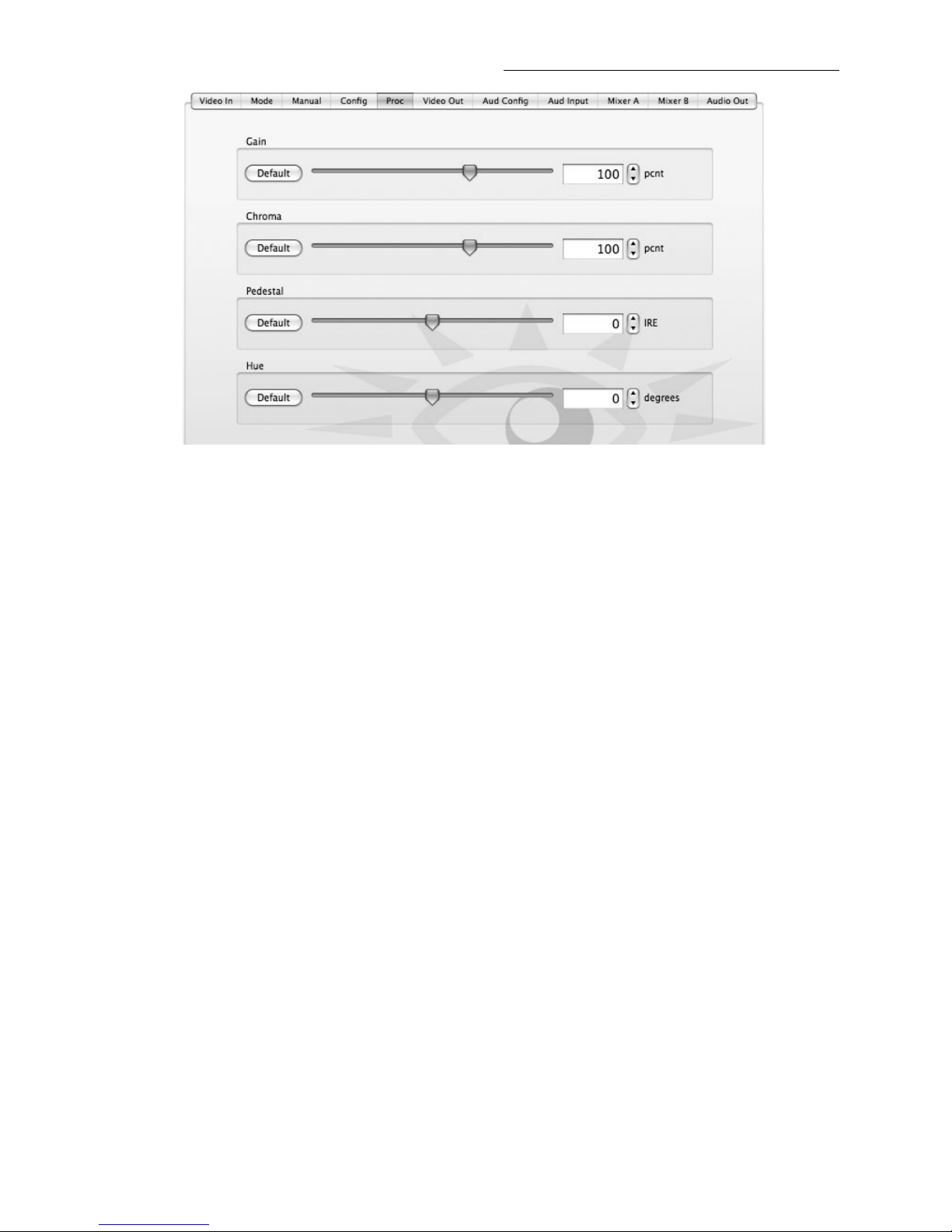

Proc

• Gain – adjusts the percentage of overall gain (luminance and chrominance)

(range is 0 to 150, default is 100).

• Chroma – adjusts the percentage of chroma amplitude (range is 0 to 150,

default is 100).

• Pedestal – adjusts the pedestal (black) level of the signal in IRE (range is

-30 to 30, default is 0).

• Hue – adjusts the hue of the signal ± 180 degrees (range is -180 to 180,

default is 0).

BrightEye-11

BrightEye 91-A HD Upconverter with Analog Audio

Video Out

• Hor Timing – use this control to adjust the horizontal timing of the output

signal to place the leading edge of sync coincident with other sources (range is -2000 to 2000, default is 0).

• Vert Timing – sets the vertical timing to a typical setting of 0 lines (range is -1000 to 1000, default is 0).

• Test Pattern – select On or Off. On enables the test pattern to be sent to the video output. Off disables the test pattern from being sent to the video output.

• HDMI Status – reports the status of a monitor or a display connected to the HDMI output (No Display, DVI Display, Unknown HDMI, HDMI Non-Compat, HDMI Native, HDMI Compatible). Status information comes from the display itself. Some displays may not work with the BrightEye 91-A, depending on the formats that the display supports. For best results, use a display that is HDMI Native.

• Captions Out – use this control to enable or disable closed captioning (if present on the input source material). On enables closed captioning by continuously transmitting captions (including any null or empty caption packets). Off disables closed captioning by stripping captions from the source material. The BrightEye 91-A translates closed caption data from the CEA-608 standard to CEA-708. Note that closed captions are not supported for 1080p and 1080sF outputs.

• Graticule – use this control to display on-screen graticule lines. These alignment markers facilitate film transfer, post production and quality control measurements relating to picture location for both the 4:3 and 16:9 aspect ratios. On enables graticules. Off disables graticules.

• Target – use this control to select the monitor on which graticule lines are displayed. Choices are All Outputs, Main Only (the unit’s output BNCs or fiber outputs), or HDMI Only.

BrightEye-12

BrightEye 91-A

• Hor Flip – Horizontal Flip is a special Mirror Output Mode that is useful for flipping the image left-to-right for use with on-screen talent or with prism lens cameras. Select On to flip the output image left to right. Select Off (after Reset) to turn Mirror Output Mode off. Power down the module and turn it back on for the Off selection to take effect.

• Color – use this control to set the color of the graticule lines. Choices are: White, Gray, Black, Red, Blue and Green.

• Transparency – use this control to adjust the transparency of the graticule lines from 0 (completely transparent) to 100 (no transparency).

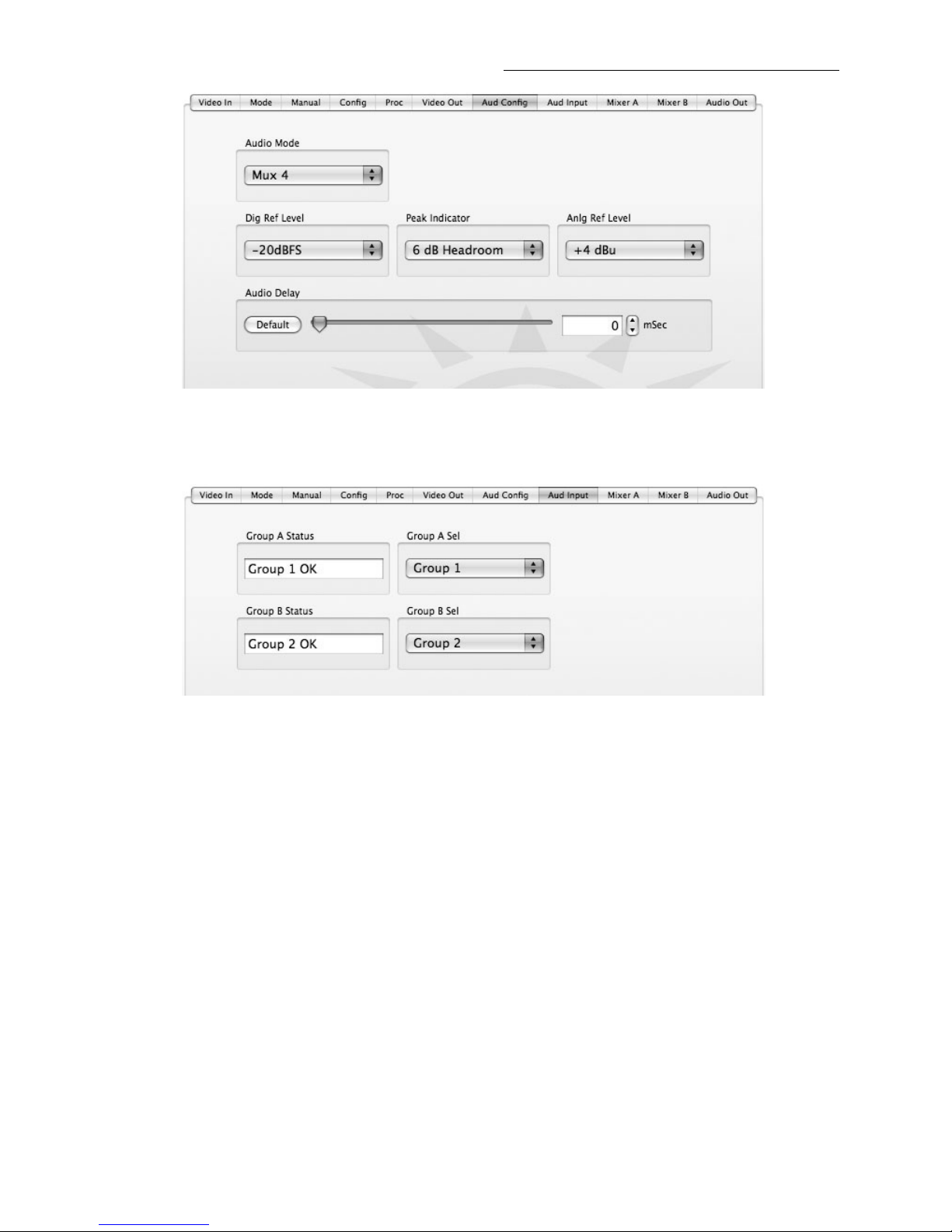

Aud Config

• Audio Mode – selects the mode of the module as Mux 4 (4 inputs and 4 outputs), Mux 8 (8 inputs), or Demux (8 outputs).

• Dig Ref Level – selects the digital reference level. This pulldown lets you choose between: -20 dBFS or -18 dBFS.

• Peak Indicator – selects the amount of headroom to use in determining peak levels. This pulldown lets you chose between: Clipping, 2 dB Headroom, 4 dB Headroom, 6 dB Headroom, 8 dB Headroom, or 10 dB Headroom.

• Anlg Ref Level – selects the analog reference level. This pulldown lets you choose between -10 dBu or +4 dBu.

• Audio Delay – allows you to set the amount of audio delay from 0 to 1000 msec.

BrightEye-13

BrightEye 91-A HD Upconverter with Analog Audio

Aud Input

The appearance of the Input menu will depend on the mode selected and the type of audio used.

Multiplexer Mode

When the module is set for Mux 8, the Input menu provides the controls shown below:

• Group A Status – the status of the audio selected in Group A Select will be displayed as Off, No Audio Present, Group1 OK, Group 2 OK, Group 3 OK, and Group 4 OK.

• Group B Status – the status of the audio selected in Group B Select will be displayed as Off, No Audio Present, Group1 OK, Group 2 OK, Group 3 OK, and Group 4 OK.

• Group A Select – select the audio group to multiplex from Group 1, Group 2, Group 3, Group 4, or Off for either control.

• Group B Select – select the audio group to multiplex from Group 1, Group 2, Group 3, Group 4, or Off for either control.

When the module is set for Mux 4, the Input menu provides the controls shown below:

• Group A Status – the status of the .audio selected in Group A Select will be displayed as Off, No Audio Present, Group1 OK, Group 2 OK, Group 3 OK, and Group 4 OK.

BrightEye-14

BrightEye 91-A

• Group A Select – select the audio group to multiplex from Group 1, Group 2, Group 3, Group 4, or Off for either control.

Demultiplexer Mode

When the module is set for Demux, the Input menu provides the controls shown below.

• Group A Status – the status of the audio selected in Group A Select will be displayed as Off, No Audio Present, Group1 OK, Group 2 OK, Group 3 OK, and Group 4 OK.

• Group B Status – the status of the audio selected in Group B Select will be displayed as Off, No Audio Present, Group1 OK, Group 2 OK, Group 3 OK, and Group 4 OK.

• Group A Select – select the audio group to demultiplex from Group 1, Group 2, Group 3, Group 4, or Off for either control.

• Group B Select – select the audio group to demultiplex from Group 1, Group 2, Group 3, Group 4, or Off for either control.

Mixer A

Use the Mixer A and Mixer B menus to control the audio mixing and shuffling of the module. Each output bus assignment will be indicated by a green box.

For Channels 1 – 4, use the Mixer A menu to set the following:

• Input Ch 1 – assign Input Channel 1 to the desired output bus or tie to Channel 2. Set the input level using the slider control or by entering a number in the window and pressing the Enter key on your computer.

• Input Ch 2 – assign Input Channel 2 to the desired output bus or tie to Channel 1. Set the input level using the slider control or by entering a number in the window and pressing the Enter key on your computer.

• Input Ch 3 – assign Input Channel 3 to the desired output bus or tie to Channel 4. Set the input level using the slider control or by entering a number in the window and pressing the Enter key on your computer.

• Input Ch 4 – assign Input Channel 4 to the desired output bus or tie to Channel 3. Set the input level using the slider control or by entering a number in the window and pressing the Enter key on your computer.

Selecting the Tie button in Input Ch 1 or Input Ch 2 will tie the two controls together. Selecting the Tie button in Input Ch 3 or Input Ch 4 will tie the controls for these channels together.

Select the Default button to return to the default value.

Select the Invert button to invert the phase of the audio content.

BrightEye-15

BrightEye 91-A HD Upconverter with Analog Audio

Mixer B

For Channels 5 – 8, use the Mixer B menu shown below to set the following:

• Input Ch 5 – assign Input Channel 5 to the desired output bus or tie to Channel 6. Set the input level using the slider control or by entering a number in the window and pressing the Enter key on your computer.

• Input Ch 6 – assign Input Channel 6 to the desired output bus or tie to Channel 5. Set the input level using the slider control or by entering a number in the window and pressing the Enter key on your computer.

• Input Ch 7 – assign Input Channel 7 to the desired output bus or tie to Channel 8. Set the input level using the slider control or by entering a number in the window and pressing the Enter key on your computer.

• Input Ch 8 – assign Input Channel 8 to the desired output bus or tie to Channel 7. Set the input level using the slider control or by entering a number in the window and pressing the Enter key on your computer.

Selecting the Tie button in Input Ch 5 or Input Ch 6 will tie the two controls together. Selecting the Tie button in Input Ch 7 or Input Ch 8 will tie the controls for these channels together.

Select the Default button to return to the default value.

Select the Invert button to invert the phase of the audio content.

BrightEye-16

BrightEye 91-A

Audio Out

• Mon Assign – chooses the audio pair that is output on the Audio Monitor headphone jack. Choices are: Chan 1/2, Chan 3/4, Chan 5/6, Chan 7/8, Chan 9/10, Chan 11/12, Chan 13/14, Chan 15/16.

• Mon Volume – sets the volume level sent to the headphone jack (range is from 0 to 100%, default is 100%).

• HDMI Assign – chooses the audio pair that is output on the HDMI Out port. The HDMI port carries both audio and video signals. Choices are:

Chan 1/2, Chan 3/4, Chan 5/6, Chan 7/8, Chan 9/10, Chan 11/12, Chan 13/14, Chan 15/16.

BrightEye 91-A HD Upconverter with Analog Audio

WARRANTY AND FACTORY SERVICE

Warranty

Ensemble Designs, Inc. warrants this product to be free from defect in material and workmanship for a period of 5 years from the date of delivery. During this 5 year warranty period, Ensemble Designs, Inc. will repair any defective units at Ensemble’s expense if the unit should be determined to be defective after consultation with a factory technician.

This warranty is not transferable. Any implied warranties expire at the expiration date of this warranty.

This warranty does not cover a defect that has resulted from improper or unreasonable use or maintenance as determined by us. This warranty is void if there is any attempt to dissemble or adjust factory set presets without factory authorization.

Factory Service

If you require service (under warranty or not), please contact Ensemble Designs and ask for Customer Service before you return the unit. This will allow the service technician to provide any other suggestions for identifying the problem and recommend possible solutions.

You may also refer to the technical support section of the Ensemble web site for the latest information on your equipment at the URL below:

http://www

.ensembledesigns.com/support

If you return equipment for repair, please get a Return Material Authorization Number (RMA) from the factory first.

Ship the product and a written description of the problem to:

Ensemble Designs, Inc. Attention: Customer Service RMA ##### 870 Gold Flat Rd. Nevada City, CA 95959 USA (530) 478-1830 Fax: (530) 478-1832 service@ensembledesigns.com

http://www.ensembledesigns.com

Be sure to put your RMA number on the outside of the box.

BrightEye-18

BrightEye-19

SPECIFICATIONS

Analog Video Input: Number: One

Signal Type: Analog Composite PAL or NTSC Impedance: 75 Ω Return Loss: > 40 dB Input DC: +/- 1 volt DC Input Hum: < 100 mV

Serial Digital Input:

Number: One Signal Type: 270Mb/s SD Serial Digital (SMPTE 296M) Impedance: 75 Ω Return Loss: > 40 dB Max Cable Length: 300 meters for 270 Mb/s

Reference Input:

Number: One Type: 1 V P-P Composite Video

PAL or NTSC Impedance: 75 Ω Return Loss: > 40 dB

Serial Digital Output:

Number: Two Type: HD Serial Digital 1.485 Gb/s

SMPTE 274M or 296M Processing: 12 and 16 bit Impedance: 75 Ω Return Loss: > 15 dB Max Cable Length: 100 meters for 1.485 Gb/s (Belden 1694A or equiv)

HD Standards Supported: 1080i (SMPTE 274M -4, 5, 6) 50, 59.94 or 60 Hz

720p (SMPTE 296M -1, 2, 3) 50, 59.94 or 60 Hz

1080p (SMPTE 274M -9, 10, 11) 23.98, 24, 25 Hz

1080sF (RP21 -14, 15, 16) 23.98, 24, 25 Hz

Analog Audio Inputs:

Number: Eight (selectable as inputs or outputs) Type: Balanced Impedance: > 15 k Ω Max Input Level: 24 dBu CMRR: > 60 dB, 20 Hz to 10 kHz Quantization: 24 bits, 128x oversampled Sample Rate: 48 kHz Reference Level: -10 dBu or + 4 dBu Frequency Response: ± 0.1 dB, 20 Hz to 20 kHz Crosstalk: < 106 dB Dynamic Range: > 106 dB

BrightEye 91-A

BrightEye 91-A HD Upconverter with Analog Audio

Analog Audio Outputs:

Number: Eight (selectable as inputs or outputs) Type: Balanced, transformerless Impedance: 30 Ω Max Output Level: 24 dBu Resolution 24 bits, 128x Oversmapled Reference Level: -10 dBu or + 4 dBu Frequency Response: ± 0.1 dB, 20 Hz to 20 kHz Crosstalk: < 106 dB Dynamic Range: > 106 dB

Embedded Output (In Serial Output):

Group Assign: Two of four groups Channels: Sixteen passed Bit Depth: 24 Bit

Monitor Output:

Number: One Connectorization : HDMI

Audio Monitoring Output:

Number: One (select from eight channels) Connectorization : 3.5mm stereo mini jack

General Specifications:

Size: 5.625” W x 1.7 “ H x 5.5” D

(143 mm x 20 mm x 140 mm) including connectors Power: 12 volts, 7 watts Temperature Range: 0 to 40 degrees C ambient Relative Humidity: 0 to 95% noncondensing

Due to ongoing product development, all specifications subject to change.

BrightEye-20

BrightEye-21

BRIGHTEYE POWER SUPPLY INFORMATION

Below is a list of power supplies and optional items that may have come with your BrightEye:

BEPS

BrightEye Individual Power Supply.

BEPS6

Spider Power Supply. This powers 6 single high BrightEyes or 3 double high BrightEyes (BrightEye 90 family).

BEPS6-RP

Redundant Power Supply for Spider.

BERKMT

BrightEye Rack Mount. This holds 6 single high BrightEyes or 3 double high BrightEyes (BrightEye 90 family) or a combination.

BEBP

BrightEye Blank Panel. Single high, for empty slots in Rack Mount.

BEAC

Analog Audio Breakout Cable.

BrightEye 91-A

BrightEye 91-A HD Upconverter with Analog Audio

GLOSSARY

This is a brief glossary of commonly used terms associated with this product.

AES/EBU

The digital audio standard defined as a joint effort of the Audio Engineering Society and the European Broadcast Union. AES/EBU or AES3 describes a serial bitstream that carries two audio channels, thus an AES stream is a stereo pair. The AES/EBU standard covers a wide range of sample rates and quantizations (bit depths). In television systems, these will generally be 48 KHz and either 20 or 24 bits.

Bandwidth

Strictly speaking, this refers to the range of frequencies (i.e. the width of the band of frequency) used by a signal, or carried by a transmission channel. Generally, wider bandwidth will carry and reproduce a signal with greater fidelity and accuracy.

Beta

Sony Beta SP video tape machines use an analog component format that is similar to SMPTE, but differs in the amplitude of the color difference signals. It may also carry setup on the luminance channel.

Blanking

The Horizontal and Vertical blanking intervals of a television signal refer to the time periods between lines and between fields. No picture information is transmitted during these times, which are required in CRT displays to allow the electron beam to be repositioned for the start of the next line or field. They are also used to carry synchronizing pulses which are used in transmission and recovery of the image. Although some of these needs are disappearing, the intervals themselves are retained for compatibility purposes. They have turned out to be very useful for the transmission of additional content, such as teletext and embedded audio.

CAV

Component Analog Video. This is a convenient shorthand form, but it is subject to confusion. It is sometimes used to mean ONLY color difference component formats (SMPTE or Beta), and other times to include RGB format. In any case, a CAV signal will always require 3 connectors – either Y/R-Y/B-Y, or R/G/B.

Checkfield

A Checkfield signal is a special test signal that stresses particular aspects of serial digital transmission. The performance of the Phase Locked-Loops (PLLs) in an SDI receiver must be able to tolerate long runs of 0’s and 1’s. Under normal conditions, only very short runs of these are produced due to a scrambling algorithm that is used. The Checkfield, also referred to as the Pathological test signal, will “undo” the scrambling and cause extremely long runs to occur. This test signal is very useful for testing transmission paths.

BrightEye-22

BrightEye 91-A

Chroma

The color or chroma content of a signal, consisting of the hue and saturation of the image. See also Color Difference.

Component

In a component video system, the totality of the image is carried by three separate but related components. This method provides the best image fidelity with the fewest artifacts, but it requires three independent transmission paths (cables). The commonly used component formats are Luminance and Color Difference (Y/Pr/Pb), and RGB. It was far too unwieldy in the early days of color television to even consider component transmission.

Composite

Composite television dates back to the early days of color transmission. This scheme encodes the color difference information onto a color subcarrier. The instantaneous phase of the subcarrier is the color’s hue, and the amplitude is the color’s saturation or intensity. This subcarrier is then added onto the existing luminance video signal. This trick works because the subcarrier is set at a high enough frequency to leave spectrum for the luminance information. But it is not a seamless matter to pull the signal apart again at the destination in order to display it or process it. The resultant artifacts of dot crawl (also referred to as chroma crawl) are only the most obvious result. Composite television is the most commonly used format throughout the world, either as PAL or NTSC. It is also referred to as Encoded video.

Color Difference

Color Difference systems take advantage of the details of human vision. We have more acuity in our black and white vision than we do in color. This means that we need only the luminance information to be carried at full bandwidth, we can scrimp on the color channels. In order to do this, RGB information is converted to carry all of the luminance (Y is the black and white of the scene) in a single channel. The other two channels are used to carry the “color difference”. Noted as B-Y and R-Y, these two signals describe how a particular pixel “differs” from being purely black and white. These channels typically have only half the bandwidth of the luminance.

Decibel (dB)

The decibel is a unit of measure used to express the ratio in the amplitude or power of two signals. A difference of 20 dB corresponds to a 10:1 ratio between two signals, 6 dB is approximately a 2:1 ration. Decibels add while the ratios multiply, so 26 dB is a 20:1 ratio, and 14 dB is a 5:1 ratio. There are several special cases of the dB scale, where the reference is implied. Thus, dBm refers to power relative to 1 milliwatt, and dBu refers to voltage relative to .775V RMS. The original unit of measure was the Bel (10 times bigger), named after Alexander Graham Bell.

BrightEye-23

BrightEye 91-A HD Upconverter with Analog Audio

dBFS

In Digital Audio systems, the largest numerical value that can be represented is referred to as Full Scale. No values or audio levels greater than FS can be reproduced because they would be clipped. The nominal operating point (roughly corresponding to 0 VU) must be set below FS in order to have headroom for audio peaks. This operating point is described relative to FS, so a digital reference level of -20 dBFS has 20 dB of headroom before hitting the FS clipping point.

EDH

Error Detection and Handling is a method to verify proper reception of an SDI or HD-SDI signal at the destination. The originating device inserts a data packet in the vertical interval of the SDI signal and every line of the HD signal which contains a checksum of the entire video frame. This checksum is formed by adding up the numerical values of all of the samples in the frame, using a complex formula. At the destination this same formula is applied to the incoming video and the resulting value is compared to the one included in the transmission. If they match, then the content has all arrived with no errors. If they don’t, then an error has occurred.

Embedded Audio

Digital Audio can be carried along in the same bitstream as an SDI or HD-SDI signal by taking advantage of the gaps in the transmission which correspond to the horizontal and vertical intervals of the television waveform. This technique an be very cost effective in transmission and routing, but can also add complexity to signal handling issues because the audio content can no longer be treated independently of the video.

Frame Sync

A Frame Synchronizer is used to synchronize the timing of a video signal to coincide with a timing reference (usually a color black signal that is distributed throughout a facility). The synchronizer accomplishes this by writing the incoming video into a frame buffer memory under the timing direction of the sync information contained in that video. Simultaneously the memory is being read back by a timing system that is genlocked to a house reference. As a result, the timing or alignment of the video frame can be adjusted so that the scan of the upper left corner of the image is happening simultaneously on all sources. This is a requirement for both analog and digital systems in order to perform video effects or switch glitch-free in a router. Frame synchronization can only be performed within a single television line standard. A synchronizer will not convert an NTSC signal to a PAL signal, it takes a standards converter to do that.

Frequency Response

A measurement of the accuracy of a system to carry or reproduce a range of signal frequencies. Similar to Bandwidth.

BrightEye-24

BrightEye 91-A

IEC

The International Electrotechnical Commission provides a wide range of worldwide standards. They have provided standardization of the AC power connection to products by means of an IEC line cord. The connection point uses three flat contact blades in a triangular arrangement, set in a rectangular connector. The IEC specification does not dictate line voltage or frequency. Therefore, the user must take care to verify that a device either has a universal input (capable of 90 to 230 volts, either 50 or 60 Hz), or that a line voltage switch, if present, is set correctly.

Interlace

Human vision can be fooled to see motion by presenting a series of images, each with a small change relative to the previous image. In order to eliminate the flicker, our eyes need to see more than 30 images per second. This is accomplished in television systems by dividing the lines that make up each video frame (which run at 25 or 30 frames per second) into two fields. All of the odd-numbered lines are transmitted in the first field, the even-numbered lines are in the second field. In this way, the repetition rate is 50 or 60 Hz, without using more bandwidth. This trick has worked well for years, bit it introduces other temporal artifacts. Motion pictures use a slightly different technique to raise the repetition rate from the original 24 frames that make up each second of film—they just project each one twice.

IRE

Video level is measured on the IRE scale, where 0 IRE is black, and 100 IRE is full white. The actual voltages that these levels correspond to can vary between formats.

ITU-R 601

This is the principal standard for standard definition component digital video. It defines the luminance and color difference coding system that is also referred to as 4:2:2. The standard applies to both PAL and NTSC derived signals. They both will result in an image that contains 720 pixels horizontally, with 486 vertical pixels in NTSC, and 576 vertically in PAL. Both systems use a sample clock rate of 27 Mhz, and are serialized at 270 Mb/s.

Jitter

Serial digital signals (either video or audio) are subject to the effects of jitter. This refers to the instantaneous error that can occur from one bit to the next in the exact position each digital transition. Although the signal may be at the correct frequency on average, in the interim it varies. Some bits come slightly early, other come slightly late. The measurement of this jitter is given either as the amount of time uncertainty or as the fraction of a bit width. For 270 Mb/s video, the allowable jitter is 740 picoseconds, or 0.2 UI (Unit Interval – one bit width).

Luminance

The “black & white” content of the image. Human vision had more acuity in luminance, so television systems generally devote more bandwidth to the luminance content. In component systems, the luminance is referred to as Y.

BrightEye-25

BrightEye 91-A HD Upconverter with Analog Audio

Multimode

Multimode fibers have a larger diameter core (either 50 or 62.5 microns), and a correspondingly larger aperture. It is much easier to couple light energy into a multimode fiber, but internal reflections will cause multiple “modes” of the signal to propagate down the fiber. This will degrade the ability of the fiber to be used over long distances.

Ensemble Designs BrightEye 91-A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
