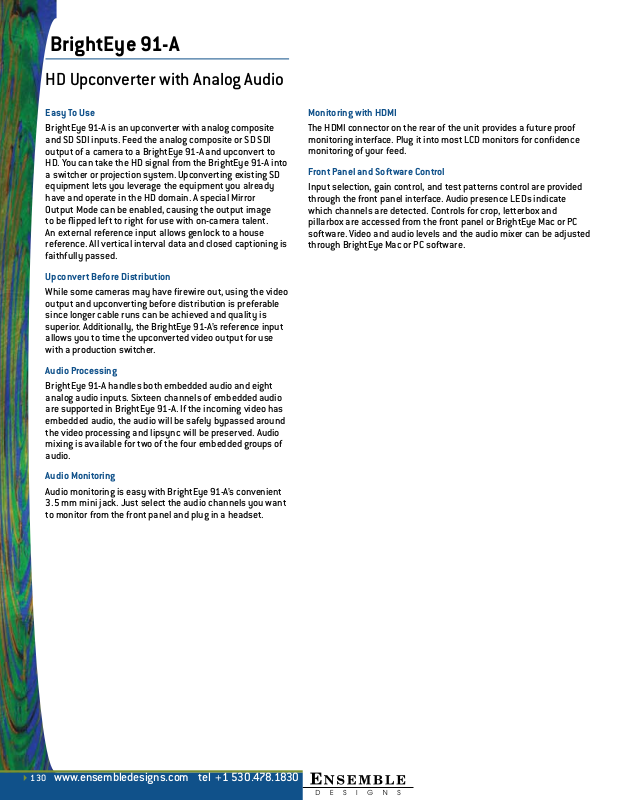

BrightEye 91-A
HD Upconverter with Analog Audio
Easy To Use
BrightEye 91-A is an upconverter with analog composite
and SD SDI inputs. Feed the analog composite or SD SDI
output of a camera to a BrightEye 91-A and upconvert to
HD. You can take the HD signal from the BrightEye 91-A into
a switcher or projection system. Upconverting existing SD
equipment lets you leverage the equipment you already
have and operate in the HD domain. A special Mirror
Output Mode can be enabled, causing the output image
to be ipped left to right for use with on-camera talent.
An external reference input allows genlock to a house
reference. All vertical interval data and closed captioning is
faithfully passed.
Upconvert Before Distribution
While some cameras may have rewire out, using the video
output and upconverting before distribution is preferable
since longer cable runs can be achieved and quality is
superior. Additionally, the BrightEye 91-A’s reference input
allows you to time the upconverted video output for use
with a production switcher.
Audio Processing
BrightEye 91-A handles both embedded audio and eight
analog audio inputs. Sixteen channels of embedded audio
are supported in BrightEye 91-A. If the incoming video has
embedded audio, the audio will be safely bypassed around
the video processing and lipsync will be preserved. Audio
mixing is available for two of the four embedded groups of
audio.
Monitoring with HDMI
The HDMI connector on the rear of the unit provides a future proof
monitoring interface. Plug it into most LCD monitors for condence
monitoring of your feed.
Front Panel and Software Control
Input selection, gain control, and test patterns control are provided
through the front panel interface. Audio presence LEDs indicate
which channels are detected. Controls for crop, letterbox and
pillarbox are accessed from the front panel or BrightEye Mac or PC
software. Video and audio levels and the audio mixer can be adjusted
through BrightEye Mac or PC software.
Audio Monitoring
Audio monitoring is easy with BrightEye 91-A’s convenient
3.5 mm mini jack. Just select the audio channels you want
to monitor from the front panel and plug in a headset.
130
www.ensembledesigns.com tel +1 530.478.1830
BrightEye 91-A
Use with Cameras and Projection Systems
Turn Analog Camera into Digital HD Source
SD Digital and Analog Composite Video Inputs
Analog Audio Inputs
Analog Audio Monitor Output
Mirror Output Mode for On-Camera Talent
Graticule and Safe Title Generator
HDMI Output
Frame Sync
12 and 16 bit processing
Passes Embedded Audio
www.ensembledesigns.com tel +1 530.478.1830
131
BrightEye 91-A
Specications
Analog Video Input
Number One
Type Analog Composite PAL or NTSC
Resolution Digitized at 12 bits
Impedance 75 Ω
Return Loss >40 dB
Input DC +/-1 volt DC
Input Hum <100 mV
Serial Digital Input
Number One
Signal Type 270 Mb/s SD Serial Digital
(SMPTE 259M)
Impedance 75 Ω
Return Loss >15dB
Max Cable Length 300 meters for 270 Mb/s
Automatic Input Cable Equalization
Reference Input
Number One
Type 1 V P-P Composite Video
PAL or NTSC
or Tri-Level Sync
Impedance 75 Ω
Return Loss >40 dB
Serial Digital Output
Number Two
Type HD Serial Digital 1.485 Gb/s
SMPTE 274M, 292M or 296M
Processing 12 and 16 bit
Impedance 75 Ω
Return Loss >15 dB
Max Cable Length 100 meters for HD
(Belden 1694A)
HD Standards Supported
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz
1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz
Analog Audio Outputs
Number Eight
(selectable as inputs or outputs)
Type Balanced, transformerless
Impedance 30 Ω
Maximum Output Level 24 dBu
Resolution 24 bits, 128 x oversampled
Reference Level -10 dBu or +4 dBu
Frequency Response ± 0.1 dB, 20 Hz to 20 KHz
Crosstalk <106 dB
Dynamic Range >106 dB
Embedded Output (In Serial Output)
Group Assign Two of four groups
Channels Sixteen passed
Bit Depth 24 Bit
Monitor Output
Number One
Connector HDMI
Type Follows SDI out
Audio Monitoring Output
Number One
(select from eight channels)
Connector 3.5 mm stereo mini jack
General Specications
Size 5.625” W x 1.7” H x 5.5” D
(143 mm x 40 mm x 140 mm)
including connectors
Power 12 volts, 14 watts
(100-230 VAC modular power
supply not included)
Temperature Range 0 to 40° C ambient
Relative Humidity 0 to 95%, non-condensing
Analog Audio Inputs
Number Eight (selectable as
inputs or outputs)
Type Balanced
Impedance >15K Ω
Max Input Level 24 dBu
CMRR >60 dB, 20 Hz to 10 KHz
Quantization 24 bits, 128 x oversampled
Sample Rate 48 KHz
Reference Level -10 dBu or +4 dBu
Frequency Response ±0.1 dB, 20 Hz to 20 KHz
Crosstalk <106 dB
Dynamic Range >106 dB
132
www.ensembledesigns.com tel +1 530.478.1830
BrightEye 91-A
Composite or
Tri-Level Ref In
Genlock
SD/SDI/Composite
Video In
Balanced
Analog Audio
Inputs
Analog
Decoder
Auto-Selecting
SDI
Receiver
Audio
Demux
Ch 1/2
Ch 3/4
Ch 5/6
Ch 7/8
Ch 1/2
Ch 3/4
Ch 5/6
Ch 7/8
Audio
Processing
HDMI Out
Headphone
Jack
Balanced
Audio Outputs
HDMI
Xmtr
Monitor
Amp
Audio I/O selectable as:
Mux 8 = 8 inputs or
Mux 4 = 4 in/4 out or
Demux = 8 outputs
Provides embedded pass through of all 16 audio channels
Upconversion
Audio Mux
HD/SD SDI
Out
SDI Driver
24 bit
Audio
ADC
24 bit
Audio
DAC
www.ensembledesigns.com tel +1 530.478.1830
133
