enphase ENV-S-WM230, Envoy-S Metered, multiphase Installation And Operation Manual

INSTALLATION AND OPERATION MANUAL
141-00035 Rev 01
Enphase Envoy-S Metered Multiphase
© 2016 Enphase Energy Inc. 141-00035 Rev 01
2
Corporate Headquarters Contact Information
Enphase Energy Inc. 1420 N. McDowell Blvd. Petaluma, CA 94954
enphase.com
enphase.com/global/support-request
Environmental Protection
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check your Local Authority or retailer for recycling advice.
Other Information
For third-party license information, refer to enphase.com/licenses.
For Enphase patent information, refer to enphase.com/company/patents/.
Product information is subject to change without notice. All trademarks are recognised as the property of their respective owners.
For warranty text, refer to enphase.com/warranty.
User documentation is updated frequently; Check the Enphase website (enphase.com/support) for the latest information.
Copyright © 2016 Enphase Energy Inc. All rights reserved.
Audience
This manual is intended for use by professional installation and maintenance personnel.
© 2016 Enphase Energy Inc. 141-00035 Rev 01
3
Table of Contents
SAFETY ................................................................................................................................................ 5
Read this First ....................................................................................................................................... 5
Safety Instructions ................................................................................................................................ 5
The Enphase Envoy-S .......................................................................................................................... 6
How the Enphase Home Energy System Works ................................................................................. 6
Installation Planning and Preparation ............................................................................................... 7
Pre-installation Checks ......................................................................................................................... 8
Download the Installer Toolkit App.................................................................................................. 8
Box Contents ..................................................................................................................................... 8
Plan the Enclosure Type ................................................................................................................... 8
Use a Phase Coupler for a Multiphase Site ..................................................................................... 8
Plan the Internet Connection ........................................................................................................... 8
Metering CT Considerations ............................................................................................................ 9
Required Items .................................................................................................................................. 9
Optional Items ................................................................................................................................... 9
System Metering ............................................................................................................................... 9
Create the Map and Install the PV Modules and Enphase Microinverters .................................. 10
Installation Sequence ......................................................................................................................... 11
Installing the Envoy-S ........................................................................................................................ 12
1. Choose a Location for the Envoy-S ................................................................................................ 13
2. Provide a Power Connection .......................................................................................................... 13
3. Install CTs for Metering .................................................................................................................. 14
Extend CT Leads, If Needed ........................................................................................................... 16
4. If Required, Install DRM Support and a Central ............................................................................. 17
5. Energise the Envoy-S ...................................................................................................................... 17
6. Launch Installer Toolkit and Start AP Mode ................................................................................. 17
7. Detect the Devices .......................................................................................................................... 18
Method A: Provision Devices with Installer Toolkit ...................................................................... 18
Method B: Discover Devices with Installer Toolkit ....................................................................... 18
Method C: Discover Devices with the Envoy-S .............................................................................. 18
With Both Methods ......................................................................................................................... 18
8. Verify System Configuration .......................................................................................................... 19
9. Connect to Enlighten ...................................................................................................................... 20
Method A: Integrated Wi-Fi ............................................................................................................. 20
Method B: Enphase Mobile Connect Modem ............................................................................... 20
Method C: Ethernet Cable .............................................................................................................. 21
Method D: Power Line Communication Bridges ........................................................................... 21
If the Internet Connection Fails ...................................................................................................... 22
10. Send System Summary Report .................................................................................................... 22
Activate Monitoring ........................................................................................................................... 23
Method A: If the Envoy-S is Associated with a System in Installer Toolkit ................................. 23
Method B: If the Envoy-S is NOT associated with a System in Installer Toolkit ......................... 23
View System Performance in Enlighten ........................................................................................ 23
Envoy-S Operation ............................................................................................................................. 24
Envoy-S Displays and Controls .......................................................................................................... 24

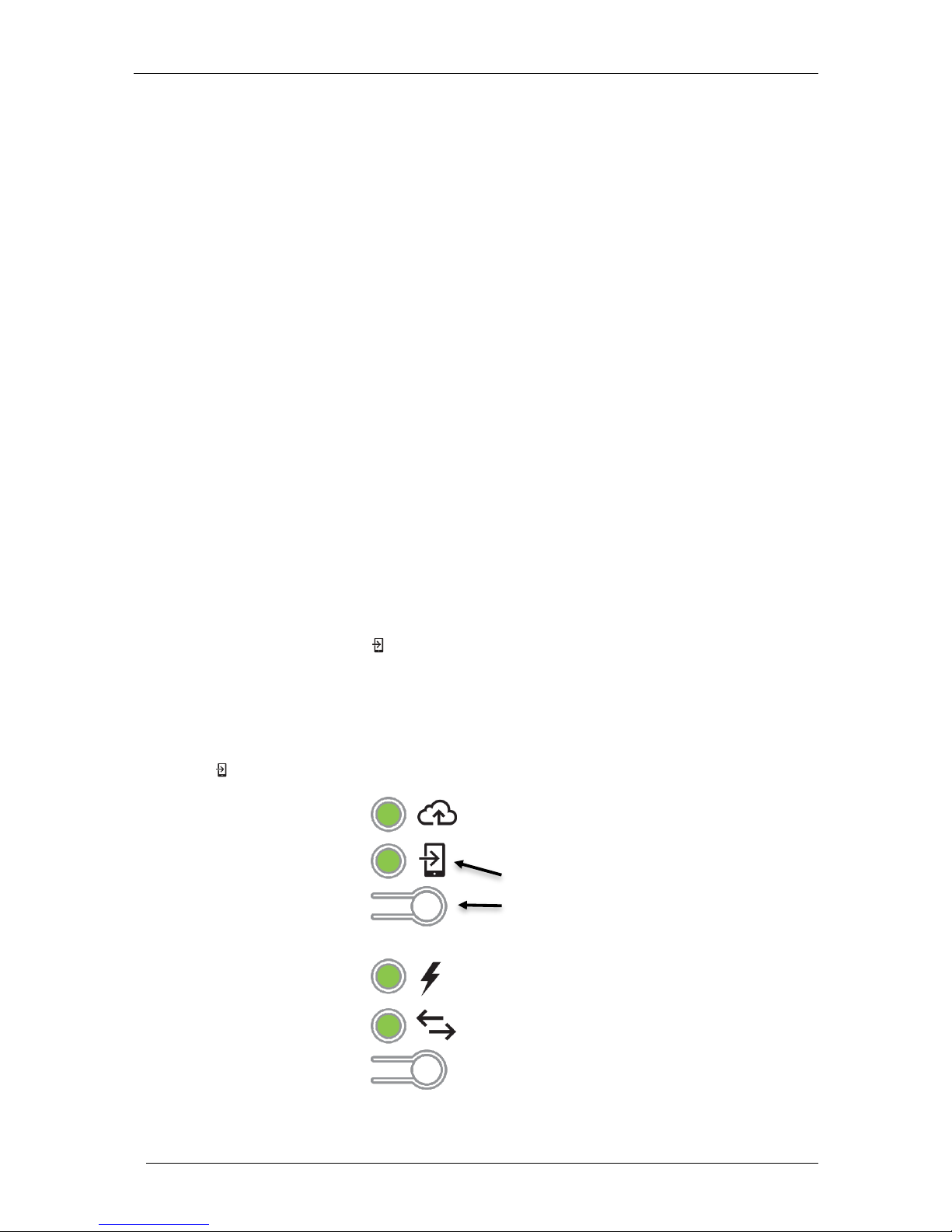

Envoy-S LED States ............................................................................................................................. 24
LED Behaviour at Initial Start Up ........................................................................................................ 25
Initial Communications Check ....................................................................................................... 25
© 2016 Enphase Energy Inc. 141-00035 Rev 01
4
More about Device Communications States ................................................................................ 25
Initiate a New Scan for Devices ......................................................................................................... 25
Connecting to Envoy-S ...................................................................................................................... 26
Connect Using the Installer Toolkit App ............................................................................................ 26
Method A: Use the Site’s Wireless Router to Connect to the Envoy-S ......................................... 26
Method B: Create a Wireless Access Point ................................................................................... 26
Complete the Connection to Envoy-S with Installer Toolkit ......................................................... 27
Connect Remotely Using Enlighten .................................................................................................... 28
Connect Using the Envoy-S Local Interface ...................................................................................... 29
View Production Readings ............................................................................................................. 29
View or Change Monitoring Settings ............................................................................................. 29
View Microinverter Information ..................................................................................................... 33
View Envoy Information ................................................................................................................. 33
Open a Connection for Enphase Troubleshooting ........................................................................ 33
Troubleshooting ................................................................................................................................ 34
Device Detection Issues ..................................................................................................................... 34
Issue: Installer Toolkit Shows “Cross Domain Traffic Reported” ................................................ 34
Issue: Device Communications LED is Solid Amber..................................................................... 34
Issue: Installer Toolkit Detects Fewer Devices than Expected .................................................... 34
Issue: No Devices are Reporting .................................................................................................... 35
Issue: Installer Toolkit Indicates that Scanning is Inhibited ......................................................... 35
Power Production Issues ................................................................................................................... 36
Issue: Power Production LED is solid amber ................................................................................ 36
Internet Connection Issues ................................................................................................................ 36
Issue: Network Communications LED is Amber or Off ................................................................ 36
Issue: Wi-Fi Problems ..................................................................................................................... 37
Issue: Cellular Connection Status “Not Connected” ..................................................................... 37
Issue: Envoy-S is not Connecting with a New Router ................................................................... 37
Local Networking Considerations ...................................................................................................... 38
DHCP versus Static IP Addressing ................................................................................................ 38
MAC Filtering .................................................................................................................................. 38
Firewall Settings ............................................................................................................................. 38
Replacing an Envoy-S ......................................................................................................................... 39
Technical Data ................................................................................................................................... 41
© 2016 Enphase Energy Inc. 141-00035 Rev 01
5
SAFETY
Read this First
Follow the instructions in this manual. These instructions are key to the installation and maintenance of the Enphase Envoy-S Metered Multiphase™.
To ensure the safe installation and operation of the Envoy-S, note the following safety symbols that appear throughout this document to indicate dangerous conditions and important safety instructions.
DANGER:
This indicates a hazardous situation, which if not avoided, will result in death or serious injury.
WARNING:
This indicates a situation where failure to follow instructions may be a safety hazard or cause equipment malfunction. Use extreme caution and follow instructions carefully.
NOTE:
This indicates information that is very important for optimal system operation. Follow instructions closely.
Safety Instructions
DANGER: Risk of electrocution!
Do not install current transformers (CTs) when current is flowing in the sensed circuit. Always install CT wires in the terminal blocks before energising the sensed circuit.
DANGER: Risk of electric shock. Risk of fire.
Do not attempt to repair the Envoy-S; it contains no user-serviceable parts. Tampering with or opening the Envoy-S will void the warranty. If the Envoy-S fails, contact Enphase for assistance (enphase.com/global/support-request). Refer servicing to qualified personnel.
Only qualified personnel should troubleshoot, install, or replace the Envoy-S.
Do not wire unused terminals or terminal blocks on the Envoy-S.
DANGER: Risk of electric shock.
Do not use Enphase equipment in a manner not specified by the manufacturer. Doing so may cause death or injury to persons, or damage to equipment.
If you wire the Envoy-S at the sub-board, always de-energise the sub-board before beginning wiring.
WARNINGS:
Before installing or using the Envoy-S, read all instructions and cautionary markings in the technical description and on the Envoy-S.
Risk of equipment damage. When installing the Envoy-S in an enclosure, choose area for installation where ambient temperature does not exceed 46º C.
NOTES:
Perform all wiring in accordance with all applicable local electrical codes.
To ensure optimal reliability and to meet warranty requirements, the Enphase Envoy-S must be installed according to the instructions in this manual.
© 2016 Enphase Energy Inc. 141-00035 Rev 01
6
The Enphase Envoy-S
The Enphase Envoy-S is an integral component of the Enphase Home Energy Solution. It operates between Enphase Microinverters, or other PV system, and the Enphase Enlighten™ web-based monitoring and analysis software. When used with Enphase devices, the Envoy-S can control grid management functions and monitor PV production and site consumption. When used with non-Enphase PV systems, it can collect production and consumption data, but it does not control grid management functions.
The Envoy-S Metered Multiphase uses precision Current Transformers (CTs) to measure PV production from the solar main supply switch and home energy consumption from the AC mains.
How the Enphase Home Energy System Works
This integrated system maximises energy harvest, increases system reliability, and simplifies design, installation and management.
The Enphase Microinverter converts the DC output of the PV module into grid-compliant AC power. In addition to performing the DC to AC conversion, it maximises energy production by using a sophisticated Maximum Power Point Tracking (MPPT) algorithm.
The Envoy-S operates as a gateway between the Enphase Microinverters and Enlighten. It collects energy and performance data from the PV system over on-site AC power lines, and it forwards that data to Enlighten, via the Internet, for statistical reporting. Enlighten analyzes the data collected by each communicating device. Enlighten automatically detects any shortfall in energy production, identifies possible causes, and suggests solutions. Enlighten constantly monitors every Enphase device connected to the Envoy-S and is essential for system monitoring and troubleshooting.
Enlighten provides a wide range of information on system performance. You can access Enlighten on your computer or mobile device and view current performance information at any time.
© 2016 Enphase Energy Inc. 141-00035 Rev 01
7
Installation Planning and Preparation
To the Local Area Network (LAN), the Envoy-S is just another host on the network, much like a personal computer. The Envoy-S simply connects to the on-site router or Enphase Mobile Connect™ (cellular modem) for communications with the Enphase Enlighten monitoring and analysis website. The Envoy-S communicates with the Enphase Microinverters and AC Batteries using the site’s power lines.
After the Envoy-S is installed and all devices (microinverters and/or batteries) are scanned or provisioned, the Envoy-S maintains an internal database of all known Enphase devices at the site it manages. At regular intervals, the Envoy-S polls each Enphase device for its energy data. Using its Internet connection, the Envoy-S then forwards that information to Enlighten. The Envoy-S also reports any error conditions affecting itself or other Enphase devices. You can view both energy data and error conditions in Enlighten.
The Envoy-S incorporates power line and Internet communications functions. One "side" of the Envoy-S communicates with the Enphase devices through power lines at the site. The other "side" of the Envoy-S communicates with Enlighten over the Internet.
Enlighten
Microinverters
Router
Envoy-S
POWER LINE COMMUNICATIONS
NETWORK COMMUNICATIONS
To Internet
Switchboard AC Batteries
© 2016 Enphase Energy Inc. 141-00035 Rev 01
8
Pre-installation Checks
Review the following pre-installation checks before you install the Envoy-S:
Download the Installer Toolkit App
The Enphase Installer Toolkit is a mobile app for iOS and Android devices (smart phone or tablet) that allows installers to configure the system while onsite, eliminating the need for a laptop and improving installation efficiency.
Download the latest version of the Enphase Installer Toolkit mobile app
and open it to log in to your Enlighten account. With this app, you can connect to the Envoy to track system installation progress. Go to enphase.com/installer-toolkit or scan the QR code:
To run the Installer Toolkit app, you need either of the following
mobile devices:
- An Android mobile device running Android version 5
(Lollipop) or later, or
- An iOS device running iOS 8.0 or later, specifically an iPhone 4 or
later or an iPod Touch 5th generation
Box Contents
Check the shipping box for the following items:
Enphase Envoy-S Metered Multiphase Current transformers (CTs): Two split core CTs, one for production and one for consumption
metering. You must order additional CTs (CT-100-SPLIT) to separately monitor multiple phases.
Length of DIN rail for mounting Ferrite bead to attach to your Ethernet Cable, if used Enphase Envoy-S Quick Install Guide
Plan the Enclosure Type
Install the Envoy-S in an IP54-rated, or better enclosure. Use an appropriately rated enclosure if hard­wiring indoors.
Use a Phase Coupler for a Multiphase Site
If you are installing in a multiphase application, the power line communication signal must be “coupled” between the phases to allow the Envoy to communicate with all of the Enphase devices in the system. Install a phase coupler on the load side of the over-current protection device. See the Enphase Technical Brief on Phase Coupling for your region at enphase.com/support or consult Enphase support for compatible devices.
Plan the Internet Connection
To use the Enlighten web-based monitoring and analysis software, additional requirements are:
Internet connection for the Envoy-S through a traditional router or modem or Enphase Mobile
Connect (Enphase model CELLMODEM-02). Decide whether to connect the Envoy-S to the Internet using integrated Wi-Fi, an Enphase Mobile Connect modem, or using a PLC bridge with Ethernet cables.
One of the following Web browsers with cookies enabled: Chrome 5 or higher, Firefox 11 or
higher, Internet Explorer (IE) 9 or higher, or Safari 5 or higher
Enphase Installer
Toolkit mobile
app
© 2016 Enphase Energy Inc. 141-00035 Rev 01
9
Metering CT Considerations
The Envoy-S uses readings from CTs to report measurement data for PV energy production and energy consumed by the home or business. When current transformers (CTs) are wrapped around a live wire, the current going through the wire induces a current on the CTs primary internal winding, which in turn induces a current on the CTs secondary internal winding. The current on the secondary winding is proportional to the current on the original circuit and this is used for making measurements. Install the CTs as shown in the wiring instruction for your region.
Production CTs measure power production through a connection to the solar supply main
switch.
Consumption CTs measure energy consumption through a connection to the AC mains.
To install the CTs, use a protected route in conduit for the CT wires to the Envoy-S. Install one split-core CT per monitored phase for production metering and one split-core CT per monitored phase for consumption metering. If you need to extend the CT leads (up to 148 meters), see “Extend CT Leads, If Needed” on page 16.
Required Items
If you hard-wire the Envoy-S outdoors, you must install it in an IP54-rated (or better) enclosure with conduit attachment. Note that Metallic enclosures may impair Wi-Fi signal strength. Use an
appropriately rated enclosure if hard-wiring indoors. Do not drill holes for conduit at the top of the enclosure or anywhere that allows moisture ingress.
The Envoy-S Metered Multiphase includes a production CT and a consumption CT. You must order additional CTs (CT-100-SPLIT) for multiphase installations. Make sure you have one CT for each phase monitored, for both production and consumption.
Optional Items
Make sure you have the following optional items, if needed:
Enphase Mobile Connect modem (order Enphase CELLMODEM-02) Ethernet over power line communication (PLC) bridge with Ethernet cables [order EPLC-02 (EU),
EPLC-03 (UK) or EPLC-04 (AU/NZ) separately]
Ethernet cable (use 802.3, unshielded Cat5E or Cat6). Do not use shielded twisted pair (STP)
cable.
System Metering
The Envoy-S monitors up to 600 Enphase Microinverters and up to 39 Enphase AC Batteries.
Envoy-S name and model numbers (SKU)
Case colour
Metering / reporting
Includes AC power
cord or CTs
DRM
ready
Envoy-S Metered, multiphase (ENV-S-WM-
230)
Black
Integrated PV production and home consumption metering (accuracy +/- 1%)
Two split-core CTs (CT-100-SPLIT). Order additional CTs to monitor multiple phases.
Yes
NOTE: To install multiple Envoys at a single site, see our technical brief on commercial design at enphase.com/support.
© 2016 Enphase Energy Inc. 141-00035 Rev 01
10
Create the Map and Install the PV Modules and Enphase Microinverters
If you installed an Enphase PV system at this site, create the Enphase installation map and install the PV modules and Enphase Microinverters. You will scan this map later using Installer Toolkit and your mobile device. (See “Method A: Provision Devices with Installer Toolkit” on page 18.)
NOTE: You can find an Enphase installation map at the back of any Enphase Microinverter manual.
Create a paper installation map to record Enphase Microinverter (and Enphase Battery, if
installed) serial numbers and positions in the array. Peel the removable serial number label from each device and affix it to the respective location on the installation map.
Peel the removable label from the bottom of the Envoy-S and affix it to the installation map. Always keep a copy of the installation map for your records.
NOTE: If you are setting up the Envoy-S to monitor a non-Enphase PV system, you do not need to create an Enphase installation map.
© 2016 Enphase Energy Inc. 141-00035 Rev 01
11
Installation Sequence
4. Optional: Install DRM &
a central disconnect
6. Launch Installer Toolkit
and start AP mode
1. Choose a location
for the Envoy-S
2. Provide a power
connection
5. Energise the Envoy-S
9. Connect to Enlighten
10. Send summary report
8. Verify system configuration
7. Detect devices
3. Install CTs, if needed
© 2016 Enphase Energy Inc. 141-00035 Rev 01
12
Installing the Envoy-S
To install the Envoy-S, perform the following steps and refer to this diagram:
Envoy-S Metered (model number ENV-S-WM-230)
USB ports
Terminal blocks
USB ports
LEDs and buttons
Ethernet port
© 2016 Enphase Energy Inc. 141-00035 Rev 01
13
1. Choose a Location for the Envoy-S
a. Install the Envoy-S near the switchboard. This ensures that the Envoy-S receives the strongest
possible communications signal from each device. When installing the Envoy-S Metered, consider the length of the CT leads when choosing the location. If you need to extend the CT leads, see “Extend CT Leads, If Needed” on page 16.
b. Install the Envoy-S in a protected dry space (such as a garage, attic, basement, or other cool, dry
location). If the Envoy-S is hard-wired outdoors, you must install it inside an IP54-rated, (or better) enclosure with conduit attachment. Use an appropriately rated enclosure if hard-wiring indoors.
NOTE: Metallic enclosures may impair Wi-Fi signal strength.
c. Mount the Envoy horizontally using the included DIN rail.
WARNING: Risk of equipment damage. When installing the Envoy-S in an enclosure, choose area for installation where ambient temperature does not exceed 46º C.
d. To wall-mount, use two appropriately sized screws and a screwdriver. Mount the DIN rail first,
and then clip the Envoy-S to the DIN rail.
2. Provide a Power Connection
The Envoy-S Metered Multiphase (ENV-S-WM-230) uses terminal blocks for power and metering connections. It does not include an AC power cord, and you must hard-wire it. When you hard-wire the Envoy-S outdoors, you must install it in an IP54-rated, or better enclosure with conduit attachment. Use an appropriately rated enclosure if hard-wiring indoors.
DANGER! Risk of electric shock. Be aware that installation of this equipment includes risk of electric shock. If you wire the Envoy-S at the sub-board, always de-energise the sub-board before beginning wiring.
a. Depending on the number of phases you will wire, use a one-, two-, or three-pole (20 A maximum)
circuit breaker for the supply wiring.
b. Make sure supply wiring is 2.5 mm
2
copper rated at 75º C or better.
c. Locate the screw on the terminal block door, and loosen it with a screwdriver to unlock the door
and flip it open.
d. Depending on the number of phases to wire, connect Line 1 to L1, Line 2 to L2, Line 3 to L3, and
Neutral to N, as required.
e. Tighten all connections to 0.56 Nm. f. Refer to the following wire colour table, if needed:
Output from Enphase PV system
Colour code (EU)
Colour code (AU)
Brown – L1 (Active) Black – L2 (Active) Grey – L3 (Active) Blue – Neutral Green/Yellow – Ground/PE
Brown – L1 (Active) Black – L2 (Active) Grey – L3 (Active) Blue – Neutral Green – Ground/PE
Red – L1 (Active) White – L2 (Active) Blue – L3 (Active) Black – Neutral Green – Ground/PE
Loading...
+ 29 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
