Start
PANEL
C
L
WARNING: All electrical installations must be done in accordance with local electrical codes
and the National Electrical Code (NEC), ANSI/NFPA 70. See product manual
!
for detailed installation instructions
TOOLS REQUIRED
#2 phillips screw driver 1/2 and 9/16 socket wrench
Wire cutters Wire strippers
Crescent wrench or open ended wrench (for cord grips)

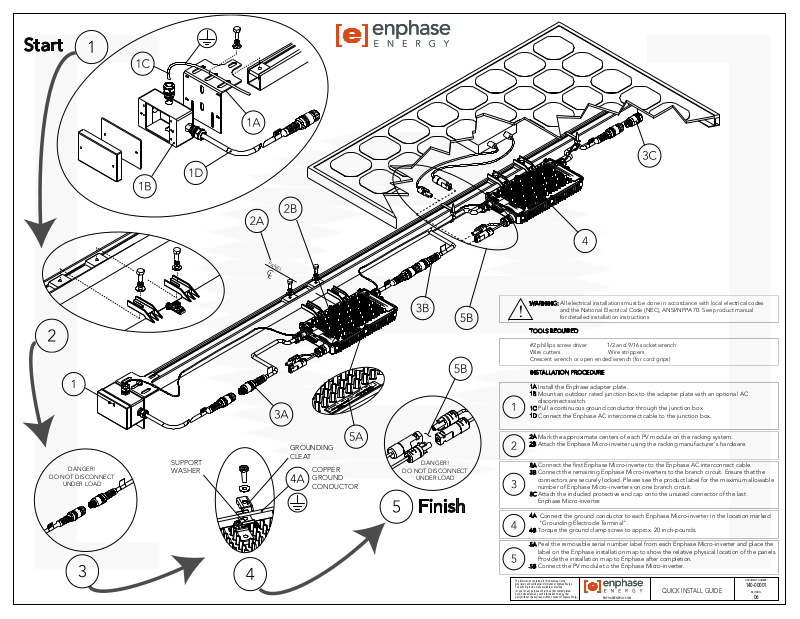

INSTALLATION PROCEDURE
1A Install the Enphase adapter plate.
Mount an outdoor rated junction box to the adapter plate with an optional AC
1B
disconnect switch.
Pull a continuous ground conductor through the junction box
1C
1D Connect the Enphase AC interconnect cable to the junction box.
DANGER!
DO NOT DISCONNECT
UNDER LOAD
SUPPORT
WASHER
GROUNDING
CLEAT
COPPER
GROUND
CONDUCTOR
DANGER!
DO NOT DISCONNECT
UNDER LOAD
Mark the approximate centers of each PV module on the racking system.
2A
2B Attach the Enphase Micro-inverter using the racking manufacturer's hardware.
3A Connect the first Enphase Micro-inverter to the Enphase AC interconnect cable.
Connect the remaining Enphase Micro-inverters to the branch circuit. Ensure that the
3B
connectors are securely locked. Please see the product label for the maximum allowable
number of Enphase Micro-inverters on one branch circuit.
3C Attach the included protective end cap onto the unused connector of the last
Enphase Micro-inverter.
4A Connect the ground conductor to each Enphase Micro-inverter in the location marked
"Grounding Electrode Terminal”.
4B Torque the ground clamp screw to approx. 20 inch-pounds.
5A Peel the removable serial number label from each Enphase Micro-inverter and place the
label on the Enphase installation map to show the relative physical location of the panels.
Provide the installation map to Enphase after completion.
5B Connect the PV module to the Enphase Micro-inverter.
The information contained in this document is the
proprietary and confidential information of Enphase Energy.
You will not provide, make available
(or use for any purpose other than that
by this document) any such information
party without the express, written consent
or disclose
contemplated
to any other
of Enphase Energy
ENPHASEENERGY.COM
QUICK INSTALL GUIDE
DOCUMENT NUMBER:
140-00001
REVISION:
06
