SAFETY

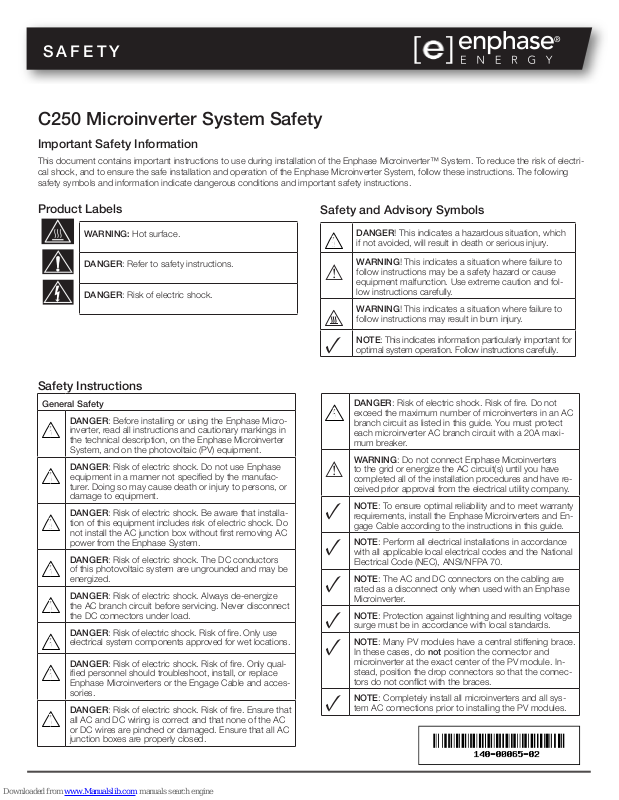

C250 Microinverter System Safety
Important Safety Information
This document contains important instructions to use during installation of the Enphase Microinverter™ System. To reduce the risk of electrical shock, and to ensure the safe installation and operation of the Enphase Microinverter System, follow these instructions. The following
safety symbols and information indicate dangerous conditions and important safety instructions.
Product Labels
WARNING: Hot surface.
DANGER: Refer to safety instructions.
DANGER: Risk of electric shock.
Safety Instructions
General Safety
DANGER: Before installing or using the Enphase Micro-
inverter, read all instructions and cautionary markings in
the technical description, on the Enphase Microinverter
System, and on the photovoltaic (PV) equipment.
DANGER: Risk of electric shock. Do not use Enphase
equipment in a manner not specied by the manufacturer. Doing so may cause death or injury to persons, or
damage to equipment.
DANGER: Risk of electric shock. Be aware that installation of this equipment includes risk of electric shock. Do
not install the AC junction box without rst removing AC
power from the Enphase System.
DANGER: Risk of electric shock. The DC conductors
of this photovoltaic system are ungrounded and may be
energized.
DANGER: Risk of electric shock. Always de-energize
the AC branch circuit before servicing. Never disconnect
the DC connectors under load.
DANGER: Risk of electric shock. Risk of re. Only use
electrical system components approved for wet locations.
DANGER: Risk of electric shock. Risk of re. Only qualied personnel should troubleshoot, install, or replace
Enphase Microinverters or the Engage Cable and accessories.
DANGER: Risk of electric shock. Risk of re. Ensure that
all AC and DC wiring is correct and that none of the AC
or DC wires are pinched or damaged. Ensure that all AC
junction boxes are properly closed.
Safety and Advisory Symbols
DANGER! This indicates a hazardous situation, which
if not avoided, will result in death or serious injury.
WARNING! This indicates a situation where failure to
⚠
✓
⚠
✓
✓
✓
✓
✓
✓
follow instructions may be a safety hazard or cause
equipment malfunction. Use extreme caution and follow instructions carefully.
WARNING! This indicates a situation where failure to
follow instructions may result in burn injury.
NOTE: This indicates information particularly important for
optimal system operation. Follow instructions carefully.
DANGER: Risk of electric shock. Risk of re. Do not
exceed the maximum number of microinverters in an AC
branch circuit as listed in this guide. You must protect
each microinverter AC branch circuit with a 20A maximum breaker.
WARNING: Do not connect Enphase Microinverters
to the grid or energize the AC circuit(s) until you have
completed all of the installation procedures and have received prior approval from the electrical utility company.
NOTE: To ensure optimal reliability and to meet warranty
requirements, install the Enphase Microinverters and Engage Cable according to the instructions in this guide.
NOTE: Perform all electrical installations in accordance
with all applicable local electrical codes and the National
Electrical Code (NEC), ANSI/NFPA 70.
NOTE: The AC and DC connectors on the cabling are
rated as a disconnect only when used with an Enphase
Microinverter.
NOTE: Protection against lightning and resulting voltage
surge must be in accordance with local standards.
NOTE: Many PV modules have a central stiening brace.
In these cases, do not position the connector and
microinverter at the exact center of the PV module. Instead, position the drop connectors so that the connec-
tors do not conict with the braces.
NOTE: Completely install all microinverters and all system AC connections prior to installing the PV modules.
Safety Instructions, continued
Microinverter Safety
DANGER: Risk of electric shock. Risk of re. If the AC
cable on the microinverter is damaged, do not install the
microinverter.
DANGER: Risk of electric shock. Risk of re. Do not at-
tempt to repair the Enphase Microinverter; it contains no
user-serviceable parts. If it fails, contact Enphase customer service to obtain an RMA (return merchandise authorization) number and start the replacement process.
Tampering with or opening the Enphase Microinverter will
void the warranty.
WARNING: Risk of skin burn. The body of the Enphase
Microinverter is the heat sink. Under normal operating
conditions, the temperature is 15°C above ambient, but
under extreme conditions the microinverter can reach a
temperature of 80°C. To reduce risk of burns, use caution when working with microinverters.
WARNING: Risk of re. When pairing with C250, the PV
module DC conductors must be labeled “PV Wire” or
⚠
“PV Cable”.
WARNING: Risk of equipment damage. The transformer
must adapt the utility voltage (usually 480Y/277VAC) to
⚠
no more than 248V line-to-neutral for connection to the
Envoy-C and C250 microinverters.
WARNING: You must match the DC operating voltage
range of the PV module with the allowable input voltage
⚠
range of the Enphase Microinverter.
WARNING: The maximum open circuit voltage of the PV
module must not exceed the specied maximum input
⚠
DC voltage of the Enphase Microinverter.
WARNING: Risk of equipment damage. The microinverter must be installed under the module, out of rain and
⚠
sun. Do not mount the microinverter in a position that allows long-term exposure to direct sunlight or in a vertical
orientation that allows water to collect in the DC connector recess. Do not install the microinverter black side up
or vertically, with the DC connectors facing up.
WARNING: Be aware that only qualied personnel should
connect the Enphase Microinverter to the utility grid.
⚠
NOTE: The Enphase Microinverter has eld-adjustable
✓
voltage and frequency trip points that may need to be set,
depending upon local requirements. Only an authorized
installer with the permission and following requirements of
the local electrical authorities should make adjustments.
Engage Cable and Accessory Safety
DANGER: Risk of electric shock. Do not install the En-
gage Cable terminator cap while power is connected.
DANGER: Risk of electric shock. Risk of re. When strip-
ping the sheath from the Engage Cable, make sure the
conductors are not damaged. If the exposed wires are
damaged, the system may not function properly.
DANGER: Risk of electric shock. Treat all connector
contacts as though they are live. Pin one in the splice
box (drop connector) is live, though not used.
DANGER: Risk of electric shock. Risk of re. Do not
leave AC connectors on the Engage Cable uncovered for
an extended period. If you do not replace the microinverter immediately, you must cover any unused connector with a sealing cap. Do not reuse sealing caps.
DANGER: Risk of electric shock. Risk of re. Make sure
protective sealing caps have been installed on all unused
AC connectors. Unused AC connectors are live when the
system is energized. Do not reuse sealing caps.
WARNING: Use terminator only once. If you open the
terminator following installation, the latching mechanism
⚠
is destroyed. Do not reuse the terminator. If the latching
mechanism is defective, do not use the terminator. Do
not circumvent or manipulate the latching mechanism.
WARNING: When installing the Engage Cable, secure
any loose cable to minimize tripping hazard.
⚠
NOTE: Check the labeling on the Engage Cable drop
✓
connectors to be sure that the cable matches the electrical service at the site. Use only C250 Engage Cable with
the C250 Microinverter.
NOTE: There are two release-holes in the drop con-
✓
nector on the cable. These are not for mounting but are
used to disconnect the connector. Keep these release
holes clear and accessible.
NOTE: When looping the Engage Cable, do not form
✓
loops smaller than 4.75 inches (12 cm) in diameter.
NOTE: If you need to remove a sealing cap, you must
✓
use the Enphase disconnect tool or a #3 Phillips screwdriver. Do not reuse sealing caps.
NOTE: When installing the Engage Cable and accesso-
✓
ries, adhere to the following:
• Do not expose the terminator cap or cable connections
to directed, pressurized liquid (water jets, etc.).
• Do not expose the terminator cap or cable connections
to continuous immersion.
• Do not expose the terminator cap or cable connections
to continuous tension (e.g., tension due to pulling or
bending the cable near the connection).
• Use only the connectors and cables provided.
• Do not allow contamination or debris in the connectors.
• Use the terminator cap and cable connections only
when all parts are present and intact.
• Do not install or use in potentially explosive environments.
• Do not allow the terminator to come into contact with
open ame.
• Make sure that all terminator cap seals are seated correctly in the wire organizer.
• Fit the terminator cap using only the prescribed tools
and in the prescribed manner.
• Use the terminator to seal the conductor end of the Engage Cable; no other method is allowed.
NOTE: Do not use the shipping cap to cover unused
✓
connectors. The shipping cap does not provide an adequate environmental seal. Enphase sealing caps are
required to protect against moisture ingress.
Envoy Safety
DANGER: Risk of electric shock. Do not attempt to re-
pair the Enphase Envoy; it contains no user-serviceable
parts. If it fails, contact Enphase customer service to obtain an RMA (return merchandise authorization) number
and start the replacement process. Tampering with or
opening the Enphase Envoy will void the warranty.
WARNING: Risk of equipment damage. Do not remove
power from the Envoy if the LCD screen displays: “Up-
⚠
grading. . . Do Not Unplug.”
NOTE: Do not plug the Envoy into a power strip, surge
✓
protector, or uninterruptable power supply (UPS).These
devices impede power line communications.
Microinverter Troubleshooting
LED color State Meaning During Normal Operation
Green Flashing Normal operation.
Orange Flashing Not receiving messages from the Envoy.
Red Solid Fault. Not producing.
Flashing Grid not present. Not producing.
The Status LED of each microinverter will light solid green a
few seconds after connection to DC power and then blink
green six times to indicate normal start-up operation about
two minutes after connecting to DC power. The LED subsequently resumes normal operation if the grid is present.
• Make sure AC breakers and disconnects are closed.
• Check the connection to the utility grid and verify that the
utility voltage is within allowable range.
• Verify that AC line voltages at all solar power circuit
breakers at the load center and subpanels are within
allowable range.
• Verify that AC line voltage at the junction box for each AC
branch circuit is within allowable range.
• Using an Enphase disconnect tool, disconnect the
AC cable for the microinverter in question from the
Engage Cable. Verify that utility power is present at the
microinverter by measuring line to line and line to neutral at
the Engage Cable connector.
• Check that the AC branch circuit connections (Engage
Cable and AC connections) are properly seated. Reseat if
necessary. Check the AC and DC cables for damage.
• Make sure that any upstream AC disconnects, as well as
the dedicated circuit breakers for each AC branch circuit,
are functioning properly and are closed.
• Check the DC connections between the microinverter and
the PV module. The connection may need to be tightened
or reseated. If the connection is worn or damaged, it may
need replacement.
• Attach an ammeter clamp to one conductor of the DC
cables from the PV module to measure microinverter
current. This will be under one Amp if AC is disconnected.
• Verify the PV module DC voltage is within the allowable
range.
• Swap DC leads with a known good, adjacent PV module.
If after checking Enlighten periodically (this may take up to
30 minutes), the problem moves to the adjacent module,
this indicates that the PV module isn’t functioning correctly.
If it stays in place, the problem is with the microinverter.
• Verify with your utility that line frequency is within range.
Enphase integrated ground microinverters meet the requirements of
NEC 690.35. Because the DC circuit is isolated and insulated from
ground, the Enphase Microinverter does not require a GEC. Ground
fault protection (GFP) is integrated into the microinverter. For details,
refer to “Microinverters with Integrated Ground” at
http://www.enphase.com/support.
Envoy Troubleshooting
a

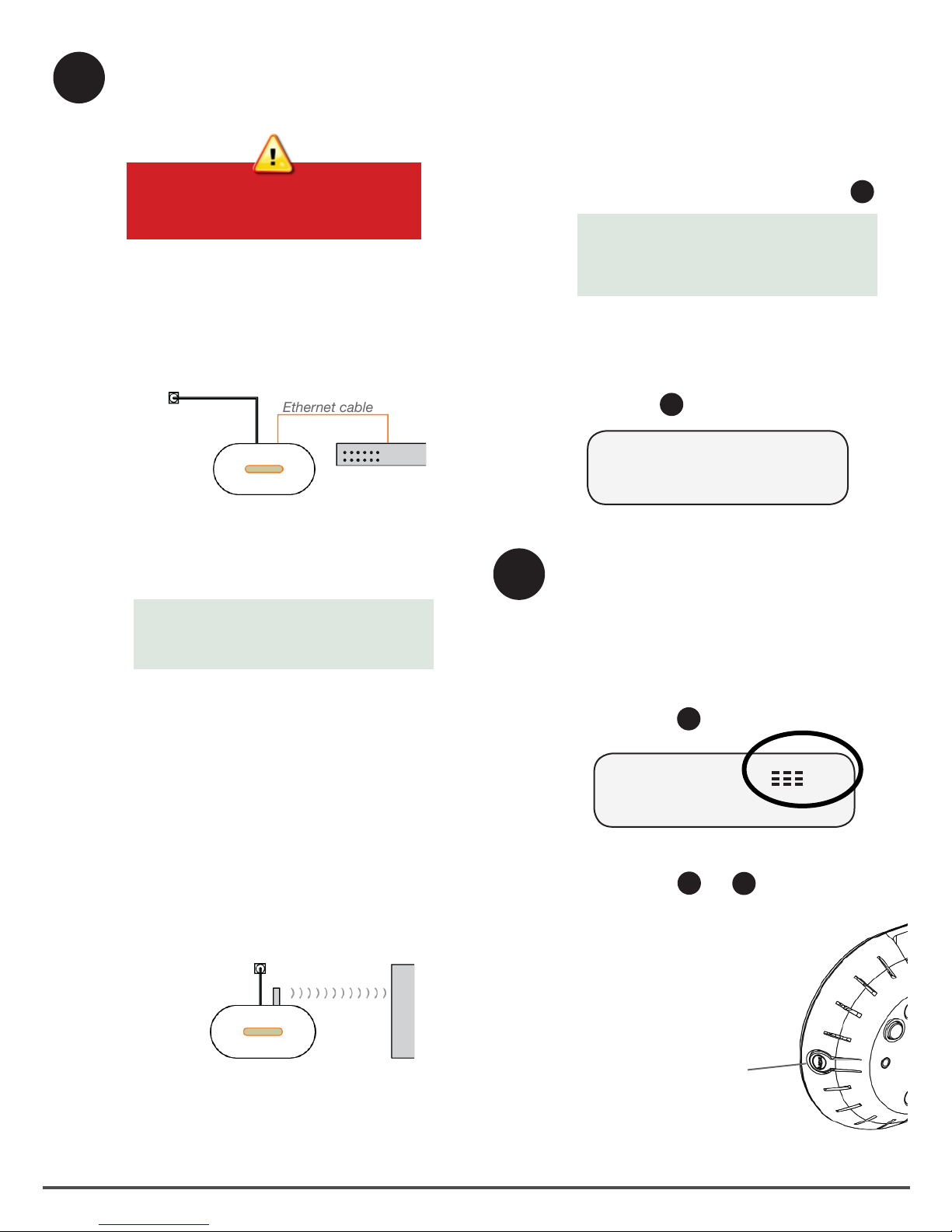

Wi-Fi Connection Issue
If WPS connection fails, retry the connection steps as the
connection window may have timed out.
Remember that metal enclosures or obstructions impede
wireless communication.
If you remove the wireless adapter, wait 15 seconds before
reinserting it.
If the wireless router does not support WPS, refer to
the Envoy-Communications Gateway Installation and
Operation Manual for set up at:
http://www.enphase.com/support.
b
Internet Connection Issue
If, after 15 minutes, you see -Web instead of +Web, make
sure that the broadband router is operational. Check that
other devices at the site can access the Internet.
If the broadband router is operational, press and hold the
Envoy menu button. Release the button when the LCD
displays Get New IP Address. Wait for 5 minutes.
If this fails, unplug the Envoy, wait for 20 seconds, and
plug it back in. Wait 5 minutes for connection.
c
Power Line Communication Level is Low
If the number of bars is fewer than three as a result of
a communication check, make sure that the Envoy is
located with the phase coupler and Enphase Line Filter as
shown in the System Diagram.
Device Detection Slow
d
If, after 30 minutes (longer for large installations), the device count shown is lower than the number of microinverters installed, or if the number of bars is between zero and
two, make sure that the Envoy is located with the phase
coupler and line lter as shown in the System Diagram.
e
Device Detection Stalled
If the number of bars is three or more, but the Envoy has
not detected all of the installed microinverters within 30
minutes (longer for large installations), contact Enphase
Customer Support.
FCC Statement
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used
in accordance with this manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
Industry Canada
This Class A digital apparatus complies with Industry Canada ICES-003.
®
QUICK INSTALL GUIDE

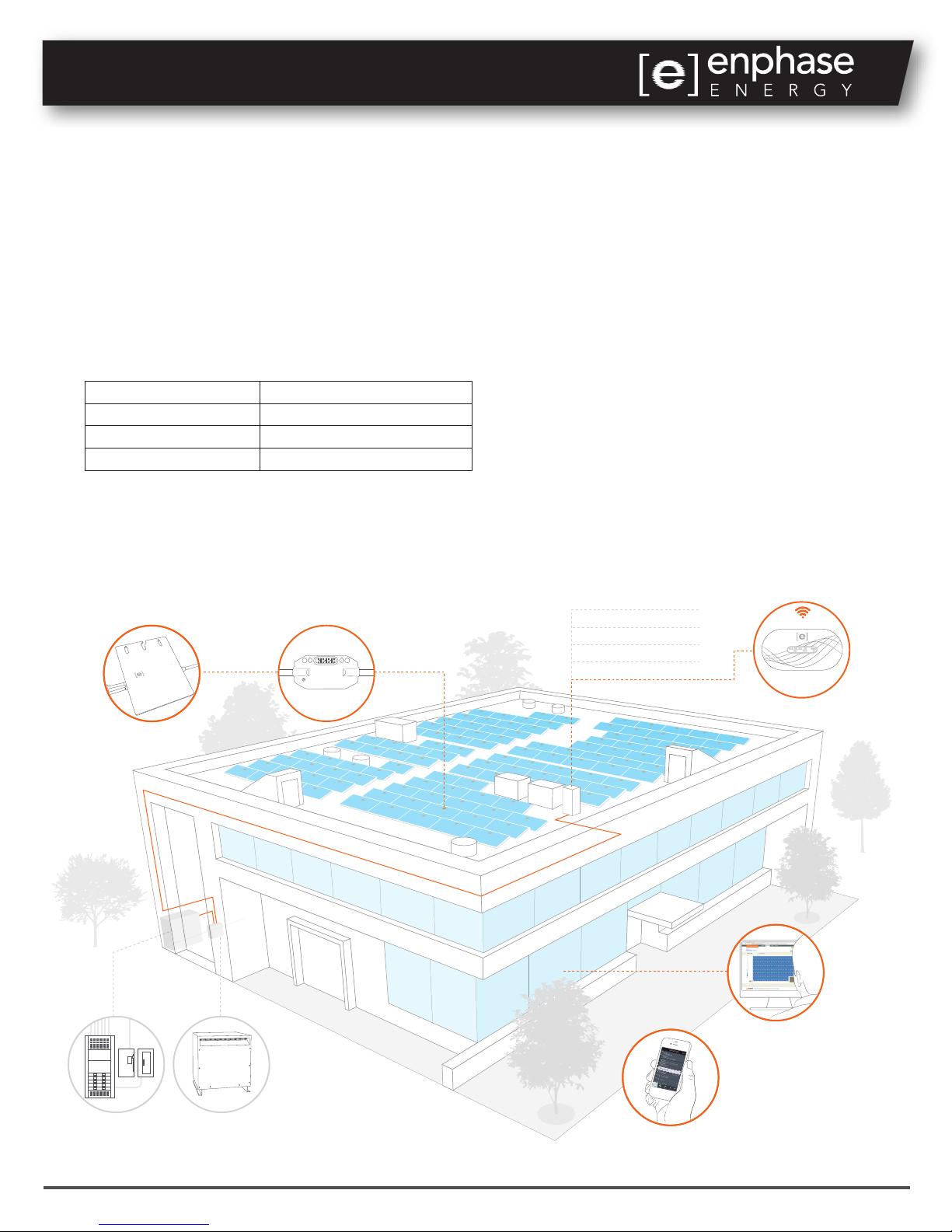

Required System Components
Read and follow all warnings and instructions in this Guide before installing the Enphase® C250 Microinverter System™. This system includes the Enphase C250 Microinverter, Enphase Envoy® Communications Gateway™ and Engage™ Cable. For more detailed information
on the C250 System, refer to the C250 Microinverter System Installation and Operation Manual at http://www.enphase.com/support.
You need the following components to install the C250 system:
• Enphase C250 Microinverter: Install model C250-72-2LN-S2 (MC4 connector) or C250-72-2LN-S5 (Amphenol connector)
• Enphase Envoy-C Communications Gateway: (model ENV-C250). This unit has a 250V-rated (NEMA 6-15P) plug;
the receptacle must be NEMA 6-15R.
• Enphase Engage Cable:
Model number PV module orientation
ET10-277-BULK Portrait, 60- and 72-cell modules
ET17-277-BULK Landscape, 60-cell modules
ET21-277-192-12AWG Landscape, 72-cell modules
• Transformer: The transformer must adapt the utility voltage (usually 480Y/277VAC) to no more than 248V line-to-neutral for
connection to the Envoy-C and C250 microinverters.
• Phase Coupler
• Enphase Line Filters (model LCF-250-PC), for additional Envoys, if needed.
Enphase
C250
Enphase
Microinverters
Enphase
Cable
Surge Protection Device
Panel Board
Phase Coupler
Line Filter
Enphase
Enlighten
Manager
Enphase
Envoy C
Utility
Panel
Transformer
Enphase
Installer
Toolkit
Pre-Installation Tasks
Install supporting structures, home-run wiring, load centers, revenue grade meter, and any other equipment required for your installation.
Install this equipment per manufacturer instructions.
• Verify DC polarity between the PV module and the microinverter by temporarily connecting a PV module to a microinverter with no grid
connection. The microinverter LED lights solid green for a few seconds to indicate compatibility. After two minutes the LED will ash red
to indicate that no grid is present. This is normal.
• Install an auto-transformer or isolation transformer so that the voltage presented to the microinverter is limited to no more than 248V,
line to neutral.
• Auto-transformer: An auto-transformer is more aordable, smaller, lighter and more ecient than an isolation transformer. You can
use one to generate the operating voltage for C250 from a 480Y/277V grid. The primary disadvantages of auto-transformers are
that they do not provide isolation and do not derive a neutral from a delta congured system. Used in boost mode (as viewed from
the PV side), these transformers usually have taps for adjustments to the PV side voltage.
• Isolation Transformer: Isolation transformers with a WYE congured winding on the PV side can derive a neutral conductor when
the grid side is delta congured, lter electrical noise and communication signals, and provide isolation of communication domains.
These transformers usually have taps for voltage.
• Install a phase coupler to couple the Enphase power line communication signal between the three phases. You need a phase coupler
with each Envoy-C in a C250 system to allow communication with the microinverters on all three phases.
• Install Enphase Line Filters (model LCF-250-PC), if needed. If you have more than one communication domain and multiple Envoy-Cs
that are tied to a common service panel or o of a single transformer, you need lters to prevent cross-talk between the communication
domains. You can accomplish this with power line lters or with a single isolation transformer feeding a single communication domain,
such as when a medium voltage transformer is provided for each sub-array. You must also physically separate the racking, conduits
and wires of one communication domain from another communication domain by at least 12 inches.
• Install surge protection. An inline surge protective device provides the greatest level of protection, but is usually more expensive than a
surge protective device that sits in parallel to the microinverter panel board. If using an inline surge protective device, locate the Envoy-C
and C250s together on the load side of this device.
For equipment recommendations, refer to the C250 Commercial Design Guide at http://www.enphase.com/support.
C250 System Installation Tasks
1
Find the Envoy Serial Number

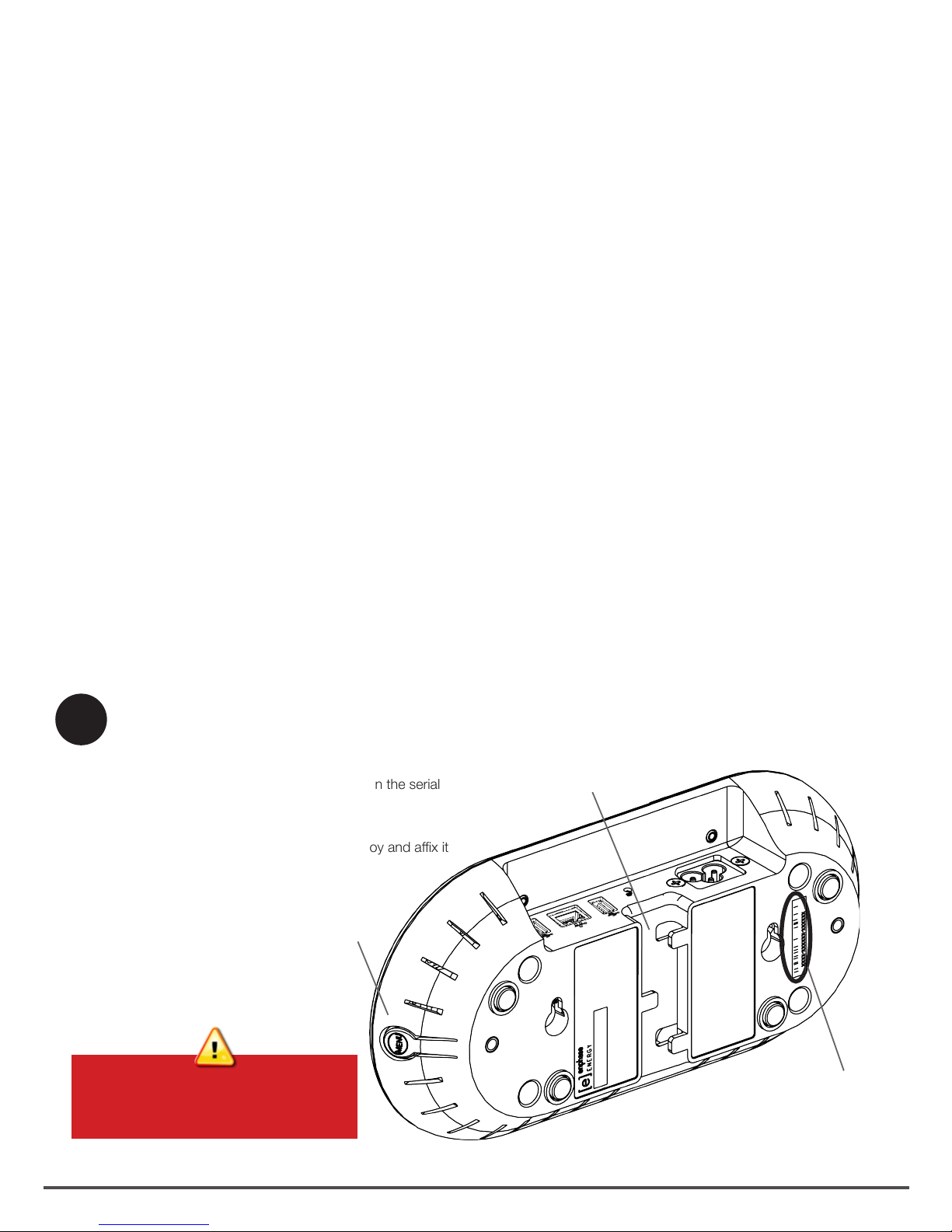

The serial number label is on the back of the Envoy,
near the left mounting bracket.
a. Use the Enphase Installer Toolkit to scan the serial
number. For more information, refer to
http://enphase.com/installer-toolkit.
b. Or you can peel the label from the Envoy and ax it
to an installation map.
menu
button
Warning. Envoy warranty void if cover
removed. No serviceable parts inside.
Refer servicing to qualied personnel.
DO NOT route the power
cable or the Ethernet cable
through the cable tray.
serial
number
label
2

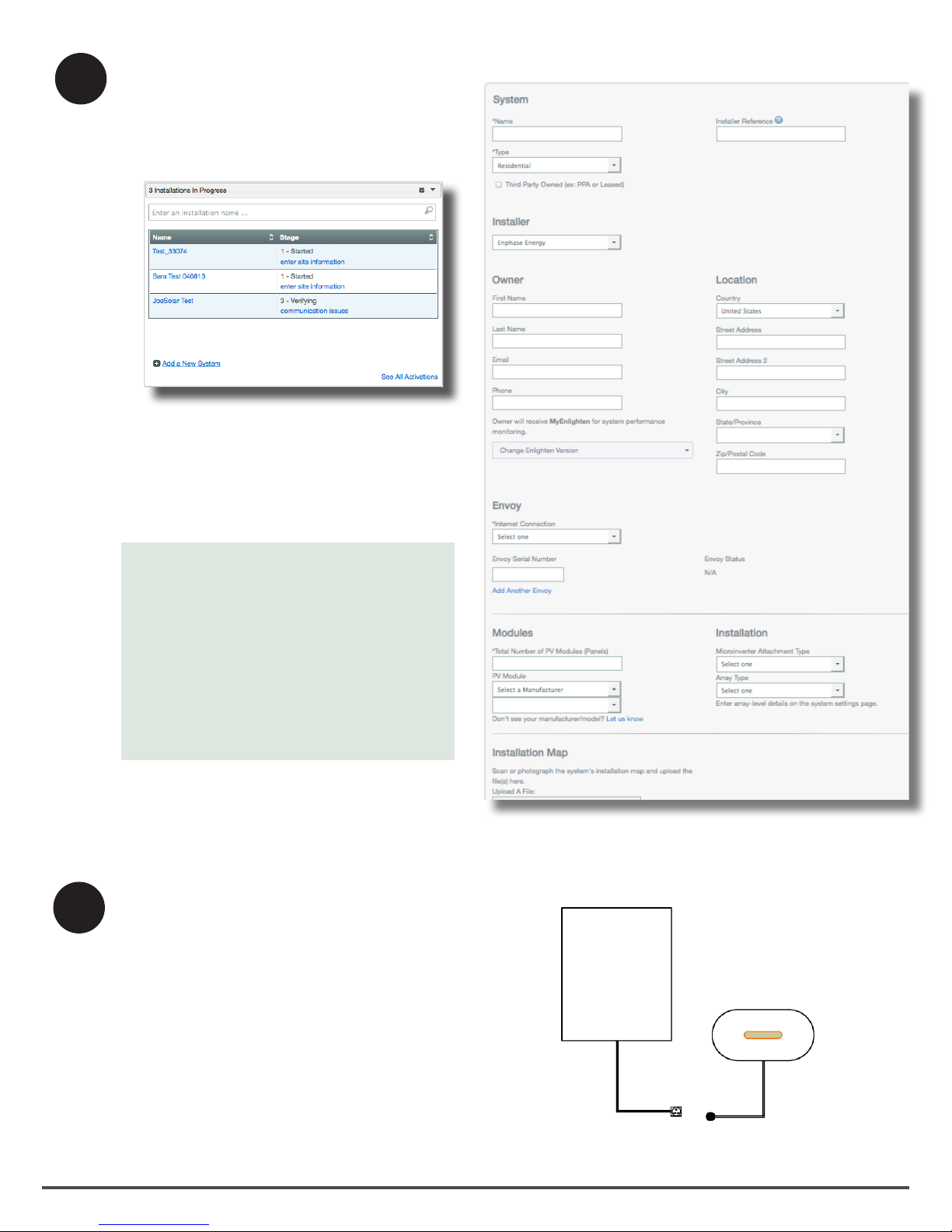

Register the Envoy
Register the Envoy at the Enlighten website:
https://enlighten.enphaseenergy.com.
a. Log in to Enlighten
• At the installer dashboard, click Add a New System.
b. Enter System Activation Information
• Under System, enter the system Name, Type and
Installer Reference (optional).
• Enter Installer information.
• Under Owner, enter the Name, Email, and Phone.
• Under Location, enter the Country and address
information.
If you select a country other than the US, or if you
select Hawaii as the state under Location, the Grid
Prole menu appears. For most regions, you do not
need to select a grid prole when installing the C250
because it is preset with the appropriate prole.
However, when inter-connecting to grids managed by
Hawaii Electric Industries (HEI), including HECO, you
must refer to the C250 Commercial Design Guide, Appendix A: Hawaiian Electric Industries Requirements
for C250 Projects for specic instructions on setting
this prole and for other requirements specic to your
installation.
System Activation form
• Under Envoy, select the Internet Connection type
and enter the Envoy Serial Number.
• Under Modules, enter total number of modules,
type, etc.
• Click Save to submit the form.
3
Place the Envoy
The Envoy’s power line communication signal must be “coupled”
between the three phases to allow the Envoy to communicate with
all of the microinverters in the system.
a. Install a phase coupler, or wire a capacitor into the system. With
either solution, install the device on the load side of the overcurrent protection device.
b. Plug the AC cord into a dedicated NEMA 6-15R receptacle. This
receptacle must be indoors or in an environmentally protected
location. Locate the Envoy with the phase coupler and Enphase
Line Filter, as shown in the Sample System Diagram.
AC load
center
Envoy

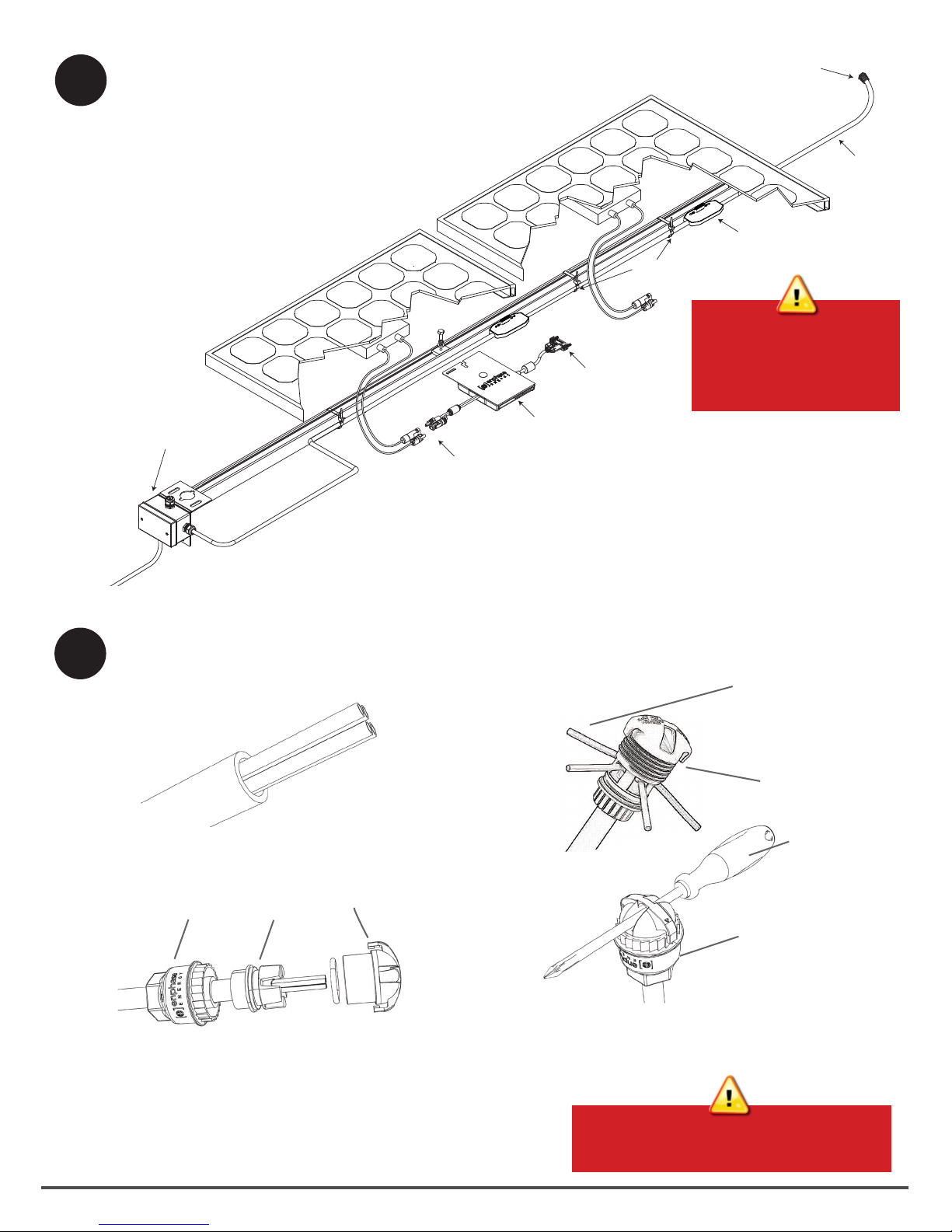

Position the Enphase Engage Cable
4
a. Plan the cable length to allow drop connectors on the
Engage Cable to align with each PV module. Allow extra length for slack, cable turns and any obstructions.
b. Cut a length of Engage Cable to meet your planned
needs.
c. Lay out the cabling along the installed racking
for the AC branch circuit.
AC junction
box
DC connectors
AC connector
Enphase
Microinverter
terminator
Engage
Cable
drop
connector
cable ties
Check the drop connector
labels to be sure that you have
the correct Engage Cable.
You must use cable marked
“C250”.
5
Terminate the Unused End of the Cable
a. Remove 60 mm (2.5”) of the cable sheath from
the conductors.
b. Check that all terminator parts are present.
hex
nut
c. Slide the hex nut onto the cable.
wire
organizer
cap
e. Attach the cap.
f. Attach the terminated cable end to the PV
racking with a cable clip or tie wrap.
bend wires down into
recesses of wire organizer and trim to length
place cap over
the wire organizer
hold the cap with
the disconnect
tool or a #2
screwdriver
rotate the hex nut with
your hand or a wrench
until the latching
mechanism meets the
base–do not over torque
d. Insert the cable end all the way into the wire
organizer (up to the stop).
Never unscrew the hex nut. This action
can twist and damage the cable.
QUICK INSTALL GUIDE
6

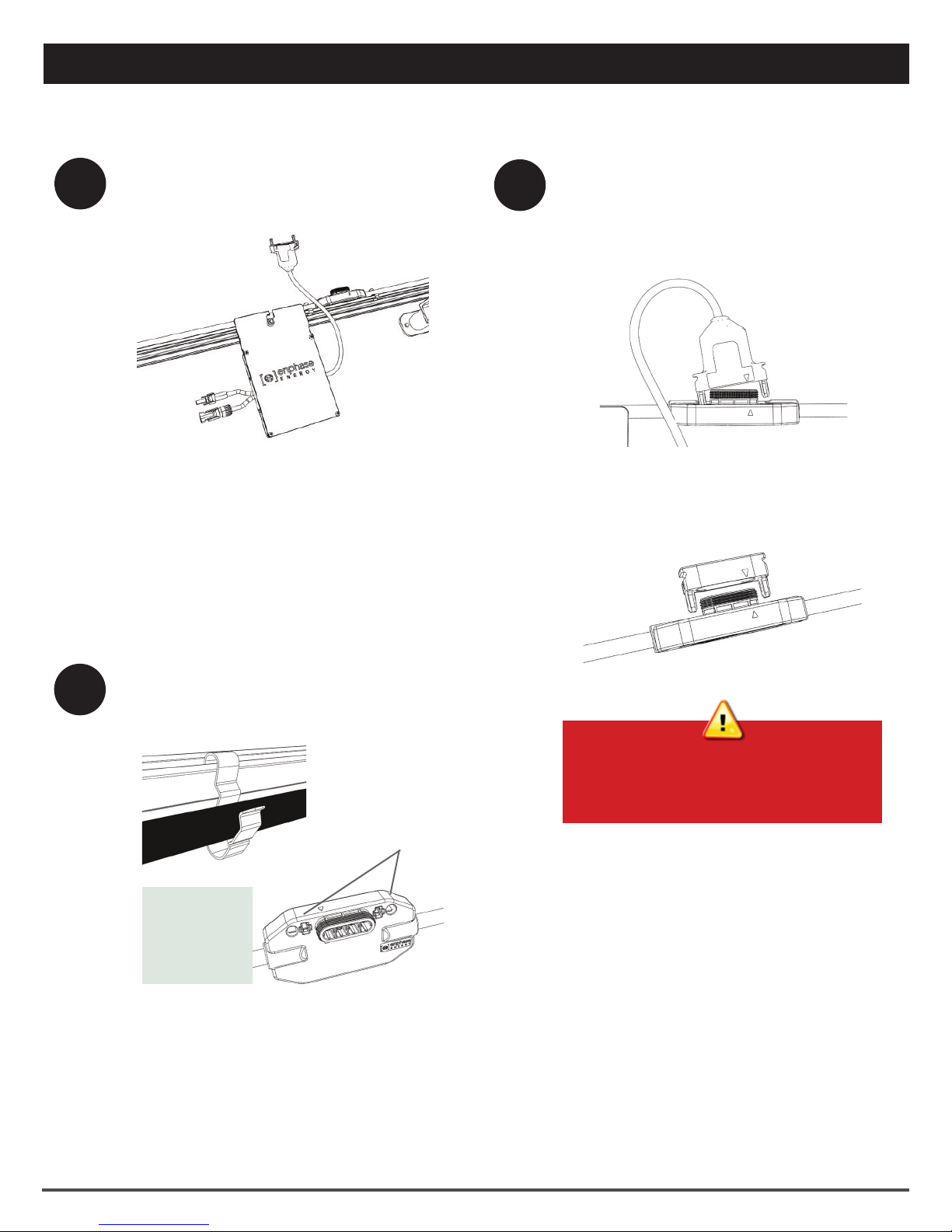

Attach the Microinverters to the PV Racking
a. Mark the approximate centers of each PV module on
the PV racking. See notes in Step Details.
b. Mount the microinverter under the PV module, away
from rain and sun. Do not mount the microinverter in
a position that allows long-term exposure to direct
sunlight or in a vertical orientation that allows water to
collect in the DC connector recess.
c. Torque the microinverter fasteners as follows. Do not
over torque:
• 5 N m (45-50 in-lbs) for 6 mm (1/4”) hardware
• 9 N m (80-85 in-lbs) for 8 mm (5/16”) hardware
8
Connect the Microinverters
a. Remove and discard the temporary shipping cap
from the cable connector and connect the microinverter. Listen for two clicks as the connectors
engage.
b. Cover any unused connectors with Enphase Seal-
ing Caps. Listen for two clicks as the connectors
engage. See notes in Step Details.
7
Dress the Cable
a. Use cable clips or tie wraps to attach the cabling to
the racking.
cable clip
release holes
Keep the drop
connector
release holes
clear and
accessible.
b. Dress any excess cabling in loops so that it does not
contact the roof. Do not form loops smaller than 4.75
inches (12 cm) in diameter.
Do not use shipping caps to cover
unused connectors. The shipping cap
does not provide an adequate
environmental seal.
c. Avoid skipping Engage Cable connectors by using
an Engage Coupler to connect two Engage Cables
or to connect Engage Cable to eld cable.
When cable connectors are left unused on a three-
phase system, it creates a phase imbalance on
the branch circuit. If multiple cable connectors are
skipped over multiple branch circuits, the imbalance can multiply.

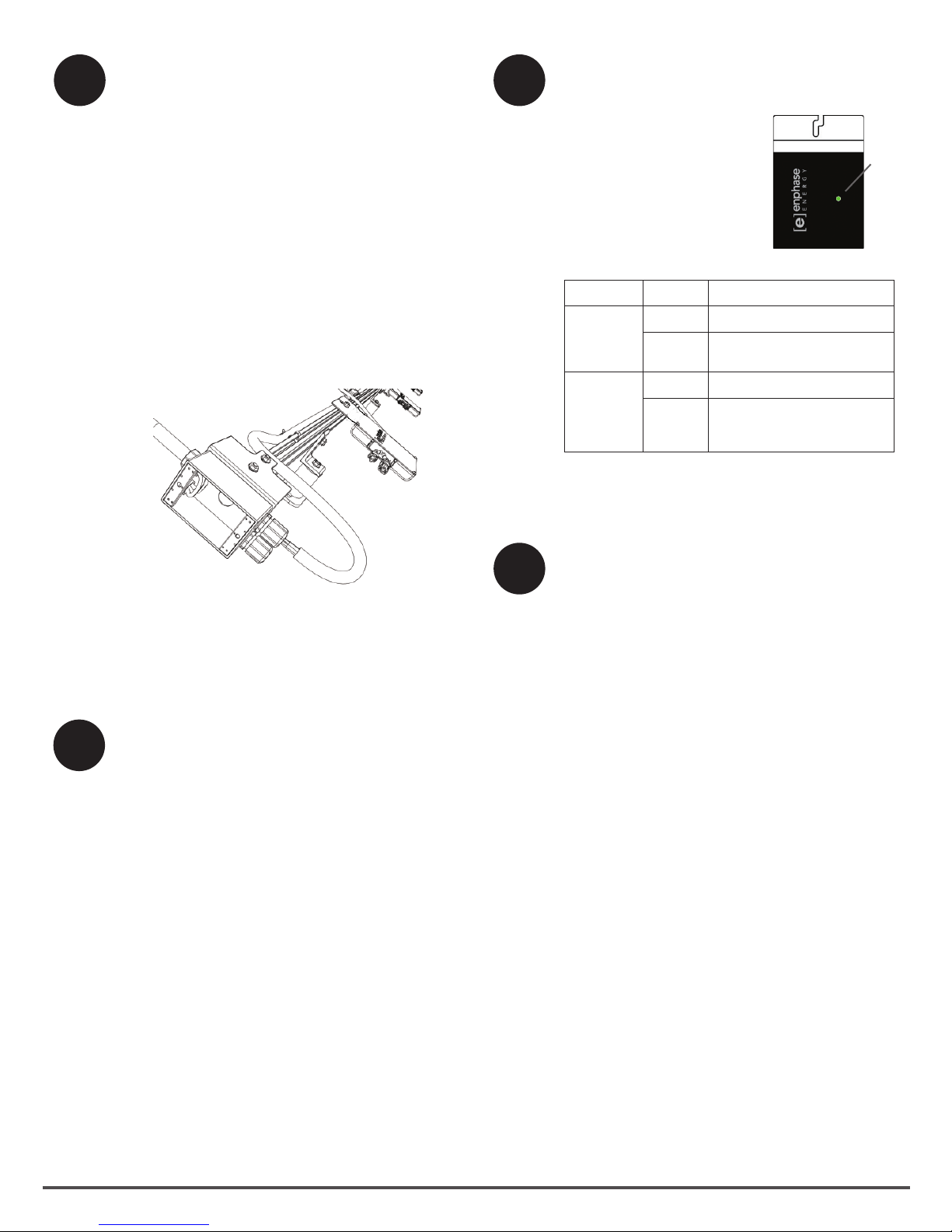

9
Connect an AC Junction Box
a. Install an appropriately rated, o-the-shelf junction
box at a suitable location on the racking.
b. Provide an AC connection from the AC junction box
back to the electricity network connection using
equipment and practices as required by local jurisdictions.
c. Connect the Engage Cable into the AC branch circuit
junction box.
The Engage Cable wiring scheme is:
Brown – L1
Orange – L2
Yellow – L3
Grey – Neutral
Green – Ground
See notes in Step Details.
11
Connect the PV Modules
a. Mount the PV modules above the microinverters.
b. Connect the DC leads of
each PV module to the DC
input connectors of the corresponding microinverter.
c. Check the LED on the under-
side of the microinverter for
normal start up.
LED color State Meaning at Start Up
Green Solid Normal start up
Flashing Transitioning to post start-up
state
Red Solid Failed start up
Flashing No grid present. Normal
post start up. (AC breaker is
not turned on yet)
status
LED
10
Complete the Installation Map
Build the system map manually, or use the Enphase In-
staller Toolkit to easily build and congure a system. For
details, refer to http://enphase.com/installer-toolkit.
To manually build the Installation Map:
a. Peel the removable serial number label from each
microinverter and ax it to the respective location on
an installation map.
b. Log in to Enlighten.
c. Scan the installation map and upload it to the System
Activation form online.
12
Energize the System
a. Check that the voltage presented to the microinverters
is limited to no more than 248V, line to neutral.
b. If applicable, turn ON the AC disconnect or circuit
breaker for the branch circuit.
c. Turn ON the main utility-grid AC circuit breaker.
Your system will start producing power after a
ve-minute wait time.
13
Connect the Envoy to the Internet
Connect to a broadband router using one of the
following two methods:
Warning: Do not remove power from
the Envoy if the LCD displays:
“Upgrading. . . Do Not Unplug.”
Method A: Ethernet Cable
• Plug the included Ethernet cable into the Ethernet
port on the Envoy.
• Plug the other end of the cable into a port on the
broadband router.
AC power
cord
Ethernet cable
• Return to the Envoy. Press and hold the Envoy menu
button. Release the Envoy menu button when the
LCD displays Enable Wi-Fi WPS.
• Within two minutes an updated IP address appears
on the Envoy LCD screen. This IP address begins
with a “W” to indicate a wireless connection.
• If the connection fails, see Troubleshooting a.
If the wireless router does not support WPS,
refer to the Envoy-Communications Gateway
Installation and Operation Manual at:
http://www.enphase.com/support for set up.
Verication: Check the Internet Connection
Look for the + Web indication. If it does not appear within
5 minutes after connecting to the broadband router, see
Troubleshooting b.
Envoy
broadband
router
Method B: Wi-Fi (Enphase Wireless Adapter)
Requires a wireless router.
Only install the Enphase Wireless Adapter
in locations where the temperature remains
between 0° and 40° C (32° and 104° F).
• On the Envoy, verify that no Ethernet cable is
plugged into the Envoy RJ45 port.
• Verify that the startup message on the LCD screen
reads “R3.12” or later.
- If not, upgrade the Envoy by connecting the
Envoy Ethernet port to the broadband router
with the Ethernet cable that came with the
Envoy.
- After the upgrade completes, remove the Ethernet cable from the Envoy.
• Plug the Enphase wireless adapter into the left USB
port (looking at Envoy from the front), and wait 10
seconds.
wireless
adapter
14
192.168.2.140 +Web
0W 0kWh 0
Use the Envoy to Complete System Setup
An automatic device scan will detect the microinverters when the DC and AC connections are completed
and the AC circuit is energized.
a. Check the power line communications. Check the
number of bars shown on the Envoy LCD (Level/Devices screen). If fewer than three bars are shown, see
Troubleshooting c.
Level:
[ ]
Devices: 25
b. Check that the Envoy LCD shows a complete de-
vice count after about 30 minutes. If it does not, see
Troubleshooting d and e.
c. Stop the scan when all devices are detected.
• Press and hold the Envoy
menu button.
• Release the menu button
when the LCD displays
Disable Device Scan.
Envoy
• Press and hold the WPS button on the wireless
router for two seconds. On many routers, the WPS
button ashes at this point.
wireless
router
Envoy menu
button
(rear view)
15

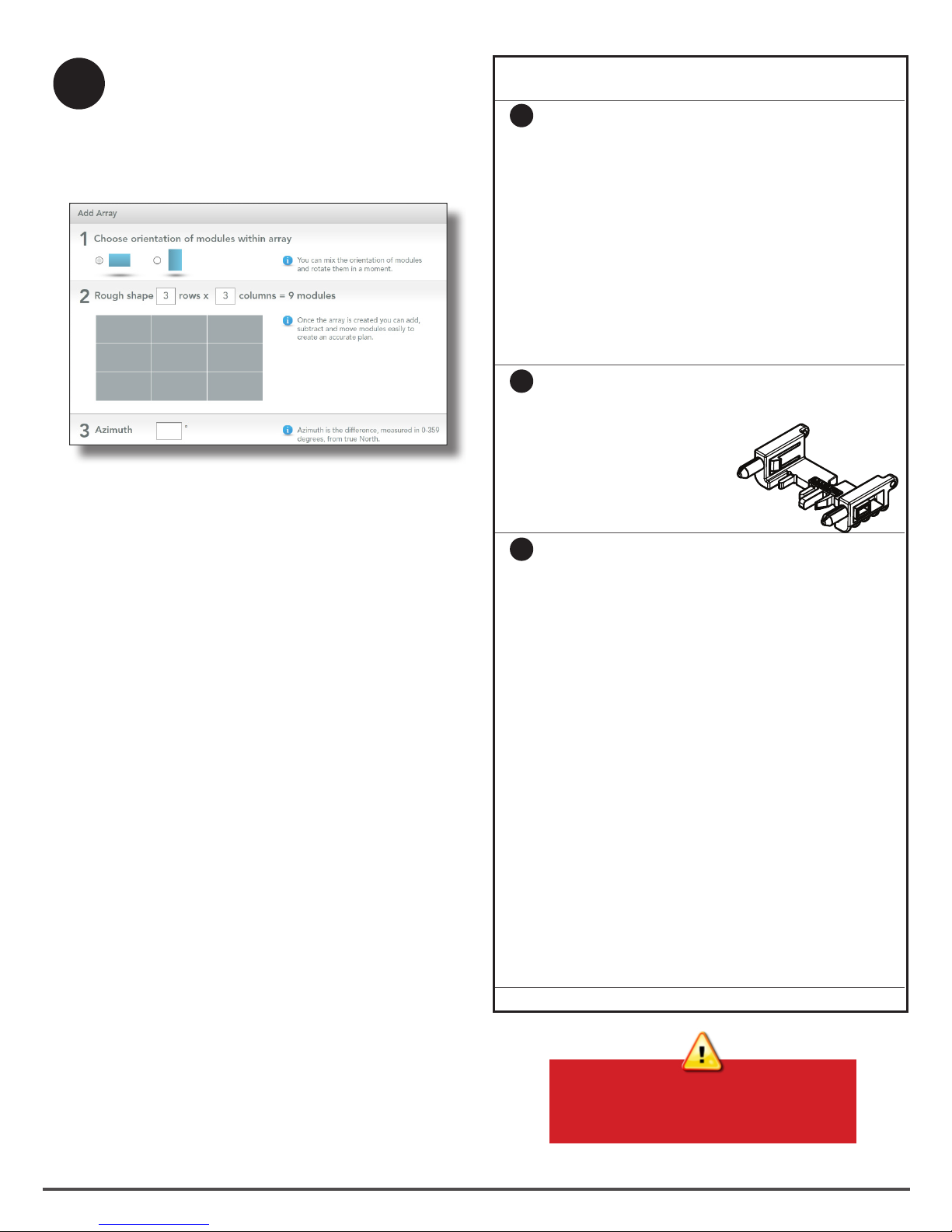

Build the Virtual Array in Enlighten
a. Log in to Enlighten.
b. Use Array Builder to create the virtual array using
the installation map as your reference.
c. To see the Array Builder demo, go to
http://enphase.com/support/videos.
d. You can now view System Performance in
Enlighten.
Step Details
6
DANGER: ELECTRIC SHOCK HAZARD. THE DC
CONDUCTORS OF THIS PHOTOVOLTAIC SYSTEM ARE UNGROUNDED AND MAY BE ENERGIZED.
WARNING: Allow a minimum of 1.9 cm (0.75”) between the
roof and the microinverter. Also allow 1.3 cm (0.50”) between
the back of the PV module and the top of the microinverter.
NOTE: Torque the microinverter fasteners to the values shown.
Do not over torque:
• 1/4” mounting hardware – 5 N m (45-50 in-lbs)
• 5/16” mounting hardware – 9 N m (80-85 in-lbs)
Using a power screwdriver is not recommended due to the risk
of thread galling.
NOTE: The AC output neutral is not bonded to ground inside
the microinverter.
8
WARNING: Install sealing caps on all unused AC connectors
as these become live when the system is
energized by the utility. The IP67-rated
sealing caps are required for
protection against moisture ingress.
NOTE: To remove a sealing cap, you
must use the Enphase disconnect tool or
a #3 Phillips screwdriver.
disconnect
tool
9
WARNING: Only use electrical system components approved
for wet locations.
WARNING: Each branch circuit must be protected by a dedicated circuit breaker of 20 A or less. Do not exceed the following maximums:
• Max C250s per 20 A branch circuit: 48
• Max C250s per phase: 16
WARNING: Size the AC wire gauge to account for voltage drop
for both the branch circuit and all upstream conductors leading
back to the PCC. See the Technical Brief on Voltage Drop at
http://www.enphase.com/support.
NOTE: Minimize the number of unused Engage Cable connec-
tors. When cable connectors are left unused on a three-phase
system, it creates a phase imbalance on the branch circuit.
NOTE: The Engage Cable uses the following wiring scheme.
Brown – L1
Orange – L2
Yellow – L3
Grey – Neutral
Green – Ground
NOTE: The green wire acts as equipment ground (EGC).
Warning. Microinverter warranty void if cover
removed. No serviceable parts inside.
Refer servicing to qualied personnel.
C250 Sample System
Diagram
Enphase Energy, Inc.
1420 N. McDowell Blvd.
Petaluma, CA 94954
USA
support@enphaseenergy.com
http://www.enphase.com
© 2014 Enphase Energy Inc. All rights reserved.
Loading...
