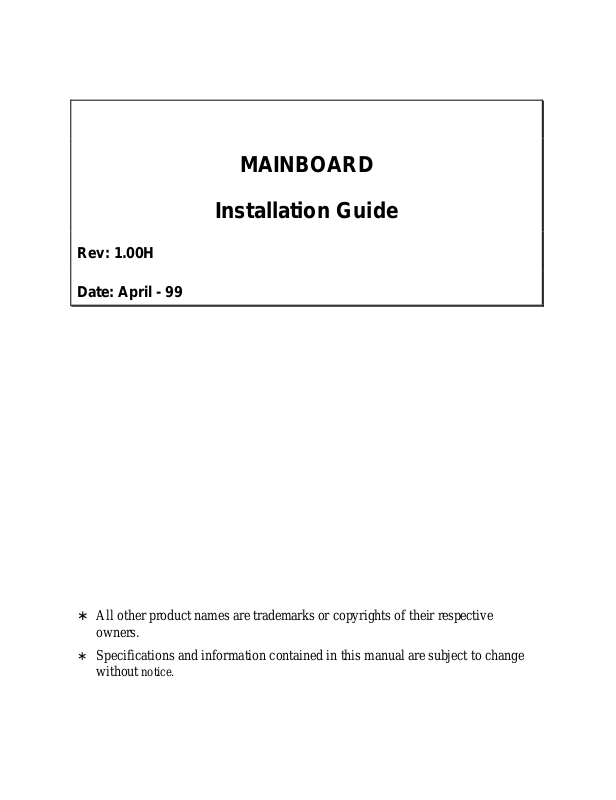

ENPC/ENlight EP-KE23 Technical specification manual

Rev: 1.00H

Date: April - 99

MAINBOARD

Installation Guide

∗ All other product names are trademarks or copyrights of their respective

owners.

∗ Specifications and information contained in this manual are subject to change

without notice.

Table of Contents

INTRODUCTION.............................................................................. 3

Product Description ........................................................................................3

Features & Specifications................................................................................ 4

Package Checklist...........................................................................................5

Board Level Feature ........................................................................................6

Comprehensive Mainboard View....................................................................8

INSTALLATION................................................................................ 9

Installing the CPU ..........................................................................................9

Setting the Jumpers....................................................................................... 11

Connections..................................................................................................14

Installing the Memory Modules (DIMM)......................................................25

Installing an AGP Card ................................................................................ 26

Installing the Support Drivers and Utilities...................................................27

SOFTWARE SUPPORT................................................................. 28

Mainboard BIOS........................................................................................... 28

Flash BIOS Programming Utility.................................................................. 29

Symbios SCSI Configuration Utility.............................................................. 30

DMI Utility ...................................................................................................30

2

Installation Guide

INTRODUCTION

Product Description

This mainboard represents the highest level of technology available in PC
Mainboards today. Designed as a flexible, high-performance and cost-effective
solution for System Integrators and End Users alike, this mainboard provides the
power and expandability to meet the requirements of the most advanced operating
systems and software applications.

This mainboard features “SLOT 1” architecture, a modular design that supports
the latest Intel® Pentium® III processors (running at 450MHz ∼ 700MHz with a
100MHz system bus and for board REV2.0 or later 533MHz ∼ 733MHz on a
133MHz system bus), Pentium® II processors (running at 233MHz ∼ 333MHz
with a 66MHz system bus and 350MHz ∼ 450MHz on a 100MHz system bus) as
well as Celeron® processors. Leading edge AGP 2X graphic capability is provided
for the full range of graphic intensive games and programs. The ATX form factor
design allows for more efficient system assembly with built-in mouse, serial and
parallel port connectors. This eliminates the need for separate ribbon
cable/connector brackets and speeds the manufacturing process.

Advanced hardware designs include ACPI’s Suspend to RAM for the
implementation of Instantly Available PCs. Also, by incorporating Super I/O, Bus
Mastering IDE and Universal Serial Bus (USB) onto the mainboard, optimum
system performance is assured and system design and implementation is
simplified.

Fully “Plug & Play” compatible via an Award BIOS, this mainboard facilitates
easy system configuration and peripheral setup. Advanced BIOS features include
Intelligent Hardware Monitoring and Alert functions. The Award BIOS also
supports ACPI readiness and is compatible with PC98 specification. This
mainboard is the ideal foundation for high-end computer systems.

Installation Guide

3

INTRODUCTION

Features & Specifications

Processor

Chipset Intel 440BX AGPset
BIOS Award PCI BIOS, support ACPI, DMI, Plug-and-Play, Boot from

System
Memory

On-board I/O
Features

Advanced
Features

PCI Bus
Master IDE
Expansion
Slots

ATX Power
Connector
Switching VR
Form Factor ATX Form factor 12″ by 7.5″ ( 305mm by 190mm )

SLOT 1 support Intel Pentium® III, 450~700 MHz (FSB 100 MHz),
533~733 MHz (FSB 133MHz for board REV2.0 or later),
Pentium II processor, 233~333 MHz (FSB 66MHz), 350~450 MHz
(FSB 100MHz) and
Celeron processor, 333~500 MHz

CD-ROM, SCSI, LS-120, and ZIP devices
Symbios SCSI BIOS, Anti-virus BIOS to prevent boot virus
3× 168-pin DIMM Sockets support up to 768MB SDRAM memory
capacity
Support 8/16/32/64/128/256 MB Memory Module
ECC supported
1×Floppy Port (Up to 2.88MB) 2×USB Ports
1×Parallel Port (EPP, ECP Port) 1×IrDA TX/RX Header
2×Serial Ports (16550 Fast UART Compatible)
1× Power State Header 1×MIDI/game port
1×Audio jacks: Line-out, Line-in and Mic.-In
Modem Ring-in Remote Power on
“Suspend to RAM” ready
Wake up on LAN
Keyboard Power On
Hardware Monitoring function
SB-link to support Sound Blaster cards for early DOS games
Support X-store Bus Master IDE driver *
ESS Solo1 PCI sound chip supporting software wavetable
Anti-Virus PC-Cillin software *
2×UltraDMA/33 IDE Ports support
UltraDMA/33: 33MB/Sec.
1× 32-bit AGP slot. 5× 32-bit PCI Bus Master slots,
2× 16-bit ISA slots
3V, 5V and 12V 20-Pin ATX Power connector

Switching Voltage Regulator to support 1.3V to 3.5V

4

Installation Guide

INTRODUCTION

Remark:

Suspend to RAM is a sleep state specified by the ACPI specification. It’s the ideal sleep

state for the Instantly Available PC. In this state over 95% of the PC’s power is shut off
enabling a breakthrough in power savings, and the resume time is only a few seconds.

The XStore Pro IDE Driver enhances memory management by working with the
Windows 95/98 operating system, resulting in higher system performance by
implementing "read-ahead caching after seeking". This is especially effective with
the large block sizes of modern hard disks.

PC-cillin anti-virus software provides a powerful defense against viruses to
protect data integration.

Package Checklist

Your mainboard package should include the items listed below. Damaged or
missing items should be reported to your vendor.

þ The mainboard

with CPU Retention
Mechanism attached

þ Floppy disk ribbon cable
þ IDE ribbon cable
þ This Installation Guide
þ BIOS, Driver & Utility

Guide

þ CD-ROM containing the following

support software:
(The latest drivers can always be found
at their respective web sites.)

§ Intel IDE Bus Master driver,
http://support.intel.com/support/chipsets

§ Support software for updating the
FLASH BIOS

§ HighPoint® XStore Pro IDE Bus
Master

http://www.highpoint-tech.com

§ Trend ® PC-cillin Anti-Virus software

http://www.antivirus.com

§ ESS Solo-1 drivers

http://www.esstech.com

Installation Guide

5

INTRODUCTION

Board Level Feature

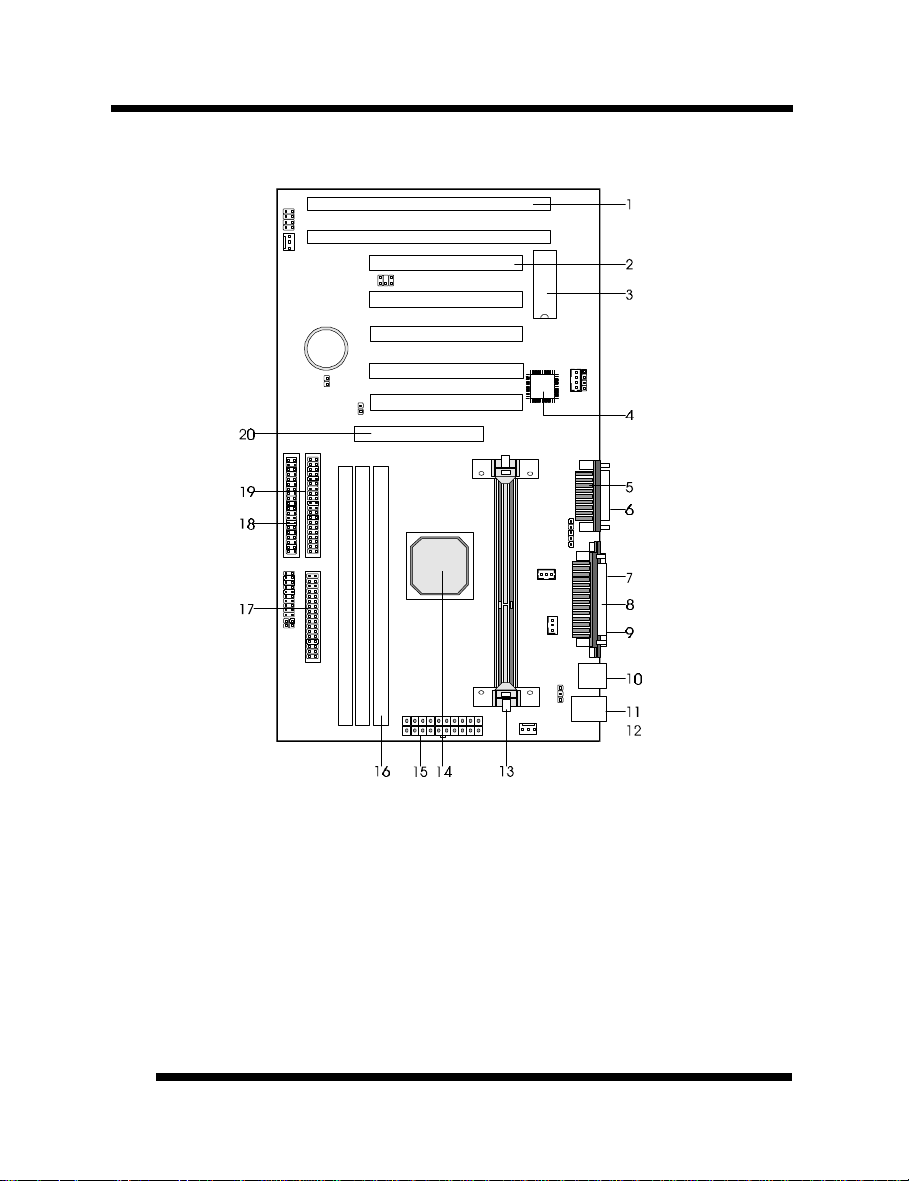

1. ISA slots 11. PS/2 mouse connector (top)

2. PCI slots 12. PS/2 keyboard connector (bottom)

3. Mainboard BIOS 13. SLOT 1 (CPU)

4.

Sound chip

5.

MIDI/Game port

6.

Audio port

7. COM2 connector 17. Floppy connector

8. Printer port connector 18. Primary IDE connector

9. COM1 connector 19. Secondary IDE connector

10. USB connectors 20. AGP slot
* Board Size: ATX 305 mm x 190 mm (12” x 7.5”)

6

14.

Intel 440BX AGPset

15. Power connector

16. DIMM sockets

Installation Guide

INTRODUCTION

1. ISA Slots: (2) 16-bit ISA slots.

2. PCI Slots: (5) 32-bit PCI slots are provided.

3. Mainboard BIOS: Award BIOS supporting “Plug and Play”, DMI, Green

PC specification, on screen setup for Enhanced IDE and Multi-I/O. The BIOS
is FLASH Upgradeable via the AWDFLASH Utility.

4. Sound Chip: ESS PCI Sound Chip supporting software wavetable.

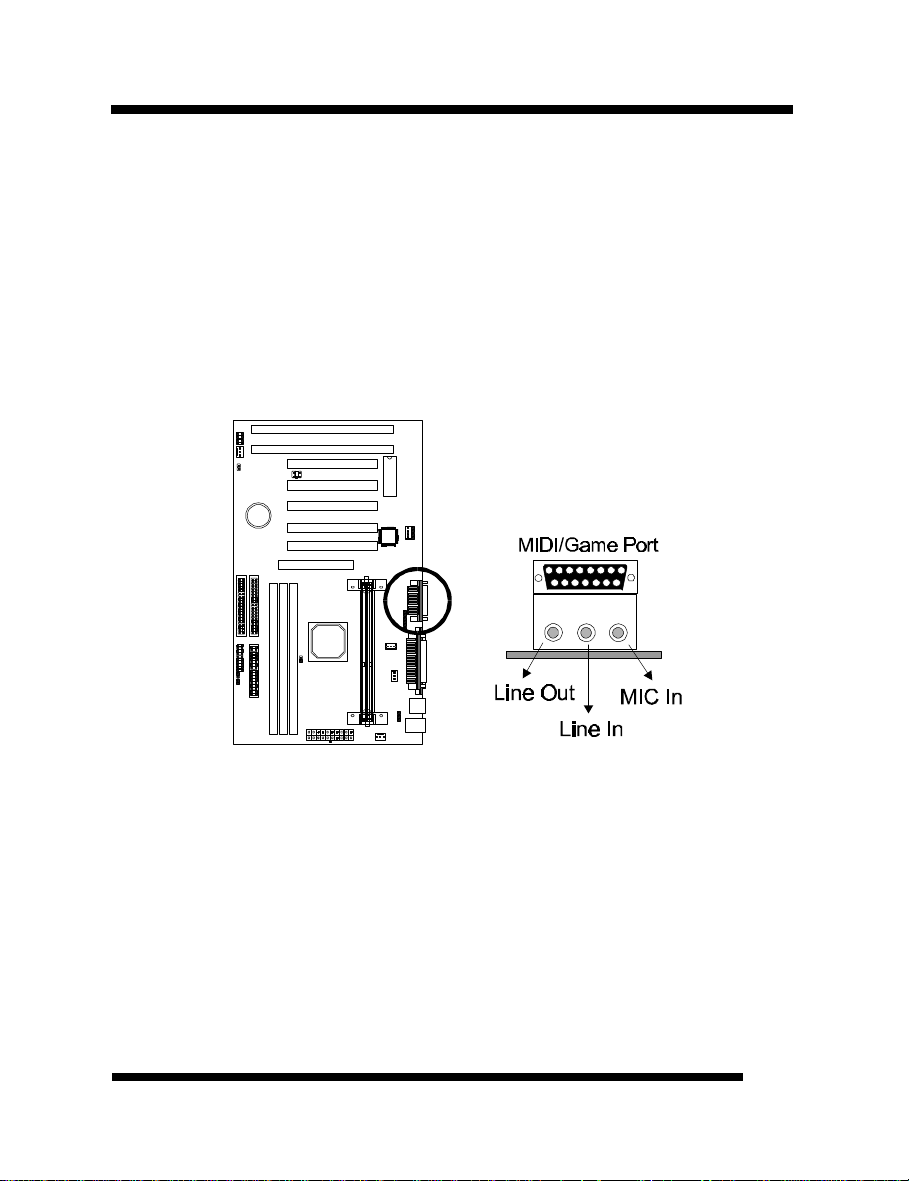

5. MIDI/Game Port: 15-pin female MIDI/Joystick connector.

6. Audio Port: Three 1/8” female jacks for Line Out, Line In and MIC.

7. COM2 Connector: High-speed UART compatible serial port. COM2 can be

directed to the Infrared Module for wireless connection capability.

8. Printer Port Connector: EPP and ECP compatible 25-pin D-Sub parallel

port.

9. COM1 Connector: High-speed UART compatible serial port.

10. USB Connectors: These connectors permit the connection of two USB

peripheral devices directly to the port without an external hub. USB is a new
technology supporting printers, fax modems and other telephony device.

11. PS/2 Mouse Connector: Supports PS/2 style mice.

12. PS/2 Keyboard Connector: Supports PS/2 style keyboards.

13. SLOT 1: Slot 1 CPU socket for Pentium® III, Pentium® II and Celeron®

CPUs.

14. Intel® 440BX AGPset: Features PC100 SDRAM, UDMA and AGP 2x

support.

15. Power Connector: 20-Pin ATX Power Connector.

16. DIMM Sockets: (3) 168-pin DIMM sockets are provided to support a

maximum RAM memory capacity of 768 MB. DIMM types of 3.3 Volt true
SDRAM is supported and automatically detected by the BIOS.

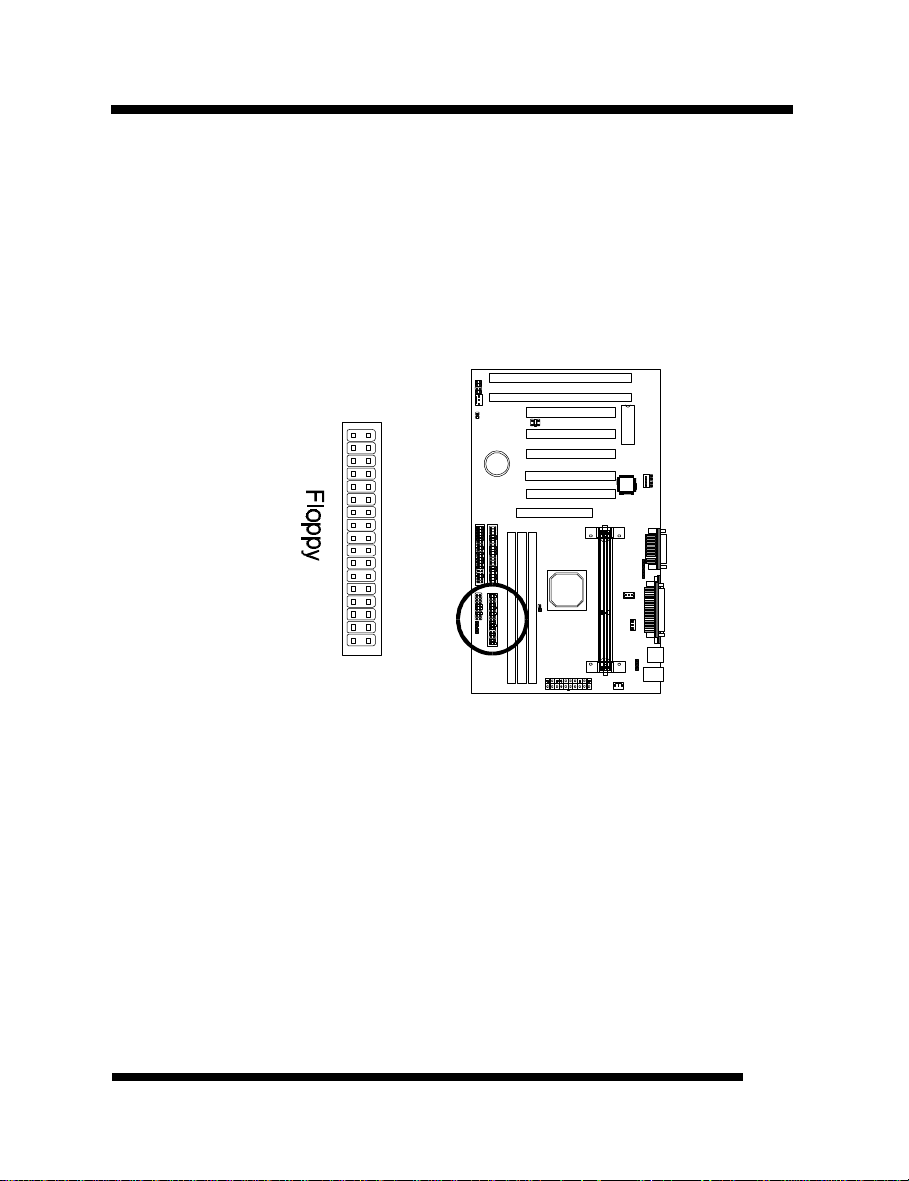

17. Floppy Connector: Built-in floppy controller supports (2) 5.25" or 3.5"

(1.44MB or 2.88MB) floppy drives.

18. Primary IDE Connector: Connector for first IDE channel. The on-board

PCI Bus Mastering IDE controller features support for DMA Mode 2 and PIO
Modes 3 and 4 for faster data transfer rates. (2) Connectors are provided for
support of up to (4) IDE devices on two channels. ATAPI Tape Drives and
CD-ROMs are also supported.

19. Secondary IDE Connector: Connector for second IDE channel.

20. AGP Slot: AGP (Accelerated Graphics Port) is a new bus interface for high

performance graphics capabilities, especially 3D.

Installation Guide

7

INTRODUCTION

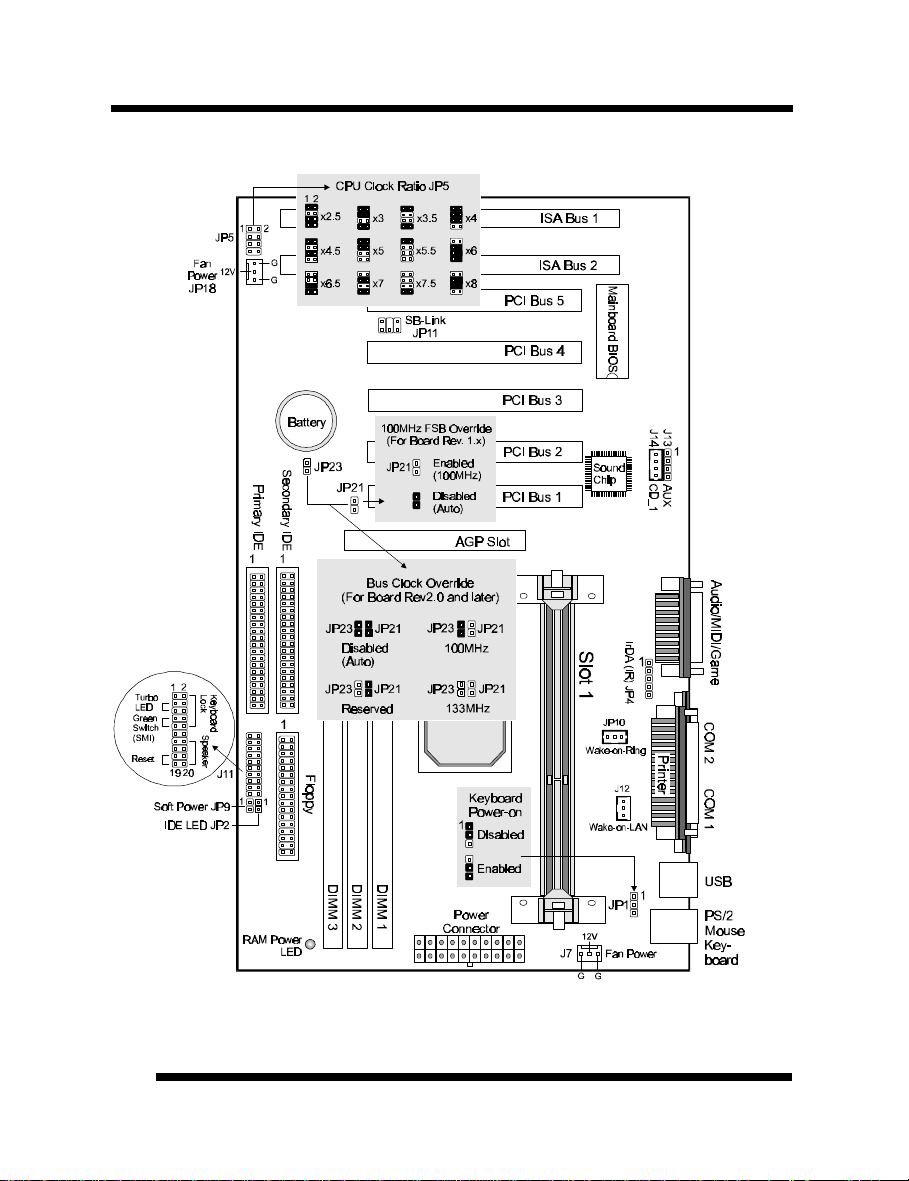

Comprehensive Mainboard View

* JP23 available only for board REV2.0 or later

8

Installation Guide

INSTALLATION

Pentium II

Heat Sink

Static Precautions

Static electricity can be a serious danger to the electronic components on this mainboard. To
avoid damage caused by electrostatic discharge, observe the following precautions:

ü Don’t remove the mainboard from its anti-static packaging until you are ready to install

it into a computer case. Also, handle add-in cards and modules by the edges or mounting
bracket.

ü Before you handle the mainboard in any way, touch a grounded, anti-static surface, such

as an unpainted portion of the system chassis, for a few seconds to discharge any built­up static electricity.

Installing the CPU

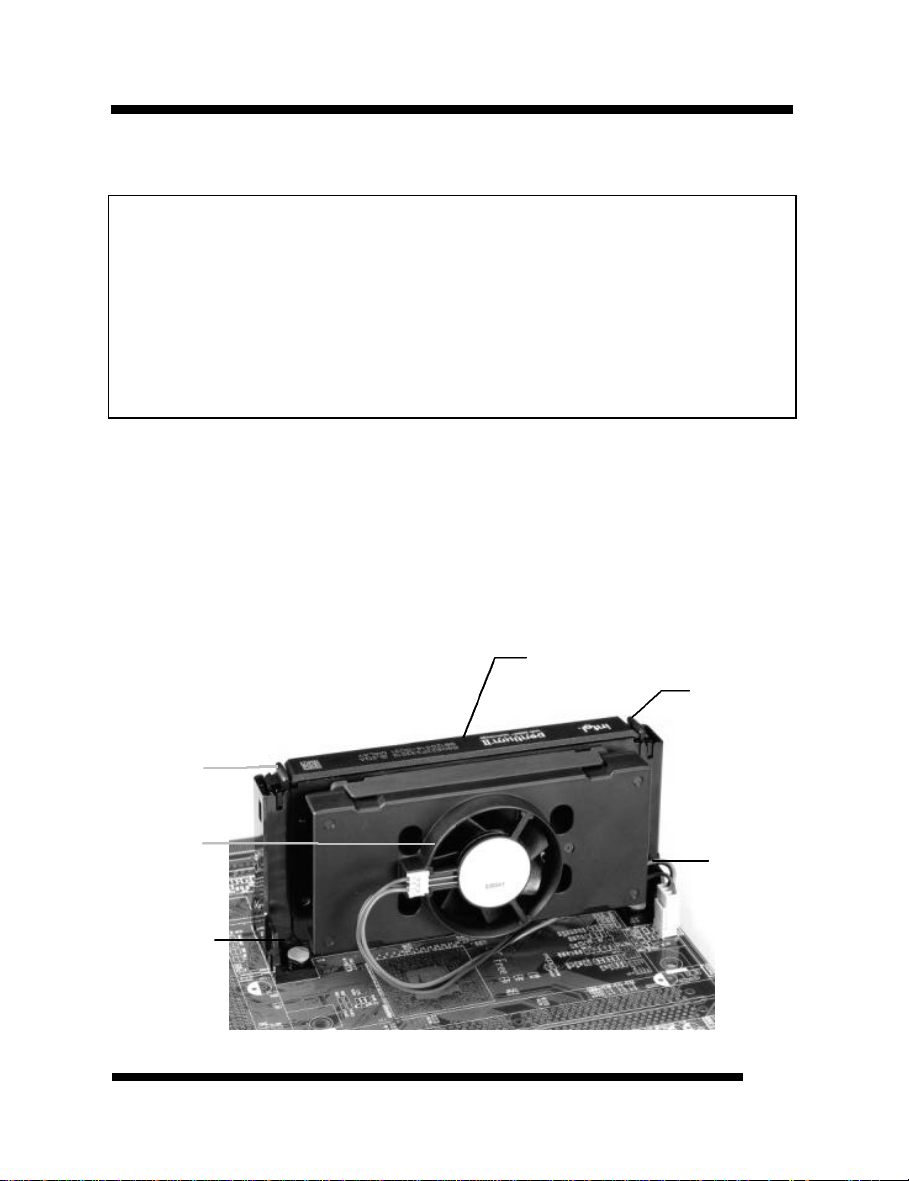

Your mainboard features “SLOT 1” architecture, a modular design that can
accommodate the latest Intel® Pentium® III, Pentium® II and Celeron®
processors.

The Central Processing Unit: CPU

Pentium® II Processor

Processor

Processor
Lock

Processor
Lock

with Fan

Retention
Mechanism

Installation Guide

Fan Power
Lead

9

INSTALLATION

Installing the CPU

üü Warning: It is required to use a CPU Cooling Fan to prevent the CPU from

overheating. Install the fan first before inserting the CPU into the socket.

1. The CPU retention mechanism is already attached onboard. Before installing
the CPU, simply unfold the retention mechanism to the upright position as
shown below.

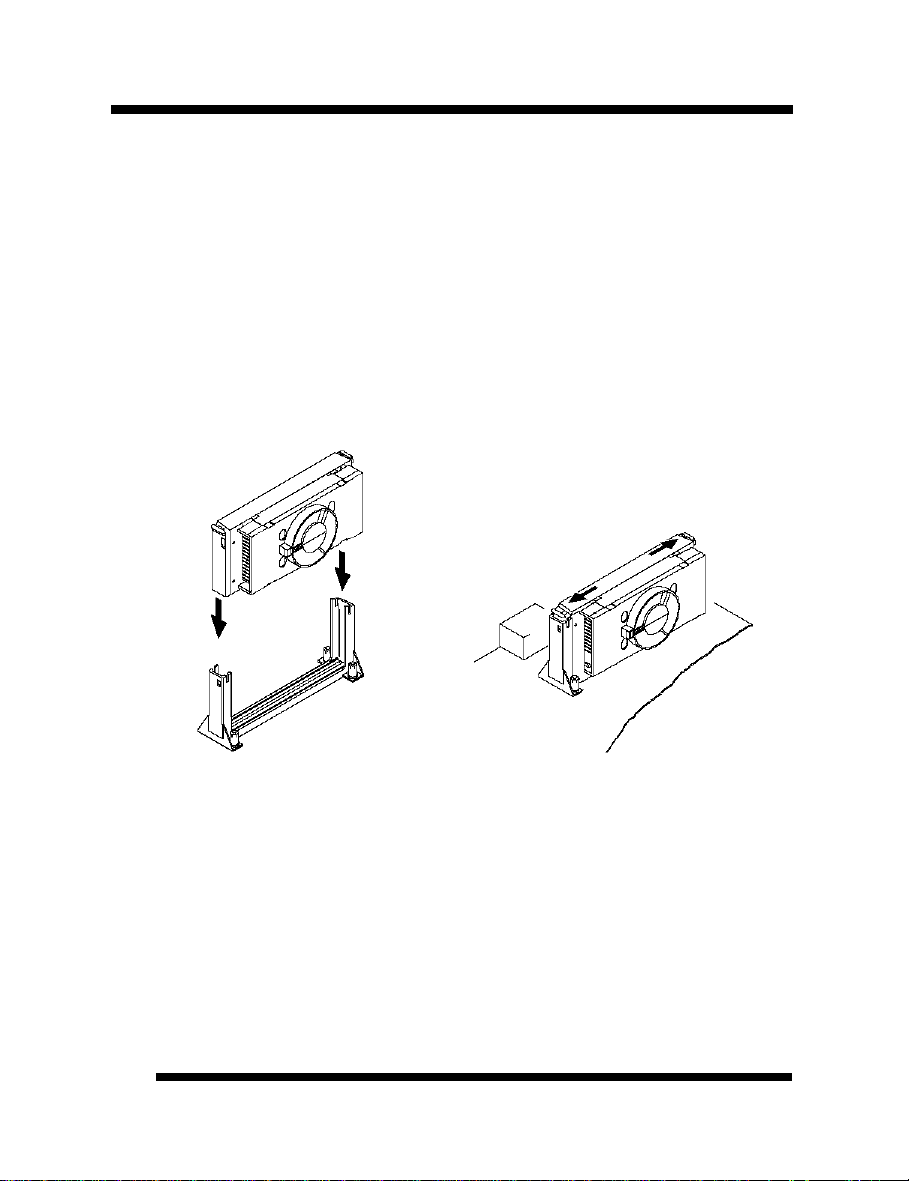

2. Slide the CPU down into the retention mechanism. Make sure the CPU is
correctly oriented.

3. Seat the CPU firmly into the slot until the two tabs on the CPU click outwards
to lock the CPU in place.

10

Installation Guide

INSTALLATION

The CPU Clock corresponds to the
number marked on the CPU. The

d with

If you are uncertain about the speed

Setting the Jumpers

Jumpers are used on this mainboard to select various settings and features. A 2-pin
jumper has two settings: Open and Short (or Closed). The jumper is closed by
placing the Jumper Cap across the two pins, thereby connecting them. 3-pin
jumpers can be set to pins 1-2 or 2-3 connected. Pin-1 is labeled on the circuit
board.

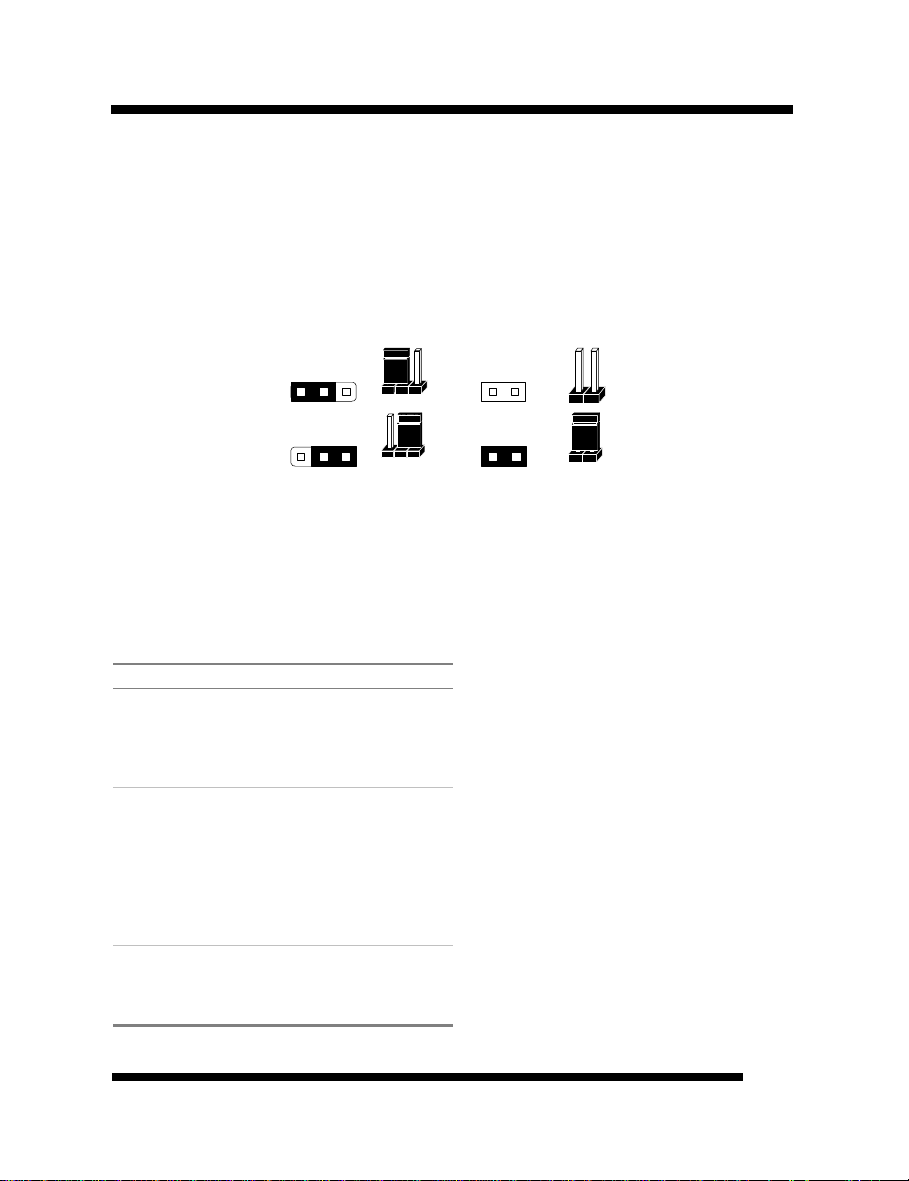

3-pin Jumper 2-pin Jumper

Pin 1-2

Pin 2-3

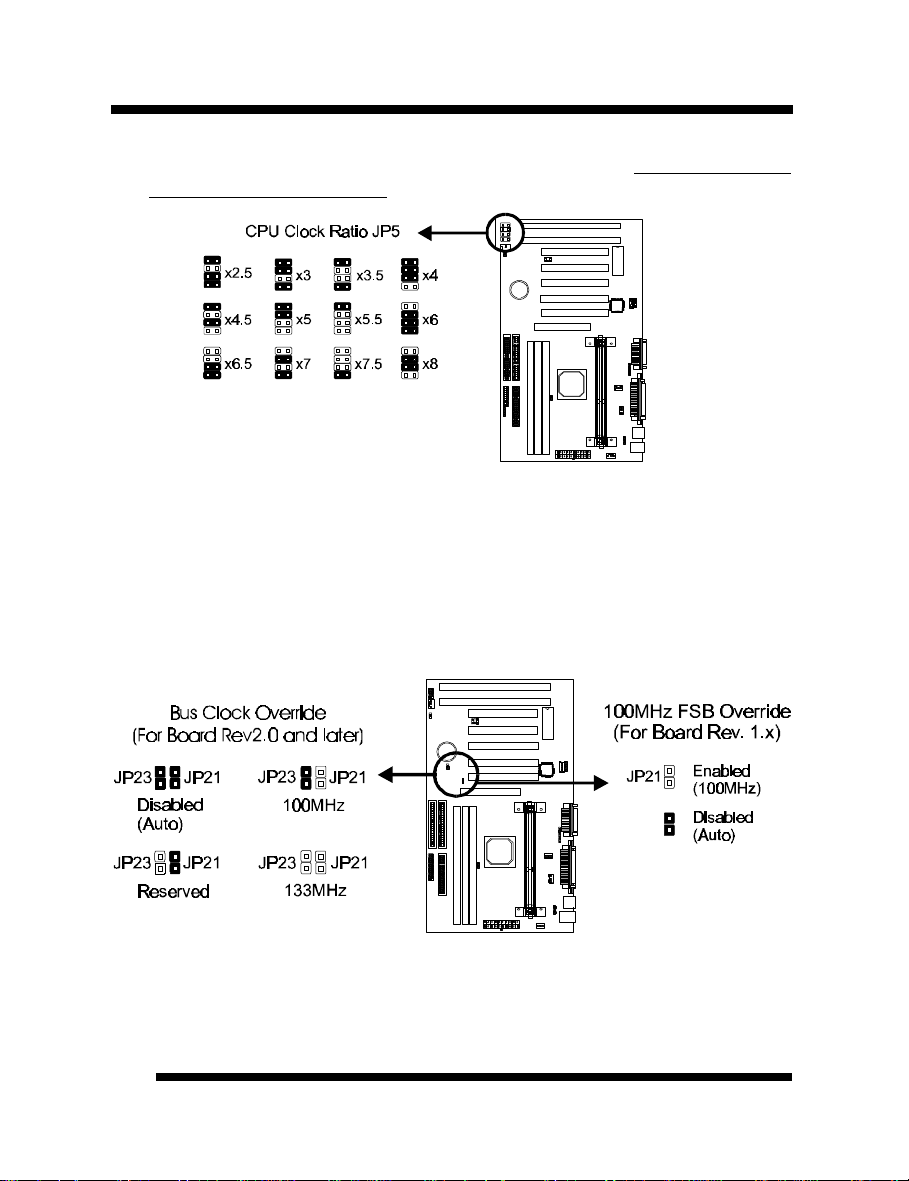

CPU Clock Selection Jumper (JP5)

After installing the CPU, you must set the clock selection jumper to match the
frequency of the CPU. Find the Jumper Blocks labeled JP5 on the mainboard. Set
the jumper according to the table below and the figure next page for the CPU
frequency you are using.

Open

Short

CPU Clock Ratio Bus Clock

233MHz x3.5 66MHz
266MHz x4.0 66MHz
300MHz x4.5 66MHz
333MHz x5.0 66MHz
366MHz x5.5 66MHz
350MHz x3.5 100MHz
400MHz x4.0 100MHz
450MHz x4.5 100MHz
500MHz x5.0 100MHz
550MHz x5.5 100MHz
600MHz x6.0 100MHz
650MHz x6.5 100MHz
700MHz x7.0 100MHz
533MHz x4.0 133MHz
600MHz x4.5 133MHz
667MHz x5.0 133MHz
733MHz x5.5 133MHz

§

§

§ New settings may be available for

§ Such information is available via

Installation Guide

Bus Clock when multiplie
the Ratio gives the CPU Clock.

requirements of your particular
CPU, you should obtain Technical
Documentation from the CPU
manufacturer.

new CPU products.

the Intel WWW site.

11

INSTALLATION

• The bus clock can be extended through the “CPU Host Clock (CPU/PCI)”

option of BIOS Chipset Features Setup for internal test. Over-clocking may
cause serious system damage.

CPU Bus Clock Override Jumper (JP21 & JP23)

* JP23 is available only for board REV2.0 or later.

These jumpers allow you to override the CPU’s bus clock to 100MHz or 133Mhz.
* Over-clocking may cause serious system damage.

12

Installation Guide

INSTALLATION

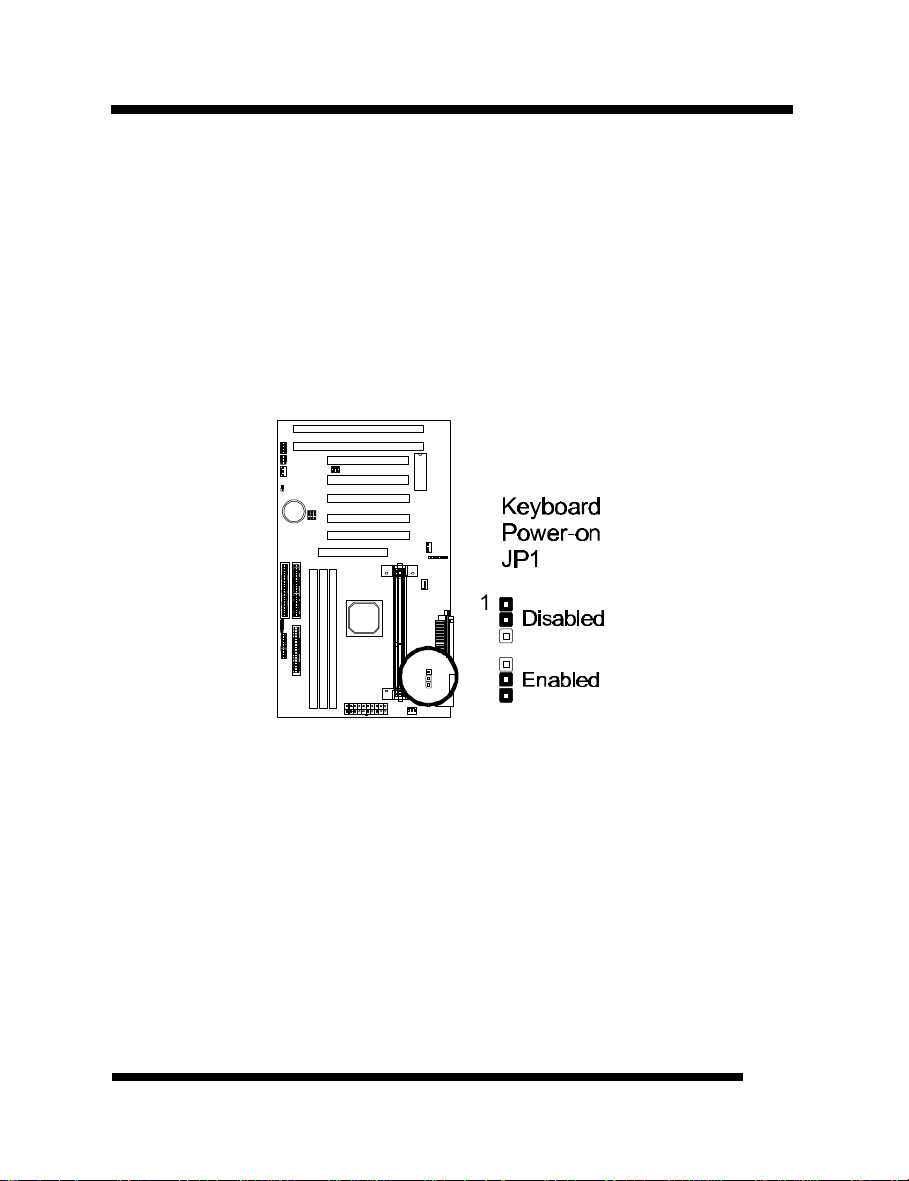

Keyboard Power-on Jumper (JP1)

This feature will power on the system from the keyboard. In addition to the jumper
setting, the “Power On Function” in the Integrated Peripherals Setup of the
BIOS must be set properly also.

Note: If you choose to use a password to power on the system, it is recommended
to keep a written record of your password. If you forget the password, the CMOS
must be cleared by removing the mainboard’s battery AND disconnecting the
mainboard’s power supply for a couple of seconds then re-installing them back.
This is the only way you can power on your system again.

Installation Guide

13

INSTALLATION

12V

Connections

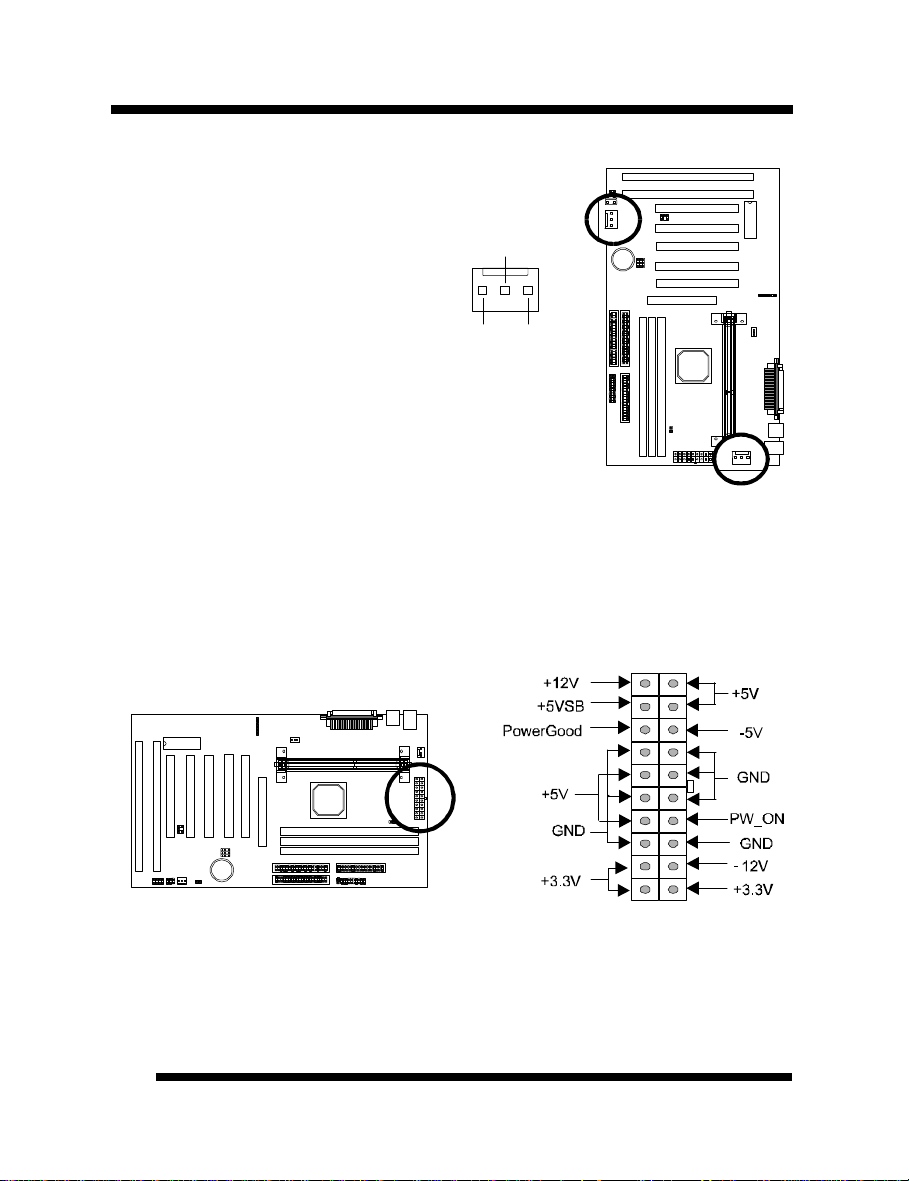

Cooling Fan (J7 and JP18)

J7 and JP18 are small 3-pin Header
Connectors that provide 12-Volt
power for CPU and chassis cooling
fans. Plug in the fan cable to the
connector. Pin-2 corresponds to the
RED power lead as shown:

Power Supply Connector

This mainboard features an ATX-style Power Supply Connector. This connector is
keyed to prevent connection in the wrong direction. Line up the locking
mechanism on the connector from the Power Supply with the tab on the mainboard
connector. Press down until the two connectors are locked.

14

Installation Guide

INSTALLATION

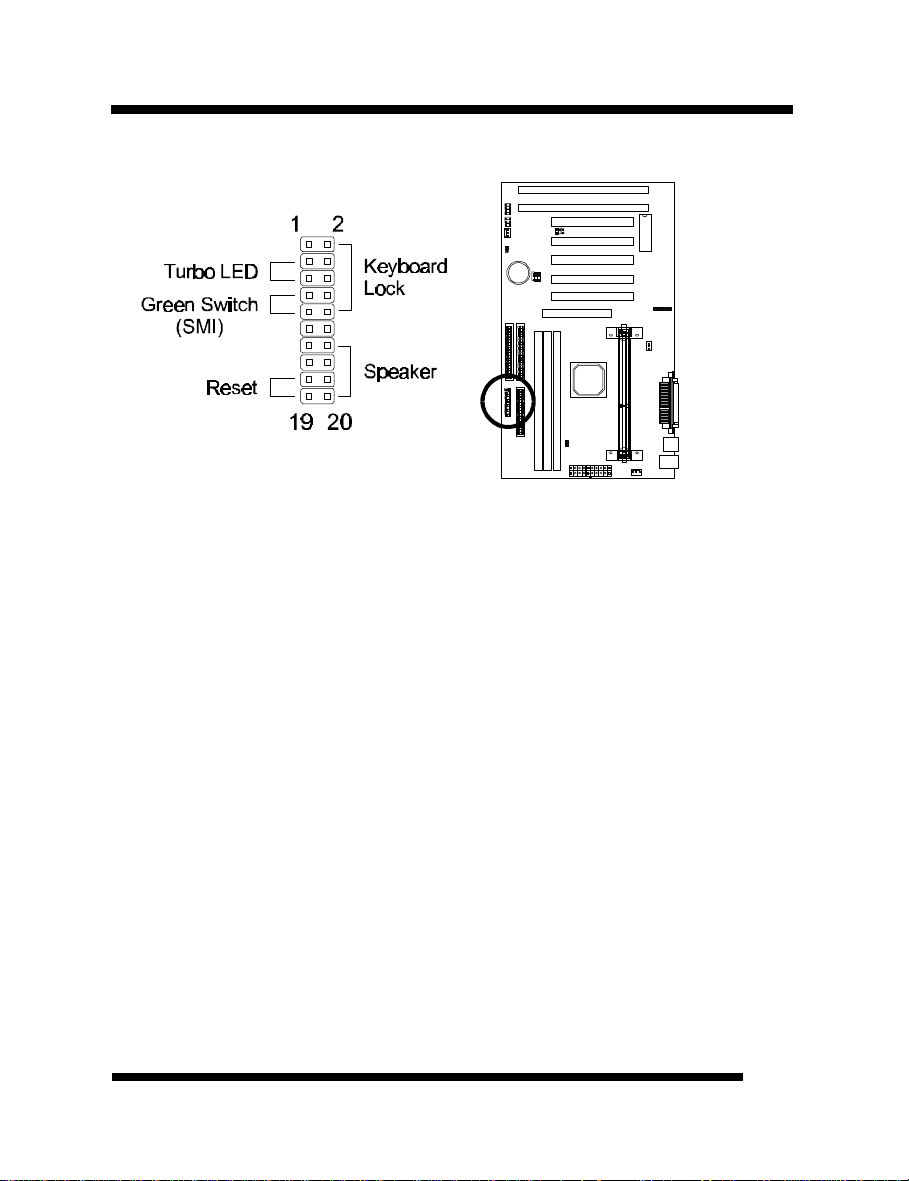

System Function Connector Block (J11)

Pins [3 & 5] Turbo LED switch - The Turbo function is not supported by this
mainboard. Therefore, the Turbo LED will always remain lit as long as the system
power is on.

Pins [7 & 9] SMI suspend switch lead - If your system’s case has a suspend
switch, hook the lead from the switch to pins 7 & 9. A suspend switch is used to
save electricity by putting the system into a suspend mode when the computer is
not being used. This switch could also be used by the Turbo switch on the front of
the system, since this mainboard does not support that function. For this switch to
be functional, it must first be enabled in the Power Management Setup in the BIOS
Setup utility.

Pins [17 & 19] Reset switch lead - Connects to the Reset Switch lead from the
system’s case. The reset switch is used to “cold-boot” the system without actually
turning off the power, reducing wear and tear on the power supply.

Pins [2, 6, 8 & 10] Keyboard lock switch lead – Pins 2 & 6 connect to the power
LED from the system’s case. Pins 8 & 10 connect to the case-mounted keylock
switch.

Pins [14 & 20] Speaker connector - Connects to the Speaker lead from the
system’s case.

Installation Guide

15

INSTALLATION

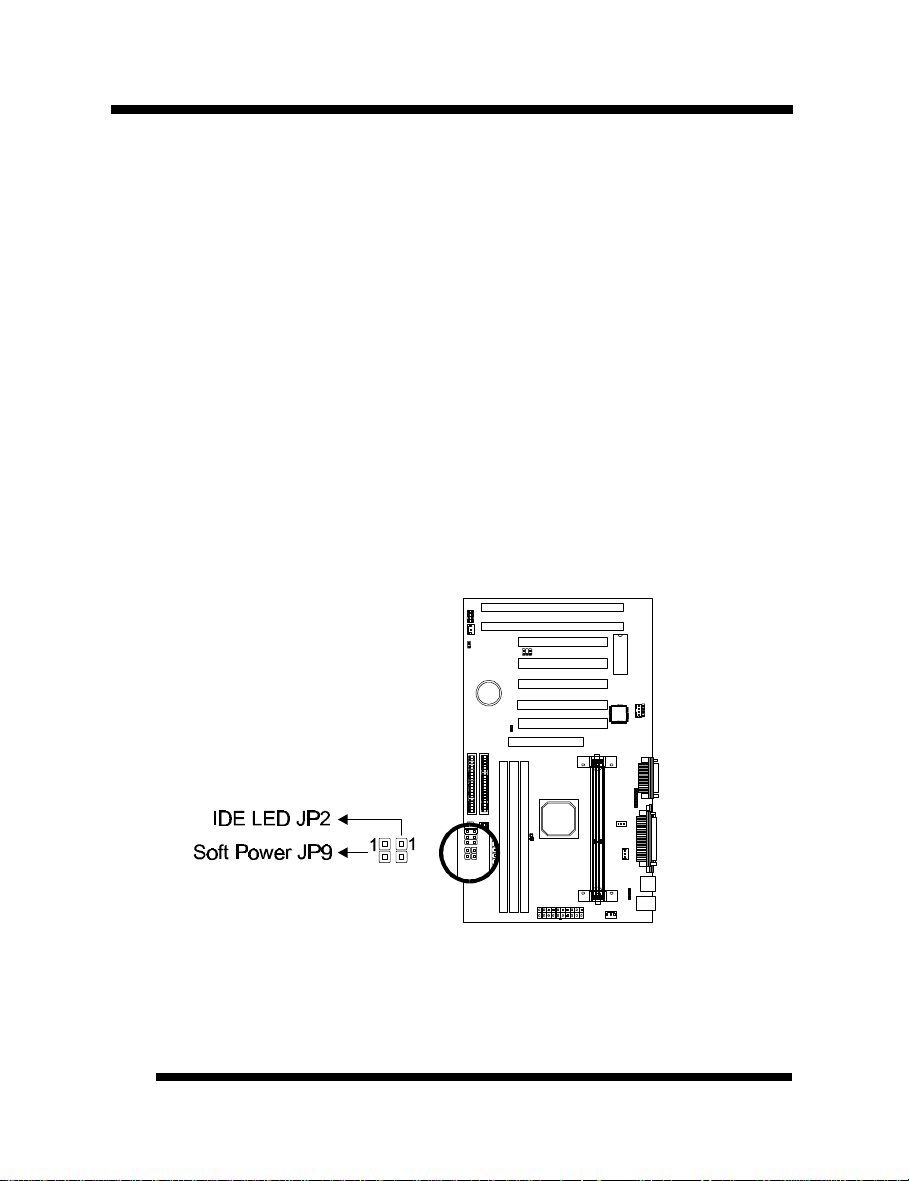

IDE Activity LED (JP2)

Hook the IDE LED lead to this connector, with the RED lead corresponding to
Pin-1.

Soft Power Switch (JP9)

Connects to the Power Switch featured on ATX case designs. This switch must be
hooked up before the system can be powered on, unlike traditional “Baby-AT”
designs where the power switch is located on the Power Supply itself.

Note: Under the following two conditions, you have to press and hold the switch
for longer than 4 seconds to power off your system, regardless of the “Soft-Off by
PWRBTN” setting in the BIOS.

• Shortly after the system is powered on, when the BIOS message is not yet
appear.

• When CPU hangs.

16

Installation Guide

INSTALLATION

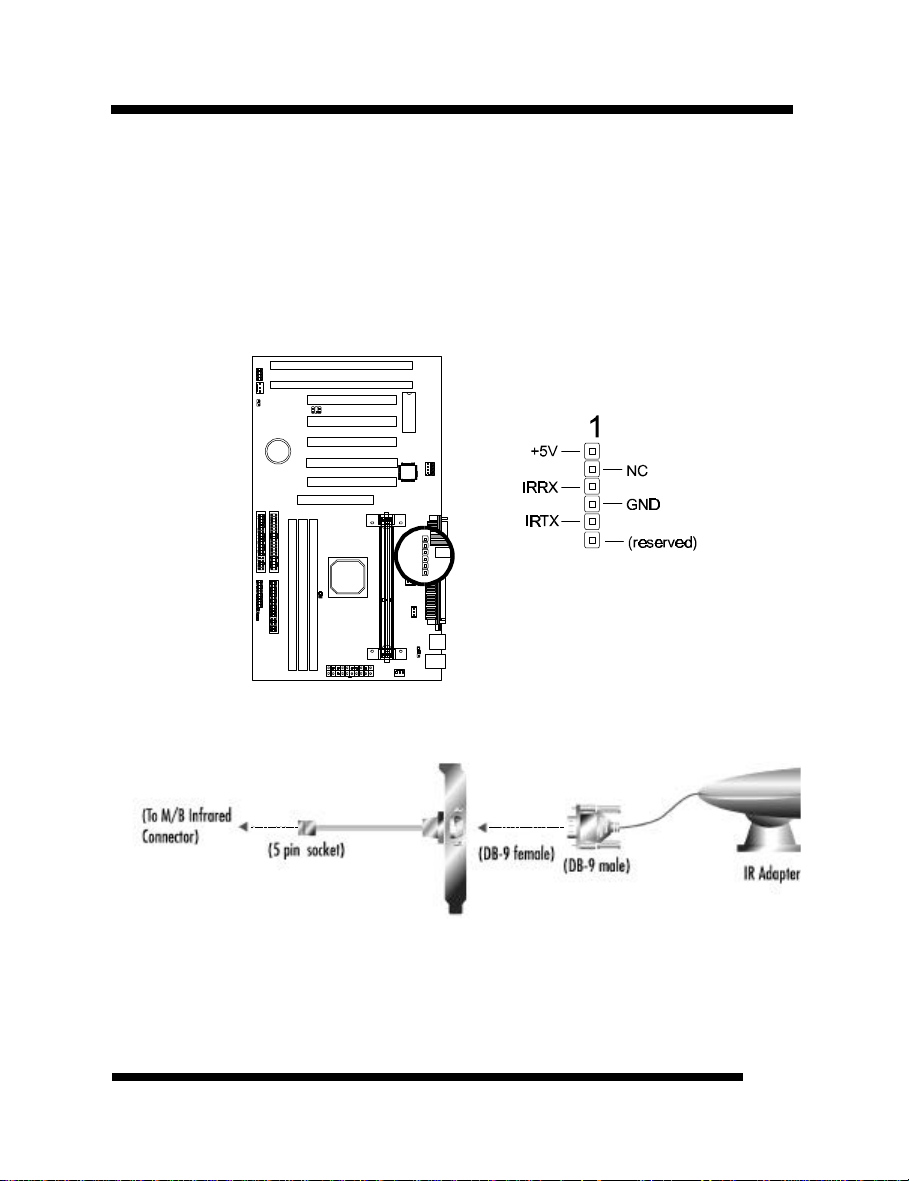

IrDA-Compliant Infrared Module Connector (JP4)

The IrDA connector bracket hooks directly to this connector on the mainboard.
This connector provides support for the optional wireless transmitting and
receiving infrared module. You must first configure through the BIOS setup where
UART2 is directed, COM2 or IrDA.

* Pin 6 is reserved for consumer IR.

Installation Guide

17

INSTALLATION

Wake-up On LAN Connector (J12)

The Wake-up On LAN function will
allow the network to wake up a Soft
Power Down (Soft-Off) PC. However, if
your system is in the Suspend mode, you
can wake-up the system only through an
IRQ or DMA interrupt. To use the
Wake-up On LAN function, you must
enable the “Power On By Ring/LAN”
field in the Power Management Setup of
the Award BIOS. Connect the cable that
comes with your LAN card to this
connector on the system board. Refer to
the add-in card’s manual for details.
Note: Your LAN card must support
Magic Packet in order to use the Wake­up On LAN function.

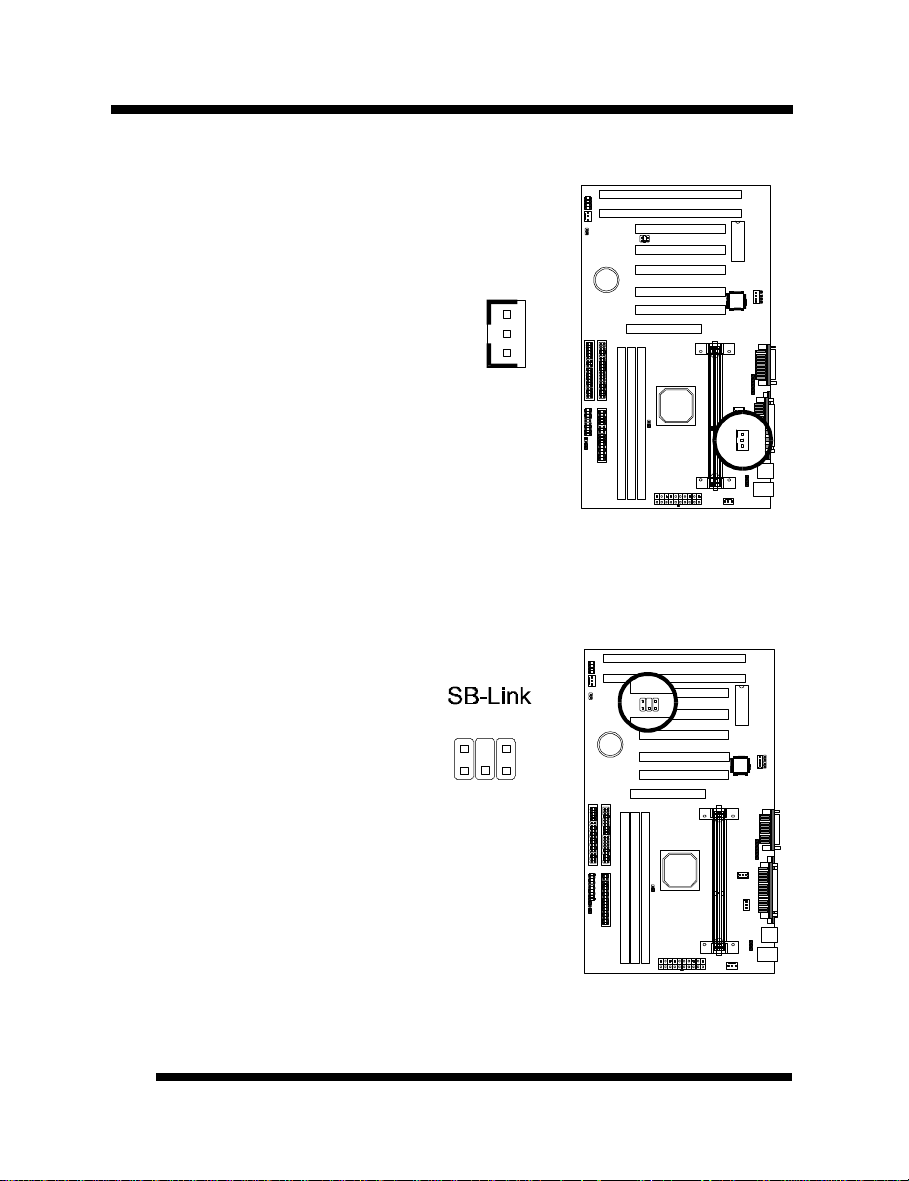

SB-Link (JP11)

Connect SB-Link cable on the
Creative Sound Blaster Card to this
connector. This PC to PCI bridge
provides backward compatibility
between PCI and ISA audio chips
for earlier DOS games.

5
6

1
2

18

Installation Guide

INSTALLATION

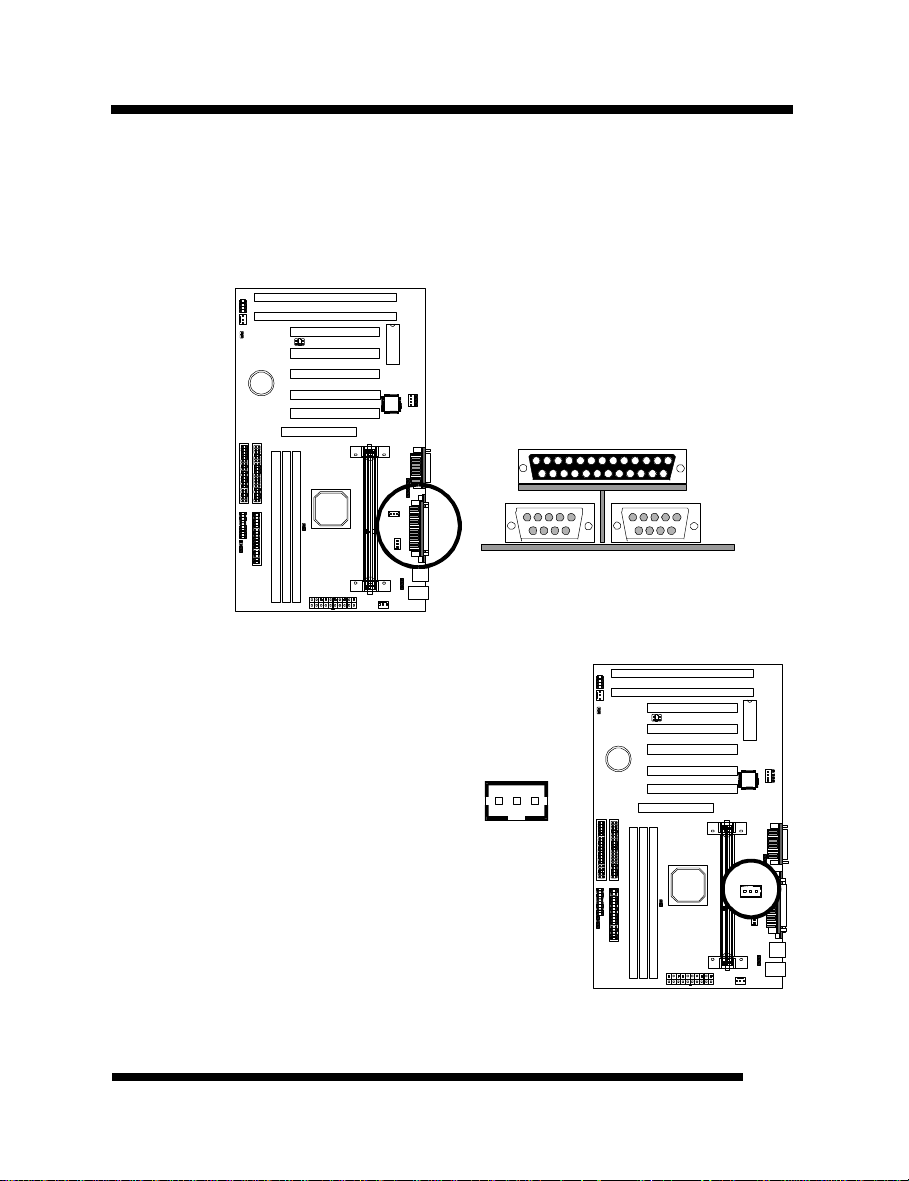

Serial and Parallel Ports

A 25-pin D-Sub header is provided on the back panel for a multi-mode bi­directional parallel port.

Two 9-pin D-Sub headers are also provided on the back panel for Serial ports.

ParallelPort

Wake-on-Ring Function

The Wake-on-Ring function allows the
modem to remotely power on the system.
Install an external modem (normally to
COM2) and enable Power On by
Ring/LAN function from BIOS “Power
Management Setup”.

For the function to work for an internal
modem card, you must also connect the
Wake-on-Ring cable on the modem card
to the Wake-on-Ring function connector
(JP10) on the mainboard.

Installation Guide

COM1

C OM2

19

INSTALLATION

USB Connectors

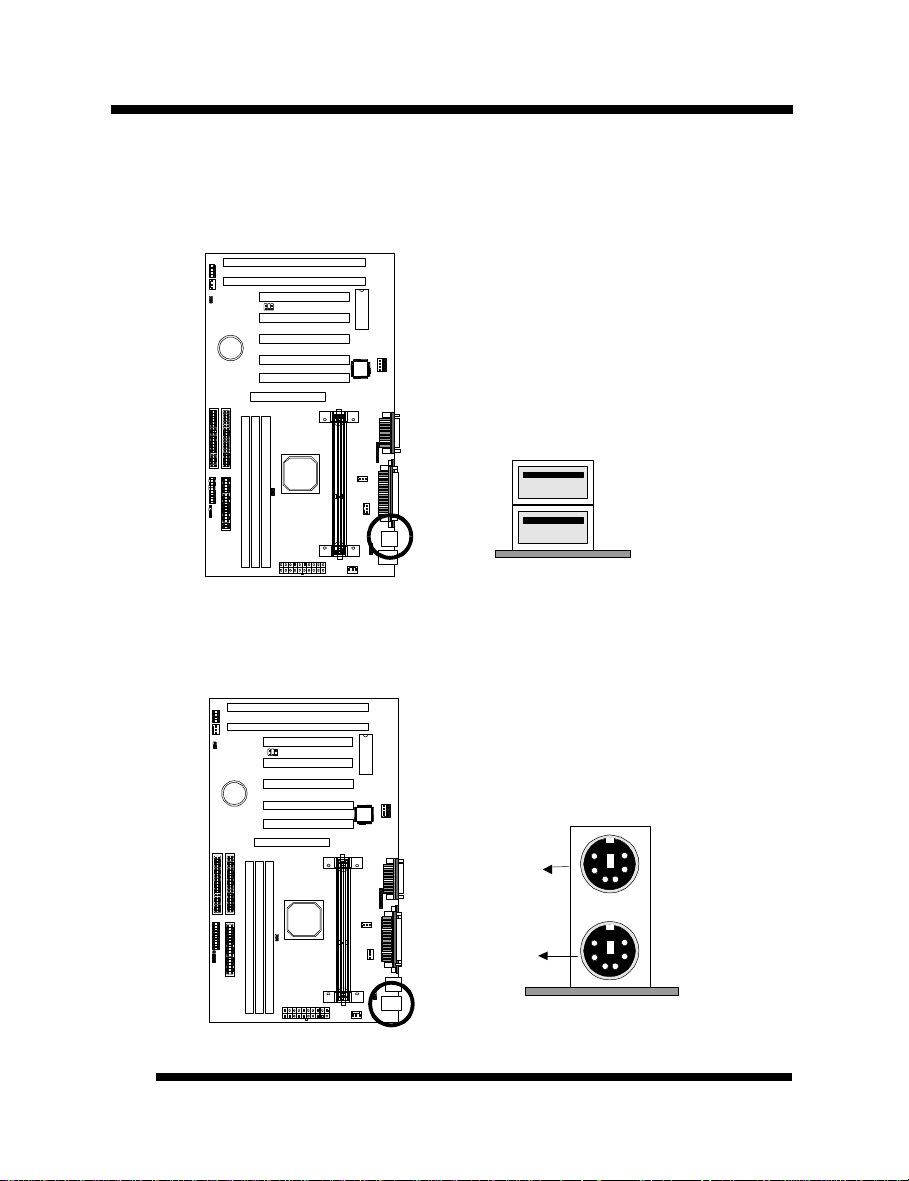

These two connectors permit connection of two USB peripheral devices directly to
the system without an external hub.

USB

PS/2 Keyboard and Mouse Connectors

These two connectors are located on the back panel of the mainboard.

20

PS/2
Mouse

PS/2
Keyboar d

Installation Guide

INSTALLATION

Floppy Drives

The on-board floppy controller supports (2) floppy disk drives with the floppy
ribbon cable provided. Make sure the RED stripe on the ribbon cable is oriented
towards Pin-1. Notice the “twist” between the sets of connectors on the floppy
cable. The floppy drive “A” position is at the END of the cable, whereas floppy
drive “B” is hooked to one of the connectors on the other side of the twist. The
cable provides both “Edge” and “Pin” connectors for both the A and B positions to
match the connector on your floppy drives.

1

Installation Guide

21

INSTALLATION

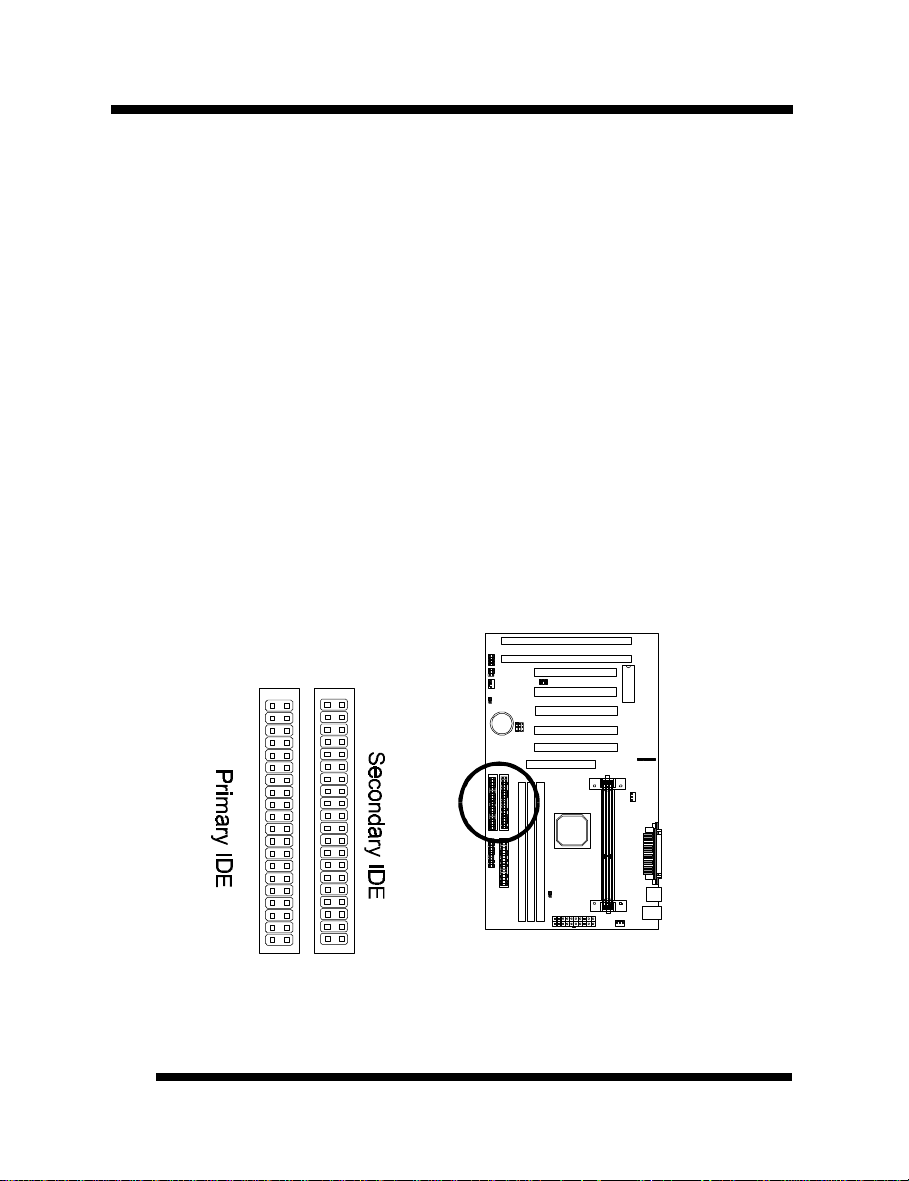

IDE Hard Drives and CD-ROMs

The on-board Enhanced IDE controller can support up to (4) IDE hard drives or
other ATAPI devices, such as CD-ROMs. This controller, as with all Enhanced
IDE controllers, consists of both Primary and Secondary ports. Each port has an
associated connector and cable which can support up to (2) ATAPI devices each.

All IDE devices have jumpers which allow the user to configure the device as
either “Master” or “Slave”. A Master device is one that is ALONE on the IDE
cable, whereas a Slave device is installed as a SECOND device on the same cable.
Keep in mind that the Master device will appear before the Slave device in the
CMOS Setup, as well as the Operating System software. *Refer to the device
documentation for jumper settings.

The Secondary IDE port can be used for up to (2) additional ATAPI devices.
Normally it’s recommended that you connect your first hard drive to the Primary
port, and the first CD-ROM to the Secondary.

Make sure to align the RED stripe on the ribbon cable with Pin-1 on the mainboard
IDE connector. On most hard drives and CD-ROMs, the RED stripe should be
oriented towards the power connector of the device.

22

1 1

Installation Guide

INSTALLATION

MIDI/Game Port

You may plug a joystick or game pad to this 15-pin female connector for game
playing, or connect a MIDI device for playing or editing audio.

Audio Port

You can connect powered speakers or headphones to Line Out jack. Cassette
players or other external audio sources can be connected to Line In jack. Plug in
your microphones to MIC jack.

Note:

The onboard ESS Solo-1 Sound (Audio) Chip occupies INT C and IRQ5. To avoid
possible conflict, any device that uses IRQ 5 or INT C must provide sharable
device driver, otherwise you should re-assign the device to another IRQ#.

Also make sure that the “Onboard Sound Chip” option from BIOS PNP/PCI
Configuration Setup is enabled (default).

Installation Guide

23

INSTALLATION

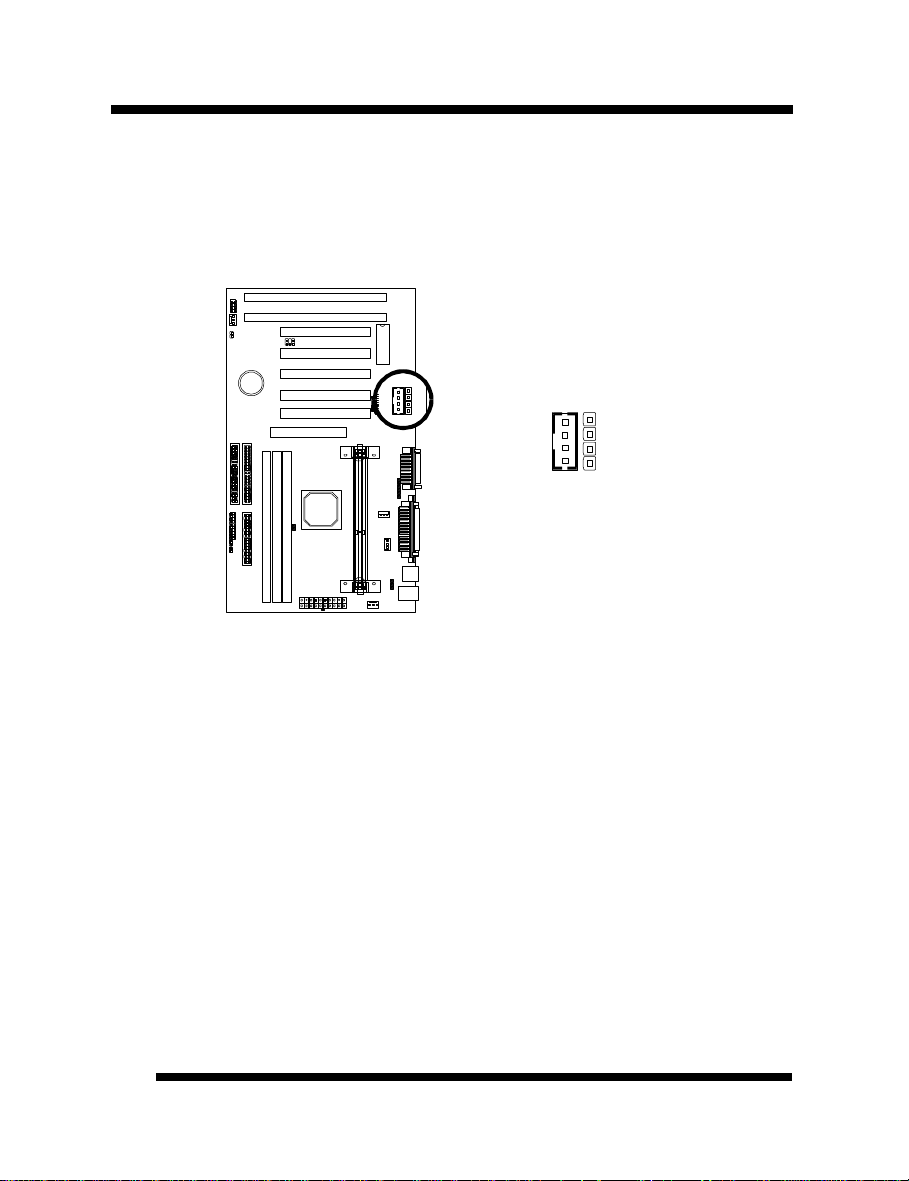

J14

J13

CD-IN

1

Audio Connectors (J13 & J14)

Two types of CD Audio connectors are available for connecting the CD-ROM drive
using CD audio cables.

24

Installation Guide

INSTALLATION

Installing the Memory Modules (DIMM)

• This mainboard has three sockets available for 168-pin DIMMs. They must be

3.3 volt Unbuffered Synchronous DRAMs (SDRAM).

• To ensure reliability, it is recommended to use PC100 SDRAM for

your 100MHz clocked SDRAM performance requirement.

• DIMM Sizes supported: 8MB, 16MB, 32MB, 64MB, 128MB and 256MB

• A total of (3) DIMMs can be installed for a maximum RAM capacity of

768MB.

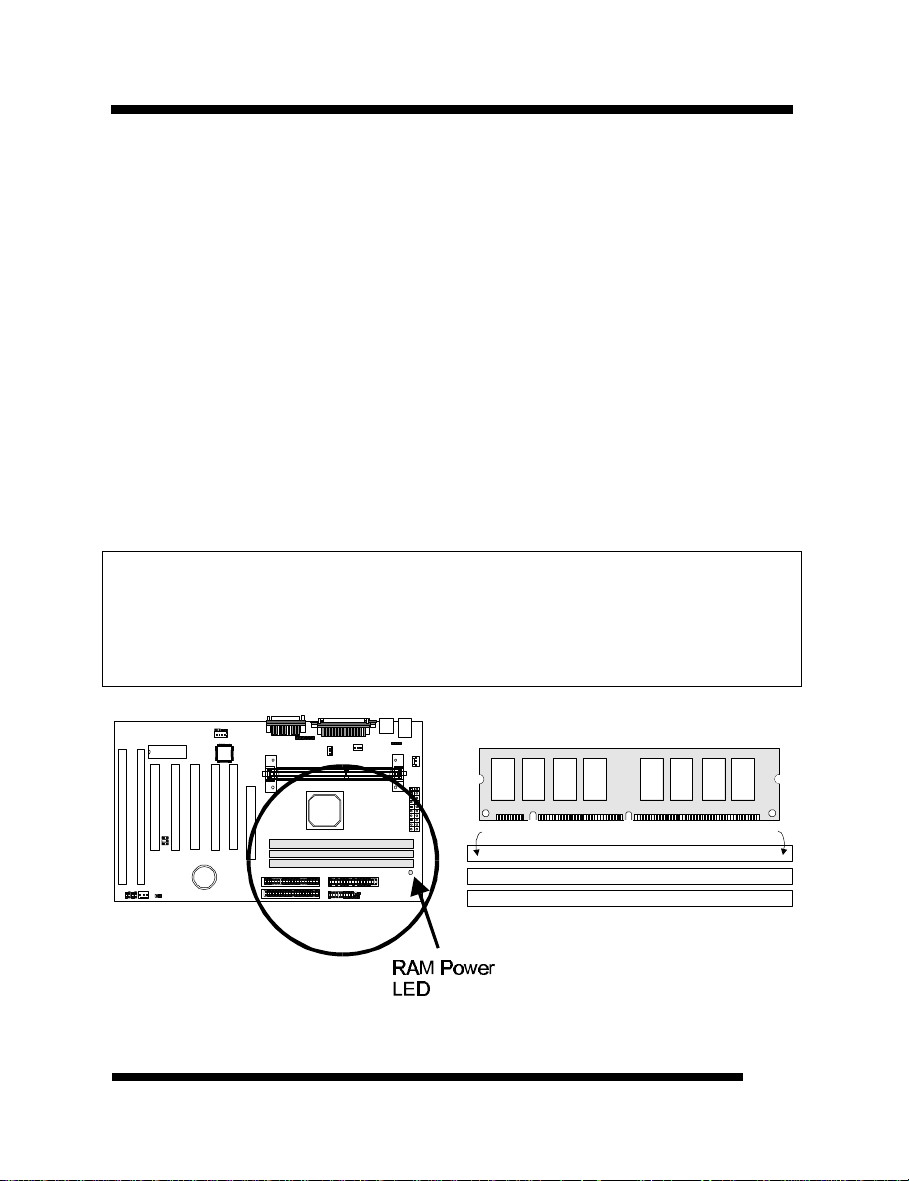

To insert the DIMMs, the modules must be oriented in the correct way. Notice the
notches of the DIMM. Align these notches as shown in the diagram below. Gently
push the DIMM until the retainers on both sides of the socket lock the module in
place.

To remove a DIMM, push the retainers outwards to release the module then pull
the module out of the socket.

Caution:
Before removing a DIMM, make sure the RAM Power LED Indicator is off. The

blinking of the LED indicates that power is provided for the DRAM, as in normal
operation as well as in Suspend to RAM mode. Removing a DIMM in the Suspend
to RAM mode will result in loss of system context.

1

1
1
1

Installation Guide

notchnotch

DIMM1
DIMM2
DIMM3

25

INSTALLATION

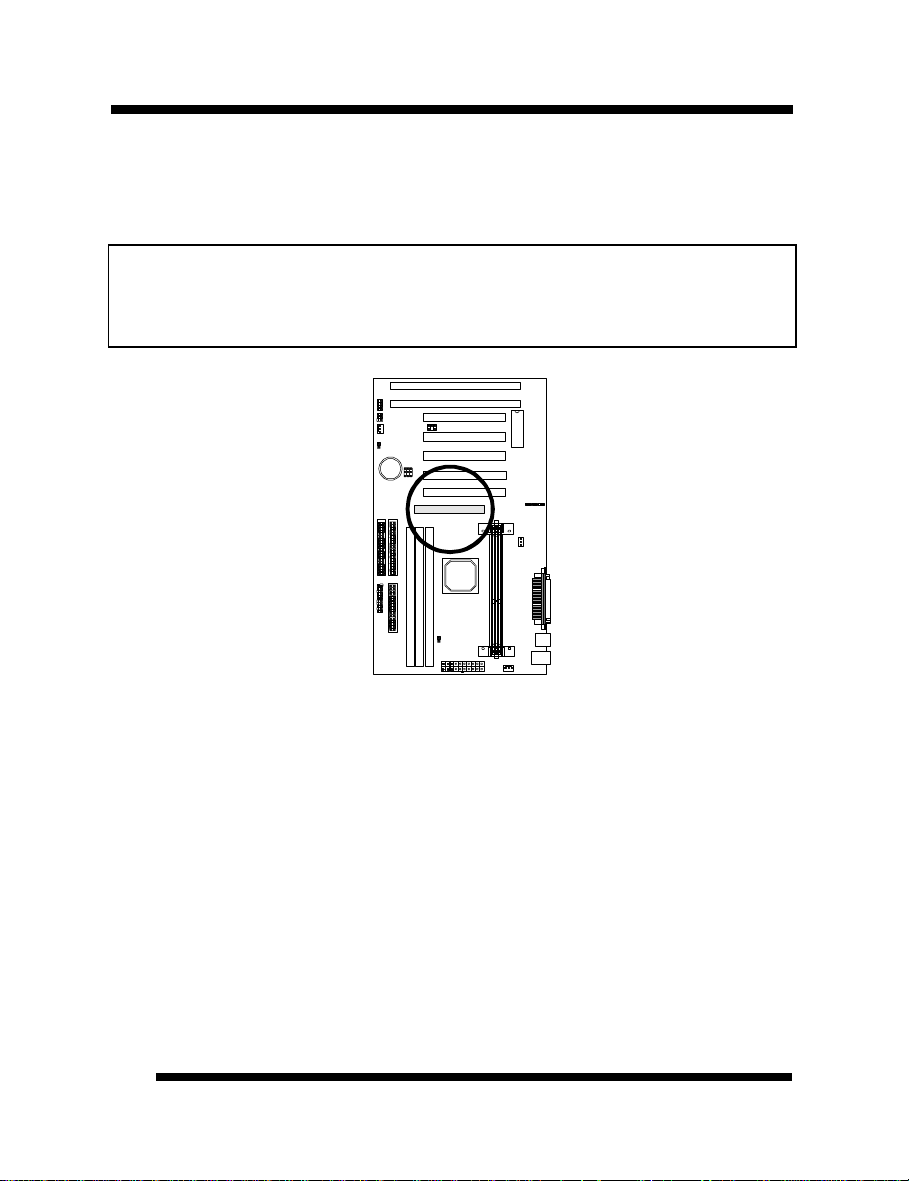

Installing an AGP Card

This mainboard provides an AGP slot to support a new generation of graphics
cards with high performance graphics capability.

Note: Make sure that the AGP card is firmly seated in the AGP slot. For the card
that complies with the AGP 1.x specifications, a slightly more force may be
required to fully insert the card into the slot. For cards that comply with AGP 2.0
and later specifications, the installation should be relatively easy.

26

Installation Guide

INSTALLATION

Installing the Support Drivers and Utilities

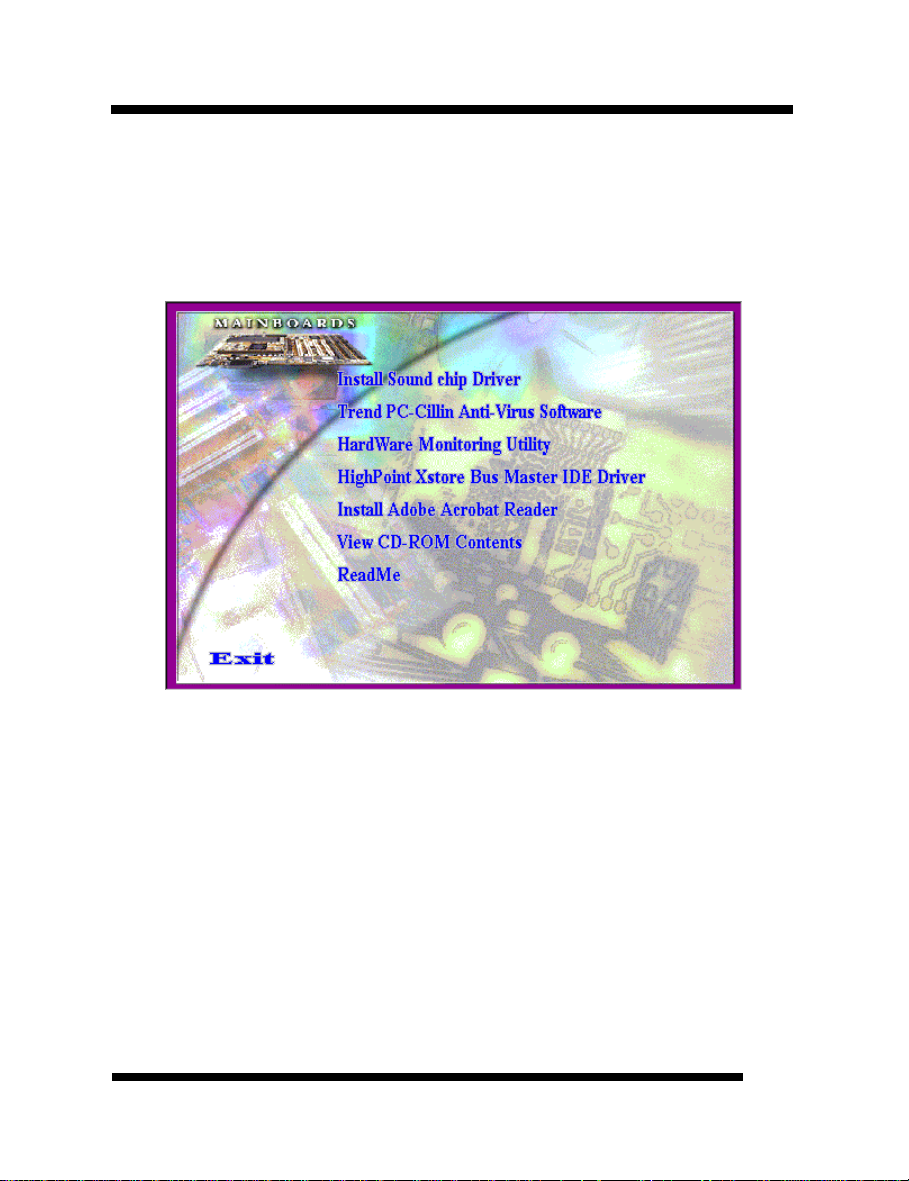

Included in your mainboard package you can find a CD-ROM containing support
drivers and utilities. Just insert the CD-ROM, and from the Autorun screen, click
the driver/utility that you want to install. Follow the on-screen instructions to
complete the installation.

More utilities can be found under the “Utilities” folder of the CD-ROM.

Installation Guide

27

SOFTWARE SUPPORT

For detailed information, please refer to the BIOS, Driver & Utility Guide
included in your mainboard package.

Mainboard BIOS

Shortly after the system is powered on, provided that the system is properly setup,
you will see the message:

Press DEL to enter SETUP

• Press the DEL key to enter the Award BIOS Setup program.

The Main Menu will appear on the screen. Use the arrow keys to select among the
items and press <Enter> to accept and enter the sub-menu.

ROM PCI/ISA BIOS (xxxxxxxx)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP SUPERVISOR PASSWORD

CHIPSET FEATURES SETUP USER PASSWORD

POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION

PNP / PCI CONFIGURATION SAVE & EXIT SETUP

LOAD BIOS DEFAULTS EXIT WITHOUT SAVING

LOAD SETUP DEFAULTS

Esc : Quit
F10 : Save & Exit Setup (Shift) F2 : Change Color

↑ ↓ → ← : Select Item

Select LOAD SETUP DEFAULTS for optimum system performance.

28

Installation Guide

SOFTWARE SUPPORT

Flash BIOS Programming Utility

Since this mainboard features FLASH BIOS, the user can simply re-program the
old BIOS using the AWDFLASH Utility (found under “Utilities” folder of the
supplied CD-ROM) as follows:

1. First, boot the system with DOS or to “Safe Mode” under Windows 95. This is

the only correct way to run the AWDFLASH Utility program.

2. Make sure the files “AWDFLASH.EXE” and the updated “BIN” file (which

contains the actual BIOS code) are in the same directory.

3. Changing to the directory where the two required files exist, type: AWDFLASH

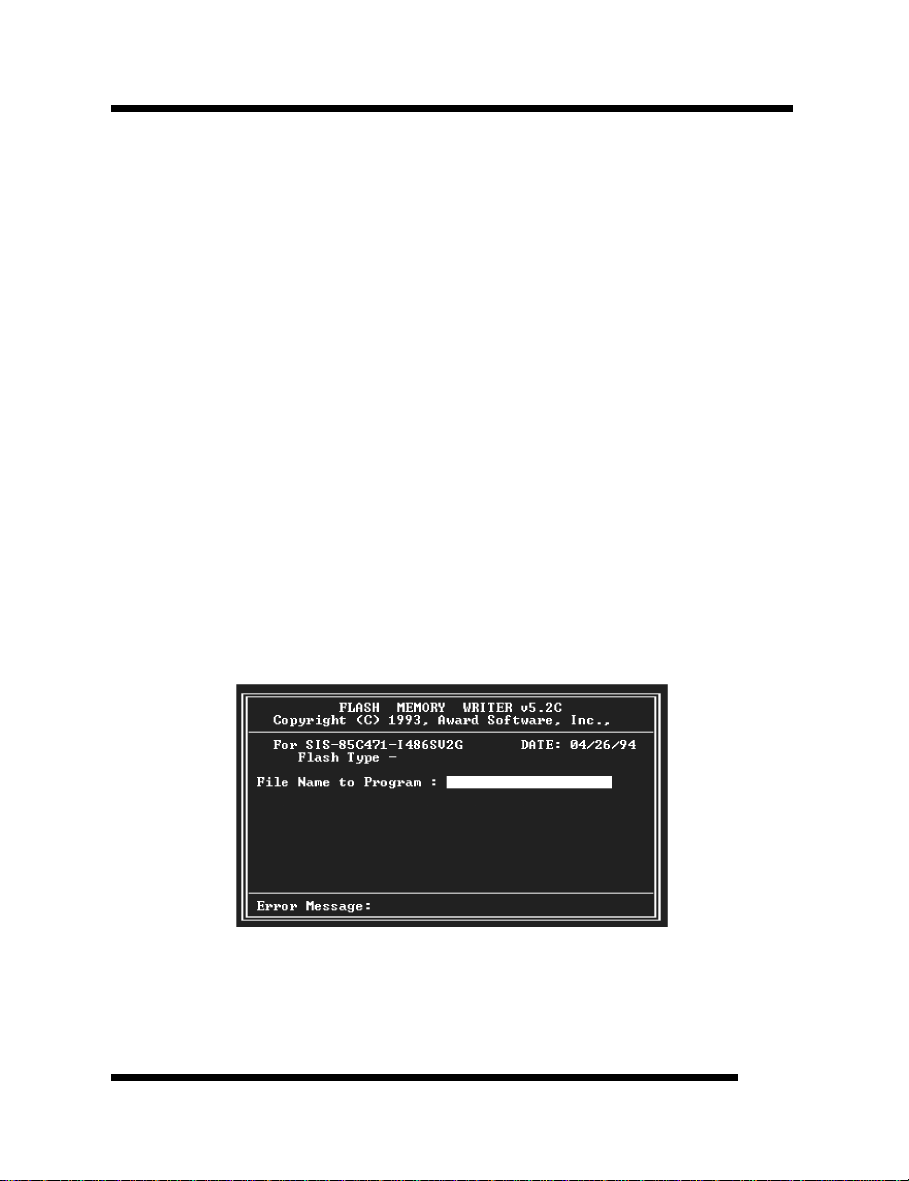

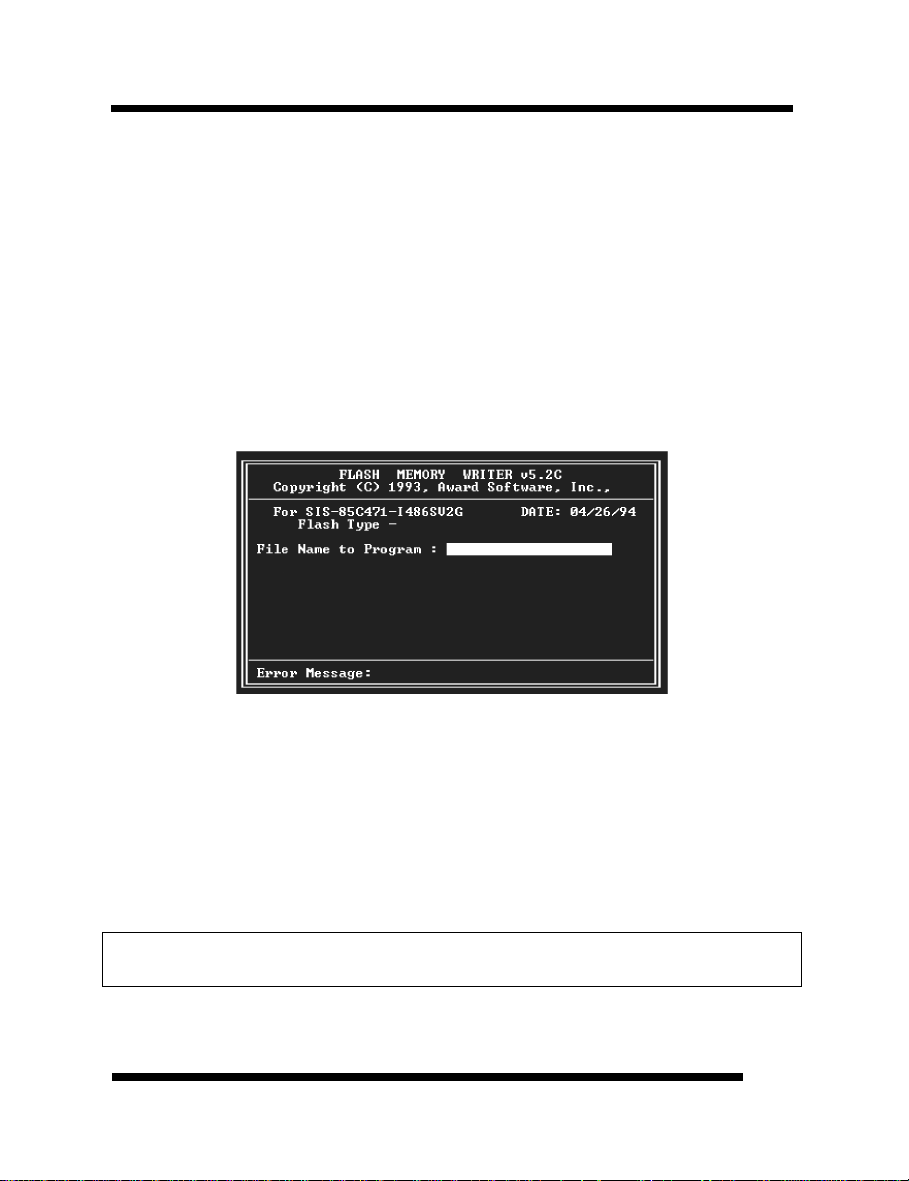

and press [ENTER]. The AWDFLASH Utility Screen appears:

4. Type in the name of the new BIOS (.bin) file and hit [ENTER].

5. Backup the old BIOS by entering the name of the new backup file (such as

“backup.bin”) and press [ENTER].

6. To begin programming, hit “y”. The Utility can be aborted at this time by

hitting “n”.

7. A bar indicator will show the progress of the programming operation. After

successful completion, hit the reset button or power off the computer.

Be sure to perform “LOAD SETUP DEFAULTS” for your new BIOS to
synchronize the previous BIOS with the updated BIOS.

Installation Guide

29

SOFTWARE SUPPORT

Symbios SCSI Configuration Utility

This mainboard features built-in Symbios SCSI BIOS. The Symbios SCSI
Configuration Utility is a menu driven utility that allows you to view and change

the default configuration settings for host adapters using Symbios 53C8XX chips.
In most cases you should not need to change the default configuration of your host

adapter. You may decide to alter these default values if there is a conflict between
device settings, or if you need to optimize system performance. A message appears
on your computer monitor (for about 5 seconds) during boot that looks like this:

Press Crtl-C to start Symbios Configuration Utility

If you decide to press Ctrl-C during boot, the following message appears:

Please wait, invoking Symbios Configuration Utility …

After a brief pause, your computer will display the Main Menu of the utility.

Note: Pressing Ctrl-A after memory count during re-boot allows you to recover the
default settings and reconfigure.

DMI Utility

This mainboard supports the Desktop Management Interface (DMI), which is a
new method of providing enterprise management for personal computers. The
main component of DMI is the Management Information Format Database (MIF),
which contains information about the computer system and its components, such as
BIOS version/vendor, CPU speed/type, memory size/type, L1/L2 cache, port
connectors (IDE, floppy, 2S/1P, USB, keyboard, mouse, ), slots … etc. Using DMI,
remote PC management software is able to obtain various information about the
system, including hardware profiles, capabilities, operational status, installation
dates, and other information about the system and its components.

This DMI utility, DMICFG.EXE (found under “Utilities” folder of the supplied
CD-ROM), allows you to add additional information, such as serial numbers,
vendor information, and enclosure/chassis configurations, into the MIF.

30

Installation Guide

FCC & DoC Compliance Statement

This device complies with Part 15 of the FCC rules, operation is subject to the following
two conditions.

1. This device may not cause harmful interference and,

2. This device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in residential installations. This
equipment generates, uses, and can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful interface to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause interference to radio or television
equipment reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

l Reorient or relocate the receiving antenna.
l Move the equipment away from the receiver.
l Plug the equipment into an outlet on a circuit different from that to which the receiver is

connected.

l Consult the dealer or an experienced radio/television technician for additional

suggestions.

The FCC requires the user to be notified that any change or modifications to the equipment
by the user not expressly approved by the grantee or manufacturer could void the user’s
authority to operate such equipment. The use of shielded cables for connection of the
monitor to the graphics card is required to assure compliance with FCC regulations.

MAINBOARD

BIOS, Driver & Utility Guide

Rev: 1.00S
Date: April - 99

∗ All other product names are trademarks or copyrights of their respective

owners.

∗ Specifications and information contained in this manual are subject to change

without notice.

Table of Contents

MAINBOARD BIOS SETUP....................................................................... 3

About the BIOS ..............................................................................................3

Main Menu.....................................................................................................5

Standard CMOS Setup ....................................................................................6

BIOS Features Setup.....................................................................................11

Chipset Features Setup..................................................................................15

Power Management Setup.............................................................................18

PNP/PCI Configuration Setup.......................................................................21

Load BIOS Defaults......................................................................................23

Load Setup Defaults ......................................................................................23

Integrated Peripherals Setup .........................................................................24

Supervisor Password and User Password Setting........................................... 28

IDE HDD Auto Detection .............................................................................30

Save & Exit Setup / Exit Without Saving...................................................... 30

PCI Device Listing........................................................................................ 31

BUILT-IN SYMBIOS SCSI BIOS..............................................................32

FLASH BIOS PROGRAMMING UTILITY.................................................39

DMI UTILITY............................................................................................ 41

2

BIOS, Driver & Utility Guide

MAINBOARD BIOS SETUP

About the BIOS

The Mainboard BIOS (Basic Input/Output System) acts as the bridge between your
Hardware (CPU, Disk Drives, Video, etc.) and Operating System Software
(Windows 95, OS/2 and so on…) The BIOS Setup (also called CMOS Setup) is
where many hardware configuration options are set and stored. This configuration
information will remain in the BIOS until it is changed, or cleared by removing the
battery for a while then reinstalling it back.

CMOS (Complementary Metal Oxide Semiconductor) refers to the chip in which
the BIOS information is stored.

This mainboard features Award BIOS, which provides an easy to use Setup
program to aid in hardware configuration. In this section we will look at the
various menus and options contained in the Award BIOS Setup Program. This
mainboard also features a “Flash” BIOS. A Flash BIOS can be upgraded via
software, thereby eliminating the need to actually replace the “BIOS Chip” on the
mainboard. Procedures for updating the BIOS follow this section.

The Award BIOS installed in your computer system’s ROM (Read Only Memory)
is a custom version of an industry standard BIOS. This means that it supports Intel
processor in a standard IBM-AT compatible input/output system.

Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use
the PageUp and PageDown keys to change entries, press <F1> for help and press
<Esc> to quit.

Getting Help

Pressing F1 will display a small help window that describes the appropriate keys to
use and the possible selections for the highlighted item. To exit the Help Window
press <Esc>.

BIOS, Driver & Utility Guide

3

MAINBOARD BIOS SETUP

A Final Note about Setup

Not all systems have the same Setup. While the basic look and function of the
Setup program remains the same for all systems, individual motherboard and
chipset combinations require custom configurations. For example, you may find
that your Setup main menu has a different number of entries from the main menu
displayed in this manual. These are simply features not supported (or not user
configurable) on your system.

The final appearance of the Setup program also depends on the Original
Equipment Manufacturer (OEM) who built your system. If your OEM has decided
that certain items should only be available to their technicians, those items may
very well be removed from the Setup program.

4

BIOS, Driver & Utility Guide

MAINBOARD BIOS SETUP

Main Menu

Shortly after the system is powered on, provided a CPU and sufficient RAM are
installed, you will see the message:

Press DEL to enter SETUP

• Press the DEL key to enter the Award BIOS Setup program.

Once you enter the Award BIOS CMOS Setup Utility, the Main Menu will appear
on the screen. The Main Menu allows you to select from several setup functions
and two exit choices. Use the arrow keys to select among the items and press
<Enter> to accept and enter the sub-menu.

ROM PCI/ISA BIOS (xxxxxxxx)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP SUPERVISOR PASSWORD

CHIPSET FEATURES SETUP USER PASSWORD

POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION

PNP / PCI CONFIGURATION SAVE & EXIT SETUP

LOAD BIOS DEFAULTS EXIT WITHOUT SAVING

LOAD SETUP DEFAULTS

Esc : Quit
F10 : Save & Exit Setup (Shift) F2 : Change Color

↑ ↓ → ← : Select Item

Note that a brief description of each highlighted selection appears at the bottom of
the screen.

BIOS, Driver & Utility Guide

5

MAINBOARD BIOS SETUP

Base Memory

: 640K

Extended Memory

: 15360K

Other Memory

: 384K

Total Memory

: 16384K

Standard CMOS Setup

This first menu is where the most basic hardware options are set. Information
regarding the system clock, IDE hard disks and floppy drives is stored and
configured in this section. To enter the Standard CMOS Setup, press the [ENTER]
key with this menu highlighted.

Upon entering the Standard CMOS Setup screen, you will see a screen like that
below:

Date (mm:dd:yy) : Sat, Dec 18 1999
Time (hh:mm:ss) : 00:00:00

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master : Auto 0 0 0 0 0 0 Auto
Primary Slave : Auto 0 0 0 0 0 0 Auto
Secondary Master : Auto 0 0 0 0 0 0 Auto
Secondary Slave : Auto 0 0 0 0 0 0 Auto

Drive A : 1.44M , 3.5in.
Drive B : None

Floppy 3 Mode Support: Disabled

Video : EGA / VGA
Halt On : All Errors

ESC : Quit ↑ ↓ → ← : Select Item PU / PD / + / - : Modify
F1 : Help (Shift) F2 : Change Color

First, let’s set the system Date. Use the arrow keys to move to and highlight the
“Date” option. Select the Month by using the PgDn and PgUp keys. This is how
most settings will be configured. Then, move to the day, year and time via the
arrow keys to finish setting the system date and time.

Keep in mind that the system time is set in 24-hour time. With this method, 1PM
is represented as 13:00, 2PM as 14:00 and so on, with 00:00 corresponding to
Midnight.

Pri Master, Pri Slave, Sec Master, Sec Slave - These four options relate to the
(4) IDE hard drives, CD-ROMs or other ATAPI devices that can be controlled via
the on-board IDE controller (review IDE Hard Drives and CD-ROMs in the
Installation Guide). The “Pri Master” setting specifies the first device on the

6

BIOS, Driver & Utility Guide

MAINBOARD BIOS SETUP

primary IDE channel, “Pri Slave” - the second. Sec Master and Sec Slave specify
the devices on the secondary channel.

The first option available is the most important: Type. This is where you will
specify the type of device and how it is represented in the BIOS Setup. If the device
is a hard disk or CD-ROM, generally the Auto option is the best choice for fast and
easy setup of the hard disk parameters. Let’s take a look at the difference between
the Auto, User and Types (1-45) options:

• Auto - This option instructs the BIOS to automatically configure the hard disk
by reading the parameters (cylinders, sectors, etc.) directly from the hard
disk’s firmware. Use this option if you are configuring a new hard drive, or
one that has already been formatted using the Auto option. Keep in mind that a
hard drive is configured using a certain set of parameters, those same
parameters must be used for the life of the drive, unless the drive is re­FDISKed using a different parameter set. (This procedure deletes the old
partition(s) on the drive and creates a new one, using the new parameters).

• User - This option allows you to
manually enter in the parameters of
the hard drive. Generally, this option
would be used only if the hard drive
has already been formatted with a
certain set of parameters, and assured
consistency between the old and new
parameters is desired.

• Types 1-45 - Similar to the User option, these types should only be used if the
exact parameters for the hard drive are already entered as a specific type stored
in the Setup Program. Again, this would only be needed to assure that the
parameters the drive was formatted with and those it is using now, are
identical. For new hard drives, the Auto option is the preferred choice.

Mode - One of Enhanced IDE’s most important features is LBA (Logical Block
Addressing) Mode. This feature allows the use of larger hard drives by providing a
way to bypass the cylinder limitations imposed by many Operating Systems. LBA
Mode is used to extend a hard drive’s useable capacity by “remapping” the
cylinders in a way that is acceptable to these operating systems. For instance, a
hard drive with the parameters of 2100 Cylinders, 16 Heads and 63 Sectors would
be represented by LBA Mode as 525 Cylinders, 64 Heads and 63 Sectors. (Notice

BIOS, Driver & Utility Guide

TYPE drive type
CYLS. number of cylinders
HEADS number of heads
PRECOMP write precom
LANDZONE landing zone
SECTORS number of sectors
MODE mode type

7

MAINBOARD BIOS SETUP

that the Cylinders have been divided, and the Heads have been multiplied, by a
factor of 4.)

On hard drives smaller in capacity than 528MB, LBA support is not needed. The
option on these devices is ignored, even if enabled. For hard drives greater than
528MB, LBA mode should be enabled. The following rules apply:

• Operating Systems that do not use the FAT file system do not need LBA
Mode, and can use the Normal or Large Modes. Examples would be NetWare
and Unix.

• When configuring a new hard drive greater than 528MB in capacity, always
make sure LBA mode is enabled.

• If you are using a hard drive that is over 528MB in capacity, but was already
formatted without using LBA mode, LBA support will be ignored even if it is
enabled. This assures correct access to the drive’s data.

• SCSI Hard Drives are NOT entered into the Mainboard BIOS Setup in any
way. The hard drive settings in the Standard CMOS Setup are only for drives
connected to the IDE Controller. So, if only SCSI drives were installed, all
these settings would be set to Type: None. SCSI Devices are configured via
the SCSI controller’s BIOS.

Floppy Drives A: and B: - Select the Type for the A: and/or B: floppy drives.
Remember, floppy drive A: is the first drive, hooked to the END of the floppy
ribbon cable. Floppy drive B: is hooked up after the twist. Available settings are
listed below:

None No floppy drive installed
360K, 5.25 in 5-1/4 inch PC-type standard drive; 360 kilobyte capacity

1.2M, 5.25 in 5-1/4 inch AT-type high-density drive; 1.2 megabyte capacity
720K, 3.5 in 3-1/2 inch double-sided drive; 720 kilobyte capacity

1.44M, 3.5 in 3-1/2 inch double-sided drive; 1.44 megabyte capacity

2.88M, 3.5 in 3-1/2 inch double-sided drive; 2.88 megabyte capacity

Floppy 3 Mode Support: - Enable this option ONLY for floppy drive(s) that
support the Japanese standard (1.2MB on 3.5” Diskette). Options: Disabled
(Default), Both, Drive A / B.

Video - This category selects the type of video adapter used for the primary system
monitor. Although secondary monitors are supported, you do not have to select
their type in Setup.

8

BIOS, Driver & Utility Guide

MAINBOARD BIOS SETUP

BIOS, Driver & Utility Guide

9

MAINBOARD BIOS SETUP

EGA/VGA Enhanced Graphics Adapter/Video Graphics Array. For EGA,

VGA, SEGA, SVGA or PGA monitor adapters.
CGA 40 Color Graphics Adapter, power up in 40 column mode
CGA 80 Color Graphics Adapter, power up in 80 column mode
MONO Monochrome adapter, includes high resolution monochrome

adapters

Halt On - Determines whether or not the system will prompt you if an error is
detected during POST.

All Errors Whenever the BIOS detects a non-fatal error the system will be

stopped and you will be prompted.

No Errors The system boot will not be stopped for any error that may be

detected.

All, But Keyboard The system boot will not stop for a keyboard error; it will stop

for all other errors.

All, But Diskette The system boot will not stop for a disk error; it will stop for all

other errors.

All, But Disk/Key The system boot will not stop for a keyboard or disk error; it

will stop for all other errors.

Memory - This category is display-only. All memory detected by the POST (Power
On Self Test) of the BIOS is shown as the following types:

Base Memory is the amount of conventional memory installed in the system. This
value is typically 640K for systems with 640K or more memory installed on the
motherboard. The Extended Memory is the amount of memory located above
1MB in the CPU's memory address map. Other Memory refers to the memory
located in the region between 640K and 1MB. This region can be used for
shadowing as well as expanded memory in DOS.

10

BIOS, Driver & Utility Guide

MAINBOARD BIOS SETUP

BIOS Features Setup

This menu provides access to more advanced BIOS configuration settings that deal
with overall performance of the system and peripheral setup. This section allows
you to configure your system for basic operation. You have the opportunity to select
the system’s default speed, boot-up sequence, keyboard operation, shadowing and
security.

Anti-Virus Protection : Enabled OS Select For DRAM > 64MB : Non-OS2
CPU Internal Cache : Enabled HDD S.M.A.R.T. capability : Disabled
External Cache : Enabled Report No FDD For WIN 95 : No
CPU L2 Cache ECC Checking : Enabled
Quick Power On Self Test : Disabled Video BIOS Shadow : Enabled
Boot Sequence : C, A, SCSI C8000-CBFFF Shadow : Disabled
Swap Floppy Drive : Disabled CC000-CFFFF Shadow : Disabled
Boot Up Floppy Seek : Enabled D0000-D3FFF Shadow : Disabled
Boot Up NumLock Status : On D4000-D7FFF Shadow : Disabled
Gate A20 Option : Fast D8000-DBFFF Shadow : Disabled
Typematic Rate Setting : Disabled DC000-DFFFF Shadow : Disabled
Typematic Rate (Chars/Sec) : 6 Processor Number Feature : Disabled
Typematic Delay (Msec) : 250
Security Option : System
PCI / VGA Palette Snoop : Disabled

F1 : Help PU/PD/+/- : Modify
F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

ESC : Quit ↑ ↓ → ←: Select Item

Anti-Virus Protection – Enables/Disables the built-in anti-virus for protection
against boot virus infection. Unlike traditional BIOS protection which generally
consists of simply write protecting the hard disk partition table, this Anti-Virus
protection provides more complete virus protection by taking control early in the
boot process, detecting boot viruses before they have a chance to load.

CPU Internal Cache - Enables or Disables the Level-1 Internal Cache memory.
Generally, this would only be Disabled for troubleshooting purposes.

External Cache - Enables or Disables the Level-2 External Cache memory.
Generally, this would only be Disabled for troubleshooting purposes.

CPU L2 Cache ECC Checking - Enables or Disables ECC (Error Checking and
Correcting) for the CPU’s Level 2 built-in cache.

BIOS, Driver & Utility Guide

11

MAINBOARD BIOS SETUP

Quick Power on Self Test - Speeds up Power On Self Test (POST) after the
computer is powered on. When set to Enabled, the BIOS will shorten or skip some
checks during POST.

Boot Sequence - When your system is powered on, the BIOS performs a variety of
operations, then attempts to boot an Operating System from either a hard drive
(IDE or SCSI), floppy drive, CD-ROM or LS-120/ZIP. This setting determines the
sequence that the BIOS will follow when searching devices for a bootable disk.

Most users find the C, A, SCSI setting to be most beneficial, since it takes the least
amount of time to boot the system. If however, you want the ability to boot from a
Floppy or CD-ROM drive, you would need to choose either the A, C, SCSI or
CDROM, C, A setting. For instance, if your boot sequence was set to C, A, SCSI
and for some reason you wanted to boot to your Floppy A: Drive, it would not be
possible, since the BIOS would always boot from the C: drive first. In this case,
this setting would need to be changed to A, C, SCSI so that the system would first
check the floppy drive for a bootable disk. This would slow bootup speed, however,
since the floppy would be checked on every boot.

Swap Floppy Drive - The hardware connections determine which floppy is
configured as drive A: and drive B: “Swapping” the floppy drives can be useful if
your system has two floppy drives, and you want the ability to boot from both. For
example: Since a PC cannot boot from the B: Floppy, you would need to “Swap”
floppy drives A: and B: in order to set the second floppy drive to drive A:, thereby
making it bootable.

Boot Up Floppy Seek - When enabled, BIOS will attempt to move the head of the
floppy disk drive forth and back once during POST to see if the drive is working
properly.

Boot Up NumLock Status - When On, the NumLock key will be automatically
enabled when the system boots.

Gate A20 Option - This entry allows you to select how the gate A20 is handled.
The gate A20 is a device used to address memory above 1 Mbytes. Initially, the
gate A20 was handled via a pin on the keyboard (Normal). Today, while keyboards
still provide this support, it is more common, and much faster, for the system
chipset (Fast; default) to provide support for gate A20.

12

BIOS, Driver & Utility Guide

MAINBOARD BIOS SETUP

Typematic Rate Setting - Determines if the typematic rate is to be used. When
disabled, continually holding down a key on your keyboard will generate only one
instance. In other words, the BIOS will only report that the key is down. When the
typematic rate is enabled, the BIOS will report as before, but it will then wait a
moment, and, if the key is still down, it will begin to report that the key has been
depressed repeatedly. This feature is used to accelerate cursor movements with the
arrow keys.

Typematic Rate (Chars/Sec) - When the typematic rate is enabled, this selection
allows you to select the rate at which the keys are accelerated: Options are 6
(default), 8, 10, 12, 15, 20, 24 and 30.

Typematic Delay (Msec) - When the typematic rate is enabled, this selection
allows you to select the delay (in msec) between when the key was first depressed
and when the acceleration begins. Options are 250 (default), 500, 750 and 1000.

Security Option - This option enables password checking every time the computer
is powered on or every time BIOS Setup is executed. If System is chosen, a user
password prompt appears every time the computer is turned on. If Setup is chosen,
the password prompt appears only when the BIOS Setup program is executed.
Refer to the section Supervisor Password for more information.

PCI / VGA Palette Snoop - This option must be set to Enabled if any ISA MPEG
card installed requires VGA palette snooping.

OS Select For DRAM > 64MB - This should be set to OS2 if you are running
IBM OS/2 with more than 64MB of RAM in the system. Otherwise, the setting
should be Non-OS2.

HDD S.M.A.R.T. Capability - The default is Disabled. If you are using hard
drives that support S.M.A.R.T., set this field to Enabled. SMART (Self­Monitoring, Analysis and Reporting Technology) is a reliability prediction
technology for ATA/IDE and SCSI drives. The drive will provide sufficient notice
to the system or user to backup data prior to the drive’s failure. SMART is
supported in ATA-3 or later hard drives.

Report No FDD For WIN95 – When no floppy disk drive is installed, set this
option to No to release IRQ6 for passing Win95 logo. This option is irrelevant
under normal operation.

BIOS, Driver & Utility Guide

13

MAINBOARD BIOS SETUP

Video BIOS Shadow - This option controls the location of the contents of the
32KB of Video ROM beginning at the C0000h memory location. The settings are:

Enabled The contents of C0000h-C7FFFh are written to the same address in

system memory (RAM) for faster execution.

Disabled The video ROM is not copied to RAM. The contents of the video

ROM cannot be read from or written to cache memory.

C8000-DFFFF Shadow - These options control the location of the contents of the
16KB expansion card ROMs beginning at the specified memory location. If no
adapter ROM is using the named ROM area, this area is made available to the
local bus. Shadowing a ROM reduces the memory available between 640KB and
1024KB by the amount used for this purpose.

Processor Number Feature – This option is available only when a Pentium III
CPU is used. Each Pentium III CPU features a unique identification number.
Enabling this option allows this internal processor number to be accessed.

14

BIOS, Driver & Utility Guide

MAINBOARD BIOS SETUP

Chipset Features Setup

This setup menu contains advanced configuration options relating to the
mainboard chipset. These options are rarely changed by the user.

SDRAM RAS-to-CAS Delay : 3 Auto Detect DIMM/PCI Clk : Enabled
SDRAM RAS Precharge Time : 3 Spread Spectrum : Disabled
SDRAM CAS latency Time : 3 CPU Host Clock : Default
SDRAM Precharge Control : Disabled Current CPU Temperature
DRAM Data Integrity Mode : Non-ECC Current CPU FAN Speed : 5400 RPM
System BIOS Cacheable : Enabled Current System FAN speed : 0 RPM
Video BIOS Cacheable : Enabled Vcore : 2.81V + 3.3V : 3.36V
Video RAM Cacheable : Enabled + 5V : 5.14V + 12V : 12.16V
8 Bit I/O Recovery Time : 1 - 12V : -12.35V - 5V : - 5.04V
16 Bit I/O Recovery Time : 1
Memory Hole At 15M-16M : Disabled CPU Warning Temperature : Disabled
Passive Release : Enabled CPU FAN Warning Speed : Disabled
Delayed Transaction : Enabled System 5V Alarm : Disabled
AGP Aperture Size (MB) : 64

F1 : Help PU/PD/+/- : Modify
F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

ESC : Quit ↑ ↓ → ←: Select Item

SDRAM RAS-to-CAS Delay – This option allows you to determine the number of
clocks allocated between the assertion of RAS to CAS. Do not change the value in
this field unless you change to different DRAM or CPU with different
specifications.

: 47°C/116°F

SDRAM RAS Precharge Time – Defines the length of time that Row Address
Strobe is allowed to precharge. If insufficient time is allowed, refresh may be

incomplete and data will be lost.
SDRAM CAS Latency Time - This item allows you to select the CAS# latency for

all SDRAM cycles. Options are 3 or 2 Clocks.
SDRAM Precharge Control - Determines the SDRAM precharge control action

taken when a page miss occurs. Enabling this option allows precharge only the
bank targeted by the page miss cycle.

DRAM Data Integrity Mode – When set at Non-ECC, there will be no memory
errors shown on the monitor for Memory parity SERR# (NMI). When parity

BIOS, Driver & Utility Guide

15

MAINBOARD BIOS SETUP

DRAM modules are used, select ECC (Error Checking and Correcting) to correct 1
bit memory errors in the memory.

System BIOS Cacheable - When Enabled, the contents of the F0000h system
memory segment can be cached to the Level-2 cache memory. The contents of the
F0000h memory segment are always copied from the BIOS ROM to system RAM
for faster execution and PCI compliance.

Video BIOS Cacheable - When Enabled, C0000h to C7FFH become cacheable
memory.

Video RAM Cacheable - Enabled will cause access to the video RAM addressed
at B0000H to BFFFH to be cacheable and also let the A0000H to AFFFFH to be a
UC memory type.

8 Bit I/O Recovery Time - The recovery time is the length of time, measured in
ISA BUS clocks, that the system will delay after the completion of an input/output
request. This delay takes place because the CPU is operating faster than the
input/output bus. Therefore the CPU must be delayed to allow for the completion of
I/O transfers. This item allows you to determine the recovery time allowed for 8 bit
I/O. Choices are from NA, 1 to 8 ISA BUS clocks.

16 Bit I/O Recovery Time - This item allows you to determine the recovery time
allowed for 16 bit I/O. Choices are from NA, 1 to 4 ISA BUS clocks.

Memory Hole At 15M-16M - In order to improve compatibility, certain space in
memory can be reserved for old style ISA cards that map memory between 15M­16M. Do not enable this feature unless you use the old style ISA card, otherwise
the memory size may be reduced to 15 MB for some O.S.

Passive Release - The PIIX4 provides a programmable Passive Release mechanism
to meet the required master latencies. When enabled, ISA masters may see long
delays in access to any PCI memory, including the main DRAM array.

Delayed Transaction - When enabled, the delay transaction mechanism will be in
effect when PIIX4 is the target of a PCI transaction.

AGP Aperture Size (MB) - Select the size of the Accelerated Graphics Port
(AGP) aperture. The aperture is a portion of the PCI memory address range
dedicated for graphics memory address space. Host cycles that hit the aperture
range are forwarded to the AGP without any translation. See www.agpforum.org
for AGP information. Options are 4, 8, 16, 32, 64, 128 and 256 MB.

16

BIOS, Driver & Utility Guide

MAINBOARD BIOS SETUP

Auto Detect DIMM/PCI Clk – When enabled, any DIMM/PCI clock not in use
will be disabled to reduce EMI radiation.

Spread Spectrum – The default is the optimal value determined by the system
designer to reduce EMI radiation peak. Users should not attempt to change it.

CPU Host Clock – This option lets you select the CPU/PCI clock. The chipset
supports only the 66 and 100 MHz CPU bus clock. With this option, the bus clock
can be extended from 66 MHz to 75 or 83.3 MHz, or from 100 MHz to 103 up to
140 MHz for internal test. Over-clocking may cause serious system damage.

System Hardware Monitor

The onboard hardware monitor allows you to observe the current temperature of
the CPU, current speeds (in RPM, rotation per minute) of the system and CPU
fans, as well as the various operating voltages. (If the fan is not installed, 0 RPM
will be shown.)

CPU Warning Temperature - Once the CPU temperature exceeds the
temperature specified, a warning will be issued via the speaker and the operating
CPU speed will be slowed down to ease the situation.

CPU FAN Warning Speed - Once the speed of the CPU cooling fan falls below
the speed specified (in RPM, rotation per minute), a warning will be issued via the
speaker.

System 5V Alarm – When <4.75V or >5.25V is selected, a warning beep will be
issued via the speaker once the system board operating voltage falls below 4.75V or
rises above 5.25V.

BIOS, Driver & Utility Guide

17

MAINBOARD BIOS SETUP

Power Management Setup

This menu contains configuration options that reduce power consumption when the
system is not in use. Other “Green-PC” compliant peripherals are also supported.
Power Management allows you to configure you system to use energy most
efficiently, and still in a manner consistent with your own style of computer use.

ACPI function : Enabled ** Reload Global Timer Events **
Power Management : User Define IRQ[3-7, 9-15], NMI : Disabled
PM Control by APM : Yes Primary IDE 0 : Disabled
Video Off Method : DPMS Primary IDE 1 : Disabled
Video Off After : Suspend Secondary IDE 0 : Disabled
MODEM Use IRQ : 3 Secondary IDE 1 : Disabled
Doze Mode : Disabled Floppy Disk : Disabled
Standby Mode : Disabled Serial Port : Enabled
Suspend Mode : Disabled Parallel Port : Disabled
HDD Power Down : Disabled
Throttle Duty Cycle : 62.5%
PCI/VGA Act-Monitor : Disabled
Soft-Off by PWR-BTTN : Instant-Off
Power On by Ring/LAN : Disabled
Power On by RTC Alarm : Disabled

F1 : Help PU/PD/+/- : Modify
IRQ 8 Break Suspend : Disabled F5 : Old Values (Shift) F2 : Color
ACPI Suspend Type : S1 (POS) F6 : Load BIOS Defaults
F7 : Load Setup Defaults

ESC : Quit ↑ ↓ → ←: Select Item

ACPI function – This option allows you to enable/disable the Advanced
Configuration and Power Interface, which makes hardware status information

available to the operating system and offers improved power management. To
make an ACPI system, you must use an ACPI OS such as Windows 98.

Power Management - This category allows you to select the type (or degree) of
power saving and is directly related to the following modes: Doze Mode, Standby
Mode, Suspend Mode and HDD Power Down. There are three selections for Power
Management, two of which have fixed mode settings:

Min Saving Minimum power management. Doze Mode = 1 hr. Standby Mode =

1 hr., Suspend Mode = 1 hr., and HDD Power Down = 15 min.

Max Saving

18

Maximum power management -- ONLY AVAILABLE FOR SL
CPUs. Doze Mode = 1 min., Standby Mode = 1 min., Suspend

Mode = 1 min., and HDD Power Down = 1 min.

BIOS, Driver & Utility Guide

MAINBOARD BIOS SETUP

User Defined Set each mode individually. When Enabled, each range is from 1

min. to 1 hr., except for HDD Power Down which ranges from 1
min. to 15 min.

PM Control by APM - When set to Yes, an Advanced Power Management device
will be activated to enhance the Max. Power Saving mode and stop the CPU
internal clock. If the Max. Power Saving is not enabled, this will be preset to No.

Video Off Method - This determines the manner in which the monitor is blanked.

V/H
SYNC+Blank

This selection will cause the system to turn off the vertical and
horizontal synchronization ports, writing blanks to the video
buffer.

Blank Screen This option only writes blanks to the video buffer.
DPMS Initial display power management signaling.

Video Off After - This is to determine when to activate the video off function.
Options are: “Standby”, “Doze”, “Suspend” and “N/A”.

MODEM Use IRQ - This item tells the Power Management BIOS which IRQ is
assigned to the installed MODEM. Options are NA, 3, 4, 5, 7, 9, 10, and 11.

The following four modes are Green PC power saving functions which are only
user configurable when User Defined Power Management has been selected. See
below for available selections.

Doze Mode

Standby Mode

Suspend Mode

HDD Power
Down

When enabled and after the set time of system inactivity, the CPU
clock will run at slower speed while all other devices still operate
at full speed.

When enabled and after the set time of system inactivity, the fixed
disk drive and the video will be shut off while all other devices
still operate at full speed.

When enabled and after the set time of system inactivity, all
devices except the CPU will be shut off.

When enabled and after the set time of system inactivity, the hard
disk drive will be powered down while all other devices remain
active.

Throttle Duty Cycle - This item determines the duty cycle for the clock control
thermal throttling mode. The duty cycle indicates the percentage of time the
STPCLK# signal is asserted.

BIOS, Driver & Utility Guide

19

MAINBOARD BIOS SETUP

PCI/VGA Act- Monitor - When enabled, the video detect logic will generate a
timer reload event for device monitor 11.

Soft-Off by PWR-BTTN - With Instant-Off selected, the ATX switch functions
like a normal system power off button. With Delay 4 Sec. selected, you must hold
down the ATX switch for more than 4 seconds to power off the system.

Power On by Ring/LAN – An input signal on the serial Ring Indicator (RI) line
(in other words, an incoming call on the modem power on the system or return it to
full power out of suspend / standby mode. With a LAN card installed, the Wake-up
On LAN function allows the network to wake up a Soft Power Down (Soft-Off) PC.

Power On by RTC Alarm - When enabled, the system will automatically power
on or returns to full power out of suspend/standby mode at the time and date of the
month (0 for daily) specified.

IRQ 8 Break Suspend - When IRQ 8 Clock Event is enabled, the unmasked IRQ8
will generate a Fast Burst Timer reload or stop break event.

ACPI Suspend Type – Determines the ACPI defined suspend type.

Suspend

Type

S1 (POS)

S3 (STR)

State 1 (Power On Suspend) - below 30W
CPU is not working through STPCLK#, while the power is still provided for
the whole system.
State 3 (Suspend to RAM) - Less than 10W
Power is provided only to DRAM and wake-up devices circuit, while the rest
of the system is powered off.

Power Consumption

** Reload Global Timer Events **

IRQ[3-7, 9-15], NMI: Enable an unmasked IRQ [3-7, 9-15], NMI, when asserted,
reload the Global Standby Timer.

Primary/Secondary IDE 0/1, Floppy Disk, Serial Port, Parallel Port: Enable reload
events from the respective device monitor to reload the Global Standby Timer.

20

BIOS, Driver & Utility Guide

MAINBOARD BIOS SETUP

PNP/PCI Configuration Setup

The PCI Personal Component Interconnect Bus was developed to address two
important issues: a) How to allow peripheral devices to take the fullest advantage
of the power of Pentium and Pentium Pro chip technology, and b) Provide a
simpler installation process for peripheral devices, such as Network cards, EIDE or
SCSI controllers.

PCI accomplishes these goals with its 32-bit Data path Local Bus design, and
support for Plug & Play. Unlike older expansion bus architectures, PCI provides
peripherals with a direct connection to the CPU and memory. The PCI bus runs at
33Mhz and has a maximum transfer capability of 132MBps. With Plug & Play, the
system BIOS automatically determines hardware resources for new peripherals,
simplifying installation of multiple interface cards.

This Setup Menu provides configuration options for the PCI Bus and its assigned
resources.

PNP OS Installed : No Use MEM base addr : N/A
Resources Controlled by : Manual
Reset Configuration Data : Enabled SYMBIOS SCSI BIOS : Auto
Onboard Sound Chip : Enabled
IRQ-3 assigned to : PCI/ISA PnP Assign IRQ For VGA : Enabled
IRQ-4 assigned to : PCI/ISA PnP Assign IRQ for USB : Enabled
IRQ-5 assigned to : PCI/ISA PnP PCI Latency Timer : 80 PCI Clocks
IRQ-7 assigned to : PCI/ISA PnP
IRQ- 9 assigned to : PCI/ISA PnP
IRQ-10 assigned to : PCI/ISA PnP
IRQ-11 assigned to : PCI/ISA PnP
IRQ-12 assigned to : PCI/ISA PnP
IRQ-14 assigned to : PCI/ISA PnP
IRQ-15 assigned to : PCI/ISA PnP
DMA-0 assigned to : PCI/ISA PnP
DMA-1 assigned to : PCI/ISA PnP
DMA-3 assigned to : PCI/ISA PnP F1 : Help PU/PD/+/- : Modify
DMA-5 assigned to : PCI/ISA PnP F5 : Old Values (Shift) F2 : Color
DMA-6 assigned to : PCI/ISA PnP F6 : Load BIOS Defaults
DMA-7 assigned to : PCI/ISA PnP F7 : Load Setup Defaults

PNP OS Installed - Set to Yes if your operating system supports Plug & Play, such
as Windows 95.

ESC : Quit ↑ ↓ → ←: Select Item

Resources Controlled By - The Award Plug and Play BIOS has the capacity to
automatically configure all of the boot and Plug and Play compatible devices. This

BIOS, Driver & Utility Guide

21

MAINBOARD BIOS SETUP

capability is specifically designed for a Plug and Play operating system such as
Windows 95. Choices are Auto and Manual.

Reset Configuration Data - Reset Configuration Data: When set to Enabled,
ESCD (Extended System Configuration Data) is cleared. This setting will
automatically be set back to Disabled when the system reboots. Enabled and
Disabled.

IRQ3/4/5/7/9/10/11/12/14/15, DMA0/1/3/5/6/7 assigned to – These options are
available when the above Resources Controlled by option is set to Manual. By
default, all resources are assigned to the PCI Bus. If an ISA card requires a
particular IRQ or DMA channel, those resources should be set to Legacy ISA so
that the PCI Bus will not try to use them. Choices are Legacy ISA and PCI/ISA
PnP.

Used MEM base address - This item allows you to determine which basic
addresses are not to be occupied by PCI Card and leave these addresses for some
special ISA Card used only. This option is available when the Resources
Controlled by option is set to Manual.

Choices are C800, CC00, D000, D400, D800, DC00.
Used MEM length - Select a length for the memory area specified in the previous

field. This field does not appear if no base address is specified. Options are 8K,
16K, 32K, 64K.

SYMBIOS SCSI BIOS - When set to Auto (Default), the system will
automatically sense the presence of any SCSI adapter that uses a Symbios
SYM53C8XX SCSI chip:

If the SCSI adapter installed has its own
BIOS on board:

If the SCSI adapter installed doesn’t have
its own BIOS and the card uses or is
compatible with the SYM53C8XX chip:

The on-board SCSI BIOS will not be loaded.
The adapter’s own SCSI BIOS will be used.

The on-board SCSI BIOS will load and
control the SCSI adapter.

*Disabling the onboard SCSI BIOS prevents it from being active in any way.
Onboard Sound Chip – Enabling this option allows the system to use the onboard

ESS Solo-1 PCI sound chip. If you want to use an add-on audio card instead, set
this option to disabled to avoid possible conflict.

22

BIOS, Driver & Utility Guide

MAINBOARD BIOS SETUP

Assign IRQ For VGA - The Enabled option allows the BIOS to auto-route an IRQ
for use by a VGA card. While most of the VGA cards do not need an IRQ
assignment, certain VGA cards may need it.

Assign IRQ For USB - When Enabled, the system automatically assigns an IRQ
for the USB device connected to your system. However, if you are not using USB
devices and an ISA slot requires an IRQ address, set this function to Disabled. The
IRQ address previously occupied by the USB device will be available for the ISA
slot.

PCI Latency Timer - This option sets latency of all PCI devices on the PCI bus.
The settings are in units equal to PCI clocks. Available settings are 0 ~ 248.

Load BIOS Defaults

Loads “Fail Safe” settings into the BIOS Setup program. These options are
designed to slow the system down for troubleshooting purposes. To load the default
values, highlight this option and press [ENTER]. Enter “Y” in the confirmation
screen and press [ENTER] again. User-defined options in the Standard CMOS
Setup are not affected.

Load Setup Defaults

Loads the default values for best system performance into the BIOS Setup program.
To load the default values, highlight this option and press [ENTER]. Enter “Y” in
the confirmation screen and press [ENTER] again. User-defined options in the
Standard CMOS Setup are not affected.

BIOS, Driver & Utility Guide

23

MAINBOARD BIOS SETUP

Integrated Peripherals Setup

This menu is used to configure the integrated IDE subsystem and other peripherals.

IDE HDD Block Mode : Enabled Onboard Serial Port 2 : 2F8/IRQ3
IDE Primary Master PIO : Auto IR/COM2 Mode Select : UART COM2
IDE Primary Slave PIO : Auto
IDE Secondary Master PIO : Auto Onboard Parallel Port : 378/IRQ7
IDE Secondary Slave PIO : Auto Parallel Port Mode : ECP+EPP
IDE Primary Master UDMA : Auto ECP Mode Use DMA : 3
IDE Primary Slave UDMA : Auto EPP Mode Select : EPP 1.9
IDE Secondary Master UDMA : Auto PWRON After PWR-Fail : Off
IDE Secondary Slave UDMA : Auto
On-Chip Primary PCI IDE : Enabled
On-Chip Secondary PCI IDE : Enabled
USB Keyboard Support : Disabled
Init Display First : PCI Slot

POWER ON Function : BUTTON ONLY

F1 : Help PU/PD/+/- : Modify
KBC input clock : 8 MHz F5 : Old Values (Shift) F2: Color
Onboard FDC Controller : Enabled F6 : Load BIOS Defaults
Onboard Serial Port 1 : 3F8/IRQ4 F7 : Load Setup Defaults

IDE HDD Block Mode - This allows your hard disk controller to use fast block
mode to transfer data to and from your hard disk drive (HDD).

ESC: Quit ↑ ↓ → ←: Select Item

• IDE PIO Mode - IDE Programmed I/O Mode -

This setting relates to the speed at which the hard
drive is able to transfer data, up to

16.6MB/second for Mode 4 drives. Available
settings are Auto, 0, 1, 2, 3, or 4. As with the
Type setting, Auto is the preferred choice, in that
the supported PIO Mode is read directly from the

PIO Mode Timing

0 600 ns
1 383 ns
2 240 ns
3 180 ns
4 120 ns

hard drive. Be sure not to use a PIO Mode higher than what the drive actually
supports. This could result in loss of data.

• IDE UDMA (Ultra DMA) Mode - The chipset used for this mainboard

improves the IDE performance by implementing UltraDMA/33 Bus Mastering
IDE which can handle data transfer up to 33 Mbyte/sec. This UDMA technology
is downward compatible with existing ATA-2 IDE. So there is no upgrade
required for current hard drives and cabling.

24

BIOS, Driver & Utility Guide

MAINBOARD BIOS SETUP

On-Chip Primary PCI IDE - Enables or Disables the primary controller.
Situations where this controller would be disabled are: a) You are not using any
IDE Drives or b) You are using an add-on IDE controller in a PCI Slot.

On-Chip Secondary PCI IDE - Enables or Disables the secondary controller.
Situations where this controller would be disabled are: a) You are not using any

IDE Drives or b) You are using IDE Drives ONLY on the primary controller or c)
You are using an add-on IDE controller in a PCI Slot.

USB Keyboard Support - This item allows you to enable or disable the USB
keyboard driver within the onboard BIOS. The keyboard driver simulates legacy
keyboard command and let you use USB keyboard during POST or after boot if you
don’t have USB driver in the operating system.

Init Display First - When your system has an AGP card coexisting with other PCI
display cards, this option allows you to select which card your system will use
initially.

POWER ON Function - This option allows you select one of the various methods
to power on your system:

Option

Button Only By your conventional power button

Keyboard 98
Password By typing the password on your keyboard (See below)
Hot Key By pressing the hot key combination on your keyboard (See below)
Mouse Left By left-clicking the mouse (for PS/2 mouse only)
Mouse Right By right-clicking the mouse (for PS/2 mouse only)

KB Power On Password – Available when the Power ON Function above is set
to Password. Press [Enter] at this option then a dialog box will appear to prompt
you to enter a password. Once a password is stored in the system, you can power on
the system by typing the password, provided that JP1 is set to Enabled (Refer to the
Installation Guide). Note: If you forget the password, clear the CMOS by removing
the mainboard’s battery AND disconnecting the mainboard’s power supply. Wait a
couple of seconds before re-installing them back. This is the only way you can
power on your system again.

How to Power on your System

By pressing the Wakeup button on your PC98 keyboard

BIOS, Driver & Utility Guide

25

MAINBOARD BIOS SETUP

Hot Key Power On– Available when the Power ON Function above is set to Hot
Key. You can power on the system by pressing the hot key specified here, provided

that JP1 is set to Enabled (Refer to the Installation Guide).
KBC input Clock - This option allows you to determine the clock of the Keyboard

Controller. Options are 6, 8, 12, 16 MHz.
Onboard FDC Controller - Set to Enabled if you have a floppy disk drive

installed on the system board and you wish to use it. Even when so equipped, if you
add a higher performance controller, you will need to disable this feature.

Onboard Serial Port 1 - With this option, the on-board Serial Port 1 can be
Disabled, or set to Auto, 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4 or 2E8/IRQ3.

Onboard Serial Port 2 - With this option, the on-board Serial Port 2 can be
Disabled, or set to Auto, 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4 or 2E8/IRQ3.

IR/COM2 Mode Select - By default, this field is set to UART COM2, which
directs the second serial port UART to support the COM2 serial port. Choosing
SHARP IR (ASKIR) or IrDA SIR (HPSIR) will activate the on-board infrared
feature and redirect the second serial port UART to support the infrared module
connector on the mainboard.

IR Transmission Delay – Available when the above option is set to IrDA.
Enabling this option to allow transmission delay when SIR is changed from
receiving mode to transmission mode, ensuring data integrality.

Onboard Parallel Port - With this option, the on-board Parallel Port can be
Disabled, or set to 378/IRQ7, 3BC/IRQ7 or 278/IRQ5.

Parallel Port Mode - Sets the operating mode of the parallel port. Options are:
SPP, EPP+SPP, ECP and ECP+EPP.

SPP: Standard Parallel Port, EPP: Enhanced Parallel Port, ECP: Extended
Capability Port.

ECP Mode Use DMA - Options are 1 and 3. This field is available only when one
of the two following options in Parallel Port Mode is selected: ECP or ECP+EPP.

EPP Mode Select - Options are 1.7 and 1.9 (default ; IEEE 1284 compliant).

26

BIOS, Driver & Utility Guide

MAINBOARD BIOS SETUP

PWRON After PWR-Fail – This feature will power-on the PC when power
returns after a power failure. The table on the next page lists the options available
and the corresponding “System State” when power returns.

Options Available System State When

Power Failure Occurred

Former-State On On

Off Off

Off On Off

Off Off

On On On

System State When

Power Returns

Off On

BIOS, Driver & Utility Guide

27

MAINBOARD BIOS SETUP

Supervisor Password and User Password Setting

Passwords can be set to provide protection for the BIOS configuration options, or
to restrict access to the computer itself.

When enabled, User Password will require all users to enter a password in order to
use the system, and/or enter the BIOS setup (but can’t change its contents). A
Supervisor Password is used to protect the stored CMOS options from being
changed by unauthorized users.

Keep in mind that when set, a password is required only when booting the system.
It will not provide protection to a system that is already booted.

The password check option is set in BIOS FEATURES SETUP by choosing
either System (the password prompt appears every time the system is powered on)
or Setup (the password prompt appears only when the user enters the BIOS Setup).
The password is stored in CMOS RAM, and can be cleared by removing the
battery for a while and then re-installing it back.

To set a password:

1. You must first set the Supervisor password by choosing Supervisor Password
and pressing [ENTER]. Setup prompts for a password.

2. Enter a 1-8 character password using letters, numbers, or a combination of
both. The specific characters are not shown as you enter them. Press
[ENTER].

3. A confirmation box appears asking you to re-enter the password. Enter the
password again. Press [ENTER]. Follow the same procedure to set the User
Password.

Changing a Password:
Select the appropriate password option (Supervisor or User) from the main menu

and press [ENTER]. Enter the current password and press [Enter]. The screen does
not display the characters entered. Enter in the new password, then the
confirmation. You cannot change the current password unless you know it.

28

BIOS, Driver & Utility Guide

MAINBOARD BIOS SETUP

BIOS, Driver & Utility Guide

29

MAINBOARD BIOS SETUP

Erasing a Password:

1. If you know the current password, but want to disable password checking,
follow the procedure for changing the password. When Setup prompts for the
new password, simply press [ENTER]. You will see a message indicating that
the password is disabled.

2. If you do not know the current password, the CMOS must be cleared by
removing the battery for a while and then re-installing it back. *This will clear
all user-defined BIOS Setup options.

IDE HDD Auto Detection

Automatically detect and configure hard disk parameters. The Award BIOS
includes this ability in the event you are uncertain of your hard disk’s parameters.
See also “Standard CMOS Setup”.

Save & Exit Setup / Exit Without Saving

Select Save & Exit Setup to save into the CMOS memory all modifications
specified during the current session. To save the configuration changes, highlight
this option in the main menu and press [ENTER]. The system displays a
confirmation message on the screen. Press the “Y” key and then [Enter]. Press the
“N” key and then the [Enter] key to abort. The Exit Without Saving option allows
the user to exit the BIOS Setup without updating any changes made during the
current session.

30

BIOS, Driver & Utility Guide

MAINBOARD BIOS SETUP

PCI Device Listing

This list of installed PCI devices appears after the System Configuration screen:

PCI device listing .....

Bus No. Device No. Func No. Vendor ID Device ID Device Class IRQ
0 7 1 1106 0571 IDE Controller 14/15
0 7 2 8086 8829 Serial bus controller 11
0 9 0 1013 7333 Display controller 11

Bus No. Encoded value indicating 1 of 256 possible buses in a system.
Device No. Encoded value indicating 1 of 32 possible devices on a given bus.
Func No. Encoded value indicating 1 of 8 possible functions on a

multifunction device.

Vendor ID Identifies the manufacturer of the device. Valid vendor identifiers are

allocated by the PCI SIG (Special Interest Group) to ensure
uniqueness.

Device ID Identifies the particular device. This identifier is allocated by the

vendor.

Device
Class

Specifies one of the following device classes: Mass storage
controller, Network controller, Display controller, Multimedia
device, Bridge device, Simple communication controller, Base
system peripherals, Input device, Docking station, Processor and
Serial bus controller.

The PCI device listing is useful for troubleshooting purposes. More detailed
information for each field may be obtained through the PCI specification
documentation.

BIOS, Driver & Utility Guide

31

BUILT-IN SYMBIOS SCSI BIOS

To provide easy to use and cost effective support for adapters using or compatible
with the Symbios Logic 53C8XX SCSI chips, this mainboard features built-in
Symbios SCSI BIOS.

In most cases you should not need to change the default configuration of your host
adapter. You may decide to alter these default values if there is a conflict between
device settings, or if you need to optimize system performance. A message appears
on your computer monitor (for about 5 seconds) during boot that looks like this:

Press Crtl-C to start Symbios Configuration Utility

If you decide to press Ctrl-C during boot, the following message appears:

Please wait, invoking Symbios Configuration Utility …

After a brief pause, your computer will display the Main Menu of the utility.

The Symbios SCSI Configuration Utility

This menu driven utility allows you to view and change the default configuration
settings for host adapters using Symbios 53C8XX chips.

Note: Pressing Ctrl-A after memory count during re-boot allows you to recover the
default settings and reconfigure.

The following tables list the configuration settings you can change:

• Global: Affects both the adapter and all SCSI devices

• Device: Affects only the individual SCSI devices

32

BIOS, Driver & Utility Guide

BUILT-IN SYMBIOS SCSI BIOS

Global Default Settings Device Default Settings

Settings Default Settings Default

SCAM Support On Synchronous Transfer

Rate (MB/sec)
Parity Checking Enabled Data Width 8
Host Adapter SCSI ID 7 Disconnect On
Scan Order Low to High (0-Max) Read Write I/O Timeout

(secs)
Scan for Devices at Boot

Time
Scan for SCSI LUNs Yes
Queue Tags Enabled

Main Menu

MAIN MENU

Port Irq ----------Status--------- NvRAM

Num Level Current Next-Boot Found
SYM53C860 FC00 9 On On Yes
SYM53C820 0 0 Off Off ?
SYM53C825 FD00 9 On On Yes
SYM53C815 FE00 10 On On No
Change Adapter Status
Adapter Boot Order
Additional Adapter Configuration
Display Mode = Verbose
Mono/Color
Language
Help
Quit

20

10

Yes

You can select an adapter only if the current status is “On”. Changes are only
possible with SCSI adapters that support NVRAM (non-volatile memory). Check
the “NvRAM Found” column to see if NVRAM is present on your adapter. If you
choose to alter any of these settings, exit via the Quit option and the system will
reboot.

Change Adapter Status - Allows you to activate or deactivate a host adapter and
all SCSI devices attached to it. The change takes place after a reboot, which is
automatic upon exit from the utility when this option is changed.

BIOS, Driver & Utility Guide

33

BUILT-IN SYMBIOS SCSI BIOS

Adapter Boot Order - Allows you to set the order in which host adapters will boot
when more than one Symbios host adapter is present in the system. To change an
adapter’s boot order, select it and press <Enter>. You are then prompted to enter
the new boot sequence number. When the adapters are ordered properly, press the
<Esc> key to exit this menu.

Boot Order

Port Irq ----------Status--------- NvRAM

Num Level Current Next-Boot Found
SYM53C860 FC00 9 On On Yes
SYM53C820 0 0 Off Off ?
SYM53C825 FD00 9 On On Yes
SYM53C815 FE00 10 On On No

Display Mode - Determines how much information about your host adapters and
SCSI devices is displayed on your computer monitor during boot:

• verbose: for more complete information

• terse: for a faster boot

Mono/Color - Allows you to choose between a black and white or color display for
the SCSI Configuration utility.

Language - English mode only.
Help - Brings up a help screen with information about the Main menu.
Quit - Exits the SCSI Configuration utility.

Adapter Utilities Menu

When you select a host adapter from the main menu, the following screen is
displayed:

SYM53C860

Adapter Setup
Device Selections
Help
Exit this menu

34

BIOS, Driver & Utility Guide

BUILT-IN SYMBIOS SCSI BIOS

• Adapter Setup: Adapter settings are viewed and changed.

SYM53C860
Adapter Setup

SCAM Support Off
Parity On
Host SCSI ID 7
Scan Order Low to High (0..Max)
Removable Media Support None
CHS Mapping SCSI Plug and Play Mapping
Spinup Delay (Secs) 2
Help
Restore Default Setup
Exit this menu

SCAM Support - SCAM (SCSI Configured AutoMatically) is the SCSI Plug and

Play protocol supported by Symbios BIOS version 4.X.

Parity - The Symbios host adapters always generate parity, but some SCSI devices

do not. Therefore, you are offered the option of disabling parity checking.

Note: When disabling parity checking, it is also necessary to disable disconnect for

all devices, as parity checking for the reselection phase will not be disabled. If
a device does not supporting parity disconnects, the I/O will never complete
because the reselection phase will halt.

Host SCSI ID - The host adapter SCSI ID should remain on 7 (default), as this

setting gives the adapter the highest priority on the SCSI bus. However, if you
have two adapters on the same SCSI bus, you should give one of them an
unassigned ID to avoid duplication of SCSI IDs.

Scan Order - This option allows you to tell the host adapter BIOS and your device

drivers to scan the SCSI bus from low to high (0 to max) SCSI IDs, or from
high to low (max to 0) SCSI IDs. If you have more than one device on the
SCSI bus, changing the scan order changes the order in which drive letters are
assigned by the system.

Removable Media Support - Determine if the removable media will be used as

BIOS device. A BIOS device here is a device that can be controlled via BIOS
INT 13H, i.e. it does not need a device driver and can be bootable. However,
when used as a BIOS device, the full removability of removable media devices
is not preserved. The following constraints apply:
a) The device can only work as a fixed disk, i.e. media change is not allowed.

BIOS, Driver & Utility Guide

35

BUILT-IN SYMBIOS SCSI BIOS

b) The media must be inserted before the system boot-up.
c) Only media with 512Bytes/sector is supported.

None The removable media devices will not be used as BIOS devices.
Boot Drive

Only
With Media

Installed

CHS Mapping – Cylinder, Head, Sector mapping. Options are “SCSI Plug and Play

Mapping” (default) and “Alternate CHS Mapping”.

Spinup Delay – 1-10 seconds. The default is a 2-second delay before the BIOS starts to

scan for SCSI devices during initialization. This amount of time is enough for most
devices to get ready for proper operation. Since some older hard drives may need more
time to spin up, you may need to extend the delay for those devices.

• Device Selections: Settings for the devices attached to the selected adapter are

viewed and changed.

SYM53C860

Devices 0 to 7

Sync Data Disc Time Scan Queue Init
Rate Width Out Bus LUNS Tags Boot

Dev0 N/A 20 8 On 10 Yes Yes On No
Dev1 N/A 20 8 On 10 Yes Yes On No

Dev2 N/A 20 8 On 10 Yes Yes On No
Dev3 N/A 20 8 On 10 Yes Yes On No
Dev4 N/A 20 8 On 10 Yes Yes On No
Dev5 N/A 20 8 On 10 Yes Yes On No
Dev6 N/A 20 8 On 10 Yes Yes On No
SYM53C860 20 8 On 10 Yes Yes On No
Devices 8 to15
Help
Exit this menu

The above menu provides information about individual SCSI devices attached
to the selected host adapter, as well as the adapter itself. To make changes to
these settings select a device from this display and press <Enter> to bring up
the individual Device Setup menu.

Allows only the removable media installed as Drive C: to work as a
BIOS device.

Enables all removable disk drives to work as BIOS devices.

36

BIOS, Driver & Utility Guide

BUILT-IN SYMBIOS SCSI BIOS

Device Setup Menu

When you select a specific device from the Device Selection menu, your computer
displays the following Device Setup menu. The settings in this menu effect
individual SCSI devices attached to the selected host adapter. Changes made from
this menu will require a system reboot upon exit from the SCSI Configuration
utility.

SYM53C860 Setup for All devices on this adapter

Sync Rate (MBytes/sec) 20
Width (bits) 8
Disconnect On
Read Write I/O Timeout (secs) 10
Scan for Device at Boot Time Yes
Scan for SCSI LUNS Yes
Queue Tags On
Initial Boot Device No
Format
Verify
Help
Restore Default Setup
Exit this menu

Sync Rate (Mega Bytes/sec) - Defines the maximum transfer rate the host adapter
attempts to negotiate. The host adapter and a SCSI device must agree to a rate they
can both handle.

Width (bits) - Sets the maximum data width the host adapter will attempt to
negotiate. The host adapter and a SCSI device must agree to a width they can both
handle. Only those host adapters that support 16 bit data transfers will show this
option as enabled.

Disconnect - SCSI devices have the ability to disconnect from the bus during an
I/O transfer. This option tells the host adapter whether or not to allow a device to
disconnect. Some devices run faster with disconnect enabled (mostly newer
devices), while some run faster with disconnect disabled (mostly older devices).

Read Write I/O Timeout (secs) - This option sets the time the host adapter waits
for a read, write, verify, or seek command to complete before trying the I/O
transfer again. Since this provides a safeguard allowing the system to recover if an
I/O operation fails, it is recommended that you always set the time-out to a value
greater than zero (no time-out).

BIOS, Driver & Utility Guide

37

BUILT-IN SYMBIOS SCSI BIOS

Scan for Device at Boot Time - When there is a device you do not wish to make
available to the system, set this option to No for that device. Also, on a bus with
only a few devices attached, you can speed up boot time by changing this setting to
No for unused SCSI IDs.

Scan for SCSI LUNs - You can set this option to No if you have problems with a
device that responds to all LUNs whether they are occupied or not.

Queue Tags - If your device driver can issue queue tags, this option allows you to
enable or disable the issuing of queue tags during I/O requests.

Format - Low level format the selected device. All information on the drive will be
erased.

Verify – This command is used to detect bad blocks on the chosen disk. With your
confirmation, the bad blocks detected can be reassigned for future operations. This
command is non-destructive, and therefore won’t destroy the data on the drive.

Since some changes only take effect after your system reboots, it is important that
you quit this Configuration utility properly. You should return to the Main Menu
and exit via the Quit option. If you reboot the system without properly exiting the
utility, some changes may not be saved.

Device Drivers

To function properly with different SCSI devices under different operating systems
you’ll need to install device drivers. The device driver information should be
available in your SCSI adapter’s package.

38

BIOS, Driver & Utility Guide

FLASH BIOS PROGRAMMING UTILITY

Updating the Award BIOS Code is made easy with the AWDFLASH Utility found
under the “Utilities” folder of the supplied CD-ROM. Since this mainboard
features FLASH BIOS, it is not necessary to change the actual BIOS chip in order
to upgrade the System BIOS. The user can simply re-program the old BIOS using
the AWDFLASH Utility as follows:

1. First, boot the system with DOS or to “Safe Mode” under Windows 95. If you
are booting DOS from a hard drive or floppy disk, press [F5] when the message
“Starting MS-DOS…” appears on the screen. If you are booting Windows 95,
press the [F8] key, and select the “Safe mode command prompt” option. This
will assure that the system is running in “real mode” with no device drivers
loaded. This is the only correct way to run the AWDFLASH Utility program.

2. There are (2) important files needed to re-program the BIOS. The first is
“AWDFLASH.EXE” which is the FLASH BIOS Programming Utility. The
second file needed is the updated “BIN” file which contains the actual BIOS
code. This file will have the extension [.bin], such as “P598GH.BIN”. Make
sure these files are on the diskette or hard drive in the same directory.

3. Start the AWDFLASH Utility by changing to the directory where the two
required files exist and typing: AWDFLASH and pressing [ENTER].

4. The AWDFLASH Utility Screen appears. You will be asked for the file name to
program. Type in the name of the new BIOS (.bin) file and hit [ENTER].

BIOS, Driver & Utility Guide

39

FLASH BIOS PROGRAMMING UTILITY

5. The program will then ask if you want to backup the old BIOS. This is
recommended in case there are any problems with the new “.bin” file. Enter the
name of the new backup file (such as “backup.bin”) and press [ENTER].

6. At this time the system will prompt you for final confirmation before beginning
programming. The Utility can be aborted at this time by hitting “n”. To begin
programming, hit “y”…

7. When the Flash programming starts, a bar indicator will show the progress of
the programming operation. After successful completion, hit the reset button or
power off the computer.

Be sure to perform “LOAD SETUP DEFAULTS” for your new BIOS to
synchronize the previous BIOS with the updated BIOS.

40

BIOS, Driver & Utility Guide

DMI UTILITY

This mainboard supports the Desktop Management Interface (DMI), which is a
new method of providing enterprise management for personal computers. The
main component of DMI is the Management Information Format Database (MIF),
which contains information about the computer system and its components, such as
BIOS version/vendor, CPU speed/type, memory size/type, L1/L2 cache, port
connectors (IDE, floppy, 2S/1P, USB, keyboard, mouse, ), slots … etc. Using DMI,
remote PC management software is able to obtain various information about the
system, including hardware profiles, capabilities, operational status, installation
dates, and other information about the system and its components.

This DMI utility, DMICFG.EXE found under the “Utilities” folder of the supplied
CD-ROM, allows you to add additional information, such as serial numbers,
vendor information, and enclosure/chassis configurations, into the MIF.

[Edit DMI] [Add DMI] [Load DMI FILE] [Save DMI FILE]

BIOS

System

Base Board

Enclosure/Chassis

Processor

Memory Controller

Memory Module
Memory Module
Memory Module
Memory Module
Memory Module
Memory Module
Memory Module
Memory Module

Cache

Cache
Port Connector
Port Connector
Port Connector
Port Connector

←← →→

↑↑ ↓↓

Move cursor Enter-Accept DEL-Delete ESC-Abort&Exit

=== Display component ===
Type : BIOS Information
Handle : 0000

Vendor Name : Award Software International, Inc.
BIOS Version : 4.51 PG
BIOS starting Address Segment : E000
BIOS Build Date : 08/26/98
BIOS Characteristics : Press [ENTER] for detail
Size of BIOS ROM : 0256K

Note: The DMI utility must be run in real mode without the EMM386 memory
manager loaded.

BIOS, Driver & Utility Guide

41

27-0M0686-45
