Eno scientific WS116 User Manual
STATIC WATER LEVEL MEASUREMENT
WS116
ANALOG OUTPUT
ADAPTER
USER MANUAL
www.enoscientific.com
Eno Scientific WS116 Analog Output Adapter Page 1
Eno Scientific
1606 Faucette Mill Rd
Hillsborough, NC 27278
USA
www.enoscientific.com
910-778-2660
Copyright Notice
Copyright © 2011 Eno Scientific, Hillsborough, NC 27278, USA.
All rights reserved.
Part number: 116-129
Eno Scientific WS116 Analog Output Adapter Page 2
WS116
ANALOG OUTPUT ADAPTER
USER MANUAL
TABLE OF CONTENTS
PRODUCT OVERVIEW.................................................................................................. 4
QUICK START GUIDE................................................................................................... 5
CAUTIONS:.................................................................................................................... 6
INSTALLATION.............................................................................................................. 7
WELL SOUNDER CONFIGURATION............................................................................ 9
FREQUENTLY ASKED QUESTIONS........................................................................... 10
SPECIFICATIONS........................................................................................................ 11
ADDITIONAL NOTES................................................................................................... 12
WARRANTY AND SERVICE........................................................................................ 13
Eno Scientific WS116 Analog Output Adapter Page 3
PRODUCT OVERVIEW
The WS116 Analog Output Adapter is an accessory for use with Eno Scientific's Well
Sounder instruments. The Well Sounders have the ability to provide user configurable
output signals for high alarm, low alarm or level indication. This adapter contains
circuitry to condition and make those outputs available for the user. The Analog Output
Adapter has the ability to provide an output from the well sounder as a 0-5 VDC
voltage level as well as a 4-20 mA current loop signal.
The adapter connects to the well sounder through the 8 pin mini-DIN probe connector.
This requires a probe splitter to enable use of the probe and output adapter at the
same time.
Eno Scientific WS116 Analog Output Adapter Page 4
QUICK START GUIDE
The output adapter is ready to go right out of the box.

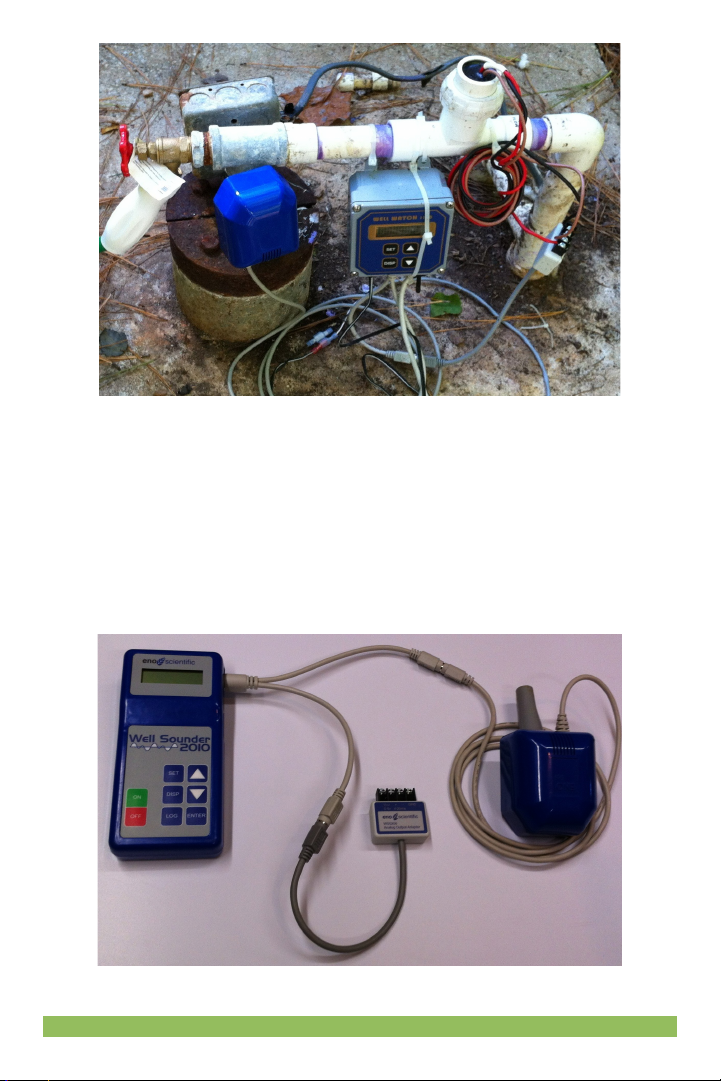

1. Attach the adapter to the well sounder. Remove the probe from the meter
and attach the probe splitter. Attach the probe to one of the connectors and
the output adapter to the other. Make sure that the plugs are fully inserted.

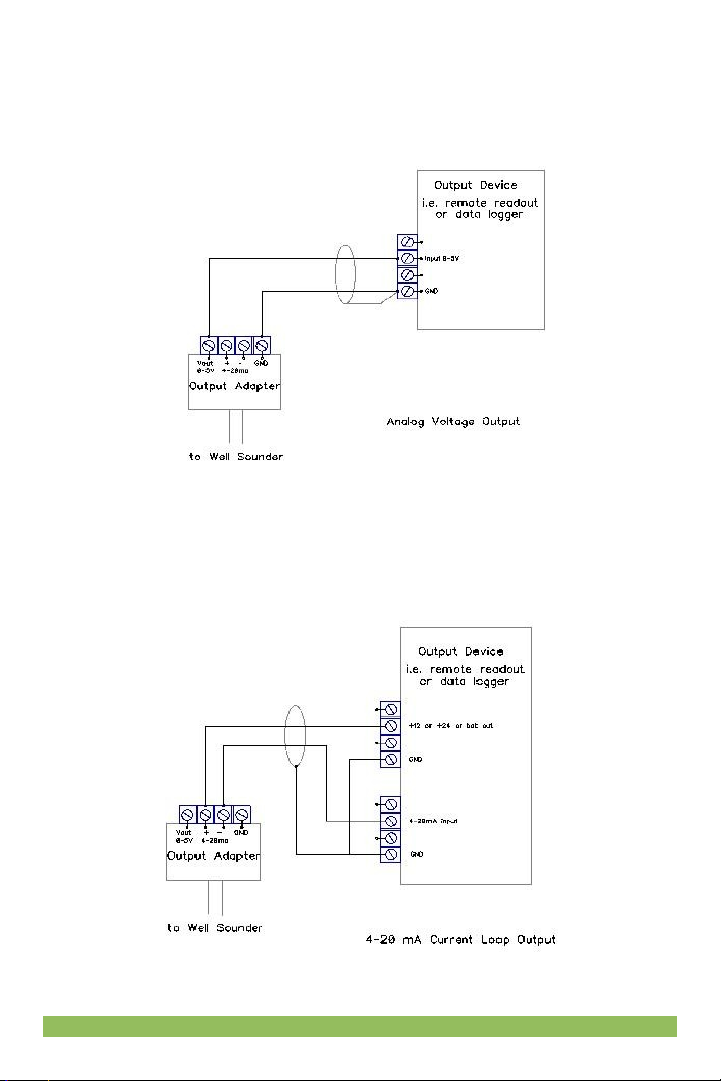

2. Attach the output wiring. Attach the output wires to the screw terminals on
the adapter, observing the polarities on the label. For a 0-5V output, use the
2 outside terminals, or for a 4-20ma current loop use the 2 inside terminals.
3. Set well sounder for output. Turn on the well sounder and press the SET
button repeatedly until the screen displays OUTPUT. Then press the
UP/DOWN buttons to select the output desired. Then press SET again to set
parameters for the selcted output type.
Eno Scientific WS116 Analog Output Adapter Page 5
