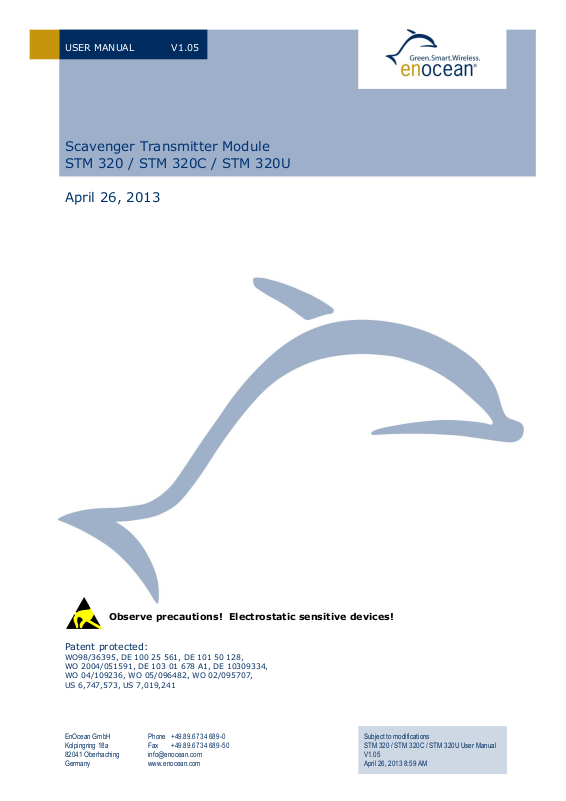

EnOcean STM320U Users Manual

USER MANUAL V1.05

EnOcean GmbH Kolpingring 18a 82041 Oberhaching Germany

Phone +49.89.67 34 689-0 Fax +49.89.67 34 689-50 info@enocean.com www.enocean.com

Subject to modifications STM 320 / STM 320C / STM 320U User Manual V1.05 April 26, 2013 8:59 AM

Observe precautions! Electrostatic sensitive devices!

Scavenger Transmitter Module STM 320 / STM 320C / STM 320U

April 26, 2013

Patent protected:

WO98/36395, DE 100 25 561, DE 101 50 128, WO 2004/051591, DE 103 01 678 A1, DE 10309334, WO 04/109236, WO 05/096482, WO 02/095707, US 6,747,573, US 7,019,241

USER MANUAL V1.05

STM 320 / STM 320C / STM 320U

No

Major Changes

0.5

Initial version

0.90

New drawings added; new energy consumption data added; application note for connecting an external battery added; Agency certifications added; new charging circuitry added; editorial changes

0.95

Editorial changes

0.99

Pin for connection of backup battery changed; section 3.4 inserted; drawings updated

1.00

Drawing updated

1.02

Remark added in 3.4; additional remarks in 2.4; label information modified in chapter 5; Shelf life added in 1.4; Conducted output power replaced by radiated output power in 1.2; other editorial changes

1.03

Duration of a sub-telegram corrected to 0.9ms in 2.3;

1.04

Specification of shelf life improved. Chapter Related Documents added

1.05

STM 320U added

REVISION HISTORY

The following major modifications and improvements have been made to the first version of this document:

Published by EnOcean GmbH, Kolpingring 18a, 82041 Oberhaching, Germany www.enocean.com, info@enocean.com, phone ++49 (89) 6734 6890

Important!

This information describes the type of component and shall not be considered as assured characteristics. No responsibility is assumed for possible omissions or inaccuracies. Circuitry and specifications are subject to change without notice. For the latest product specifications, refer to the EnOcean website: http://www.enocean.com. As far as patents or other rights of third parties are concerned, liability is only assumed for modules, not for the described applications, processes and circuits. EnOcean does not assume responsibility for use of modules described and limits its liability to the replacement of modules determined to be defective due to workmanship. Devices or systems containing RF components must meet the essential requirements of the local legal authorities. The modules must not be used in any relation with equipment that supports, directly or indirectly, human health or life or with applications that can result in danger for people, animals or real value. Components of the modules are considered and should be disposed of as hazardous waste. Local government regulations are to be observed. Packing: Please use the recycling operators known to you.

USER MANUAL V1.05

STM 320 / STM 320C / STM 320U

TABLE OF CONTENT

1 RELATED DOCUMENTS ................................................................................... 4

2 GENERAL DESCRIPTION ................................................................................. 4

2.1 Basic functionality ......................................................................................... 4

2.2 Technical data ............................................................................................... 4

2.3 Physical dimensions ....................................................................................... 5

2.4 Environmental conditions ............................................................................... 7

2.5 Ordering Information ..................................................................................... 7

3 FUNCTIONAL DESCRIPTION ............................................................................ 8

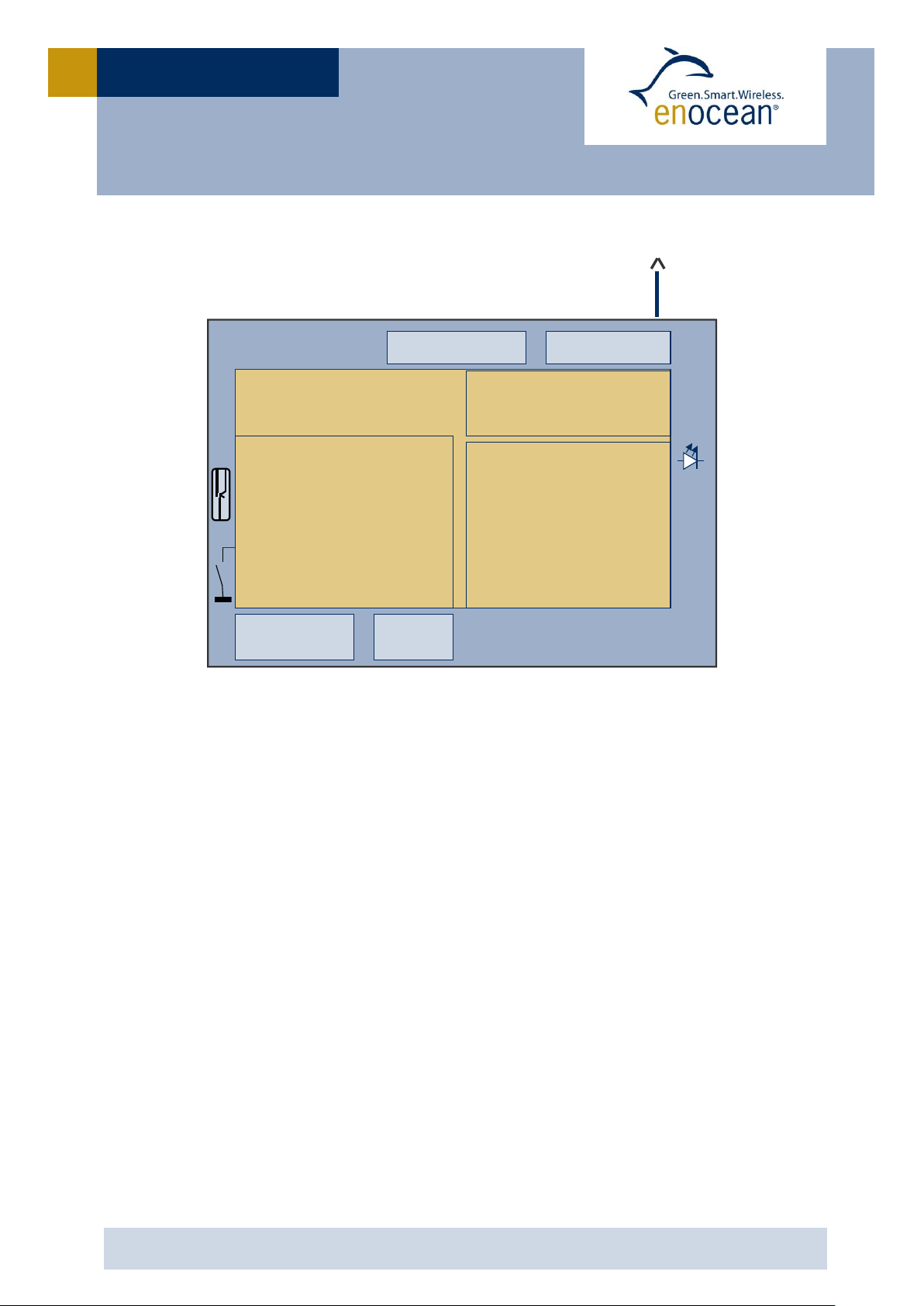

3.1 Block diagram ............................................................................................... 8

3.2 Radio telegram .............................................................................................. 8

3.3 Transmit timing ............................................................................................. 8

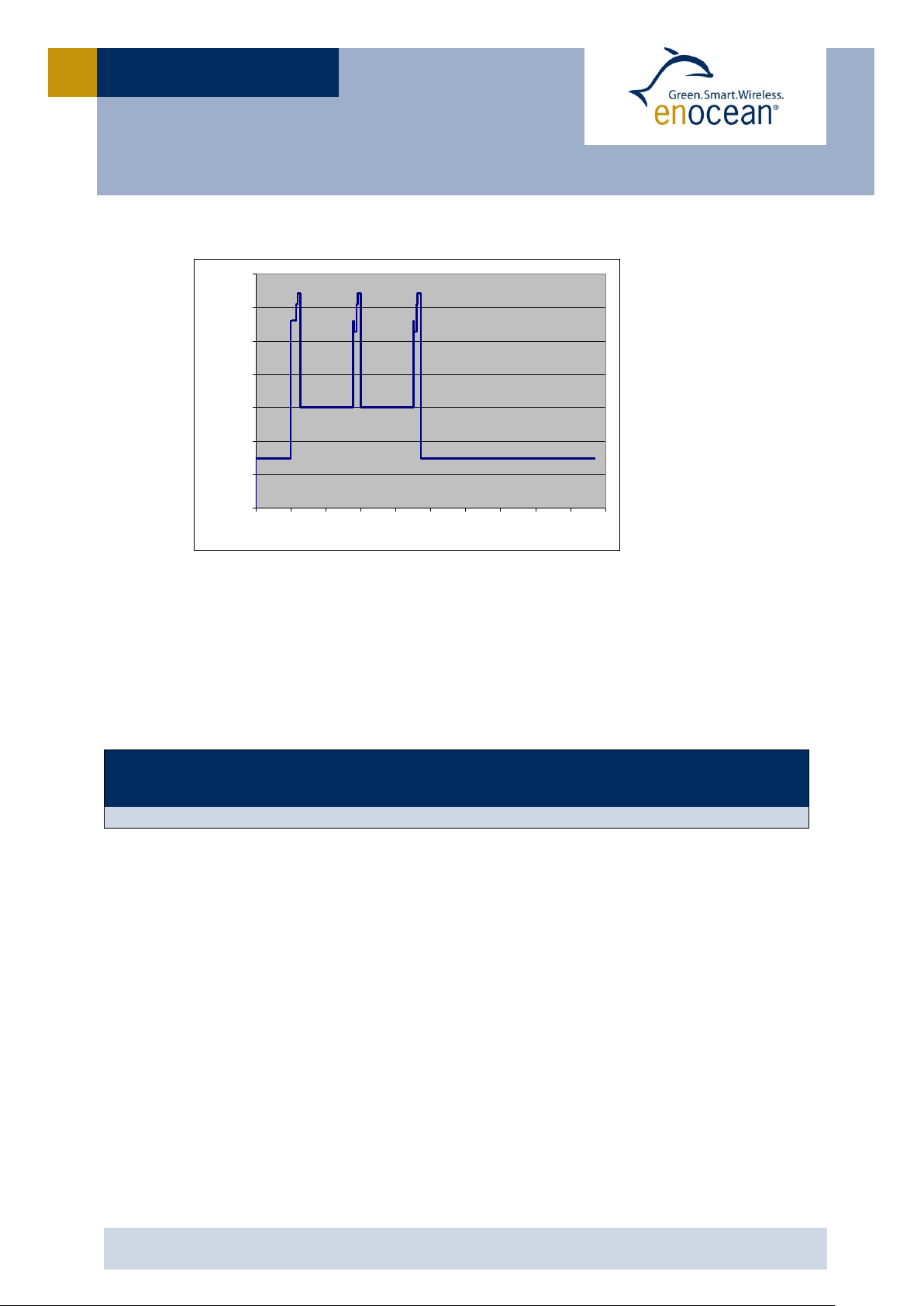

3.4 Energy consumption ...................................................................................... 9

4 APPLICATIONS INFORMATION ....................................................................... 10

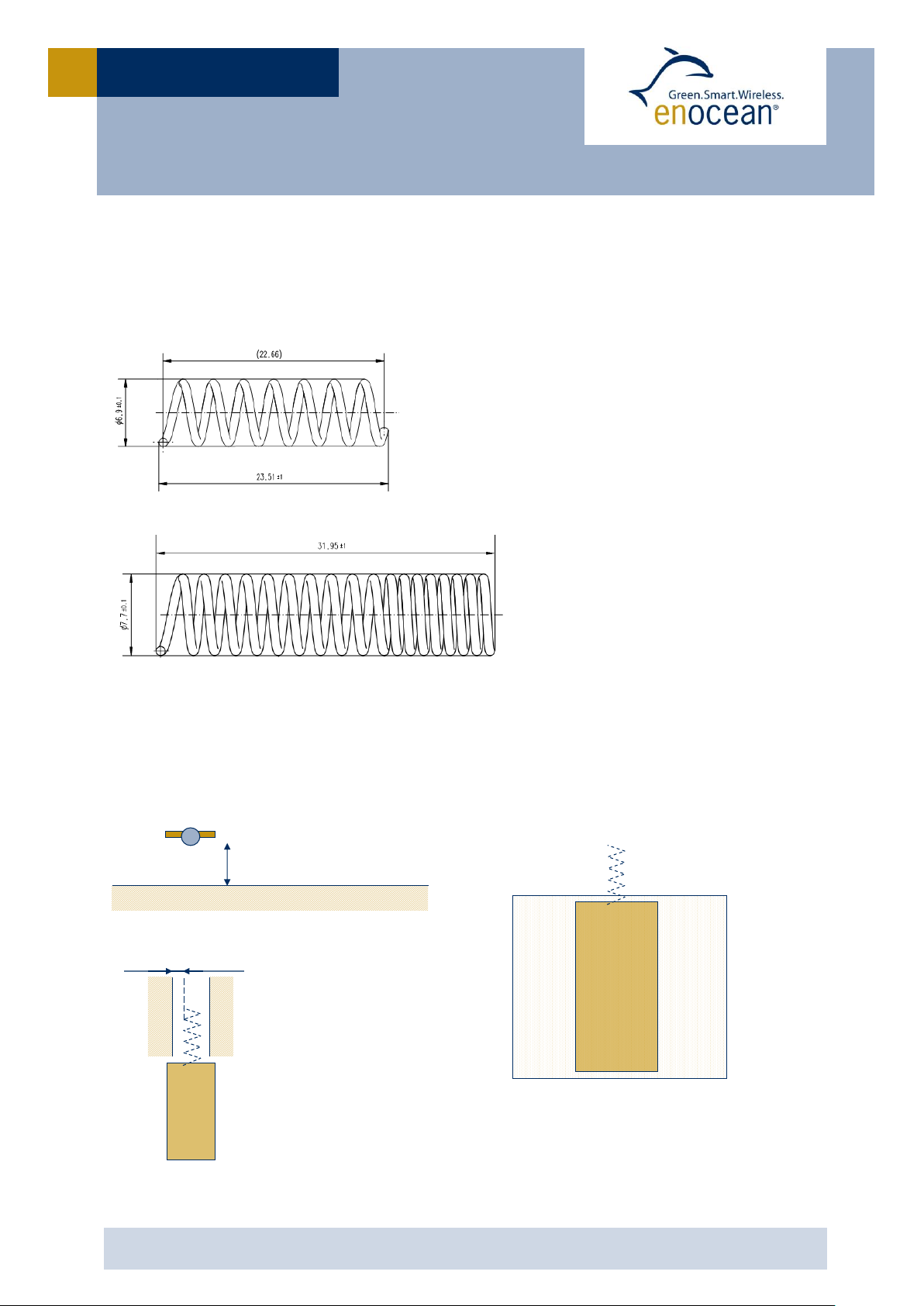

4.1 Helical antenna ........................................................................................... 10

4.2 Transmission range ..................................................................................... 11

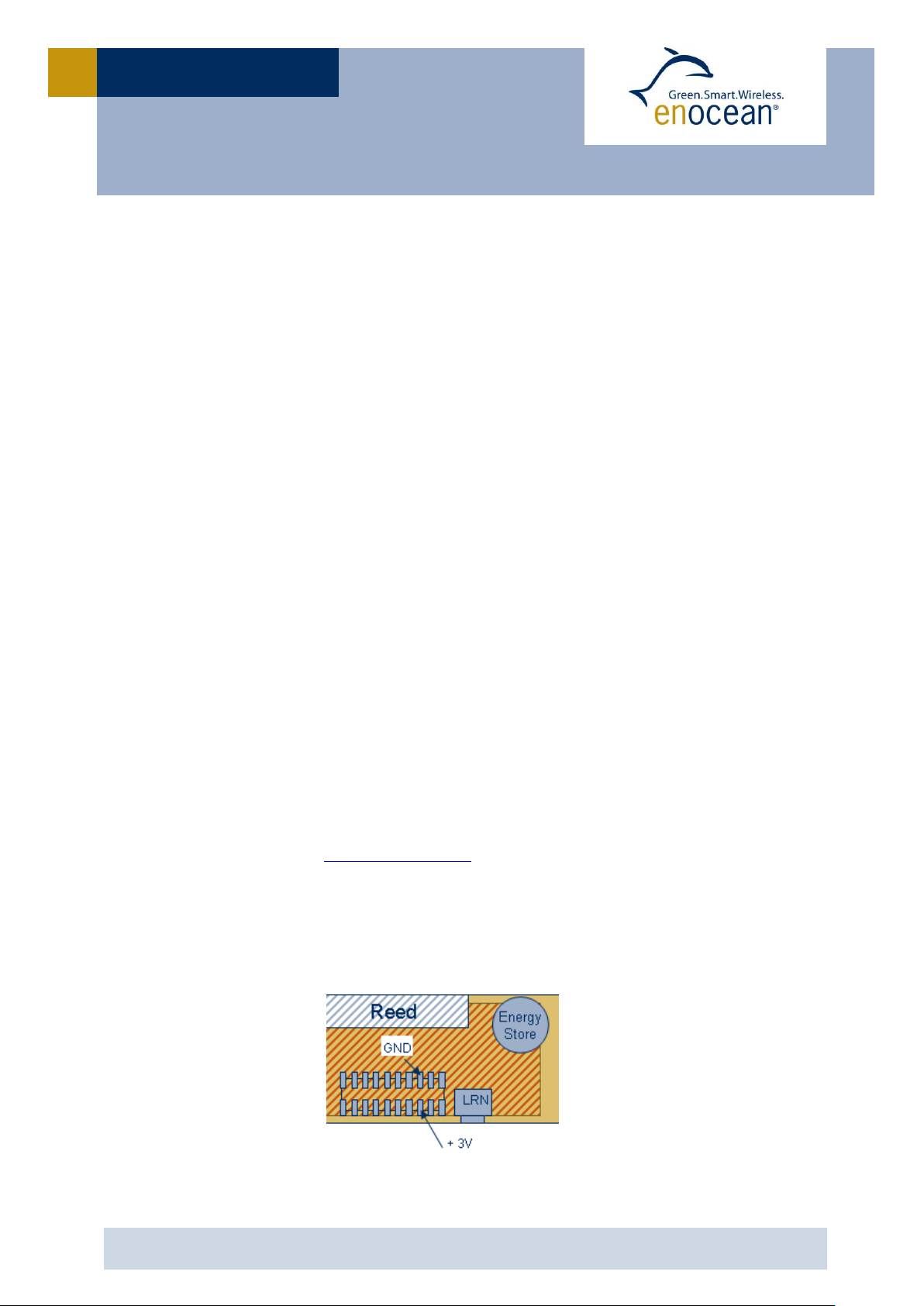

4.3 Connecting an external backup battery .......................................................... 11

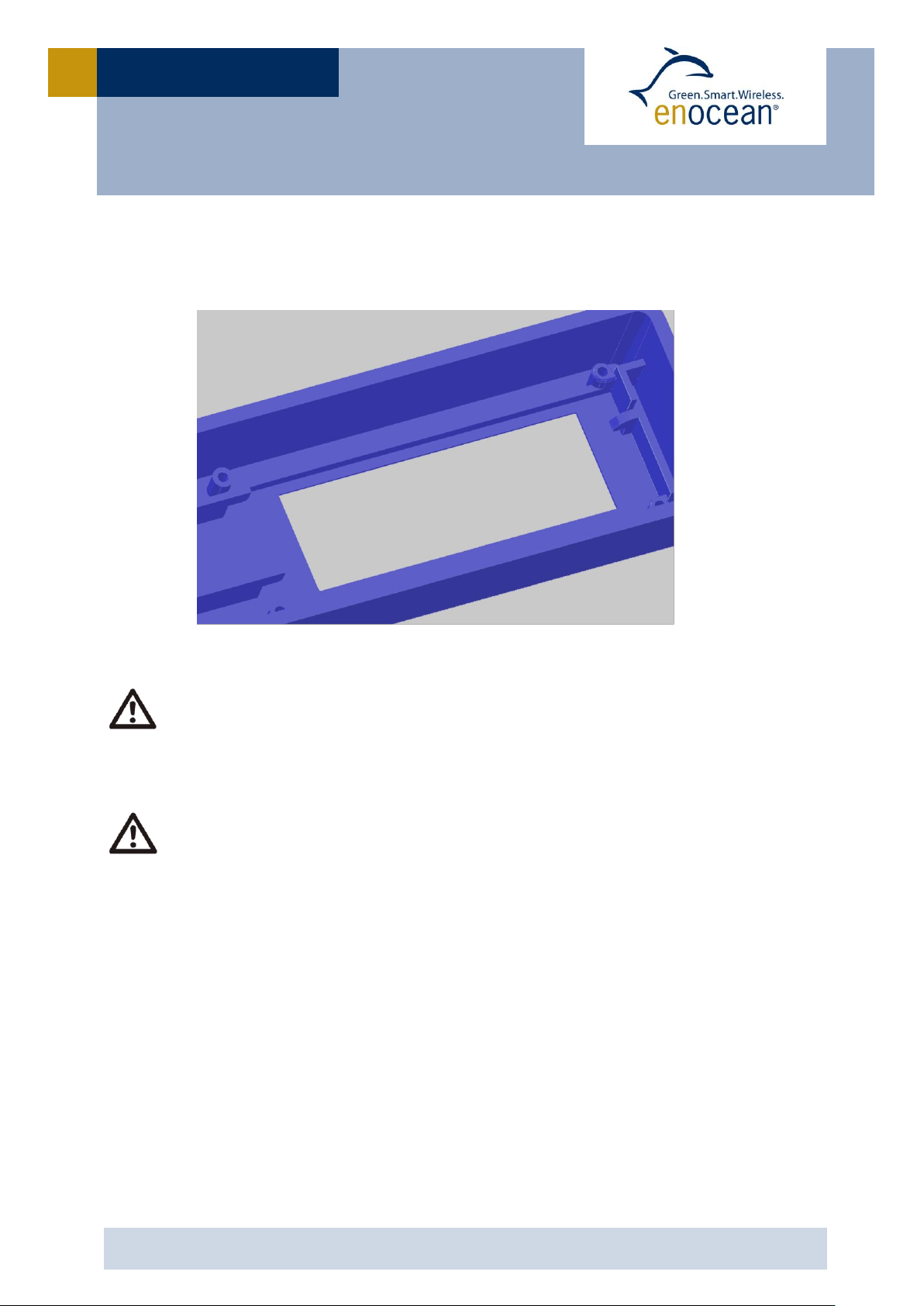

4.4 Mounting STM 320 into a housing .................................................................. 12

5 AGENCY CERTIFICATIONS ............................................................................ 13

5.1 CE Approval ................................................................................................ 13

5.2 FCC (United States) certification .................................................................... 14

5.3 IC (Industry Canada) certification .................................................................. 16

5.4 FCC Regulatory Statements ......................................................................... 17

5.5 Industry Canada Regulatory Statements ........................................................ 17

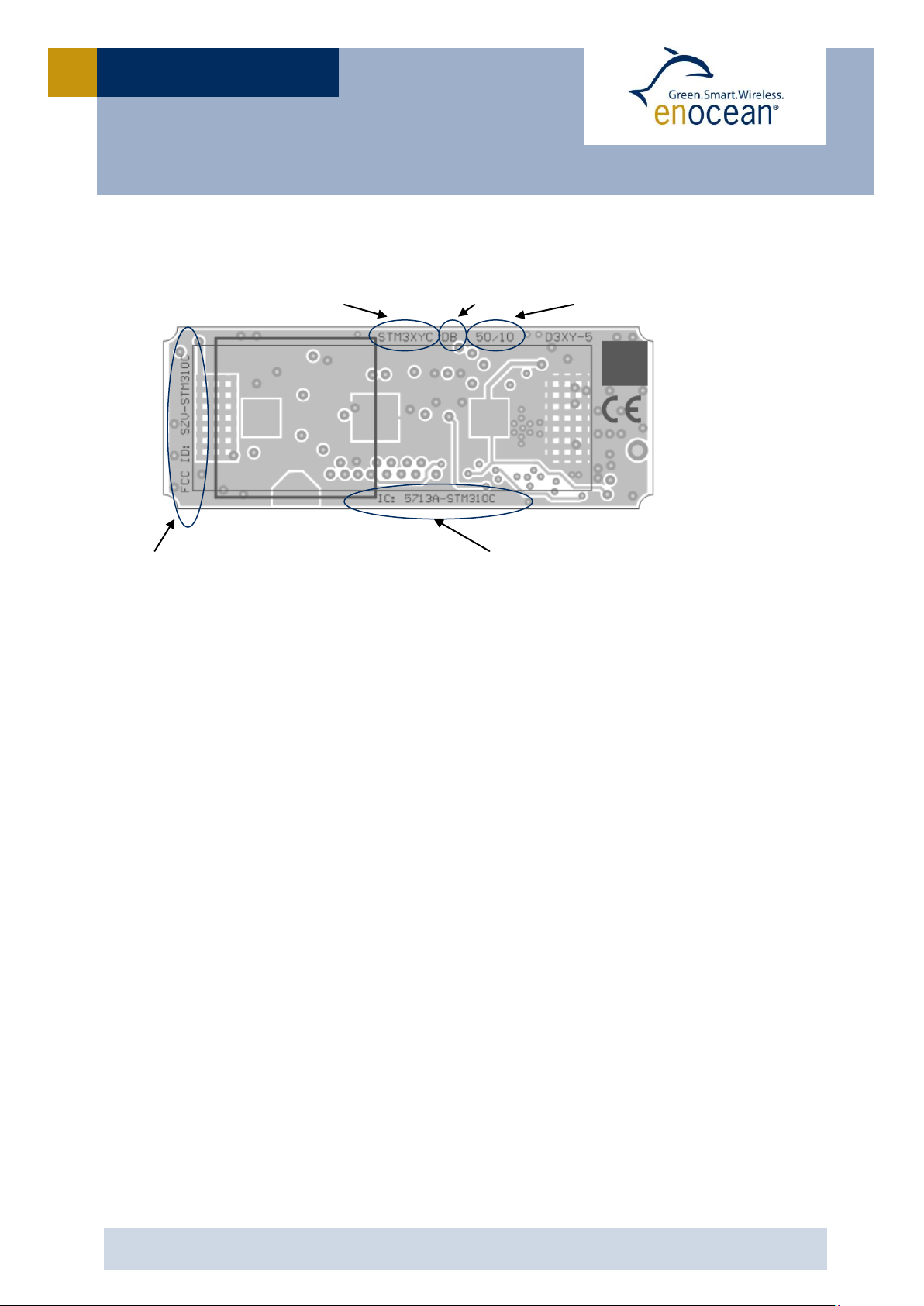

6 Label Information ........................................................................................ 18

USER MANUAL V1.05

STM 320 / STM 320C / STM 320U

Antenna

Pre-installed helical antenna installed

Frequency

315.0 MHz (STM 320C)

868.3 MHz (STM 320)

902.875MHz (STM 320U)

Radio Standard

EnOcean 902MHz/868 MHz/315 MHz

Data rate/Modulation type

125 kbps/ASK(868MHz, 315MHz) FSK(902MHz)

Radiated Output Power

STM 320: +5 dBm1 (EIRP) ± 2.5 dB2

STM 320C: +92 dBµV/m1 ± 2 dB2 STM 320U: +99 dBµV/m1 ± 2 dB2

Power Supply

Pre-installed solar cell

Illumination 50-100000 lux

Initial operation time in darkness @ 25°C

typ. 6 days, min 90 hours

if energy storage fully charged

transmission of telegram every 25 min on average

3

1 RELATED DOCUMENTS

For mechanical integration please refer to our 3D drawings found at

http://www.enocean.com/en/enocean_modules/stm-320/

2 GENERAL DESCRIPTION

2.1 Basic functionality

The radio transmitter module STM 320 from EnOcean enables the implementation of a wireless magnet contact sensor. Powered by a solar cell, it works absolutely maintenance-free. An integrated energy store allows operation for several days even in total darkness. Key applications are window and door sensors. The STM 320 supervises an integrated reed contact and reports every status change immediately (open <> closed). In addition a sign of life signal is transmitted every 20-30 minutes. A LRN button is pre-installed on the PCB. When this button is pressed a special teach-in signal is sent. There are three frequency variants – STM 320 in 868 MHz, STM 320C in 315 MHz, and STM 320U in 902MHz.

Features with built-in firmware

 Pre-installed solar cell  On-board energy storage and charging circuit  On-board LRN button  On-board TX indicator LED  On-board reed contact

2.2 Technical data

1

Measured in test laboratory, measurement uncertainty 2.7 dB

2

Tolerance of measurement in production at 50 Ω

USER MANUAL V1.05

STM 320 / STM 320C / STM 320U

Operation start up time with empty energy store

typ. 2.5 min @ 400 lux / 25°C

incandescent or fluorescent light

Reed contact

1x internal, Meder MK23-90-BV14496 or MK01-I

Radio Regulations

R&TTE EN 300 220 (STM 320)

FCC CFR-47 Part 15 (STM 320C, STM 320U)

PCB dimensions 43±0.2 x 16±0.3 x 1±0.1 mm

Module height 6 mm

Weight 5.2 g (STM 320), 6.5 g (STM 320C), 5.2 g (STM 320U)

2.3 Physical dimensions

3

Full performance of the PAS614L energy storage is achieved after several days of operation (up to two weeks) at good illumination level. Performance degrades over life time, especially if energy storage is exposed to higher temperatures. Each 10 K drop in temperature doubles the expected life span.

USER MANUAL V1.05

STM 320 / STM 320C / STM 320U

STM 320 / STM 320U

STM 320C
