1. GENERAL DESCRIPTION
The radio transmitter device PTM 200 from EnOcean enables the implementation of
wireless remote controls without batteries. Power is provided by a built-in electrodynamic power generator.
The PTM 200 device serves the 868 MHz air interface protocol of EnOcean. Together with the
receiver devices RCM 110 or RCM 120, this device can be easily integrated in operation and
control units for the implementation of different application-specific system solutions.
(1) Energy bow
on both device sides
(2) Contact nipples
for switch rocker
identification
Rotation axis for
pushbuttons or
switch rocker
Figure 1: Piezo-radio transmitter device PTM 200
1.1 Functional Principle
A common electro-dynamic energy transducer is actuated by a bow (1), which can be pushed
from outside the device on the left or right by an appropriate pushbutton or switch rocker.
When the energy bow is pushed down, electrical energy is created and an RF telegram is
transmitted including a 32-bit device ID. Releasing the energy bow generates different
telegram data, so every PTM telegram contains the information that the bow was pressed or
released.
“Long” or “Short” pushbutton operation (the time between pushing and releasing
the pushbutton) can be easily detected by the receiver. By doing that, applications
such as dimming control or jalousie control including slat action are simple to
implement.
In addition, the PTM telegram transmits the operating status of the contact nipples (2) when
activating the bow. This enables the identification of up to 2 appropriate switch rockers or up
to 4 pushbuttons.
©EnOcean GmbH, A. Anders
Page 4 of 22
PTM 200 User Manual V1.1
1.2 Typical Applications
• Building installation
• Industrial automation
• Consumer electronics
Key applications are wall-mounted flat rocker switches with 1 or 2 rockers (with medial
position), as well as handheld remote controls with up to 4 single pushbuttons.
The PTM 200 device is part of a powerful RF system solution from EnOcean for operation and
control applications. Because the RF transmitters are self-powered (no batteries),
maintenance-free RF systems are possible. The RCM devices operate together with the
following additional EnOcean components: RCM (general-purpose radio receivers), STM (solarpowered wireless sensors), CTM (remote control) and TCM (bi-directional IT interface and
repeater).
1.3 Features Overview
Power supply: ......................................................... power generation by rocker pressing
(Electro-dynamic Power Generator)
Frequency:...................................................................................................868.3 MHz
Transmission power:................................................................................. max. 10 mW
Modulation type:...................................................................................................ASK
Data rate: ......................................................................................................120 kbps
Channel bandwidth:........................................................................................280 kHz
Antenna:...................................................................................................... integrated
Transmission range: ................................................................approx. 300 m free field
Telegram packet length (sub-telegram):................................................ 0.9 ms +/-5%

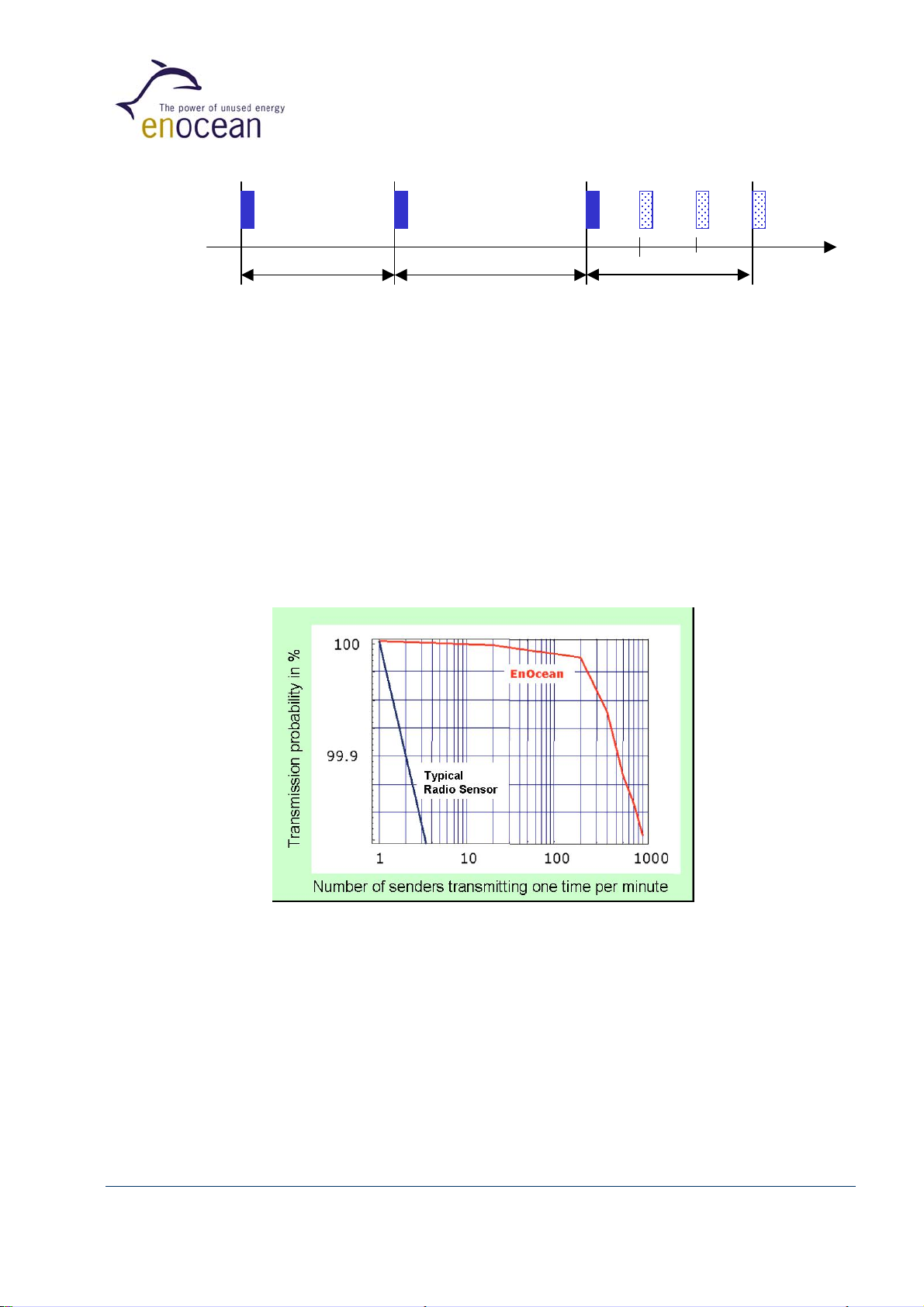

No. of (redundant) packets:....................................................... 3 within approx. 40 ms
Number of channels:................................................ 2 channels with 4 action states each
(upper/lower contact nipple is pressed/released)
Telegram type: ........................................................................................RPS of type 2
(allows interpretation of operating two buttons simultaneously)
Device identifier: ............................................ individual 32-bit ID (factory programmed)
©EnOcean GmbH, A. Anders
Page 5 of 22
PTM 200 User Manual V1.1
1.4 Mechanical Interface
Device dimensions: ................................................................... 40.0 x 40.0 x 11.2 mm
Device weight: ..................................................................................................... tbd.
Energy bow travel / operating force: .................................... 1.5 mm / 5.0 N ± 20% *)
Tapping rod travel / operating force: ...............................................................tbd. *)
*) at room temperature
Number of operations:........ > 50.000 actuations tested according to VDE 0632 / EN 60669
Cover material:.................................................................................. Hostaform (POM)
Energy bow material:........................................................................................... tbd.
Color of device:............................................................................ RAL 9002 (light gray)
Figure 2: PTM 200, tilted view (including rocker catwalks)
©EnOcean GmbH, A. Anders
Page 6 of 22
PTM 200 User Manual V1.1
1) Catwalks are not needed when using one rocker only

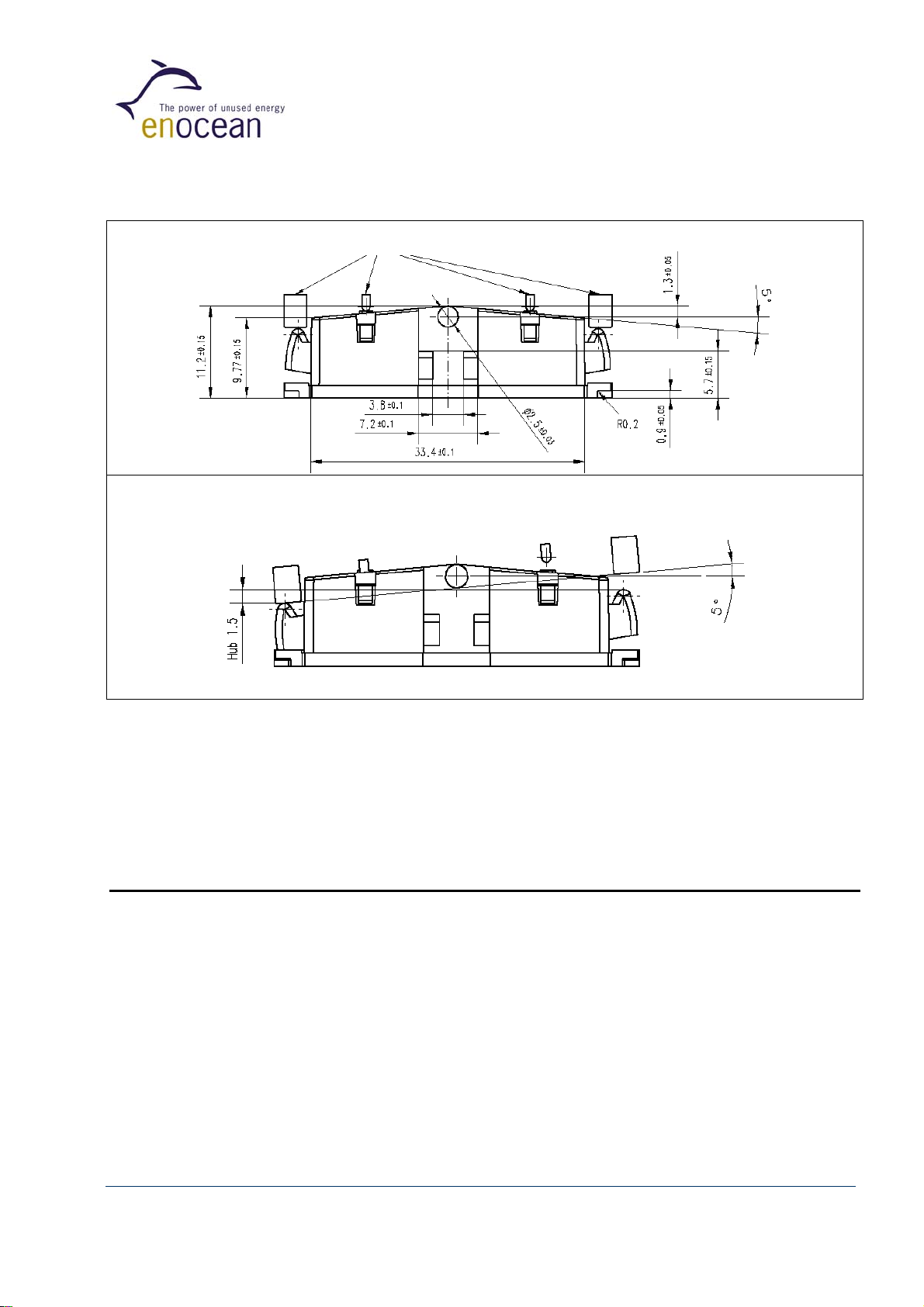

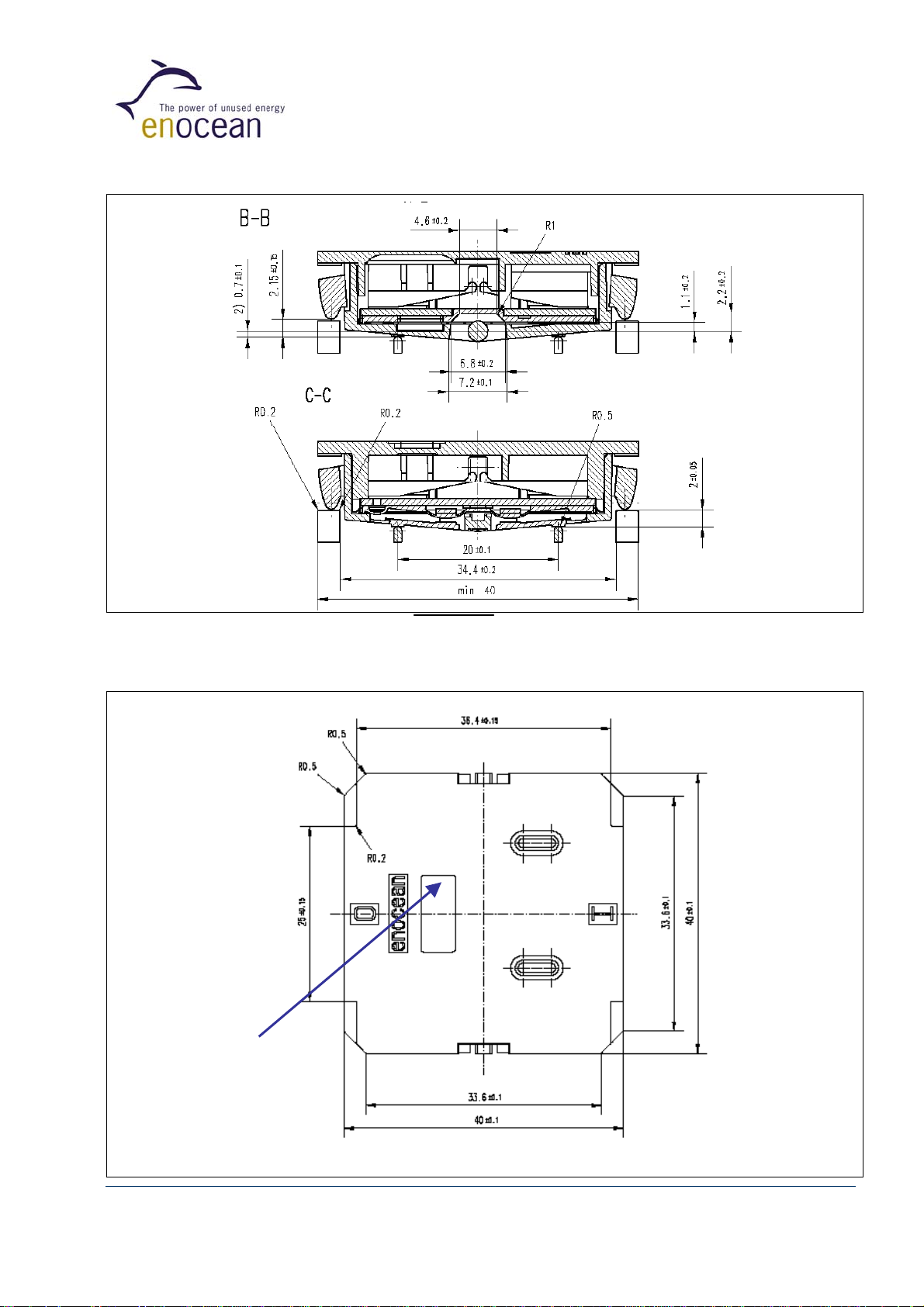

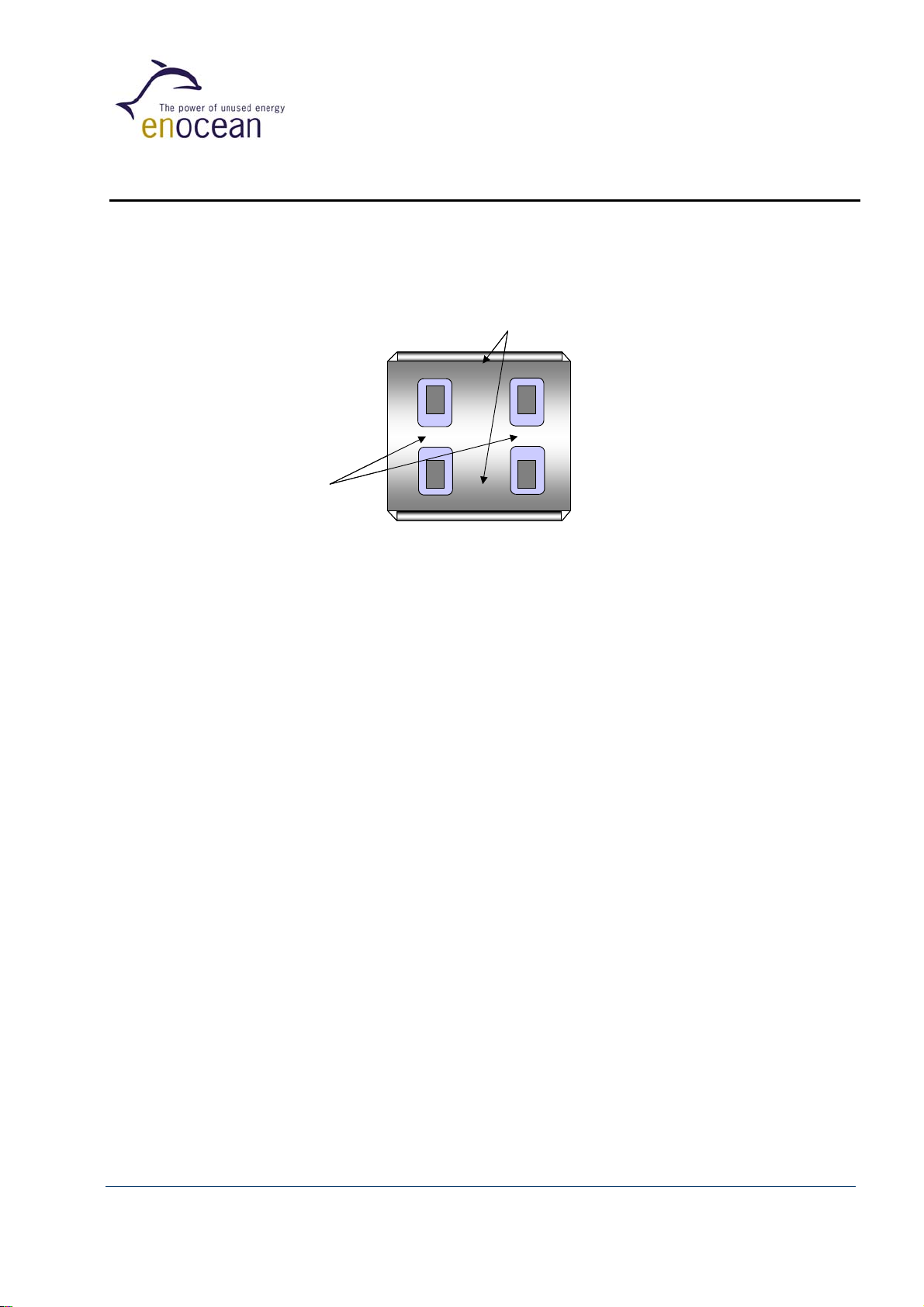

Figure 3: PTM 200, top view (note cut A, B and C marking)
©EnOcean GmbH, A. Anders
Page 7 of 22
PTM 200 User Manual V1.1
