ENMET
PO Box 979
Ann Arbor, MI 48106-0979
www.enmet.com
LC-SERIES CONTROLLER
1
thru
4 CHANNEL
Manual
Manual Part Number
80003-050
September 2014
Table of Contents
1.0 INTRODUCTION................................................................................................................................................................ 1
1.1 UNPACK .............................................................................................................................................................................. 1
1.2 CHECK ORDER .................................................................................................................................................................... 1
1.3 SERIAL NUMBERS ............................................................................................................................................................... 1
2.0 FEATURES .......................................................................................................................................................................... 2
2.1 FRONT PANEL FEATURES ..................................................................................................................................................... 2
2.0 INSTALLATION .................................................................................................................................................................... 3
3.0 WIRING THE LC SERIES ................................................................................................................................................ 5
3.1 SYSTEM WIRING ................................................................................................................................................................. 5
3.1.1 Power Supply Module ................................................................................................................................................. 6
3.1.3 Connections LC1 ........................................................................................................................................................ 7
3.1.4 Connections LC2 ........................................................................................................................................................ 8
3.1.5 Connections LC4 ........................................................................................................................................................ 9
3.2 SENSOR TRANSMITTER INSTALLATION ............................................................................................................................. 10
3.2.1 Example 2 Wire Sensor Transmitter ......................................................................................................................... 10
3.2.2 Example 3 Wire Sensor Transmitter ......................................................................................................................... 10
4.0 OPERATION ..................................................................................................................................................................... 11
4.1 LC-SERIES MICROCONTROLLER MODULE ........................................................................................................................ 11
4.3 ANALOGUE OUTPUT CONFIGURATION .............................................................................................................................. 13
4.3.1 4-20mA Current Source ..................................................................................................................................... 13
4.3.2 4-20mA Current Sink ......................................................................................................................................... 14
4.3.3 1-5V Voltage Output ................................................................................................................................................. 15
5.0 MAINTENANCE ............................................................................................................................................................... 16
6.0 TECHNICAL DATA AND SPECIFICATIONS ............................................................................................................. 17
7.0 WARRANTY ..................................................................................................................................................................... 20
List of Illustrations
FIGURE 1: LC SERIES FRONT PANEL FEATURES ........................................................................................................... 2
FIGURE 2: MOUNTING LC SERIES ................................................................................................................................. 4
LC SERIES ENMET
1.0 Introduction
The LC Series Control Units that provide facilities to monitor a wide variety of industry standard environmental and other
sensors.
The LC1 provides 1 monitoring channel.
The LC2 provides up to 2 monitoring channels.
The LC4 provides up to 4 monitoring channels.
The LC-Series Controller has been designed to allow the use of any ENMET sensor transmitter and has been
preprogrammed to match the sensor transmitters supplied at time of delivery. The LC-Series can also be used with any
manufactures sensor transmitter that can produce a voltage or current output within a specified range; however it is advisable
that you contact ENMET for proper setup and programming instructions.
Care has been taken with the design of the MCU housings and internal chassis to facilitate ease of connection and wire
termination. All on-site wiring to the system is via screw terminal connectors. The terminal cover has an internal label giving
details of the external connections.
NOTE: All specifications stated in this manual may change without notice.
1.1 Unpack
Unpack the LC SERIES and examine it for shipping damage. If such damage is observed, notify both ENMET customer
service personnel and the commercial carrier involved immediately.
Regarding Damaged Shipments
NOTE: It is your responsibility to follow these instructions. If they are not followed, the carrier will not honor
any claims for damage.
This shipment was carefully inspected, verified and properly packaged at our company and delivered to the carrier in
good condition.
When it was picked up by the carrier at ENMET, it legally became your company’s property.
If your shipment arrives damaged:
Keep the items, packing material, and carton “As Is.” Within 5 days of receipt, notify the carrier’s local office and
request immediate inspection of the carton and the contents.
After the inspection and after you have received written acknowledgment of the damage from the carrier, contact
ENMET Customer Service for return authorization and further instructions. Have your Purchase Order and Sales
Order numbers available.
ENMET either repairs or replaces damaged equipment and invoices the carrier to the extent of the liability coverage,
usually $100.00. Repair or replacement charges above that value are your company’s responsibility.
The shipping company may offer optional insurance coverage. ENMET only insures shipments with the shipping
company when asked to do so in writing by our customer. If you need your shipments insured, please forward a written
request to ENMET Customer Service.
Regarding Shortages
If there are any shortages or questions regarding this shipment, please notify ENMET Customer Service within 5 days of
receipt at the following address:
ENMET
680 Fairfield Court
Ann Arbor, MI 48108
734-761-1270 734-761-3220 Fax
1.2 Check Order
Check, the contents of the shipment against the purchase order. Verify that the LC SERIES is received as ordered. Each LC
Series Control Unit is labeled with its target gas. If there are accessories on the order, ascertain that they are present. Check the
contents of calibration kits. Notify ENMET customer service personnel of any discrepancy immediately.
1.3 Serial Numbers
Each LC SERIES is serialized. These numbers are on tags on the equipment and are on record in an ENMET database.
1
LC SERIES ENMET
2.0 Features
The LC-Series Controller houses all of the components required to implement a sophisticated and reliable monitoring
system (alarm relays etc). See Figure 1 for location of features:

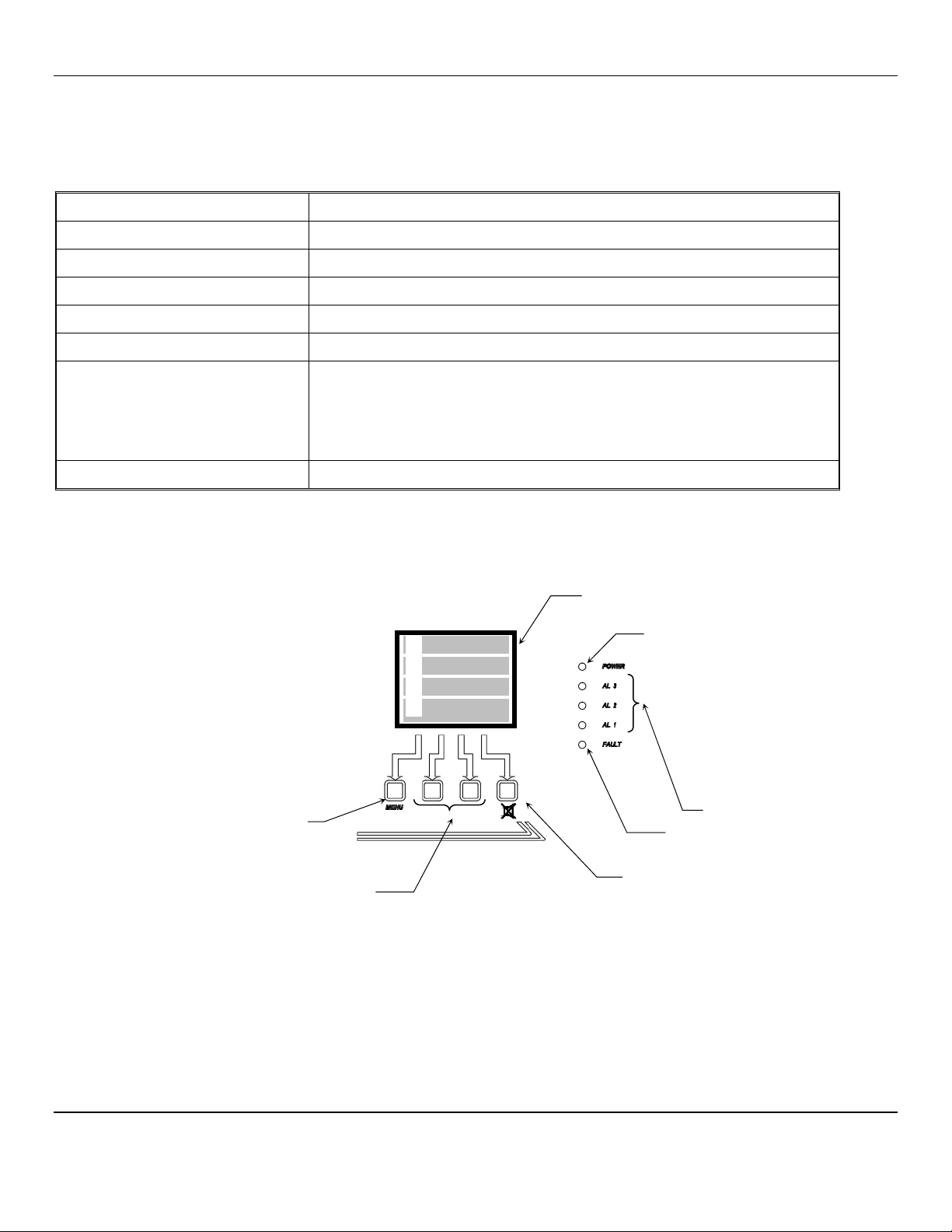

2.1 Front panel features
See Figure 1 for location of features.
LED Description
Power
AL3
AL2
AL1
Fault
Keypad Buttons, 4
2 as indicated in figure 1 that are
used during normal operation and 2
that are used during setup and
programming
Display
Green LED for Power
Red LED indication of Alarm Level 3
Red LED indication of Alarm Level 2
Red LED indication of Alarm Level 1
Yellow LED, Lower most, indication of Fault Condition
Menu – Main Select Switch
Increase – Menu Option, used in setup & programming
Decrease – Change Switch, used in setup & programming
Alarm Acknowledgment – Horn Defect Switch
Graphic display simultaneously showing reading for each channel and sensor type
An Audible signal is also provided by a sounder mounted within Microcontroller module. This provides a local audible tone
during alarm or conditions.
Display
C1 60 %LEL CH4
Power LED
C2 0.0 %v/v CO2
C3 20.9 %v/v O2
C4 0.0 PPM CL2
Menu Switch
Alarm 1, 2 & 3 LED
Fault LED
Increase & Decrease Switches
Alarm Acknowledgment Switch
Figure 1: LC Series Front Panel Features
2
LC SERIES ENMET
2.0 Installation
The LC-Series Controller is fully tested prior to delivery. However it is recommended that the LC-Series Controller
system be checked after installation is complete.
Caution: The MCU Control Units and associated modules contain no user serviceable parts. Refer all servicing to qualified
service personnel
The LC series control units
potentially explosive gas
Either a 100-240VAC 50/60 Hz supply or a 24V DC supply can be us ed to power the control unit
The location of installation should be chosen with regard to the following:
This equipment should not be located near to known sources of heat.
Operating personnel should be within convenient reach of the equipment and within audible distance of alarms
Maximum loop lengths of cable runs and cable inductance to resistance ratios must not exceed limits shown in the relevant
loop diagrams
Avoid mounting this equipment near potential sources of electrical interference e.g. motors, switch gear, radio transmitters
etc.
Mounting details for the LC Controller enclosures are located below:
must be mounted in a non-hazardous location where there is no risk of the presence of
4.585
[116.4]
7.656
[194.4]
5.26
7.39
[188]
6.30
[160.0]
.38
[9.6]
2.968
[75.4]
5.937
[150.8]
11.02
[280]
LC-1 CONTROL UNIT
8.58
[218.0]
[134]
6.14
[156]
[10.0]
.39
4.764
[121.0]
9.528
[242.0]
LC-2 Control Unit
3
LC SERIES ENMET
LC-4 Control Unit
Figure 2: Mounting LC Series
4
LC SERIES ENMET
3.0 Wiring the LC Series
The electrical installation should conform to appropriate electrical codes, such as the National Electrical Code in the United
States.
WARNING: The compliance of the installation to appropriate codes is not ENMET’s responsibility.
3.1 System Wiring
All connections should be made according to the appropriate sensor or loop diagram for the configuration required. It is advised
that ‘Bootlace Ferrules’ or ‘flat blade crimps’ be used for tidy and reliable connections of wires into the Control Unit and
Detector Head connectors
Power Supply Input
An isolating switch should be provided between the power source and the MCU control units to allow the supply to be easily
disconnected. This should incorporate over current protection or a circuit breaker. Alternatively a fused supply would suffice
AC Mains Connection
The power supply board has three screw terminals connector assigned for the connection of an AC supply.
Pin 1 = Earth
Pin 2 = Live input
Pin 3 = Neutral input
Recommendation for mains input cable. 3-Core – 16 AWG Conductors having cross sectional area of 0.75mm
(24/0.2)
DC Voltage Connection
The power supply board has two screw terminals assigned for the connection of a DC supply
Pin 4 = +24V DC input
Pin 5 = 0V DC input
Cable Routing
Due to the low signal levels generated by gas detectors it is recommended that all wiring to the sensors by segregated away
from AC mains or other high voltage/power lines to avoid interference.
Cable Screening
The use of a screened cable is recommended for the installation of all detector heads. The screening is used to minimise the
effects of electrical interference generated by external equipment e.g. motors, switchgear etc. The correct strategy for
connecting the screens depends upon the area in which the detector head is to be used (i.e. hazardous/ non-hazardous). In all
cases the screen should not be connected at the detector head
2
minimum
5
LC SERIES ENMET
3.1.1 Power Supply Module
The Power Supply is situated on the LHS of the main PCB within the enclosure and provides the power for the whole system.
The power supply is a standard item and does not require any modifications regardless of the type and quantity of detector
heads being used.
There are two power source options available to the system
100-240V AC Mains Supply, connectors 1, 2 and 3
18 to 28V DC Supply, connectors 4 and 5
There are two fuses situated on the main PCB. These are:
FS1 (T1.0A) AC supply Fuse
FS2 (T500mA) DC Supply Fuse
6
LC SERIES ENMET
The LC Series Control Units are single PCB design. Each Control Unit has a power supply section and 1, 2 or 4 I/O interface
sections.
Located on the bottom edge of the main PCB is a number of screw connectors. This is used to provide connections for inputs,
outputs and external buttons:
3.1.3 Connections LC1
LC1
Note: D5 orientation is be selected for 24Vdc supply as follows
Input Output
D5 D5
Channel 1
Pins 1, 2 and 3
AC power input
Pins 4 and 5
24VDC power input
Pins 6, 7 and 8
Common Fault relay contacts
Pins 9, 10 and 11
Common Alarm level1 relay contacts
Pins 12, 13 and 14
Common Alarm level1 relay contacts
Pins 15 to 18
I/O connection to sensors
Pins 19 to 20
4-20 mA output
7
LC SERIES ENMET
3.1.4 Connections LC2
LC2
SW1
®
TRACO
FG
POWER
Display PCB Connector
47-63 Hz
0.375 A max
Input: 100 – 24 0VAC
Output: 24VDC/ 625 mA
TML 15124
AC(N)
FS1FS2
AC(L)
1011121314
J1J2J3J4J5J6J7J8J9
Channel 1
Pins 1, 2 and 3
AC power input
Pins 4 and 5
24VDC power input
Pins 6, 7 and 8
Common Fault relay contacts
Pins 9, 10 and 11
Common Alarm level 3 relay
contacts
Pins 13 to 16
I/O connection to sensors
Pins 17 to 18
4-20 mA output
Pins 19 to 21
Alarm Level 1 relay contacts
Pins 22 to 24
Alarm Level 2 relay contacts
Chanel 2
1
23 45678910111213 14 151617
+24V
E
L
100 - 240
VAC D C
0V
COM
FLT
N.C
N
L3
COM
N.C
N.O
N.O
1413 15 16
SENSOR
OPTIONS
19 20
18
-OUTPUT
+4-20 mA
COM
22 23 24
21
L1
N.C
N.OL2COM
N.C
N.O
Pins 25 to 36
The same functions as 13 to 24
Power supply section I/O interface section Channel
Note: connections 12 & 13 may not be fitted on some variants
8
LC SERIES ENMET
3.1.5 Connections LC4
LC4
Chanel 1
Connections
Sensor Options:
Pin 13: Signal In (1 – 5 Vdc)
Pin 14: Signal In (4-20mA)
Pin 15: Voltage Out to S/T
Pin 16: Ground to S/T
Chanel 2
Pins 25 to 36
The same functions as 13 to 24
Chanel 3
Pins 37 to 48
The same functions as 13 to 24
Chanel 4
Pins 49 to 60
The same functions as 13 to 24
An Earth ground is also provided
on the main PCB
The diagrams above show a pictorial representation of the various module positions within the LCU Series Control Units
The power supply is situated on the LHS of the main PCB with the channel I/Os to the right of the PCB.
The microcontroller module and LCD display are mounted on the top of the front panel. This connects to the main PCB via a
single flat ribbon cable
Note: connections 12 & 13 may not be fitted on some variants.
9
LC SERIES ENMET
3.2 Sensor Transmitter Installation
Mounting location for the gas detectors need to be considered individually, initial points for consideration are:
Ensure all gas detectors are mounted to allow routine calibration and maintenance to be carried out as required.
Ensure the proposed site will not interfere with movement of existing equipment, e.g. cranes, doors etc
Install all cables neatly and securely.
Detectors for gases that are lighter than air should be positioned at, or below, a high level.
Detectors for gases that are heavier than air should be located at below head height.
Avoid location the gas detectors adjacent to potential sources of radio frequency interference, e.g. radio transmitters,
control switchgear, motors etc.
Ensure the detectors are mounted with sufficient space to allow air movement around the sensor section.
3.2.1 Example 2 Wire Sensor Transmitter
J1J2J3J4J5J6J7J8J9
3.2.2 Example 3 Wire Sensor Transmitter
10
LC SERIES ENMET
4.0 Operation
When a preset alarm point is reached, visual and/or audio alarms are activated. The backlit graphics display automatically
displays the channel in alarm and an alarm level Led(s) are activated on the control panel. The LC-8 is factory set to maintain
these alarms until they are acknowledge
4.1 LC-Series Microcontroller Module
Situated within the LC Control Unit front panel is the Microcontroller Module. This module communicates with all Input
channels connected to the system PCB.
The Microcontroller Module provides a user interface in the form of a back lit graphics display and a four button multifunction
keypad.
Three LED indications are provided directly by the Microcontroller Module and these are visible via MCU front panel:
An Audible signal is also provided by a sounder mounted within Microcontroller module. This provides a local audible tone
during alarm or conditions.
The Microcontroller Module also provides the user with many configuration and interrogation facilities via the LCD and
keypad. These facilities include:
Sensor Configuration.
Allows adjustment of Sensor type and range (e.g. Flammable 100%LEL).
Calibration of the system.
Input Module Relay Configuration.
The microcontroller module contains all of the software required to communicate with up to four detecting channels. The
software is common to all LC Series Control Units.
Green LED for power.
Red LED indication of Alarm level 1.
Red LED indication of Alarm level 2
Red LED indication of alarm level 3.
Yellow LED indication of fault condition.
This allows each channel to be calibrated independently. The sensor zero point and span can both be set via this function.
Calibration of the retransmitted output for each channel.
Calibration of the channel power supply.
Each Input Module contains two relays for alarm levels 1 and 2. The alarm levels can be individually set to be either
rising or falling.
Fault relay.
All relays can be configured normally energised or de-energised as required. Latching and non-latching functions can
also be selected.
11
LC SERIES ENMET
Connection Procedure
Disconnect power from the system.
Remove the terminal cover to gain access to the wiring.
Remove the terminal cover and display module to gain access to the configuration link settings.
Configure the jumper switches as shown below (i.e. J1, J2, J4, J5, J8 and J9 switched ON, all others OFF)
J1J2J3J4J5J6J7J8J9
Connect the wires from the detector head to connector on the input module observing the following:
Detector Head Label
4-20mA Loop
– 14 26 38 50
+ 15 27 39 51
Connect power to the system and ensure the detector head operates (text on LCD display, LED will flash once every six
seconds approximately).
Perform software configuration (refer to ‘LC Software Configuration and System Calibration Manual’).
Perform system calibration (refer to ‘LC Software Configuration and System Calibration Manual’).
Channel 1
Pin Number
Channel 2
Pin Number
Channel 3
Pin Number
Channel 4
Pin Number
12
LC SERIES ENMET
4.3 Analogue Output Configuration
In addition to providing the connections for various connector types, the Input Module can also provide an analogue output.
This output mimics the signal detected so that it may be used by external equipment (e.g. chart recorders, data loggers) for a
variety of purposes.
Note: It is important to ensure that the Analogue Output is calibrated if in use (refer to ‘MCU Software Configuration and
System Calibration Manual’).
4.3.1 4-20mA Current Source
J10
J11
J12
J13
J14
J1J2J3J4J5J6J7J8J9
LC 1
Channel 1
Channel 2
Channel 3
Channel 4
15
13
25
37
49
16
14
26
38
50
18
17
16 17 18 19 20 21 22 23 24
15
28 29 30 31 32 33 34 35 36
27
40 41 42 43 44 45 46 47 48
39
52 53 54 55 56 57 58 59 60
51
The Input Module sources current proportional to the detected gas level.
i.e. zero gas = 4mA
full scale = 20mA
The supply is taken from the internal PSU. Switch ON J12 and J14
Alarm
level 1
Chart recorder
0V
Alarm
level 2
NOTE: Incorrect jumper switch configuration can cause damage to the system.
13
LC SERIES ENMET
4.3.2 4-20mA Current Sink
The Input Module can also sink current proportional to the detected gas level.
i.e. zero gas = 4mA
full scale = 20mA
The supply is derived from the external equipment.
Notes
Switch ON J10 and J13
J10
J11
J12
J13
J14
NOTE: Incorrect jumper switch configuration can cause damage to the system.
14
LC SERIES ENMET
4.3.3 1-5V Voltage Output
Channel 3
13
25
37
49
16 17 18LC 1 15
14 15 16 17 18 19 20 21 22 23 24Channel 1
26
38
50 51 52 53 54 55 56 57 58 59 60Channel 4
27
39
Alarm
level 1
19 20
28 29 30 31 32 33 34 35 36Channel 2
41 42 43 44 45 46 47 48
40
+ve
Chart recorder
-ve
Alarm
Level 2
The LC Control Unit can provide a voltage output.
i.e. zero gas = 1V
full scale = 5V
This output is not ideal when transmitting a signal over a large distance. The resistance of a cable attached will cause a voltage
drop to occur.
Switch ON J11, J12 and J14.
NOTE: Incorrect jumper switch configuration can cause damage to the system.
15
LC SERIES ENMET
5.0 Maintenance
Routine Servicing
The MCU Control Unit will provide a reliable and fault free service but they rely upon sensible housekeeping and regular
calibrations.
It is recommended that the system be calibrated at least once every six months. This can be arranged with Status Scientific
Controls as part of a maintenance contract.
Routine Inspection
It is advisable to periodically inspect the LC Control Unit Installation:
Check cables to ensure no damage has occurred.
Clean control unit casing using a clean cloth.
Clean detector heads using a clean DAMP cloth.
Note: Use of a dry cloth would constitute a static hazard.
Inspect detector heads and ensure the sensor housings aperture is not obstructed.
Note: Do not use solvents to clean the LCD display window on the control units or the detector heads
The time interval between routine inspections will depend upon the area in which the equipment is installed. A clean laboratory
installation may only require inspection at the time of calibration, whereas an installation in a particularly dirty environment
may require weekly inspections. It is the responsibility of the system engineer to assess the installation environment and
determine the frequency of routine inspections
16
LC SERIES ENMET
6.0 Technical Data and Specifications
LC1
Type LC1
Size (nominal) ‘mm’ 188 x 160 x 106
Weight (approx)
Operating Temp -10ºC to +50ºC
Storage Temp -20ºC to +50ºC
Humidity Range 0 to 95% R.H. Non-condensing
Input Voltage 18-28V DC, or 100-240V AC 50/60 Hz
Environmental Rating IP65
User Interface
Display Backlit 122 x 32 dot Liquid Crystal Display (LCD)
Keyboard 4 button multifunction keypad
LED Indications
Option 1
LED Indications
Option 2
Input Modules
Number of channels 1 max
Signal Input
Analogue Output
3 – Relays
Contacts
Rating
Power Supply
Fuse 1 (AC Input) T1.0A
Fuse 2 (24VDC input) T500mA
Red
Yellow
Green
Red
Red
Yellow
4-20mA Current Loop from 24V source.
4-20mA Current Loop sink to 0V.
3-Wire Pellistor Systems.
4-20mA Current source proportional to detected signal.
4-20mA Current sink proportional to detected signal.
1-5V Voltage output proportional to detected signal.
1 relay assigned to alarm level 1.
1 relay assigned to alarm level 2.
1 relay assigned to fault condition.
Single Pole Changeover Contacts (voltage free).
5A 240V AC.
NOTE: All specifications stated in this manual may change without notice.
Indicates alarm condition.
Indicates fault condition.
Indicates power ON
Indicates alarm level 1 condition.
Indicates alarm level 2 condition.
Indicates fault condition.
17
LC SERIES ENMET
LC2
Type LC2
Size (nominal) ‘mm’ 280 x 219 x 156
Weight (approx) 1.9Kg
Operating Temp -10ºC to +50ºC
Storage Temp -20ºC to +50ºC
Humidity Range 0 to 95% R.H. Non-condensing
Input Voltage 18-28V DC, or 100-240V AC 50/60
Environmental Rating IP65
User Interface
Display Backlit 122 x 32 dot Liquid Crystal Display (LCD)
Keyboard 4 button multifunction keypad
LED Indications
Option 1
LED Indications
Option 2
Input Modules
Number of channels 2 max
Signal Inputs x 2
Analogue Output x 2
6 – Relays
Contacts
Rating
Power Supply
Fuse 1 (AC Input) T1.0A
Fuse 2 (24VDC input) T500mA
Red
Yellow
Green
Green
Red
Red
Red
Yellow
4-20mA Current Loop from 24V source.
4-20mA Current Loop sink to 0V.
3-Wire Pellistor Systems.
4-20mA Current source proportional to detected signal.
4-20mA Current sink proportional to detected signal.
1-5V Voltage output proportional to detected signal.
1 relay assigned to alarm level 1, channel 1 & 2.
1 relay assigned to alarm level 2, channel 1 & 2.
1 relay assigned to common alarm level 3.
1 relay assigned to fault condition.
Single Pole Changeover Contacts (voltage free).
5A 240V AC.
Indicates alarm condition.
Indicates fault condition.
Indicates power ON
Indicates power ON
Indicates alarm level 3 condition.
Indicates alarm level 2 condition.
Indicates alarm level 1 condition.
Indicates fault condition.
NOTE: All specifications stated in this manual may change without notice.
18
LC SERIES ENMET
LC4
Type LC4
Size (nominal) ‘mm’ 390 x 316 x 167
Weight (approx) 3.8Kg
Operating Temp -10ºC to +50ºC
Storage Temp -20ºC to +50ºC
Humidity Range 0 to 95% R.H. Non-condensing
Input Voltage 18-28V DC, or 100-240V AC 50/60 Hz
Environmental Rating IP65
User Interface
Display Option 1 LED Backlit 122 x 32 dot Liquid Crystal Display (LCD)
Display Option 2 LED Backlit 240 x 128 dot Liquid Crystal Display (LCD)
Keyboard 4 button multifunction keypad
LED Indications
Option 1
LED Indications
Option 2
Input Modules
Number of channels 4 max
Signal Inputs x 4
Analogue Output x 4
10 – Relays
Contacts
Rating
Power Supply
Fuse 1 (AC Input) T1.0A
Fuse 2 (24VDC input) T500mA
Red
Yellow
Green
Green
Red
Red
Red
Yellow
4-20mA Current Loop from 24V source.
4-20mA Current Loop sink to 0V.
3-Wire Pellistor Systems.
4-20mA Current source proportional to detected signal.
4-20mA Current sink proportional to detected signal.
1-5V Voltage output proportional to detected signal.
1 relay assigned to alarm level 1, channel 1, 2, 3 & 4.
1 relay assigned to alarm level 2, channel 1, 2, 3 & 4.
1 relay assigned to common alarm level 3.
1 relay assigned to fault condition.
Single Pole Changeover Contacts (voltage free).
5A 240V AC.
Indicates alarm condition.
Indicates fault condition.
Indicates power ON
Indicates power ON
Indicates alarm level 3 condition.
Indicates alarm level 2 condition.
Indicates alarm level 1 condition.
Indicates fault condition.
NOTE: All specifications stated in this manual may change without notice.
19
LC SERIES ENMET
7.0 WARRANTY
ENMET warrants new instruments to be free from defects in workmanship and material under normal use for a period of one
year from date of shipment from ENMET. The warranty covers both parts and labor excluding instrument calibration and
expendable parts such as calibration gas, filters, batteries, etc... Equi pment believed to be defective should be returned to
ENMET within the warranty period (transportation prepaid) for inspection. If the evaluation by ENMET confirms that the
product is defective, it will be repaired or replaced at no charge, within the stated limitations, and returne d pre paid to any
location in the United States by the most economical means, e.g. Surface UPS/FedEx Ground. If an expedient means of
transportation is requested during the warranty period, the customer is responsible for the difference between the most
economical means and the expedient mode. ENMET shall not be liable for any loss or damage caused by the improper use of
the product. The purchaser indemnifies and saves harmless the company with respect to any loss or damages that may arise
through the use by the purchaser or others of this equipment.
This warranty is expressly given in lieu of all other warranties, either expressed or implied, including that of merchantability,
and all other obligations or liabilities of ENMET which may arise in connection with this equipment. ENMET neither assumes
nor authorizes any representative or other person to assume for it any obligation or liability other than that which is set forth
herein.
NOTE: When returning an instrument to the factory for service:
Be sure to include paperwork.
A purchase order, return address and telephone number will assist in the exp edient repair and return of your unit.
Include any specific instructions.
For warranty service, include date of purchase
If you require an estimate, please contact ENMET.
There are Return for Repair Instructions and Form on the last pages of this manual. This Form can be copied or used as needed.
Manual Part Number
8000x-050
September 2014
Notes:
20
PO Box 979
680 Fairfield Court
Ann Arbor, Michigan 48106-0979
734.761.1270 Fax 734.761.3220
Returning an Instrument for Repair
ENMET instruments may be returned to the factory or any one of our Field Service Centers for regular repair
service or calibration. The ENMET Repair Department and Field Service Centers also perform warranty
service work.
When returning an instrument to the factory or service center for service, paperwork must be included which
contains the following information:
A purchase order number or reference number.
A contact name with return address, telephone and fax numbers
Specific instructions regarding desired service or description
of the problems being encountered.
Date of original purchase and copy of packing slip or invoice
for warranty consideration.
If a price estimate is required, please note it accordingly and be
sure to include a fax number.
Providing the above information assists in the expedient repair and return of your unit.
Failure to provide this information can result in processing delays.
ENMET charges a one hour minimum billing for all approved repairs with additional time billed to the closest
tenth of an hour. All instruments sent to ENMET are subject to a minimum evaluation fee, even if returned
unrepaired. Unclaimed instruments that ENMET has received without appropriate paperwork or attempts to
advise repair costs that have been unanswered, after a period of 60 days, may be disposed of or returned
unrepaired COD with the evaluation fee.
Service centers may have different rates or terms. Be sure to contact them for this information.
Repaired instruments are returned by UPS/FedEx Ground and are not insured unless otherwise
specified. If expedited shipping methods or insurance is required, it must be stated in your paperwork.
Note: Warranty of customer installed components.
If a component is purchased and installed in the field, and fails within the warranty term, it can be
returned to ENMET and will be replaced, free of charge, per ENMET’s returned goods procedure.
If the entire instrument is returned to ENMET with the defective item installed, the item will be replaced
at no cost, but the instrument will be subject to labor charges at half of the standard rate.
Repair Return Form
Mailing Address:
ENMET
PO Box 979
Ann Arbor, Michigan 48106
Phone Number: 734.761.1270
FAX Number: 734.761.3220
Shipping Address:
ENMET
Attn: Repair Department
680 Fairfield Court
Ann Arbor, Michigan 48108
Your Mailing Address:
Contact Name: __________________________ Your Phone: _______________________
Your PO/Reference Number: _______________ Your FAX: _______________________
Payment Terms: COD
(Check one) VISA / MasterCard______________________ ________ ________
Card number Expiration Card Code
American Express______________________ ________ ________
Card number Expiration Card Code
Name as it appears on the credit card___________________________________
Your Shipping Address:
Return Shipping Method:
UPS: Ground 3 Day Select Next Day Air ND Air Saver 2-Day Air
UPS Account number: ________________________
Federal Express: Ground Express Saver P-1 Standard 2-Day Air
FedEx Account number: ________________________
Would you like ENMET to insure the return shipment?
No Yes Insurance Amount: $_________________
Loading...
