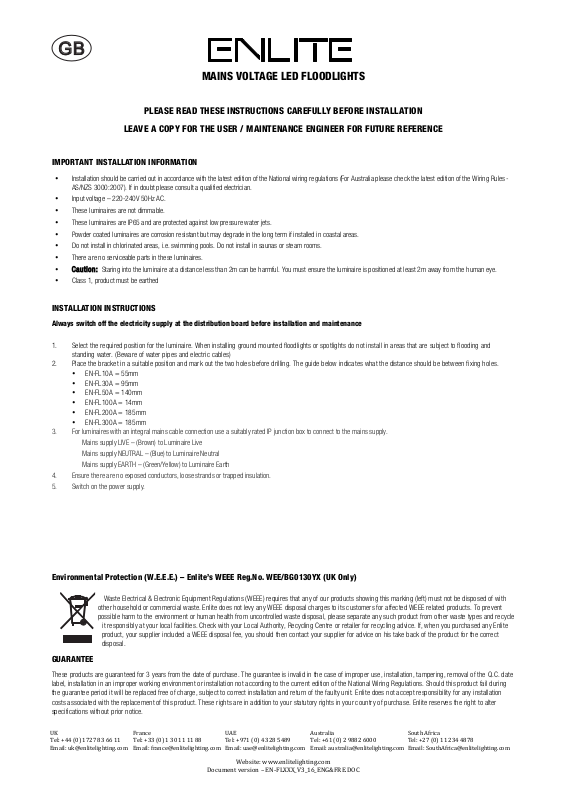

MAINS VOLTAGE LED FLOODLIGHTS
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
LEAVE A COPY FOR THE USER / MAINTENANCE ENGINEER FOR FUTURE REFERENCE
IMPORTANT INSTALLATION INFORMATION
• Installation should be carried out in accordance with the latest edition of the National wiring regulations (For Australia please check the latest edition of the Wiring Rules AS/NZS 3000:2007). If in doubt please consult a qualified electrician.
• Input voltage – 220-240V 50Hz AC.
• These luminaires are not dimmable.
• These luminaires are IP65 and are protected against low pressure water jets.
• Powder coated luminaires are corrosion resistant but may degrade in the long term if installed in coastal areas.
• Do not install in chlorinated areas, i.e. swimming pools. Do not install in saunas or steam rooms.
• There are no serviceable parts in these luminaires.
• Caution: Staring into the luminaire at a distance less than 2m can be harmful. You must ensure the luminaire is positioned at least 2m away from the human eye.
• Class 1, product must be earthed
INSTALLATION INSTRUCTIONS
Always switch off the electricity supply at the distribution board before installation and maintenance
1. Select the required position for the luminaire. When installing ground mounted floodlights or spotlights do not install in areas that are subject to flooding and
standing water. (Beware of water pipes and electric cables)
2. Place the bracket in a suitable position and mark out the two holes before drilling. The guide below indicates what the distance should be between fixing holes.
• EN-FL10A = 55mm
• EN-FL30A = 95mm
• EN-FL50A = 140mm
• EN-FL100A = 14mm
• EN-FL200A = 185mm
• EN-FL300A = 185mm
3. For luminaires with an integral mains cable connection use a suitably rated IP junction box to connect to the mains supply.
Mains supply LIVE – (Brown) to Luminaire Live
Mains supply NEUTRAL – (Blue) to Luminaire Neutral
Mains supply EARTH – (Green/Yellow) to Luminaire Earth
4. Ensure there are no exposed conductors, loose strands or trapped insulation.
5. Switch on the power supply.
Environmental Protection (W.E.E.E.) – Enlite’s WEEE Reg.No. WEE/BG0130YX (UK Only)
Waste Electrical & Electronic Equipment Regulations (WEEE) requires that any of our products showing this marking (left) must not be disposed of with
other household or commercial waste. Enlite does not levy any WEEE disposal charges to its customers for affected WEEE related products. To prevent
possible harm to the environment or human health from uncontrolled waste disposal, please separate any such product from other waste types and recycle
it responsibly at your local facilities. Check with your Local Authority, Recycling Centre or retailer for recycling advice. If, when you purchased any Enlite
product, your supplier included a WEEE disposal fee, you should then contact your supplier for advice on his take back of the product for the correct
disposal.
GUARANTEE
These products are guaranteed for 3 years from the date of purchase. The guarantee is invalid in the case of improper use, installation, tampering, removal of the Q.C. date
label, installation in an improper working environment or installation not according to the current edition of the National Wiring Regulations. Should this product fail during
the guarantee period it will be replaced free of charge, subject to correct installation and return of the faulty unit. Enlite does not accept responsibility for any installation
costs associated with the replacement of this product. These rights are in addition to your statutory rights in your country of purchase. Enlite reserves the right to alter
specifications without prior notice.
