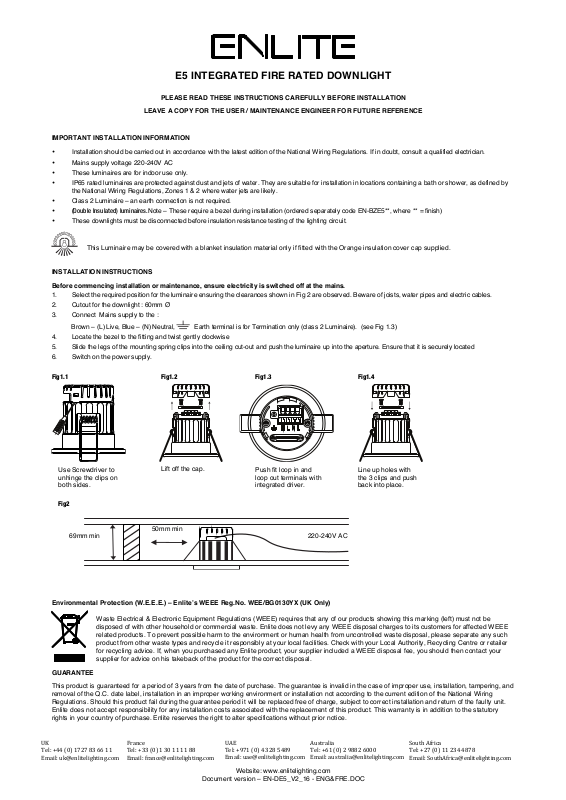

E5 INTEGRATED FIRE RATED DOWNLIGHT
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
LEAVE A COPY FOR THE USER / MAINTENANCE ENGINEER FOR FUTURE REFERENCE
!
IMPORTANT INSTALLATION INFORMATION
• Installation should be carried out in accordance with the latest edition of the National Wiring Regulations. If in doubt, consult a qualified electrician.
• Mains supply voltage 220-240V AC
• These luminaires are for indoor use only.
• IP65 rated luminaires are protected against dust and jets of water. They are suitable for installation in locations containing a bath or shower, as defined by
the National Wiring Regulations, Zones 1 & 2 where water jets are likely.
• Class 2 Luminaire – an earth connection is not required.
• (Double Insulated) luminaires.Note – These require a bezel during installation (ordered separately code EN-BZE5**, where ** = finish)
• These downlights must be disconnected before insulation resistance testing of the lighting circuit.
!
This Luminaire may be covered with a blanket insulation material only if fitted with the Orange insulation cover cap supplied.
!
INSTALLATION INSTRUCTIONS
Before commencing installation or maintenance, ensure electricity is switched off at the mains.
1. Select the required position for the luminaire ensuring the clearances shown in Fig 2 are observed. Beware of joists, water pipes and electric cables.
2. Cutout for the downlight : 60mm Ø
3. Connect Mains supply to the :
Brown – (L) Live, Blue – (N) Neutral, Earth terminal is for Termination only (class 2 Luminaire). (see Fig 1.3)
4. Locate the bezel to the fitting and twist gently clockwise
5. Slide the legs of the mounting spring clips into the ceiling cut-out and push the luminaire up into the aperture. Ensure that it is securely located
6. Switch on the power supply.
Environmental Protection (W.E.E.E.) – Enlite’s WEEE Reg.No. WEE/BG0130YX (UK Only)
Waste Electrical & Electronic Equipment Regulations (WEEE) requires that any of our products showing this marking (left) must not be
disposed of with other household or commercial waste. Enlite does not levy any WEEE disposal charges to its customers for affected WEEE
related products. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate any such
product from other waste types and recycle it responsibly at your local facilities. Check with your Local Authority, Recycling Centre or retailer
for recycling advice. If, when you purchased any Enlite product, your supplier included a WEEE disposal fee, you should then contact your
supplier for advice on his takeback of the product for the correct disposal.
GUARANTEE
This product is guaranteed for a period of 3 years from the date of purchase. The guarantee is invalid in the case of improper use, installation, tampering, and
removal of the Q.C. date label, installation in an improper working environment or installation not according to the current edition of the National Wiring
Regulations. Should this product fail during the guarantee period it will be replaced free of charge, subject to correct installation and return of the faulty unit.
Enlite does not accept responsibility for any installation costs associated with the replacement of this product. This warranty is in addition to the statutory
rights in your country of purchase. Enlite reserves the right to alter specifications without prior notice.
Fig1.4
Line up holes with
the 3 clips and push
back into place.
Lift off the cap.
Fig1.2
Fig2
69mm min
50mm min
220-240V AC
Push fit loop in and
loop out terminals with
integrated driver.
Fig1.3
Use Screwdriver to
unhinge the clips on
both sides.
Fig1.1
