Enlighted WS 2 00 User Manual

FCC and Industry Canada Compliance Information

This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.

Copyright © 2014 Enlighted Inc. All rights reserved.

All other brand or product names are trademarks of

their respective companies or organizations.

Wireless Switch 2 (WS2)

Model WS-2-00

Installation Instructions

USA

This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:

• this device may not cause harmful interference, AND

• this device must accept any interference received, including

interference that may cause undesired operation.
Changes or modifications not expressly approved by Enlighted Inc.
could void the user's authority to operate the equipment.

Canada

This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:

• this device may not cause harmful interference, AND

• this device must accept any interference received, including

interference that may cause undesired operation.
Changes or modifications not expressly approved by Enlighted Inc.
could void the user's authority to operate the equipment.

Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes:

• l'appareil ne doit pas produire de brouillage, ET

• l'utilisateur de l'appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d'en

compromettre le fonctionnement.

CE

This device complies with the essential requirements and other
relevant requirements of the R&TTE Directive (1999/5/EC). The
product is compliant with the following standards and/or other
normative documents. EN 62479, ETSI EN 301, EN 300

• The equipment is Class 1 radio equipment which can be placed
on the market and be put into service without restrictions in
accordance with article 1(3) of Commission Decision 2000/299/EC
(Version July 2014).

Technical Support

For questions regarding the installation or operation of
this product, contact Enlighted

Technical Support: [e-mail]

Company Contact Information

Location: 930 Benecia Ave, Sunnyvale, CA 94085
Phone: [phone]
Web: enlightedinc.com
CA Contractor’s License: CCL# 980903

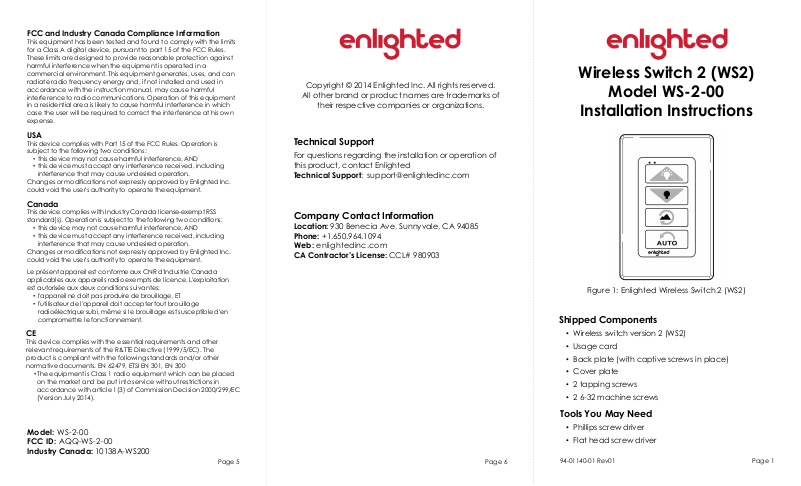

Figure 1: Enlighted Wireless Switch 2 (WS2)

Shipped Components

• Wireless switch version 2 (WS2)

• Usage card

• Back plate (with captive screws in place)

• Cover plate

• 2 tapping screws

• 2 6-32 machine screws

Model: WS-2-00
FCC ID: AQQ-WS-2-00
Industry Canada: 10138A-WS200

Page 5 Page 6

Tools You May Need

• Phillips screw driver

• Flat head screw driver

94-01140-01 Rev01

Page 1

Cautionary Suggestions

Step

Troubleshooting

• Installation and maintenance must be performed by a

qualified electrician.

• Installations and maintenance must be performed in

accordance with state, local, and national electrical
codes and requirements.

Installation Steps
Both Wall and Junction Box Mounting

Description

1 Separate, if needed, the cover and back

plates.

2 Remove the plastic pull tab from the WS2 to

allow the battery to come in contact with the
terminals. (See figure 2)

3 Press each button and verify that both the

green and red LEDs flash and that the button
moves smoothly. (See figure 3)

4 If the LEDs do not flash when a button is

pressed, then check, and if needed, replace
the battery. The battery is accessed after
opening the case as shown in figure 4.

Figure 2: Remove plastic

tab to allow battery to

power unit

Figure 3: Press each

button to verify operation

and that LEDs flash

Problem Solution

LEDs do not flash
when a is button

pressed

Buttons do not

easily move

when pressed

The energy in the battery may
have drained. Check, and if
needed, replace the battery
(see Figure 4)

Return unit for replacement

5 Position the WS2 on either the wall or on a

junction box with the LEDs on the top and the
Enlighted logo on the bottom. (See Figure 5)

6 Use the provided tapping screws (or machine

screws for a junction box) to attach the WS2
to the wall.

7 Align the back plate (with the arrow pointing

up) to the WS2. Affix the back plate to the
WS2 by firmly tightening both captive screws.

8 Snap on the cover plate with the arrow (on its

back side) pointing up.

9 Save usage card for room occupants.

Page 2

Figure 4: Opening the WS2’s case to access the battery

Page 3

Figure 5: Mounting Sequence

Page 4
