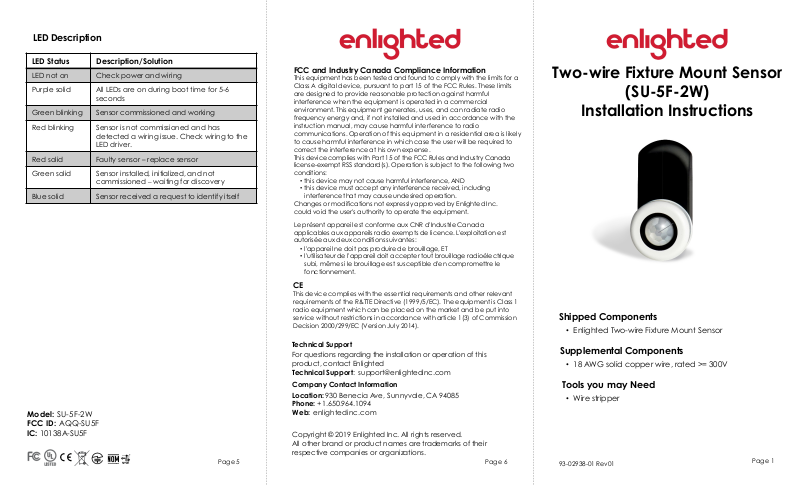

Enlighted SU5F Users Manual

LED Description

LED Status Description/Solution

LED not on Check power and wiring

Purple solid All LEDs are on during boot time for 5-6

seconds

Green blinking Sensor commissioned and working

Red blinking Sensor is not commissioned and has

detected a wiring issue. Check wiring to the
LED driver.

Red solid Faulty sensor – replace sensor

Green solid Sensor installed, initialized, and not

commissioned – waiting for discovery

Blue solid Sensor received a request to identify itself

FCC and Industry Canada Compliance Information

This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules and Industry Canada
license-exempt RSS standard(s). Operation is subject to the following two
conditions:

• this devi

• this de

interference that may cause undesired operation.
Changes or modifications not expressly approved by Enlighted Inc.
could void the user's authority to operate the equipment.

Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes:

• l'appare

• l'utilisateur de l

subi, même si le brouillage est susceptible d'en compromettre le

fonctionnement.

ce may not cause harmful interference, AND

vice must accept any interference received, including

il ne doit pas produire de brouillage, ET

'appareil doit accepter tout brouillage radioélectrique

Two-wire Fixture Mount Sensor

(SU-5F-2W)

Installation Instructions

Model: SU-5F-2W
FCC ID: AQQ-SU5F
IC: 10138A-SU5F

CE

This device complies with the essential requirements and other relevant
requirements of the R&TTE Directive (1999/5/EC). The equipment is Class 1
radio equipment which can be placed on the market and be put into
service without restrictions in accordance with article 1(3) of Commission
Decision 2000/299/EC (Version July 2014).

Technical Support

For questions regarding the installation or operation of this
product, contact Enlighted

Technical Support: [e-mail]

Company Contact Information
Location: 930 Benecia Ave, Sunnyvale, CA 94085

Phone: [phone]
Web: enlightedinc.com

Copyright © 2019 Enlighted Inc. All rights reserved.

ther brand or product names are trademarks of their

All o
respective companies or organizations.

Page 5 Page 6

Shipped Components

• Enlighted Two-wire Fixture Mount Sensor

Supplemental Components

• 18 AWG solid copper wire, rated >= 300V

Tools you may Need

• Wire stripper

93-02938-01 Rev01

Page 1

Caution

Installation and maintenance must be performed by a
qualified electrician in accordance with local, state, and
national electrical codes (NEC) and requirements.

Installation

The two-wire Fixture Mount sensor is designed to mount
in a ½ inch trade size knockout. All parts of the sensor
are inside the lighting fixture except for the outer ring.
This sensor is for use with LED drivers and devices
supporting a compatible two-wire interface.

Step 1: Switch off the circuit breaker supplying power to
the light fixture.

Step 2: Determine the location for the sensor in the fixture.

Step 4: Measure the distance between the sensor’s

installation location and the LED driver.

Step 5: Cut two lengths of 18 AWG solid wire that are
at least this measured length plus one inch. Strip each
end of the two wires leaving 3/8 inch of exposed wire.

Step 6: Insert one end of the pair of wires into the LED
driver’s connections wire holes.

To Enlighted

sensor

From Mains Power

To

lamps

Step 7: Remove the outer ring from the sensor by
unthreading it. Keep the spring washer and inner ring on
the sensor.

Step 8: Insert the sensor assembly into the knockout
that was cut out of the light fixture. Thread the outer
ring back on the sensor. Tighten firmly but do no over
tighten. If you have a thick fixture, do not use the inner
ring.

Note: Make sure that the sensor antenna passes
through the knockout and does not get caught in the
rings or assembly.

Step 3: Remove an existing ½ inch knockout or cut a
hole in the fixture.

Page 2 Page 3 Page 4

Step 9: Close the light fixture and restore power to the
fixture. Wait for the green LED to start blinking. See LED
descriptions on page 5.

Note: For any reason, if you need to remove the two
wires, push down on the tabs of the sensor with a
pointed device, and remove the wires while
continuing to hold the tab down.

Sensor Antenna
