Enlighted SU4S Users Mnual

Page 5 Page 6

Page 1

Copyright © 2016 Enlighted Inc. All rights reserved.

All other brand or product names are trademarks of

their respective companies or organizations.

Technical Support

For questions regarding the installation or operation of

this product, contact Enlighted

Technical Support: [e-mail]

Company Contact Information

Location: 930 Benecia Ave, Sunnyvale, CA 94085
Phone: [phone]
Web: enlightedinc.com

FCC and Industry Canada Compliance Information

This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.

This device complies with Part 15 of the FCC Rules and Industry

Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions:

• this device may not cause harmful interference, AND

• this device must accept any interference received, including

interference that may cause undesired operation.
Changes or modifications not expressly approved by Enlighted Inc.
could void the user's authority to operate the equipment.

Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes:

• l'appareil ne doit pas produire de brouillage, ET

• l'utilisateur de l'appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d'en

compromettre le fonctionnement.

CE

This device complies with the essential requirements and other
relevant requirements of the R&TTE Directive (1999/5/EC). The
equipment is Class 1 radio equipment which can be placed on the
market and be put into service without restrictions in accordance
with article 1(3) of Commission Decision 2000/299/EC (Version July

2014).

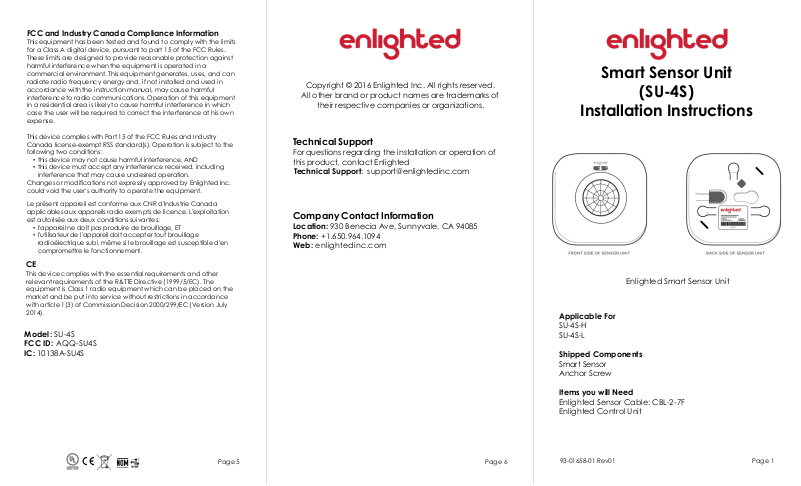

Enlighted Smart Sensor Unit

Smart Sensor Unit

(SU-4S)

Installation Instructions

Applicable For

SU-4S-H
SU-4S-L

Shipped Components

Smart Sensor
Anchor Screw

Items you will Need

Enlighted Sensor Cable: CBL-2-7F
Enlighted Control Unit

93-01658-01 Rev01

Model: SU-4S

FCC ID: AQQ-SU4S

IC: 10138A-SU4S

Page 2 Page 3 Page 4

Installation

Figure 5

Caution

Installation and maintenance must be performed by a qualified
electrician in accordance with local, state, and national electrical
codes (NEC) and requirements.

Figure 1

LED Status Description/Solution

LED not on Check power and wiring

Purple solid All LEDs are on during boot time for 5-6

seconds

Green blinking Sensor commissioned and working

Red blinking Incompatibility between LED driver and sensor

– Replace LED driver and if not resolved,
replace sensor.

Red solid Faulty sensor – replace sensor

Green solid Sensor installed, initialized, and

uncommissioned – waiting for discovery.

Blue solid Image being upgraded.

LED Description

Step 1: Turn off all power to the light fixture by switching off
the circuit breaker.

Step 2: Mount the Control Unit (CU) in a UL approved
enclosure. Refer to the Control Unit Installation Guide. See
Figure 5 for the wiring connections from the CU.

Step 3: Determine the
location of the sensor in
the fixture. Figure 1.

The Smart Sensor (SU-4S)
should be mounted to
the ceiling within a few
inches (between 1

3/4

” to

3”) of the lighting fixture

and over the service
area of the light.

Step 4: Select a place for
the RJ12 data cable
from the CU to exit and
make a small cut in the
ceiling tile for the cable
to exit.

Step 5: Install the Smart Sensor
anchor screw (as shown).
Figure 3.

Step 6: Connect the RJ12
data cable to the Sensor
(bottom entry). Figure 3.

Step 7: Slide the Smart Sensor onto the screw head.

Step 8: Slip the excess RJ12 data cable up into the plenum
area and adjust the ceiling tile to the original position.
Figure 4.

Step 9: Switch on the circuit breaker to turn the power on.

Figure 2

Figure 3

Figure 4

Anchor Screw

RJ12 Cable

1”

Drill 5/8”

hole
