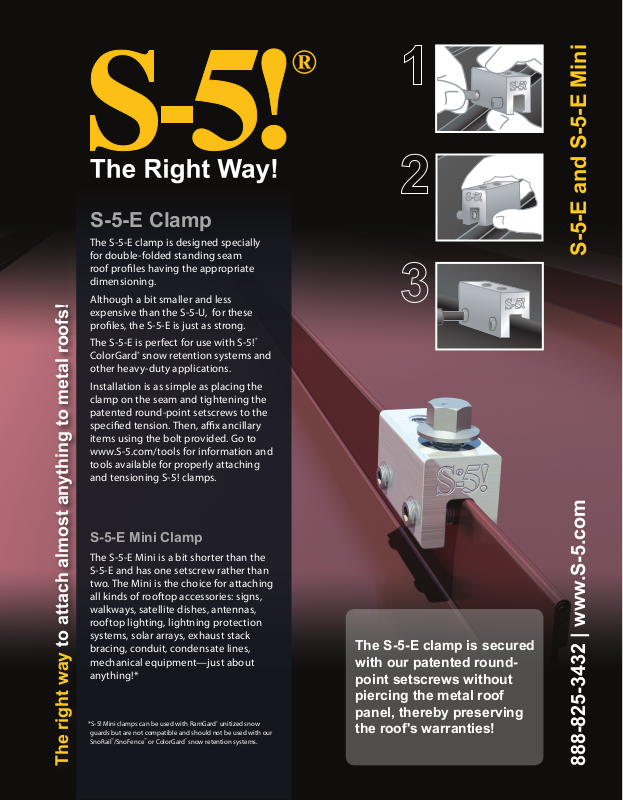

S-5-E Clamp

®

The S-5-E clamp is designed specially
for double-folded standing seam
roof proles having the appropriate
dimensioning.

Although a bit smaller and less
expensive than the S-5-U, for these
proles, the S-5-E is just as strong.

The S-5-E is perfect for use with S-5!®
ColorGard® snow retention systems and
other heavy-duty applications.

Installation is as simple as placing the
clamp on the seam and tightening the
patented round-point setscrews to the
specied tension. Then, ax ancillary
items using the bolt provided. Go to
www.S-5.com/tools for information and
tools available for properly attaching
and tensioning S-5! clamps.

S-5-E and S-5-E Mini

®

S-5-E Mini Clamp

The S-5-E Mini is a bit shorter than the
S-5-E and has one setscrew rather than
two. The Mini is the choice for attaching
all kinds of rooftop accessories: signs,
walkways, satellite dishes, antennas,
rooftop lighting, lightning protection
systems, solar arrays, exhaust stack
bracing, conduit, condensate lines,
mechanical equipment—just about
anything!*

The S-5-E clamp is secured
with our patented round­point setscrews without
piercing the metal roof
panel, thereby preserving

*S-5! Mini clamps can be used with RamGard® unitized snow

guards but are not compatible and should not be used with our
SnoRail™/SnoFence™ or ColorGard® snow retention systems.

The right way to attach almost anything to metal roofs!

the roof's warranties!

888-825-3432 | www.S-5.com

The strength of the S-5-E clamp is in its simple design.
The patented setscrews will slightly dimple the metal
seam material but will not puncture it—leaving roof
warranties intact.

The S-5-E and S-5-E Mini clamps are each furnished with
the hardware shown to the right. Each box also includes
a bit tip for tightening setscrews using an electric screw
gun. A structural aluminum attachment clamp, the S-5-E
is compatible with most common metal roong materials
excluding copper. All included hardware is stainless
steel. Please visit www.S-5.com for more information
including CAD details, metallurgical compatibilities and
specications.

The S-5-E and S-5-E Mini have been tested for load-to­failure results on a variety of double-folded standing
seam roofs, from leading manufacturers of panels and
panel-forming machines. The independent lab test
reports found on our website at www.S-5.com prove that
S-5! holding strength is unmatched in the industry.

Example Proles

S-5-E Clamp

1.18"

(30.00 mm)

0.60"

(15.00 mm)

0.98"

(25.00 mm)

S-5-E Mini Clamp

0.35"

(8.90 mm)

0.30"

(7.60 mm)

M10 holes
located 13.00 mm (0.50")
from edges of part

1.97"

(50.00 mm)

For horizontal seams under
.5" crimp the seam to 180

≤ .5”

S-5!® Warning! Please use this product responsibly!

Produc ts are pro tected by m ultiple U. S. and foreign pate nts. Vis it the website at www.S-5.com for
complete information on patents and trademarks. For maximum holding strength, setscrews should
be tensio ned and re -tensio ned as the se am materi al compresses. Clamp setscr ew tension should be
verie d using a calibr ated torque wr ench betwee n 160 and 180 inch poun ds when used on 22 ga steel,
and bet ween 130 and 150 inch pou nds for all oth er metals and t hinner gaug es of steel. Co nsult the S-5!
website at www.S-5.com for published data regarding holding strength.

Copyrig ht 2011, Metal Roof I nnovations, L td. S-5! produ cts are paten ted protec ted.
S-5! aggressively protects its patents, trademarks and copyrights.

degrees at desired clamp
location.

This illustration demonstrates crimp­ing technique, NOT actual location
of clamp.

1.18"

(30.00 mm)

0.60"

(15.00 mm)

(25.00 mm)

Distributed by

M8 hole
centered on part

1.18"

(30.00 mm)

0.35"

(8.90 mm)

0.30"

(7.60 mm)

0.98"

Please note: All measurements are rounded to
the second decimal place.
