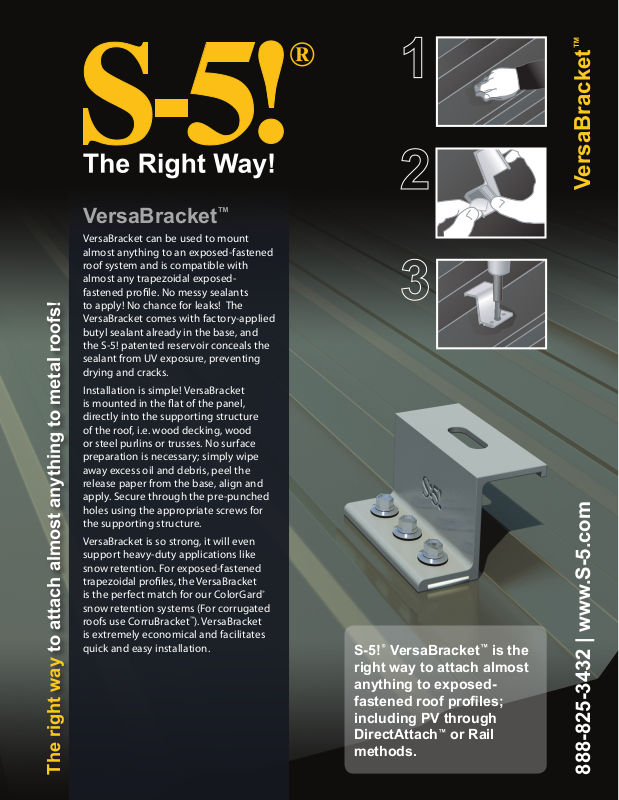

VersaBracket can be used to mount
almost anything to an exposed-fastened
roof system and is compatible with
almost any trapezoidal exposedfastened prole. No messy sealants
to apply! No chance for leaks! The
VersaBracket comes with factory-applied
butyl sealant already in the base, and
the S-5! patented reservoir conceals the
sealant from UV exposure, preventing
drying and cracks.
Installation is simple! VersaBracket
is mounted in the at of the panel,
directly into the supporting structure
of the roof, i.e. wood decking, wood
or steel purlins or trusses. No surface
preparation is necessary; simply wipe
away excess oil and debris, peel the
release paper from the base, align and
apply. Secure through the pre-punched
holes using the appropriate screws for
the supporting structure.
™
VersaBracket is so strong, it will even
support heavy-duty applications like
snow retention. For exposed-fastened
trapezoidal proles, the VersaBracket
is the perfect match for our ColorGard®
snow retention systems (For corrugated
roofs use CorruBracket™). VersaBracket
is extremely economical and facilitates
quick and easy installation.
S-5!® VersaBracket™ is the
right way to attach almost
anything to exposed-
fastened roof proles;
including PV through
DirectAttach™ or Rail
methods.
The right way to attach almost anything to metal roofs!
888-825-3432 | www.S-5.com
VersaBracket™ can be used for almost any attachment need,
including S-5!® ColorGard®, on all types of exposed-fastened
metal roong. No messy sealants to apply. The factory-applied
butyl sealant waterproofs and makes installation a snap!
To accommodate various rib heights, VersaBracket™
comes in two heights—the 2.65" VersaBracket-67™
and the 1.86" VersaBracket-47™. The VersaBracket-67
mounting face has no holes or slots, thus, ancillary
items are typically secured using self-tapping screws.
The VersaBracket-47 comes with a 1" slot on top as
the standard part. Other hole and slot congurations
available with minimum purchase requirements
(contact your distributor for available congurations).
Each VersaBracket comes with factory-applied butyl
sealant in the base. A structural aluminum attachment
bracket, VersaBracket is compatible with most common
metal roong materials. For design assistance, ask your
distributor, or use our web-based calculator at
www.S-5.com for job-specic system engineering and
design of your next snow retention project. Also please
visit our website for more information including CAD
details, metallurgical compatibilities and specications.
The VersaBracket has been tested for load-to-failure
results on wood decking, metal and wood purlins. The
independent lab test data found at www.S-5.com can
be used for load-critical designs and applications. S-5!
holding strength is unmatched in the industry.
VersaBracket-67
1.35"
(34.00 mm)
2.65"
(67.00 mm)
1.50"
(38.00 mm)
0.28"
(7.00 mm)
VersaBracket-47
1.00"
(25.00 mm)
™
VB-67
0.54"
(13.00 mm)
0.90"
(23.00 mm)
2.88"
(73.00 mm)
™
0.38"
(9.00 mm)
Example Prole
Example Uses
S-5-PV Kit (DirectAttached or Rail)
S-5!® Warning! Please use this product responsibly!
Produc ts are pro tected by m ultiple U. S. and for eign pate nts. For pu blished d ata regarding hol ding
streng th, bolt torque , patents and trad emarks visi t the S-5! website at w ww.S-5.co m.
Copyrig ht 2011, Metal Roof I nnovations , Ltd. S-5! produ cts are pate nt protecte d.
S-5! aggressively protects its patents, trademarks and copyrights.
1.35"
(34.00 mm)
ColorGard
Distributed by
1.86"
(47.00 mm)
1.02"
(26.00 mm)
VB-47
0.26"
(7.00 mm)
0.54"
(13.00 mm)
0.90"
(23.00 mm)
2.88"
(73.00 mm)
3 holes are provided for versatility. Some
installations require only 2 fasteners. See
the load table on the S-5! website and the
installation instructions for more details.
Due to varied applications, mounting hardware
is not furnished with part.
Please note: All measurements are rounded to
the second decimal place.
