Page 1
1265059-A2-D June 2016
TOILET
EVORA
TM
Wall-faced
13/07/2017
1
1305969-A2-B
With an Englefield toilet suite
you can be sure of having
excellence, comfort, durability
and style.
It’s the details that Englefield
cares about - from pioneering
the latest technology, to
innovative design.
INSTALLATION
INSTRUCTIONS
Page 2
Caulking Gun
Adjustable Pliers
Metal File
1/2” Socket
Saw
Silicone Sealant
Pencil
Metal file
Knife
Straight pipe coupling
Connection packing
CAUTION: Risk of personal injury or product damage. Handle with care.
Vitreous china can break or chip if the product is handled carelessly.
Observe all local plumbing and building codes. Installation shall be in accordance with
AS/NZS 3500 and AS/NZS 6400.
Select a suitable WaterMark certified 4.5/3 L cistern.
Screwdriver
Safety Glasses
Tape MeasureAdjustable
Spanner
Level Pipe Wrench
Tube Cutter
Sponge
Drill & Bits
INSTALLATION INSTRUCTIONSEVORATM
Wall-faced Toilet
ENGLEFIELD
BEFORE YOU BEGIN
ENGLEFIELD
2

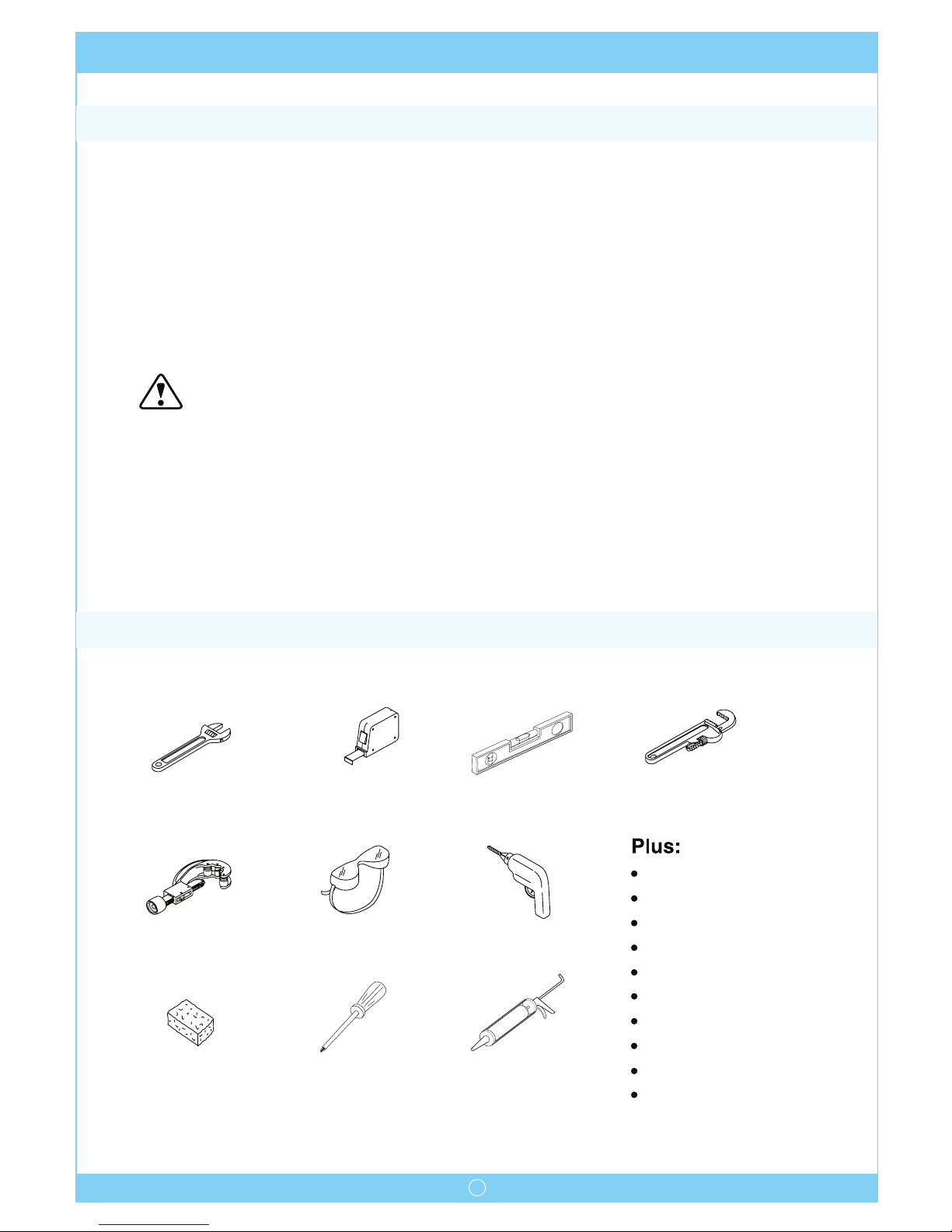

TOOLS AND MATERIALS REQUIRED
Before proceeding with installation, please read these instructions carefully to familiarise
yourself with the required tools, materials and installation sequences. Please leave these
instructions for the consumer after installation.
For contact information, refer to the final page of this document.
Prior to installation, inspect the toilet to ensure that no damage has occurred in transit. If
damage has occurred, or a visible defect exists, do not proceed with installation, and advise
your supplier immediately.
Page 3
INSTALLATION INSTRUCTIONS
ENGLEFIELD
2
Wall-faced Toilet
ENGLEFIELD
3

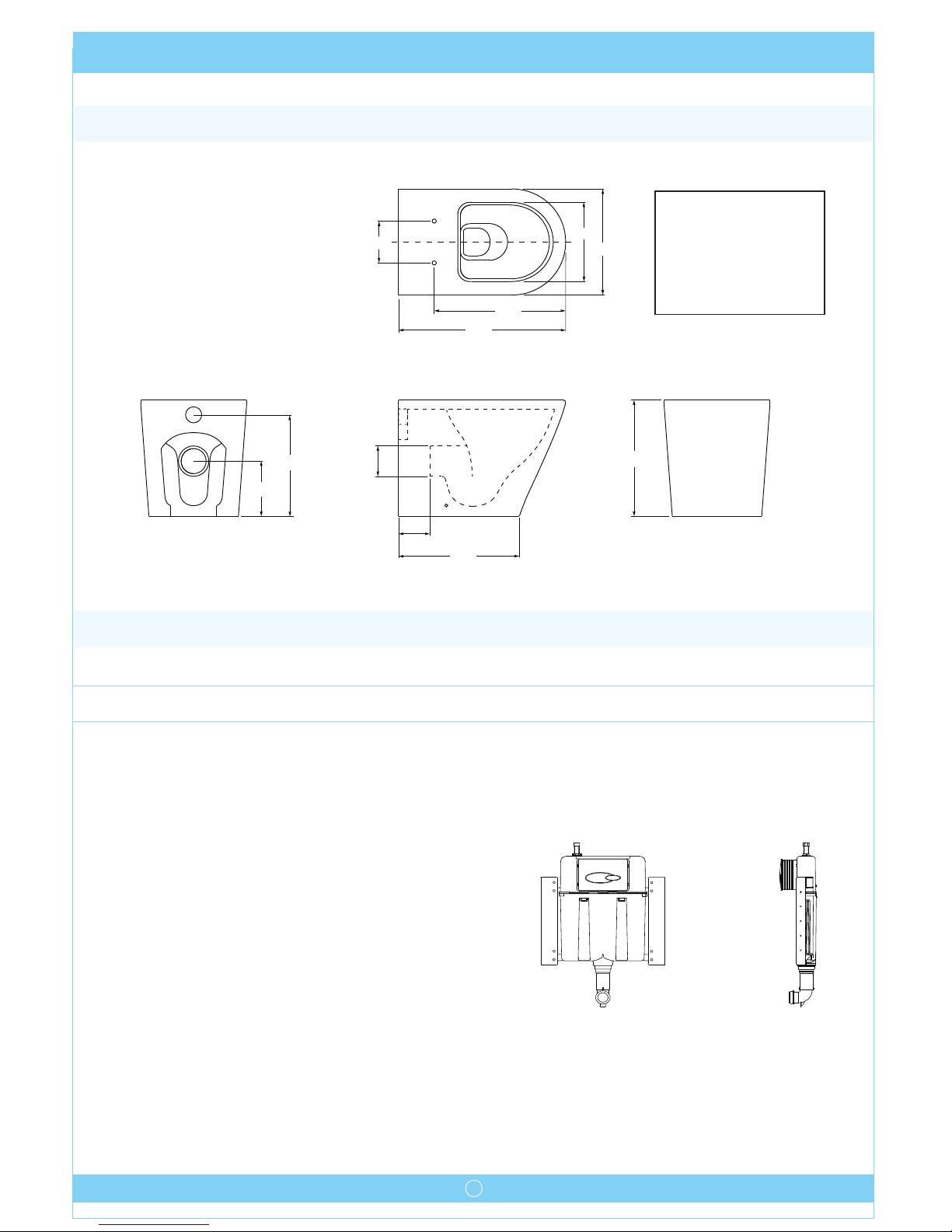

ROUGHING-IN
EVORATM
INSTALLATION
a) Turn the water supply off before
installing the new toilet.
b) Install the concealed tank system in
wall before decorating the wall.
c) Install the tank system as per the
cistern’s installation instructions
All dimensions in mm.
Kohler Co. reserves
the right to change the
marked dimensions
without prior notice.
1 Install The Cistern
440
355
265
140
560
405
105
102
390
10611A-NA Kohler In-wall Cistern 4.5/3L
(or similar)
Recommended Cistern:
185
345
TOP VIEW
SIDE VIEWBACK VIEW
FRONT VIEW
Page 4
ENGLEFIELD
4
INSTALLATION INSTRUCTIONS
Wall-faced Toilet
EVORATM
Inlet
Outlet

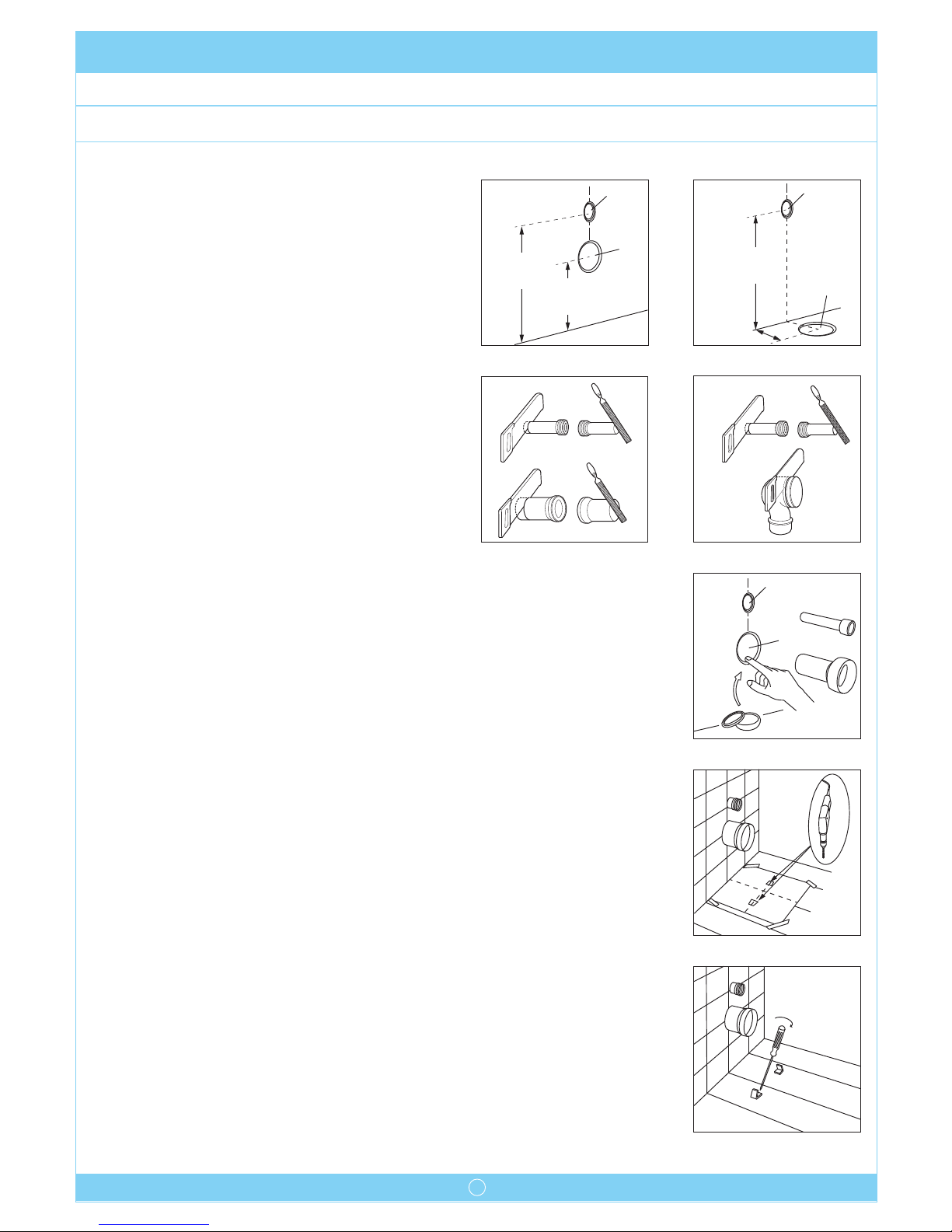

2 Install The Pan
b) Cut the inlet and outlet pipes to the
correct length in accordance with the
manufacturer’s instructions.
c) Apply lubricant to the inside of the inlet and outlet pipe holes to aid
with installation. Connect piping.
a) Check the inlet & outlet positions are as
shown.
Inlet
Outlet
90 to
115 mm
OR
Inlet
Outlet
d) Place the template on the floor, align the back edge to the wall and
secure the template in position. Drill the fixing holes with an 8mm
drill.
e) Fit the brackets to the floor and secure in position with the floor
plugs, washers and the bolts.
OR
185mm to
finished
floor
345mm to
finished
floor
345mm to
finished
floor
Page 5
ENGLEFIELD
4
INSTALLATION INSTRUCTIONS
EVORA
TM
Wall-faced Toilet
ENGLEFIELD
5

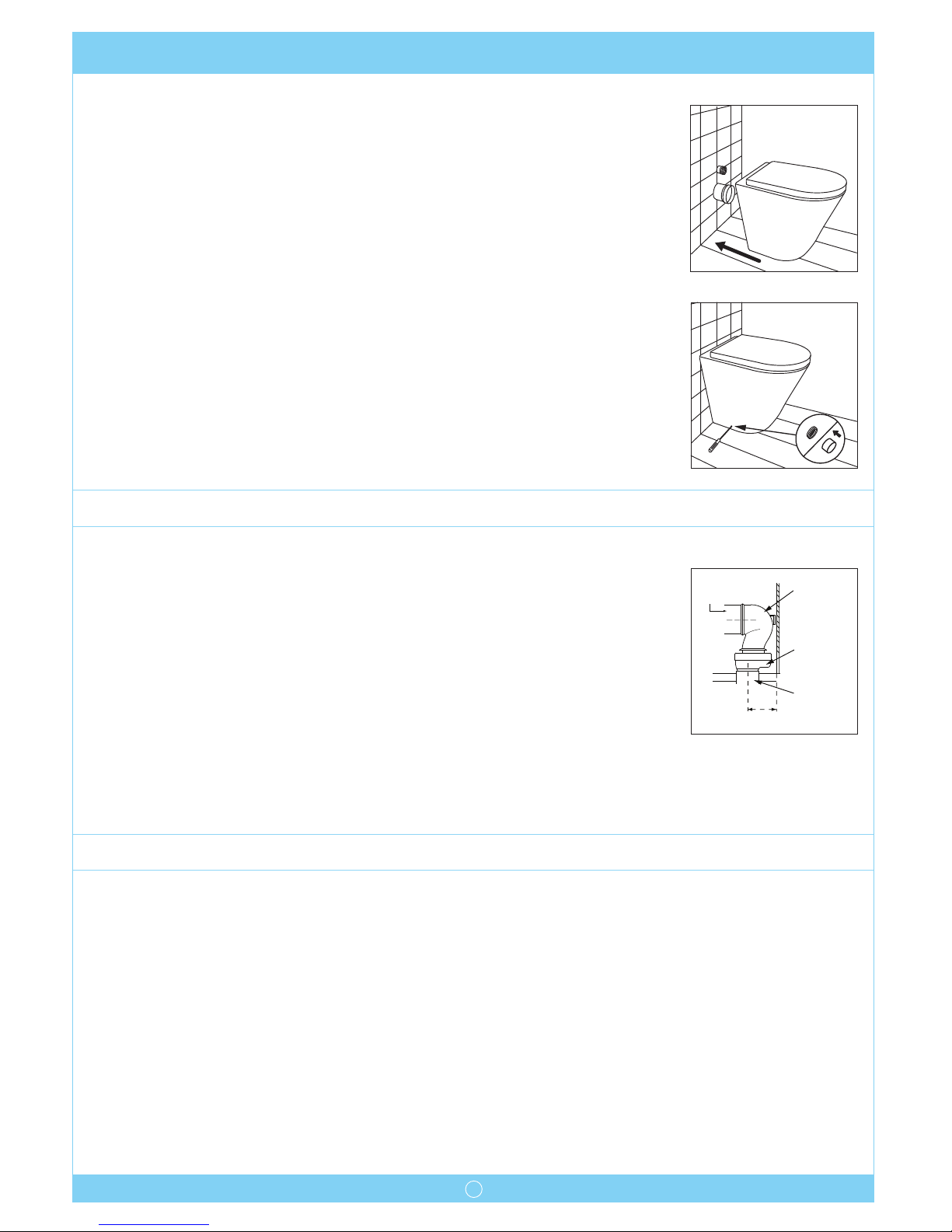

f) Position the toilet over the floor fixings and connect the waste
connector to the waste pipe.
g) Secure the toilet to the brackets with the plastic sleeves and the
screws. Fit the plastic cover caps over the heads of the screws.
Vario Pipe
Connector
Pan
Setout
70 or 90 or 110 mm
● Define the position of the connector. Place the connector and
offset collar onto the waste pipe.
● Rotate the offset collar to achieve the required setout distance.
Attainable distance is 70 or 110mm.
● To attain 90mm distance straight pan collar(not supplied) to be used.
● Insert the Vario pipe connector into the offset collar and lubricate
the seal.
● Push the pan towards the wall so the waste outlet enters the
connector seal.
3 Vario Trap Installation
4 Finish The Installation
● Ensure that all the connections are tight.
● Turn on the water supply and check for any leaks.
● Flush the toilet to check for correct operation.
Connector
Offset Pan
Collar
Page 6
EVORATM
Wall-faced Toilet
ENGLEFIELD
6
13/07/2017
1305969-A2-B
INSTALLATION INSTRUCTIONS
IMPORTANT CONSUMER INFORMATION
When cleaning up after installation, do not use abrasive cleaners as they may scratch
and dull toilet surface. Remove stubborn stains, paint or tar with turpentine or paint
thinner. Do not allow cleaners containing petroleum distillates to remain in contact with any
toilet surface for long periods of time.
Remove plaster by carefully scraping with a wooden edge. Do not use metal scrapers,
wire brushes or other metal tools. Use a powder type detergent on a damp cloth to provide
mild abrasive action to any residual plaster.
Clean the outside surface of your vitreous china product with mild soap and warm water.
Wipe the entire surface completely dry with a clean, soft cloth. Most toilet bowl cleaners
are not harmful to the vitreous china surface of the toilet bowl. Please follow the bowl
cleaner manufacturer’s instructions carefully. Do not use abrasive cleaners or solvents.
CONTACT INFORMATION
NEW ZEALAND
KOHLER NZ LTD
Free Ph: 0800 100 382
Free Fax: 0800 664 488 (1 800 364 533)
www.englefield.co.nz
For warranty information, please visit our website
AUSTRALIA
KOHLER CO.
Free Ph: 1 800 ENGLEFIELD
www.englefield.com
