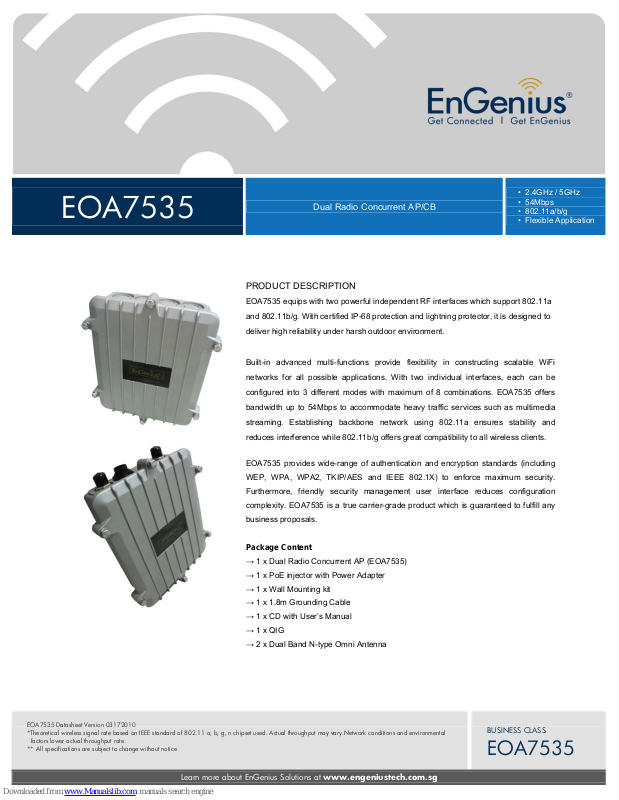

Page 1
• 2.4GHz / 5GHz
• 54Mbps
• 802.11a/b/g
• Flexible Application
EOA7535
Dual Radio Concurrent AP/CB
PRODUCT DESCRIPTION

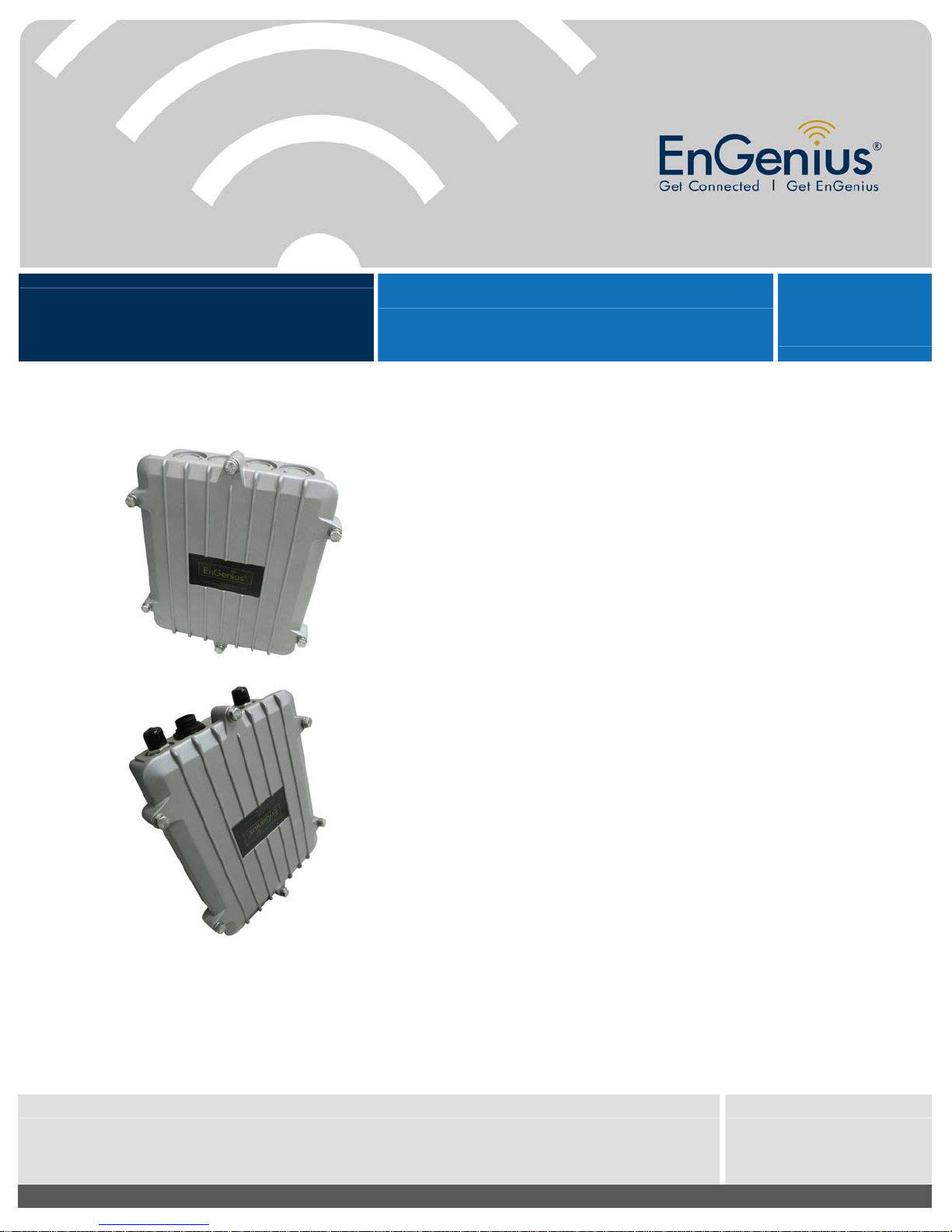

EOA7535 equips with two powerful independent RF interfaces which support 802.11a
and 802.11b/g. With certified IP-68 protection and lightning protector, it is designed to
deliver high reliability under harsh outdoor environment.
Built-in advanced multi-functions provide flexibility in constructing scalable WiFi
networks for all possible applications. With two individual interfaces, each can be
configured into 3 different modes with maximum of 8 combinations. EOA7535 offers
bandwidth up to 54Mbps to accommodate heavy traffic services such as multimedia
streaming. Establishing backbone network using 802.11a ensures stability and
reduces interference while 802.11b/g offers great compatibility to all wireless clients.
EOA7535 provides wide-range of authentication and encryption standards (including
WEP, WPA, WPA2, TKIP/AES and IEEE 802.1X) to enforce maximum security.
Furthermore, friendly security management user interface reduces configuration
complexity. EOA7535 is a true carrier-grade product which is guaranteed to fulfill any
business proposals.
Package Content
→ 1 x Dual Radio Concurrent AP (EOA7535)
→ 1 x PoE injector with Power Adapter
→ 1 x Wall Mounting kit
→ 1 x 1.8m Grounding Cable
→ 1 x CD with User’s Manual
→ 1 x QIG
→ 2 x Dual Band N-type Omni Antenna
EOA7535 Datasheet Version 03172010
*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g, n chipset used. Actual throughput may vary.Network conditions and environmental
factors lower actual throughput rate.
** All specifications are subject to change without notice
Learn more about EnGenius Solutions at www.engeniustech.com.sg
BUSINESS CLASS
EOA7535
Page 2
Datasheet
EOA7535
Features
Wireless
- Dual Radio Two radio ( a, radio1 and b/g, radio2 ) for independent application
- High Data Rate High speed physical transmitting rate to support large payload
- Multifunction Dual AP/AP+CB/CB+AP/AP+CR/CR+AP/AP Concurrent/CB Concurrent/CR Concurrent
- Signal Strength Display 0% ~ 100% to show the signal condition for more convenient installation
- QoS(WMM) Enhance performance and density
- BSSID Basic Service Set ID
- Multiple SSID 4 BSSID supported. Primary(1
Each SSID can set itself wireless or WAN access setting.
Networking
- PPPoE Point-to-Point Protocol over Ethernet at Client Router mode. This function will keep trying when failed or disconnected
- VPN Pass Through
st
) BSSID for normal setting follow this router’s main default setting for security setting.
Security
- Rugged Security WEP Encryption-64/128/152 bit, WPA/WPA2 Personal (WPA-PSK using TKIP or AES), WPA/WPA2 Enterprise
(WPA-EAP using TKIP), 802.1x Authenticator, Hide SSID in beacons, MAC address filtering up to 50 field, L2 isolation(AP mode),
Wireless STA (Client) connected list, Hidden SSID broadcast to prevent illegal connection
- IP 68 Protection it is designed to deliver best reliability under harsh outdoor environment. There is not any limitation on installing
and setup.
Management
- Firmware Upgrade Upgrading firmware via web browser, setting are reserved after upgrade
- Reset & Backup Reset to factory default. User can export all setting into a file via WEB
- MIB MIB I, MIB II(RFC1213) and private MIB
- SNMP V1, V2c
EOA7535 Datasheet Version 03172010
*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g, n chipset used. Actual throughput may vary.Network conditions and environmental
factors lower actual throughput rate.
** All specifications are subject to change without notice
BUSINESS CLASS
EOA7535
Learn more about EnGenius Solutions at www.engeniustech.com.sg
Page 3
Datasheet
EOA7535
HARDWARE SPECIFICATIONS
> Technical Specifications
MCU Atheros AR7161
RF Atheros AR5413 (Radio1) + Atheros AR5413 (Radio2)
Memory 64MB SDRAM
Flash 8MB
Physical Interface One 10/100 Gigabit Ethernet RJ-45
One Reset Button
Power Requirements Power over Ethernet, 48V DC IN
> RF Specification
Frequency Band 802.11a
5.15 ~ 5.35GHz,
5.47 ~ 5.725GHz, 5.725~5.825GHz
802.11b/g
U.S., Europe and Japan product covering 2.400 to 2.484 GHz, programmable for different
country regulations
Modulation Technology OFDM = BPSK, QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Operating Channels 802.11a
US/Canada:12 non-overlapping channel (5.15~5.35GHz, 5.725~5.825GHz)
Europe:19 non-overlapping channel (5.15~5.35GHz, 5.47~5.825GHz)
Japan:4 non-overlapping channel (5.15~5.25GHz)
China:5 non-overlapping channel (5.725~5.85GHz)
802.11b/g
11 for North America, 14 for Japan, 13 for Europe
Receive Sensitivity (Typical) 802.11a
-92dBm @ 6Mbps,
-73dBm @ 54Mbps
Available transmit power
Radio 1 (WLAN1)
Frequency Power Frequency Power
5.150~5.350 GHz
IEEE802.11a
5.470~5.725 GHz
IEEE802.11a
5.725~5.825 GHz
IEEE802.11a
Radio 2 (WLAN2)
Frequency Power Frequency Power
2.412~2.462 GHz
IEEE802.11g
2.412~2.462 GHz
IEEE802.11b
FCC ETSI
FCC ETSI
Antenna 2 x N-type connector for 802.11a and 802.11b/g
EOA7535 Datasheet Version 03172010
*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g, n chipset used. Actual throughput may vary.Network conditions and environmental
factors lower actual throughput rate.
** All specifications are subject to change without notice
802.11g
-94 dBm @ 6Mbps,
-74 dBm @ 54Mbp
28dBm@6~24Mbps
26dBm@36Mbps
24dBm@48Mbps
22dBm@54Mbps
28dBm@6~24Mbps
26dBm@36Mbps
24dBm@48Mbps
22dBm@54Mbps
28dBm@6~24Mbps
26dBm@36Mbps
24dBm@48Mbps
22dBm@54Mbps
28dBm@6~24Mbps
26dBm@36Mbps
25dBm@48Mbps
24dBm@54Mbps
29dBm@1~11Mbps
5.150~5.350 GHz
IEEE802.11a
5.470~5.725 GHz
IEEE802.11a
5.725~5.825 GHz
IEEE802.11a
2.412~2.472 GHz
IEEE802.11g
2.412~2.472 GHz
IEEE802.11b
802.11b
-97 dBm @ 1Mbps
-92 dBm @ 11Mbps
28dBm@6~24Mbps
28dBm@6~24Mbps
28dBm@6~24Mbps
28dBm@6~9Mbps
26dBm@12~18Mbps
25dBm@24~36Mbps
24dBm@48~54Mbps
29dBm@1~11Mbps
26dBm@36Mbps
24dBm@48Mbps
22dBm@54Mbps
26dBm@36Mbps
24dBm@48Mbps
22dBm@54Mbps
26dBm@36Mbps
24dBm@48Mbps
22dBm@54Mbps
BUSINESS CLASS
EOA7535
Learn more about EnGenius Solutions at www.engeniustech.com.sg
Page 4
Datasheet
EOA7535
TECHNICAL SPECIFICATIONS
> Software Features
General
Topology Infrastructure
Protocol / Standard IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.11a (5GHz WLAN)
IEEE 802.11b/g (2.4GHz WLAN)
Operation Mode Access Point ( Radio1 ) – Access Point ( Radio2 )
Access Point ( Radio1 ) – Client Bridge ( Radio2 )
Client Bridge ( Radio1 ) – Access Point ( Radio2 )
Access Point ( Radio1 )– Client Router ( Radio2 )
Client Router ( Radio1 ) – Access Point ( Radio2 )
AP Concorrent
CB Concurrent
CR Concurrent
LAN DHCP Server(AP mode)
DHCP Client(CR mode)
Wireless Auto Channel Selection (Setting varies by Regular Domains)
Transmission Rate
- 11 a/g：54, 48, 36, 24, 18, 12, 9, 6 Mbps
- 11b : 11, 5.5, 2, 1 Mbps
Distance Control (802.1x Ack timeout)
Bandwidth Selection
Multiple SSID (4 SSID)
VLAN
WDS AP/WDS Bridge
Security Authentication:
- 802.11i (WPA, WPA2)
- 802.1x (including EAP-TLS/TTLS)
IEEE 802.1x Supplicant support in CB mode
Encryption: Open, WEP-64/128, TKIP, AES
MAC address access control list
Hide SSID in beacons
User isolation
MAC address Filtering
NAT in Client Router mode
QoS WMM
> Management
Configuration Web-based configuration (HTTP)/Telnet
Firmware Upgrade Upgrade firmware via web browser
Fix latest setting parameter when firmware upgrading
Administrator Setting Administrator password can be changed
System monitoring Status in hand , useful statistic and Event log
Reset Setting Reset to factory default and reboot
MIB MIB I , MIB II(RFC1213) and Private MIB
SNMP V1 , V2c
Backup Save all setting and condition to a file by web
EOA7535 Datasheet Version 03172010
*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g, n chipset used. Actual throughput may vary.Network conditions and environmental
factors lower actual throughput rate.
** All specifications are subject to change without notice
BUSINESS CLASS
EOA7535
Learn more about EnGenius Solutions at www.engeniustech.com.sg
Page 5
Datasheet
EOA7535
ENVIRONMENT AND MECHANICAL
Temperature Range Operating -30°C~70°C
Storage -40°C to 80°C
Humidity (non-condensing) 0%～95% typical
Dimensions 245mm (L) x 200mm (W) x 75mm (H)
Weight 1370g
EOA7535 Datasheet Version 03172010
*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g, n chipset used. Actual throughput may vary.Network conditions and environmental
factors lower actual throughput rate.
** All specifications are subject to change without notice
BUSINESS CLASS
EOA7535
Learn more about EnGenius Solutions at www.engeniustech.com.sg
