Page 1
DTT+SATELLITE HD RECEIVER RC5320HD
USER MANUAL
ENGLISH
Page 2
104
GENERAL INFORMATION 106
Main Features 106
For your Safety 107
Unpacking 108
General Operation 108
RCU 109
Rear Panel 110
INSTALLATION 111
MENU INFORMATION 112
Main Menu 112
1. Edit Channel 113
1.1 TV Channel List 113
1.2 Radio Channel List 116
1.3 Delete All 116
2. Installation 116
2.1 Antenna Connection 116
2.2 Satellite List 117
2.3 Antenna Setup 118
2.4 Single Satellite Search 119
2.5 Multi Satellite Search 119
2.6 TP List 120
2.7 Terrestrial Automatic Scan 121
2.8 Terrestrial Manual Scan 121
3. System Setup 121
3.1 Language 121
3.2 TV System 122
3.3 Display Setting 122
3.4 Local Time setting 122
3.5 Timer Setting 123
3.6 Parental Control 123
3.7 OSD Setting 124
3.8 Favorite 124
3.9 Other 124
CONTENTS
Page 3
105
ENGLISH
4. Tools 124
4.1 Information 124
4.2 Factory Setting 125
4.3 Common Interface 125
4.4 Conditional Access 127
4.5 Upgrade by USB 128
4.6 Media Player 128
4.7 Remove USB device safely 130
4.8 Network Local Setting 130
4.9 Upgrade by network 130
4.10 Network DDNS Setting 130
5. Game 130
6. REC 131
6.1 Storage Information 131
6.2 DVR Conguration 131
7. Hot key 131
7.1 Info 131
7.2 Find 132
7.3 Number 132
7.4 TV/Radio 132
7.5 Up/Down 132
7.6 Left/Right 132
7.7 Mute 132
7.8 Pause 132
7.9 OK 132
7.10 Audio 133
7.11 Recall 133
7.12 FAV 133
7.13 Teletext 133
7.14 Zoom 133
TROUBLESHOOTING 134
CONTENTS
Page 4
106
A Digital Satellite&Terrestrial Receiver is a convenient product that allows you to view a variety of programs
provided through satellite or terrestrial antenna. This user’s guide covers the installation of the receiver and
the necessary steps to implement various features. This also explains special features available only in this
receiver in detail, which will allow you to make full of these feature. Information conrmed in this document
is subject to change. We reserves the right, without notice, to make change in product design or performances as progress in engineering or technology.
Main Features
HD MPEG-2/4(H.264),& fully DVB-T compliant
Embedded Conax
Automatic PAL/NTSC conversion
7000 channels TV and Radio programmable
32 dierent Favorite groups selection
Multi-language OSD
INFO
Picture in Graphics(PIG) support
True color On Screen Display
Channel search in automatic, manual and network search
Various channel editing functions(Favorite, moving, locking, renaming,
deleting and sorting)
Parental control for channels
Easy to use MENU System
Software upgrades through RS232 port and Receiver to receiver, Support
USB upgrade
10 Timer Reservations, automatically switch to a specic channel
Subtitle support DVB EN300743 and EBU
Teletext support DVB ETS300472 by VBI and OSD
Automatic save for last channel
Channel list can be sorted by alphabetic A-Z,Scramble,FAVorite,Lock,Sat
Dual display HD and SD simultaneous
Support FAT16/FAT32/FAT12
Only list JPEG/BMP les
480i/p, 576i/p, 720p, 1080i with HDCP copy protection
Games
Reproduce: MPEG2, MKV H.264
GENERAL INFORMATION
Page 5
107
ENGLISH
To avoid electric-shock hazards, do not open the
cabinet, refer servicing to qualied personnel only.
Do not expose the receiver un-der the
sunlight. And keep it away from the heat
source.
When the abnormal phenomenon occur,
you should cut o the power immediately
Switch the receiver o whenever it remains
out of service for an extended period.
Keep the receiver away from ower vases, tubs,
sinks, etc., in order to avoid damaging the equipment.
Do not block ventilation holes of the Receiver so
that air can circulate freely.
Do not touch the receiver during thunder, since that
might create electric-shock hazards.
Be sure to turn the Receiver o and disconnect the
AC power cord before cleaning the Receiver surface.
If the surface is dirty, wipe clean with a cloth which
has been dipped in a weak soap-and-water solution
and wrung out thoroughly, and then wipe again
with a dry cloth.
GENERAL INFORMATION
IMPORTANT:
Please don’t use SCART and RCA terminal at the same time.
Page 6
108
P
R
M
E
N
U
I
N
F
O
F
A
V
E
P
G
OK
L
I
S
T
E
X
I
T
F
I
N
D
T
V
/
R
A
D
I
O
P
A
G
E
+
P
A
G
E
-
S
A
T
General Operation
>Throughout this manual you will notice that the everyday operation of the receiver is based on a series
of user friendly on screen display and menus. These menus will help you get the most from your receiver,
guiding you through installation, channel organizing, viewing and many other functions.
>All functions can be carried out using the buttons on the RCU, and some of the functions can also be carried out using the buttons on the front panel.
>The receiver is easy to use, always at your command and adaptable for future advances.
>Please be aware that new software may change the functionality of the receiver.
>Should you experience any diculties with the operation of your receiver, please consult the relevant
section of this manual, including the Problem Shooting, or alternatively call your dealer or a customer service adviser.
GENERAL INFORMATION
Unpacking
Remote Control Batteries (not included) User Manual
AV cable
Page 7
109
ENGLISH
Remote Control
PR
MENU
INFO
FAV
OK
LIST
EXIT
FIND
TV/RADIO
PAGE+
PAGE-
SAT
KEY FUNCTION
Turns power ON/OFF of the DSR
When watching a channel, mute the sound
0~9
Enter number of the required MENU item or select a
channel number to watch
TV-RADIO Switches between TV and Radio mode
PR Switches back to previous channel
FAV Displays the FAVorite group list
SHIFT/PAUSE Timeshift function key
FIND Displays the FIND window
INFO Show information of the current channel
MENU Press this keyone time to run MENU on screen
PAGE+, PAGE- Move up/down a page in the list
OK, LIST Executes the selected item in the MENU screen or
enters the desired value in any input mode
PR+, PR-
When watching a channel, change channels or move to
the next higher lower item in the MENU
When watching a channel, adjust the volume or move to
the left or right item in the MENU
EXIT Return to the previous MENU on the MENU screen or
escape from the MENU
Display the Audio window
TV/AV Switch between TV and AV modes
TXT Switch to teletext subtitle mode
ZOOM Enter into the zoom in mode
PAUSE Press once to pause the screen picture, press once again
to go to the normal mode
SLEEP Enter into the sleep in mode
Enter into the sleep in mode
Enter into the nine-pictures mode displayed
on the screen.
RECORD Record the program
Play and stop the program
Press to fast forward or fast backward
Press to slow forward or slow backward
V-MODE Switch the video mode between current video mode
and YUV576i
V-FORMAT Changes the HD-Format
SAT
Display the satellite list
GENERAL INFORMATION
Page 8
110

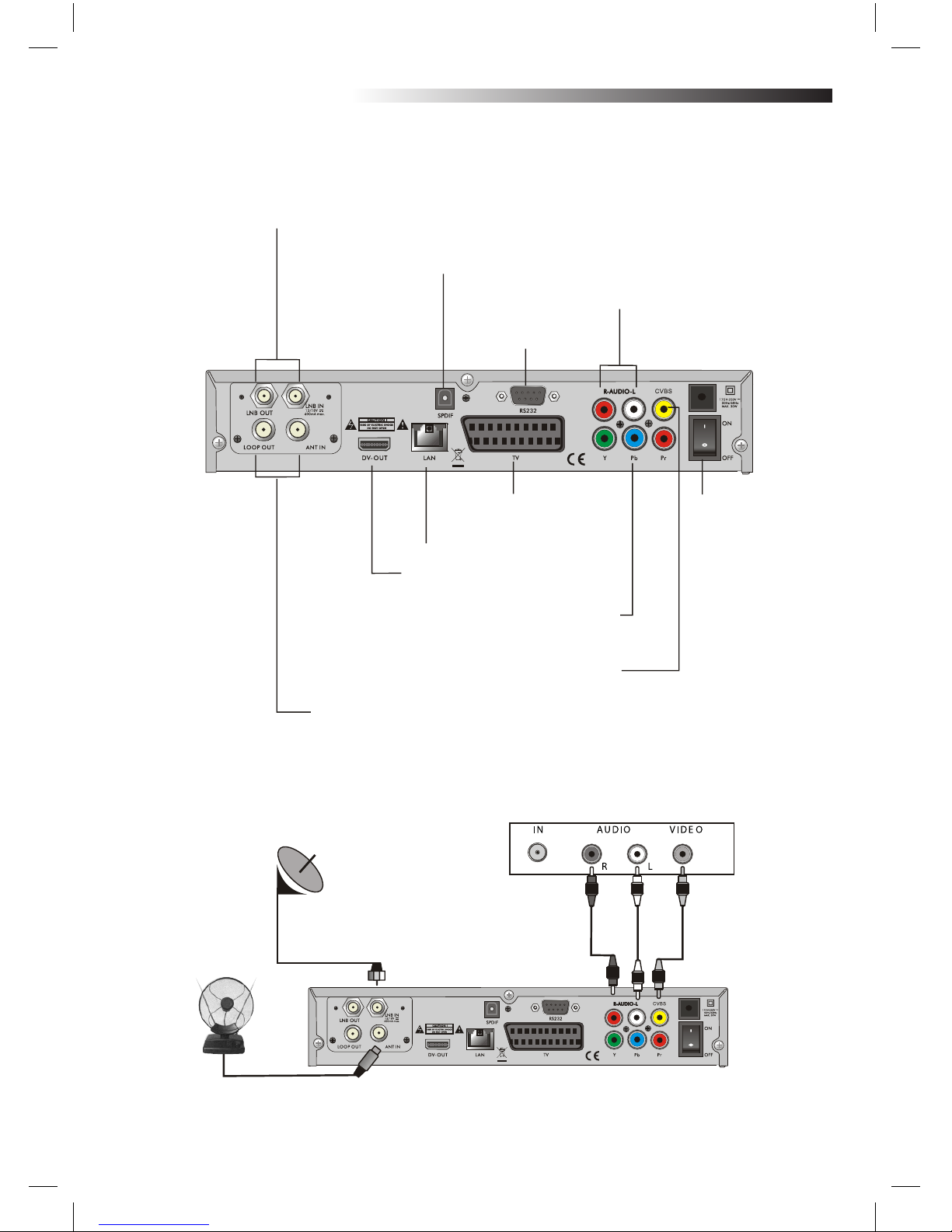

INSTALLATION
LNB IN: CONNECT TO SATELLITE ANTENNA
LNB OUT:CONNECT TO THE OTHER RECEIVER
CONNECT TO A DIGITAL AMPLIFIER
ANT IN: CONNECT TO ANTENNA
LOOP OUT: CONNECT TO ANOTHER RECEIVER
DIGITAL OUTPUT TO CONNECT
THE RECEIVER TO A DIGITAL AMPLIFIER
Satellite Dish
Terrestrial
Antenna
TV
CONNECT TO TV SET OR VIDEO PROJECTOR
YPbPr OR COMPONENT INPUTS
CONNECT TO TV
SET DV-OUT INPUT
CONNECT
TO THE INTERNET
CONNECT TO TV
USING A SCART CABLE
POWER ON/OFF
CONNECT TO AUDIO R/L TO
TV OR AUDIO TUNER
CONNECT TO A PC
FOR S/W UPGRADE
Rear Panel
Connecting to TV using SCART support
Page 9
111
ENGLISH
INSTALLATION
Cable or OFF-Air Antenna
IN FROM ANT
OUT TO ANT
DIGITAL AUDIO
CONVERTOR OR AMPLIFIER
SPEAKER
Satellite Dish
Satellite Dish
Terrestrial
Antenna
Terrestrial
Antenna
Connecting to TV using SCART support
Connecting to Digital Amplier
The picture is only for reference, please make the object as the standard
Page 10
112

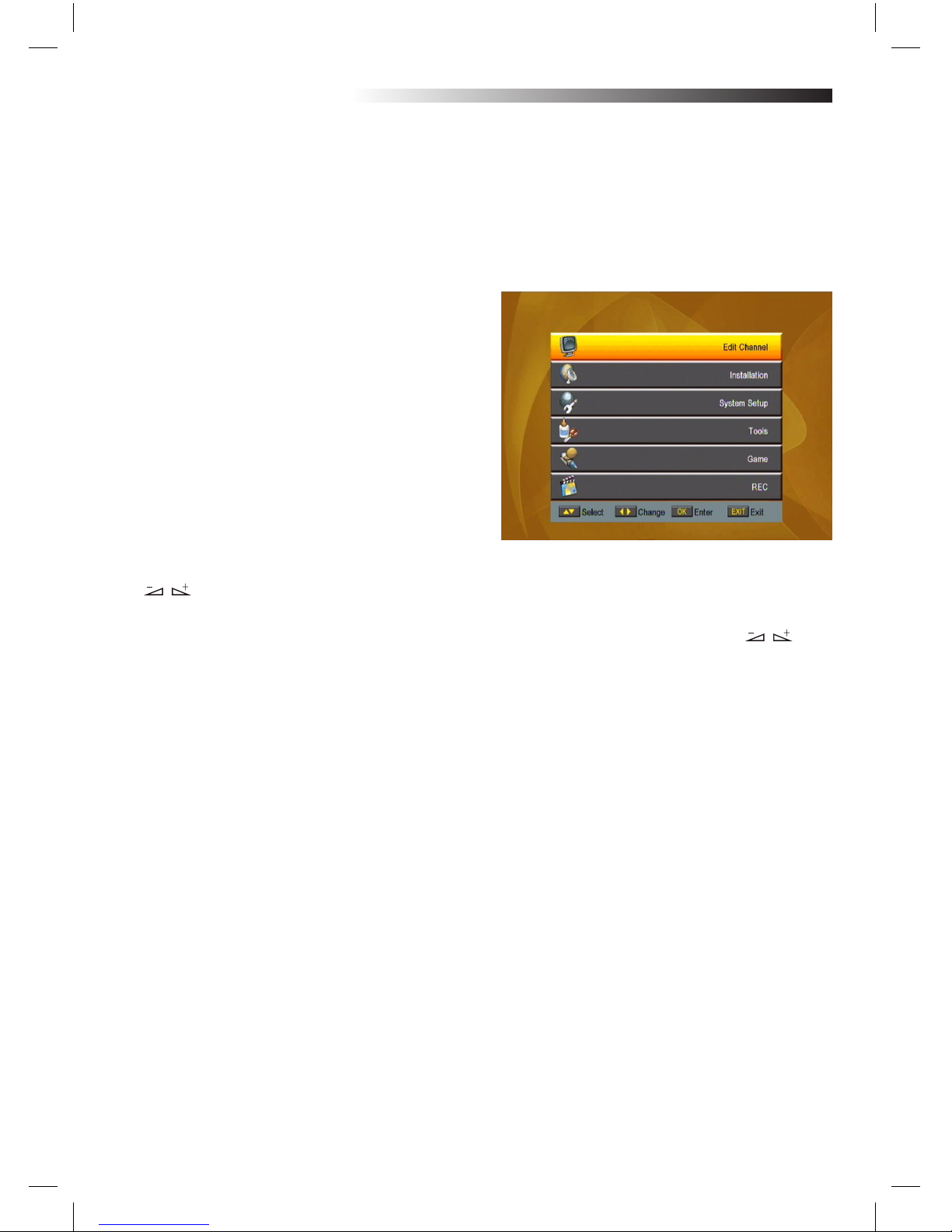

Main MENU
Make sure that you have properly installed and connected the cables of the receiver . If the receiver is the
factory status or there is no program list, when power on, the Main MENU window will be displayed on the
screen.
During the normal TV/Radio mode, press MENU key on the RCU to enter into the Main MENU window.
This MENU consists of 6 major main MENUs as follow.
- Edit Channel
- Installation
- System Setup
- Tools
- Game
- REC
During the installation the OK key conrms a selection and LIST key shows Down List Box if the column
has mark. You can also use the numeric keys on the RCU to enter numeric value.
Use the PR+, PR- key to move upwards and downwards from one line to another line and use key
to move from main MENU to sub MENU and move from left side to right side or versa.
Meantime, you want to escape the MENU system, please press MENU or EXIT key on the RCU.
MENU INFORMATION
Page 11
113
ENGLISH
If there is no program, you can not EXIT from the Main MENU window by pressing
MENU or EXIT key. System will inform “No channel” and the following items turn grey.

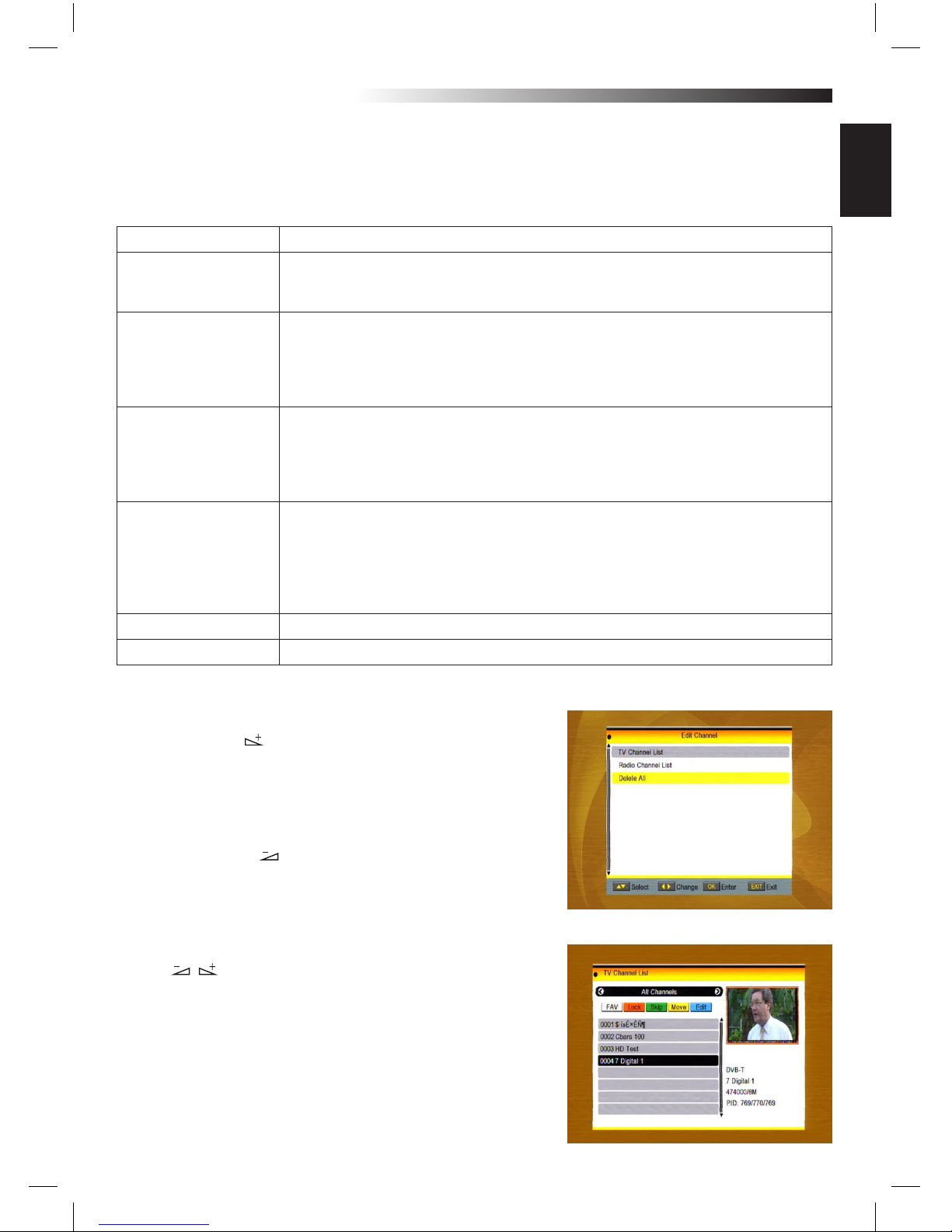

1. Edit Channel
1. Press OK key or key to pop up the “Input Password”
dialogue, you can not enter into the MENU unless the correct password is inputted.
The default password is “0000”.
2. Press PR+, PR- keys to move the cursor up or down.
3. Press EXIT key or key to move the focus to the left
MENU.
1.1 TV Channel List
1. Press keys to select satellite.
2. Press PR+, PR- keys to select the program that you want
to play, and then press OK key to view it in the small window. If move the yellow cursor to select up or down, you
will see a gray line which indicates the playing program in
the small window.
Sub-MENU
Turn grey when there’s no program
Edit channel TV Channel List
Radio Channel List
Delete all
Installation Antenna Connection Satellite List
Antenna Setup Single Satellite Search
Multi Satellite Search TP List
Terrestrial Manual Scan
Terrestrial Automatic Scan
System Setup Language TV System
Local Time Setting Timer Setting
Parental Lock OSD Setting
Favorite Other
Display Setting
Tools Information Factory Setting
Upgrade by USB Common Interface
Conditional Access Media Player
Remove USB device safely
Upgrade by Network Network Local Setting
Network DDNS Setting
Game Tetris Othello Sudoku
REC Storage Info DVR Conguration
MENU INFORMATION
Page 12
114
3. Press FAV key to move the FAV button upward. Select the pro-
gram and press OK key to pop up the Favourite group list. In the list,
select the group that you want to add into and press OK key, and
then you will nd the Favourite mark is displayed at the right side of
the selected program.
Press FAV key again to EXIT from the FAV mode, and
you will nd the FAV button return to the origin
position.
4. Press red colour key to move the Lock button upward. Select the
program and press OK key to mark this program with the Lock mark.
You can cancel this mark by pressing OK key once more.
Press red colour key again to EXIT from the lock mode, and you will
nd the Lock button return to the origin position.
5. Press green colour key to move the Skip button upward. Select the
program and press OK key to mark this program with the skip mark.
You can cancel this mark by pressing OK key once more.
Press green colour key again to EXIT from the skip mode, and you
will nd the Skip button return to the origin position.
6. Press yellow colour key to move the Move button upward. Select
the program and press OK key to mark this program with the move
mark. Press PR+, PR- keys to move the cursor to the position where
you want to locate and press OK key to conrm.
Press yellow colour key again to EXIT from the yellow mode, and you
will nd the yellow button return to the origin position.
7. Press blue colour key to enter into the Edit
channel window.
MENU INFORMATION
Page 13
115
ENGLISH
i . Sort (red colour key)
Press red colour key to pop up the Sort drop-down list.
Name(A-Z): The ascending order, omitting the $ character, the
number is ahead, then the capital letter, at last the lowercase.
Name (Z-A): The opposite order of the above Name (A-Z).
Free/Scramble: All FTA programs are listed ahead, while all
scrambled programs are listed last.
Lock: all locked programs are listed at the last.
ii. Edit (green colour key)
Press green colour key to move the Edit button upward. Select the
program and press OK key to pop up the Rename window.
In Rename window, press red colour key to switch between capital letter and lower letter; press green colour key to delete the
character on the cursor;
press keys to move the cursor left or right;
press numeric keys (0-9) to input the character, please refer to
the down table. Press yellow colour key to save and EXIT, or press
blue key to cancel
and EXIT.
If the name is empty, system will pop up a dialogue informing “Name” once yellow colour key is pressed.
Press OK key to close this dialogue
MENU INFORMATION
Numeric keys Press numeric key repeatedly, display in circle
1 .,*?!@1
2 ABC2
3 DEF3
4 GHI4
5 JKL5
6 MNO6
7 PQRS7
8 TUV8
9 WXYZ9
0 [space]_-0
Page 14
116
iii. Delete (blue colour key)
In Delete window, press blue colour key to move the Delete
button upward. Select the program and press OK key to mark
this program with the deletion mark. You can cancel this mark by
pressing OK key again.
Press EXIT key to pop up the dialogue “Are you sure to save?”.
Select Yes button and press OK key to save, or select NO button
and press OK key to exit without saving.
1.2 Radio Channel List
Sine the same operation as 1.1 TV Channel List, here we don’t
explain any more.
1.3 Delete All
Move cursor to the Delete All item, and press OK Key to pop up
the dialogue “Warning! Do you really want to delete all channel?”.
Press EXIT key to pop up the dialogue “Are you sure to save?”.
Select Yes button and press OK key to save, or select NO button
and press OK key to EXIT without saving.
2. Installation
1. Press OK key or key to pop up the “Input Password” dialogue, you can not enter into the MENU unless the correct password is inputted.
The default password is “0000”.
2. Press PR+, PR- keys to move the cursor up or
down.
3. Press EXIT key or key to move the focus
to the left MENU.
2.1 Antenna Connection
Press keys to select between Motor Antenna and Fixed
Antenna.
MENU INFORMATION
Page 15
117
ENGLISH
2.2 Satellite List
1. Press PR+, PR- keys to select the satellite up or down. Press OK
key to select and mark, and you can press OK key again to cancel
the selection and the mark.
2. If there is no satellite, the red colour and blue colour keys will
be invalid.
3. Press red colour key to pop up the Edit Satellite window. Press
PR+, PR- keys to move cursor up or down.
Name: User numeric keys to change the name of the satellite,
please refer to the Edit Channel Name.
Longitude: You can press keys to switch between east
longitude and west longitude. After pressing OK key, you can use
numeric keys to edit the longitude, press EXIT key or thePR+,
PR- keys to EXIT editing mode. The range of the longitude is from
1to 180 degree. If beyond this range, system will inform you “out
of range” when you press yellow colour key on the RCU.
After setting, press yellow colour key to save and EXIT, while
press blue colour key to EXIT without saving.
4. Press green colour key to pop up the Add Satellite window.
Since the same operation as the above Edit Satellite window,
here we don’t explain any more.
5. Press blue colour key to pop up the dialogue “Are you sure to
delete?”. Select Yes button and press OK key to delete the selected satellite. You can cancel this operation by pressing OK key at
the NO button.
MENU INFORMATION
Page 16
118
2.3 Antenna Setup
Part A: Fixed
Suppose that you have selected Fixed Antenna in the Antenna
Connection window.
1. Satellite: All selected satellites in the satellite list are displayed
in this item.
Press keys to select the satellite in circle. Or press OK key
to pop up the drop-down list, then select the desired satellite in
the list and press OK key to conrm.
2 . LNB Freq, Transponder, DiSEq C1.0 ,
DiSEqC1.1: The same operation as the above.
3. 22K, 0/12V, Polarity: You can press keys to select in
ircle.
Part B: Motor
Suppose that you have selected Motor Antenna in the Antenna
Connection window.
1. LNB Type: Select the proper LNB type.
2. Motor Type: Select between DiSEqC1.2 and USALS. If you se-
lect DiSEqC1.2, the following Local Longitude and Local Latitude
items will turn grey.
3. Delete All: Press OK key to pop up the dialogue “Are you sure to
clear set satellite position of this tuner?”. Press OK key at the Yes
button to clear all the memories about the position of the satellites that are connected to the current tuner.
4. Motor Setting: Press OK key to the Motor Setting window.
Satellite: Press keys to select the satellite in circle. Or
press OK key to pop up the drop-down list, then select the desired
satellite in the list and press OK key to conrm.
Transponder: The same operation as the above.
MENU INFORMATION
Page 17
119
ENGLISH
Position No., & Save: The range is from 0 to 63. “0” delegates the original position. You can select the
proper value when you has rotated the antenna.
Go to X: Press OK key to pop up the drop-down list, select the proper position (reference or from 1to 63)
to realize the selected position.
West <Save> East: Press key to turn west, while press key to turn east.
Press OK key to pop up the dialogue “Are you sure to change this satellite’s position?”. Press OK key at the
Yes button to save the current position, or press OK key at the No button to cancel the operation.
Recalculation: Press OK key to pop up the dialogue “Are you sure to change this satellite’s position?”. Press
OK key at the Yes button to recalculation.
5. Limit Setup: Press OK key to pop up the Limit Setup win-
dow.
Limit Setup: Press keys to switch among Disable Limit,
East Limit and West Limit.
Limit Setup: Move cursor to the Limit Setup button. You can
press key to turn west , or press key to turn east.
Go to Reference: Press OK key to go to reference. If you select Disable Limit in the above Limit Setup item, this button will
turn grey.
6. If select USALS, Delete All item will turn grey. Local Longitude, Local Latitude: Press keys to
switch between West and East, or press keys to switch between North and South.
Press OK key to enter into the editing mode. Use numeric keys (0-9) to input the longitude or latitude,
press MENU key or EXIT key to EXIT. The range of the longitude is from 0 to 180,while the range of the
latitude is from 0 to 90.
If the inputted value is not in this range, system will pop up a dialogue “Out of Range” when you EXIT from
this window. You can press OK key to close this dialogue.
7. Motor Setting: Press OK key to enter into the Motor setting window.
Satellite, Transponder: Press keys to select satellite or transponder, or press OK key to pop up
the drop-down list and select in the list.
MENU INFORMATION
Page 18
120
2.4 Single Satellite Search
1. Satellite : Press keys to select the satellite in circle.
Or press OK key to pop up the drop-down list, then select the
desired satellite in the list and press OK key to conrm.
2. FTA Only: Press keys to select between Yes and No.
3. Scan Channel: Press keys to select among TV+Radio,
TV Channel, Radio.
4. Network Search: Select between No and Yes. This item
turns grey when Auto Scan is selected in the following Scan
mode item.
5. Scan Mode: Press keys to select between Auto Scan and Preset Scan. Auto Scan is Blind
scan, while Preset Scan is to search the preset frequencies.
6.Turner:LNB1
7. Search: Press OK key to start searching.
2.5 Multi Satellite Search
From the Multi Satellite Search window, you can search several
satellites at the one time.
1. Satellite: All selected satellites in the satellite list window are
displayed on the down part. You can press keys to switch
among them.
2. FTA Only: Press keys to select between Yes and No.
3. Scan Channel: Press keys to select among TV+Radio,
TV Channel, Radio.
4. Network Search: Select between No and Yes. This item turns
grey when Auto Scan is selected in the following Scan mode item.
5. Scan Mode: Press keys to select between Auto Scan
and Preset Scan.
Auto Scan is Blind scan, while Preset Scan is to search the preset
frequencies.
6.Turner: LNB1
7. Search: Press OK key to start searching.
MENU INFORMATION
Page 19
121
ENGLISH
2.6 TP List
1. Press PR+,PR- keys to select the proper satellite
2. Press red colour key to pop up the Edit TP window.
Frequency, Symbol rate: Press keys to add or reduce
by step one. Or press numeric
keys (0-9) to input the desired value. The range of the frequency is 3000-13500, while the range of the symbol rate is
1000~45000. The inputted value is beyond this range, the
value will return to the origin value.
Polarity: Press keys to switch between Vertical and
Horizontal.
3. Press green colour key to pop up the Add TP window. Since
the same operation as the above Edit TP window, here we
don’t explain any more.
4. Press yellow colour key to pop up dialogue “ Are you sure to
delete?”. Press OK key at the Yes button to delete the selected
TP, or press EXIT key to cancel the operation.
5. Press blue colour key to pop up the TP
Search window.
FTA only, Scan Channel, Network Search:
Press keys to select the proper option.
Press OK key at the OK button to start searching.
MENU INFORMATION
Page 20
122
2.7 Terrestrial Automatic Scan
1. Area: Select the area.
2. FTA Only: Select between YES and No.
3. LCN: Select between ON/OFF
4. Search: Press OK key to start searching.
2.8 Terrestrial Manual Scan
When you enter Manual Search, the screen will display as beside.
There are two scan modes for you. You can choose to scan by
channel or by frequency.
When scan band is UHF and region is “China”, the range of Ch
Number is from 13 to 61. When scan band is VHF and region is
“China”, the range of Ch
Number is from 1 to 12. (It’s according to region.)
When you complete your conguration, move highlight to search
option, and press [OK] key to start scanning.
Press [EXIT] key to EXIT the scanning and save the current parameters.
3. System Setup
1. Press OK key or key to move the cursor to the right MENU.
2. Press PR+, PR- keys to move the cursor up or down.
3. Press EXIT key or key to move the focus to the left MENU.
3.1 Language
1. Press OK key to enter into the Language window. Press
keys to select the language in circle, while press PR+, PR-
keys to move the cursor up or down in circle.
2. Press MENU key or EXIT key to save and EXIT.
3. The types of the language, pleaser refer to the conguration
of the customer.
MENU INFORMATION
Page 21
123
ENGLISH
3.2 TV System
Press PR+, PR- key to move the cursor up or down, while press
keys to change the setting and the setting will take eect
immediately.
1. Video Resolution: Select among 480i, 576i, 480p,576p,
720p and 1080i.
2. Aspect Mode: Select among 4:3LetterBox, 4:3 PanScan, 16:9
and Auto.
3. Video Output: Select between RGB and YUV.
4.Digital Audio Out: Select among LPCM Out, Auto and BS Out.
3.3 Display Setting
1. Brightness: Press key to select from 0-100.
2. Contrast: Press key to select from 0-100.
3. Saturation: Press key to select from 0-100.
3.4 Local Time Setting
1. Summer Time: Select between ON and OFF.
“OFF” delegates the normal time. If select ON,
time will add one hour.
2. GMT Oset: When select “ON” in GMT Usage item, system will
get the date and time information from the screen automatically.
Date and Time two items will turn grey. Select the proper option
in the GMT Oset item. The default setting is GMT ON.
3.Date, Time: When select “OFF” in GMT Usage, Date and Time
two items take eect, while GMT Usage turns grey. Use numeric
keys to input the desired value.5.
After setting, press MENU key or EXIT key to EXIT and save. If
the value is invalid, system will inform “Invalid input! Continue to
edit?”. Press OK key at the Yes button to continue the modication, or press OK key at the No button to EXIT without saving.
MENU INFORMATION
Page 22
124
3.5 Timer Setting
If there is no program, you can not enter into this window. There are 8 timers that can be set.
Select Timer up or down, and press OK key to enter into the
setting window.
1. Timer mode: The default mode is o. You can set the timer
once, daily, weekly, monthly and yearly.
2. Timer Service: Select between Channel or Record. If
Channel is selected, the Wakeup Channel is displayed in the
following item. If Record is selected, the Wakeup Message is
displayed in the following item. In wakeup message, you can
select among Birthday,Anniversary, General. At the same time
the duration item turns grey.
3. Wakeup Date, On Time: Use numeric keys to input the valid date.
Duration: Set the gap time. After waking up, system will power
o automatically after the duration time.
Press MENU or EXIT key to save and EXIT.
3.6 Parental Lock
Before entering into the Parental Lock window, you need input
the correct password. The default password is 0000.
1. MENU Lock: Press keys to select between O and On.
If select “On” , you can not enter into the window before entering the password.
2. Channel Lock: Press keys to select between O and
On. The default value is O.
If select “On”, you can not view the locked channel set in Chanel List Edit window until you have inputted the correct password.
3. New Password: User numeric key (0-9) to input the new
password.
4. Conrm Password: Input the new password once again.
Conrm password must be the same as the New password.
System will inform you “Change password successfully!” while
they are the same, or inform you to input the password of
Conrm password once again when they are not the same.
MENU INFORMATION
Page 23
125
ENGLISH
3.7 OSD Setting
1. OSD Timeout: Press keys toselect from 1 to 10 by
step1. The default values Is 5.
2. OSD Transparency: Press keys to select among O,
10%, 20%, 30%, 40%. The default option is O.
Press MENU or EXIT key to save and EXIT.
3.8 Favorite
There are 32 Favorites group listed in this window. Press PR+,
PR- keys to select one and press OK key to theRename window.
Since the same operation as the above the Add Satellite window, here we don’t explain anymore.
3.9 Other
1. LNB SAT (LNB Alimentation)
2.Antenna Power (Antenna alimentation):
Select between OFF and ON
3. Channel Play Type: Select among All, Free,
Scramble.
4. Change Channel: Black screen or freeze
5. Clock in standby: ON/OFF
6. Autostandby (Auto OFF 3h): ON/OFF
4. Tools
1. Press OK key or key to pop up the “Input Password” dialo-
gue, you can not enter into the MENU unless the correct password is inputted.
The default password is 0000.
2. Press PR+, PR- keys to move the cursor up or down.
3. Press EXIT key or key to move the focus to the left MENU.
4.1 Information
Press OK key to the Information window.
MENU INFORMATION
Page 24
126
4.2 Factory Setting
Press OK key to enter into the Factory Setting window.
Select Yes button and press OK key to return to the factory setting. All searched channels and set information will be erased.
Select No button and press OK key to cancel this operation, or
press MENU or EXIT key to cancel and EXIT.
4.3 Common Interface
Insert the common interface module into the CI slot, and then
insert the smart card into the common interface module with
the golden or silver chip facing up.
Push the smart card into the module. Only a few millimetres of
the card should be visible outside the module.
To remove the module from the slot, push button on the lefthand side of the slot.
There are many types of CI. Here we take Conax access for
example.
Press OK key to enter into the main MENU.
You can know information about product Ordering, Subscription
Status, PPV Status, Token Status and so on.
Product Ordering
Not avaliable in this software.
Subscription Status
Know the detail information of Subscription Status.
PPV Status
No Entitlement.
Token Status
Know the detail information of Token Status
MENU INFORMATION
Page 25
127
ENGLISH
Change CA PIN
Changes CA PIN window is designed for changing the smart card’s PIN, which is required if you want chan-
ge the maturity level settings.
In order to change the PIN, you must know the current PIN also called the old PIN. Input the new PIN and
twice the PIN (New PIN and Conrm PIN must be the same) your want to set. Move cursor to OK button and
press OK key, and then system will pop up a dialogue informing you the changing result. Note that the PIN
can only constructed with Arabic numerals.
Change Signature PIN
Do the same way as the above Change PIN.
Note: The signature PIN will be locked after the three erroneous attempts to enter the correct PIN. If locked,
please call the dealer for help.
Maturity Rating
In Maturity Rating subMENU, you can change the smart card s maturity rating, which will aect whether scrambled program is granced or not. There are four available settings for selection: G-General
Audience,A-Over18,X-Erotic,G-For the family,PG- parental Guidance.
In order to change the maturity level, you must enter the correct PIN. If all of the items
are satised, then you can click change maturity level button. A dialogue will tell you
whether your change is succeeded or not.
Modem Ordering
Not Modem available.
About Conax CA
Know the information about Conax CA.
Message
All messages are listed in this window.
Language
Show all the language you can select.
MENU INFORMATION
Page 26
128
Loader Status
You can select allow download or forbid download.
4.4 Conditional Access
Insert the smart card with the golden chip facing up. Push the
smart card into the CA slot. Only a few millimetres of the card
should be visible outside the slot.
Select Conditional Access item and press OK key, then you will
enter into its sub-MENU which consists four items of About CA
Info, Change PIN, Change Signature PIN, Maturity Level.
4.4.1 About CA Info
In About CA Info sub-MENU, you can know the basic information about this conditional access such as Card Status, CAS System ID, Interface Version, Card Number, Number of sessions,
Country Indicator, and Maturity Level.
4.4.2 Change PIN
Changes PIN window is designed for changing the smart
card’s PIN, which is required if you want change the maturity
level settings. In order to change the PIN, you must know the
current PIN also called the old PIN. Input the new PIN and twice
the PIN (New PIN and Conrm PIN must be the same) your want
to set.
Move cursor to OK button and press OK key, and then system
will pop up a dialogue informing you the changing result.
Note that the PIN can only constructed with Arabic numerals.
4.4.3 Change Signature PIN
Do the same way as the above Change PIN.
Note: The signature PIN will be locked after the three erroneous attempts to enter the correct PIN. If locked, please call the
dealer for help.
MENU INFORMATION
Page 27
129
ENGLISH
4.4.4 Maturity Level
Input the PIN then Move cursor to Select Maturity level,you can select A-Over18, X-Erotic, G-General
audience,PG-Parental Guidance,move cursor to Change Maturity level button and press OK key,and then
system will pop up a dialogue informing you the changing result.
4.4.5 Subscription Status
Know the detail information of Subscription Status.
4.4.6 Even Status
Know the detail information of Event Status.
4.4.7 Token Status
Know the detail information of TOKens Status.
4.5 Upgrade by USB
1.Upgrade File: Show the Upgrade File.
2.Upgrade Mode: Select between AllCode and Dump. When users switch the upgrade mode, Upgrade File
will show the corresponding le according to the table below:
Upgrade Mode File feature
All code : File named as “*.abs”
Main Code: File named as *.abs
Radio back: File named as “*.abs”,
the picture will be used
as both radio back and
MENU back
Default db: File named as “*.abs”
Select the upgrade mode and upgrade le, then you can start upgrade by USB.
3.Press OK key on start button to start receiving the data from USB device. When the USB device is not
connected, this item is grey, you can not edit it now.
4.6 Media Player
This MENU will be disabled when no USB device is plugged.
Media Play List will not be saved when USB plug out or standby or power o.
Move scroll bar when press up/down key, page up or down
by page key. Go into sub-directory when press OK key in the
le directory, play the selected le when scroll bar is on the
le,automatic return USB MENU after play is over
MENU INFORMATION
Page 28
130
Color key operation:
1.Green key: Press green key to add the Favorite symbol on your selected les, and put the le selected by
scroll bar to play list .
2.Yellow Key: Press yellow key to add all the image and music les to the play list .
3.Red Key: Show the Play List.
4.Blue Key: Press blue key to enter the edit window.
Function key:
Press number key 0 to switch among music, image, video and
record list.
In image list
Press number key 1 to display the Sort window.
Press number key 2 to display the Setup window.
Press number key 3 to enter multi view mode.
In edit window:
Red key: Press red key to enter the rename window, you can
rename the le by press number 0-9 on RCU.
Green key: Press green key to enter the copy window, press
key to select the place you want to copy to, and press
green key to begin copying.
Yellow key: Press yellow key to add the delete symbol
on your selected le, press yellow key again the symbol
will disappeared. Press OK key on the le with delete symbol,
it will pop up a dialogue: “ Are you sure to delete ?” Select YES
to delete and select NO to quit without delete the le. and press EXIT key to quit without delete the le.
Blue key: Press blue key to enter the New Folder window, you can press number 0-9 to edit.
In music list
Press number key 1 to display the Sort window.
Press number key 2 to select the repeat mode.
The function of colour key is the same as Color key operation
In video list
Press number key 1 to display the Sort window.
The function of colour is the same as Color key operation
In record list
Red key: Press red key to enter the rename window, you can rename the le by press number 0-9 on RCU
Green key: Press green key to lock the le you selected Yellow
key: Press yellow key to delete the le you selected.
MENU INFORMATION
Page 29
131
ENGLISH
4.7 Remove USB device safely
Press OK on this item it will pop up a dialogue:”You can safely remove USB device now! “, then you can move your USB device safely.
4.8 Network Local Setting
HDCP: Select between ON and OFF, when it ON, the IP Address, Subnet Mask and Gateway item will turn gray, you can not edit them.
Press number 0-9 the input the address.
4.9 Upgrade by Network
1. Protocol: Select between HTTP and FTP.
2. URL Type: Select between number and string.
3. URL: press number key 0-9 to input.
4.User: Press number key 0-9 to input the user name.
5. Press number key 0-9 the input the password.
6. Press OK key on star button to begin updating Press green key
to delete the number or characters and press red key to switch the
input mode.
4.10 Network DDNS Setting
1. DDNS Type: Press key to select.
2. URL: press number key 0-9 to input.
3. IP Address: It can’t be edited.
4. User: Press number key 0-9 to input the user name.
5. Password: Press number key 0-9 the input the password.
6. Wildcard: Select between on and o.
7. Type Time: Select among 1min,5min,10min, 30min and 1 hour,
Press green key to delete the number or characters and press red
key to switch the input mode.
5. Game
1. Press OK key or key to enter into the game.
2. Press PR+, PR- keys to move the cursor up or down.
3. Press EXIT key or key to move the focus to the left MENU.
4. Select the game that you want to play and press OK key to enter
into the window.
MENU INFORMATION
Page 30
132
6. REC
6.1 Storage Information
Show you the information in windows as besides.
6.2 DVR Conguration
1.Time shift: Select between O and On.
2. Timeshift to Record: Select between On and O.
3. Jump: Select among 30 sec, 1 min, 5 min, 10min and 30
min.
4.Banner Timeout: Select among 5sec,10sec,30sec and
60sec.
7. Hot Key
7.1 Info
Press INFO key to pop up the Info bar.
Press INFO key again to pop up the program guide of the
current program.
Detail Information: In the INFO window, press PR+, PR- keys to select the next program and current pro-
gram, and press PR+ PR- keys to explore all pages
MENU INFORMATION
Page 31
133
ENGLISH
7.2 Find
Press FIND key on to pop up the Find window.
Use numeric keys to enter into the character and use the colour keys to realized the corresponding operation.
7.3 Number
Use the numeric keys (0-9) to input the
number of the desired channel. If the inputted
number is beyond the valid channel number, system will “No
such a channel” and press OK key to close this message.
7.4 TV/RADIO
In normal mode, press TV/RADIO key to switch between TV mode and Radio mode.
7.5 Up/Down (Channel Change)
Press PR+, PR- keys to change the channel up or down. If in the all satellites group, you can select channel
in all searched channels. If in the specic satellite, only can select channel in the satellite group.
7.6 Left/Righ (Volume+/-)
Press keys to change the volume. Press keys to decrease the volume, while press keys to
increase the volume.
7.7 Mute
Press key to turn o the volume. You can press key once again to restore the volume, or press
keys to increase the volume.
7.8 Pause
During the viewing, you can press PAUSE key to stop the picture while the volume continues. You can play
the picture by pressing PAUSE key once again.
7.9 OK
1. During the viewing or listening, press OK key to pop up the TV
program list or the Radio program list.
2. Press PR+, PR- keys to select the channel up or down, and
then press OK key to play this channel in full-screen.
3. Press keys to select the satellite.
4. Press MENU or EXIT key to close this window.
MENU INFORMATION
Page 32
134
7.10 Audio
1. Press keys to enter into the Audio window.
2. Press keys to select among Left, Right, Stereo,
and Mono.
3. Changing the audio mode is only connected with the current channel, not all the channels.
4. Press MENU or EXIT key to close this window.
7.11 Recall
Press key to switch the current channel to the previous channel.
7.12 FAV
1. Press FAV key to pop up the Favourite group
window.
2. Press keys to select the FAVorite group.
Press PR+, PR- keys to select the channel up or down.
Press OK key at the selected channel to view it in fullscreen. Press MENU or EXIT key to EXIT.
3. If there is no FAVorite channel, system will inform “ No
FAV Channel!” when you press FAV key.
7.13 Teletext
Press TXT key to open the teletext on the screen. If there
is no teletext, system will inform “No Teletext Data”. Press
EXIT key to EXIT.
7.14 Zoom
1. Press ZOOM key to switch among Zoom*1, Zoom*2,
Zoom*3, Zoom*4, Zoom*5, Zoom*6, Zoom*8, Zoom*12,
Zoom*16.
2. In zoom mode, press PR+, PR- keys to move the
cursor up, left, right down.
3. Press MENU or EXIT key to EXIT
MENU INFORMATION
Page 33
135
ENGLISH
Note : If you have tried all of the actions suggested above, without solving the problem, please contact your
dealer or service provider.
TROUBLESHOOTING
Problem Possible causes What to do
The display on the front panel
does not light up
Main cable is not connected Chack that the main cable is
plugged into the power socket
No sound or picture, but the
front panel shows red light
The receiver is in standby mode Press the standby button
No sound or picture. The satellite dish is not pointing
at the satellite
Adjust the dish. Check the signal
level in the Antenna Setup
MENU
No signal or weak signal Chck the cable connections, LNB
and other equipment connected
between the LNB and the receiver, or adjust the dish
The satellite dish is not pointing
at the satellite
Adjust the dish
Signal is too strong Connect a signal attenuator to
the LNB input
Satellite dish is too small Change to a larger dish
Bad picture/blocking error LNB noise factor too high Change to an LNB with lower
noise factor
The LNB is faulty Change the LNB
The picture is not
showed on the screen,
when switching on.
The system is connected by RF
leads.
Check the UHF channel xed in
your system and tune the UHF
channel properly.
There is interference on
your digital satellite
channels, an existing
terrestrial channel or video
signal.
The system is connected by RF
leads and the output channel of
the receiver interferes with an
existing terrestrial channels or
Video signal.
Change the receiver output
channel to a more suitable
channel, or connect the system
by SCART leads.
Battery exhausted. Change the batteries.
The RCU is not working. RCU is incorrectly aimed. Aim RCU at the receiver, or check
that nothing blocks the front
panel.
Page 34
136
Loading...
