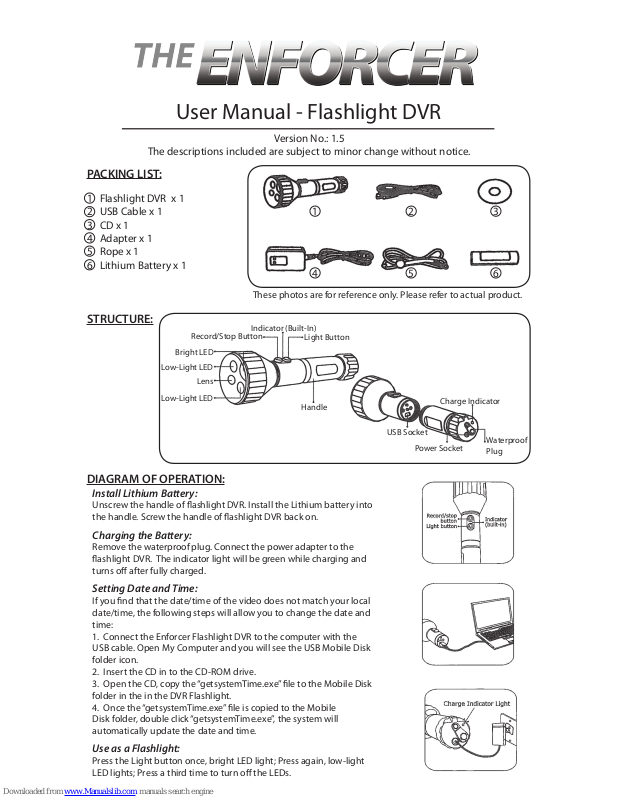

User Manual - Flashlight DVR
Version No.: 1.5
The descriptions included are subject to minor change without notice.
PACKING LIST:
1 Flashlight DVR x 1
2 USB Cable x 1
3 CD x 1
4 Adapter x 1
5 Rope x 1
6 Lithium Battery x 1
STRUCTURE:
DIAGRAM OF OPERATION:
Install Lithium Battery:
Unscrew the handle of ashlight DVR. Install the Lithium battery into
the handle. Screw the handle of ashlight DVR back on.
Charging the Battery:
Remove the waterproof plug. Connect the power adapter to the
ashlight DVR. The indicator light will be green while charging and
turns o after fully charged.
Setting Date and Time:
If you nd that the date/time of the video does not match your local
date/time, the following steps will allow you to change the date and
time:
Connect the Enforcer Flashlight DVR to the computer with the
USB cable. Open My Computer and you will see the USB Mobile Disk
folder icon.
Insert the CD in to the CD-ROM drive.
Open the CD, copy the “getsystemTime.exe” le to the Mobile Disk
folder in the in the DVR Flashlight.
Once the “getsystemTime.exe” le is copied to the Mobile
Disk folder, double click “getsystemTime.exe”, the system will
automatically update the date and time.
Use as a Flashlight:
Press the Light button once, bright LED light; Press again, low-light
LED lights; Press a third time to turn o the LEDs.
1.
2.
3.
4.
Indicator (Built-In)
Record/Stop Button
Light Button
Bright LED
Low-Light LED
Lens
Handle
Charge Indicator
Power Socket
USB Socket
Waterproof
Plug
Low-Light LED
These photos are for reference only. Please refer to actual product.
1 2 3
4 5 6
Audio/Video Recording:
Press the Record/Stop button to start recording and once again to stop recording. The indicator light is a
ashing blue light while recording.
Make sure the button of the Enforcer Flashlight DVR is on top during recording, otherwise the video les
will not display correctly
When recording close-up at night, it is recommended to use low-light LEDs to avoid washout of the
video.
Downloading Audio/Video Recording:
Unscrew the handle of ashlight DVR. Connect the ashlight DVR to PC with USB cable. The video le may
be reviewed using the standard Windows Media Player or copied to the PC for future review.
If the PC cannot play the video le, install the video player software included on the CD-ROM.
•
•
Notes:
If the battery is exhausted, the Indicator (built-in) turns red and ashes, the video les will
automatically be saved before shut down.
When the memory is full, press the Record/Stop button, the Indicator (built-in) turns turns blue or will be
out after a few seconds, the recording automatically stops.
The recorder also works as USB disk when connected to a computer.
1.
2.
3.
DIRECTION OF RECORDING INSTRUCTIONS
Please make sure the button of the Enforcer Flashlight DVR is on top during recording, otherwise
the video les will no display correctly.
F
F
F
Button
Button
F
Button
X X
X
Button
SPECIFICATIONS
Enforcer Flashlight DVR
Items GD2716
Imaging Sensor 1/4 inch Color CMOS
Video Resolution 640 x 840
View Angle 56°
Video Format .AVI
Video File Size > 15M Byte/minute
View Resolution 640 x 840 (VGA)
Storage Medium 2G built-in Memory
Power Supply Li-battery (3.7V/2000mAH)
Charge Time 4 hours (max.)
Data Transmission USB 2.0
Work Time 3.5 hours (min.)
LED Light Power 1 W
LED Light Color Temperature >5500K
Waterproof Capacity IP65
Consumption Current (max.) 560mA
Charge Current >800mA
Dimensions ( W x D x H ) 191 x 56 x 56 (mm)
Weight (approximate) 300g
Operating Temperature 0° C~ + 50° C
Operating Humidity 15~85%RH
FCC Information
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modications not
expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
CAUTIONS
The apparatus shall not be exposed to dripping
or splashing and that no objects lled with liquids,
such as vases, shall be placed on the apparatus.
Turn o the camera if the system is not in use.
Do not put the battery in re, water or near heat.
Do not use the battery in heat or near places of
high temperature.
Do not use metal objects to connect the polarities
of the battery.
Do not open the battery.
When not using the device for long periods of
time, please remove the battery and store in a cool,
dry place.
•
•
•
•
•
•
•
EU Environmental Protection
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist.
Check with your local authority or retailer for recycling
advice.
