SD-72081-6MQ
Single-Gang Mortise Cylinder Key Switch
Manual

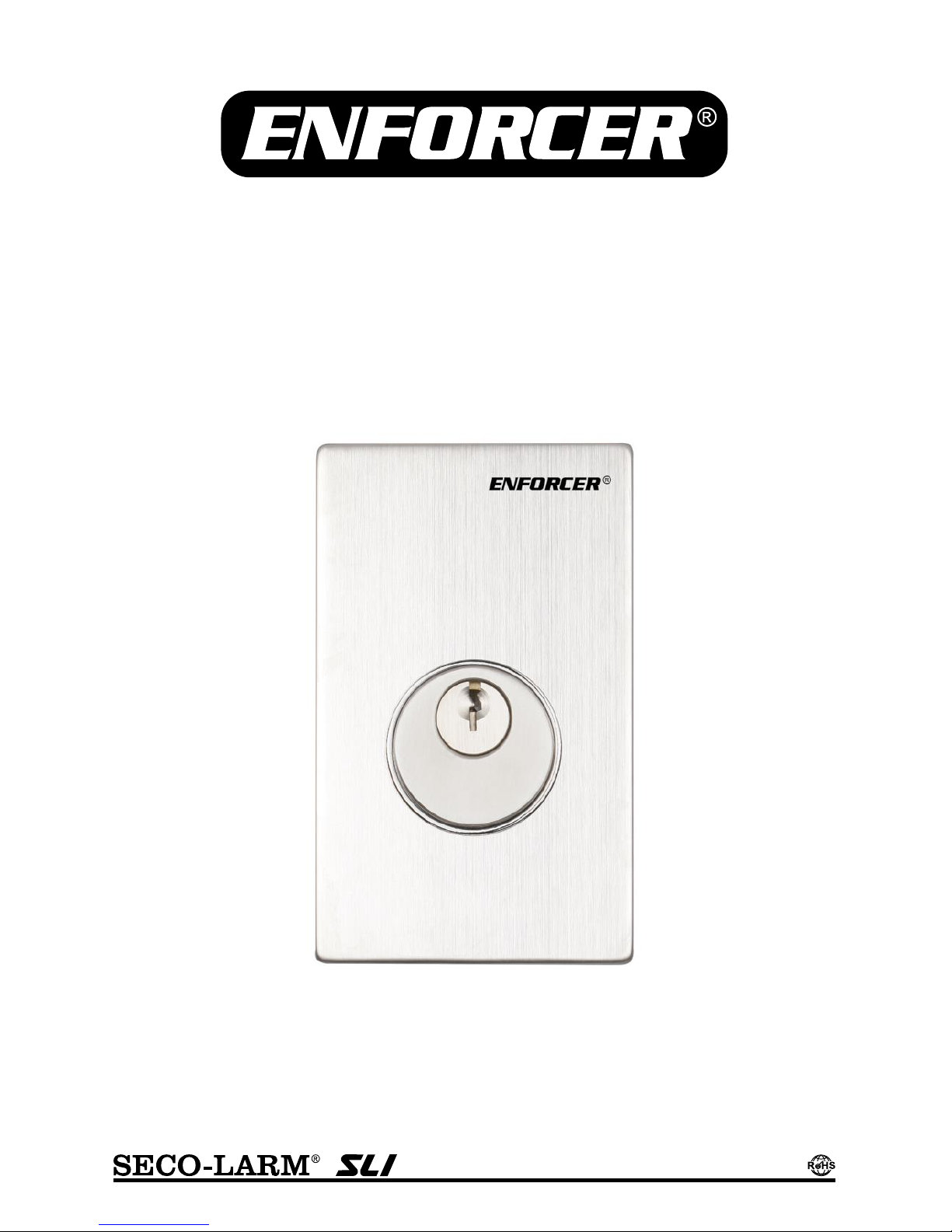

ENFORCER Single-Gang Mortise Cylinder Key Switch
2 SECO-LARM U.S.A., Inc.
Introduction:
If a keypad or proximity card reader fails to activate an electronic lock, the user can switch between
normally closed (N.C.) and normally open (N.O.) contacts using the SD-72081-6MQ, forcing the
door to open. This acts as a backup for access control systems, so that the system does not rely
on the integrity of a single device.
Overview:
Specifications:
Model
SD-72081-6MQ
Switch Type
DPDT Switch (momentary)
Contact Rating
5A@125VAC, NO/NC
Dimensions
23/4”x41/2”x17/16” (69x114x37 mm)
Parts List:
1x Front cover
1x Back plate
1x Set of keys (2 pc)
Side View
11/8”
(28mm)
3
/8”
(9mm)
PCB
Front View*
23/4” (69mm)
41/2”
(114mm)
Key switch
11/2”
(38mm)
15/16”
(34mm)
Features:
Keyed mortise cylinder (2 keys included)
Mortise cylinder removable for ease of keying
Flush mount with vandal-resistant screws
Chrome-plated aluminum back plate fits to single-gang box
Stainless-steel front cover conceals mounting screws
DPDT Momentary switch, 5A@125VAC contact rating, color-coded wires
Screw hole
Screw hole
*Note: Shown without cover.
2x Vandal screws
1x Security wrench
IMPORTANT: No replacement keys are
available. Please make extra copies of
your keys.
