Note: Products with model numbers that end with “Q” or that have a round green “Q” sticker are RoHS compliant.
IR over HDMI Kit
Manual
MVE-PN11-01Q
Add IR remote pass-through to installations where an HDMI source is in a
different room than the HDMI display using existing HDMI cables.
Discreet, convenient design—adapters install between the devices and the
HDMI cables.
IR Transmitter and receiver are built with a 4.5ft (1.45m) cord for added
convenience while installing.
Compatible with other ENFORCER products (sold separately):
4x1 HDMI Switch (MVS-AH41-01NQ), 1x4 HDMI Splitter (MVD-AH14-01NQ),
and 4x4 HDMI Matrix (MVM-AH44-014Q)
ENFORCER IR over HDMI® Kit
2 SECO-LARM U.S.A., Inc.
The ENFORCER IR over HDMI Kit is the ideal solution for installations where a DVR, Blu-Ray
player, or other HDMI source is in a different room or location than the HDMI display. The
adapter’s discreet and convenient design installs between the device and the HDMI cable. The IR
transmitter and receiver are each built with a 4.5ft (1.45m) cable for an easy and clean installation.
Introduction:
Specifications:
Model
MVE-PN11-01Q
Type
IR over HDMI Kit
Video formats supported
High-speed HDMI with 3D, HDCP 1.2
Frequency
33~60 kHz (Dual band)
Dimensions
IR Transmitter
11/8”x11/16”x1/2” (30x18x12 mm)
IR Receiver
11/8”x11/16”x1/2” (30x18x12 mm)
HDMI Adapter
11/8”x7/8”x3/8” (30x22x10 mm)
Cable
4.5’ (1.45m)
Jack
3.5mm
Weight
2.2-oz (62g)
Parts List:
2x HDMI Adapters 1x IR Transmitter 1x IR Receiver

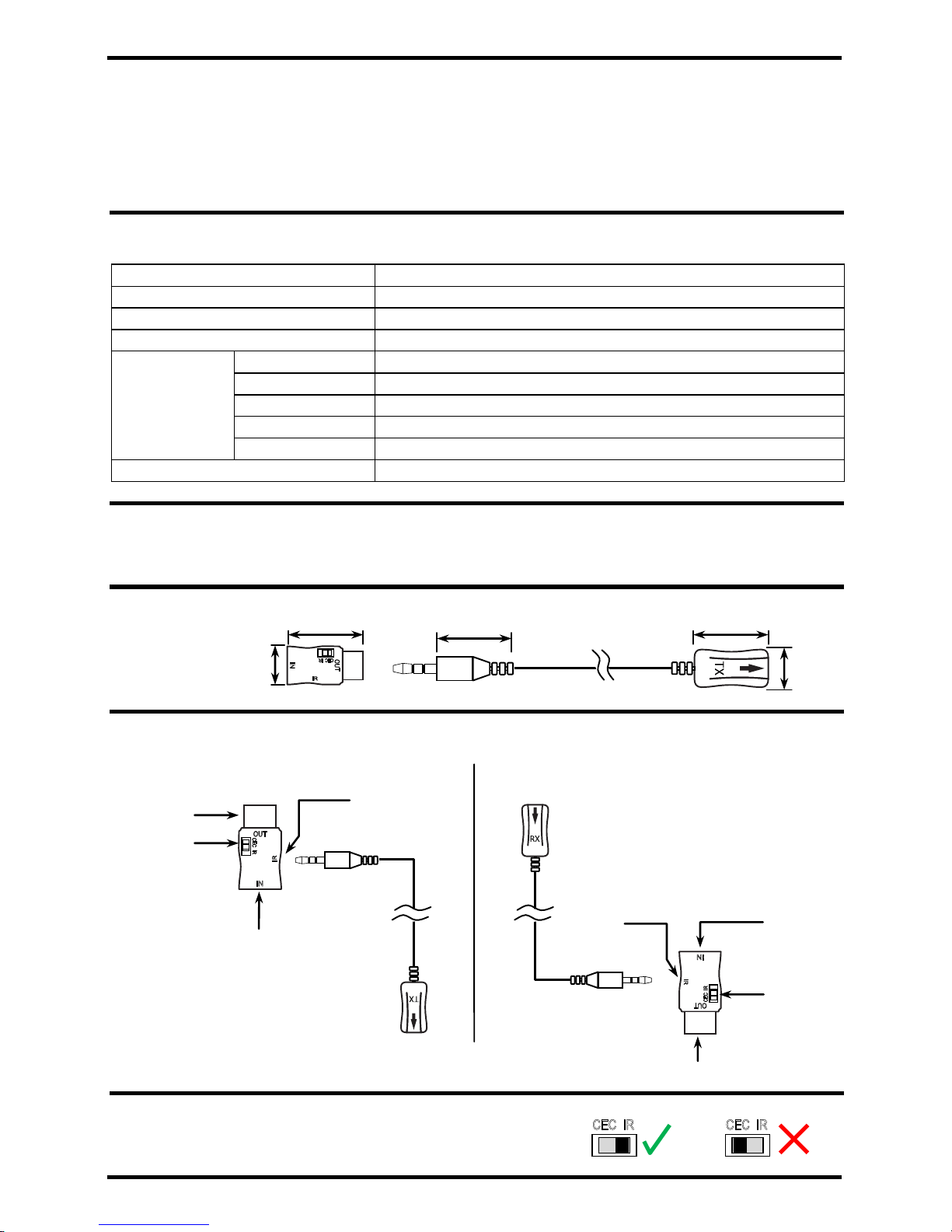

Dimensions:
Overview:
IR Switch:
Always make sure the IR switch is switched to “IR”.
HDMI Adapter
IR Transmitter
HDMI Output
IR Switch
IR Port
HDMI Input
HDMI Adapter
IR Receiver
IR Switch
HDMI Input
HDMI Output
IR Port
7
/8”
(22mm)
11/8” (30mm)
19/16” (40mm)
11/8” (30mm)
Cable length:
4.5ft (1.45m)
11
/16”
(30mm)
