Extends HDMI over one Cat5e/6 cable or
IP network
Supports One-to-One, One-to-Many, and
Many-to-Many applications
Supports cascaded installations
IR Support (38kHz~56kHz)
HDCP Compliant
Transmitter (MVE-AHMPM-01NTQ) and
receiver (MVE-AHMPM-01NRQ) also
available separately
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
MVE-AHMPM-01NQ
HDMI® Extender over IP
Manual
ENFORCER HDMI Extender over IP
2 SECO-LARM U.S.A., Inc.
Table of Contents:
Specifications ............................................................................................................................ 2
Parts List .................................................................................................................................... 2
Dimensions ................................................................................................................................ 3
Overview .................................................................................................................................... 3
Installation ................................................................................................................................. 4
Sample Application—One-to-One ............................................................................................. 4
Sample Application—One-to-Many, Switch/Router ................................................................... 5
Sample Application—Many-to-Many, VLAN Switch .................................................................. 6
VLAN Setup ........................................................................................................................... 6-7
Changing the IP and MAC Address ....................................................................................... 7-8
Introduction:
The MVE-AHMPM-01NQ HDMI Extender over IP extends the range of HDMI signals by using an
active transmitter and receiver to send video and audio over a single Cat5e/6 cable. The HDMI
Extender over IP supports IR signals using the included IR transmitter and receiver, allowing
remote control use from one end of an installation to control a device such as a media player or
DVD player at the opposite end of the installation. The MVE-AHMPM-01NQ supports One-to-One,
One-to-Many, and Many-to-Many installation via VLAN, as well as a cascading installation, allowing
the connection of multiple units for extended range.
Parts List:
1x Transmitter
1x IR Transmitter
2x Power adapters
1x Manual
1x Receiver
1x IR Receiver
Specifications:
Model
Transmitter
MVE-AHMPM-01NTQ
Receiver
MVE-AHMPM-01NRQ
Maximum video resolution
1080p
Deep color
24-bit
Video formats supported
DTV/HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Range – 1080p
Cat6
390ft (120m)
Cat5e
360ft (110m)
IP addressing
Static
Default IP address (static)
192.168.168.55
192.168.168.56
Default MAC address
00:0b:78:00:60:01
00:0b:78:00:60:02
IR frequency
38kHz~56kHz
Operating voltage
5VDC
Power supply
1A@5VDC (2 adapters)
Power consumption
3W
Operating temperature
23°~95° F (-5°~35° C)
Dimensions
41/16"x311/16"x1" (104x94x25mm)
Weight
7.8-oz (221g) (each)
ENFORCER HDMI Extender over IP
SECO-LARM U.S.A., Inc. 3

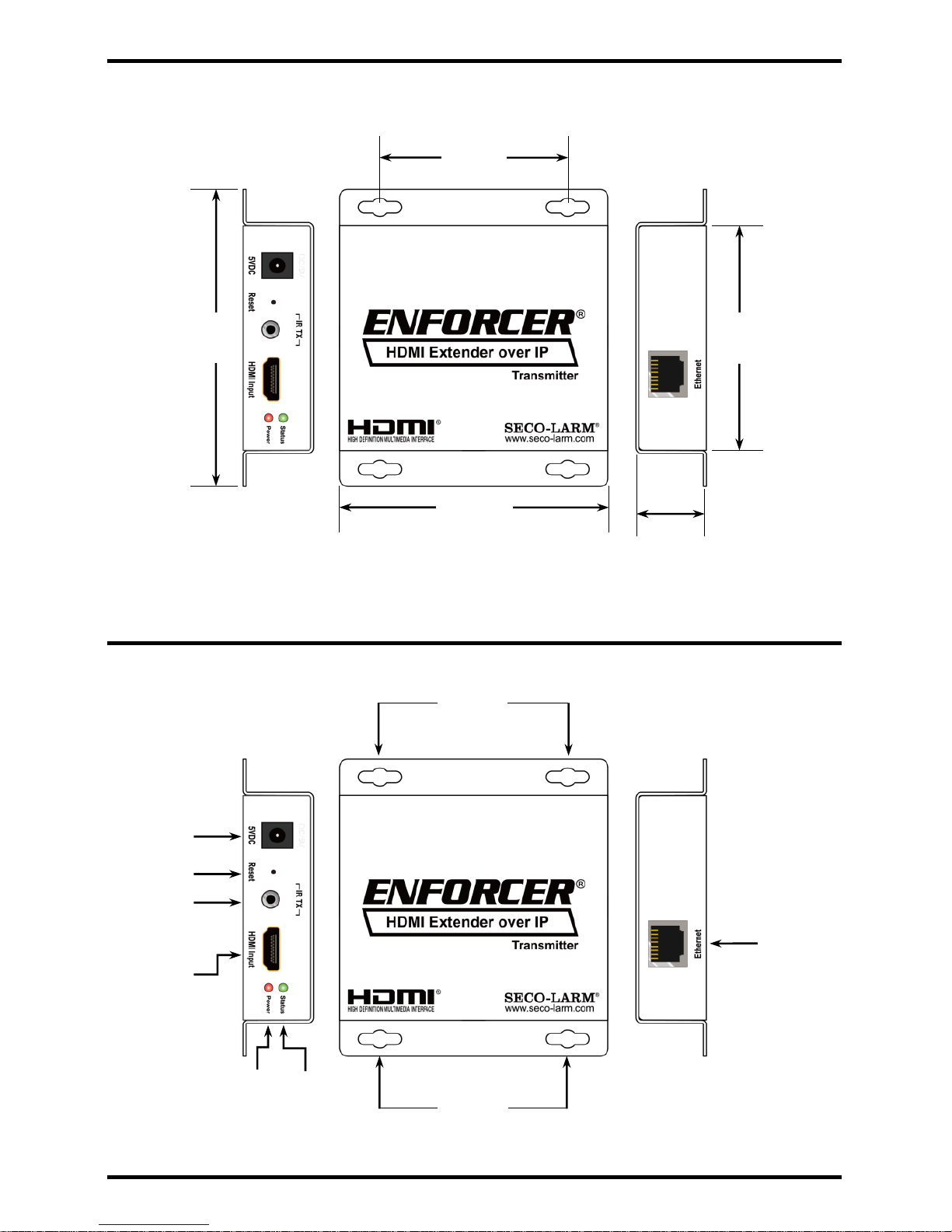

Dimensions:
*Input/output depends on whether the unit is a transmitter or receiver. A transmitter is shown above.
Note: The transmitter and receiver have the same dimensions.
5VDC
Input
Reset
IR Input/
output*
HDMI
Input/
output*
Power
LED
Status
LED
Cat5e/6
Input/
output*
Mounting
holes
Mounting
holes
Overview:
41/16"
(104mm)
31/16"
(78mm)
311/16"
(94mm)
29/16"
(65mm)
1"
(25mm)
