ENFORCER MVE-AH1E1-01NQ User Manual

®

MVE-AH1E1-01NQ

HDMI Extender over Single Cat5e/6

Manual

1080p

Resolution

Features:

 Extend HDMI over a single Cat5e/6 cable
 Supports resolutions from 480i to 1080p

with zero signal loss

 Transmits up to 164ft (50m) at 1080p over

Cat5e/6 cable

 HDMI Loop output for local HDMI display

Up to

164ft

(50m)

Range

Plug

Cat5e/6

Single Cable

and

Play

Up to 984ft (300m)

Operation

 Plug and play operation – comes as a

complete set

 IR Pass-through for remote control

extension and operation

 EDID Management switch
 Two (2) 5VDC power supplies included

ENFORCER HDMI Extender over Single Cat5e/6

Introduction:

The ENFORCER HDMI Extender over Single Cat5e/6 extends the range of traditional HDMI cabling
methods by using an active transmitter and receiver to send video and audio over a single Cat5e/6
cable. HDMI formats as large as 1080p can be transmitted up to 164ft (50m) between the two units
with zero signal loss by using integrated circuits in the receiver and transmitter. The extender also
supports HDMI loop output, EDID management settings, and one way IR control for remotely
controlling HDMI sources and displays.

Table of Contents:

Introduction ............................................................................................................................................. 2

Table of Contents ................................................................................................................................... 2

Features .................................................................................................................................................. 2

Parts List ................................................................................................................................................. 3

Specifications .......................................................................................................................................... 3

Overview ................................................................................................................................................. 4

Status LEDs ............................................................................................................................................ 4

HDMI Loop Output .................................................................................................................................. 5

EDID Settings ......................................................................................................................................... 5

Equalizer DIP Switch Settings ................................................................................................................ 5

IR Pass-through ...................................................................................................................................... 6

Installation ............................................................................................................................................... 6

Sample Application ................................................................................................................................. 7

Troubleshooting ...................................................................................................................................... 8

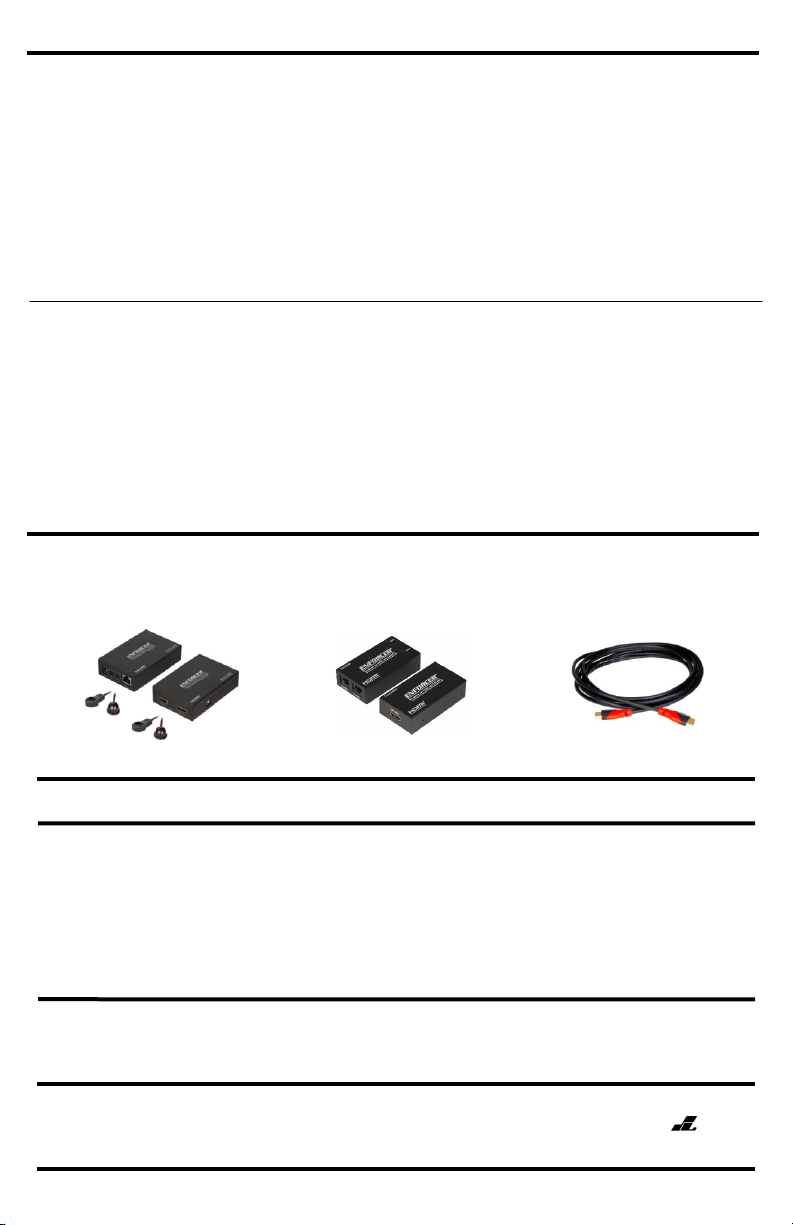

Also Available from SECO-LARM ........................................................................................................... 8

Warranty ................................................................................................................................................. 8

Features:

Signal Strength – Active operation ensures that the signal strength will remain strong over the

length of the cable.
Distance – The HDMI Extender over Single Cat5e/6 is capable of providing a clear HDMI signal up
to 164ft (50m).
Formats Supported – The HDMI Extender over Single Cat5e/6 supports both progressive and
interlaced formats: 1080p/1080i/720p/576p/576i/480p/480i.
Plug and Play – The HDMI Extender over Single Cat5e/6 comes as a complete set consisting of a
transmitter and receiver, power supplies, and IR dongles.
Zero Signal Loss – Integrated circuits in the transmitter and receiver clean, buffer and amplify the
HDMI signal to prevent signal loss and ensure a clear signal regardless of the length of the cable.

IR Pass-Through – Send IR signals from the monitor to the source for discrete operation of devices.
EDID Management – Use Extended Display Identification Data (EDID) management settings to

match the display settings to the source device.

2 SECO-LARM U.S.A., Inc.

ENFORCER HDMI Extender over Single Cat5e/6

Parts List:

1x Transmitter (MVE-AH1E1-01NTQ)

1x IR Transmitter (with double-sided tape)

1x Receiver (MVE-AH1E1-01NRQ)

2x 5VDC Power adapters

Specifications:

Input Video signal 3.3V
Input DDC signal 5Vp-p (TTL)
Maximum single link range 1080p
Deep color 24bit
Video formats supported High-speed HDMI, HDCP 1.2
Audio formats supported LPCM, Dolby-AC3, DTS7.1, DSD
Output video HDMI
Resolutions supported 1080p/1080i/720p/576p/576i/480p/480i
Range – 1080p Up to 164' (50m)
Video amplifier bandwidth 4.95Gbps
Video input connector HDMI Type A 19-pin female
Maximum input cable length 24AWG (15m), 26AWG (10m), 28AWG (5m)
Video output connector HDMI Type A 19-pin female
Maximum output cable length 24AWG (15m), 26AWG (10m), 28AWG (5m)
Cat5e/6 Wiring standard T-568B
IR Pass-through frequency 30~60 kHz
Operating voltage 5VDC
Power supply 1A@5VDC (2 Adapters) (2.1mm plug)
ESD Protection

(human body model)

Current draw

Operating temperature 32°~104° F (0°~40° C)
Operating humidity 20~90% RH (No condensation)
Dimensions 31/8"x11/16"x25/8" (79x17x67 mm)
Weight 5.3-oz (150g) (Each)

Transmitter 300mA@5VDC
Receiver 200mA@5VDC

1x IR Receiver (with double-sided tape)

1x Manual

±8kV (Air-gap discharge), ±4kV (contact discharge)

SECO-LARM U.S.A., Inc. 3
