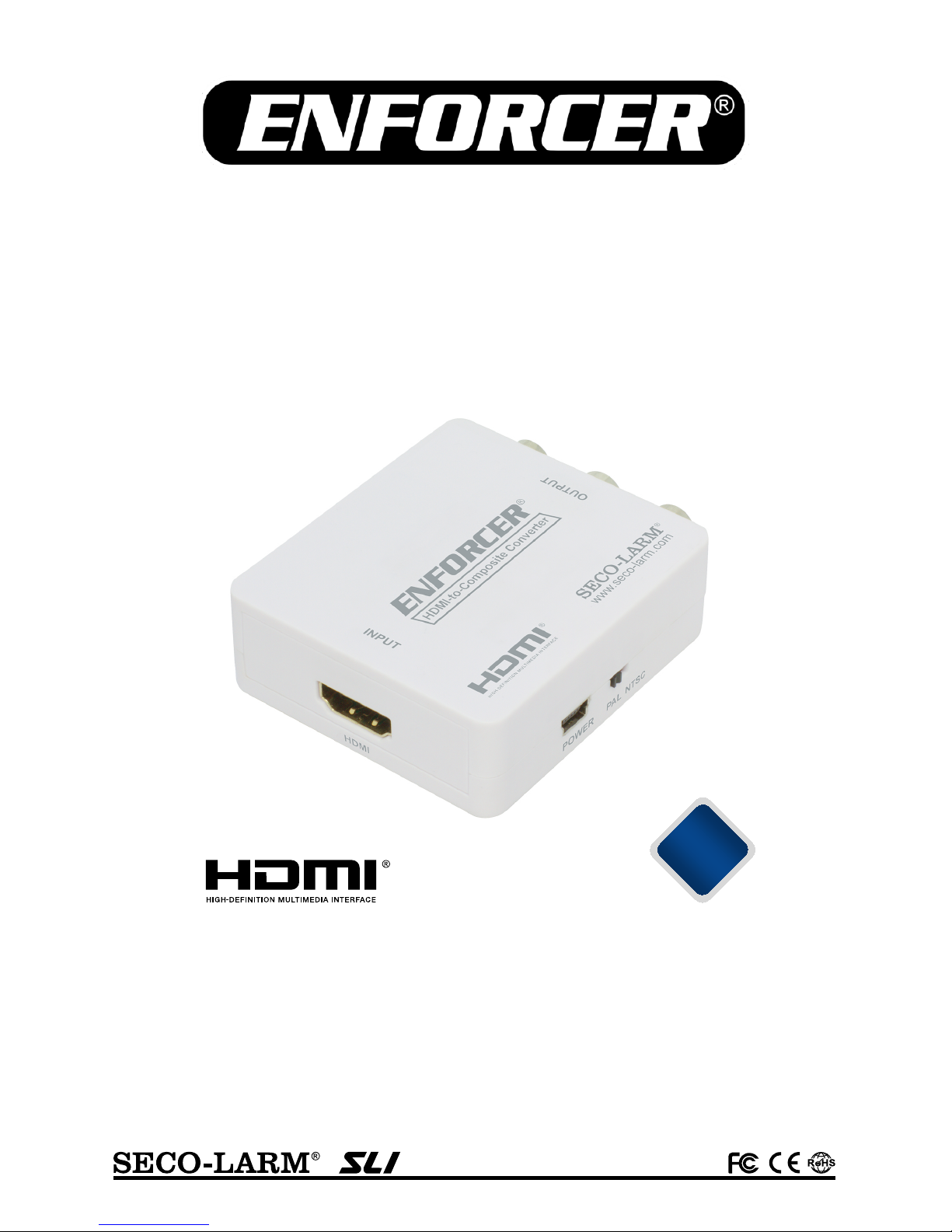

MVA-HT01Q
HDMI-to-Composite Converter
Manual
• Converts HDMI to composite video + stereo audio
• Supports input resolutions up to 1920x1080
• Supports NTSC or PAL output
• Stereo analog audio output
• Plug and play operation
Up to
1920x1080
Resolution
ENFORCER HDMI-to-Composite Converter
2 SECO-LARM U.S.A., Inc.
Introduction:
The MVA-HT01Q HDMI-to-Composite Converter allows the user to view video from HDMI
devices on
analog TVs or projectors without HDMI inputs. Active operation allows the
conversion of formats as lar
ge as 1920x1080. The MVA-HT01Q also has a L/R analog
stereo output
allowing the conversion of audio as well.
Specifications:
Supported input resolutions
1080p/1080i/720p/576p/576i/480p/480i
Video input signal
3.3V
DDC input signal
5V
Vertical frequency
50/60Hz
Video amplifier bandwidth
1.65Gbps
Video formats supported
High-speed HDMI, HDCP 1.2
Audio formats supported
LPCM
Output video
NTSC/PAL
Input video connector
HDMI Type A 19-pin female
Output video connector
RCA female
Output audio connector
RCA female
Power supply
5VDC (USB)
ESD protection (Human body model)
±8 kV (air-gap discharge), ±4 kV (contact discharge)
Operating temperature
32°~104° F (0°~40° C)
Operating humidity
20~90% RH (no condensation)
Dimensions
23/8”x21/8”x13/16” (66x54x20mm)
Weight
1.4-oz (40g)
Parts List:
1x HDMI-to-Composite Converter
Dimensions:
1x USB Power cable
1x Manual
23/8” (61mm)
21/8”
(54mm)
13
/16”
(20mm)
