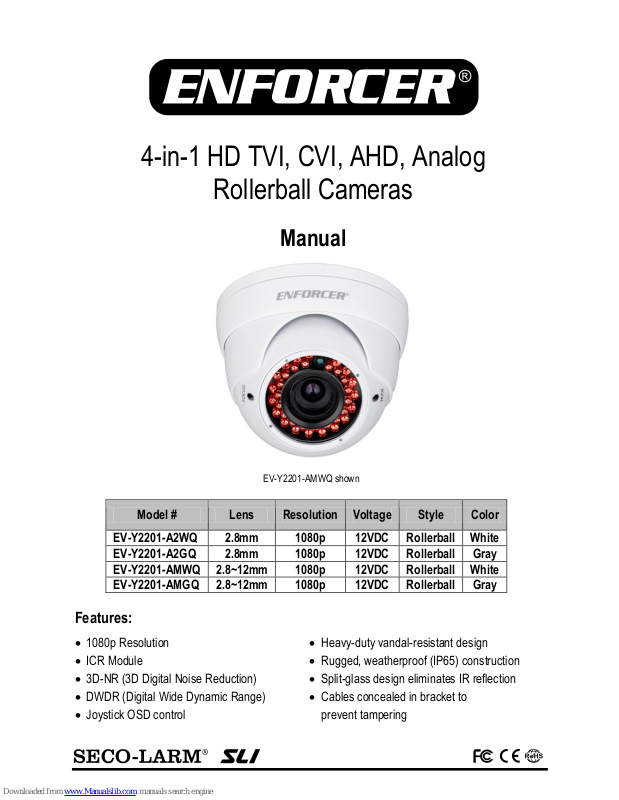

Page 1
4-in-1 HD TVI, CVI, AHD, Analog
Rollerball Cameras
Manual
EV-Y2201-AMWQ shown
• 1080p Resolution
•
ICR Module
•
3D-NR (3D Digital Noise Reduction)
•
DWDR (Digital Wide Dynamic Range)
•
Joystick OSD control
• Heavy-duty vandal-resistant design
•
Rugged, weatherproof (IP65) construction
•
Split-glass design eliminates IR reflection
•
Cables concealed in bracket to
prevent tampering
Features:
Model #
Lens
Resolution
Voltage
Style
Color
EV-Y2201-A2WQ
2.8mm
1080p
12VDC
Rollerball
White
EV-Y2201-A2GQ
2.8mm
1080p
12VDC
Rollerball
Gray
EV-Y2201-AMWQ
2.8~12mm
1080p
12VDC
Rollerball
White
EV-Y2201-AMGQ
2.8~12mm
1080p
12VDC
Rollerball
Gray
Page 2
ENFORCER 4-in-1 HD Rollerball Cameras (TVI, CVI, AHD, Analog)
2 SECO-LARM U.S.A., Inc.
1x
Rollerball camera
4x
Screws
4x
Screw anchors
1x
DC plug with terminal block
1x
Hex wrench
2x
Rubber plugs*
1x
Small screwdriver*
1x
Manual
Specifications:
Parts List:
311/16” (93mm)
215/16”
(75mm)
Model
EV-Y2201-A2WQ
EV-Y2201-A2GQ
EV-Y2201-AMWQ
EV-Y2201-AMGQ
Housing color
White
Gray
White
Gray
Type
Fixed Rollerball Camera
Varifocal Rollerball Camera
Formats
TVI / CVI / AHD / Analog (TVI Default)
CMOS
1
/
2.7
" 2MP Aptina CMOS
Resolution (HD)
1920x1080
TV Lines (Analog)
1200TVL
3D-NR
Yes
2D-NR
Yes
DWDR
Yes
OSD (On-Screen Display)
Yes
Cable OSD control
Yes
Video output
1.0Vp-p complex video output
Megapixels
2MP
Lens
2.8mm ICR
2.8~12mm ICR
Viewing Angle
90°
30°~90°
# of IR LEDs
24
36
IR Range
Up to 50ft (15m)
Up to 100ft (30m)
FPS
30FPS
F Stop
F1.4
F1.4 - F1.6
Minimum
illumination
(IR On)
0Lux
(IR Off)
Color: 0.1Lux/F1.4, B/W: 0.01Lux/F1.4
Gamma correction
0-1
S/N Ratio
50dB
DSS (Digital Slow Shutter)
Yes
Shutter control
Yes
Gain control
Yes
White balance
Auto, Day & Night
Operating voltage
12VDC
Current Draw
(IR On)
150mA
260mA
(IR Off)
80mA
80mA
IP Rating
IP65
Operating temperature
-4°~131° F (-20°~55° C)
Dimensions
311/16"x215/16" (93x75 mm)
43/4"x33/4" (120x95 mm)
Weight
13.1-oz (370g)
1-lb, 10.1-oz (740g)
Overview:
EV-Y2201-A2xQ:
EV-Y2201-AMxQ:
43/4” (120mm)
33/4”
(95mm)
Zoom
Focus
*EV-Y2201-AMxQ only
Page 3
ENFORCER 4-in-1 HD Rollerball Cameras (TVI, CVI, AHD, Analog)
SECO-LARM U.S.A., Inc. 3
1.
Use the camera within the given temperature
and voltage limits.
2. Do not point the camera at the sun. Heat could
damage the camera, even when not in use.
3. Do not subject the camera to strong vibrations.
4. Do not mount the camera in areas exposed to
radiation, strong magnetic fields, or strong
electrical signals.
Before Starting:
1. Run a 12VDC power supply wire and a video
cable with a male BNC connector through the
wall to where the camera is to be mounted.
2. Loosen the set screws with the included hex
wrench and remove the case from the base.
NOTE: The camera ball is NOT attached to the case
or the base. It sits loose inside the case. Therefore,
be very careful when removing the case from the
base. Do not drop the camera ball.
3. Mount the base to the wall using the four
included mounting screws. If the wall is made
of dry wall, brick, or similar material, it may be
necessary to use the included screw anchors.
4. Run the camera’s BNC and power connectors
through the camera base, and connect to the
video and power wires that were run through
the wall.
Installation:
6. Put the case over the camera ball and onto the base.
7. Holding the case loosely on the base, turn the camera
ball to the desired direction. Use the included small
screwdriver to adjust the zoom and focus of the camera
ball if needed, via the holes marked “ZOOM” and
“FOCUS” on the top of the camera ball
(EV-Y2201-AMxQ only).
NOTE: Before securing installation, make sure to check both the day
and night images. Adjust the camera ball in a way so that there
are no objects blocking the camera’s view.
8. Use the OSD controller joystick to adjust camera
settings (see the separate OSD manual).
9. Once the ball is pointing in the desired direction, tighten
the outer case ring to secure the camera in its position.
10. Do a final test of the video camera and monitor.
11. Insert the rubber plugs over the zoom and focus holes
to prevent tampering (EV-Y2201-AMxQ only).

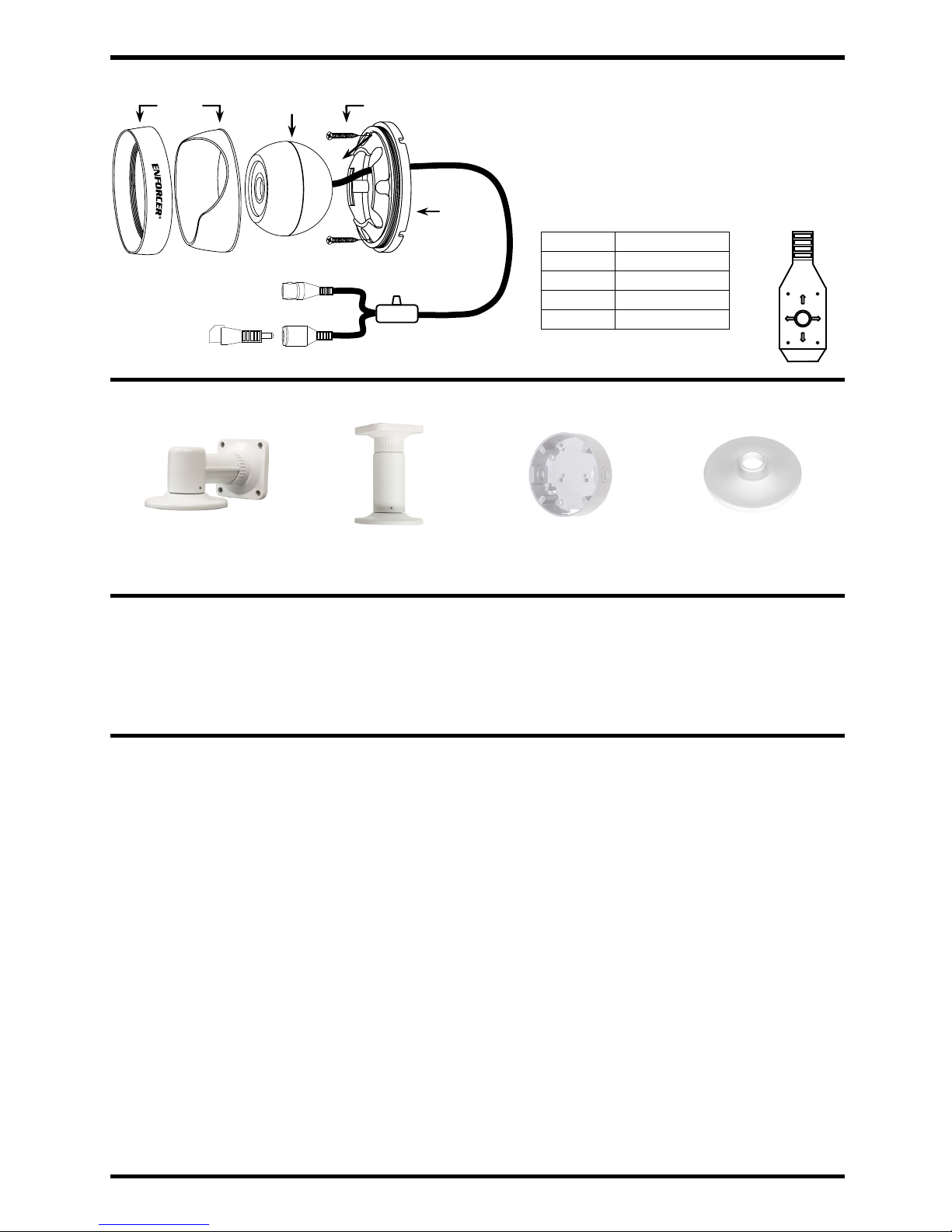

Overview:
Camera ball
Case
Base
Female BNC connector
DC Plug with
terminal block
DC Jack
OSD Controller
EV-Y2201-A2xQ shown above.
Optional Mounting Brackets:
Wall Mount
EV-DWLWQ
Ceiling Mount
EV-DCLWQ
Conduit Box
EV-DSLWQ
Conduit Drop
EV-DDLWQ
OSD Controller Settings:
To set format via the OSD controller, press
the controller in the direction of the desired
setting, hold for 5 seconds, and release
when the camera restarts.
See chart below.
Direction
Format Setting
Up
CVI
Down
TVI
Left
CVBS
Right
AHD
Screws (2 shown, use all
4 in installation)
UP
White models shown, gray mounting brackets also available.
Page 4
ENFORCER 4-in-1 HD Rollerball Cameras (TVI, CVI, AHD, Analog)
4 SECO-LARM U.S.A., Inc.
MI_EV-Y2201-AxxQ_160812.docx
PICSN4
Troubleshooting:
The screen is black
• Check that the camera is powered up
• Check that the power supply’s polarity is correct
• Check that the monitor is powered up
• Check that the video cable connecting the camera to the monitor is
connected properly
The image is foggy or washed out at night
• Check that there are no objects very close to the camera
• Check that there are no highly reflective objects in the scene
The screen image is dim
• Clean the lens using a soft, clean cloth
• Check that the light source is adequate
The screen image has poor contrast
• Adjust the monitor’s contrast knob
• Change the position of the camera
The screen image flickers
• Change the position of the camera, check cables and format setting
The screen image is distorted
• Change the position of the camera, check cables and format setting
The camera case is hot
• Check that the correct power supply is in use
IR LEDs do not turn on
• Check that the correct power supply is in use
WARNING: Stop using the camera if you see a malfunction such as smoke or unusual heat, as it could cause fire or electric shock.
Do not open the case of thi
s device, as there are no user-serviceable components inside.
IMPORTANT: Users and installers of this product are responsible for ensuring this product complies with all national,
state, and local laws and statutes related to monitoring and recording audio and video signals. SECO-LARM
will not be
held responsible for the use of this product in violation of any current laws or statutes.
FCC COMPLIANCE STATEMENT
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2)
THIS DEVICE MUST ACCEPT
ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
IMPORTANT NOTE: To comply with the FCC RF exposure c
ompliance requirements, no change to the antenna or the
device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure
requirements and void user’s authority to operate the device.
NOTICE: The SECO-LARM policy is one of continual development and improvement. For that reason, SECO-LARM
reserves the right to change specifications without notice. SECO-LARM is also not responsible for misprints.
Copyright © 2016 SECO-
LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or
in part, without the written permission of SECO-LARM.
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal
service for three (3) years from the date of sale to the original customer. SECO-
LARM’s obligation is limited to the repair or
replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if
damage is caused by or attributed
to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration,
improper or abnormal usage, or faulty installation, or if for any other reason SECO-
LARM determines that such equipment
is not operating properly as a result of causes other than defects in material and workmanship.
The sole obligation of
SECO-LARM and the purchaser’s exclusive remedy, shall be limited to the replacement or repair only, at SECO-LARM
’s
option. In no event shall SECO-LARM be liable for any special,
collateral, incidental, or consequential personal or property
damage of any kind to the purchaser or anyone else.
