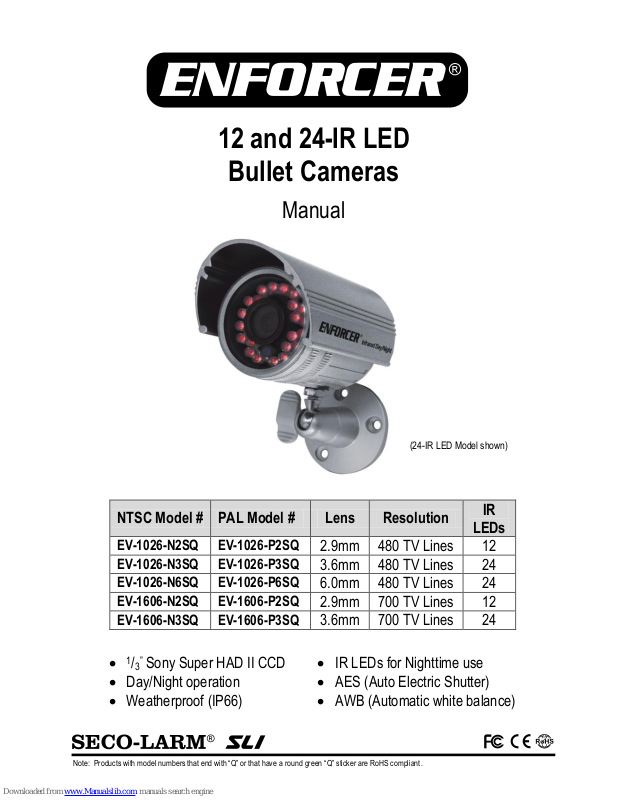

ENFORCER EV-1026-P2SQ, EV-1026-N3SQ, EV-1026-P3SQ, EV-1026-N6SQ, EV-1026-P6SQ User Manual

...

Download

Page 1



”

Sony Super HAD II CCD

 Day/Night operation  Weatherproof (IP66)

 IR LEDs for Nighttime use  AES (Auto Electric Shutter)  AWB (Automatic white balance)

NTSC Model #

PAL Model #

Lens

Resolution

LEDs

EV-1026-N2SQ

EV-1026-P2SQ

2.9mm

480 TV Lines

EV-1026-N3SQ

EV-1026-P3SQ

3.6mm

480 TV Lines

EV-1026-N6SQ

EV-1026-P6SQ

6.0mm

480 TV Lines

EV-1606-N2SQ

EV-1606-P2SQ

2.9mm

700 TV Lines

EV-1606-N3SQ

EV-1606-P3SQ

3.6mm

700 TV Lines

12 and 24-IR LED

Bullet Cameras

Note: Products with model numbers that end with “Q” or that have a round green “Q” sticker are RoHS compliant.

Manual

(24-IR LED Model shown)

Page 2

ENFORCER 12 and 24 IR LED Bullet Cameras

2 SECO-LARM U.S.A., Inc.

Model NSTC

EV-1026-N2SQ

EV-1026-N3SQ

EV-1026-N6SQ

EV-1606-N2SQ

EV-1606-N3SQ

PAL

EV-1026-P2SQ

EV-1026-P3SQ

EV-1026-P6SQ

EV-1606-P2SQ

EV-1606-P3SQ

Type

IR LED Bullet Camera

CCD

/3” Sony Super HAD II CCD

Resolution

480 TV Lines

700 TV Lines

Effective pixels

NTSC: 510x492 pixels

PAL: 500x582 pixels

NTSC: 976x494 pixels

PAL: 976x582 pixels

960H*

Yes

Scanning system

2:1 Interlace

Sync

Internal

Video output

1Vp-p Composite output, 75Ω

Lens

2.9mm

3.6mm

6.0mm

2.9mm

3.6mm

# of IR LEDs

IR Range

Up to 40ft (12m)

Up to 50ft (15m)

Up to 40ft (12m)

Up to 50ft (15m)

Minimum illumination

LEDs OFF

0.05 Lux

0.06 Lux

LEDs ON

0 Lux

Gamma correction

0.45

S/N Ratio

>48dB

>50dB

Shutter control

AES (Auto Electric Shutter)

Gain control

Auto

White balance

Auto

Operating voltage

12VDC

Current draw

LEDs OFF

75mA

95mA

LEDs ON

150mA

250mA

170mA

270mA

IP Rating

IP66

Operating temperature

-4°~122° F (-20°~50° C)

Dimensions

311/16”x25/16”x2” (94x59x50 mm) (without bracket, with sunshield)

Weight

10-oz (280g)

Dimensions:

25/16” (59mm)

13/4” (44mm)

Parts List:

1 x Manual 1 x IR Camera

1 x Sunshield 1 x Mounting bracket

1 x DC Plug with terminal block

3 x Mounting screws 3 x Screw anchors

(24-IR LED model shown)

Specifications

213/16” (72mm)

13/8”

(35mm)

/8”

(15mm)

2”

(50mm)

311/16” (94mm)

*In order to take full advantage of 960H resolution, the camera must be used with a 960H DVR.

Page 3

ENFORCER 12 and 24-IR LED Bullet Cameras

SECO-LARM U.S.A., Inc. 3 SECO-LARM U.S.A., Inc. 33 3

1. Run a 12VDC power-supply wire and a video cable

with a male BNC connector through the wall to where the camera is to be mounted (if necessary).

2. Assemble the mounting bracket; then screw it into the

back of the camera. Tighten the adjustment nut.

3. Temporarily connect the camera to the 12VDC power

supply. Do not cut DC jack or female BNC

connector as warranty will be voided. If needed, use the included SECO-LARM DC plug with terminal block.

4. Temporarily connect the camera’s female BNC

connector to the video cable’s male BNC connector.

5. While watching the monitor, hold the camera bracket

by hand against the wall where it is to be mounted, then twist the camera until it is certain that this

Installation:

mounting location is correct. Use a pencil to mark the location of the three screw holes in the bracket.

6. Disconnect the 12VDC power supply and video cable.

7. Mount the bracket to the wall using the three included

mounting screws. If the wall is made of drywall, brick, or similar material, it may be necessary to use the three included screw anchors.

8. Reconnect the 12VDC power supply and video cable.

Turn the monitor on and make sure the camera is sending the proper video signal.

9. To adjust the camera angle, loosen and tighten the

bracket’s thumb screw. Turn the camera and change its

angle relative to the bracket until the desired scene is displayed.

10. Do a final test of the video camera and monitor.

1. Please read this manual carefully and keep it for

future reference.

2. Use the camera within given temperature and

electricity limits.

3. Do not aim the LED light directly at the eyes when the

LEDs are on.

4. Do not point the camera at the sun. Heat could damage

the camera, even when not in use.

5. Do not mount the camera in areas exposed to radiation,

strong magnetic fields, or strong electrical signals.

6. Do not open or disassemble the camera. There are no

field serviceable parts inside.

7. Do not drop the camera or subject it to strong vibrations.

Before Starting:

Important:

Do not cut DC jack or female BNC connector as warranty will be voided.

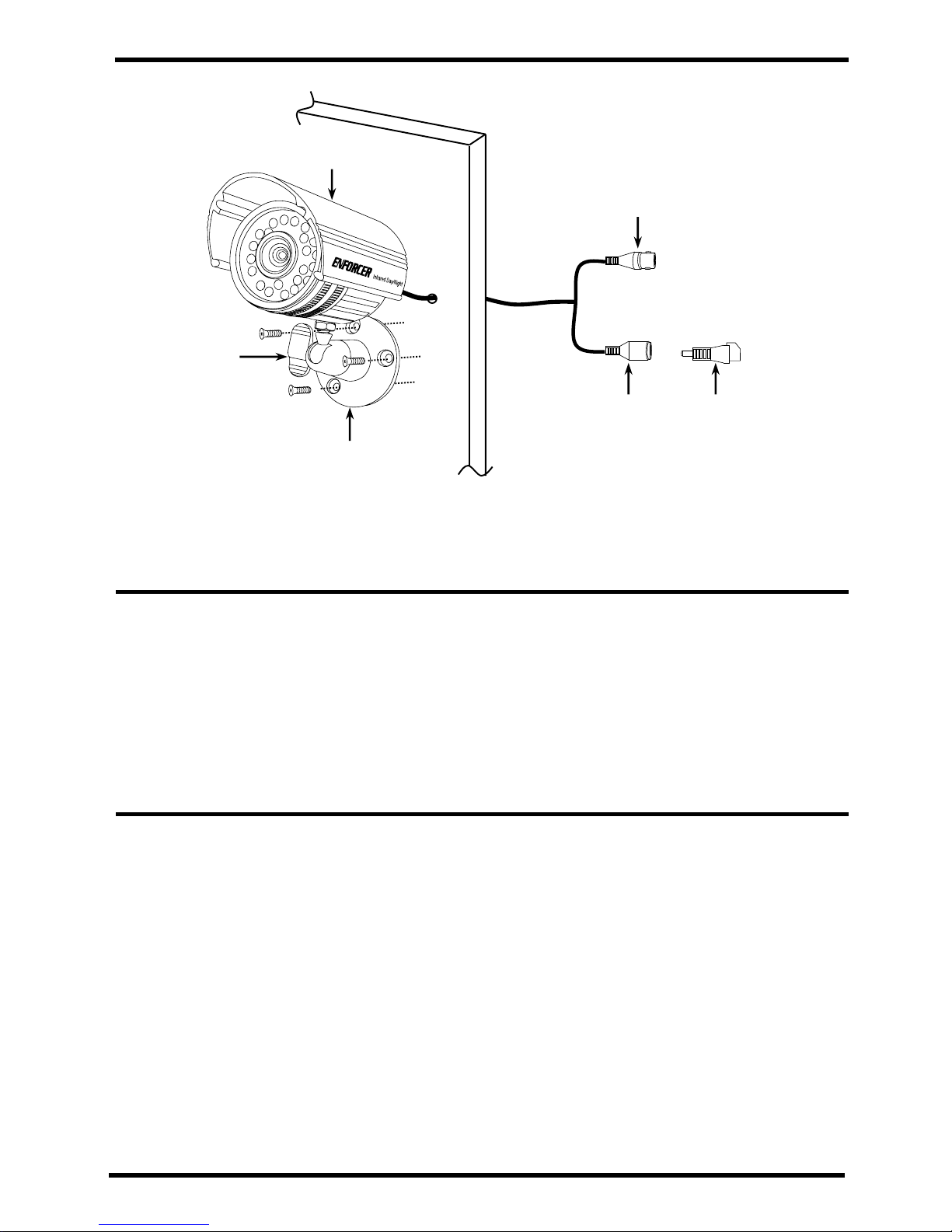

Overview:

Important: Do not remove label or open case as warranty will be voided.

Sunshield

(24-IR LED Model shown)

Mounting

bracket

Thumb screw

Female BNC

connector

DC Jack

DC Plug with

terminal block

Page 4

ENFORCER 12 and 24 IR LED Bullet Cameras

4 SECO-LARM U.S.A., Inc.

Troubleshooting

The screen is blank.

 Check that the camera is powered up.  Check that the power supply’s polarity is correct.  Check that the monitor is powered up.  Check that the video cable connecting the camera to the

monitor is connected properly.

The screen image is dim.

 Clean the lens using a soft, clean cloth.  Check that the light source is adequate.

The screen image has poor contrast.

 Adjust the monitor’s contrast knob.  Change the position of the camera.

The screen image flickers.

 Change the position of the camera.

The screen image is distorted.

 Change the position of the camera.

The camera case is hot.

 Check that the correct power supply is in use.

IR LEDs do not turn on.

 Check that the correct power supply is in use.

IMPORTANT

Users and installers of this product are responsible for ensuring this product complies with all national, state, and local laws and statutes related to monitoring and recording audio and video signals. SECO-LARM will not be held responsible for the use of this product in violation of any current laws or statutes.

WARNING

Stop using the camera if you see a malfunction such as smoke or unusual heat, as it could cause fire or electric shock. Do not open the case of this device, as there are no field serviceable components inside.

FCC COMPLIANCE STATEMENT

Information to the user: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service

for a period of three (3) years from the date of sale to the original consumer customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship. The sole obligation of SECO-LARM, and the purchaser’s exclusive remedy, shall be limited to replacement or repair only, at SECO-LARM’s option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property damages of any kind to the purchaser or anyone else.

NOTICE

The information and specifications printed in this manual are current at the time of publication. However, the SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right to change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.

16842 Millikan Avenue, Irvine, CA 92606 Website: www.seco-larm.com Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326 E-mail: [email protected]
