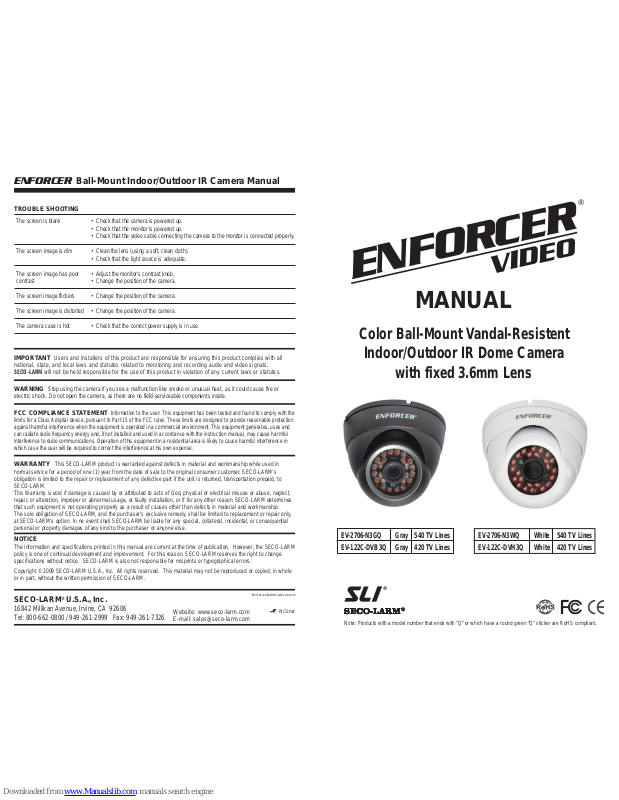

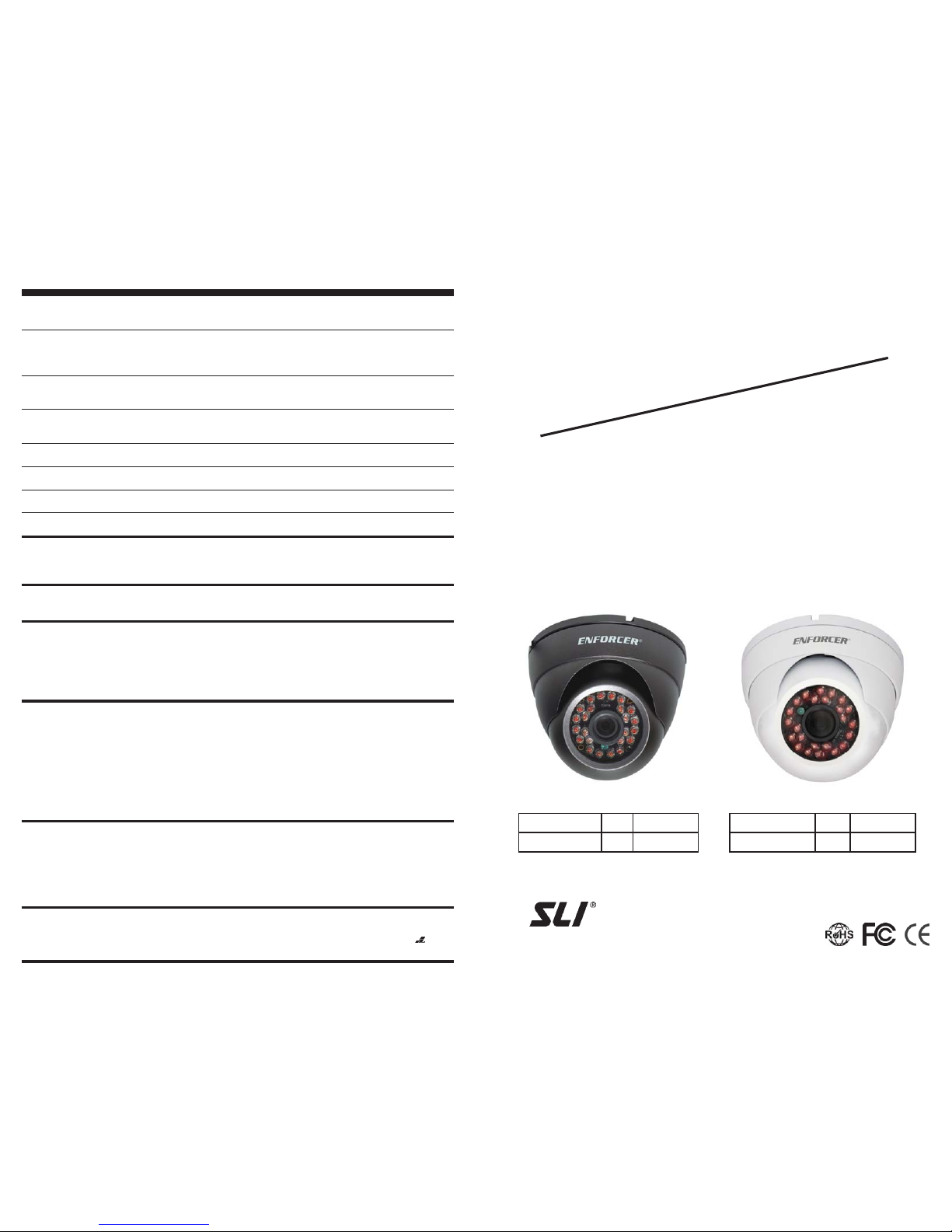

Page 1
ENFORCER Ball-Mount Indoor/Outdoor IR Camera Manual ENFOR CER Ball-Mount Indoor/Outdoor IR Camera Manual
iMUIRVandalBallMntSmallCamsd.pmd
• Check that the camera is powered up.
• Check that the monitor is powered up.
• Check that the video cable connecting the camera to the monitor is connected properly.
• Clean the lens (using a soft, clean cloth).
• Check that the light source is adequate.
• Adjust the monitor’s contrast knob.
• Change the position of the camera.
• Change the position of the camera.
• Change the position of the camera.
• Check that the correct power supply is in use.
The screen is blank
The screen image is dim
The screen image has poor
contrast
The screen image flickers
The screen image is distorted
The camera case is hot
TROUBLE SHOOTING
MANUAL
ENFORCER
SECO-LARMSECO-LARM
SECO-LARMSECO-LARM
SECO-LARM
®®
®®
®
VIDEO
®
SECO-LARM® U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326
Website: www.seco-larm.com
E-mail: [email protected]
PICSN4
®
EV-2706-N3GQ Gray 540 TV Lines
EV-122C-DVB3Q Gray 420 TV Lines
EV-2706-N3WQ White 540 TV Lines
EV-122C-DVH3Q White 420 TV Lines
IMPORTANT Users and installers of this product are responsible for ensuring this product complies with all
national, state, and local laws and statutes related to monitoring and recording audio and video signals.
SECO-LARM
will not be held responsible for the use of this product in violation of any current laws or statutes.
WARNING Stop using the camera if you see a malfunction like smoke or unusual heat, as it could cause fire or
electric shock. Do not open the camera, as there are no field-serviceable components inside.
FCC COMPLIANCE STATEMENT
Information to the user: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
NOTICE
The information and specifications printed in this manual are current at the time of publication. However, the SECO-LARM
policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right to change
specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2009 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole
or in part, without the written permission of SECO-LARM.
WARRANTY
This SECO-LARM product is warranted against defects in material and workmanship while used in
normal service for a period of one (1) year from the date of sale to the original consumer customer. SECO-LARM’s
obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to
SECO-LARM.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect,
repair, or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines
that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser’s exclusive remedy, shall be limited to replacement or repair only,
at SECO-LARM’s option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential
personal or property damages of any kind to the purchaser or anyone else.
Note: Products with a model number that ends with “Q” or which have a round green “Q” sticker are RoHS compliant.
Color Ball-Mount Vandal-Resistent
Indoor/Outdoor IR Dome Camera
with fixed 3.6mm Lens

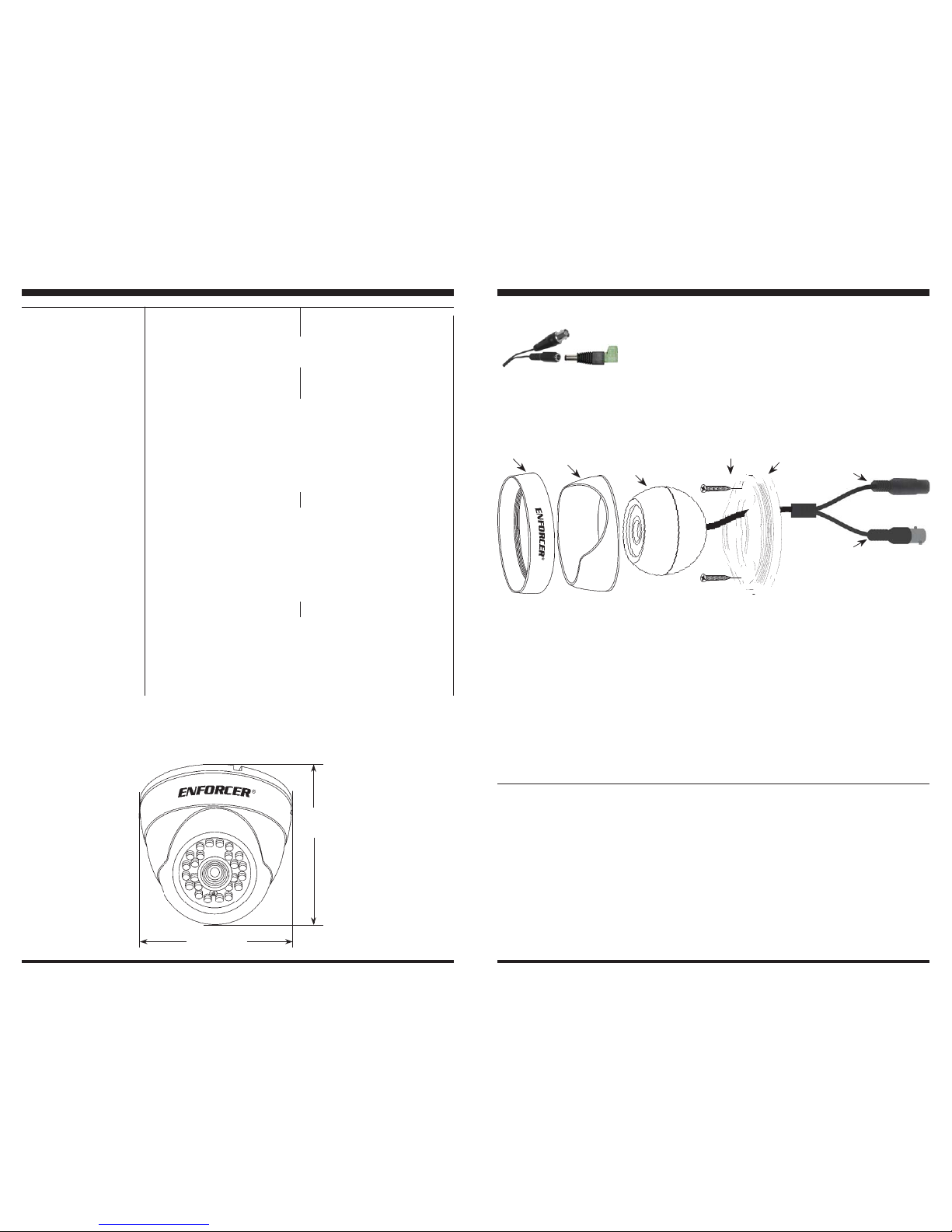

Page 2
ENFORCER Ball-Mount Indoor/Outdoor IR Camera Manual ENFOR CER Ball-Mount Indoor/Outdoor IR Camera Manual
Dimensions:
_______________________________________________________________________________________________________________________________________________________________
______________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
Parts List
1 x Camera Ball
1 x Case
1 x Base
4 x Screws with wall anchors
1 x Hex wrench
1 x Manual
1 x DC plug with terminal block
Before Starting:
1. Please read this manual carefully and keep it for future
reference.
2. Use the camera within given temperature and electrical
limits.
3. While the camera is weatherproof to IP66 standard, do
not mount the camera where it is exposed to rain or other
moisture, or in humid or dusty places.
4. Do not point the camera at the sun. Heat could damage
the camera, even when not in use.
5. Do not mount the camera in areas exposed to radiation,
Installation:
1. Run a 12VDC power supply wire and a video cable
with a male BNC connector through the wall to where
the camera is to be mounted.
2. Loosen the set screws with the included hex wrench
and remove the case from the base.
NOTE - The camera ball is NOT attached to the case
or the base. It sits loose inside the case. Therefore, be
very careful when removing the case from the base to
not drop the camera ball.
3. Mount the base to the wall using the four included
mounting screws. If the wall is made of dry wall, brick,
or similar material, it may be necessary to use the
included plastic screw anchors.
strong magnetic fields, or strong electrical signals.*
6. Do not open or disassemble the camera. There are
no user-serviceable parts inside.
7. Do not drop the camera or subject it to strong
vibrations.
* Note: Many video monitors produce strong
electromagnetic fields close to the display CRT,
especially when the monitor is turned on or during deGaussing, which occurs automatically with many
monitors when the monitor is turned on.
4. Run the camera's BNC and power connectors through
the camera base, and connect to the video and power
wires that were run through the wall.
5. Put the case over the camera ball onto the base, being
careful to not drop the camera ball.
6. Holding the case loosely on the base, turn the camera
ball to the desired direction.
7. Once the ball is pointing in the desired direction,
tighten the outer case ring to secure the camera in its
position.
8. Do a final test of the video camera and the monitor.
Case
Camera
Ball
Base
4 x
Screws
Power
Connector
BNC
Connector
311/16” (94mm)
35/32”
(80mm)
To BNC
(From DC
camera)
DC plug included.
DC plug with
terminal block
Case
Type
Chip
Resolution
Pickup elements
Scanning system
Sync
Video output
Lens
IR LEDs
IR distance
Minimum illumination
Gamma correction
S/N ratio
Shutter control
Automatic gain control
White balance
Power source
Power consumption
Operating temperature
Enclosure
Dimensions
Weight
Cable length
Ball-Mount Color Dome Camera
1/3” CCD, Sony Super HAD
2:1 interlace, V: 59.94Hz, H: 15.734KHz
Internal
1V p-p composite output, 75 ohms
3.6mm, F2.0
24 LEDs (850nm)
Up to 50’ (15m)
0.45
>48dB
Auto Electronic Shutter (AES), 1/60~1/100,000 sec.
Auto
Auto
12VDC ±10%
4°~122° F (-20°~50° C)
IP67 weatherproof
311/16” x 35/32” (94 x 80mm)
14oz. (400g)
38” (98cm.)
Specifications
420 TV lines
510 x 492 pixels
540 TV lines
768 x 494 pixels
0.05 lux (0 lux with IR on) 0.02 lux (0 lux with IR on)
EV-122C-DVB3Q (gray)
EV-122C-DVH3Q (white)
EV-2706-N3GQ (gray)
EV-2706-N3WQ (white)
130mA (IR off), 300mA (IR on) 100mA (IR off), 270mA (IR on)
