Flush-Mount
Photobeam
Sensors
E-932-D33TBQ
Dual Beam
Range: 33ft. (10m)
E-932-S16RRQ
Retro-Reflective
Range: 16ft. (5m)
Sensor
ENFORCER
Caution:
•
This sensor was not designed to prevent
bodily injury or loss of life.
•
This sensor was not designed for use in
environments where there is the possibility of
explosive gasses being present.
INSTALLATION MANUAL
Features: Typical Applications:
••
••
•
Range: Up to 33 feet (10m) E-932-D33TBQ
Up to 16 feet (5m) E-932-S16RRQ
••
••
•
For indoor use.
••
••
•
12~18VDC.
••
••
•
Horizontal and vertical adjustment for easy
alignment.
••
••
•
N.C./N.O./COM relay outputs.
•
Entry detection for store fronts.
•
Alarm sensor.
•
Use of this sensor in certain security
applications may be regulated by local laws
or codes. SECO-LARM is not responsible
for compliance with such laws or codes.
E-932-S16RRQ
E-932-D33TBQ
2

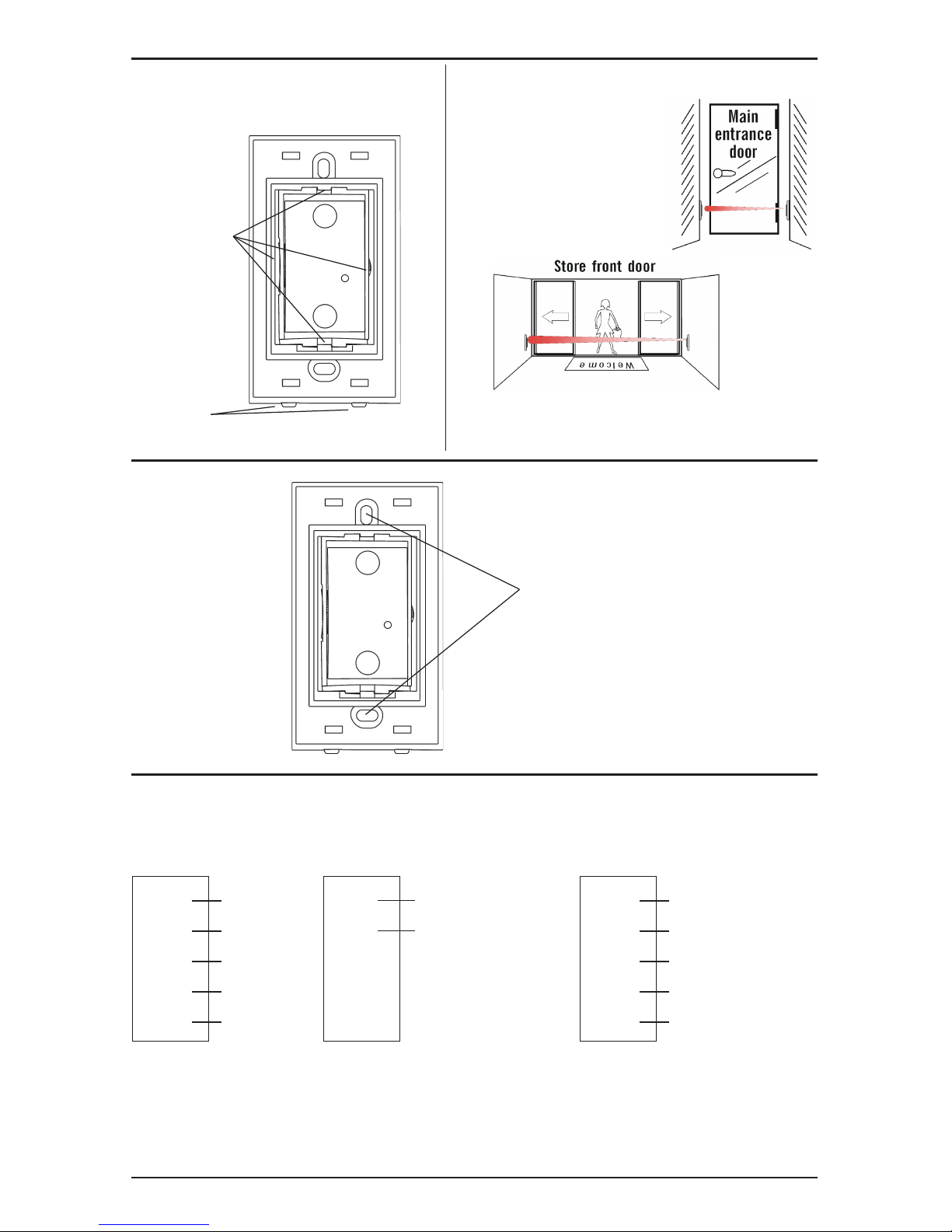

Fig. 1 - Horizontal &
Vertical alignment)
Tabs Down
Pivot Points
Mounting
Screws. Be
sure to use flat-
head, flush
mounting
screws.
Fig. 4 - Wiring
Fig. 2 - Sample
Installations
Fig. 3 Mounting
Green (N.O.)
Blue (N.C.)
White (COM)
Red (DC+)
Black (DC-)
RX
Red (DC+)
Black (DC-)
TX
(E-932-D33TBQ) (E-932-S16RRQ)
RX
TX
Green (N.O.)
Blue (N.C.)
White (COM)
Red (DC+)
Black (DC-)
