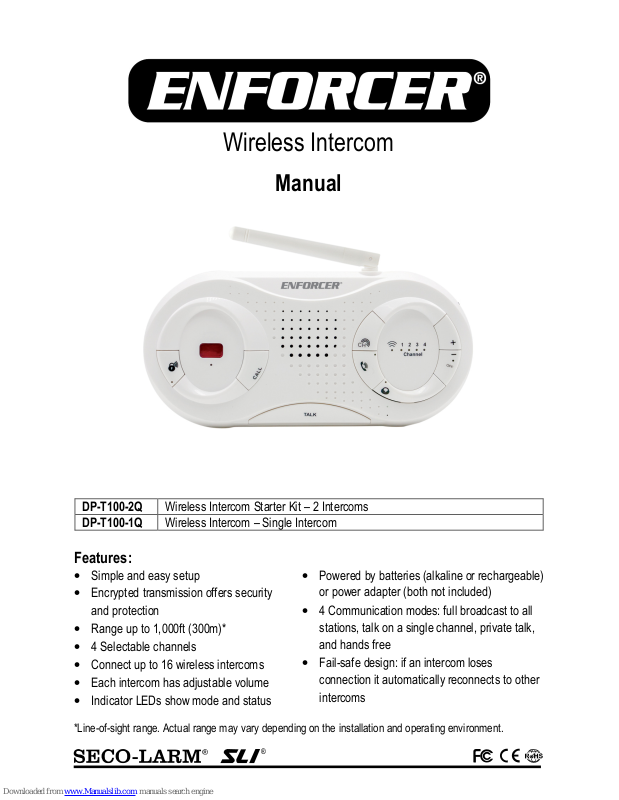

Wireless Intercom
Manual
Features:
*Line-of-sight range. Actual range may vary depending on the installation and operating environment.
•
Simple and easy setup
• Encrypted transmission offers security
and protection
• Range up to 1,000ft (300m)*
• 4 Selectable channels
• Connect up to 16 wireless intercoms
• Each intercom has adjustable volume
• Indicator LEDs show mode and status
• Powered by batteries (alkaline or rechargeable)
or power adapter (both not included)
• 4 Communication modes: full broadcast to all
stations, talk on a single channel, private talk,
and hands free
• Fail-safe design: if an intercom loses
connection it automatically reconnects to other
intercoms
DP-T100
-2Q
Wireless Intercom Starter Kit
– 2 Intercoms
DP-T100
-1Q
Wireless Intercom
– Single Intercom
ENFORCER Wireless Intercom
2 SECO-LARM U.S.A., Inc.
Power
12VDC
/500mA
adapter
(2.1mm)
or 1.5V AA
alkaline/rechargeable batteries x 4
3
Low battery voltage
4.2VDC
Frequency
902~928
MHz (frequency hopping)
Number of channels
4
Maximum
RF Power
57.2mW
Range
1,000'
(300m)
1
Dimensions
71/2"x31/2"x11/4" (190x89x32 mm)
Weight
5.3-oz (150g)
Table of Contents:
Introduction
................................
................................
................................
................................
.
2
Parts List .....................................................................................................................................2
Specifications ..............................................................................................................................2
Dimensions .................................................................................................................................2
Overview .....................................................................................................................................3
Installation Notes .........................................................................................................................3
Powering the Wireless Intercom ...................................................................................................3
Power Controls ............................................................................................................................4
Setup ..........................................................................................................................................4
Basic Controls and Modes ...........................................................................................................5
Operation: ................................................................................................................................6-7
Troubleshooting...........................................................................................................................7
Notes ..........................................................................................................................................7
Also Available..............................................................................................................................8
Introduction:
The ENFORCER Wireless
Intercom is a simple and secure way to communicat
e between multiple intercoms
(up to 16 units, total) within an area of up to 1,000ft (300m).1 The wireless intercoms operate on 4 channels
and can either broadcast to all intercoms or to select intercoms on the same channel.
71/2" (190mm)
31/2"
(89mm)
11/4" (32mm)
OFF
Specifications:
1
Line-of-sight range. Actual range may vary depending on the installation and operating environment.
2
DP-T100-2Q only. DP-T100-1Q comes with a single wireless intercom. 3Batteries and power adapter not included.
Dimensions:
Parts List:
2x Wireless Intercom Units
2
1x Manual
ENFORCER Wireless Intercom
SECO-LARM U.S.A., Inc. 3
Overview:
Installation Notes:
Battery Installation
1. Press and slide battery cover open (see Fig. 1).
2. Insert 4 AA batteries (not included) into the
battery compartment (see Fig. 2).
Important: To use
rechargeable batteries and charge
them using a power adapter, slide the battery mode
switch to the position (see Fig. 3). For alkaline
batteries, you must leave the battery mode switch in
the
position (default).
Failure to do so may result in
damage to the unit.
1. Unpack the wireless intercom and note the included parts.
2. Read this manual thoroughly. A clear understanding of the manual will make installation and
operation much easier.
3. Find a good location to mount or set the units (desk, wall, etc.).
4. The intercom contains no user-serviceable parts. Opening them may damage sensitive
components and will void the warranty.
Channel indicator LEDs
Transmission Indicator LED
Pairing button
Power On/Off
DC Jack
Antenna
Volume up
Volume down
/hibernate
Privacy button
/
LED
Hands
-
free button
/LED
Talk button
Lock button
/LED
Call button
NOTE: Intercoms can handle multiple channels communicating simultaneously without interference.
Powering the Wireless Intercom:
The wireless intercoms may be powered by 4 AA
batteries (alkaline or rechargeable) or by a 12VDC
power adapter (both not included).
Power Adapter
(not included)
Plug a 12VDC power adapter into
the DC jack.
Fig. 3
Fig. 2
Fig. 1
Battery mode switch
Channel selector
